2019 Winnebago Navion 24D - Stock# 12103

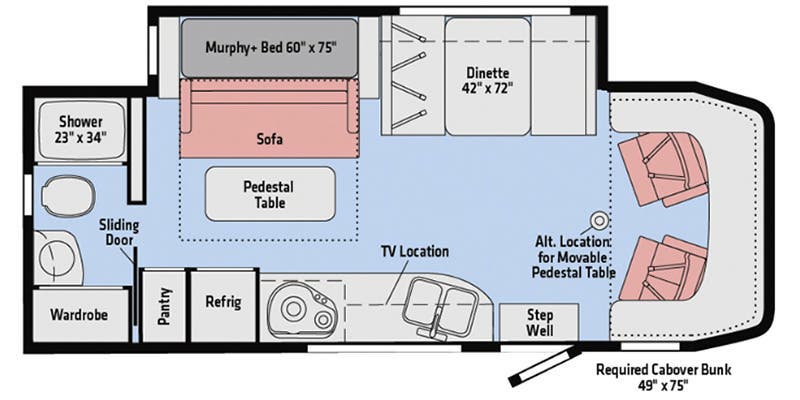

Floor Plans
OPTIONS INCLUDED:
J32: Zinc/Gray/HG Marbella Canvas
153: LG Screen-Infotain GPS/ SirusXM
23T: Drainage System-Heated
28D: Window Blinds (3) CAB
29Z: A/C Heat Pump
31T: Front Cab with Bed
316: Skylight/roof vent. Power
33F: Gen- 3.2 KW Diesel
35J: Bike Rack
36C: Collision Avoidance System
54W: Wheels-Stylized Aluminum
62E: Cab Seat Lounge Cushions
64A: Jacks-Stabilizing. Electric
95G: Full Body Paint: Bay Mist
WEIGHTS & MEASURES
| 24D | 24G | 24J | 24V | |
|---|---|---|---|---|
| LENGTH | 25’8″ | 25’8″ | 25’8″ | 25’8″ |
| EXTERIOR HEIGHT1 | 11’1″ | 11’1″ | 11’1″ | 11’1″ |
| EXTERIOR WIDTH | 7’6″ | 7’6″ | 7’6″ | 7’6″ |
| EXTERIOR STORAGE2 (CU. FT.) | 39 | 53 | 48 | 43 |
| AWNING LENGTH | 16′ | 16′ | 16′ | 16′ |
| INTERIOR HEIGHT | 6’8″ | 6’8″ | 6’8″ | 6’8″ |
| INTERIOR WIDTH | 7’3″ | 7’3″ | 7’3″ | 7’3″ |
| FRESHWATER TANK CAPACITY3 (GAL.) | 30 | 31 | 32 | 31 |
| WATER HEATER CAPACITY (GAL.) | CONTINUOUS | CONTINUOUS | 6 | 6 |
| OPTIONAL WATER HEATER CAPACITY (GAL.) | N/A | N/A | CONTINUOUS | CONTINUOUS |
| HOLDING TANK CAPACITY – BLACK/GRAY3 (GAL.) | 40/34 | 36/40 | 34/40 | 36/36 |
| LP CAPACITY4 (GAL.) | 13 | 13 | 13 | 13 |
| FUEL CAPACITY (GAL.) | 26.4 | 26.4 | 26.4 | 26.4 |
| GCWR5 (LBS.) | 15,250 | 15,250 | 15,250 | 15,250 |
| GVWR (LBS.) | 11,030 | 11,030 | 11,030 | 11,030 |
| GAWR – FRONT (LBS.) | 4,410 | 4,410 | 4,410 | 4,410 |
| GAWR – REAR (LBS.) | 7,720 | 7,720 | 7,720 | 7,720 |
| WHEELBASE | 170″ | 170″ | 170″ | 170″ |
| SEATING CAPACITY | 4 | 3 | 5 | 4 |
3.0L 6-CYLINDER, 188-HP, TURBO-DIESEL ENGINE, 5-SPEED AUTOMATIC TIP-SHIFT TRANSMISSION, 220-AMP. ALTERNATOR
Adaptive ESP® technology
Hydraulic brakes w/ABS
Trailer Hitch5 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
Stainless steel wheel liners (24J, 24V)
Alcoa forged aluminum wheels (24G)
Optional Equipment
Stylized chrome wheels (24J, 24V)
Alcoa forged aluminum wheels (24J, 24V)
2-point electric stabilizing system (Requires Alcoa forged aluminum wheels)
Radio/Rearview Monitor System DVD receiver with 6.2″ LCD color touch screen, handheld remote, iPod®/MP3 input, rear color camera, Bluetooth®, SiriusXM® (includes 90-day trial subscription), Spotify®, AppRadio One
Cab seats armrest, adjustable lumbar support, headrest, recline, swivel and slide
Airbags driver and passenger
3-point seat belts
Power door locks w/remote
Power windows
Power mirrors w/defrost and turn signals
Cruise control
Chassis/house battery radio power switch
Power steering w/tilt wheel
Sunvisors
12-volt powerpoints
Pleated windshield blinds
Privacy curtain (cab windows)
Dash appliqué package
Optional Equipment
Large Screen Infotainment Center with Rand McNally RV GPS 9″ touch screen color monitor w/split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio w/CD/DVD player, handheld remote, SiriusXM™ (includes 90-day trial subscription), iPod/iPhone® audio integration, Bluetooth™, color rearview camera, USB connection
2 cab seat lounge cushions
Sliding, pleated windshield blinds
Mobileye® Collision Avoidance System
JBL premium audio tuned 180-watt DSP amplifier with 5 speakers including subwoofer
Stereo System AM/FM, alarm clock, CD/DVD player, input jack, Bluetooth®, 2 speakers and subwoofer
28″ HDTV
LED lights
Satellite system ready
Monitor panel
Amplified digital HDTV antenna
Roof vent w/electric lift and ventilator fan (NA w/available powered skylight)
Mini blinds (galley)
Skylight w/shade
MCD solar/blackout roller shades
Tinted coach windows
Soft vinyl ceiling
Vinyl flooring throughout (24G front to bedroom)
Assist bar
USB charger
Interior Upgrade Package frosted galley backsplash w/accent lighting, 2 sink covers
Optional Equipment
Powered skylight/roof vent w/sliding screen and pleated shade
Dual-pane acrylic windows
Sofa Sleeper (24G)
Laminate countertops
Microwave/convection oven w/touch control
2-burner range top w/glass cover
Norcold® double-door refrigerator/freezer
Cold water filtration system
Water-pump switch w/light
Optional Equipment
Bike rack
15,000 BTU air conditioner
20,000 BTU low-profile furnace
Optional Equipment
15,000 BTU air conditioner w/heat pump
Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
Auxiliary start circuit
Exterior AC duplex
Exterior antenna jack
Battery disconnect system (coach)
Automatic dual-battery charge control
AC/DC load center, 45-amp. converter/charger
2 deep-cycle, Group 24 RV batteries
3,600-watt Cummins Onan MicroQuiet™ LP generator
1,000-watt DC/AC inverter
Optional Equipment
3,200-watt Cummins Onan® diesel generator
100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel
