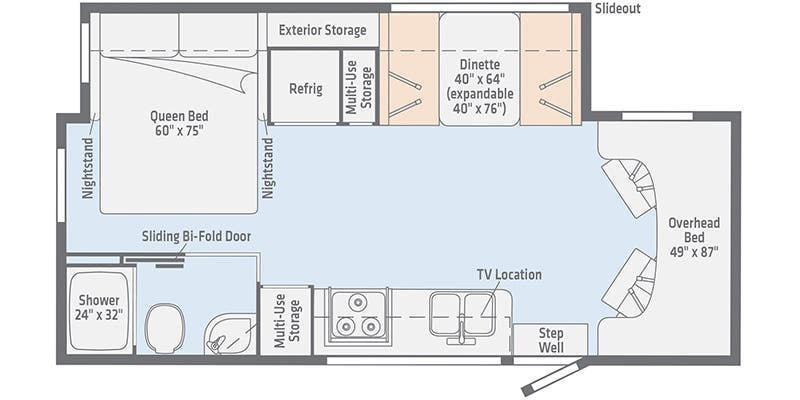

Floor Plans
Options Included:
L22: Mystical/Gray/Glazed Kona II
46A: Paint & Graphics – Pacific Mist
WEIGHTS & MEASURES
| NEW 24F | NEW 24P | |
|---|---|---|
| Length | 24’7″ | 24’7″ |
| Exterior Height | 11’6″ | 11’6″ |
| Exterior Width | 7’6″ | 7’6″ |
| Exterior Storage2 (cu. ft.) | 42 | 45 |
| Awning Length | 15′ | 15′ |
| Interior Height | 7′ | 7′ |
| Interior Width | 7’3″ | 7’3″ |
| Freshwater Tank Capacity3 (gal.) | 37 | 37 |
| Water Heater Capacity (gal.) | 6 | 6 |
| Holding Tank Capacity – Black/Gray3 (gal.) | 41/41 | 41/41 |
| LP Capacity4 (gal.) | 12.2 | 12.2 |
| Fuel Capacity (gal.) | 26.4 | 26.4 |
| GCWR5 (lbs.) | 15,250 | 15,250 |
| GVWR (lbs.) | 11,030 | 11,030 |
| GAWR – Front (lbs.) | 4,410 | 4,410 |
| GAWR – Rear (lbs.) | 7,720 | 7,720 |
| Wheelbase | 170″ | 170″ |
| Seating Capacity | 4 | 4 |
MERCEDES-BENZ® SPRINTER CHASSIS
3.0L 6-cylinder, 188-hp, turbo-diesel engine, 5-speed automatic tip-shift transmission, 220-amp. alternator
Adaptive ESP® technology
Hydraulic brakes w/ABS
Trailer Hitch5 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
Stainless steel wheel liners
2-point electric stabilizing system
CAB CONVENIENCES
Radio/Rearview Monitor System 6.5” LCD color touch screen, handheld remote, iPod®/MP3 input, rear color camera, Bluetooth®
Cab seats armrest, adjustable lumbar support, headrest, recline, swivel and slide
Airbags driver and passenger
3-point seat belts
Power door locks w/remote
Power windows
Power mirrors w/defrost and turn signals
Cruise control
Chassis/house battery radio power switch
Power steering w/tilt wheel
Sunvisors
12-volt powerpoints
Folding privacy screens
2 cab seat lounge cushions
INTERIOR
32″ HDTV
LED lights
Systems monitor panel
Amplified digital HDTV antenna
Powered roof vent
Mini blinds (galley)
Pleated night shades
Tinted coach windows
Vinyl flooring throughout
Assist bar
USB charger
GALLEY
Thermoformed countertops and decorative backsplash
Microwave/convection oven
3-burner range top w/glass cover
Double-door 7.3 cu. ft. residential refrigerator/freezer
Pantry w/adjustable shelves
Double sink w/cover/cutting board
Roof vent
Lighted spice rack
BATH
Shower w/wall surround
Retractable, self-cleaning shower screen
Shower light w/wall switch
Flexible showerhead
Shower skylight
Toilet w/hand flush
Powered roof vent
Towel bar (24P)
Tissue holder
Robe hook(s)
Medicine cabinet
Decorative backsplash (24F)
Sliding bathroom door (24P)
Linen cabinet (24F)
BEDROOM
Corner bed w/foam mattress, mattress cover (24F)
Queen bed w/cabinet, foam mattress and mattress cover (24P)
Metal clothes rod
Wardrobe
EXTERIOR
LED porch light w/interior switch
Front mud flaps
Powered patio awning w/LED lights
Lighted storage compartments
Ladder
Entrance screen door
Running board w/logo tread
Pet leash hook
HEATING & COOLING
13,500 BTU air conditioner
20,000 BTU low-profile furnace
13,500 BTU air conditioner
20,000 BTU low-profile furnace
ELECTRICAL SYSTEM
Auxiliary start circuit
Exterior AC duplex
Exterior antenna jack
Battery disconnect system (coach)
Automatic dual-battery charge control
AC/DC load center, 55-amp. converter/charger
2 deep-cycle, Group 31 RV batteries
3,600-watt Cummins Onan® MicroQuiet™ LP generator
1,000-watt pure sine wave DC/AC inverter
(2) 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel
Cable TV input
30-amp. power cord
Portable satellite dish hookup
PLUMBING SYSTEM
Pressurized city water hookup
6-gal. LP water heater w/electric ignition
Permanent-mount LP Tank
On-demand water pump
LPG accessory connection (patio area)
Holding tank flushing system
Winterization package water heater bypass valve and siphon tube
SAFETY
LP, smoke, and carbon monoxide detectors
10 BC fire extinguisher
Ground fault interrupter
Child seat tether anchor
High-mount brake lamps
Daytime running lamps
