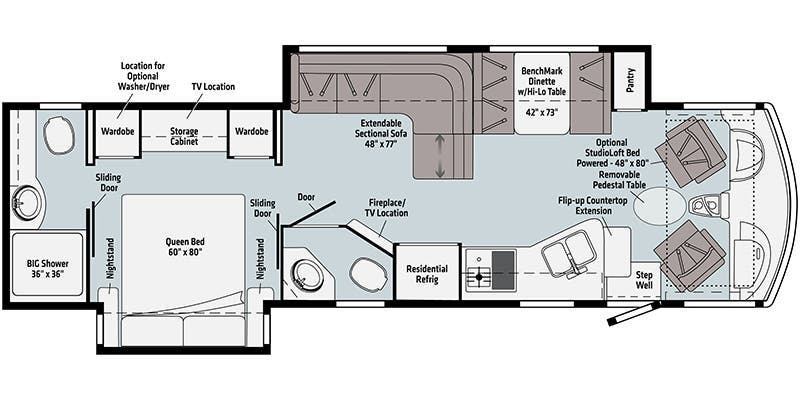

Floor Plans
OPTIONS INCLUDED:
M72: Cool Contrast/Cream/Driftwood
16U: Electronic Stability Control
3AA: Solar Panel/Battery Charging System
36N: Auxiliary Defroster Fans
45B: Loft Bed
54E: Washer/Dryer Combo
64C: 6-Way Power Passenger Seat W/Footrest
64O: 6-Way Power Driver Seat
70D: Satellite Radio with Sirius XM
74C: Video Camera System
95F: Full Body Paint – Nightshade
95R: Automatic Satellite TV Antenna
| 27N | 29B | 30T | 35F | 36Z | |
|---|---|---|---|---|---|
| Exterior Length | 28’5″ | 30’1″ | 31’1″ | 35’5″ | 36’11” |
| Exterior Height | 12’4″ | 12’4″ | 12’4″ | 12’6″ | 12’6″ |
| Exterior Width | 8’5.5″ | 8’5.5″ | 8’5.5″ | 8’5.5″ | 8’5.5″ |
| Exterior Storage (cu. ft.) | 123 | 147 | 118 | 137 | 122.2 |
| Awning Length | 19′ | 17′ | 19′ | 16′ | 26′ |
| Interior Height | 6’8″ | 6’8″ | 6’8″ | 6’8″ | 6’8″ |
| Interior Width | 8’0.5″ | 8’0.5″ | 8’0.5″ | 8’0.5″ | 8’0.5″ |
| Freshwater Tank Capacity (gal.) | 64 | 70 | 78 | 74 | 93 |
| Water Heater Capacity (gal.) | 6 | 6 | 6 | 10 | 10 |
| Holding Tank Capacity — Black (gal.) | 43 | 40 | 41 | 41 & 21 | 33 & 47 |
| Holding Tank Capacity — Gray (gal.) | 53 | 61 | 42 | 51 | 41 & 44 |
| LP Capacity (lbs.) | 76.14 | 76.14 | 76.14 | 76.14 | 76.14 |
| Fuel Capacity (gal.) | 80 | 80 | 80 | 80 | 80 |
| GCWR (lbs.) | 23,000 | 23,000 | 23,000 | 26,000 | 26,000 |
| GVWR (lbs.) | 18,000 | 18,000 | 18,000 | 22,000 | 22,000 |
| GAWR – Front (lbs.) | 7,000 | 7,000 | 7,000 | 8,000 | 8,000 |
| GAWR – Rear (lbs.) | 12,000 | 12,000 | 12,000 | 15,000 | 15,000 |
| Wheelbase | 178″ | 190″ | 190″ | 228″ | 242″ |
| Sleeps | 4 | 5 | 5 | 5 | 6 |
CHASSIS
Ford® F53 Chassis • 7.3L V8 engine, TorqShift™ 6-speed automatic transmission w/tow/haul, Hydro-Boost System power brakes, 4-wheel ABS, 210-amp. alternator (27N, 29B, 30T) • 7.3L V8 engine, TorqShift™ 6-speed automatic transmission w/tow/haul, Hydro-Max System power brakes, 4-wheel ABS, 210-amp. alternator (35F, 36Z) • 7-pin trailer wiring connector • Electronic stability control • Trailer Hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight • Automatic hydraulic leveling jacks w/3-position controls • Stainless steel wheel liners (27N, 29B, 30T) • Stylized aluminum wheels (35F, 36Z) • Rear valve stem extensions (27N, 29B, 30T)
CAB CONVENIENCES
Versa driver’s seat swivels easily around steering wheel, w/two-position armrest, fixed lumbar support, and multi-adjustable slide/recline • Passenger seat swivels, w/two-position armrest, fixed lumbar support, and multi-adjustable slide/recline 3-point seat belts • 7″ Bluetooth® multimedia radio/rearview/sideview monitor system w/color touch screen, iPod®/MP3 input, SiriusXM®-ready, AUX, USB, Apple CarPlay® , Android Auto™ • Chassis/house battery radio power switch • Power steering w/tilt wheel • Cruise control • Power mirrors w/defrost • Map lights • Powered MCD blackout roller visor/shade (front windshield) • MCD blackout roller shade (driver and passenger windows) • Dash workstation w/USB and 12-volt power • Convenience tray Instrument panel • Removable pedestal table Optional Equipment: Seat Pedestal – Driver’s Six-Way Power Assist • Seat Pedestal – Passenger’s Six-Way PowerAssist w/Powered Footrest • Video camera system side-mounted color cameras • Defroster fans • Satellite TV antenna w/receiver • Radio w/Satellite SiriusXM
INTERIOR
39″ HDTV (30T, 29B, 35F) • 48″ HDTV (27N, 36Z) • Omni-directional TV antenna • Electric fireplace (35F, 36Z) • LED ceiling lights • Satellite system ready • Soft vinyl ceiling • MCD solar/blackout shades • OnePlace® systems center • Tinted, dual-pane windows • Washer/dryer prep (35F, 36Z) • TrueComfort+ Sofa (30T, 36Z) • Extendable Sectional Sofa (35F) • Residential vinyl flooring throughout • USB ports in dining area • BenchMark Dinette w/Hi-Lo storage (27N, 29B, 35F, 36Z) • Dining table & chairs (30T) Optional Equipment: StudioLoft™ (powered w/ladder and LED lighting) • Theater seating (N/A 27N, 35F) • Washer/dryer combo (35F, 36Z)
GALLEY
Double stainless steel sink w/ bamboo sink covers • Microwave/convection oven touch control • Recessed 3-burner range top (30T) w/storage drawer • Gas/Induction Rangetop combo (27N, 29B, 35F, 36Z) • Solid surface countertop • Flip-up countertop extension (30T, 35F) • Double door 10 cu. ft. 12VDC stainless steel refrigerator/freezer (27N, 29B, 30T) • 2-door 16 cu. ft.110VAC Residential refrigerator/freezer w/icemaker (35F, 36Z) • Pantry baskets (27N, 29B, 30T, 35F) • Cold water purification system
BATH
Flexible showerhead • Textured glass shower door • Skylight • Porcelain toilet w/foot pedal and sprayer • Water pump switch(es) • Medicine cabinet (29B, 30T, 36Z) • Medicine corner cabinet (35F) • Linen cabinet (27N, 36Z) • Robe hook(s) (NA 35F) • Tissue holder • Powered ventilator fan • Towel bar(s) (NA 27N) • Wall mirror (27N, 29B, 35F, 36Z)
BEDROOM
Queen bed w/foam mattress and storage below • Headboard • Wardrobe • Chest of drawers (27N) • Storage cabinet (29B, 30T, 35F, 36Z) • 24″ HDTV (27N, 29B, 30T) • 32″ HDTV (35F, 36Z) • Powered ventilator fan (27N, 36Z) • Pet Palace for pet access or storage (27N, 30T) Optional Equipment: King bed w/storage (36Z)
EXTERIOR
Automatic entrance door steps • Porch light • Lighted storage compartments • Premium high-gloss fiberglass skin • KeyOne™ lock system • Front mud flaps • Ladder • Powered patio awning w/LED lighting • Rearview Mirrors w/defrost & power adjust • Protective front mask • PetPal leash tie down • Assist handle • Entertainment Center 32″ HDTV, 2 speakers, DVD player, AM/FM radio (NA 30T) • Entertainment Center AC/DC receptacle, AM/FM radio, 2 speakers, removable TV table, portable satellite dish hookup (30T) • Tailgate Package refrigerator, 3-drawer cabinet, LED lights, Quick-Connect LP hose, stainless steel sink, wall-mounted bottle opener, garbage bag holder, paper towel holder (29B)
HEATING & COOLING SYSTEM
Front A/C 15,000 BTUs w/heat pump, rear A/C 13,500 BTUs • 35,000 BTU ducted furnace in-floor (27N, 29B, 30T) • 40,000 BTU ducted furnace in-floor (35F, 36Z)
ELECTRICAL SYSTEM
AC/DC electrical distribution system • 45-amp. converter/charger (27N, 29B, 30T) • 55-amp.converter/charger (35F, 36Z) • 50-amp. power cord • 5,500-watt Cummins Onan® Marquis Gold™ gas generator • Automatic generator start system • Generator/shoreline automatic changeover switch • 2 deep-cycle, Group 31 Marine/RV batteries (27N, 29B, 30T) • 4 deep-cycle, Group 31 Marine/RV batteries (35F, 36Z) • Battery disconnect systems (coach and chassis) • PowerLine® Energy Management System • Automatic dual-battery charge control • Auxiliary start circuit • Exterior antenna jack and AC duplex receptacle • 1,000-watt inverter (27N, 29B, 30T) • 2,000-watt inverter/charger (35F, 36Z) • Cable TV input • Portable satellite dish hookup • Wi-Fi Prep Kit • Solar panel/battery charger prep kit Optional Equipment: Solar panel battery charger
PLUMBING SYSTEM
Service center color-coded labels, pressurized city water hookup w/diverter valve, drainage valves, 10′ sewer hose, QuickPort® service connection hatch, exterior wash station w/lighted pump switch, sewage pump macerator • Permanent-mount LP tank w/gauge • On-demand water pump • TrueLevel™ holding tank monitoring system • Winterization Package water heater bypass valve and siphon tube • Heated holding tank compartment • 6-gallon 110-volt/LP water heater (27N, 29B, 30T) • 10-gallon 110-volt/LP water heater (35F, 36Z) • Gravity water tank fill w/lockable door (36Z) • Holding tank flushing system • LPG accessory connection (patio area) • Water system filtration package SAFETY Child seat tether anchor in forward-facing dinette seat (27N, 29B, 35F, 36Z) • LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • High-mount brake lamp
WARRANTY
12-month/15,000-mile basic limited warranty • 36-month/36,000-mile limited warranty on structure • 10-year limited parts-and-labor warranty on roof skin
*Disclaimer: Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle. In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
