- MSRP: $287,258
-
Sleeps 3
-
1 Slides
-
Bunk Over CabMurphy Bed
-
26ft Long

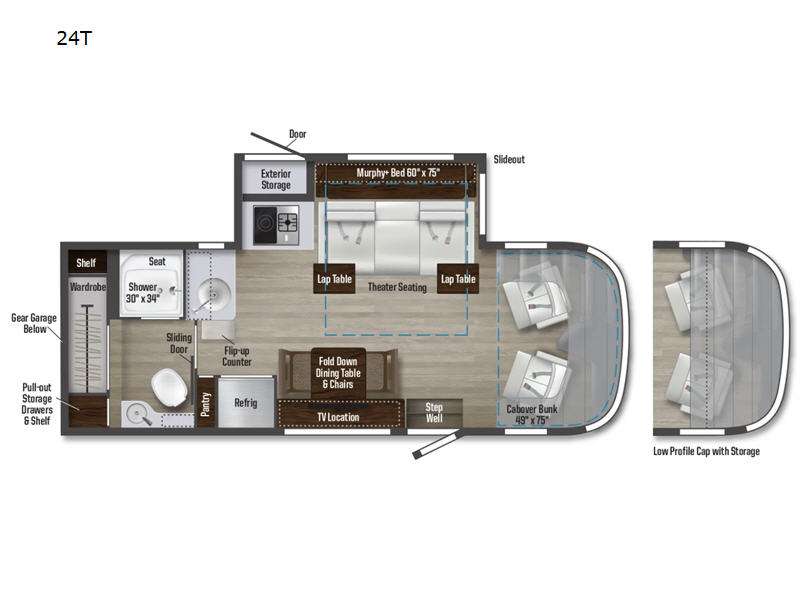

24T Floorplan
Specifications
| Sleeps | 3 | Slides | 1 |
| Length | 25 ft 8 in | Ext Width | 7 ft 7 in |
| Ext Height | 10 ft 7 in | Int Height | 6 ft 8 in |
| Exterior Color | MISTY LAKE | Hitch Weight | 5000 lbs |
| GVWR | 11030 lbs | Fresh Water Capacity | 30 gals |
| Grey Water Capacity | 46 gals | Black Water Capacity | 47 gals |
| Furnace BTU | 25000 btu | Fuel Type | Diesel |
| Miles | 1277 | Engine | 2.0L High Output Turbo Diesel 4-Cylinder |
| Chassis | Mercedes-Benz RWD Sprinter | Fuel Capacity | 24.5 gals |
| Wheelbase | 170 in | Number Of Bunks | 1 |
| Available Beds | Murphy | Refrigerator Type | 12V Two Door Compressor Driven |
| Refrigerator Size | 10 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 2 | Shower Size | 30" x 34" |
| Number of Awnings | 1 | Axle Weight Front | 4410 lbs |
| Axle Weight Rear | 7720 lbs | LP Tank Capacity | 50.76 |
| Water Heater Type | Truma AquaGo Comfort Plus Tankless | AC BTU | 15000 btu |
| Basement Storage | 80.9 cu. ft. | TV Info | 32" LED HDTV |
| Awning Info | 16' Power with LED Lights & Bluetooth Control | Gross Combined Weight | 15250 lbs |
| Shower Type | Shower w/Seat | Electrical Service | 30 amp |
| VIN | W1X8N33Y2SN322653 |
Description
Winnebago Navion Class C diesel motorhome 24T highlights:
- Rear Bath
- Murphy+ Bed
- Fold-Down Table and Chairs
- Swivel Cab Seats
- Bunk Over Cab
The perfect couples coach or for a family of three or four! This versatile Murphy bed unit will offer you sleeping space when you need it, then a comfortable living area during the day with plenty of seating all while keeping your same coach length. You will be able to easily set up the queen Murphy+ bed when it's time for bedtime while the kids or your guests sleep on the 49" x 75" cabover bunk. You can also choose the optional low profile front cap with storage if you do not need the added sleeping space. Everyone can get cleaned up in the full bathroom that has a space-saving sliding door and large bath wardrobe along the very rear that features a gear garage below. Create yummy meals and snacks using the kitchen appliances and the flip-up counter, then dine at the fold-down table with chairs, or eat seated on the theater seating with lap tables nearby on either side. An optional 3800W RVMP LP generator is also available with this model.
The Winnebago Navion 24T and 24R Class C diesel motorhomes are functional, innovative, and stylish! You can rule the interstate with the Mercedes-Benz RWD Sprinter chassis, or choose the optional Mercedes-Benz AWD Sprinter chassis to tackle tougher terrain. A Lithium Power Package comes with a 320-amp-hour lithium battery and a dedicated second alternator that will allow you to charge the batteries faster while you're on the road. There are also two 120-watt solar panels to keep you going when you're off-grid. Since there is a heated gear garage with L-track cargo tie-downs, you can bring along two full-size bikes and additional gear for hiking, plus there are 110V/12V charging ports and LED lighting here for added convenience. The contemporary interior features blackout roller shades for the lounge and dining area, woven vinyl flooring throughout, and dimmable LED lighting. There is also a Winnebago Connect that is integrated into your Winnebago app that acts as your RV companion. Now you can stay informed on vehicle system alerts, travel prep resources, energy management, and more!
Features
Standard Features
Chassis
- Mercedes-Benz® RWD Sprinter Chassis 2.0L high-output, turbo-diesel 4-cylinder engine, 9-speed automatic transmission with overdrive, 250-amp alternator
- LED High Performance headlamps
- Adaptive ESP technology
- Hydraulic brakes w/ABS (N/A 24T, 24R)
- Trailer Hitch: 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
- Stylized aluminum wheels
- Hydraulic leveling jack w/automatic controls (front and rear) (24T, 24R Only)
Optional Equipment
- Hydraulic leveling jacks w/automatic controls (front and rear) (24D, 24J, 24V)
- Mercedes-Benz® AWD Sprinter Chassis 2.0L high-output, turbo-diesel 4-cylinder engine, 9-speed automatic transmission with overdrive, 250-amp. alternator (requires Low Profile Front Cap) (24T, 24R Only)
Cab Conveniences (24D, 24J, 24V Only)
- MBUX® touchscreen multimedia infotainment system with navigation, satellite radio, Wi-Fi hotspot, intelligent voice control, SiriusXM®, Apple CarPlay®, Android Auto™, Bluetooth®, and rear camera
- Mercedes me connect vehicle app
- Heated power control cab seats, memory control, armrest, adjustable lumbar support, headrest, recline, slide, and manual swivel
- 3-point seat belts
- Airbags driver, passenger, side, and curtain
- Power assist steering w/tilt wheel
- Digital rearview mirror
- Active brake assist
- Lane keeping assist
- Attention assist
- Hill start assist
- Crosswind assist
- Rain sensor w/integrated wet wiper system
- DISTRONIC PLUS® (adaptive cruise control)
- Power mirrors w/defrost and turn signals
- Auto headlamps w/high beam assist
- Automatic climate control
- Power door locks w/remote
- Power windows
- Dash charging station w/wireless charging, 12-volt, and USB powerpoints
- Dash appliqué package
- Sunvisors
- Folding windshield and cab window blinds
- Leather-wrapped steering wheel
- 2 cab seat lounge cushions
Cab Conveniences (24T, 24R Only)
- MBUX® touchscreen multimedia infotainment system with navigation, satellite radio, Wi-Fi hotspot, intelligent voice control, SiriusXM®, Apple CarPlay®, Android Auto™, Bluetooth®, and rear camera
- Mercedes me connect vehicle app
- Heated power control cab seats, memory control, armrest, adjustable lumbar support, headrest, recline, slide, and manual swivel
- 3-point seat belts
- Airbags driver, passenger, side, and curtain
- Power assist steering w/tilt wheel
- Digital rearview mirror
- Blind spot monitoring system (late availability)
- Active brake assist
- Lane keeping assist
- Attention assist
- Hill start assist
- Crosswind assist
- Rain sensor w/integrated wet wiper system
- DISTRONIC PLUS® (adaptive cruise control)
- Power mirrors w/defrost and turn signals
- Auto headlamps w/high beam assist
- Automatic climate control
- Power door locks w/remote
- Power windows
- Dash charging station w/wireless charging, 12-volt, and USB powerpoints
- Dash appliqué package
- Sunvisors
- Thermal cab windows and windshield blinds
- Leather-wrapped steering wheel
- 2 cab seat lounge cushions
Optional Equipment
- Cab seats w/Ultrafabrics® UF Select covering
Electrical System (24D, 24J, 24V Only)
- Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
- Automatic dual battery charge control
- Exterior AC duplex
- Exterior antenna jack
- Generator auto transfer switch
- Battery disconnect system (coach)
- AC/DC load center/converter unit
- 2 deep-cycle, Group 31 RV batteries
- 3800W RVMP Flex Power Generator
- 2,000-watt pure sine wave DC/AC inverter
- (2) 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel
Optional Equipment (24D, 24J, 24V Only)
- Lithium Ion Smart Batteries
- 3,200-watt Diesel generator
Electrical (24T, 24R Only)
- (1) 320-amp-hour 12V Lithionics® lithium battery w/Bluetooth control package and battery pack heating system
- Coach battery disconnect system
- AC/DC load center/converter unit
- Dedicated 280-amp. second alternator to charge coach batteries
- Exterior AC duplex receptacle
- Exterior TV jack
- 30-amp. power cord
- Service Center w/light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
- (2) 120-watt flexible surface solar panel/battery charger controller, junction box, and plug for additional portable solar panel
- 2,000-watt pure sine wave DC/AC inverter
- WiFi router
Optional Equipment (24T, 24R Only)
- RVMP® 3800W LP generator w/auto transfer switch and auto start system (N/A w/Generator Replacement Package)
- Generator Replacement Package includes 960-amp-hour 12V Lithionics® lithium battery pack w/Bluetooth® control package, battery pack heating system, and (4) 120-watt solar panels (N/A w/LP generator)
Interior (24D, 24J, 24V Only)
- 32" HDTV
- U-Shaped dinette (24D, 24J)
- TrueComfort+ sofa w/table (24V)
- LED lights
- Satellite system ready
- Amplified digital HDTV antenna
- Powered roof vent — rain cover, electric lift, remote control, thermostat operation (front bunk)
- MCD solar/blackout roller shades
- Systems monitor panel
- Tinted coach windows
- Assist bar
- Vinyl flooring throughout
- Soft vinyl ceiling
- 110V/12V/USB charging stations
- Roof wiring access port
Optional Equipment (24D, 24J, 24V Only)
- Dual pane acrylic windows
- Dual recliners w/table (24V)
- Theater seating w/swivel tables (24D, 24J)
- Entertainment System Blu-ray disc player and Bluetooth® Soundbar
Interior (24T, 24R Only)
- Dimmable LED ceiling lights
- Blackout roller shades (lounge & dining)
- Tinted coach windows
- Winnebago Connect™ 10" touchscreen w/available companion mobile app
- Powered roof vent w/rain cover, electric lift, remote control, thermostat operation (front bunk/lounge)
- Fold down dining table and chairs
- Power reclining theater seating w/fold down center armrest w/2 cupholders, USB charging outlets, and removable swivel lap tables
- Cabover bunk 49" x 75" (N/A w/ Low Profile Front Cap)
- 32" LED HDTV
- JBL Bluetooth® soundbar
- Satellite system ready
- Amplified digital TV antenna
- Roof wiring access port
- 120V, 12V, USB-A, USB-C charging ports throughout
- Assist bar
- Woven vinyl flooring throughout
- Soft vinyl ceiling
- Dimmable overhead accent LED lighting
- Dimmable toe kick accent LED lighting
Optional Equipment (24T, 24R Only)
- Dual-pane euro acrylic windows w/screen and cassette shade
- Low Profile Front Cap with lighted storage
- Dual recliners w/removable pedestal table (24R only)
Galley (24D, 24J, 24V Only)
- Laminate countertops
- Microwave/convection oven w/touch control
- 2-burner induction & LP range cooktop
- 10.0 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer
- Cold water filtration system
- Water-pump switch w/light
- Pantry (24D, 24J)
- Cabinets with accent lighting
- Lighted soft close drawers
- Integrated paper towel holder
- Double stainless steel sink w/two sink covers
- Mini blinds
- Toe kick lighting
Galley (24T, 24R Only)
- Laminate countertops
- 2-burner induction & LP range cooktop
- 1.6 cu ft. OTR microwave/convection oven w/touch control (24T)
- 1.1 cu. ft. microwave/convection oven w/touch control (24R)
- 10.0 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer
- Single stainless sink w/cover
- Single control faucet w/sprayer
- Pantry (24T Only)
- Flip-up countertop extension
- Pop-up outlet w/(2) 120V & (2) USB-A ports
- Cold water filtration system
- Water-pump switch
- Mini blinds
- Overhead cabinets w/dimmable LED accent lighting
- Lighted soft-close drawers
- Dimmable toe kick accent LED lighting
Bath (24D, 24J, 24V Only)
- Shower 24" x 32" (24D, 24J)
- Shower 19" x 28" x 34" (24V)
- Retractable, self-cleaning shower screen
- Oxygenics® flexible showerhead
- Shower skylight
- Porcelain toilet w/foot pedal and sprayer (24J, 24V)
- Composite Toilet (24D)
- Powered roof vent w/rain cover
- Lavatory cabinet
- Medicine cabinet
- Mini blinds (24D)
- Towel rack (24V)
- Towel bar(s) (24J, 24V)
- Tissue holder
- Removable clothes rod
- Robe hook(s)
- Integrated facial tissue holder
- Toe kick lighting
Bath (24T, 24R Only)
- 30" x 34" shower w/built-in seat (24T)
- 25" x 30" shower (24R)
- Retractable, self-cleaning shower screen
- Hand held flexible showerhead
- Lockable bath door (24R)
- Shower skylight
- Porcelain toilet w/foot pedal
- Full width wardrobe cabinet w/sliding doors, 2 drawers, and 3 shelves
- Metal clothes rod in wardrobe (24T)
- Removable clothes rod in shower
- Powered roof vent w/rain cover
- Lavatory cabinet
- Tissue holder
- Lightweight solid surface countertop w/integrated round sink
- Linen cabinet w/adjustable shelves (24T)
- Robe hook(s)
- Dimmable medicine cabinet accent LED lighting (24R)
- Dimmable toe kick accent LED lighting
Bedroom (24D, 24J, 24V Only)
- Murphy+ bed w/deluxe queen mattress, Euro-suspension system, gel foam topper (24D)
- Corner bed w/headboard, foam mattress, mattress cover and access to storage below (24J)
- Flex Bed System twin beds/king bed w/foam mattresses and access to storage below (24V)
- FROLI® deluxe sleeping system (24J, 24V)
- MCD blackout roller shades
- Wardrobe cabinet
- Metal clothes rod
- Room divider curtain
- Anything Keeper drop down storage above bed (24J, 24V)
- 110V/12V/USB charging stations (24J, 24V)
- 110V/USB charging station (24D)
- 24" LED HDTV (24J, 24V)
Bedroom (24T, 24R Only)
- 60" x 75" Murphy+ queen bed w/WinnSleep® System (24T)
- 32" x 76" Twin beds w/WinnSleep system (24R)
- FROLI deluxe sleeping system (24R)
- Wardrobe/drawer storage below beds (24R)
- 110V/12V/USB-A/USB-C charging ports
- Reading lights
- 24" LED HDTV (24R)
Exterior
- Automatic entrance door step
- LED porch light w/interior switch
- Stepwell light w/interior switch
- Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports, and LED lighting (24T, 24R Only)
- Front and rear mud flaps
- Aluminum cab steps w/logoed tread and loop attachment
- Powered patio awning w/LED lights and Bluetooth® control
- Large pass-through storage compartment (24D, 24J)
- Ladder (N/A 24T, 24R)
Heating & Cooling System
- 15,000 BTU air conditioner w/heat pump
- 20,000 BTU low-profile ducted furnace (24D, 24J, 24V)
- 25,000 BTU low-profile ducted furnace (24T, 24R)
Optional Equipment
- High efficiency 15,000 BTU Truma Aventa Comfort air conditioner (24T, 24R)
Plumbing System (24D, 24J, 24V Only)
- Service Center — color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
- Truma AquaGo® Comfort Plus Tankless water heater
- TrueLevel™ holding tank monitoring system
- Heated drainage system
- 10' sewer hose
- Winterization Package water heater bypass valve and siphon tube
- On-demand water pump
- Lockable water tank fill
- Sewage pump macerator (24V)
- Permanent-mount LP tank w/gauge
- LPG accessory connection (patio area)
- Black holding tank flushing system
Plumbing System (24T, 24R Only)
- Insulated water service center houses color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
- Truma AquaGo® Comfort Plus tankless water heater w/ recirculation pump
- 12V heated drainage system
- 10' sewer hose
- Winterization Package water heater bypass valve and siphon tube
- On-demand water pump
- Lockable water tank fill
- Permanent-mount LP tank w/gauge
- LPG accessory connection (patio area)
- Black holding tank flushing system
Safety
- LPG leak, smoke and carbon monoxide detectors
- Fire extinguisher
- Ground fault interrupter
- Child seat tether anchor (24D, 24J)
- High-mount brake lamps (24T, 24R)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
Loading
Colonial RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @732-367-4499 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
