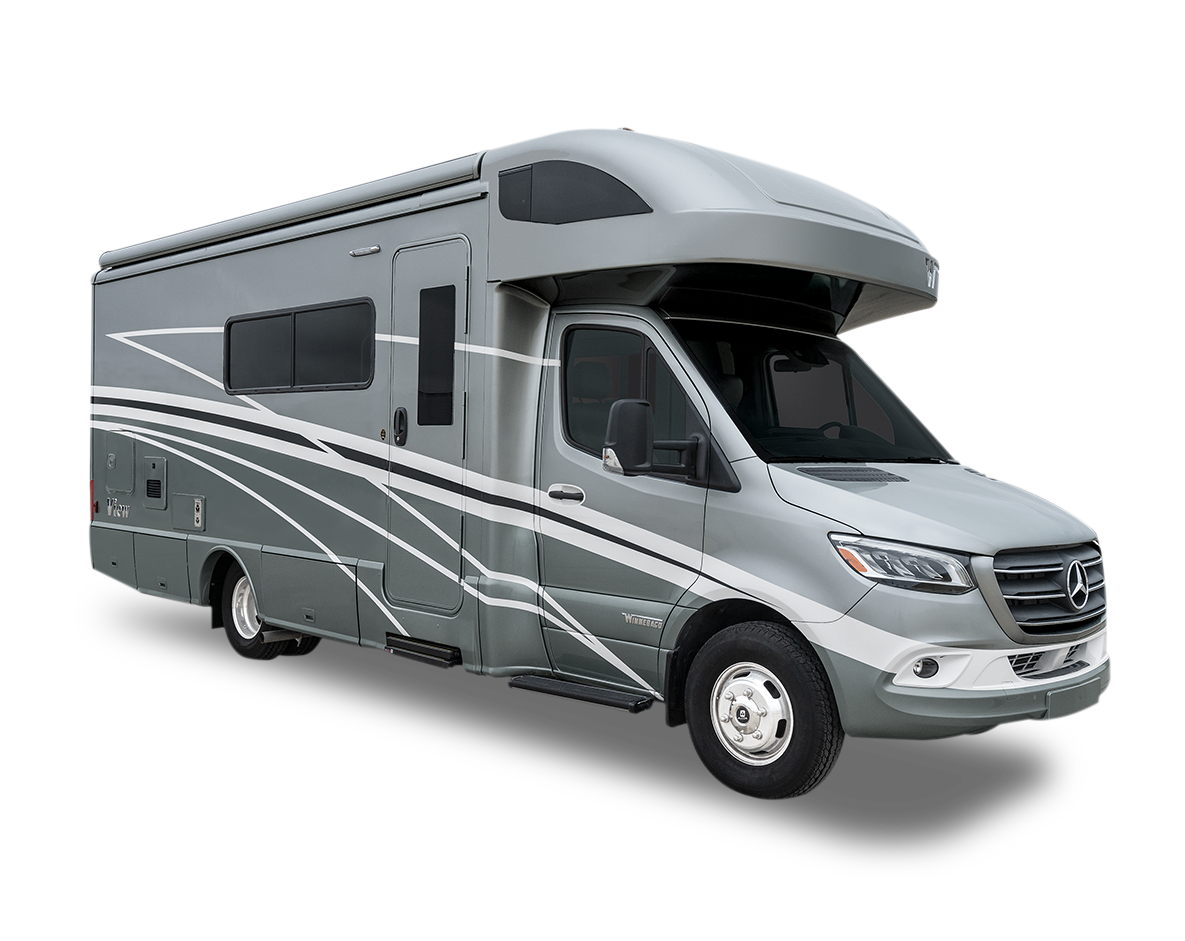

Winnebago Navion

If you want comfort and style in a go-anywhere motorhome that is built to last, the Navion® stands alone. Combining the heralded Mercedes-Benz Sprinter chassis with Winnebago’s legendary SuperStructure® construction, you get a coach that is fuel-efficient, powerful, and built to the highest standards. Four distinct floorplans give you choices on dining and sleeping configurations to fit your traveling needs, including a spacious U-shaped dinette in the 24J, the queen bed in the 24G, or the Flex Bed system in the 24V that can convert from a queen bed into separate twin beds. Thoughtful touches such as swivel cab seats with boosters and LED lighting show you that every detail was carefully considered. Make your way to the head of the class in your new Navion.

Have Any Questions

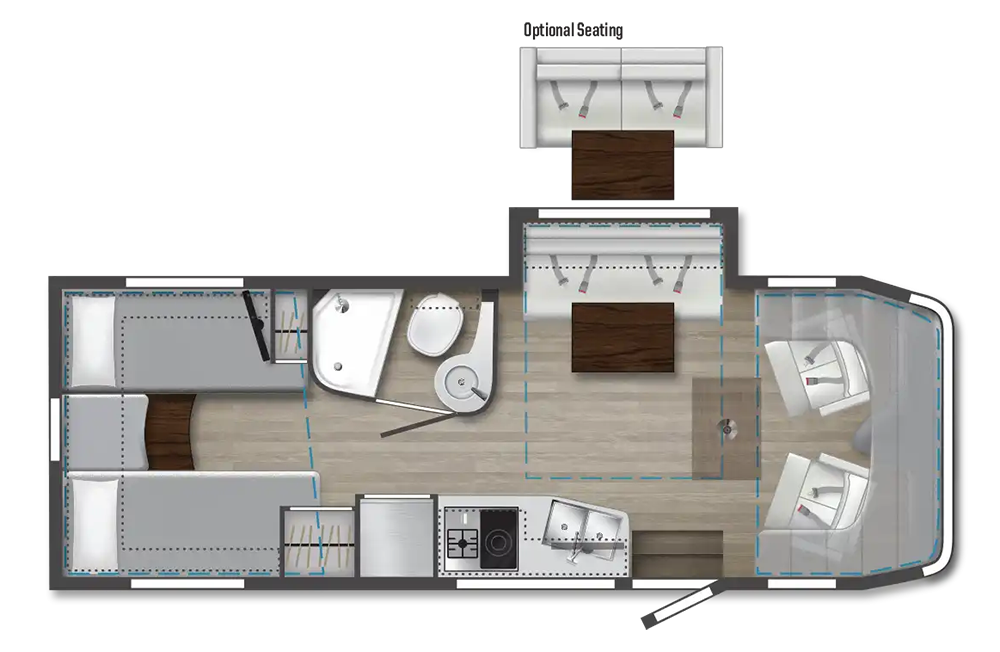

Floor Plans

Click floor plan to enlarge.

Take A 360 Degree Tour

Image Gallery

KEY FEATURES

Eliminate Pain in the You–Know–Where – Presenting the dinette, reconsidered: the BenchMark® full comfort dinette. In place of the customary slab of foam, its seats feature innerspring construction like that found in fine furniture. The result is exceptionally comfortable dining — and since the BenchMark converts instantly from a dinette to a comfortable bed — exceptionally comfortable sleeping as well. And unlike ordinary dinettes that use side doors or drawers for storage, the BenchMark seats flip up, providing easy access to the storage underneath (as well as 40% more storage than a similar dinette with side-drawer access). Dining, sleeping, or storing, the BenchMark full comfort dinette leaves you sitting pretty.

The BIG Shower from Winnebago Industries lives up to its name. In fact, it might be an understatement. The BIG Shower dwarfs most traditional RV showers with a wide entrance and plenty of elbow room. Enjoy a refreshing rinse in the BIG Shower and you will never look at RV showers the same way again.

Infotainment is at your fingertips. – The Infotainment Center with Rand McNally RV GPS has it all: touch screen color monitor with split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio with CD/DVD player, handheld remote, SiriusXM™ (subscription not included), compass, outside temperature, iPod®/iPhone® audio integration, Bluetooth™, and so much more.

Day or Night – The smooth-operating MCD solar/blackout roller shades set the ideal atmosphere in your coach, day or night. Besides providing ideal light and privacy, MCD solar/blackout roller shades offer upscale looks and performance and are easier to operate and clean than traditional pleated shades.

Control It All at OnePlace – The OnePlace® systems center allows you to monitor and control key systems from one convenient location. No more walking back and forth between the thermostat and generator, it’s all in one spot. The OnePlace panel features a streamlined appearance with a digital panel that is easy to read and operate. Stop the runaround with the OnePlace systems center.

The next class of polyurethane fabrics has arrived! – The Primera® Collezione is the first collection in a newly-created category of value-engineered polyurethanes from Ultrafabrics®. Utilizing performance-equipped polymers and a sturdy rayon/polyester blended backcloth, Primera’s construction meets or exceeds demanding performance standards. This fabric is the ideal upholstery solution with proven stain resistance and durability.

A Better Way to Manage Hoses and Cords – Say good–bye to wrestling power cords and water hoses through small holes. The QuickPort® service connection hatch makes hookups a snap—and helps keep your service area clean and tidy. It even allows the bay door to close with hookups connected.

Make the Most of Every Inch – The SmartSpace design philosophy encourages the use of innovative features to make the most efficient use of the available space in each coach. This design philosophy has led to the creation of features such as the BenchMark® full comfort dinette that has hidden storage compartments below the flip-up seats, full-extension drawer slides, and an extendable sectional sofa found in several of our coaches. From the Rest Easy multi-position lounge to the unique pull-out pantries, you’ll find a variety of SmartSpace features across our entire lineup of motorhomes.

a Better Way to Store Your Gear – Smart Storage places bulky systems and tanks in improved configurations, leaving more room for basement storage. Exterior storage is also easy to access with innovative features such as a large trunk with multiple doors and sliding storage trays on select models. Other clever features you might find include a storage well with a drain plug and a compartment cover that converts into a picnic table.

Creating Coaches of Lasting Beauty – Unlike some manufacturers, we use steel, not wood, to create a strong, durable cab substructure. We mount our windshields securely in steel with nonhardening sealants, just like an automobile. By using an advanced laser alignment system when mounting the cab to the chassis, we ensure a sturdy, square foundation.

Always Accurate – Mirus™ detector cell technology ensures accurate freshwater and wastewater tank level readings. Mirus detector cells produce a micro-electrical field that detects liquid levels from outside the tank. No more probes to corrode or clog. Just true, accurate readings time after time.

Navion Specifications

Weights and Measures

24D24J24V
Length25’5″25’5″25’5″
Exterior Height10’8″10’8″10’8″
Exterior Width7’6.25″7’6.25″7’6.25″
Exterior Storage (cu.ft.)30.043.033.6
Awning Length16′16′16′
Interior Height6’8″6’8″6’8″
Interior Width7’3″7’3″7’3″
Freshwater Tank Capacity (gal)303731
Water Heater CapacityContinuousContinuousContinuous
Holding Tank Capacity — Black (gal)414141
Holding Tank Capacity — Gray (gal)414141
LP Capacity (gal.)12.212.212.2
Fuel Capacity (gal.)24.524.524.5
GCWR (lbs.)15,25015,25015,250
GVWR (lbs.)11,03011,03011,030
GAWR — Front (lbs.)4,4104,4104,410
GAWR — Rear (lbs.)7,7207,7207,720
Wheelbase170″170″170″
Seating Capacity454

Mercedes Benz® Sprinter Chassis

  • 3.0 L 6-cylinder, 188-hp, turbo-diesel engine 7G -Tronic automatic transmission, 220-amp. alternator
  • Adaptive ESP technology
  • Hydraulic brakes w/ABS
  • LED headlights w/high beam assist
  • 2-point electric stabilizing system
  • Trailer Hitch5 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
  • Stylized aluminum wheels

Available Limited Edition Chassis:

  • Halogen headlights

Features not available with limited edition chassis: Fog lamps

Cab Conveniences

  • 10.25″ MBUX Touchscreen Multimedia Infotainment Center with Navigation, WiFi hotspot, Intelligent Voice Control and Rear Color Camera
  • Airbags driver, passenger, side and curtain
  • Heated power control cab seats — armrest, adjustable lumbar support, headrest, recline, slide, and manual swivel
  • 3-point seat belts
  • Automatic climate control
  • Leather-wrapped steering wheel
  • Power door locks w/remote
  • Power windows
  • Power mirrors w/defrost and turn signals
  • Adaptive cruise control
  • Active Brake Assist
  • Rain sensing wipers
  • Power assist steering w/tilt wheel
  • 12V/USB powerpoints
  • Folding windshield and cab window blinds
  • Dash appliqué package
  • 2 cab seat lounge cushions Traffic sign assist
  • Attention assist

Available Limited Edition Chassis:

  • 7″ MBUX Infotainment Center
  • Manual cab seat control w/power lumbar support control
  • Cruise control
  • Manual climate control

Features not available with limited edition chassis: Traffic sign assist, high beam assist, satellite radio, power heated seats, heated cab seats, leather wrapped steering wheel and wireless charging tray

Interior

  • 32″ HDTV
  • LED lights
  • Satellite system ready
  • Amplified digital HDTV antenna
  • Powered roof vent — rain cover, electric lift, remote control, thermostat operation (front bunk)
  • Mini blinds (galley)
  • MCD® solar/blackout roller shades
  • Systems monitor panel
  • Tinted coach windows
  • Assist bar
  • Vinyl flooring throughout
  • Soft vinyl ceiling
  • 110V/12V/USB charging stations
  • Roof wiring access port

Optional Equipment

  • Dual-pane acrylic windows

Galley

  • Laminate countertops
  • Microwave/convection oven w/touch control
  • 2-burner range top w/glass cover
  • Double-door 12V compressor refrigerator/freezer
  • Cold water filtration system
  • Water-pump switch w/light
  • Pantry (N/A 24V)
  • Cabinets with accent lighting
  • Lighted soft close drawers
  • Integrated paper towel holder
  • Double stainless steel sink w/2 sink covers

Bath

  • Shower 24″ x 32″ (N/A 24V)
  • Shower 19″ x 28″ x 34″ (N/A 24D, 24J)
  • Retractable, self-cleaning shower screen
  • Oxygenics® flexible showerhead
  • Shower skylight
  • Porcelain toilet w/foot pedal and sprayer (N/A 24D)
  • Composite Toilet (N/A 24J, 24V)
  • Powered roof vent w/rain cover
  • Lavatory cabinet
  • Medicine cabinet
  • Towel rack (N/A 24D, 24J)
  • Towel bar(s) (N/A 24D)
  • Tissue holder
  • Removable clothes rod
  • Robe hook(s)
  • Integrated facial tissue holder
  • Toe kick lighting (N/A 24V)

Bedroom

  • Murphy+ bed w/deluxe queen mattress, Euro-suspension system, gel foam topper (N/A 24J, 24V)
  • Corner bed w/headboard, foam mattress, mattress cover and access to storage below (N/A 24D, 24V)
  • Flex Bed System twin beds/king bed w/foam mattresses and access to storage below (N/A 24D, 24J)
  • FROLI® deluxe sleeping system (N/A 24D)
  • MCD® blackout roller shades
  • Wardrobe cabinet
  • Metal clothes rod (N/A 24V)
  • Room divider curtain
  • Anything Keeper™ drop down storage above bed (N/A 24D)
  • 110V/12V/USB charging stations (N/A 24D)
  • 110V/USB charging station (N/A 24J, 24V)
  • 24″ LED HDTV (N/A 24D)

Exterior

  • Automatic entrance door step
  • LED porch light w/interior switch
  • Stepwell light w/interior switch
  • Front and rear mud flaps
  • Aluminum cab steps w/logoed tread and loop attachment
  • Powered patio awning w/LED lights
  • Lighted storage compartments
  • Large pass-through storage compartment (N/A 24V)
  • Ladder

Heating & Cooling

  • 15,000 BTU air conditioner w/heat pump
  • 20,000 BTU low-profile ducted furnace

Electrical System

  • Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
  • Automatic dual battery charge control
  • Exterior AC duplex
  • Exterior antenna jack
  • Generator auto transfer switch
  • Battery disconnect system (coach)
  • AC/DC load center/converter unit
  • 2 deep-cycle, Group 31 RV batteries
  • 3,600-watt Cummins Onan® MicroQuiet™ LP generator
  • 2,000-watt pure sine wave DC/AC inverter
  • (2) 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel

Optional Equipment

  • Lithium Ion Smart Batteries
  • 3,200-watt Cummins Onan® Diesel generator

Plumbing

  • Service Center — color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
  • Truma AquaGo® Comfort Plus Tankless water heater
  • TrueLevel™ holding tank monitoring system
  • Heated drainage system
  • 10′ sewer hose
  • Winterization Package water heater bypass valve and siphon tube
  • On-demand water pump
  • Lockable water tank fill
  • Sewage pump macerator (N/A 24D, 24J)
  • Permanent-mount LP tank w/gauge
  • LPG accessory connection (patio area)
  • Black holding tank flushing system

Safety

  • LPG leak, smoke and carbon monoxide detectors
  • 10 BC fire extinguisher
  • Ground fault interrupter
  • Child seat tether anchor (NA 24V)
  • High-mount brake lamps
  • Daytime running lamps

Warranty

  • 12-month/15,000-mile basic limited warranty7
  • 36-month/36,000-mile limited warranty on structure7
  • 10-year limited parts-and-labor warranty on roof skin7

  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
  2. The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
  3. Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
  4. Capacities shown are tank manufacturer’s listed water capacity (W.C.). Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
  5. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. Please refer to the Operator’s Manual of your vehicle for further towing information.
  6. See separate chassis warranty.
  7. See your dealer for complete warranty information.

Specifications are subject to change without notification.
