Winnebago Revel

Designed specifically for active outdoor enthusiasts, the all-new Winnebago® Revel takes a no-nonsense approach to adventure, with straightforward design and function-driven features. Taking full advantage of the proven 4×4 Mercedes-Benz® Sprinter chassis, the Revel’s 3-liter turbo-diesel puts 325 lbs./ft. of torque through an on-demand 4WD system, complete with high/low range and hill descent mode for added off-road capability. Inside, the Revel’s unique features start with a floorplan designed around a 140-cu. ft. gear garage with a power lift bed. A full galley, including a 2.5-cu. ft. compressor refrigerator, makes meal prep a breeze, while the all-in-one wet bath and gear closet boast a cassette-style toilet that eliminates the need for a separate black water holding tank. Add a standard solar power system, diesel-powered heating, a dinette with a pull-up table that converts to additional sleeping space, and many more innovative features and the result is the new Revel: quite simply the most off-road capable RV Winnebago has ever built.

Have Any Questions

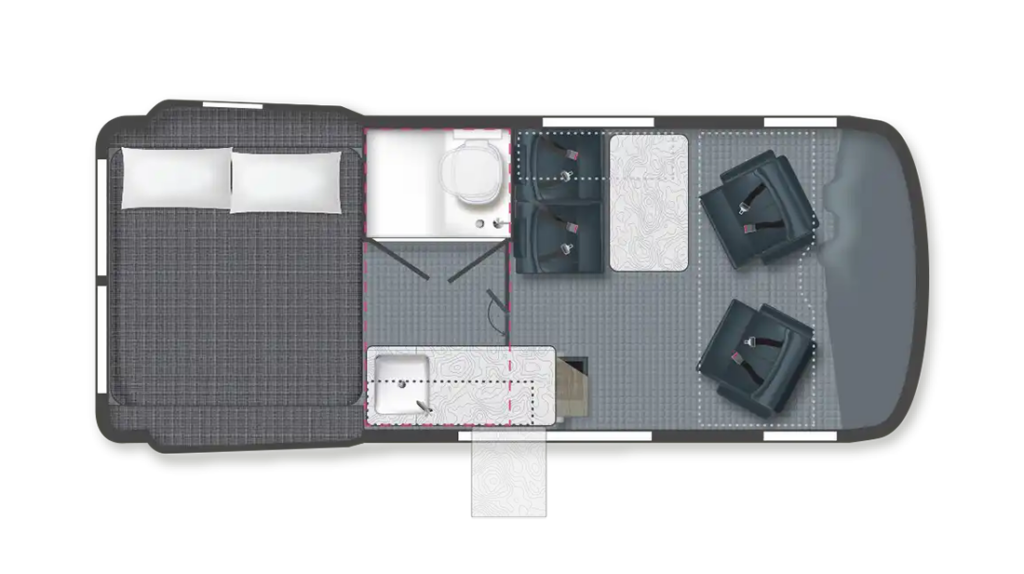

Floor Plans

Click floor plan to enlarge.

Take A 360 Degree Tour

Image Gallery

Revel Specifications

Specifications

44E
Length19’7″
Exterior Height110′
Exterior Width7’1″
Awning Length9’6″
Interior Height6’3″
Interior Width5’8″
Freshwater Tank Capacity2 (gal.)21
Water Heater Capacity (gal.)Continuous
Cassette Toilet Capacity2 (gal.)5
Holding Tank Capacity – Gray2 (gal.)21
LP Capacity3 (gal.)NA
Fuel Capacity (gal.)24.5
GCWR4 (lbs.)13,930
GVWR (lbs.)9,050
GAWR – Front (lbs.)4,101
GAWR – Rear (lbs.)5,359
Wheelbase144″
Seating Capacity4

Chassis

  • Mercedes-Benz® Sprinter Chassis
  • 3.0L 6-cylinder, 188-hp, turbo-diesel engine, 7G-Tronic automatic transmission, 220-amp. alternator
  • On-demand 4WD w/low range electronic stability and traction control
  • 4-wheel ABS brakes
  • Trailer Hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
  • 7-pin wiring connector

Optional Equipment:

    • Performance wheels and BF Goodrich® T/A® KO2 all-terrain tires

Cab Conveniences

  • MBUX® touchscreen multimedia infotainment center w/navigation, Wi-Fi hotspot, intelligent voice control and rear camera
  • Cab seats armrests, adjustable lumbar support, adjustable headrest, and slide/swivel/recline
  • 3-point seat belts
  • Dual airbags
  • DISTRONIC PLUS® (adaptive cruise control)
  • Power steering w/tilt wheel
  • Power mirrors w/defrost and turn signals
  • Power door locks w/remote
  • Power windows
  • 12-volt powerpoints
  • Sunvisors
  • Folding privacy screens for cab door windows
  • Appliqué package
  • Keyless entry w/remote
  • Entry door assist handle w/Ram® Tough-Track mount
  • Rain sensor w/integrated wet wiper system
  • High beam assist
  • Active brake assist
  • Active lane keeping assist
  • Blind spot assist
  • Traffic sign assist
  • Dash charging station

Interior

  • LED ceiling lights w/dimmer switch
  • Tinted dual-pane euro acrylic windows w/cassette shades
  • Deluxe powered ventilator fan w/rain cover
  • Systems monitor panel
  • USB charger points
  • RAM® Tough-Track mounts throughout
  • Heavy-duty vinyl flooring throughout

Galley

  • Removable counter extension
  • Laminate countertop
  • Portable single burner induction range top
  • 3.0 cu. ft. (12V) compressor driven refrigerator/freezer
  • Stainless steel sink w/single control faucet
  • Pantry
  • Removable, pedestal dinette table
  • Full-extension drawers

Bath

  • Shower w/wall surround
  • Flexible showerhead
  • Shower curtain
  • Wet Bath 31″x26″
  • 2 removable shelves convert to wet storage cabinet
  • Removable clothes rod
  • Swiveling cassette toilet
  • Powered roof vent

Bedroom

  • Power Lift Bed w/molded pockets and zip storage below
  • Under-bed gear garage storage w/six removable cargo tie-down anchors
  • Powered roof vent
  • Reading lights

Exterior

  • Side screen door w/magnetic closure system
  • Rear screen door w/blackout panel
  • Powered patio awning w/LED lighting and Bluetooth® control
  • Porch light w/interior switch
  • Running boards w/ground effect lighting and rubber trim
  • Rear mud guards
  • Movable ladder
  • Luggage Rack
  • Fold-down exterior table

Heating & Cooling System

  • Hydronic Heating System w/LED touchscreen panel

Optional Equipment

  • Coleman®-Mach® 10 NDQ air conditioner w/directional vents, Bluetooth® control and built-in thermostat

Electrical System

  • AC/DC load center/converter
  • (2) 125-amp-hour Lithium ion batteries w/dedicated second alternator to charge system
  • Coach battery disconnect system
  • Dual-battery charge system
  • 30-amp. power cord
  • Solar panel/battery charger
  • 2,000-watt inverter/charger
  • Roof port wiring access

Plumbing

  • Water center control panel includes all control valves, connection points and exterior wash station w/pump switch
  • Winterization Package with valve and siphon tube
  • On-demand water pump
  • Galley drain pump
  • Insulated/heated gray water holding tank
  • Potable water tank

Safety

  • Smoke and carbon monoxide detectors
  • 10 BC fire extinguisher
  • Ground fault interrupter
  • Daytime running lamps
  • High-mount brake lamps

Warranty

12-month/15,000-mile basic warranty8


  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.  The actual height of our vehicle may vary by several inches depending on chassis or equipment variations.  Please contact your dealer for further information.
  2. Not applicable to this model.
  3. Not applicable to this model.
  4. Capacities are based on measurements prior to tank installation.  Slight capacity variations can result due to installation applications.
  5. Capacities shown are tank manufacturer’s listed water capacity (W.C.).  Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
  6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR and GCWR, as well as adequate trailer brakes.  Please refer to the Operator’s Manual of your vehicle for further towing information.
  7. See separate chassis warranty.
  8. See your dealer for complete warranty information.
  9. Sleeping capacity is the maximum based on a specific floorplan.

Specifications are subject to change without notification.
