Winnebago ERA

The Sprinter-Based B-Van That Keeps Getting Better

One of the first motorhomes in its class built on the Mercedes-Benz® Sprinter chassis, the Winnebago Era® launched a whole new “era” of upscale touring. Now, with an available 4WD option and other enhancements, the Era continues to raise the bar. The four Era floorplans offer a variety of seating, sleeping, bathing, and cooking options, accented by premium contemporary interior styling, sumptuous Ultraleather™ furnishings, and dimmable LED lighting. Full galleys feature stainless steel appliances and a compressor-powered refrigerator for optimal cooling performance. Outside, a powered patio awning, LED lighting, and exterior speakers make it easy to relax, while the expandable solar power system helps keep the power flowing, even when you’re off the grid. Tour in style and camp in luxury: see the world in your Winnebago Era.

Have Any Questions?

ERA

A Fuel Efficient, Van-Style RV

The Class B market continues to grow, in large part due to the success of the Era®. Its combination of fuel efficiency, maneuverability, and high-end features has introduced a whole new set of enthusiasts to the van-style RV. With its Mercedes-Benz® diesel engine, driving your Era is a pure joy. Arrive at your destination safely and on time with the help of the Radio/Rearview Monitor with 6” touchscreen and the available Rand McNally RV GPS. Each floorplan offers a full-featured galley and swivel cab seats that increase your functional living space while parked. Inside, you’ll find LED ceiling lights, MCD blackout roller shades, and Corian® countertops, while an awning with LED lighting will keep the outdoor fun going well into the night.

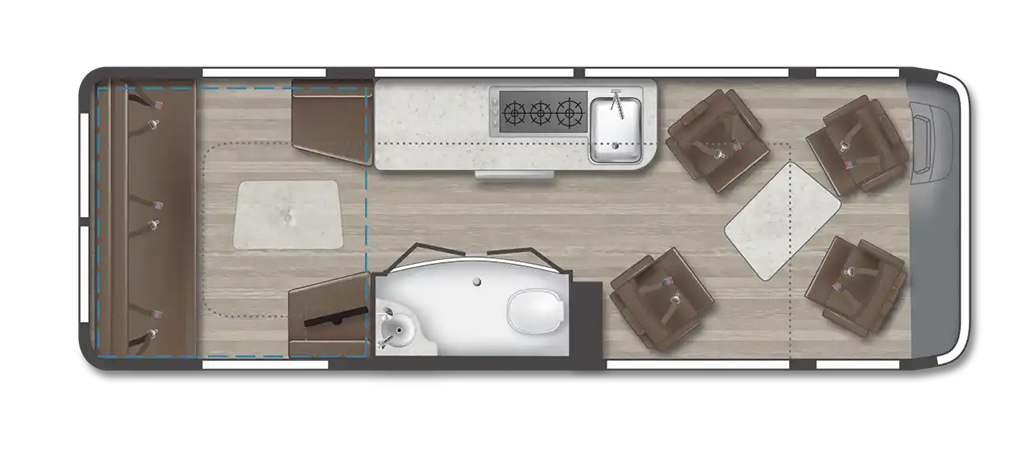

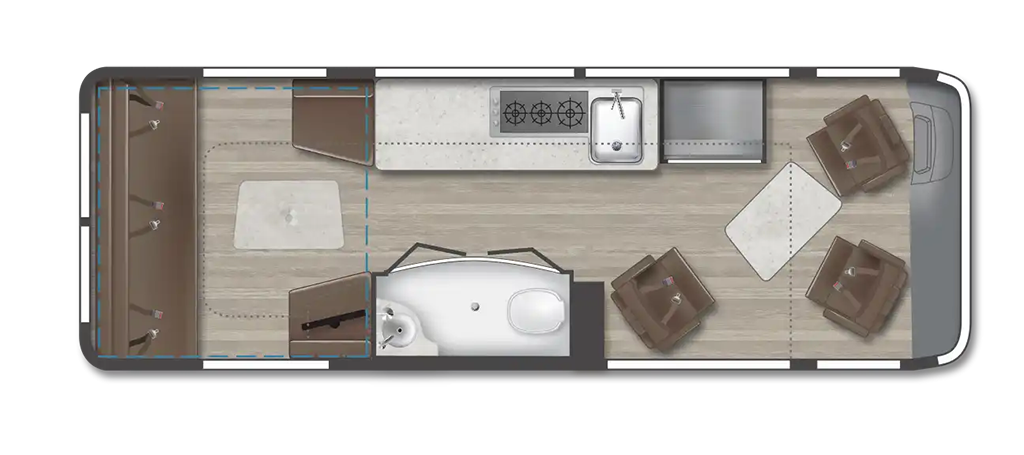

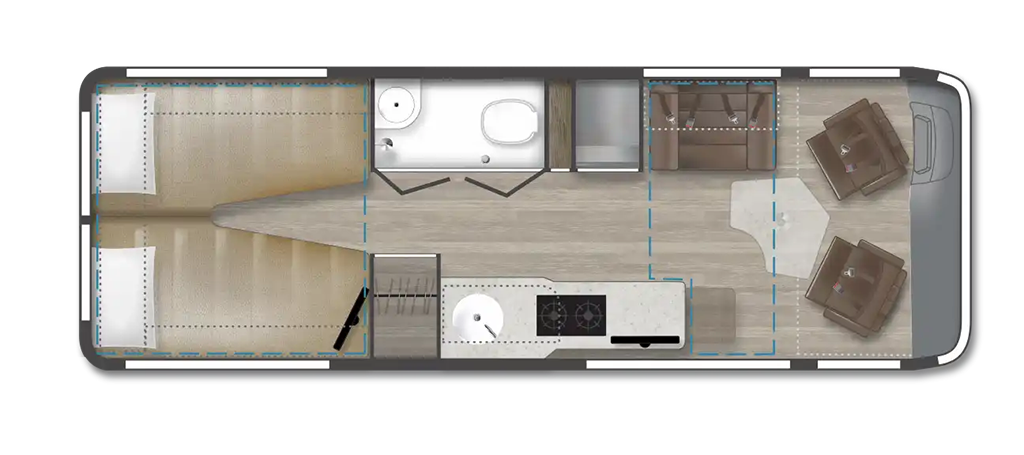

Floor Plans

Click floor plan to enlarge.

Image Gallery

KEY FEATURES

Premium comfort for every season.
The efficient Alde® Compact 3010 is a hydronic heat and hot water system that provides premium comfort for every season. Soft and even heat is distributed silently by Alde’s radiant heat technology using convectors that are strategically integrated into the design of the Era 70C interior optimizing storage space while creating a comfortable and natural warm environment. Plenty of hot water for showers and galley use is provided by the hot water system integrated into the Alde Compact 3010 comfort system. All the features and levels of comfort can be controlled by the touch screen panel located inside the vehicle, including programming night time and morning temperature settings and selecting between propane and/or 110V electric function.

Flexibility to Meet Your Sleeping Needs – The Flex Bed System allows you to quickly and easily convert the bedroom or living area spaces into bed configurations that accommodate your sleeping needs. For example, twin beds in the bedroom can be turned into a single queen-size bed. Or, in some floorplans, a sofa and dinette or bench seats and a dining table are easily made into a bed. There’s even a Flex Bed System that converts living area furniture into a lower bunk bed. No matter which Flex Bed System you choose, the sleeping arrangement can be just as easily switched back to its original setup.

Infotainment is at your fingertips.
The Infotainment Center with Rand McNally RV GPS has it all: touch screen color monitor with split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio with CD/DVD player, handheld remote, SiriusXM™ (subscription not included), compass, outside temperature, iPod®/iPhone® audio integration, Bluetooth™, and so much more.

Day or Night – The smooth-operating MCD solar/blackout roller shades set the ideal atmosphere in your coach, day or night. Besides providing ideal light and privacy, MCD solar/blackout roller shades offer upscale looks and performance and are easier to operate and clean than traditional pleated shades.

Our Vision. Your Safety.™
Mobileye® is the technology leader in Collision Avoidance Systems, advancing driver safety through collision prevention and mitigation. Mobileye’s unique vision-based platform is an all-in-one system that analyzes the risk of forward collision, lane departure, headway/following time, excessive speed and pedestrian hazards. When a threat is detected, Mobileye warns the driver with simple visual and audible alerts in real time – giving the driver time to make necessary corrections to avoid potential collisions or mitigate their severity.

Get Connected to SiriusXM™ Satellite Radio – SiriusXM satellite radio brings you over 140 commercial-free channels, full of live sports coverage, live traffic and weather reports, and the best in news, talk, and entertainment. High-altitude satellites ensure crystal-clear programming wherever your travels take you.

Make the Most of Every Inch – The SmartSpace design philosophy encourages the use of innovative features to make the most efficient use of the available space in each coach. This design philosophy has led to the creation of features such as the BenchMark® full comfort dinette that has hidden storage compartments below the flip-up seats, full-extension drawer slides, and an extendable sectional sofa found in several of our coaches. From the Rest Easy multi-position lounge to the unique pull-out pantries, you’ll find a variety of SmartSpace features across our entire lineup of motorhomes.

Smart Storage™ – a Better Way to Store Your Gear. – Smart Storage places bulky systems and tanks in improved configurations, leaving more room for basement storage. Exterior storage is also easy to access with innovative features such as a large trunk with multiple doors and sliding storage trays on select models. Other clever features you might find include a storage well with a drain plug and a compartment cover that converts into a picnic table.

Always Accurate – Mirus™ detector cell technology ensures accurate freshwater and wastewater tank level readings. Mirus detector cells produce a micro-electrical field that detects liquid levels from outside the tank. No more probes to corrode or clog. Just true, accurate readings time after time.

More Comfort on the Move
Truma is the innovative system supplier for motorhomes, travel trailers and mobile applications. The company offers “more comfort on the move” and a comprehensive product portfolio in the fields of heating, water and air conditioning systems as well as LP and power supply. Truma also manufactures remote-controlled maneuvering systems for travel trailers. Truma stands out thanks to the high quality of its products, the exemplary service and close proximity to its customers.

Your home away from home should feel like home.
Winnebago Industries cab seats, sofas, loungers, and more can be covered in premium, soft Ultraleather™ fabric. Ultraleather gives you the softness, comfort, and luxury that is more durable than leather and incredibly easy to clean. Made with proprietary technology that combines four material layers including PVC-free polycarbonates, it has been tested and proven to surpass competitive fabrics for integrity and durability. Plus, Ultraleather offers superior thermal comfort—creating a comfortable, neutral body temperature regardless of the setting. With Ultraleather, you can stay pleasantly protected from the bumps, spills, and scrapes of life on the road.

Click here to watch the Winnebago Ultrafabrics Feature Video.

Era Specifications

Winnebago Era

Specifications

70A70B70M70X
Length24’3″24’3″24’3″24’3″
Exterior Height19’8″(A)
9’10(B)
9’8″(A)
9’10″(B)
9’8″(A)9’8″(A)
9’10″(B)
Exterior Width6’4.25″6’4.25″6’4.25″6’4.25″
Awning Length16’4″16’4″16’4″16’4″
Interior Height6’3″6’3″6’3″6’3″
Interior Width5’9.75″5’9.75″5’9.75″5’9.75″
Freshwater Tank Capacity2 (gal.)25254425
Water Heater Capacity (gal.)2.62.62.62.6
Holding Tank Capacity – Black/Gray2 (gal.)8/269/1922/259/19
LP Capacity3 (gal.)16169.516
Fuel Capacity (gal.)24.524.524.524.5
GCWR4 (lbs.)15,25015,25015,25015,250
GVWR (lbs.)11,03011,03011,03011,030
GAWR – Front (lbs.)4,4104,4104,4104,410
GAWR – Rear (lbs.)7,7207,7207,7207,720
Wheelbase170″170″170″170″
Seating Capacity4647

A Standard Chassis

B Optional 4WD Chassis

Mercedes-Benz® Sprinter Chassis

  • 3.0L 6-cylinder, 188-hp, diesel engine, 5-speed automatic Tip Shift transmission, 220-amp. alternator
  • 4-wheel ABS brakes
  • Stainless steel wheel liners
  • Trailer Hitch4 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
  • 7-pin wiring connector
  • Chassis ignition slide room lock system (70M)

Optional Equipment

  • On-demand 4WD w/Hi/Lo Range (only available with Brilliant Silver exterior) (NA 70M) (Dealer Stock Only)
  • Stylized chrome wheels
  • Alcoa aluminum alloy wheels

Cab Conveniences

  • Radio/Rearview Monitor System
  • Chassis/coach battery radio power switch
  • Ultraleather cab seats armrests, adjustable lumbar support, adjustable headrest, and slide/swivel/recline
  • 3-point seat belts
  • Dual airbags
  • Cruise control
  • Power steering w/tilt and telescoping wheel
  • Power mirrors w/defrost and turn signal
  • Power door locks w/remote
  • Power windows
  • 12-volt powerpoints
  • Sunvisors
  • Pleated, sliding front window blinds
  • Folding privacy screens for cab door windows
  • Appliqué package
  • Keyless entry w/remote
  • Light/rain sensor for automatic headlight dimming & wiper operation
  • Blind spot monitoring w/indicator lights in side mirrors
  • Collision prevention assist
  • High-beam assist
  • Lane keeping assist

Interior

  • 24″ HDTV
  • OmniGo™ omni-directional, amplified HDTV antenna
  • Continuous tracklighting w/dimmer switch
  • MCD blackout roller shades
  • Soft vinyl ceiling
  • Tinted coach windows
  • Skylight/roof vent (70M)
  • Removable companion seats w/swivel and slide (70B, 70X)
  • Removable pedestal table
  • Touch screen systems monitor panel
  • Multiplex lighted wall switches w/master light switch and control via Precision Plex app for Android/iOS
  • Mirror
  • USB charging points

Galley

  • Flip-up countertop extension (70A, 70M)
  • Corian® solid-surface countertop
  • Decorative backsplash (70B, 70M)
  • Microwave oven w/ touch control (70A)
  • Microwave convection oven w/ touch control (NA 70A)
  • 2-burner range top w/glass cover (70A)
  • 3-burner range w/glass top and stainless steel sink (NA 70A)
  • 2-door 6 cu. ft. compressor driven refrigerator/freezer (70A, 70B, 70M)
  • Single door compressor driven refrigerator/freezer (70X)
  • Stainless steel sink w/folding faucet and glass cover (70A)
  • Bamboo sink cover and cutting board (NA 70A)
  • Cold water purification system
  • Spice rack (70M)

Bath

  • Shower w/wall surround, 24″x31″ (70M)
  • Dry bath (70M)
  • Wet bath 24″x43″ (NA 70M)
  • Corian solid-surface countertop w/sink (70M)
  • Flexible showerhead
  • Shower curtain (NA 70M)
  • Textured glass shower door (70M)
  • Toilet w/foot pedal and sprayer
  • Skylight (70M)
  • Tissue holder
  • Towel bar (70M)
  • Towel ring (70M)
  • Stainless steel sink (NA 70M)
  • Powered roof vent (NA 70M)
  • Powered ventilator fan (70M)
  • Deluxe powered ventilator fan w/rain cover (NA 70M)
  • Removable clothing rod
  • Medicine cabinet (70M)
  • Bamboo shower mat

Bedroom

  • Twin beds w/Flex Bed System (70A)
  • 24″ HDTV w/remote (70A)
  • Wardrobe (70A, 70M)
  • Murphy+ Bed (70M)
  • Powered sofa/bed (70B, 70X)
  • Deluxe sleep system (70A)

Exterior

  • Sliding entrance door
  • Side screen door
  • Rear screen door (NA 70M)
  • Powered patio awning w/LED lighting
  • Slideout compartment tray (access from rear door) (70A)
  • Porch light w/interior switch
  • Running boards, rocker trim w/mud guard
  • Rear mud guards
  • Exterior speaker system
  • Rear full-height storage compartment (70M)
  • Below floor storage (70B)

Optional Equipment

  • Polished stainless steel rocker panel trim
  • Bike rack (NA 70M)
  • Luggage rack
  • Ladder

Heating & Cooling System

  • 13,500 BTU low-profile high-efficiency roof air conditioner
  • Truma Combi Eco Plus Heating System w/(2) 850-watt electric heating elements

Electrical System

  • AC/DC load center/converter
  • Auxiliary start circuit
  • 2-deep cycle Group 31 batteries (AGM maintenance free)
  • Coach battery disconnect system
  • Dual-battery charge system
  • 200-watt solar panel/battery charger
  • 45-amp. converter/charger
  • 30-amp. power cord
  • Exterior TV jack
  • Exterior AC receptacles
  • Exterior DC receptacles (NA 70M)
  • 2,500-watt Cummins Onan® MicroQuiet™ LP generator
  • 1,000-watt Pure Sine Wave inverter

Plumbing

  • Exterior Service Center city water hookup/tank diverter valve, drainage valves, sewer hose (w/shut-off 70B, 70X) valve and exterior wash station w/pump switch
  • TrueLevel™ holding tank monitoring system
  • Winterization Package water heater bypass valve (NA 70M) and siphon tube
  • On-demand water pump
  • 12-volt macerator sewage pump (70B, 70X)
  • Permanent-mount LP tank w/gauge
  • LPG accessory connection
  • Holding tank flushing system

Safety

  • Child seat tether anchors (70B, 70X)
  • LP, smoke, and carbon monoxide detectors
  • 10 BC fire extinguisher
  • Ground fault interrupter
  • Daytime running lamps
  • High-mount brake lamp
  • Emergency flashlight
  • First aid kit

Warranty5

12-month/15,000-mile basic limited warranty 6


  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
  2. Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
  3. Capacities shown are tank manufacturer’s listed water capacity (W.C.) Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
  4. Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator’s Manual of your vehicle for further towing information.
  5. See separate chassis warranty.
  6. See your dealer for complete warranty information.

Specifications are subject to change without notification.

Featured Video

DECOR

FUSION

QUANTUM

Looking to trade in your old RV or Motorhome for the Winnebago ERA?
