Winnebago Inspire

One of the few mid-entry diesel pusher motorhomes on the market, the upscale Inspire® is ideally suited for Winnebago’s accessibility enhancements. Designed to take full advantage of the 340-hp Freightliner® XCS chassis, the Inspire delivers a smooth, well-mannered ride with more luxury, space, and power. And like all Winnebago diesel pushers, the Inspire comes with a 3-year/100,000 mile warranty.

Have Any Questions

Floor Plans

Click floor plan to enlarge.

360 Tour

Image Gallery

Inspire Specifications


Exterior Length 35’9″
Exterior Height 1 11’11”
Exterior Width 2 8’5.5″
Exterior Storage (cu. ft.) 3 153
Awning Length 17′
Interior Height 6’8″
Interior Width 8’0.5″
Freshwater Tank Capacity (gal.) 4 84
Water Heater Capacity (gal.) 10
Holding Tank Capacity — Black (gal.) 4 48
Holding Tank Capacity — Gray (gal.) 4 54
LP Capacity (lbs.) 5 23
Fuel Capacity (gal.) 90
GCWR (lbs.) 6 30,000
GVWR (lbs.) 26,000
GAWR – Front (lbs.) 10,410
GAWR – Rear (lbs.) 17,500
Wheelbase 208″
Sleeps 8 7


  • Freightliner XCS 26,000-lb. chassis, Allison® 6-speed automatic 2100 MH transmission
  • 340-hp Cummins® ISB 6.7L
  • NeWay® front air suspension
  • V-Ride rear air suspension
  • OptiView dash, digital instrument panel cluster
  • 160-amp. alternator
  • Air brakes w/ABS
  • Engine exhaust brake
  • Rear cap engine intake screen
  • Automatic hydraulic leveling jacks
  • 7-pin trailer wiring
  • Trailer Hitch6 10,000-lb. drawbar/500-lb. maximum vertical tongue weight
  • Stainless steel wheel liners
  • Slide room lock system
  • Information display center

Cab Conveniences

  • Cab seats adjustable arm rests, swivel, fixed lumbar support, and multi-adjustable recline
  • Lounger passenger cab seat
  • 6-way power assist driver & passenger seat pedestal
  • 3-point seat belts
  • Radio/Rearview Monitor System w/10.1″ LCD color touch screen, handheld remote, rear color camera, Sirius-XM®-ready, USB input, HDMI/MHL
  • connectivity
  • Cruise control
  • 12-volt power supply for CB radio
  • Powered blackout roller visor/shade (front windshield)
  • Blackout roller shade (driver and passenger windows)
  • Chassis/house battery radio power switch
  • Power mirrors w/defrost and sideview camera
  • Power steering
  • TRW® tilt/telescopic steering column w/foot-actuated pedal
  • SiriusXM® (includes 90-day trial subscription receiver, remote, antenna)
  • JBL premium audio tuned 360-watt amplifier with 5 speakers including subwoofer


  • 39″ HDTV
  • RestEasy® loveseat
  • BenchMark® Dinette
  • Satellite system ready
  • Multi-plex wall switches
  • Digital TV amplified antenna system
  • Home theater sound bar system
  • Blu-ray™ disc player
  • LED ceiling lights
  • Blackout roller shades
  • Soft vinyl ceiling
  • OnePlace® systems center
  • Tinted, dual-glazed coach windows
  • Dual pane, frameless windows
  • Powered ventilator fan (galley)
  • Assist bar
  • Vinyl flooring throughout
  • USB chargers (cab, lounge, bedroom)
  • Washer/Dryer
  • Solar/blackout roller shades
  • Firefly Switch Panel lights up when dark
  • Wider aisleway for accessibility

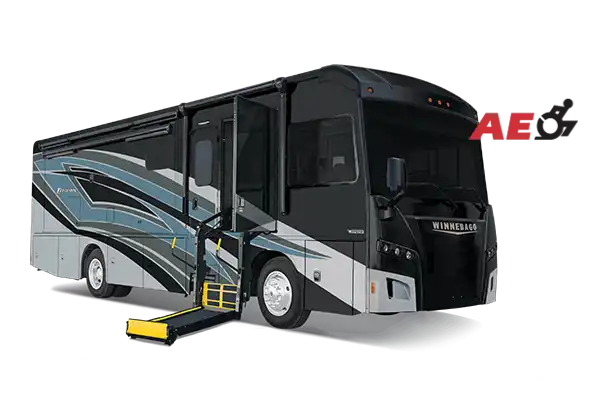

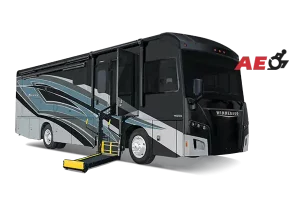

  • BraunAbililty® Century-2 wheelchair lift
  • Air-assisted, power wheelchair lift door with remote controls
Optional Equipment:
  • StudioLoft


  • Corian® countertops and sink cover
  • 2-door residential refrigerator/freezer, icemaker w/flip travel latch
  • Microwave/convection oven w/range fan and touch control
  • 3-burner range top w/storage below
  • Glass bi-fold range cover
  • Pantry
  • Countertop with flip-up extension


  • Assist bar
  • Flexible showerhead
  • Mirror
  • Swiveling cassette toilet
  • Shower curtain
  • Shower w/wall surround
  • Toilet paper holder


  • 32″ HDTV
  • Queen InnoMax® Eurotop Freedom air mattress w/controllers
  • Head of bed power raises/lowers
  • Bedspread and pillow shams
  • Headboard
  • Wardrobe
  • Induction chargers in nightstand


  • Powered patio awning w/LED lighting
  • 2nd powered patio awning w/LED lighting
  • Exterior compartment 110-volt duplex, TV antenna and 3-way A/V receptacles
  • KeyOne® lock system
  • LED porch light w/Interior switch
  • Lighted storage compartments
  • Automatic entrance steps
  • Assist handle
  • Lower front protective mask
  • Pet Pal leash tie down
  • Premium high-gloss sidewall skin
  • QuickPort service connection hatch
  • Undercarriage lighting
  • Exterior entertainment center w/32″ HDTV

Heating & Cooling System

  • 2-13,500 BTU air conditioners (1 A/C, 1 A/C w/heat pump)
  • 35,000 BTU ducted furnace

Electrical System

  • Service Center cable TV input, 50-amp power cord, shoreline/generator automatic changeover switch, portable satellite hookup
  • 2,000-watt inverter/charger w/remote panel with coach battery disconnect switch
  • 6,000-watt Cummins Onan® generator
  • Auxiliary start circuit
  • AC/DC electrical distribution system
  • 4 deep-cycle Group 31 Marine/RV batteries
  • Battery disconnect system (coach and chassis)
  • PowerLine® Energy Management System
  • Automatic dual-battery charge control
  • Automatic generator start system
  • Wi-Fi router signal booster


  • Service Center pressurized city water hookup w/diverter fill, freshwater drain, drainage valves, exterior wash station w/pump switch, holding tank flushing system, 20′ sewer hose
  • On-demand water pump
  • TrueLevel holding tank monitoring system
  • Permanent-mount LP tank w/gauge
  • Heated holding tank compartment
  • Water system winterization package
  • Water system filtration package
  • TruTank Level Sensor
  • Tankless water heater with recirculation pump


  • LP, smoke, and carbon monoxide detectors
  • 10 BC fire extinguisher
  • Ground fault interrupter
  • High-mount brake lamps
  • Daytime running lamps
  • Child seat tether anchor


36-month/100,000-mile basic limited warranty*
10-year limited parts-and-labor warranty on fiberglass roof skin*

*See your dealer for complete warranty information.

Specifications are subject to change without notification.
