Floor Plans
Options Included:
LT1: Nomad/Natural/Weathered Teak
33E: Paint & Graphics – Bright Silver
45F: Cab Seat Bed
WEIGHTS & MEASURES
| 59P | 59PX | ||
|---|---|---|---|
| Exterior Length | 19’9″ | 21′ | |
| Exterior Height | 8’11″ | 9’5″ | |
| Exterior Width | 6’8″ | 6’8″ | |
| Interior Height | 6’2″ | 6’2″ | |
| Interior Width | 6’4″ | 6’4″ | |
| Freshwater Tank Capacity (gal.) | 21 | 21 | |
| Water Heater Capacity (gal.) | 2.6 | 2.6 | |
| Holding Tank Capacity – Gray | 20 | 20 | |
| LP Capacity (gal.) | 24.96 | 24.96 | |
| Fuel Capacity (gal.) | 24 | 24 | |
| GCWR (lbs.) | 11,500 | 11,500 | |
| GVWR (lbs.) | 8,900 | 9,350 | |
| GAWR – Front (lbs.) | 4,629 | 4,629 | |
| GAWR – Rear (lbs.) | 5,291 | 5,291 | |
| Wheelbase | 159″ | 159″ | |
| Cassette Toilet Capacity (gal.) | 5 | 5 | |
| Sleeps | 4 | 4 | |
CHASSIS
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 6-speed automatic 62TE transmission, 180-amp. alternator • 4-wheel ABS brakes • Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight • 4-pin wiring connector

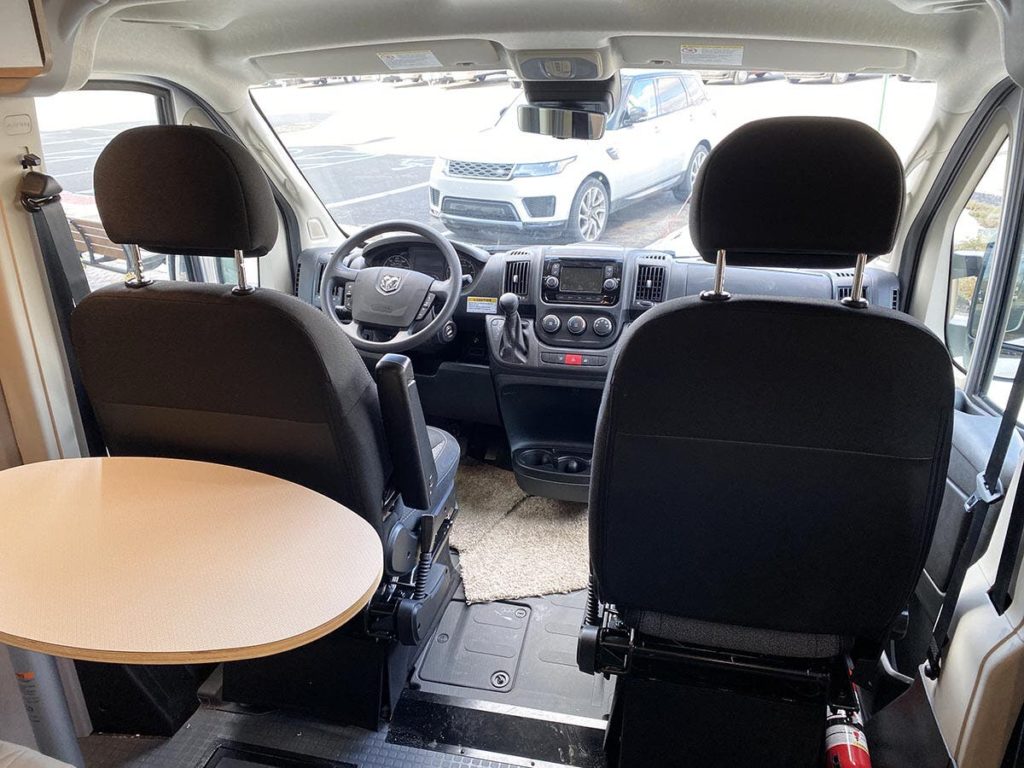

CAB CONVENIENCES

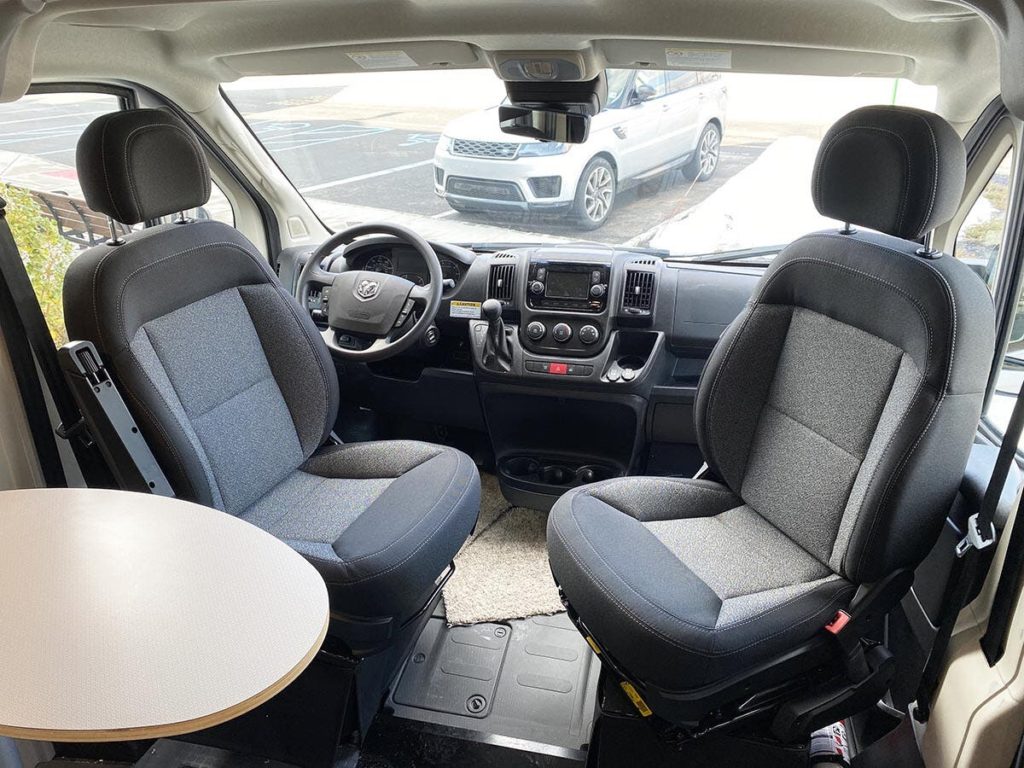

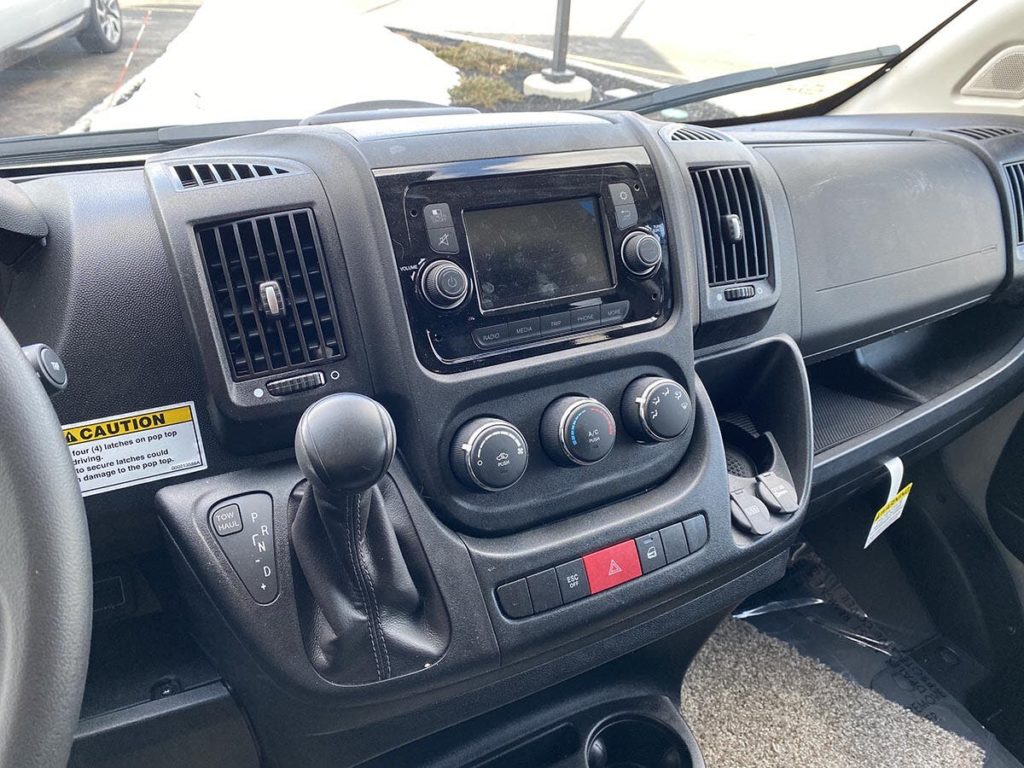

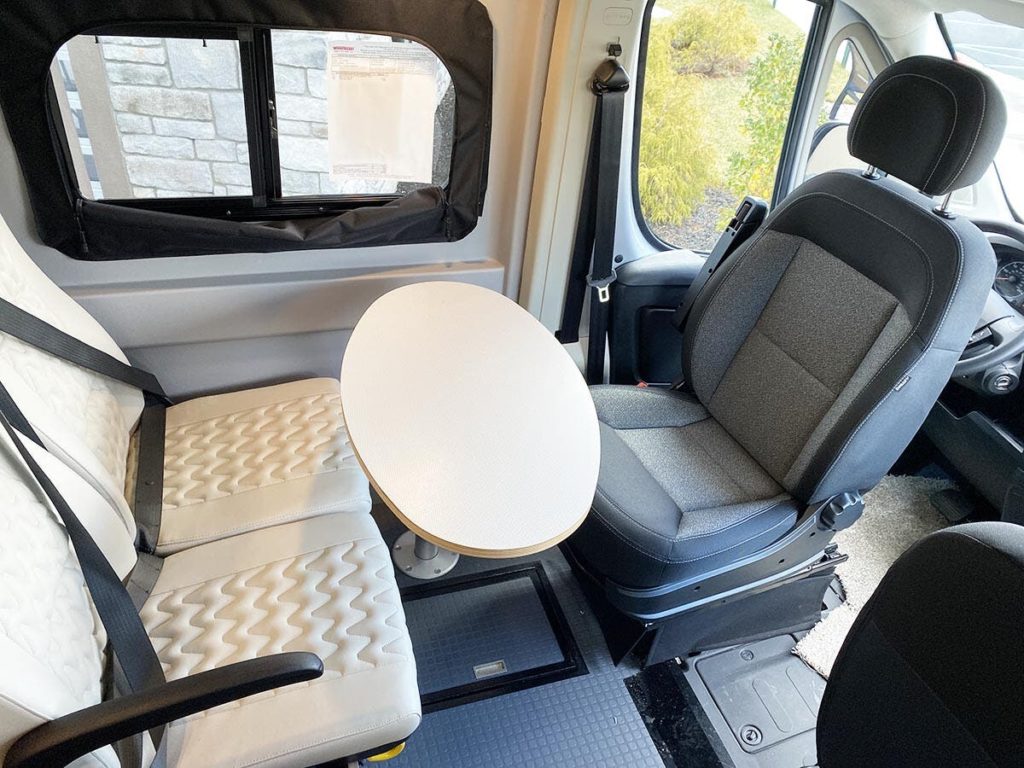

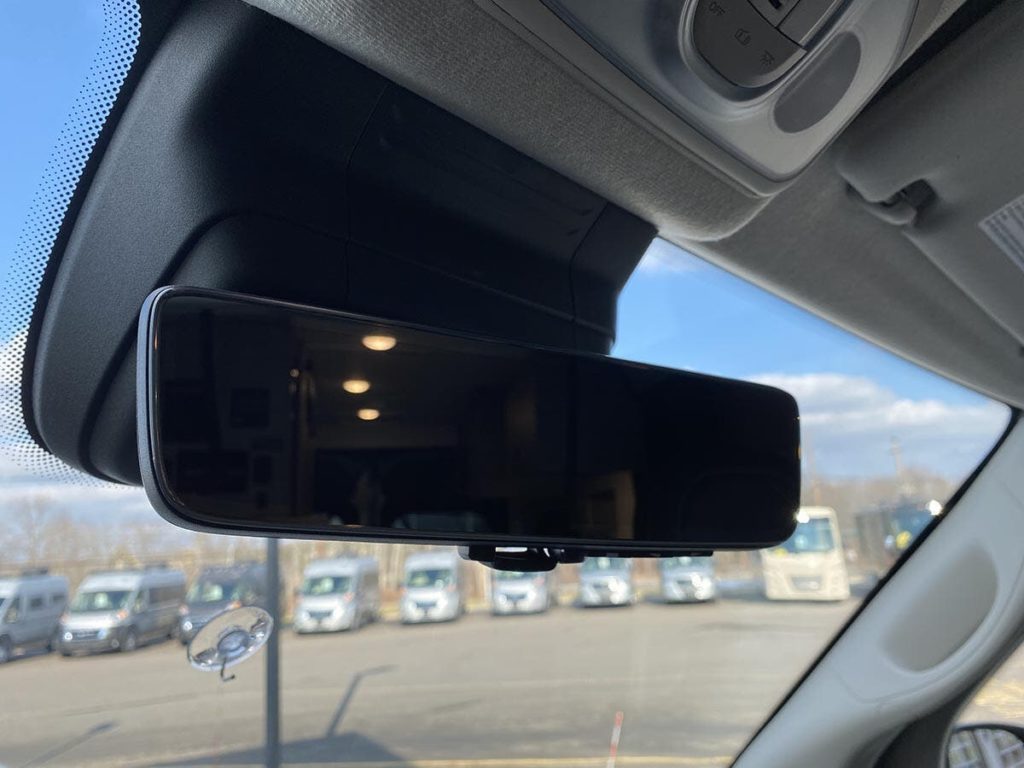

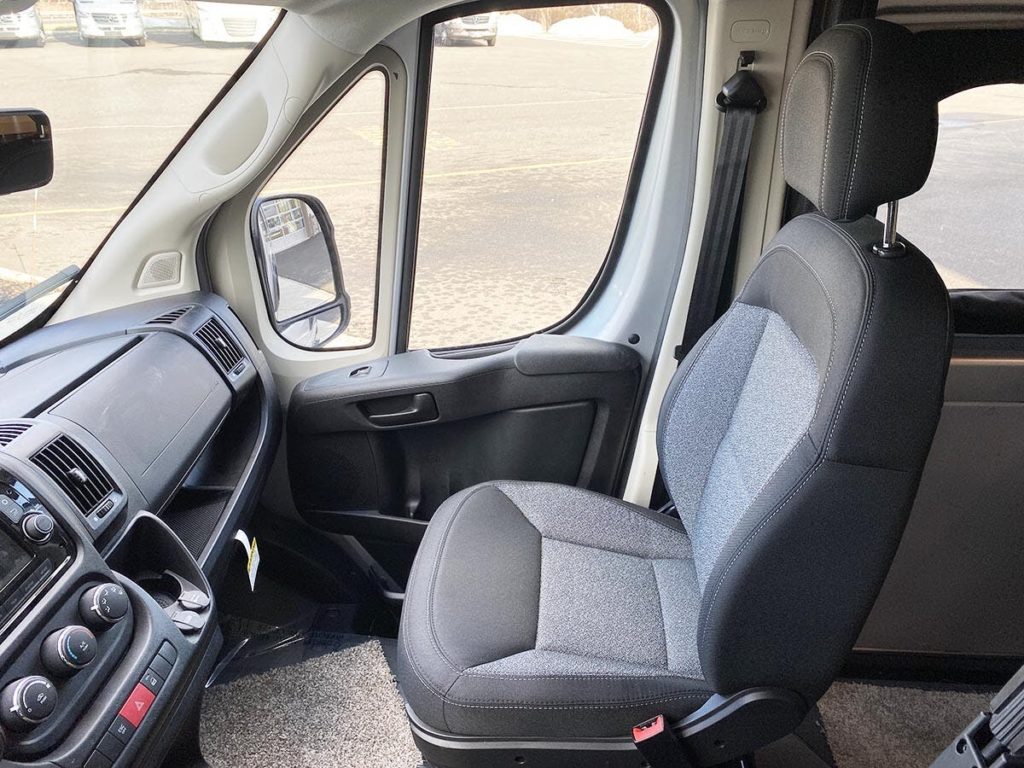

Radio/Rearview Monitor System 5″ LCD color touch screen, steering wheel controls, color rear camera, USB ports • Cab seats adjustable headrest, slide/swivel/recline, and driver’s side right armrest • Airbags driver and passenger • Cruise control • 3-point seat belts • Power assist steering • Manual adjust mirrors • Power door locks w/remote • Power windows • 12-volt powerpoints • Sunvisors • Front and cab window privacy panels
INTERIOR

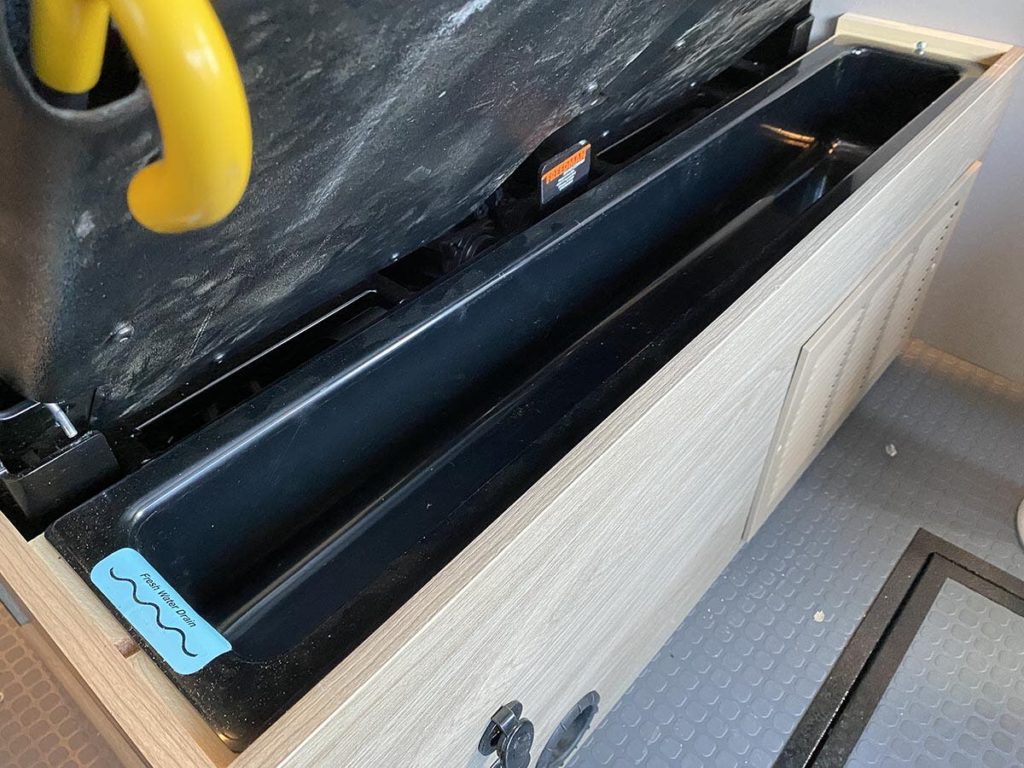

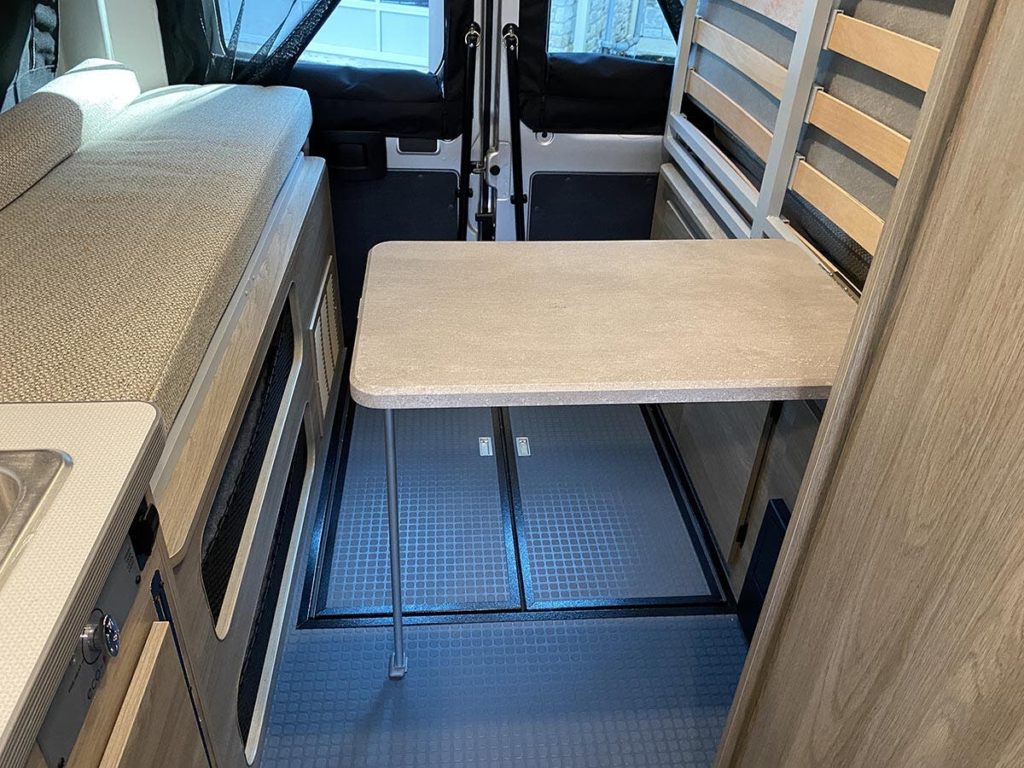

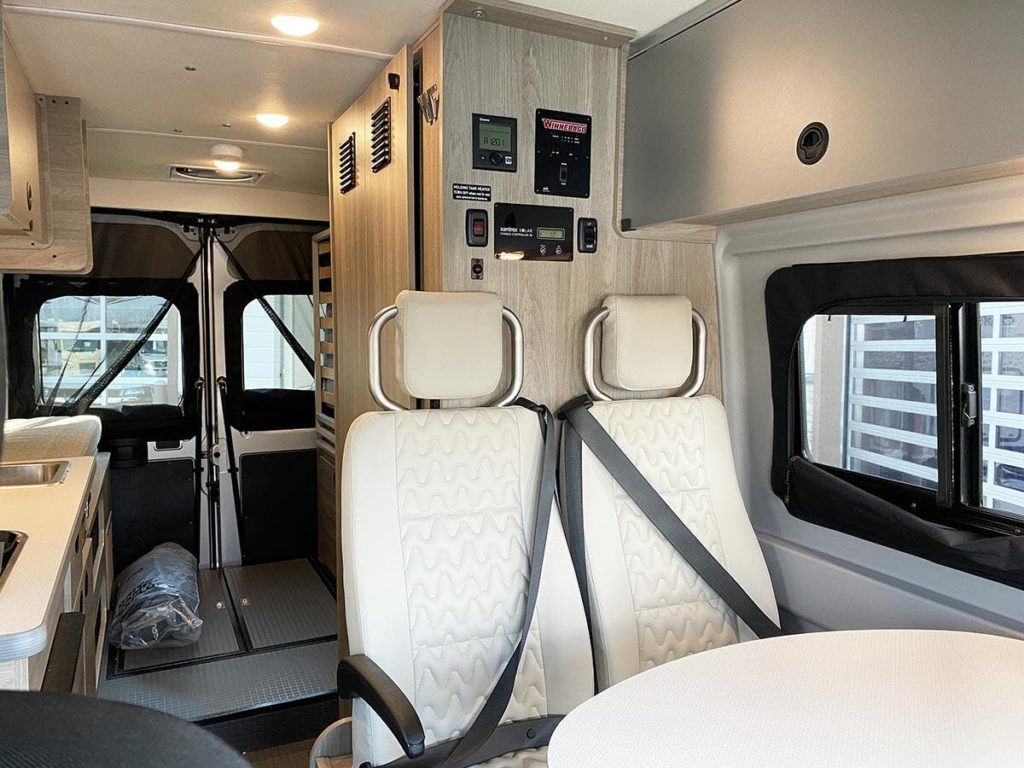

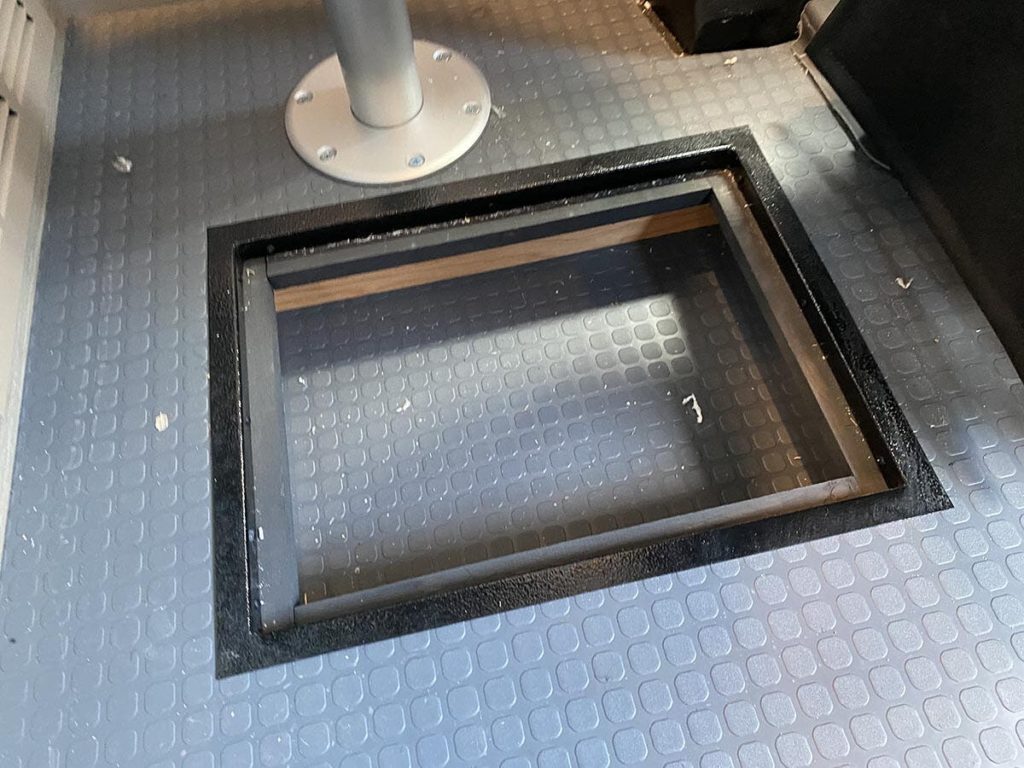

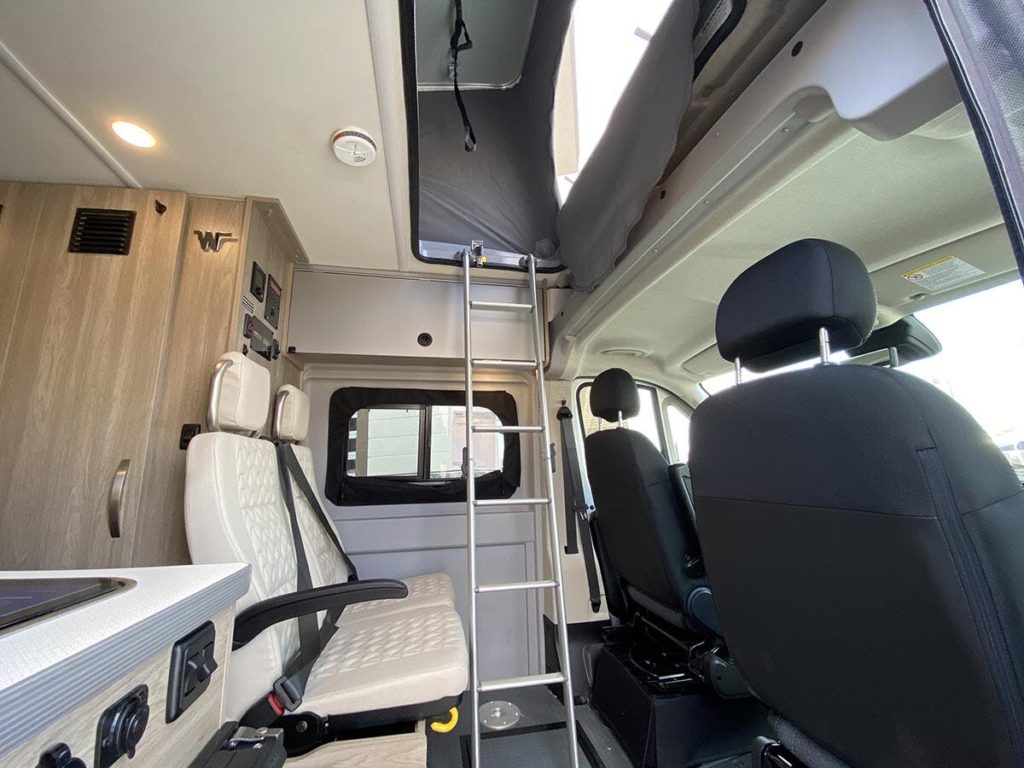

LED ceiling lights • Tinted coach windows • Systems monitor panel • Roof vent (lounge) • Removable pedestal table • Below floor storage (lounge, bedroom) • Reading lights • Roof wiring access port • Dinette seating w/3-point seat belts • USB charging ports • Zipped window coverings • Heavy duty vinyl flooring throughout • Ladder • Gear space w/L-track cargo tie down system (59PX)

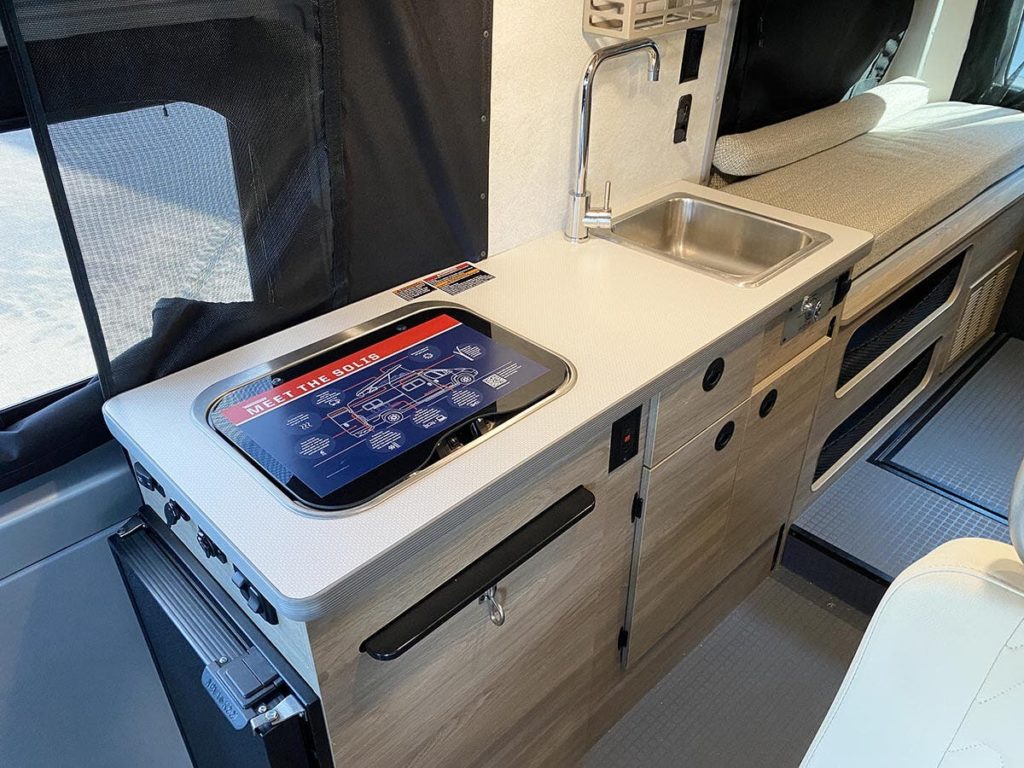

GALLEY

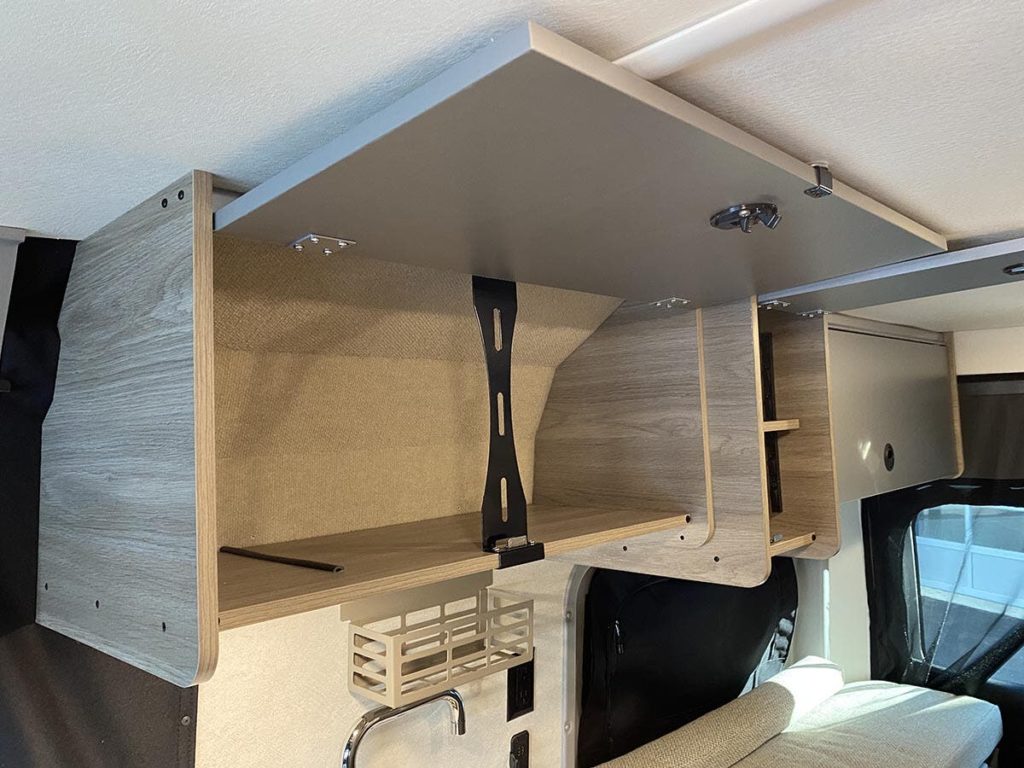

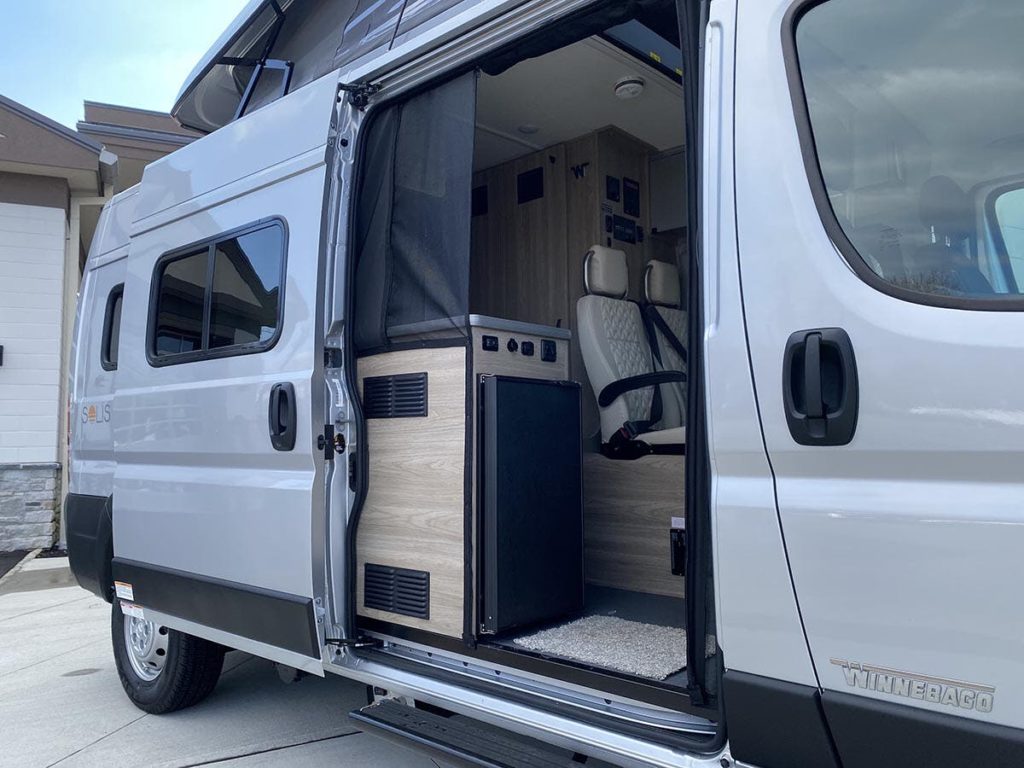

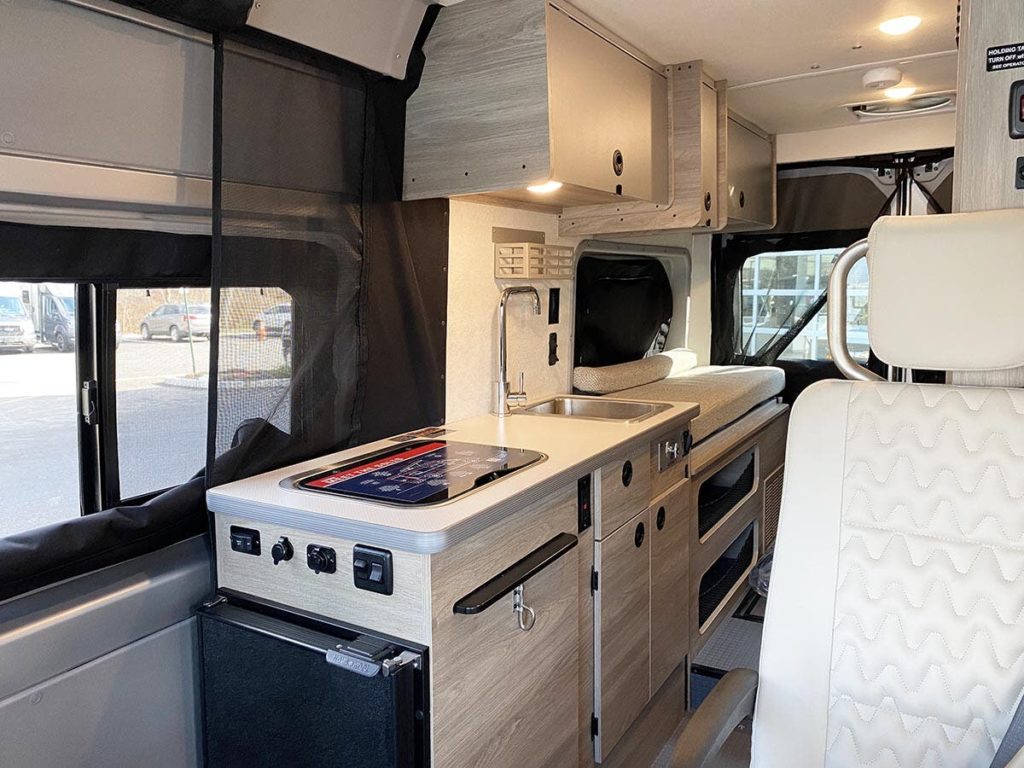

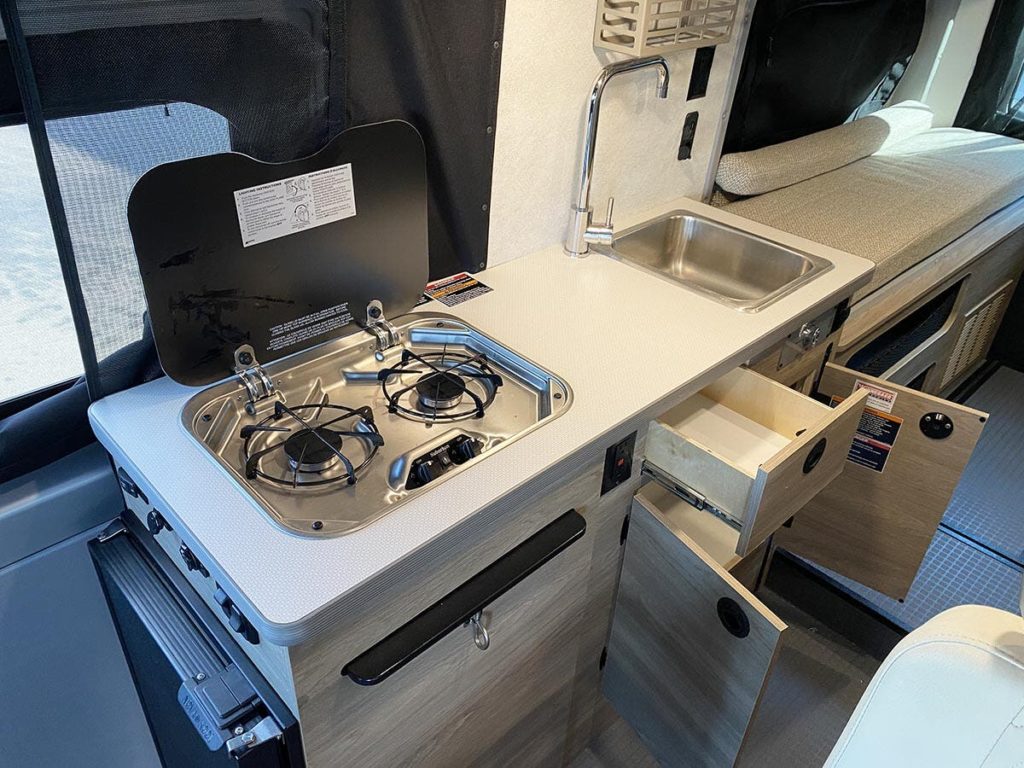

Laminate countertop • Pull-out countertop extension • 2-burner range top w/glass cover • Single door compressor-driven refrigerator/freezer 12-volt • Stainless steel sink • Spice Rack
BATH

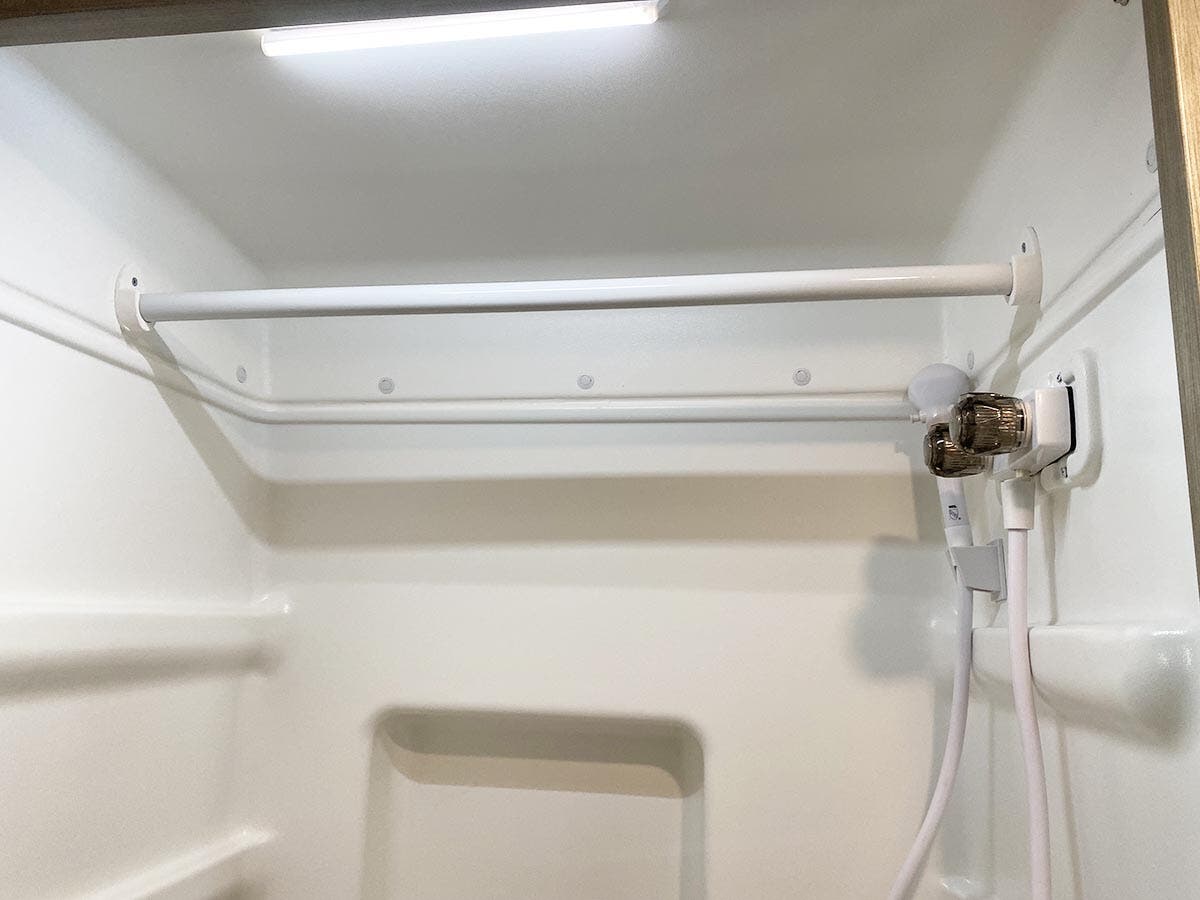

Flexible showerhead • Mirror • Removable clothes rod • Swiveling cassette toilet • Shower curtain • Shower w/wall surround • Tissue holder
BEDROOM

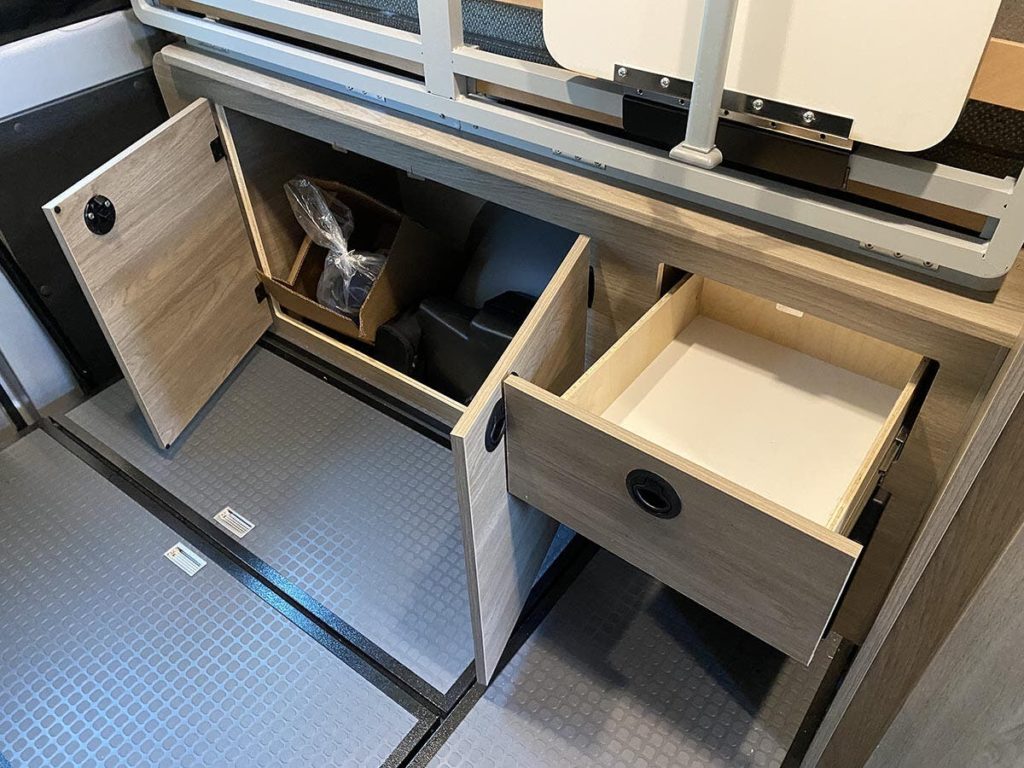

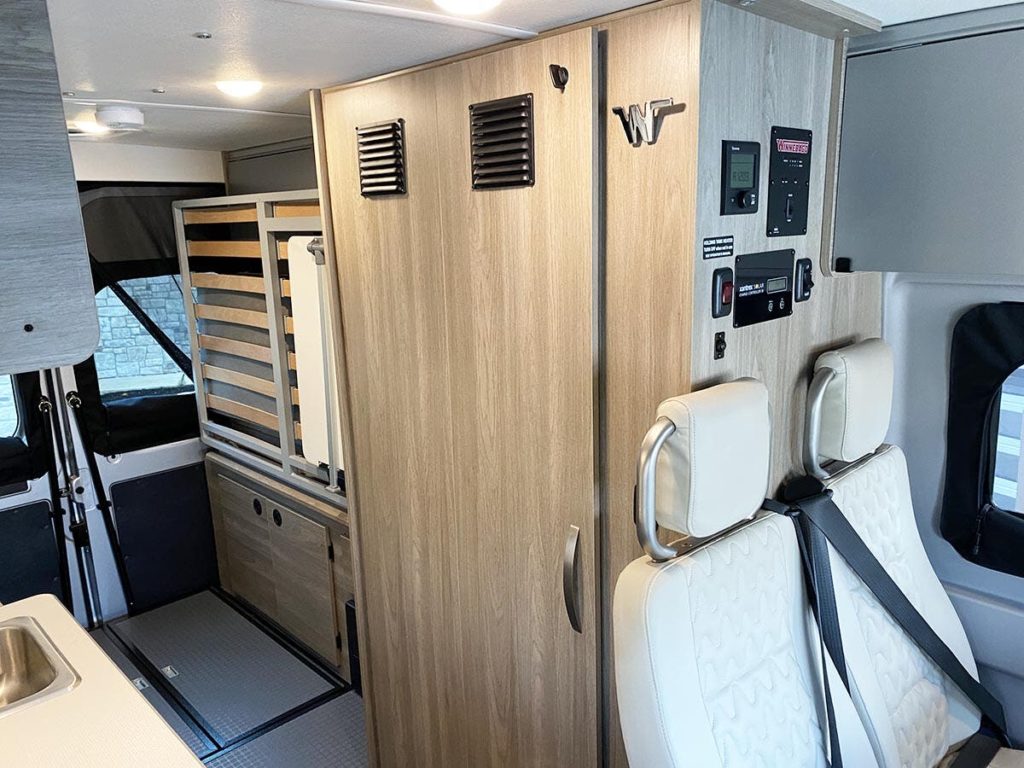

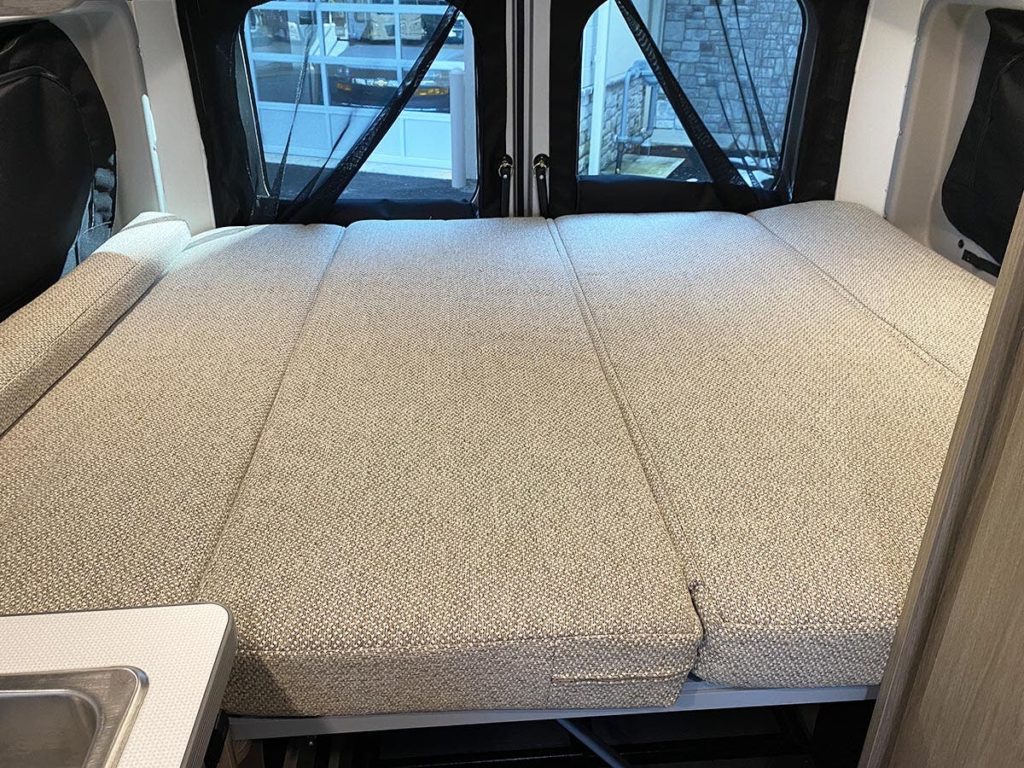

Murphy+ bed w/mattress cover and access to below floor storage • Slat bed system • Deluxe powered ventilator fan • Movable table (only available w/Murphy+ bed option)
Optional Equipment: Sofa/bed w/two 3-point seat belts (59P)
EXTERIOR

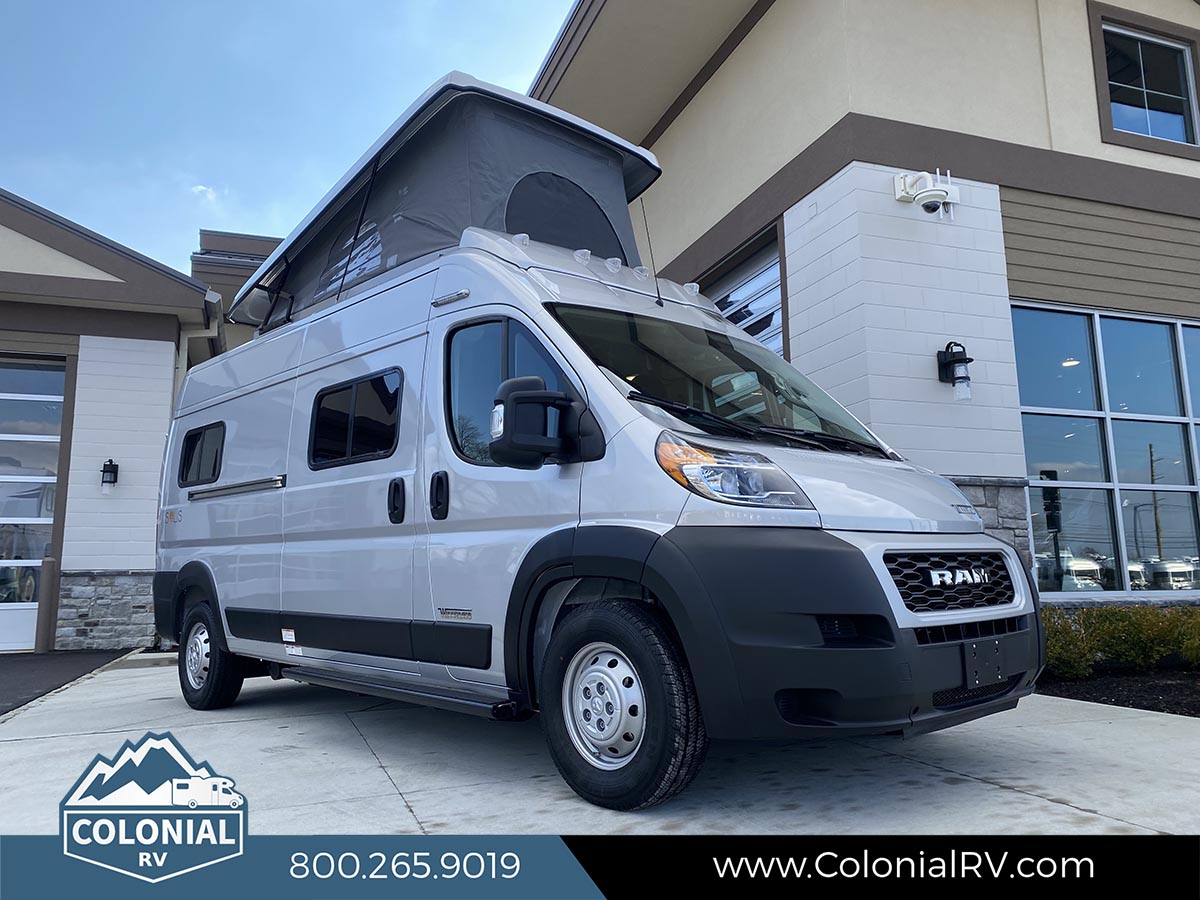

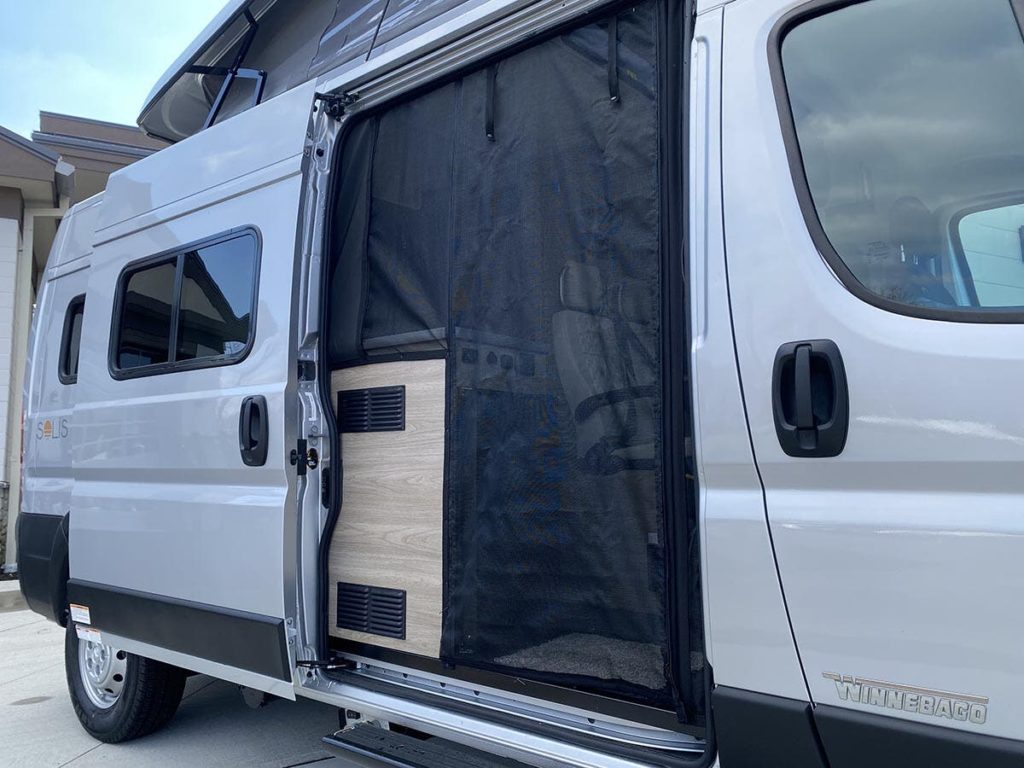

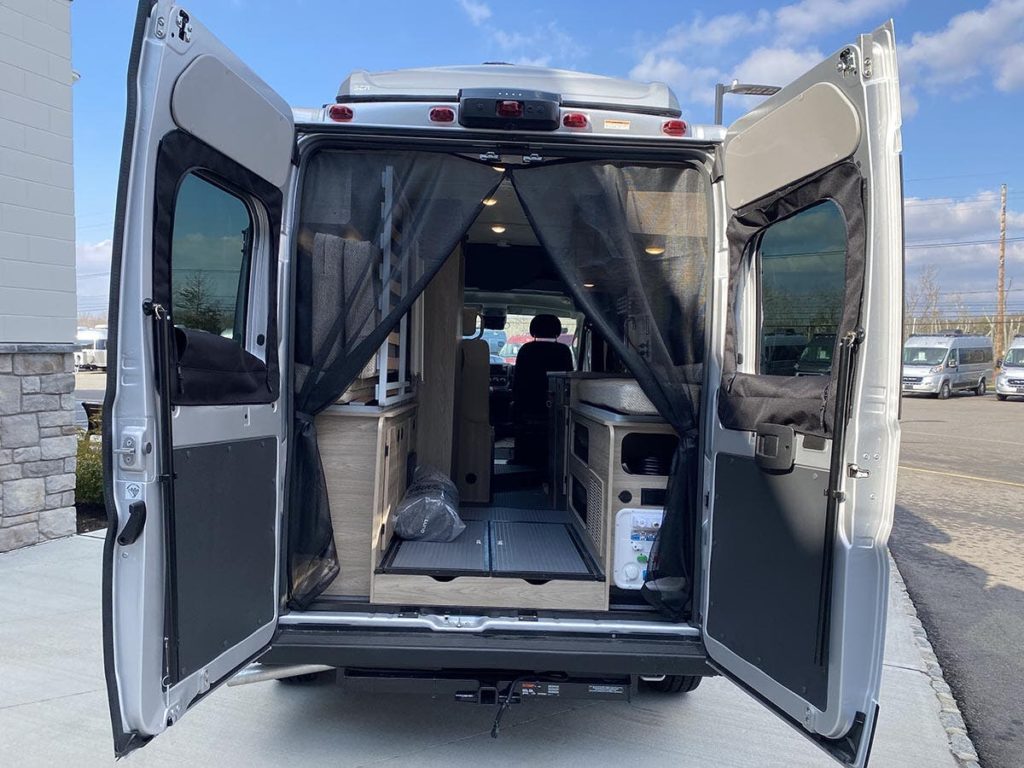

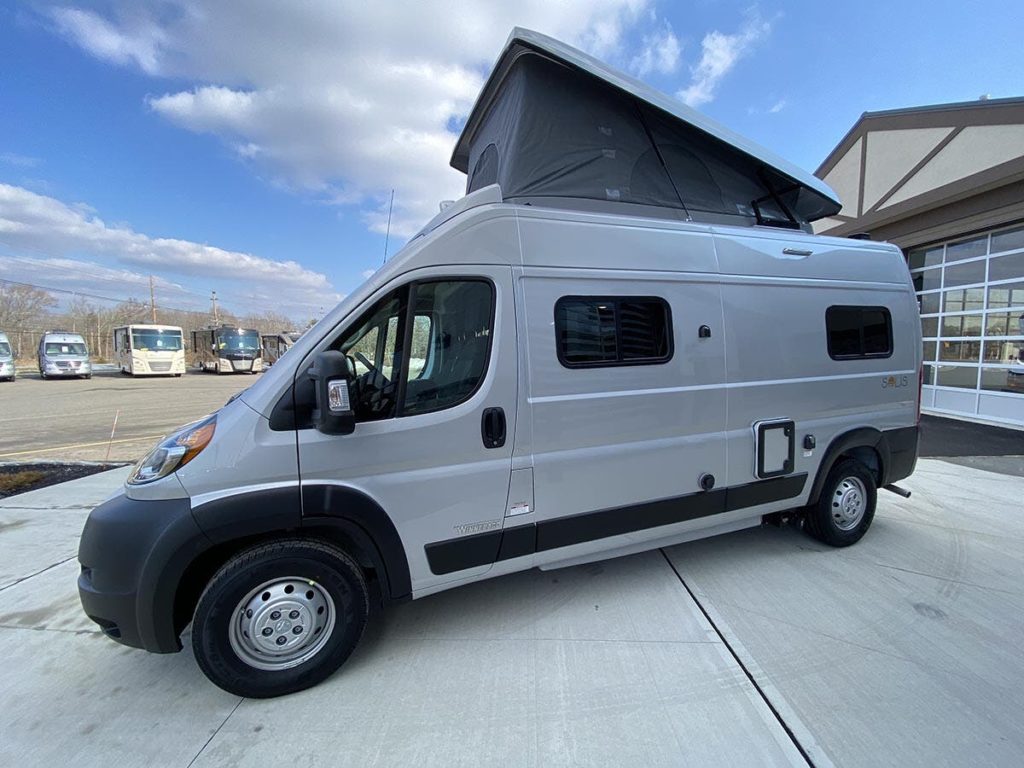

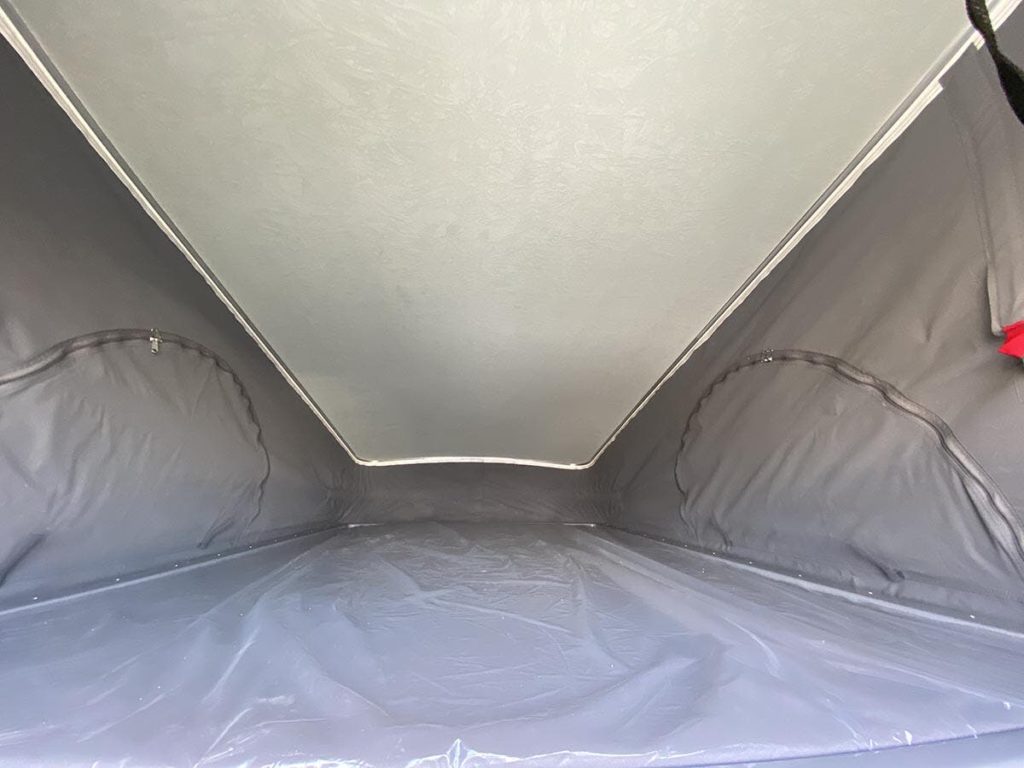

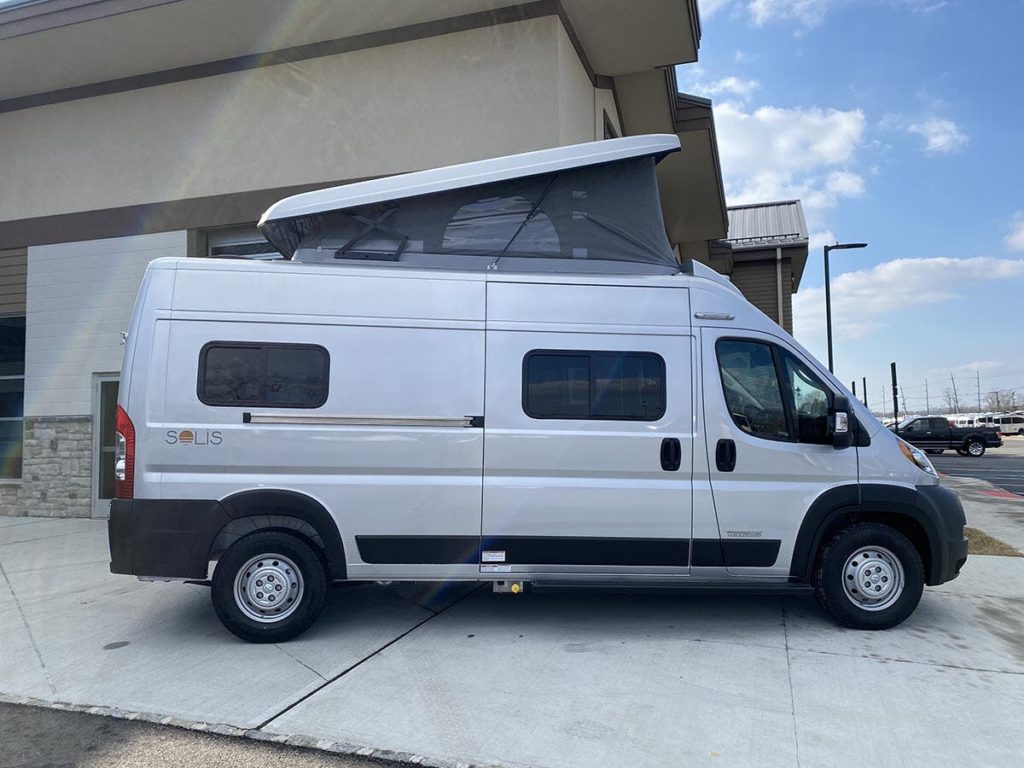

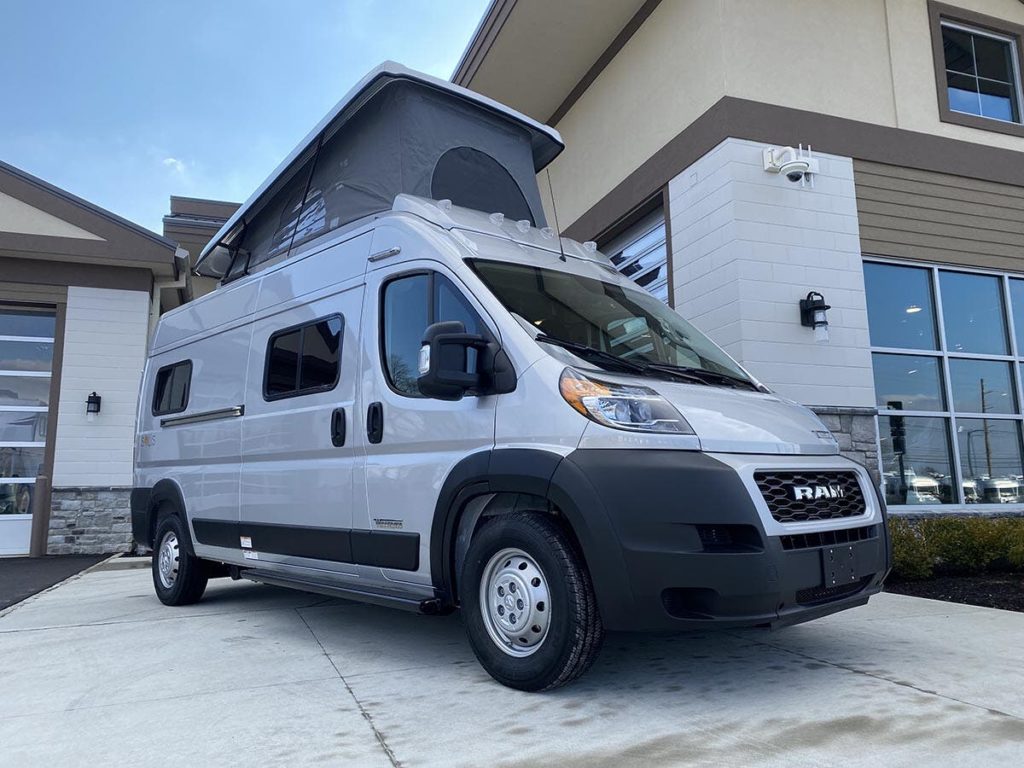

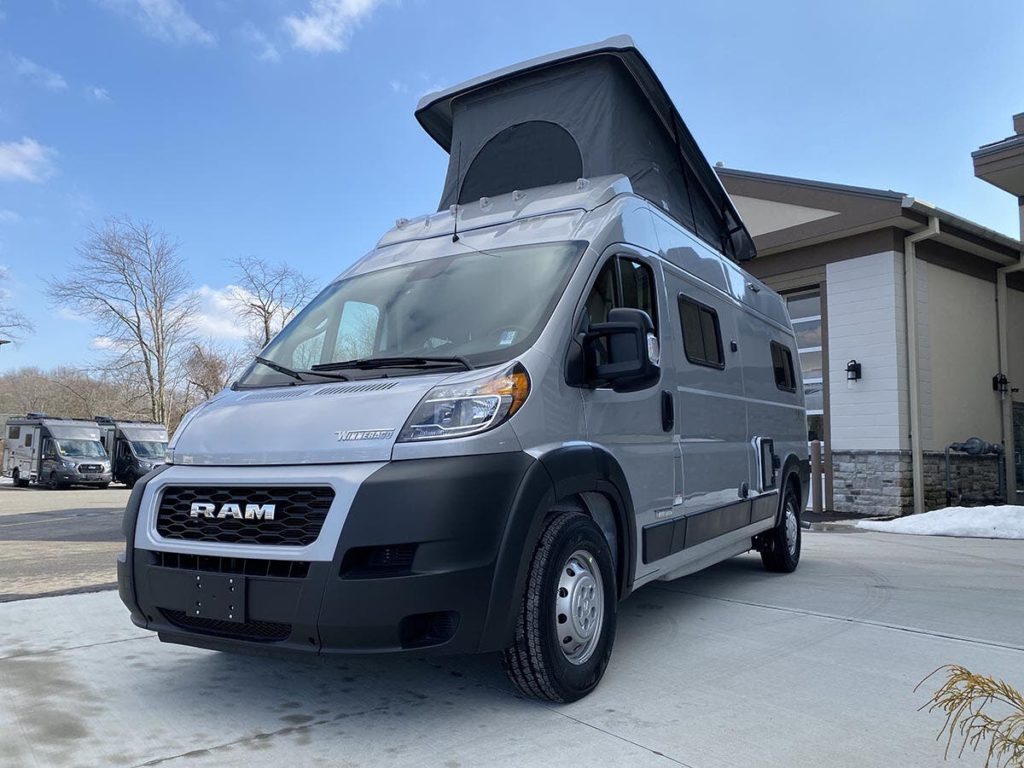

Pop-top sleeping area w/FROLI® sleep system • Porch light w/interior switch • Driver and passenger side service light • Assist bar • Side screen door • Rear screen door • Aluminum running board w/logoed tread and pet loop attachment • Rod and privacy screen (provided for rear annex)
HEATING & COOLING SYSTEM
Truma Combi® Eco Heating System • Coleman®-Mach® 10 NDQ air conditioner w/directional vents (59PX)
ELECTRICAL SYSTEM
AC/DC load center, 45-amp. converter/charger • Auxiliary start circuit • 2 deep-cycle Group 31 batteries (AGM maintenance-free) • Cummins Onan® QG 2,800-watt gas generator • Coach battery disconnect system • Automatic dual-battery charge control • 30-amp. power cord • 220-watt flexible surface solar panel w/controller
PLUMBING SYSTEM
Exterior wash station (located behind passenger seat) • 10′ sewer hose • On-demand water pump • Permanent-mount LP tank w/gauge • Fresh water sight glass • Heated drainage system • Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door) • Eco-Hot™ water system
SAFETY
LP, smoke, and carbon monoxide detectors • 10 BC fire extinguisher • Ground fault interrupter
WARRANTY
12-month/24,000-mile basic warranty
