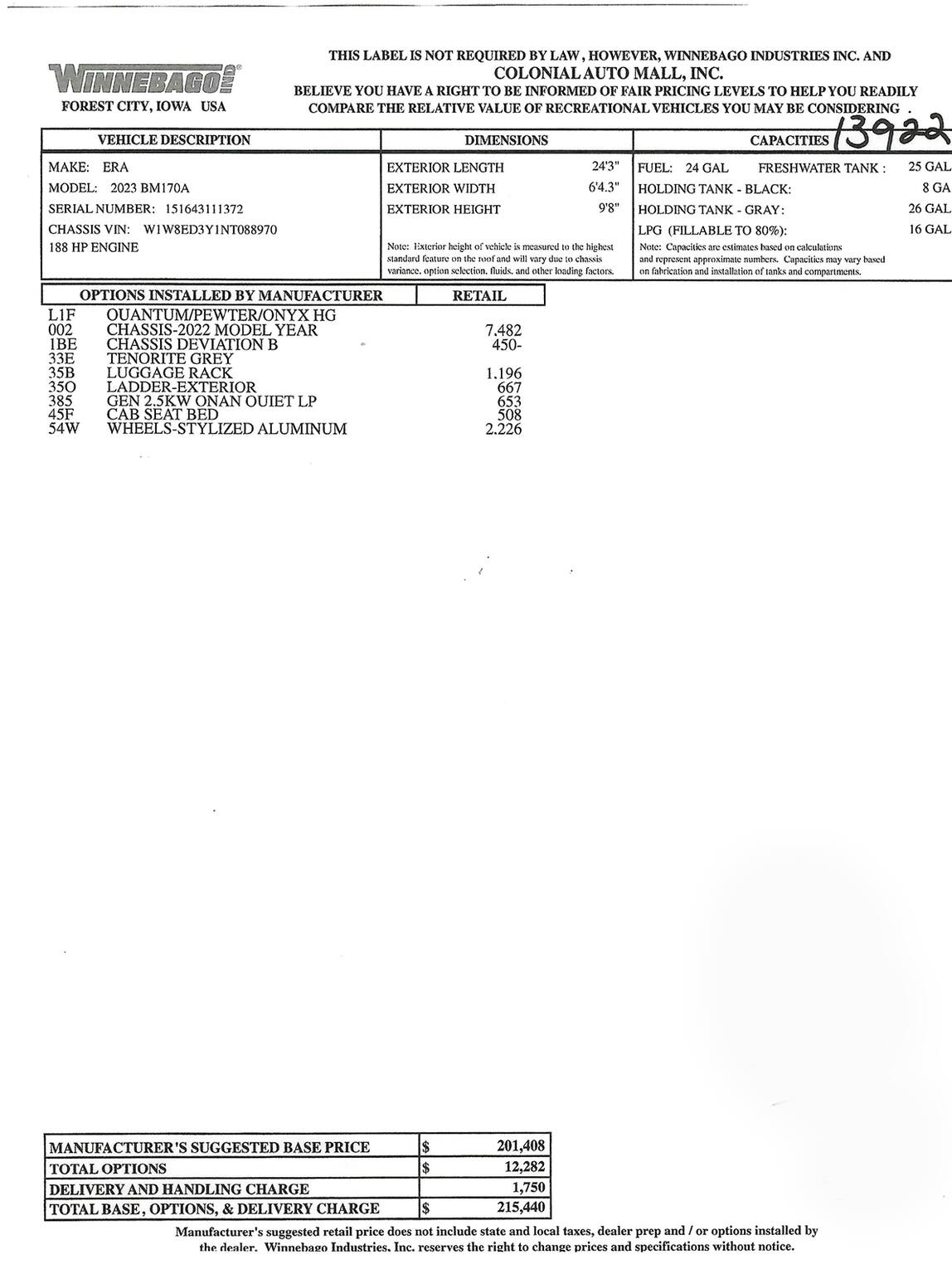

L1F: Quantum/Pewter/Onyx HG
002: 2022 Model Year Chassis
1BE: Chassis Deviation B
33E: Paint & Graphics – Tenorite Grey
35B: Luggage Rack

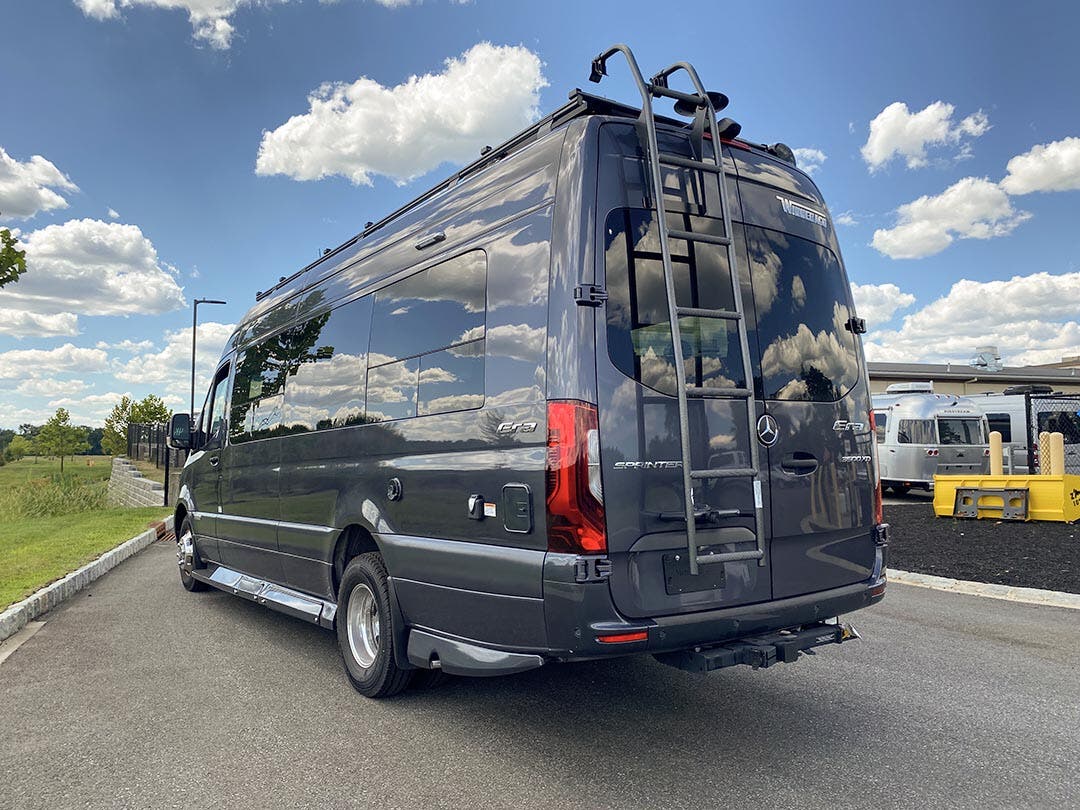

35O: Ladder – Exterior
385: 2.5KW Onan Quiet LP Generator
45F: Cab Seat Bed
54W: Stylized Aluminum Wheels
Floor Plans
| 70A | 70B | 70X | ||
|---|---|---|---|---|
| Exterior Length | 24′3″ | 24′3″ | 24′3″ | |
| Exterior Height | 9’8″/9’10″* | 9’8″/9’10″* | 9’8″/9’10″* | |
| Exterior Width | 6’4.25″ | 6’4.25″ | 6’4.25″ | |
| Awning Length | 16′ | 16′ | 16′ | |
| Interior Height | 6’3″ | 6’3″ | 6’3″ | |
| Interior Width | 5’9.75″ | 5’9.75″ | 5’9.75″ | |
| Freshwater Tank Capacity (gal.) | 25 | 25 | 25 | |
| Water Heater Capacity (gal.) | 2.6 | 2.6 | 2.6 | |
| Holding Tank Capacity — Black (gal.) | 8 | 9 | 9 | |
| Holding Tank Capacity — Gray (gal.) | 26 | 19 | 19 | |
| LP Capacity (lbs.) | 67.68 | 67.68 | 67.68 | |
| Fuel Capacity (gal.) | 24.5 | 24.5 | 24.5 | |
| GCWR (lbs.) | 15,250 | 15,250 | 15,250 | |
| GVWR (lbs.) | 11030 | 11030 | 11030 | |
| GAWR – Front (lbs.) | 4,410 | 4,410 | 4,410 | |
| GAWR – Rear (lbs.) | 7,720 | 7,720 | 7,720 | |
| Wheelbase | 170″ | 170″ | 170″ | |
| Sleeps | 3 | 2 | 2 |

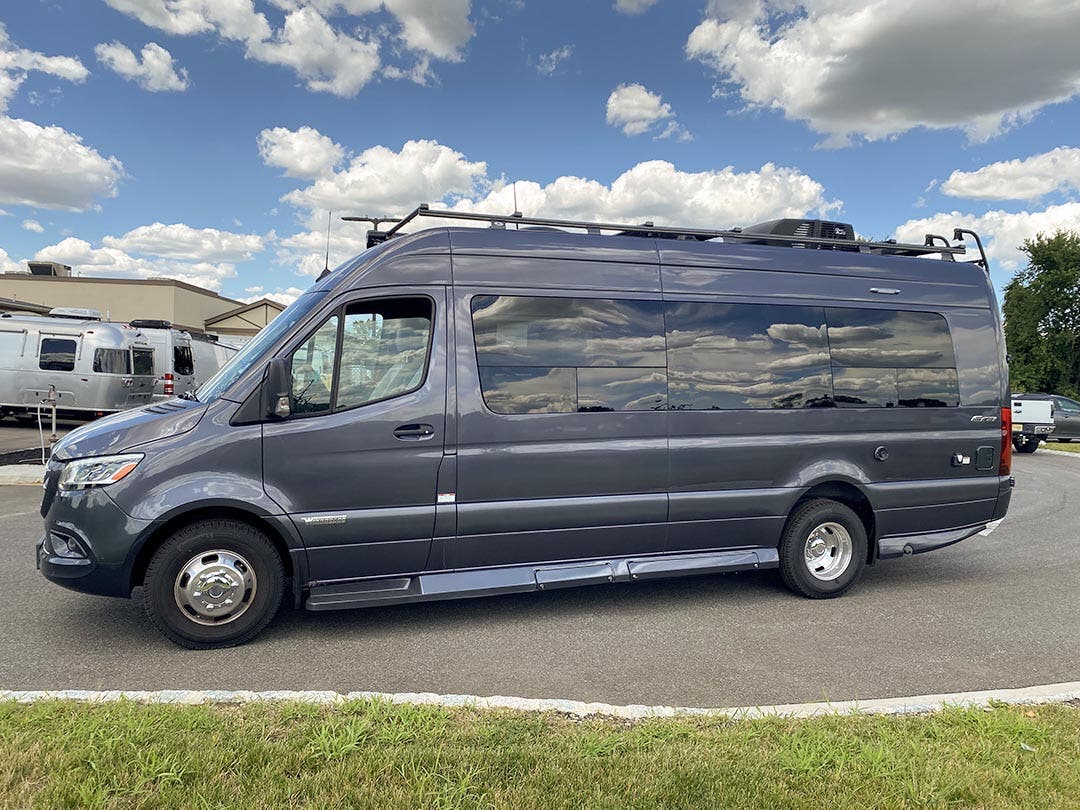

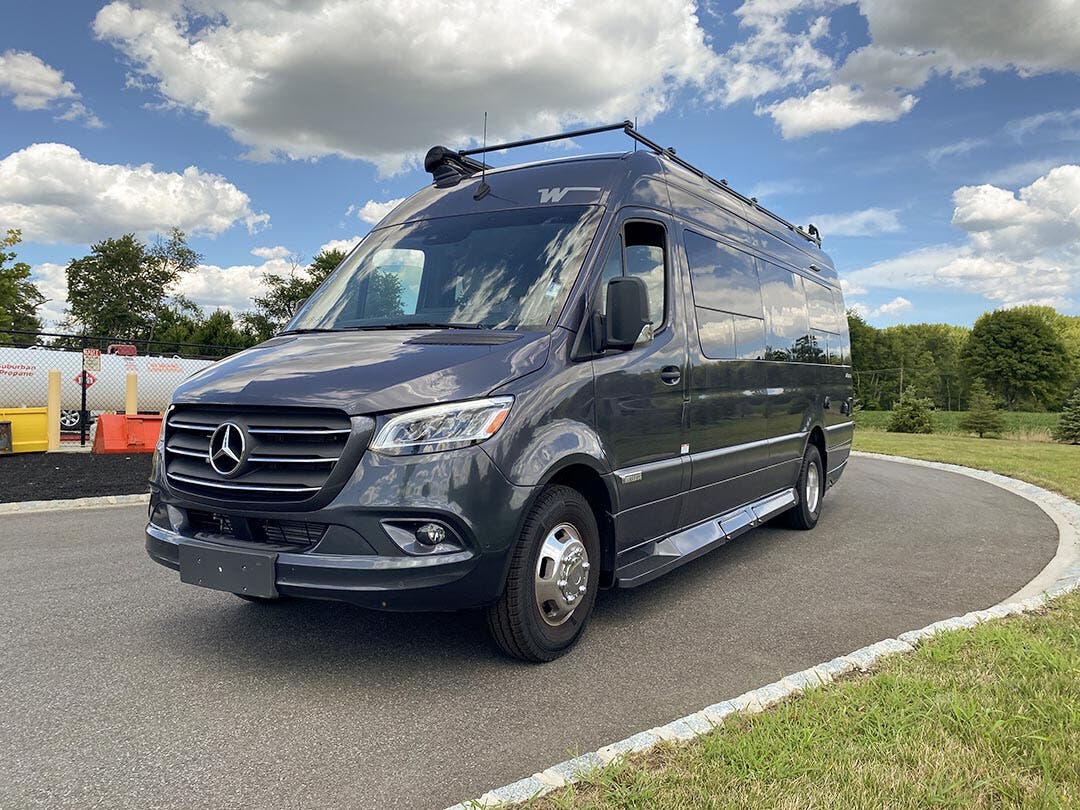

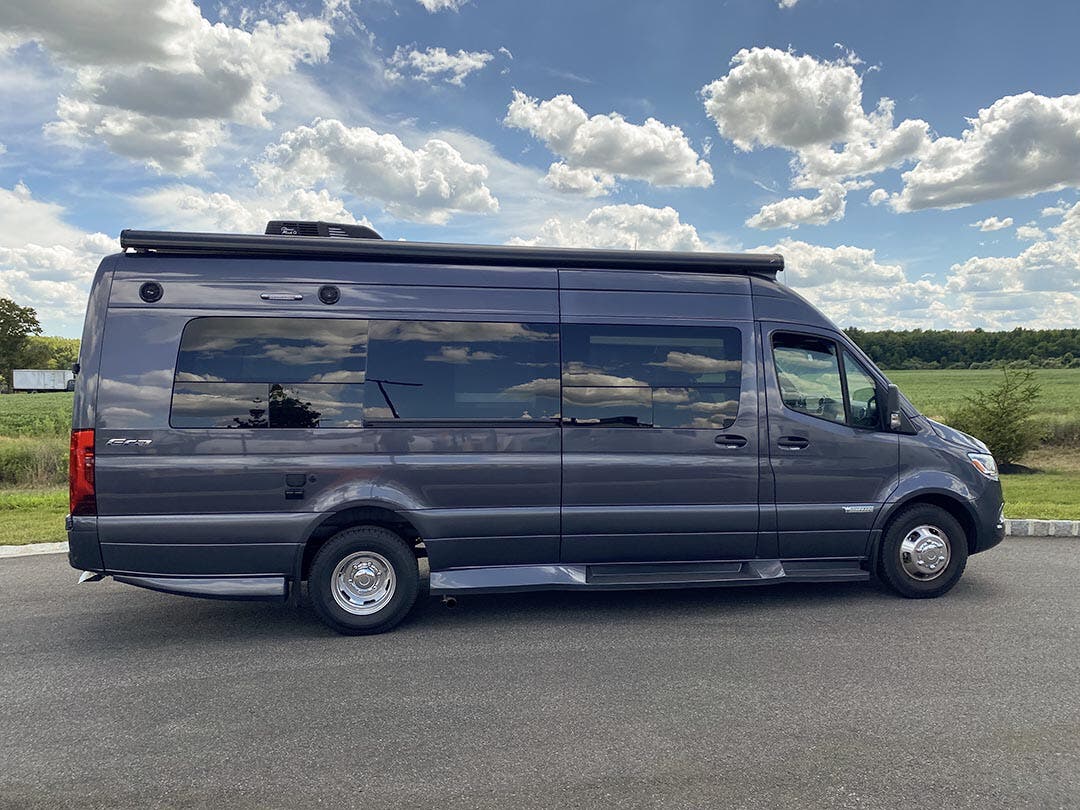

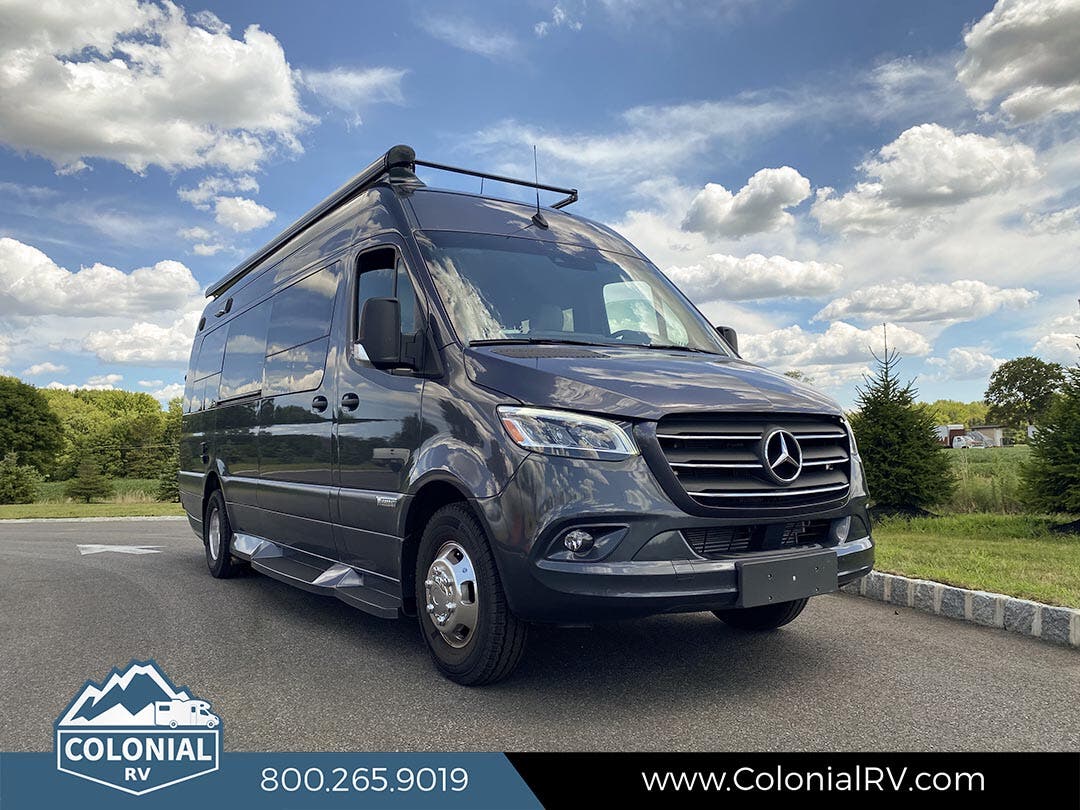

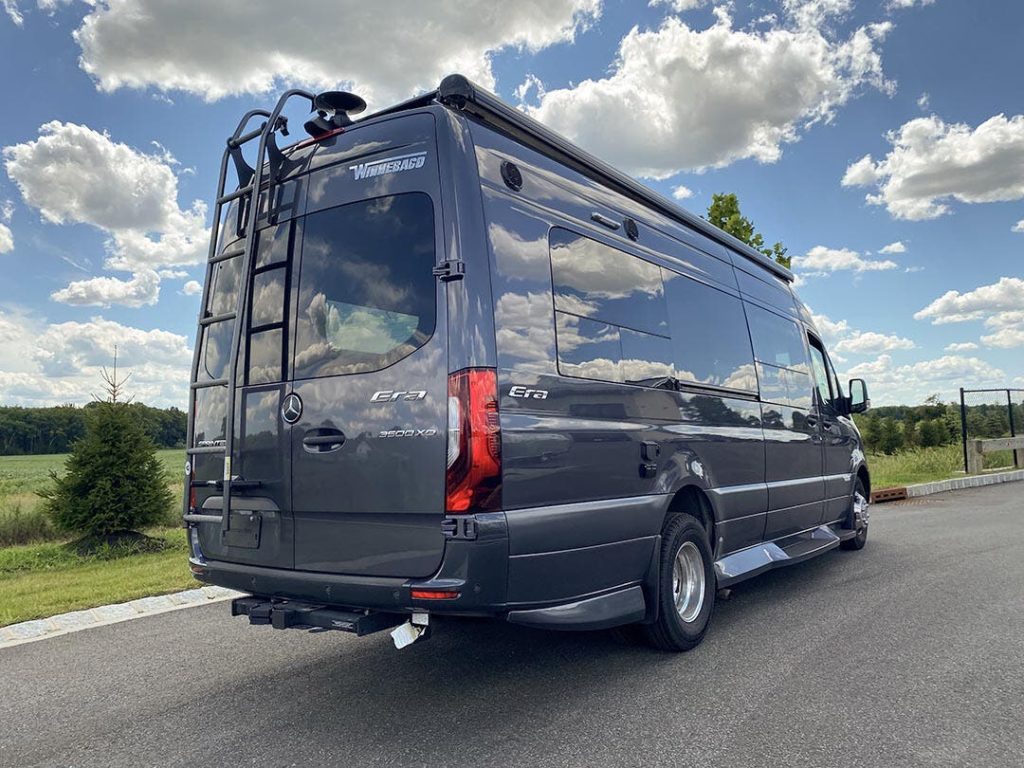

CHASSIS

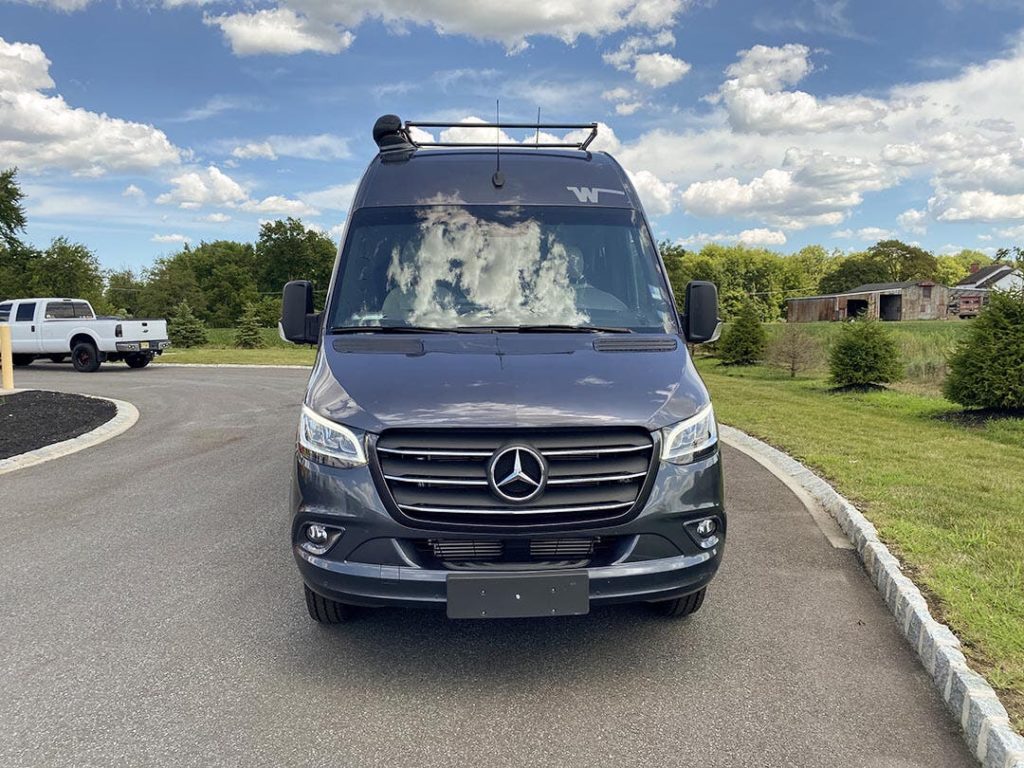

Mercedes-Benz® Sprinter Chassis • 3.0L 6-cylinder, 188-hp, turbo-diesel engine, 7G-Tronic automatic transmission, 220-amp. alternator • 4-wheel ABS brakes • Stylized aluminum wheels • Trailer Hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight • 7-pin wiring connector • Spare tire
Optional Equipment: On-demand 4WD w/Hi/Lo Range
CAB CONVENIENCES

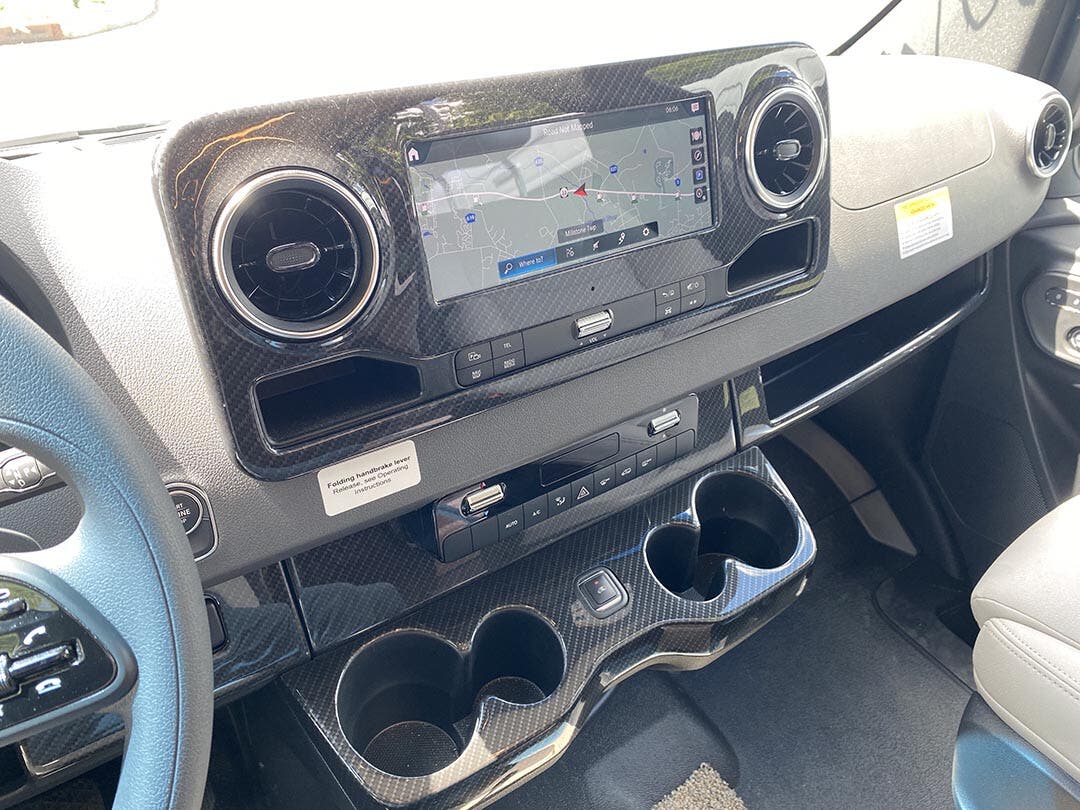

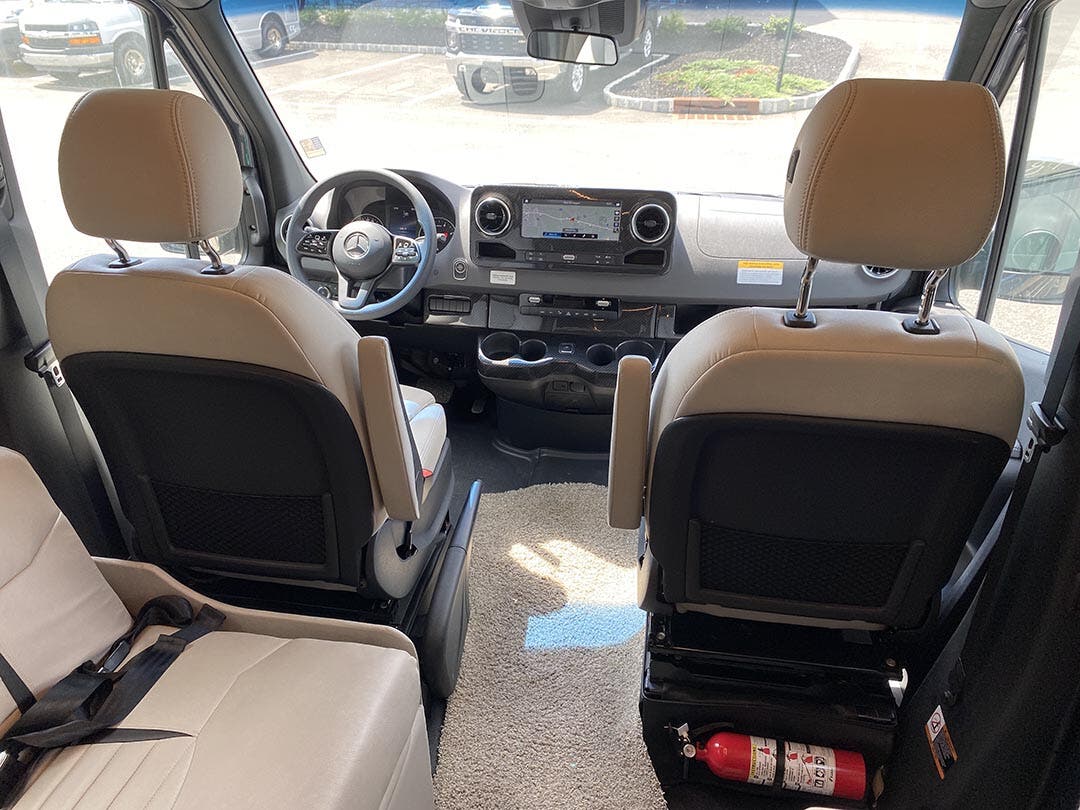

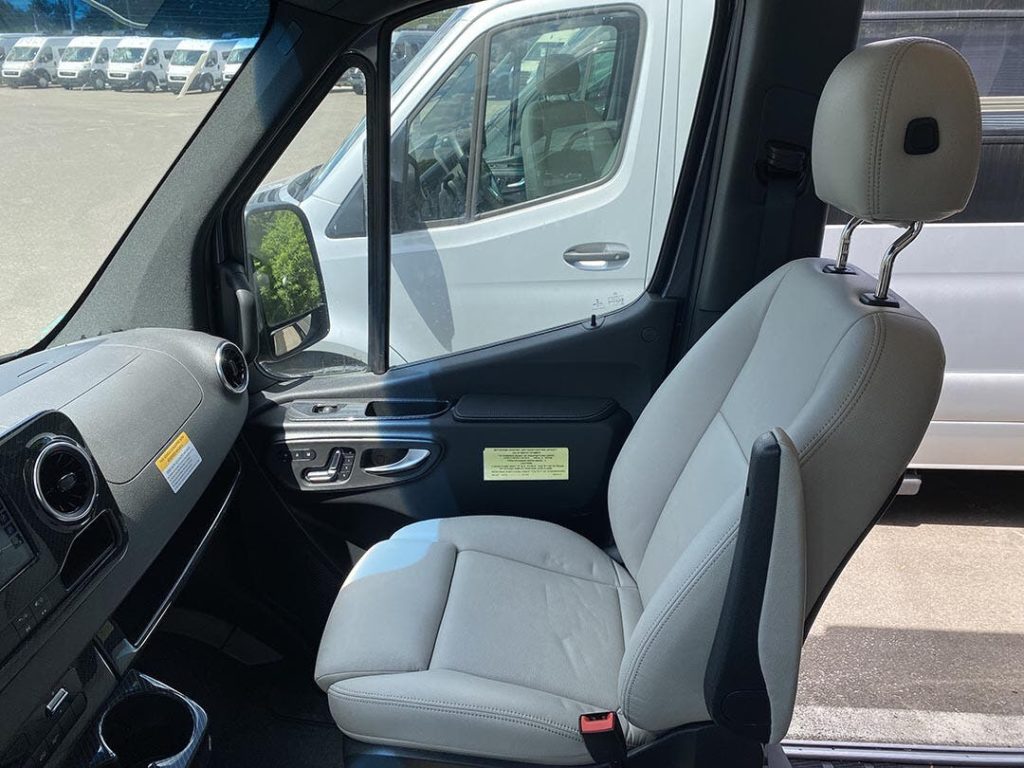

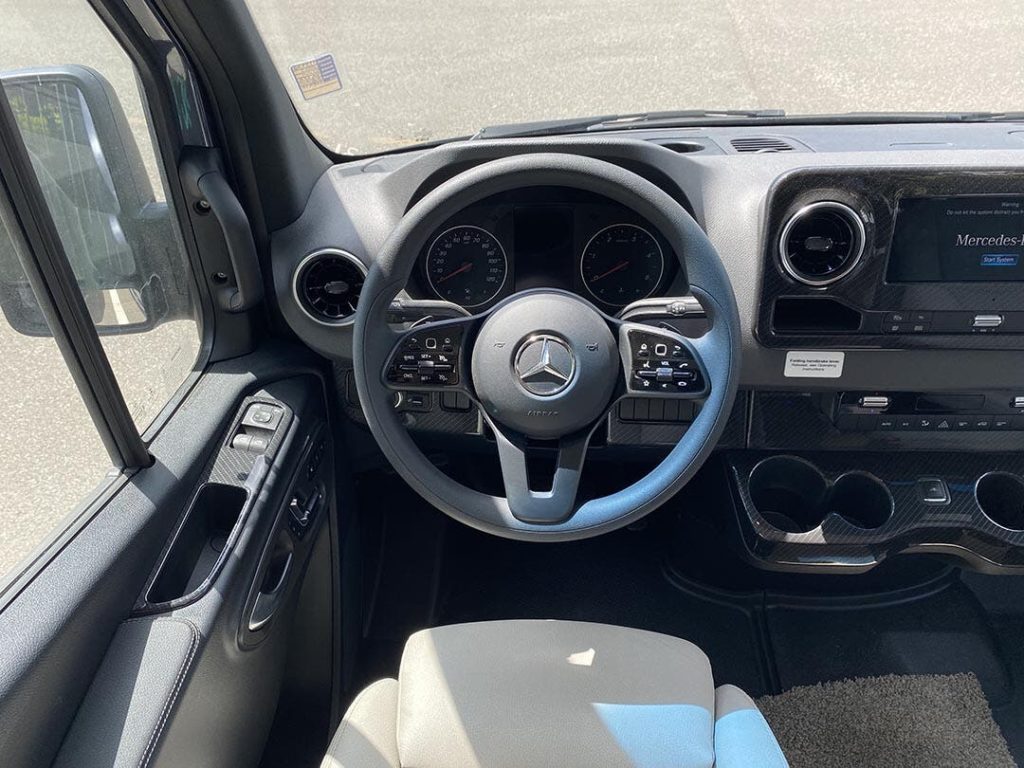

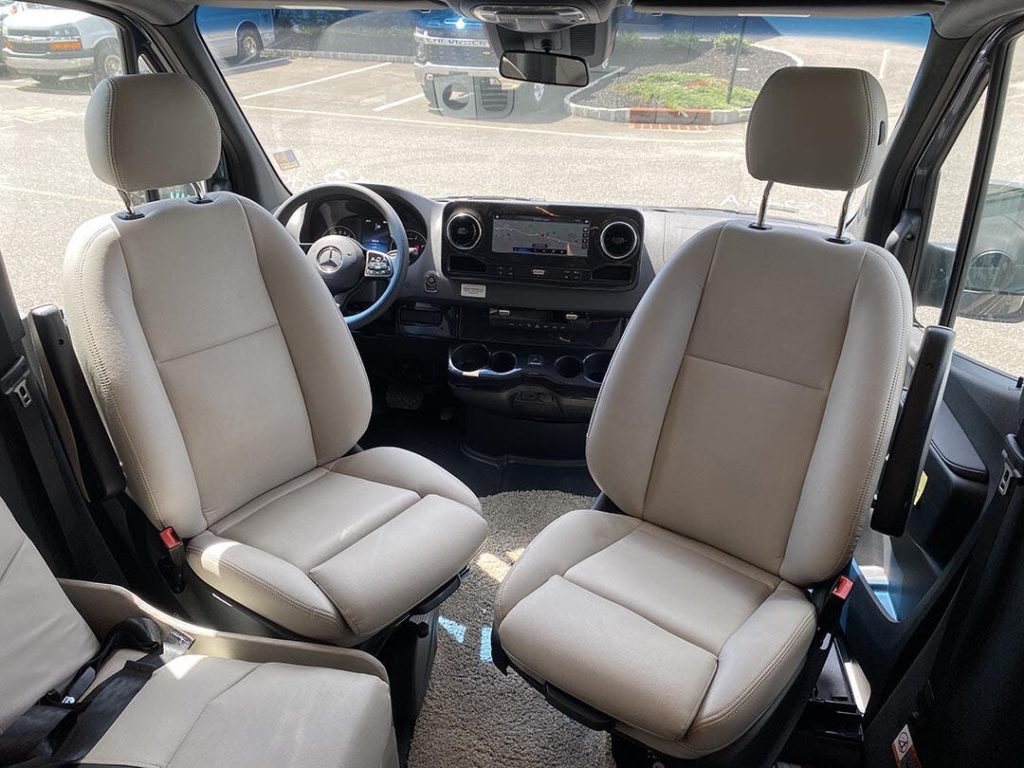

MBUX® Touchscreen Multimedia Infotainment Center w/navigation, interactive voice interface, Wi-Fi hotspot and rear camera • Ultraleather® covered cab seats, armrests, adjustable lumbar support, adjustable headrest, and slide/swivel/recline • 3-point seat belts • Dual airbags • Power steering w/tilt and telescoping wheel • Power mirrors w/defrost and turn signal • Power door locks w/remote • Power windows • 12-volt powerpoints • Sunvisors • Folding privacy screens for cab door windows • Appliqué package • Keyless entry w/remote • Blind spot monitoring • Collision avoidance system • Traffic sign assist • Crosswind assist • Active brake assist
INTERIOR

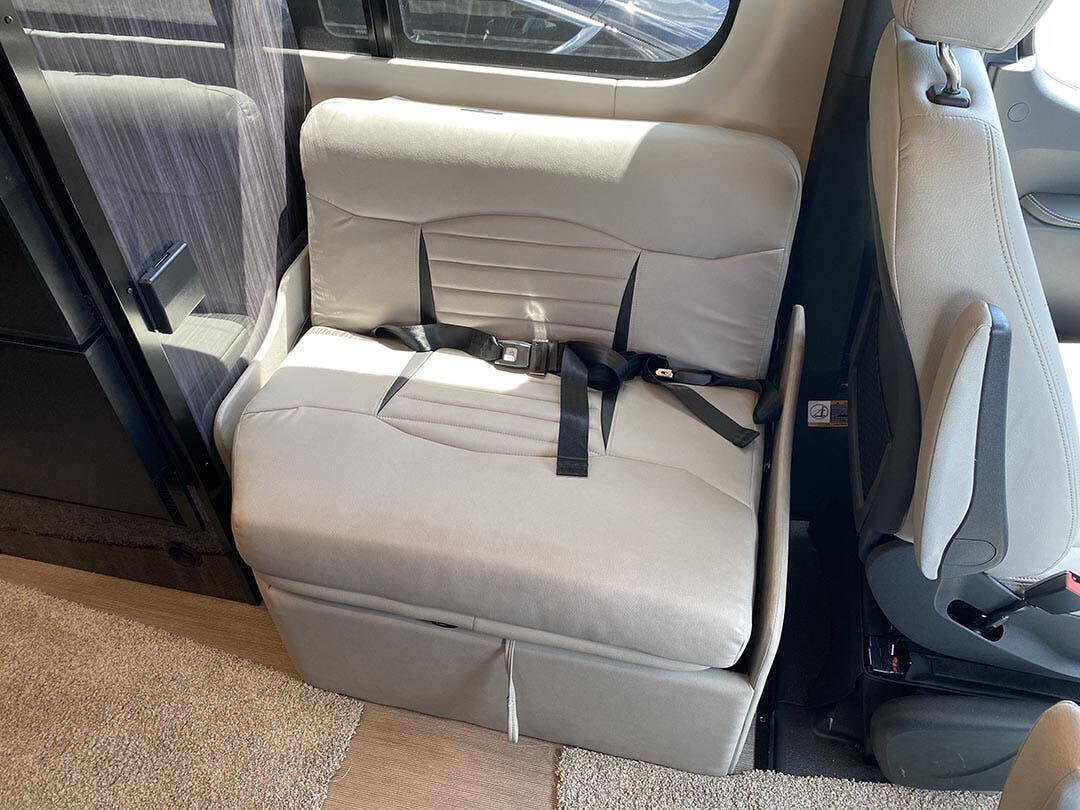

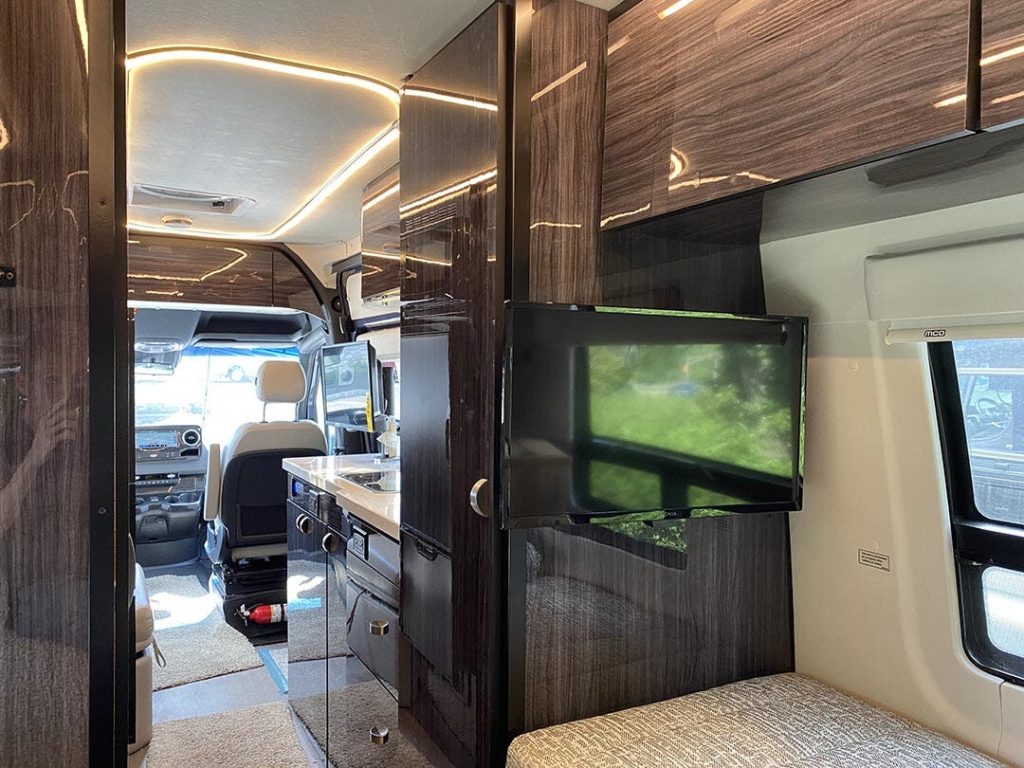

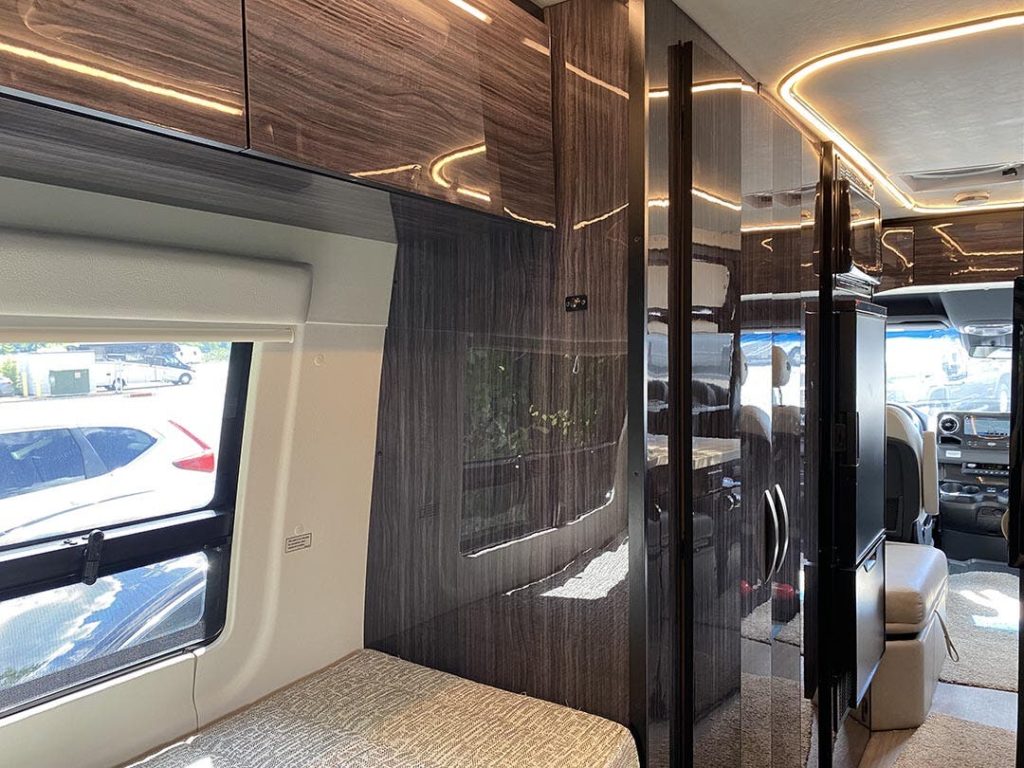

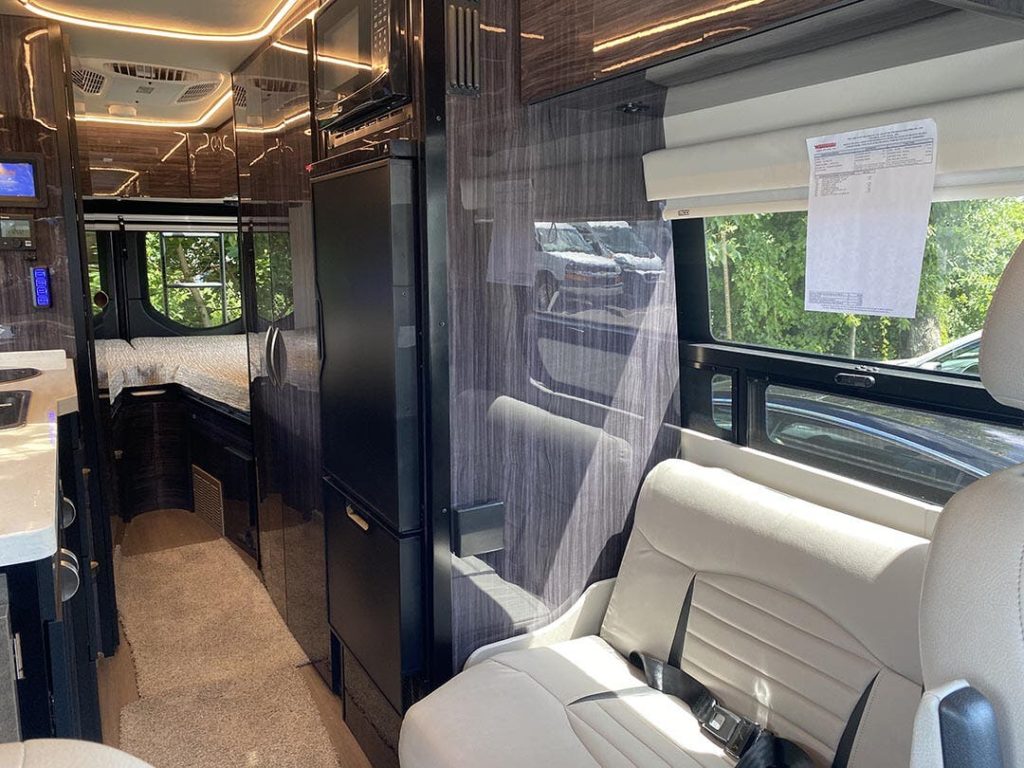

24″ HDTV (70A swivels for outdoor viewing) • OmniGo™ omni-directional, amplified HDTV antenna • Continuous tracklighting w/dimmer switch • MCD blackout roller shades • Soft vinyl ceiling • Tinted coach windows • Removable companion seats w/swivel and slide (70B, 70X) • Removable pedestal table Sofa/bed (70A) • Touch screen systems monitor panel • Multiplex lighted wall switches w/master light switch and control via Precision Plex app for Android/iOS • Deluxe powered ventilator fan w/rain cover • Mirror • USB charging points

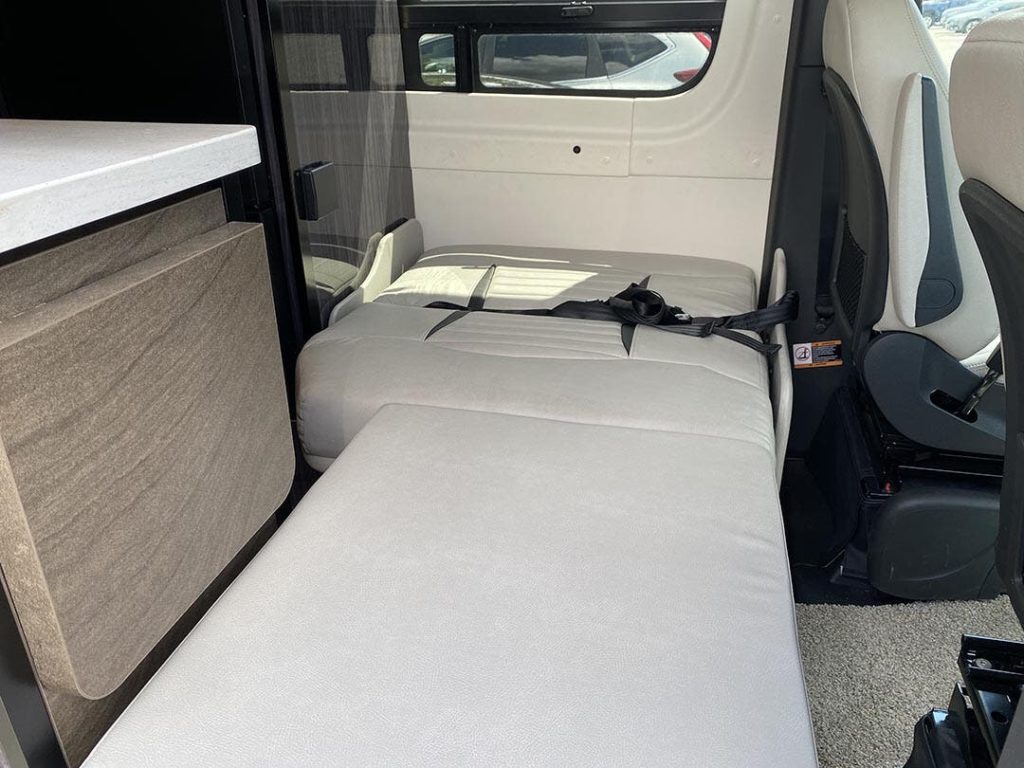

Optional Equipment: Front cab air mattress 30″ x 65″ w/support base, cordless pump, repair kit, and storage bag

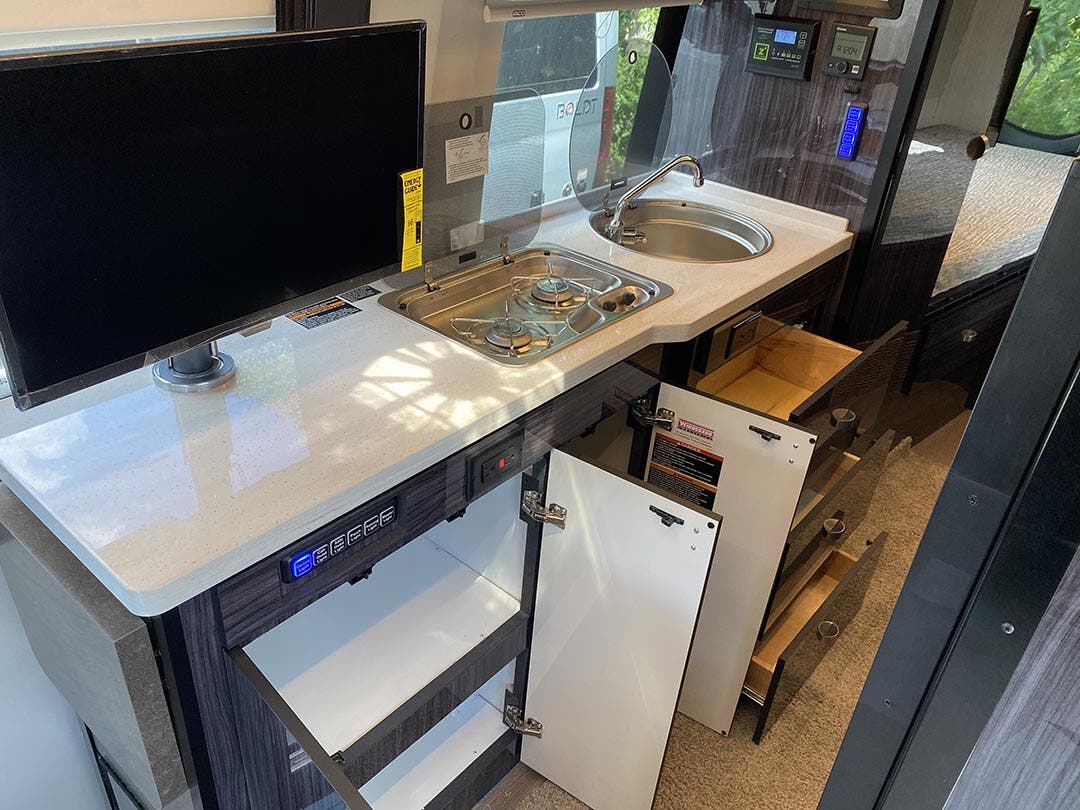

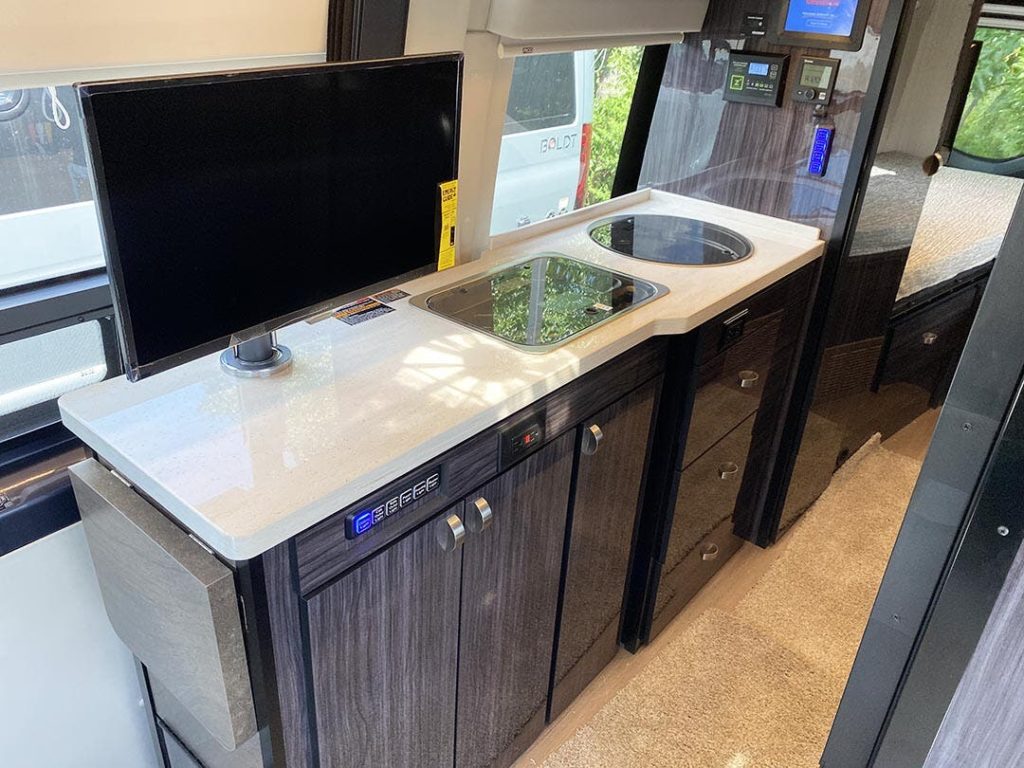

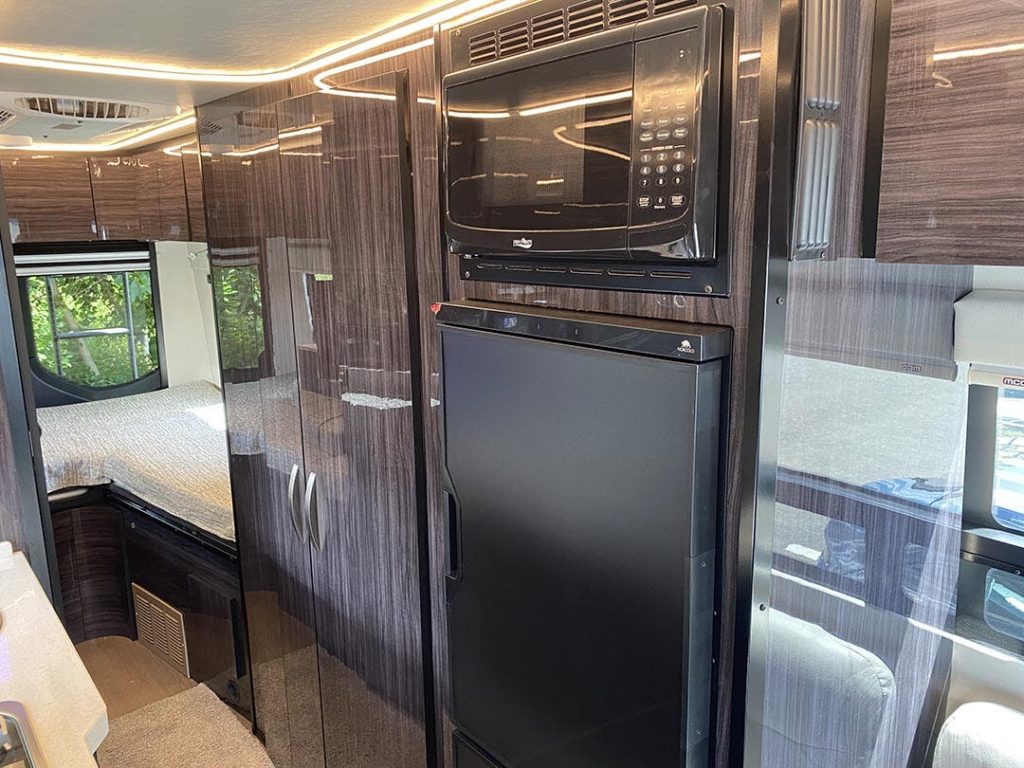

GALLEY

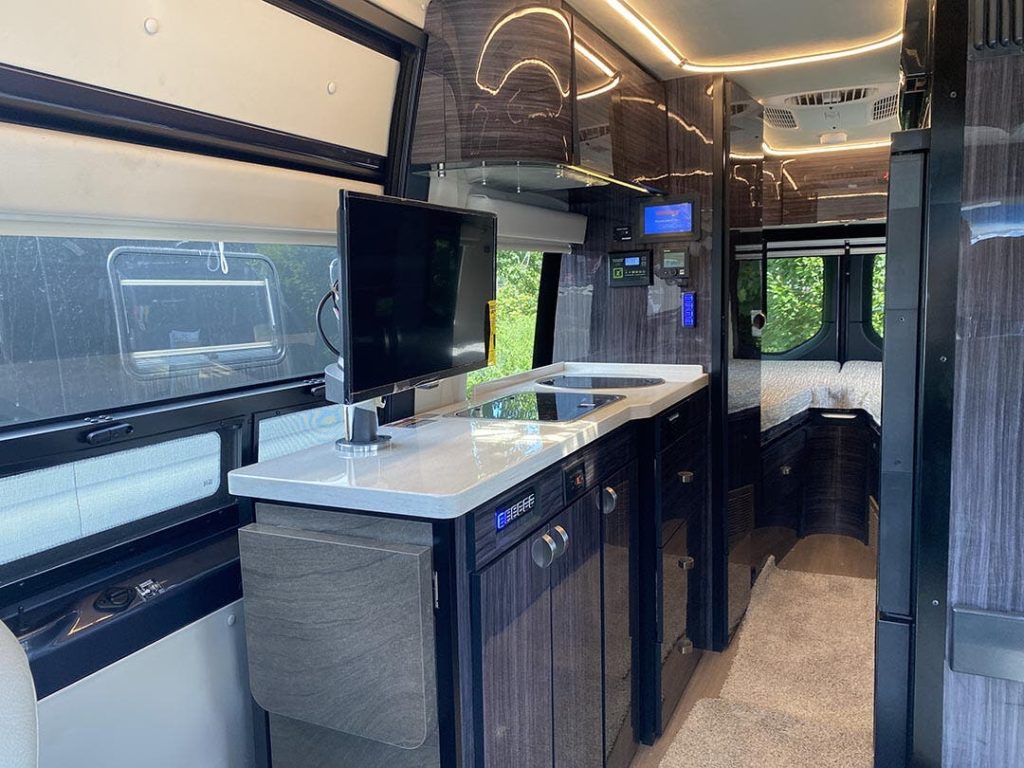

Flip-up countertop extension (70A) • Corian® solid-surface countertop • Decorative backsplash (70B) • Microwave oven w/ touch control (70A) • Microwave convection oven w/ touch control (70B, 70X) • 2-burner range top w/glass cover (70A) • 3-burner range w/glass top and stainless steel sink (70B, 70X) • 5.5 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer (70A) • 6.0 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer (70B) • 4.3 cu. ft. (12V) single door compressor-driven refrigerator/freezer (70X) • Stainless steel sink w/folding faucet and glass cover (70A) • Bamboo sink cover and cutting board (70B, 70X) • Cold water purification system
BATH
Wet bath 24″x43″ • Flexible showerhead • Shower curtain • Toilet w/foot pedal and sprayer • Tissue holder • Stainless steel sink • Powered roof vent • Removable clothing rod • Shower mat

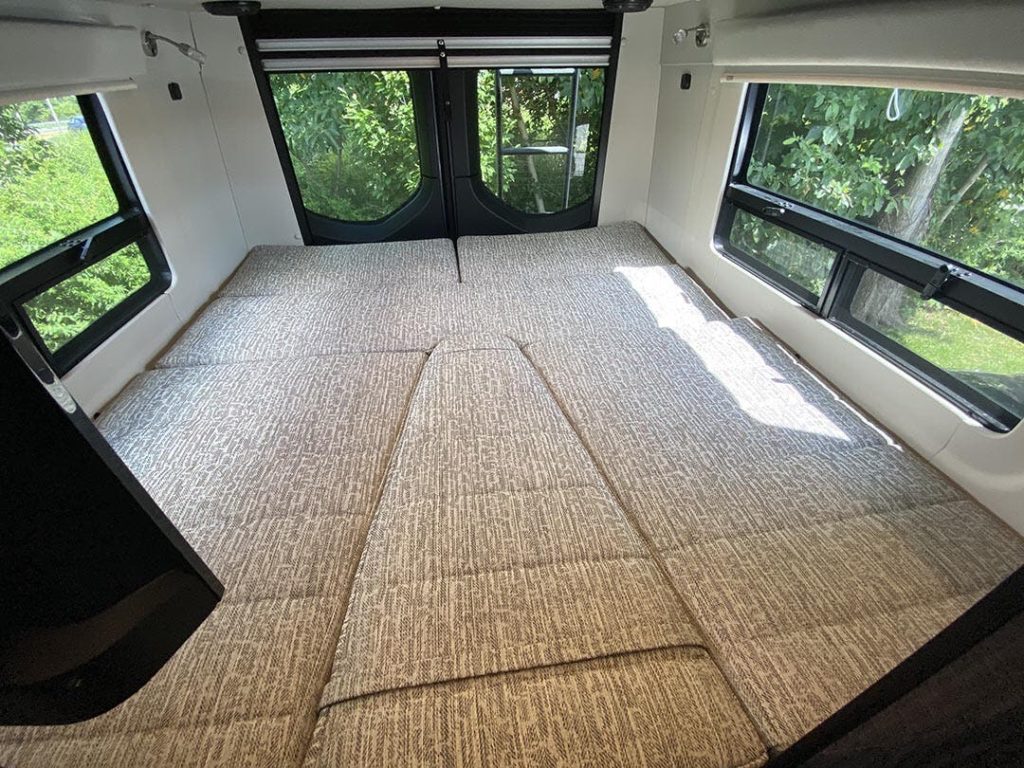

BEDROOM

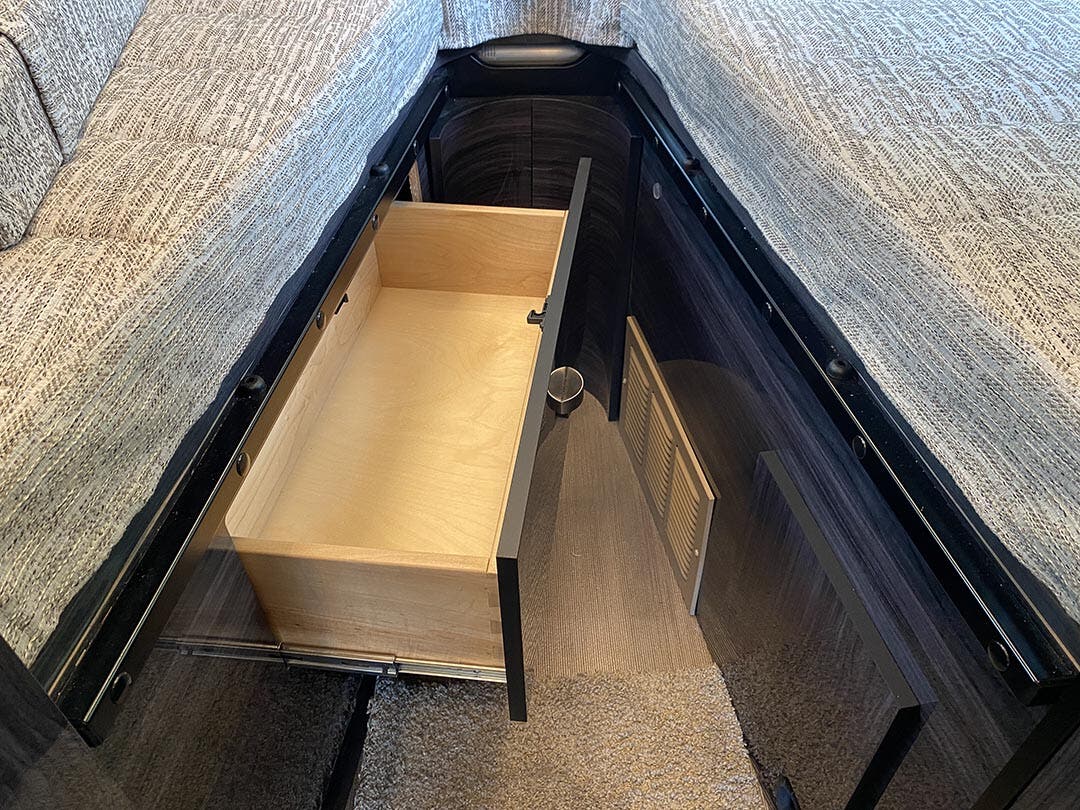

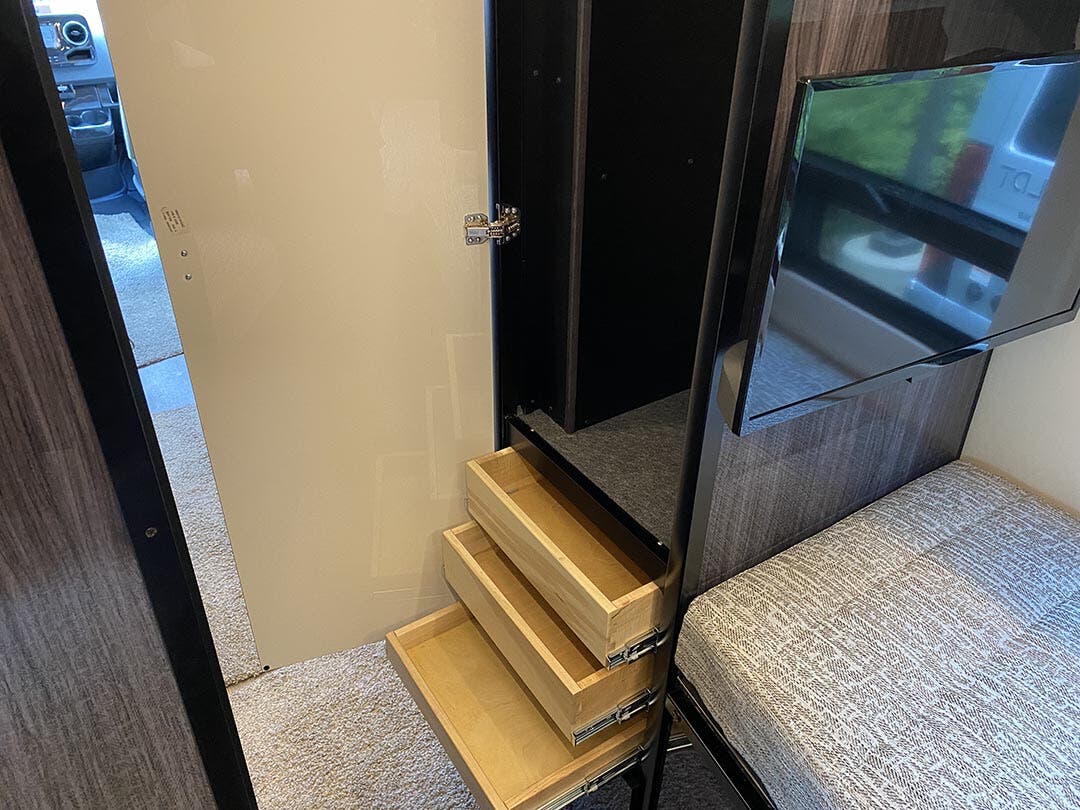

Twin beds w/Flex Bed System (70A) • 24″ HDTV w/remote (70A) • Wardrobe (70A) • Powered sofa/bed (70B, 70X) • Deluxe sleep system (70A)
EXTERIOR

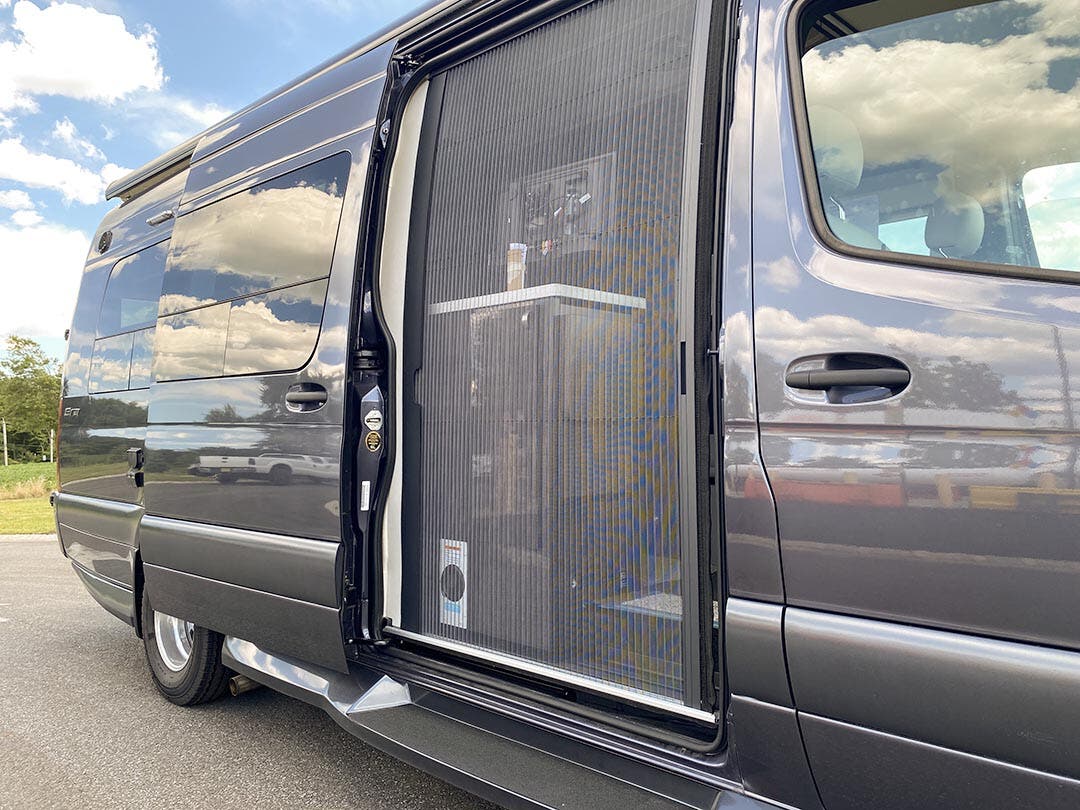

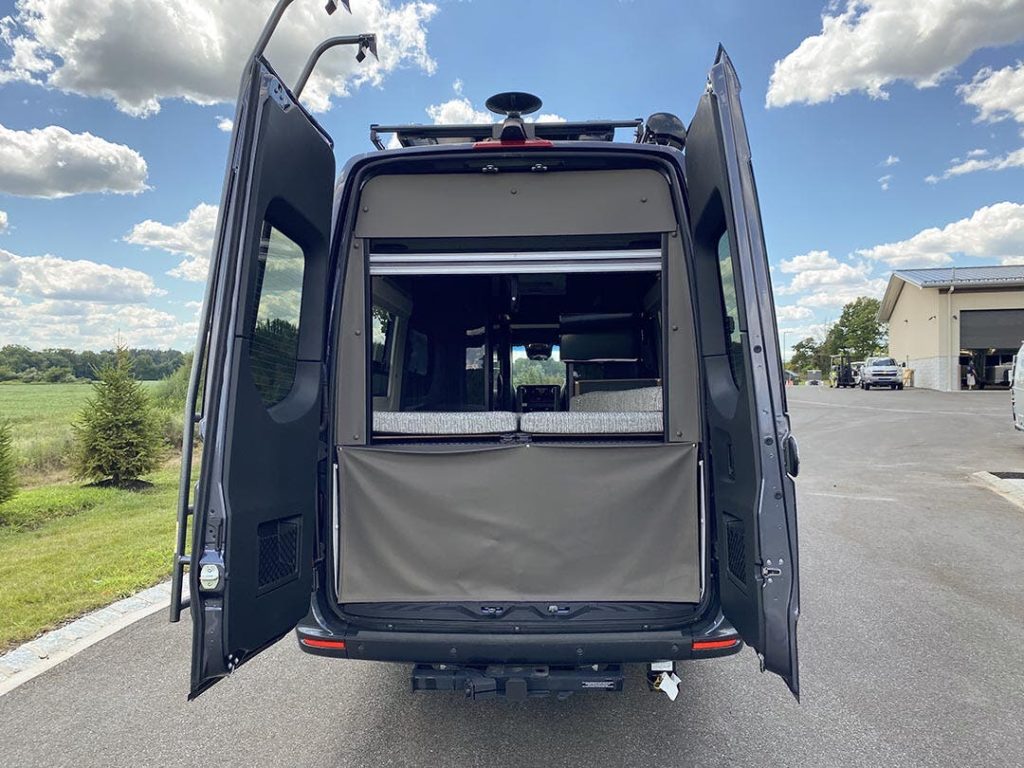

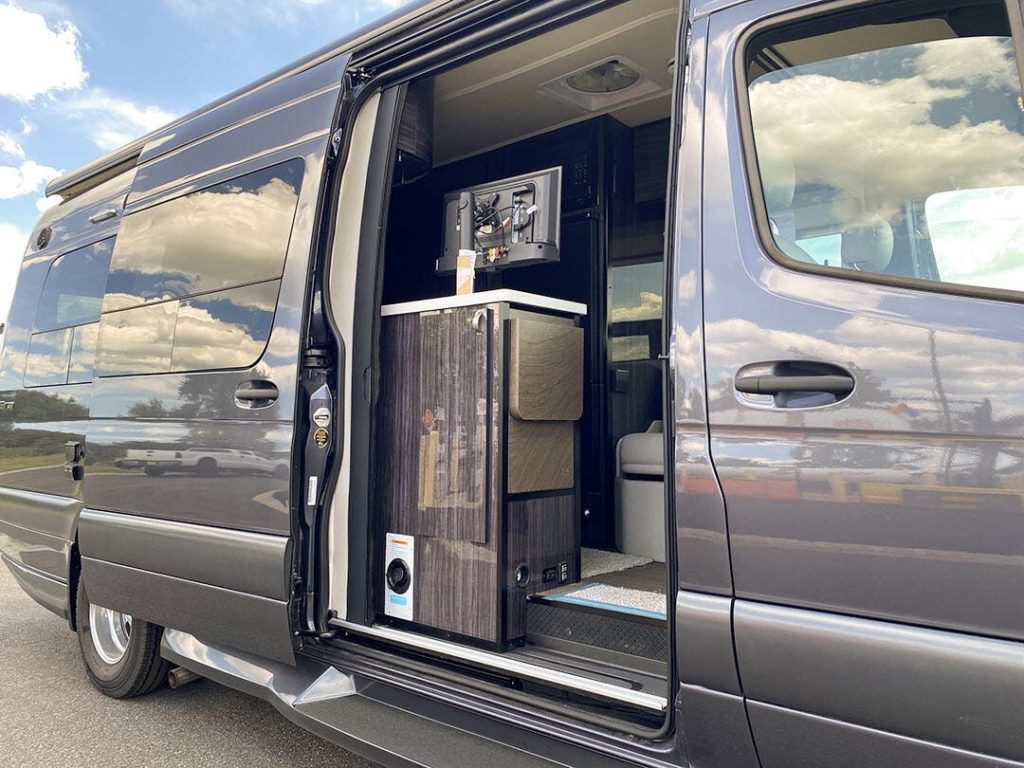

Sliding entrance door • Side screen door • Rear screen door • Powered patio awning w/LED lighting • Slideout compartment tray (access from rear door) (70A) • Porch light w/interior switch • Running boards, rocker trim w/mud guard • Rear mud guards • Exterior speaker system

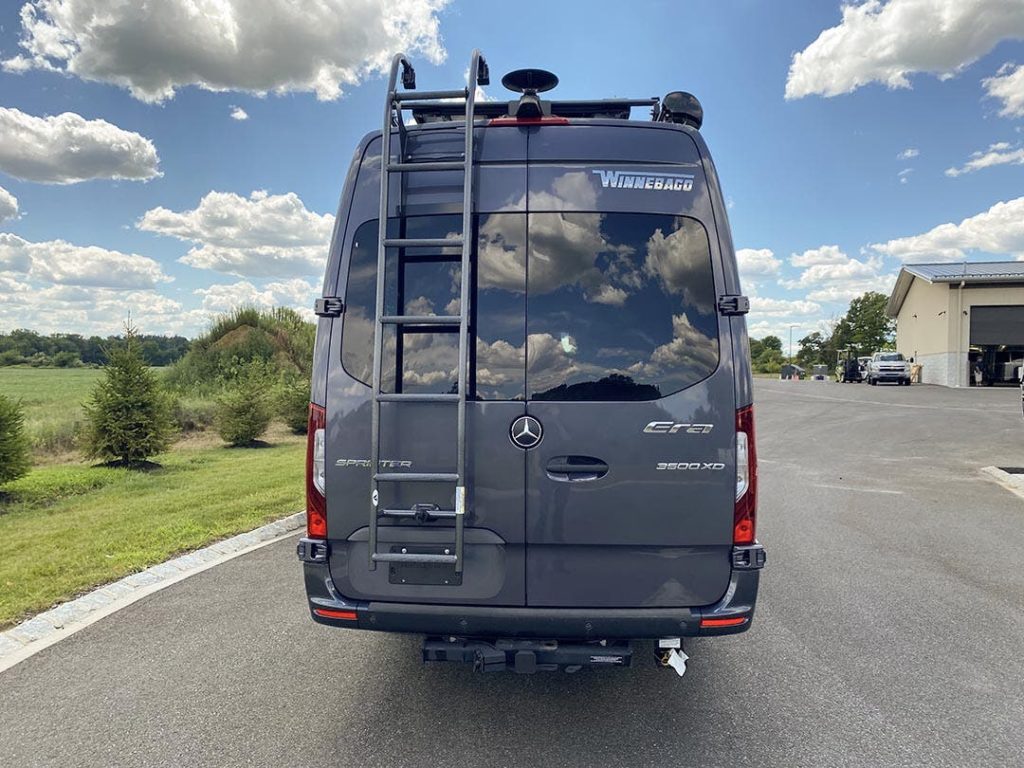

Optional Equipment: Luggage rack • Ladder
HEATING & COOLING SYSTEM
Coleman®-Mach® 10 NDQ air conditioner • Truma Combi® Eco Plus Heating System w/(2) 850-watt electric heating elements
ELECTRICAL SYSTEM
AC/DC load center/converter • 2-deep cycle Group 31 batteries (AGM maintenance free) • Coach battery disconnect system • 200-watt solar panel/battery charger • 45-amp. converter/charger • 30-amp. power cord • Exterior TV jack • Exterior AC/DC receptacles • 2,500-watt Cummins Onan® QG LP generator • 1,000-watt Pure Sine Wave inverter
PLUMBING SYSTEM
Exterior Service Center city water hookup/tank diverter valve, drainage valves, sewer hose (w/shut-off 70B, 70X) valve and exterior wash station w/pump switch • TrueLevel™ holding tank monitoring system • Winterization Package water heater bypass valve and siphon tube • On-demand water pump • 12-volt macerator sewage pump (70B, 70X) • Permanent-mount LP tank w/gauge • LPG accessory connection • Holding tank flushing system
SAFETY
Child seat tether anchor (70B, 70X) • LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Daytime running lamps • High-mount brake lamps
WARRANTY
12-month/15,000-mile basic limited warranty
*Disclaimer: Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle. In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
