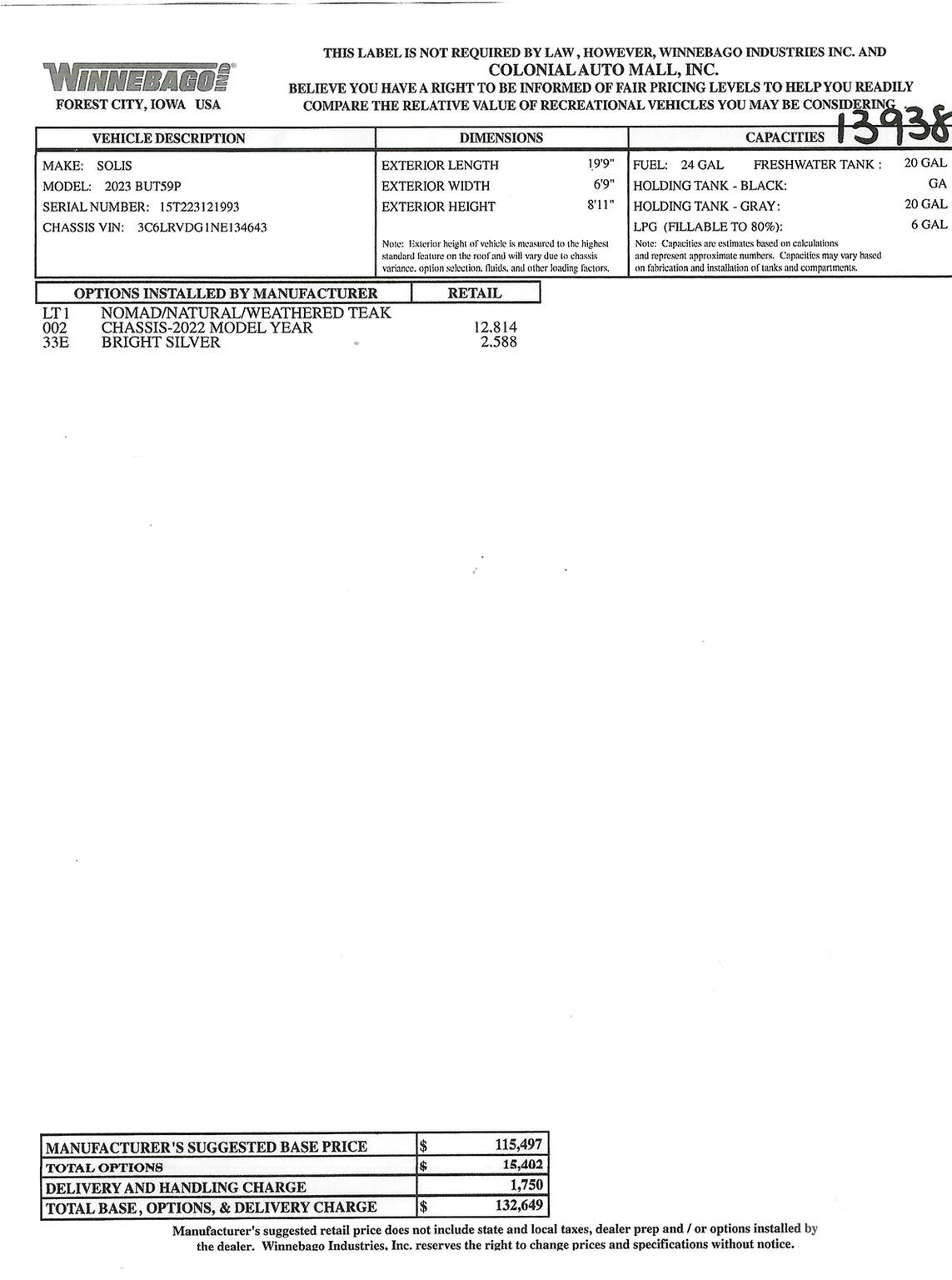

Options Included:
LT1: Nomad/Natural/Weathered Teak
002: 2022 Model Year Chassis
33E: Paint & Graphics – Bright Silver
| 59P | 59PX | ||
|---|---|---|---|
| Exterior Length | 19’9″ | 21′ | |
| Exterior Height | 8’11″ | 9’5″ | |
| Exterior Width | 6’8″ | 6’8″ | |
| Interior Height | 6’2″ | 6’2″ | |
| Interior Width | 6’4″ | 6’4″ | |
| Freshwater Tank Capacity (gal.) | 21 | 21 | |
| Water Heater Capacity (gal.) | 2.6 | 2.6 | |
| Holding Tank Capacity – Gray | 20 | 20 | |
| LP Capacity (gal.) | 24.96 | 24.96 | |
| Fuel Capacity (gal.) | 24 | 24 | |
| GCWR (lbs.) | 11,500 | 11,500 | |
| GVWR (lbs.) | 8,900 | 9,350 | |
| GAWR – Front (lbs.) | 4,629 | 4,629 | |
| GAWR – Rear (lbs.) | 5,291 | 5,291 | |
| Wheelbase | 159″ | 159″ | |
| Cassette Toilet Capacity (gal.) | 5 | 5 | |
| Sleeps | 4 | 4 | |
CHASSIS
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 9-speed automatic 62TE transmission, 180-amp. alternator • 4-wheel ABS brakes • Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight
CAB CONVENIENCES

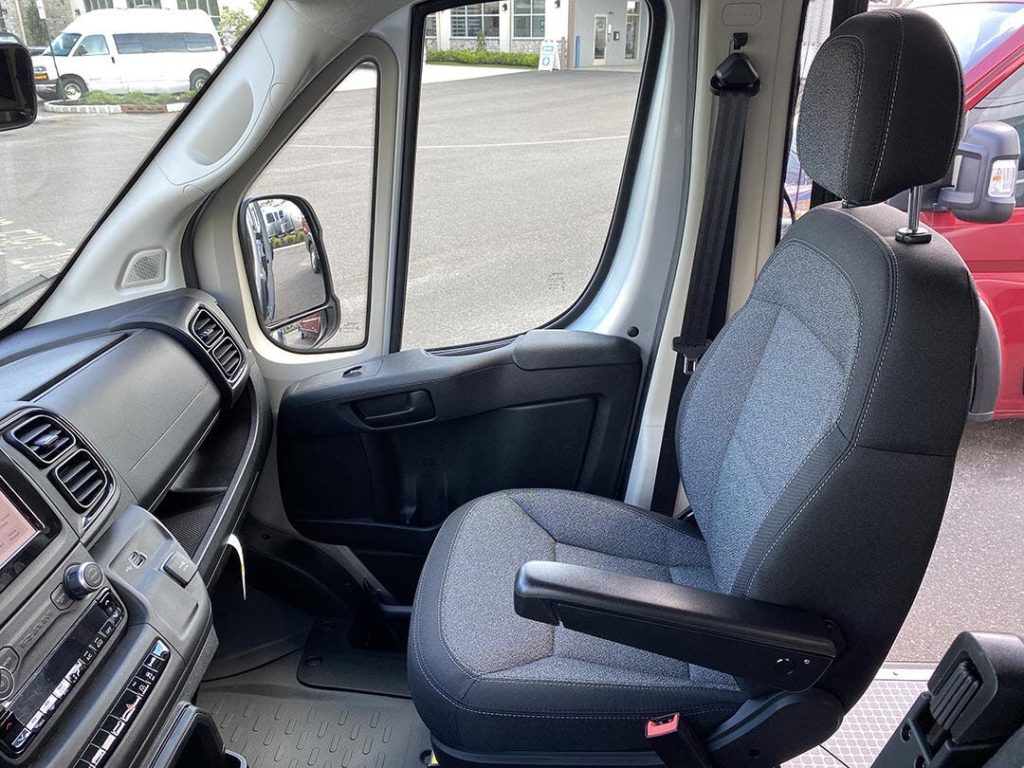

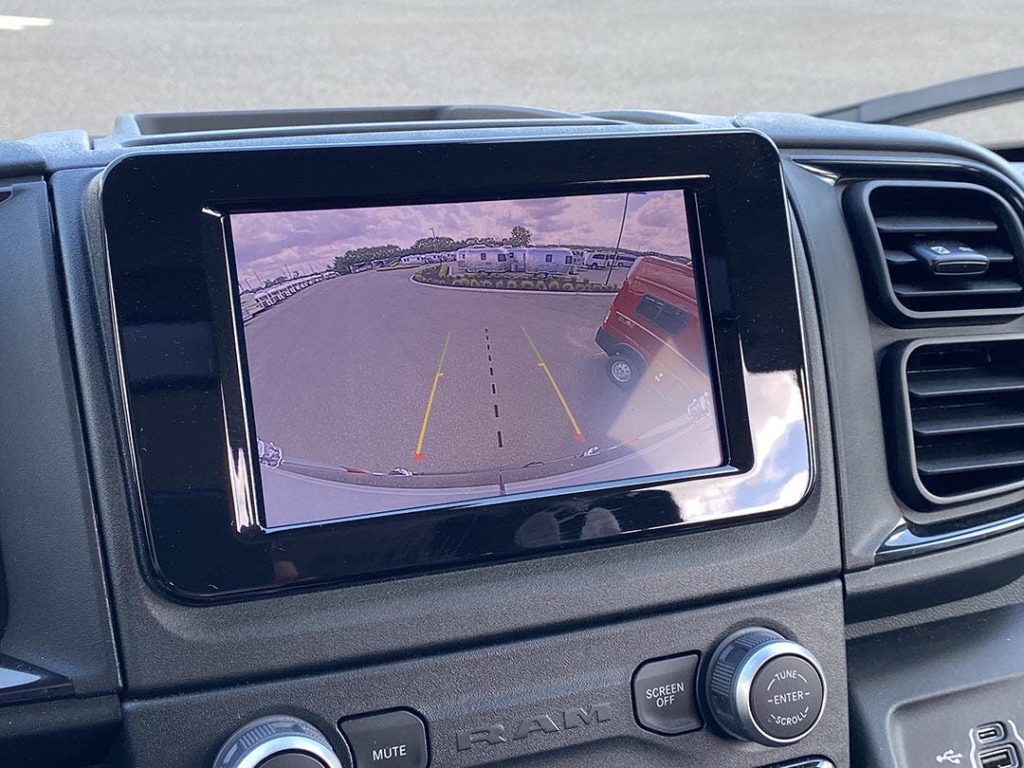

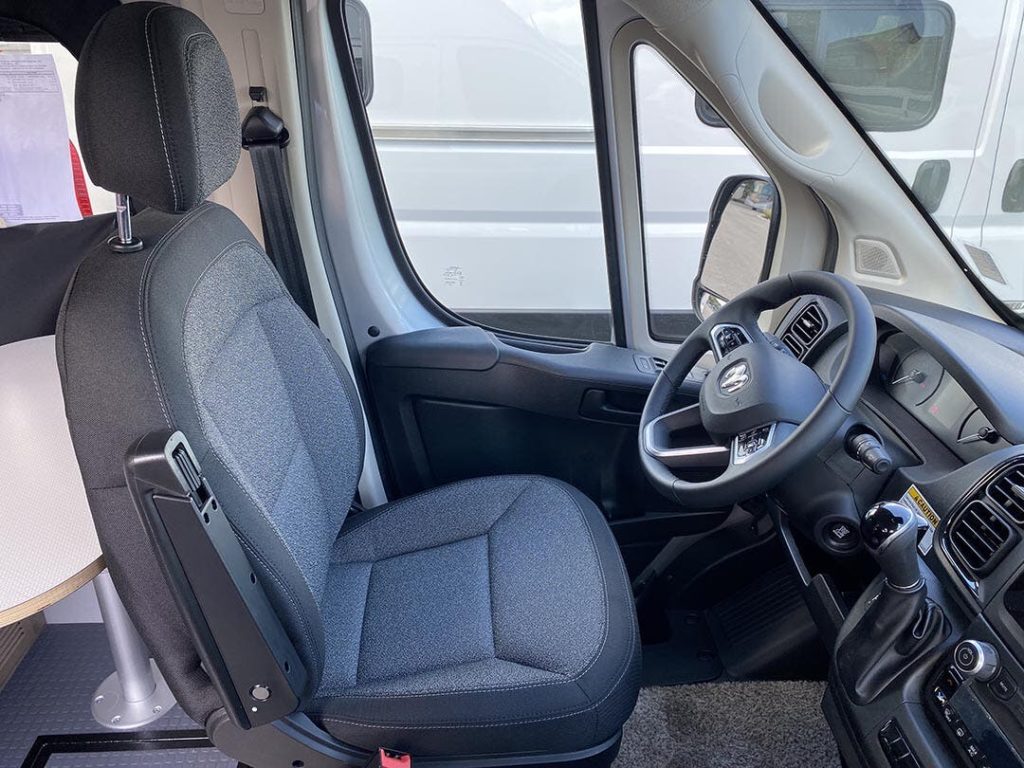

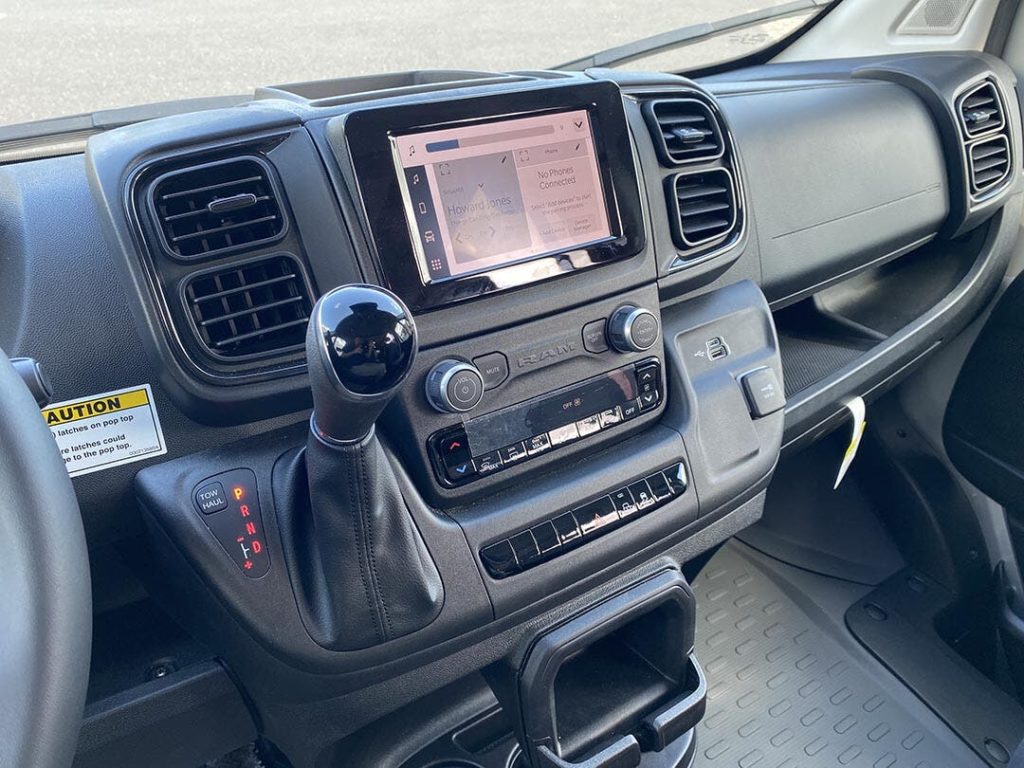

Radio/rearview monitor system touchscreen, steering wheel controls, rear camera and USB ports • Cab seats adjustable headrest, slide/swivel/recline • Airbags driver and passenger • Cruise control • Digital rearview mirror • Crosswind assist • 3-point seat belts • Power assist steering • Manual adjust mirrors (59P) • Power mirrors w/defrost and turn signal (59PX) • Power door locks w/remote • Power windows • 12-volt powerpoints • Sunvisors • Front and cab window privacy panels
INTERIOR

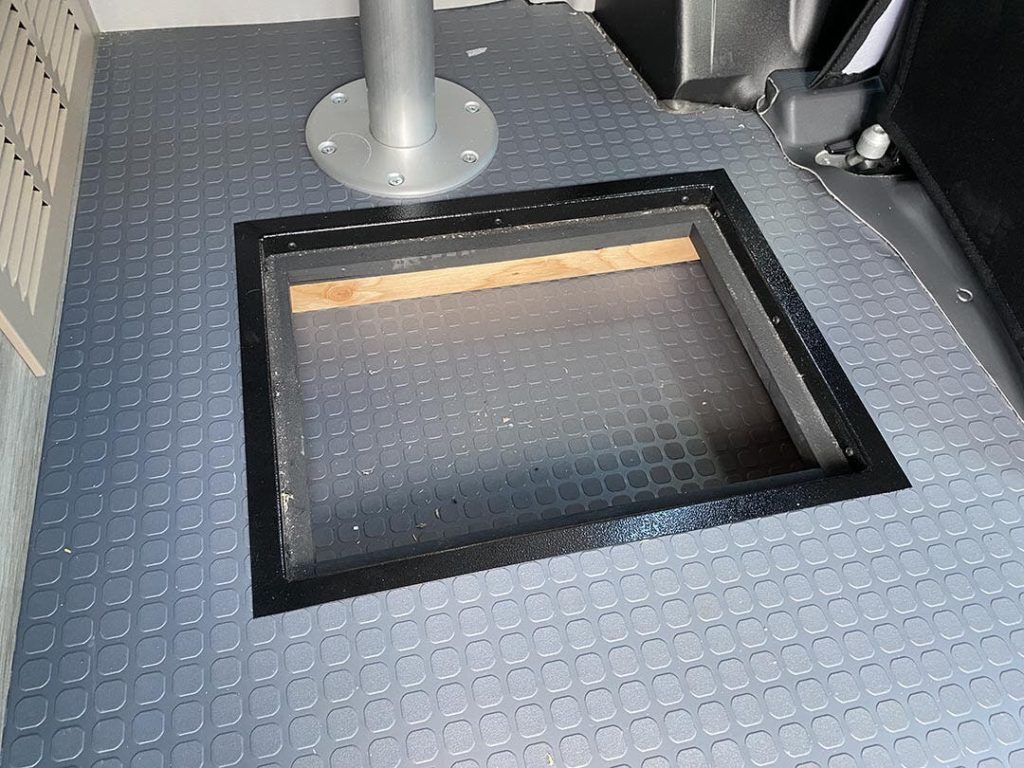

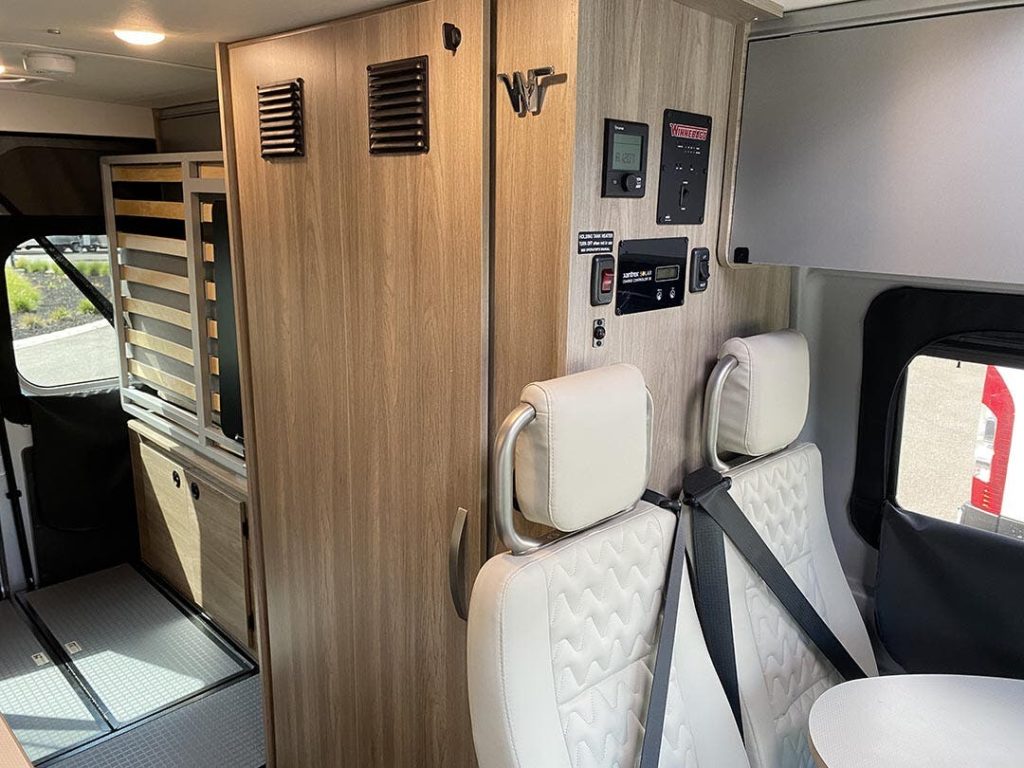

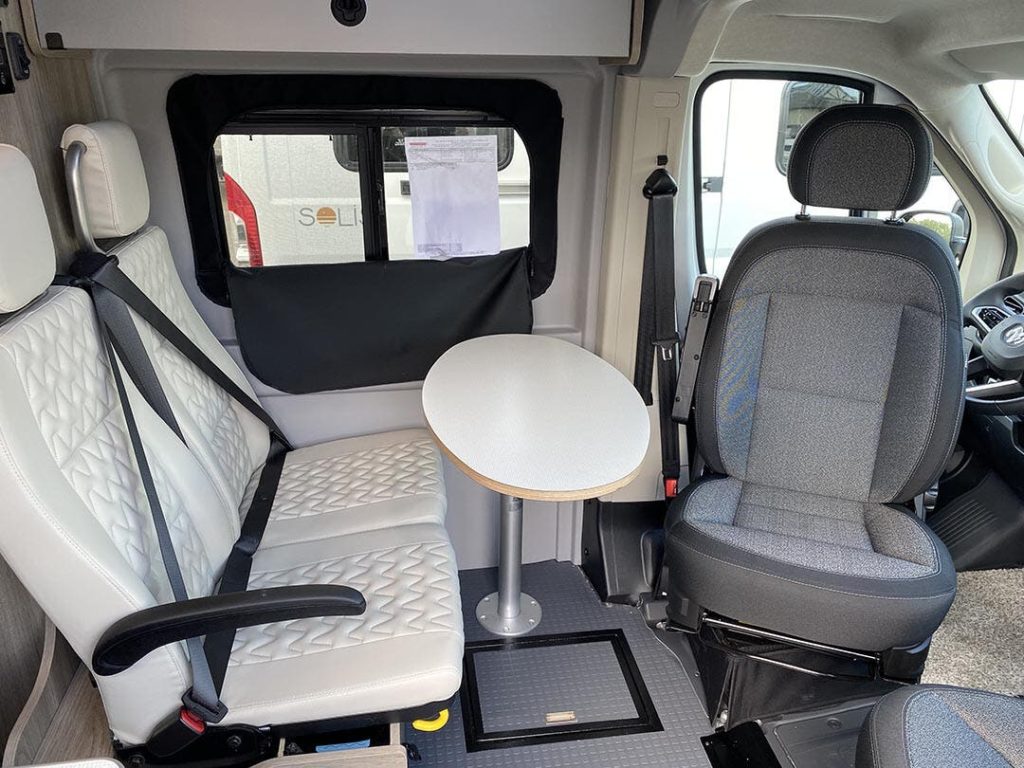

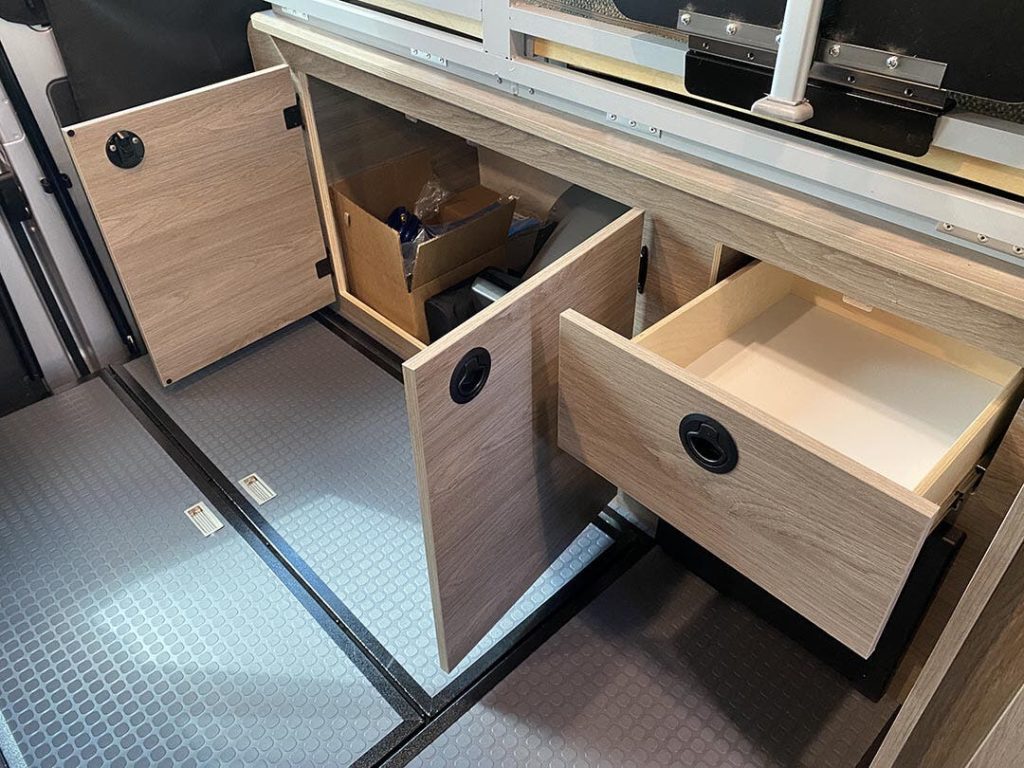

LED ceiling lights • Tinted coach windows • Systems monitor panel • Roof vent (Pop-top sleeping area) • Deluxe powered ventilator fan (59PX without pop-top) • Removable pedestal table • Below floor storage (lounge) • Reading lights • Roof wiring access port • Dinette seating w/3-point seat belts • USB charging ports • Zipped window coverings • Heavy duty vinyl flooring throughout • Ladder • Gear space w/L-track cargo tie down system (59PX)
Optional Equipment: Front cab air mattress 30″ x 65″ w/support base, cordless pump, repair kit and storage bag
GALLEY

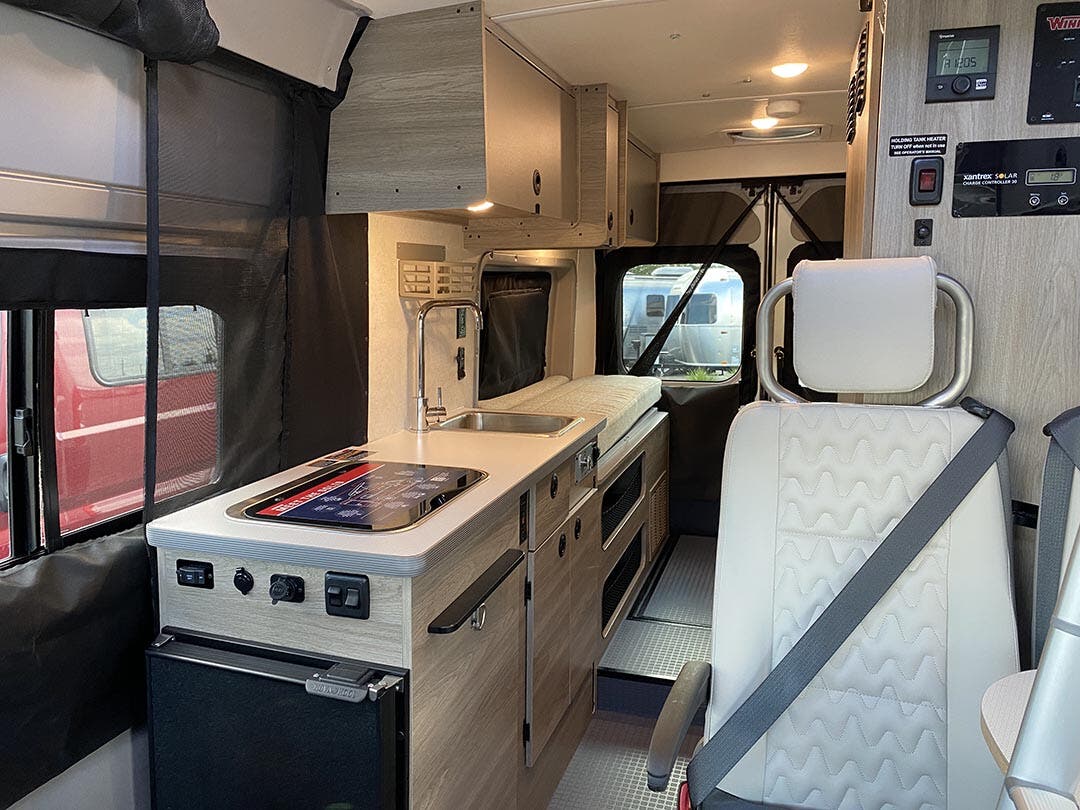

Laminate countertop • Pull-out countertop extension • 2-burner range top w/glass cover • 3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer • Stainless steel sink • Spice rack
BATH

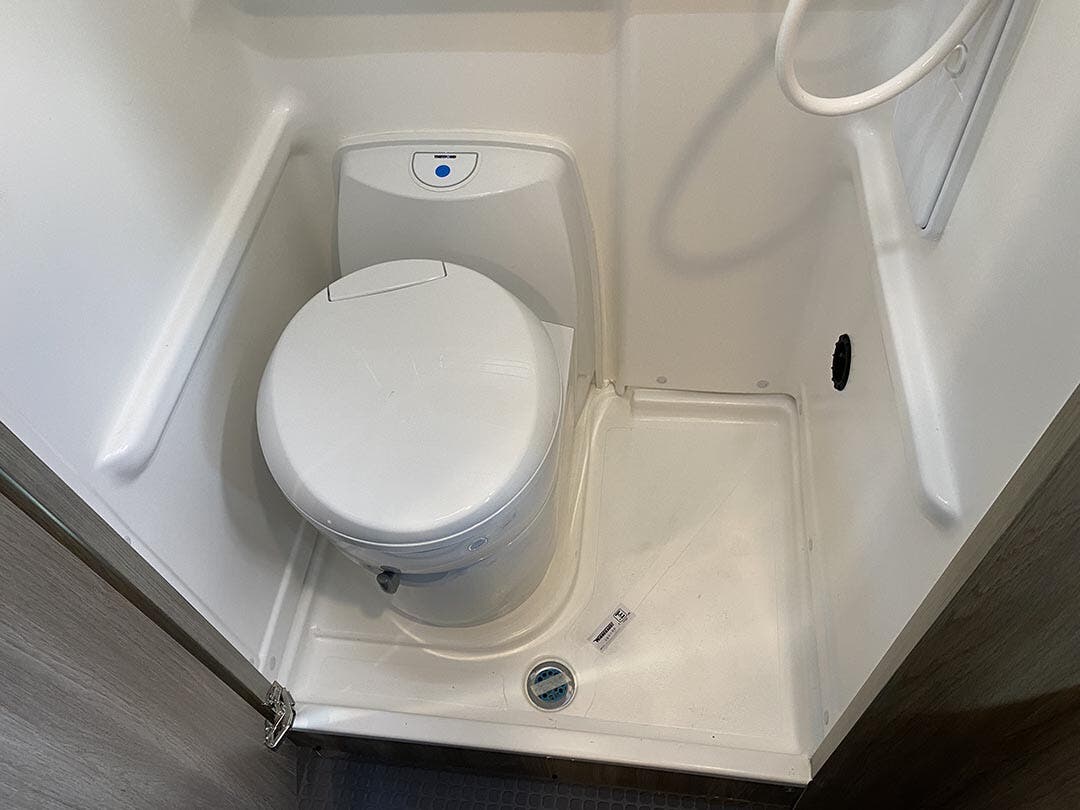

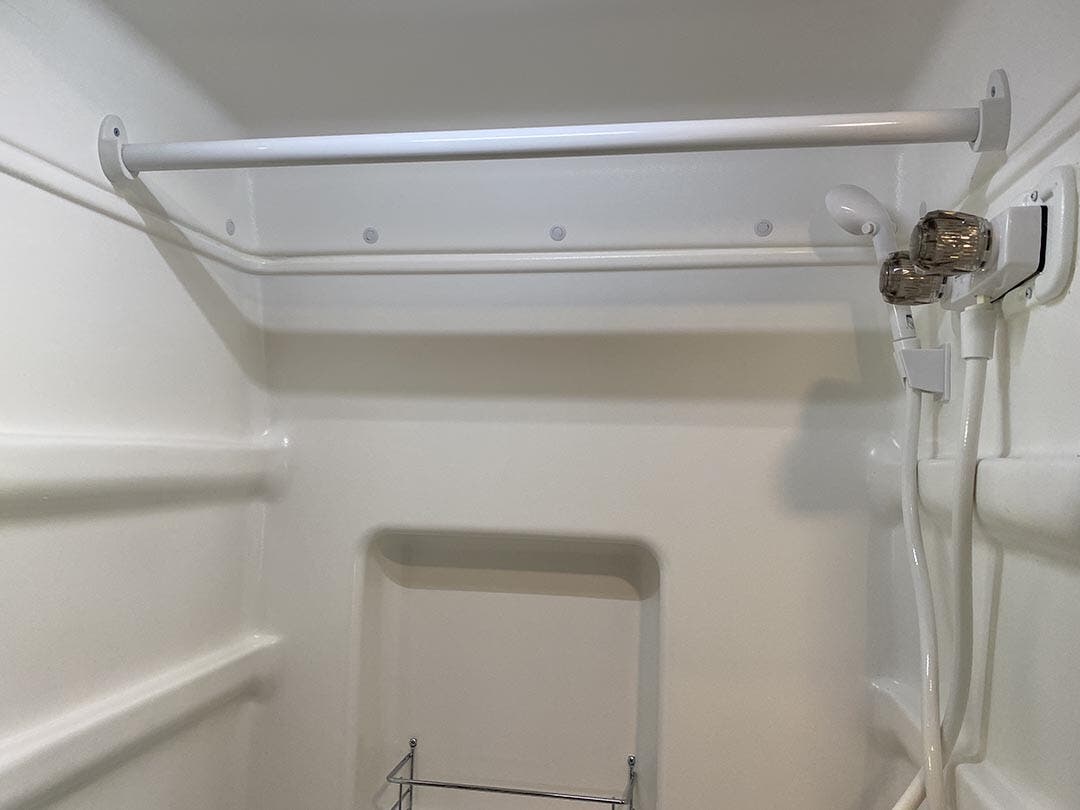

Flexible showerhead • Mirror • Removable clothes rod • Swiveling cassette toilet • Shower curtain • Shower w/wall surround • Tissue holder
BEDROOM

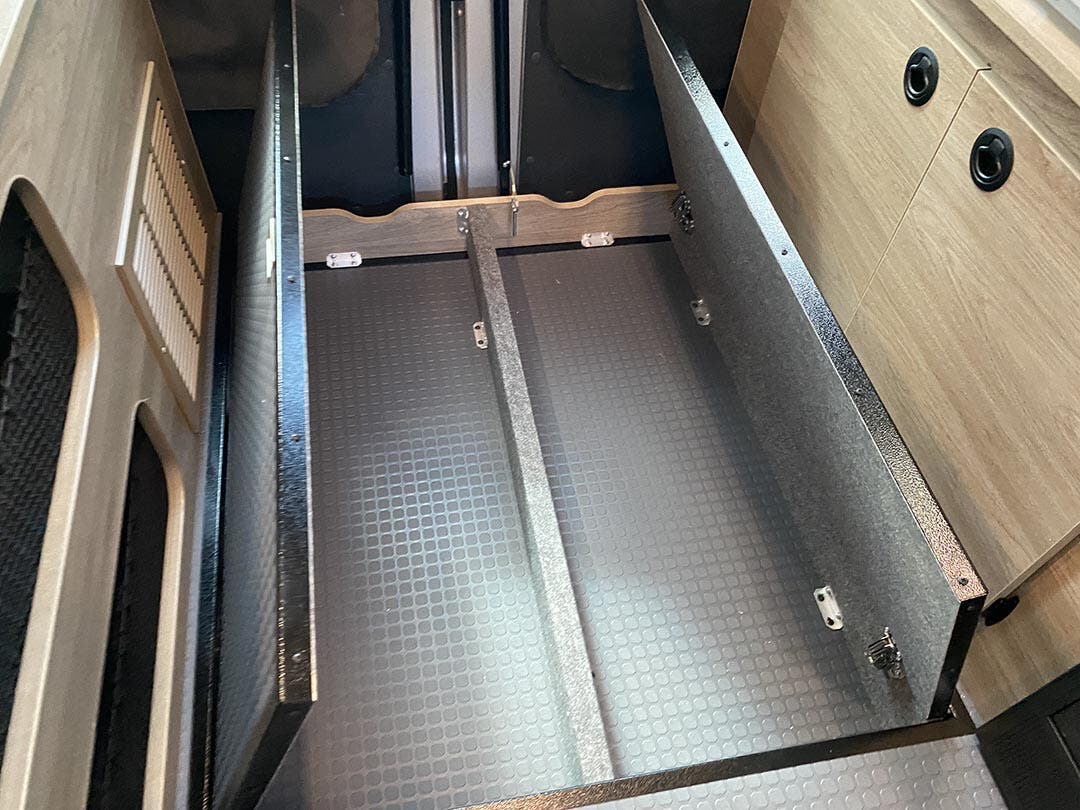

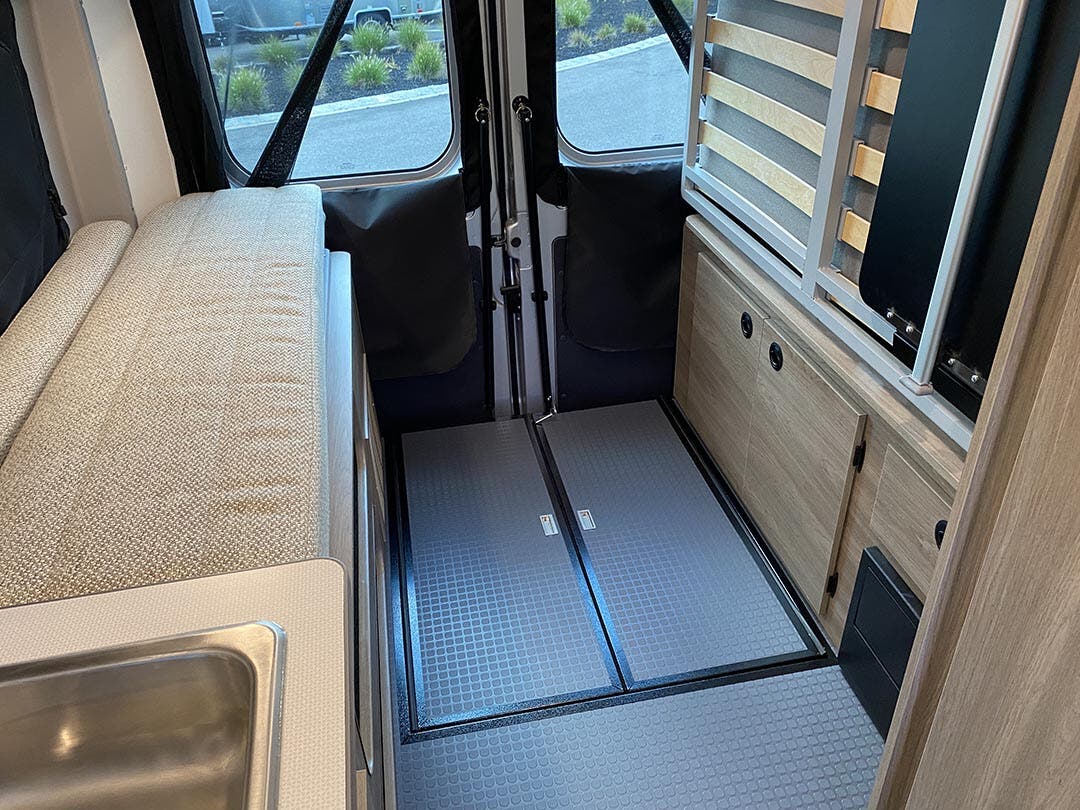

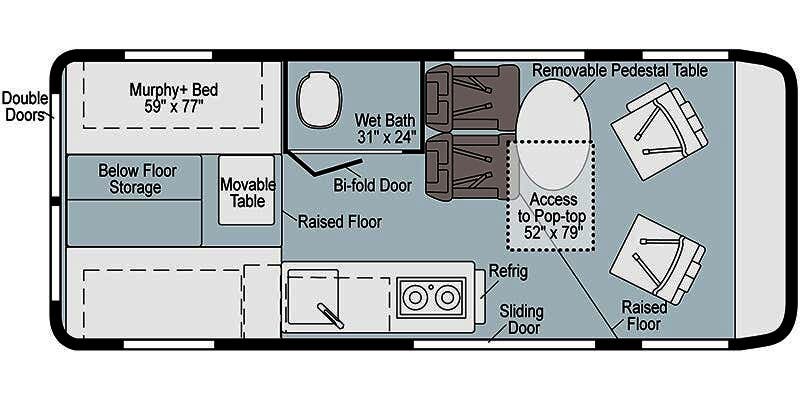

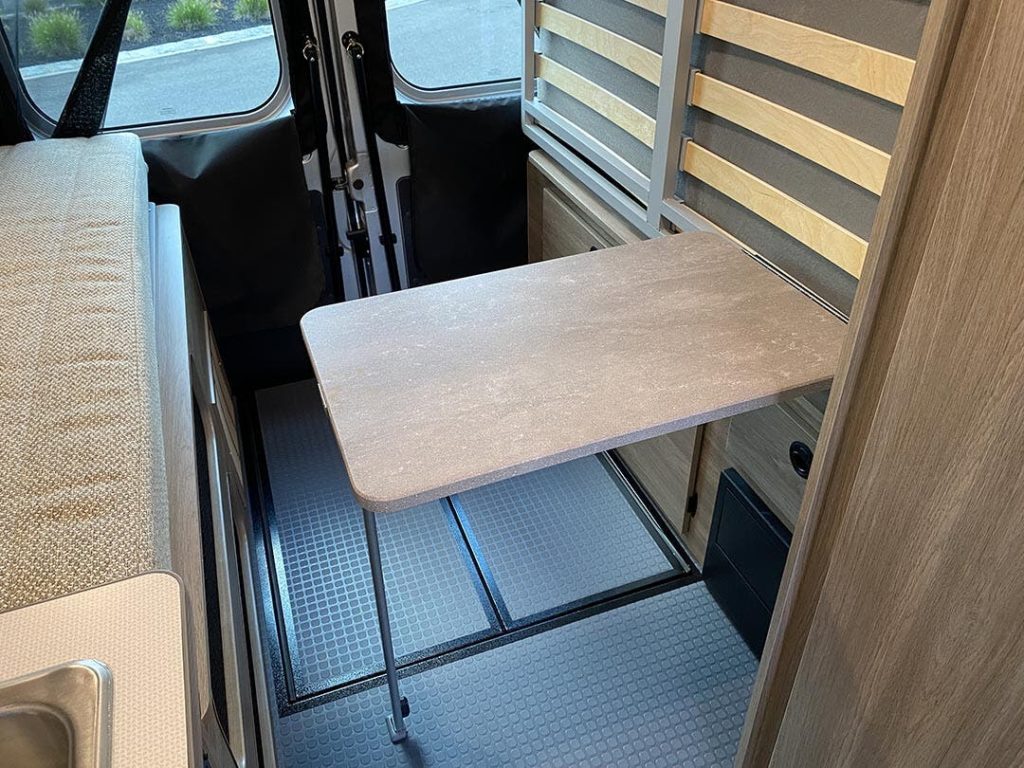

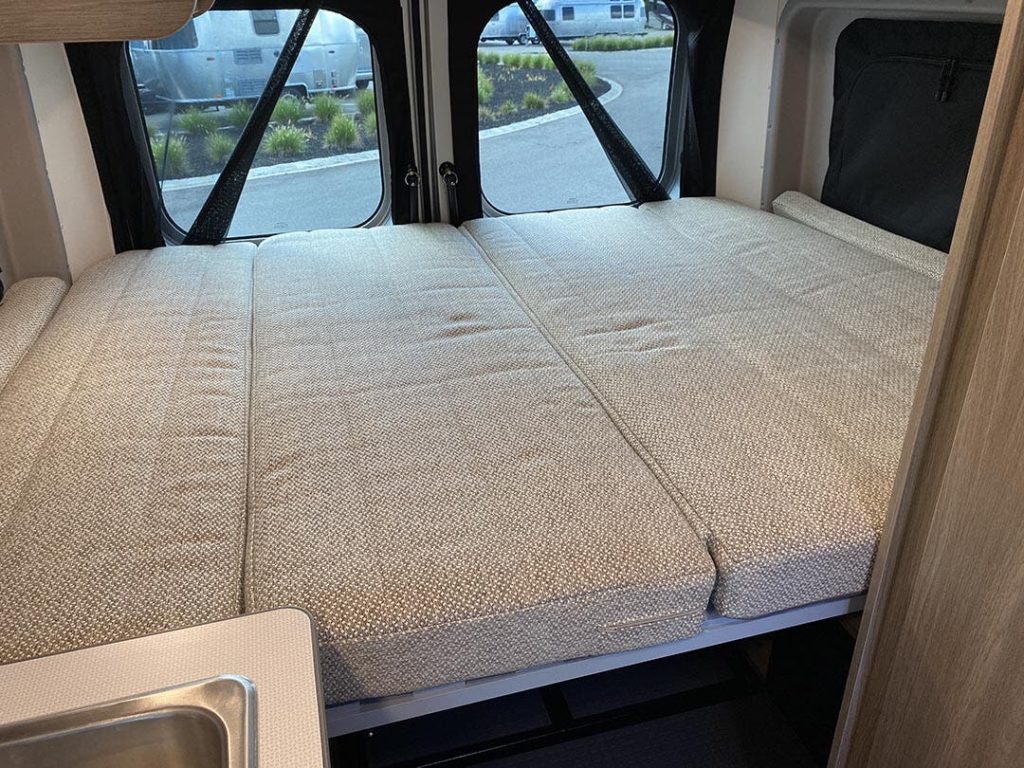

Murphy+ bed w/mattress cover and access to below floor storage • Slat bed system • Deluxe powered ventilator fan • Movable table (59P, 59PX) (Murphy+ bed option only, NA w/National Park Foundation Package)
Optional Equipment: Sofa/bed w/two 3-point seat belts (59P, NA w/National Park Foundation Package)
EXTERIOR

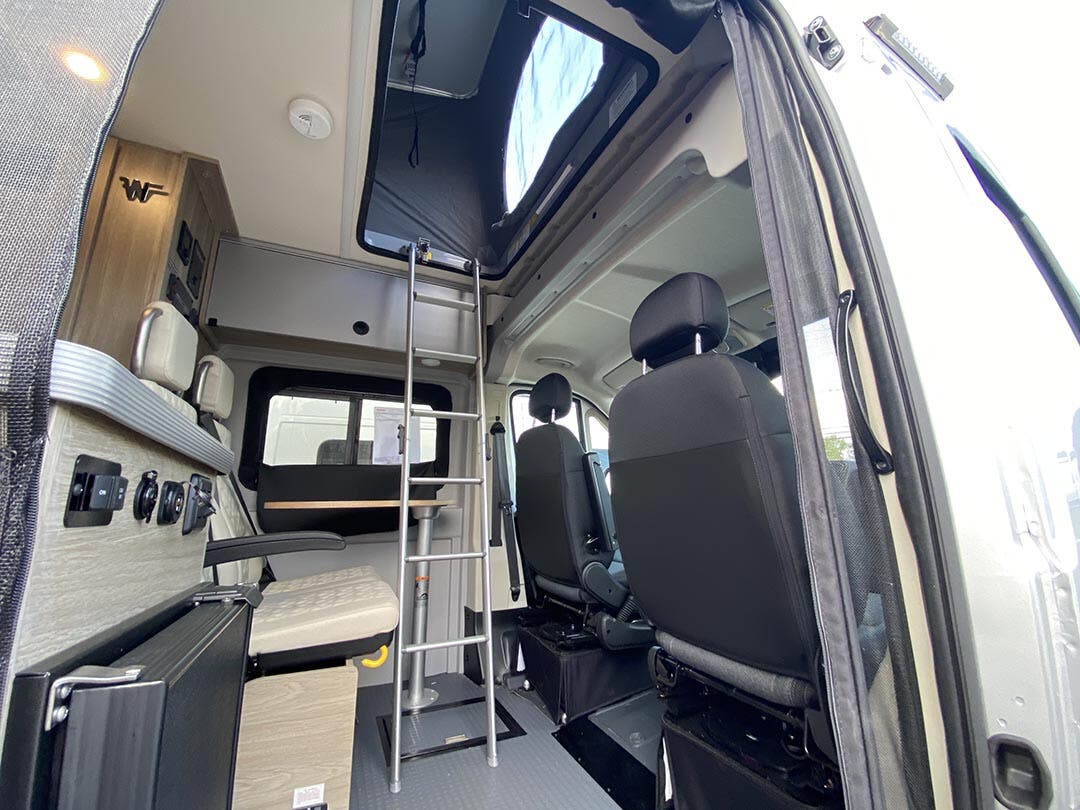

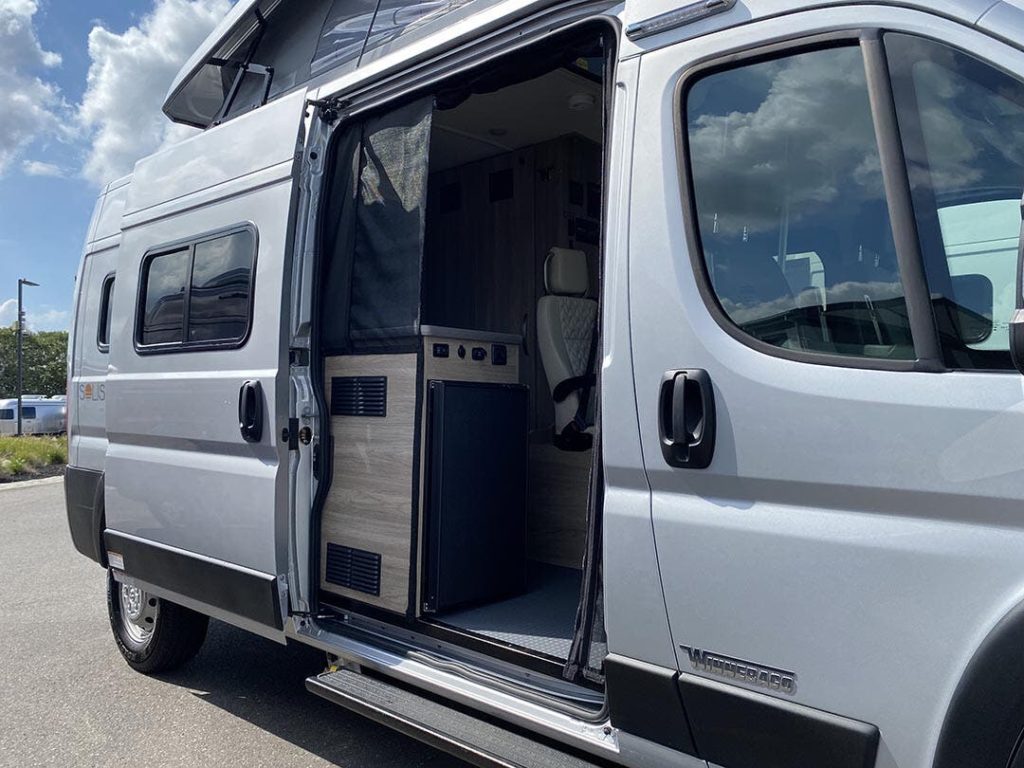

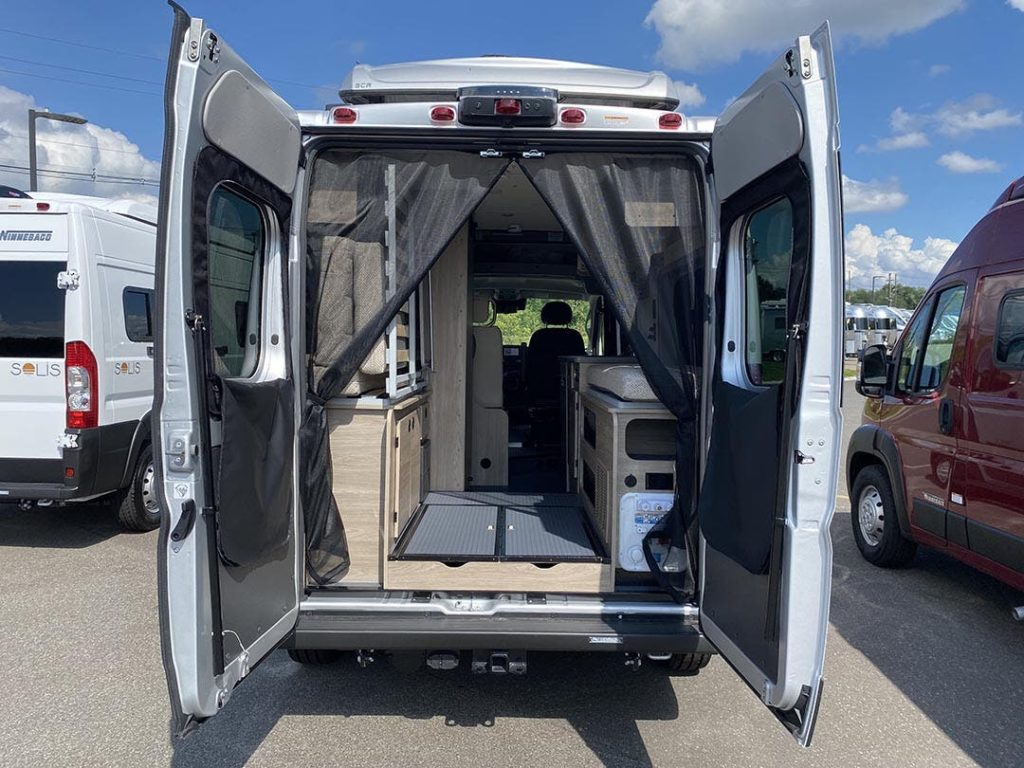

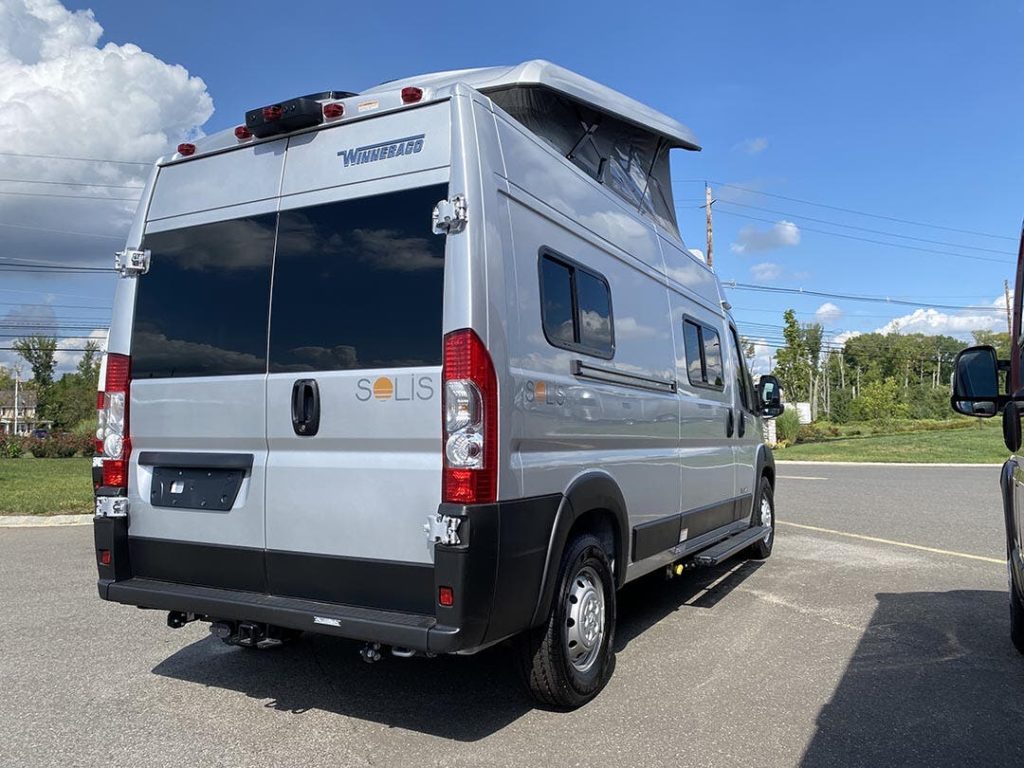

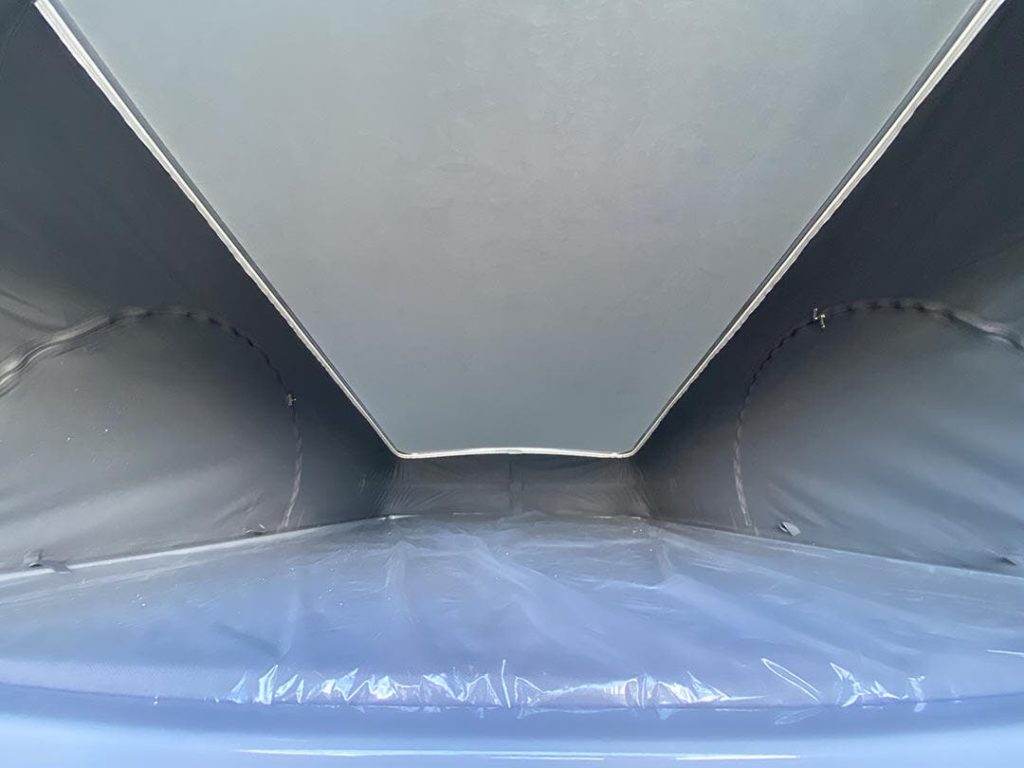

Pop-top sleeping area w/FROLI® sleep system • Porch light w/interior switch (passenger side) • Driver side service light w/interior switch • Assist bar • Side screen door • Rear screen door • Aluminum running board w/logoed tread and pet loop attachment • Rod and privacy screen (provided for rear annex)
Optional Equipment: Option to remove: Pop-top sleeping area w/FROLI sleep system
HEATING & COOLING SYSTEM
Truma Combi® Eco Heating System • Coleman®-Mach® 10 NDQ air conditioner w/directional vents (59PX)
Optional Equipment: 13,500 BTU air conditioner (59P without pop-top)
ELECTRICAL SYSTEM

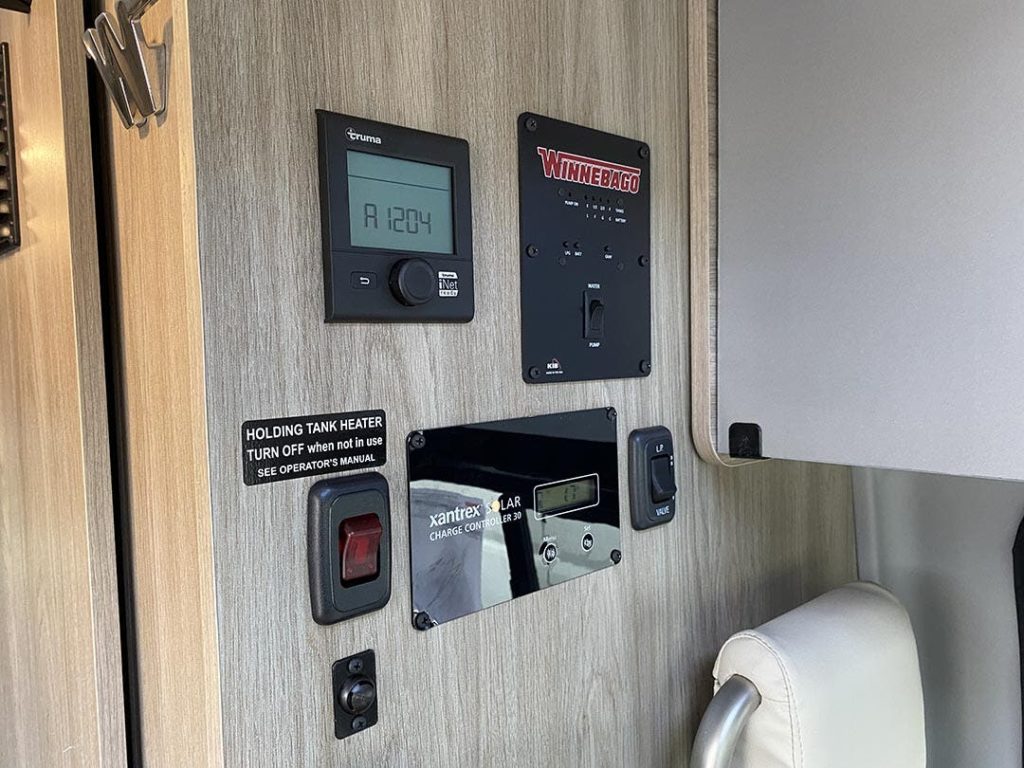

AC/DC load center, 55-amp. converter/charger • Auxiliary start circuit • 2 deep-cycle Group 31 batteries (AGM maintenance-free) • Cummins Onan® QG 2800i gas generator (59PX) • Coach battery disconnect system • Automatic dual-battery charge control • 30-amp. power cord • 220-watt flexible surface solar panel w/controller (w/pop-top) • 170-watt solar panel w/controller (without pop-top)
PLUMBING SYSTEM
Exterior wash station (located behind passenger seat) • 10′ sewer hose • On-demand water pump • Permanent-mount LP tank w/gauge • Fresh water sight glass • Heated drainage system • Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door) • Eco-Hot™ water system
SAFETY
LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Child seat tether anchor (only available w/sofa/bed option) • Fog lamps (59PX)
WARRANTY
12-month/24,000-mile basic warranty
*Disclaimer: Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle. In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
