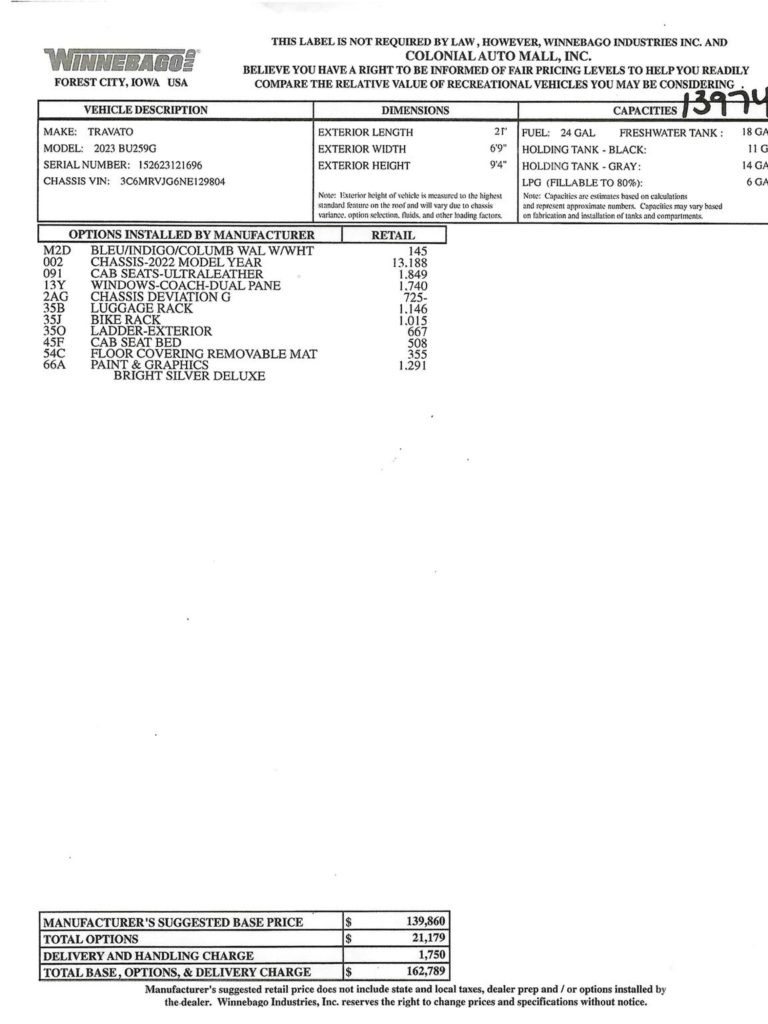

091: Ultraleather Cab Seats
13Y: Dual Pane Coach Windows
2AG: Chassis Deviation G (7” Display only, No 10” Touch Screen & Navigation, No Auto High beam, Analog Dash Cluster, No wireless charging, No Passive Entry & No Rearview Parksense.)
35B: Luggage Rack
35J: Bike Rack
35O: Ladder – Exterior
45F: Cab Seat Bed
54C: Removable Floor Mat

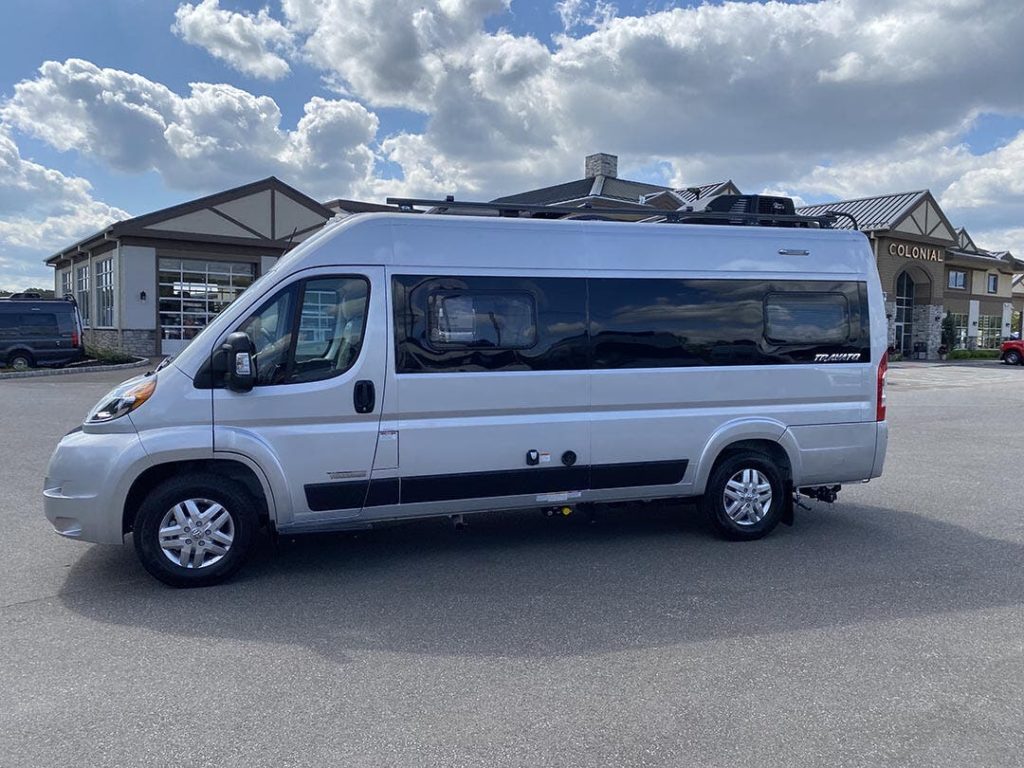

66A: Paint & Graphics – Bright Silver Deluxe
| 59G | 59GL | 59K | 59KL | |
|---|---|---|---|---|
| Exterior Length | 21′ | 21′ | 21′ | 21′ |
| Exterior Height | 9’4″ | 9’4″ | 9’4″ | 9’4″ |
| Exterior Width | 6’9″ | 6’9″ | 6’9″ | 6’9″ |
| Awning Length | 13′ | 13′ | 13′ | 13′ |
| Interior Height | 6’3″ | 6’3″ | 6’3″ | 6’3″ |
| Interior Width | 6’2″ | 6’2″ | 6’2″ | 6’2″ |
| Freshwater Tank Capacity (gal.) | 18 | 18 | 18 | 18 |
| Water Heater Capacity (gal.) | 2.6 | 2.6 | 2.6 | 2.6 |
| Holding Tank Capacity — Black (gal.) | 11 | 11 | 12 | 12 |
| Holding Tank Capacity — Gray (gal.) | 14 | 14 | 13 | 12 |
| LP Capacity (lbs.) | 25 | 25 | 25 | 25 |
| Fuel Capacity (gal.) | 24 | 24 | 24 | 24 |
| GCWR (lbs.) | 12,000 | 12,000 | 12,000 | 12,000 |
| GVWR (lbs.) | 9,350 | 9,350 | 9,350 | 9,350 |
| GAWR – Front (lbs.) | 4,629 | 4,629 | 4,629 | 4,629 |
| GAWR – Rear (lbs.) | 5,291 | 5,291 | 5,291 | 5,291 |
| Wheelbase | 159″ | 159″ | 159″ | 159″ |
| Sleeps | 2 | 2 | 2 | 2 |

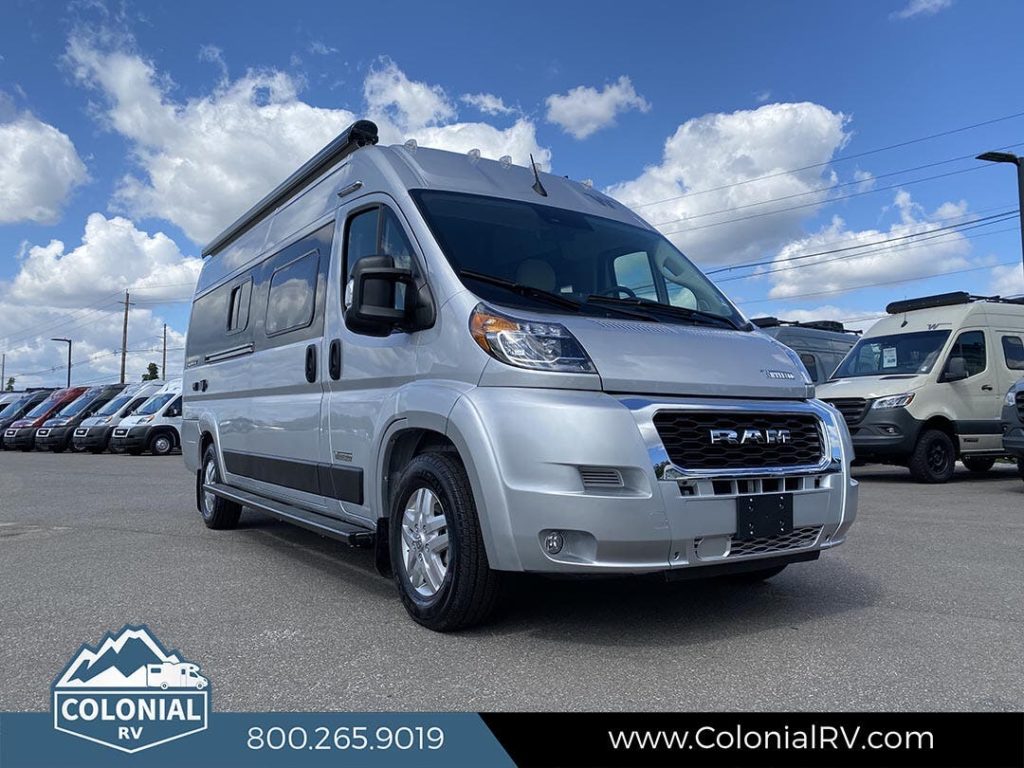

CHASSIS
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 9-speed automatic 62TE transmission, 180-amp. alternator • 4-wheel ABS brakes • Stylized aluminum wheels Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight

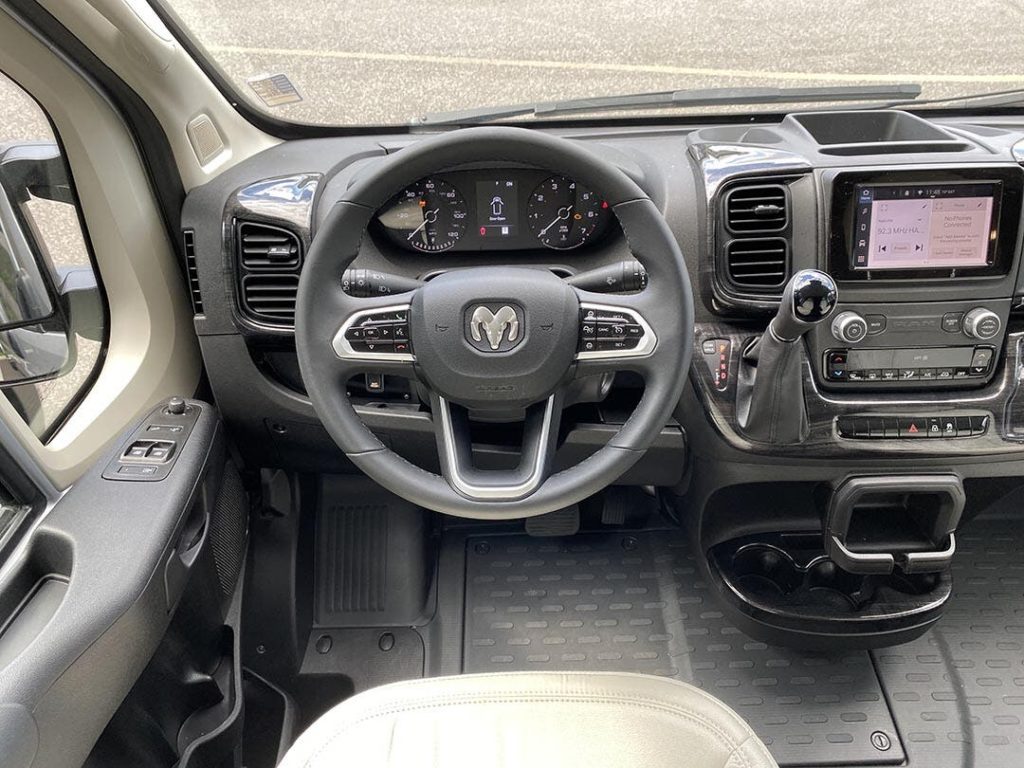

CAB CONVENIENCES

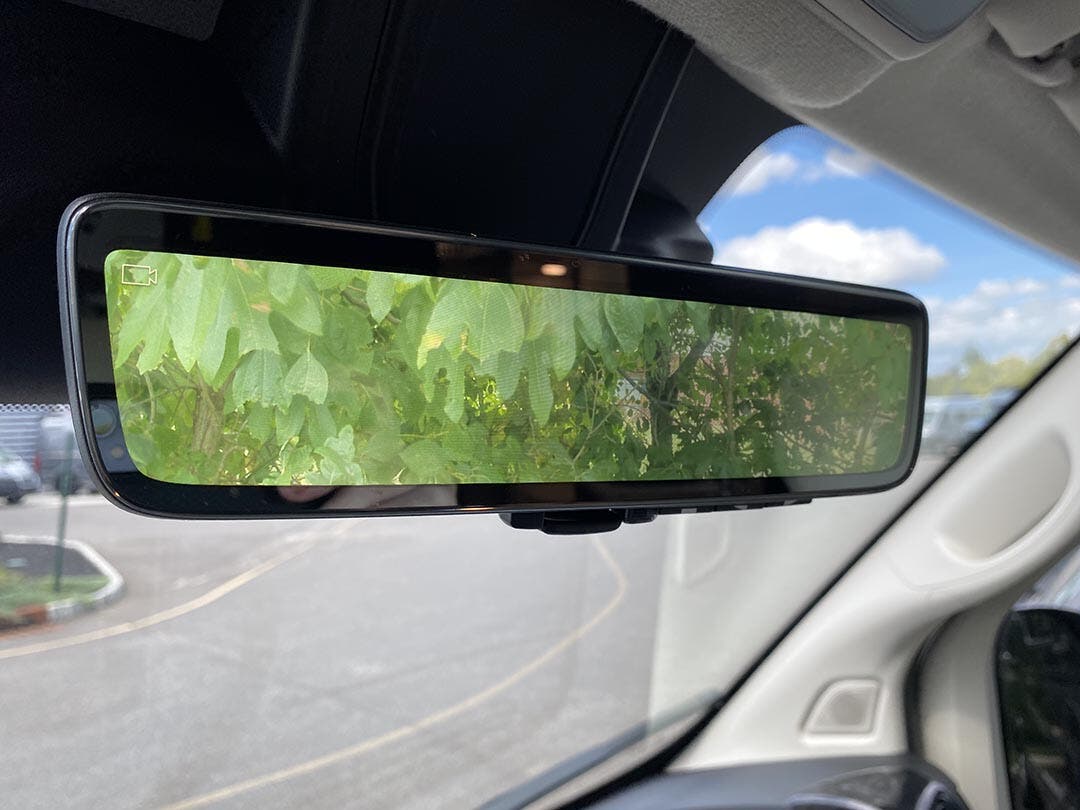

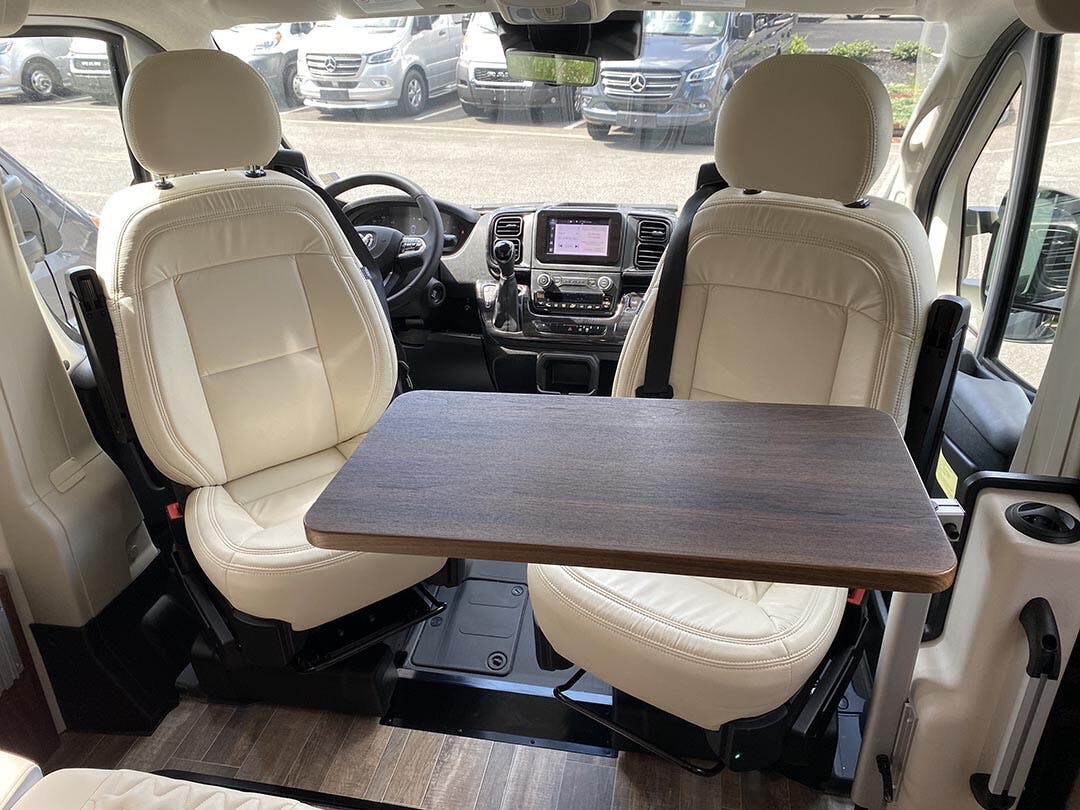

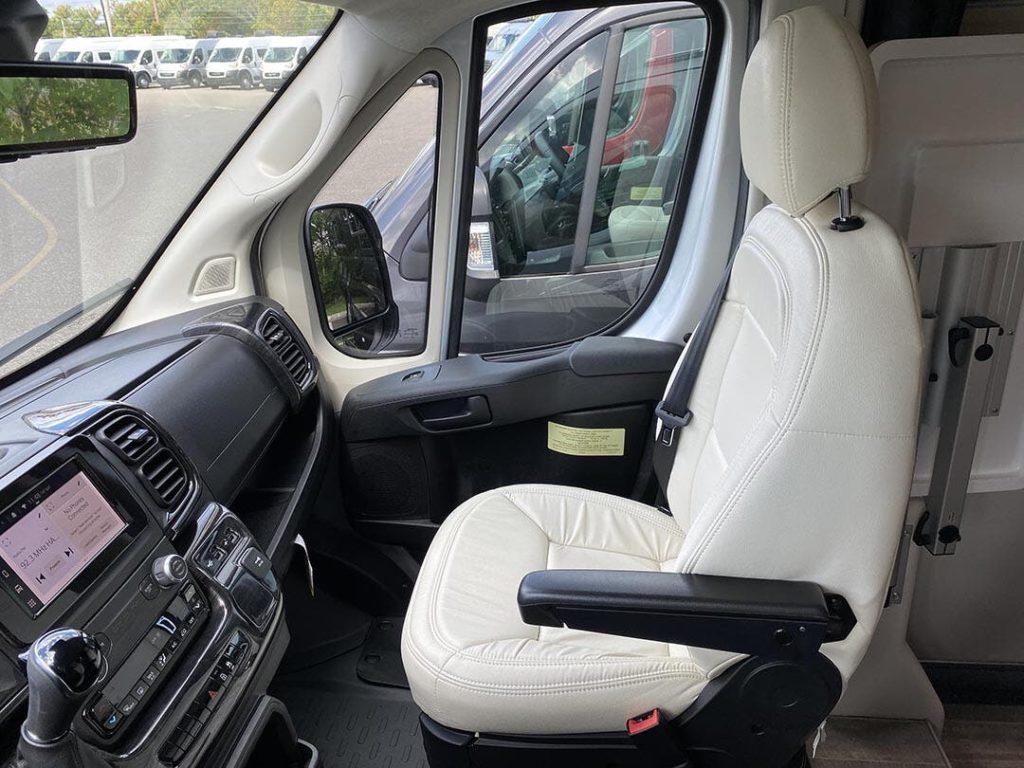

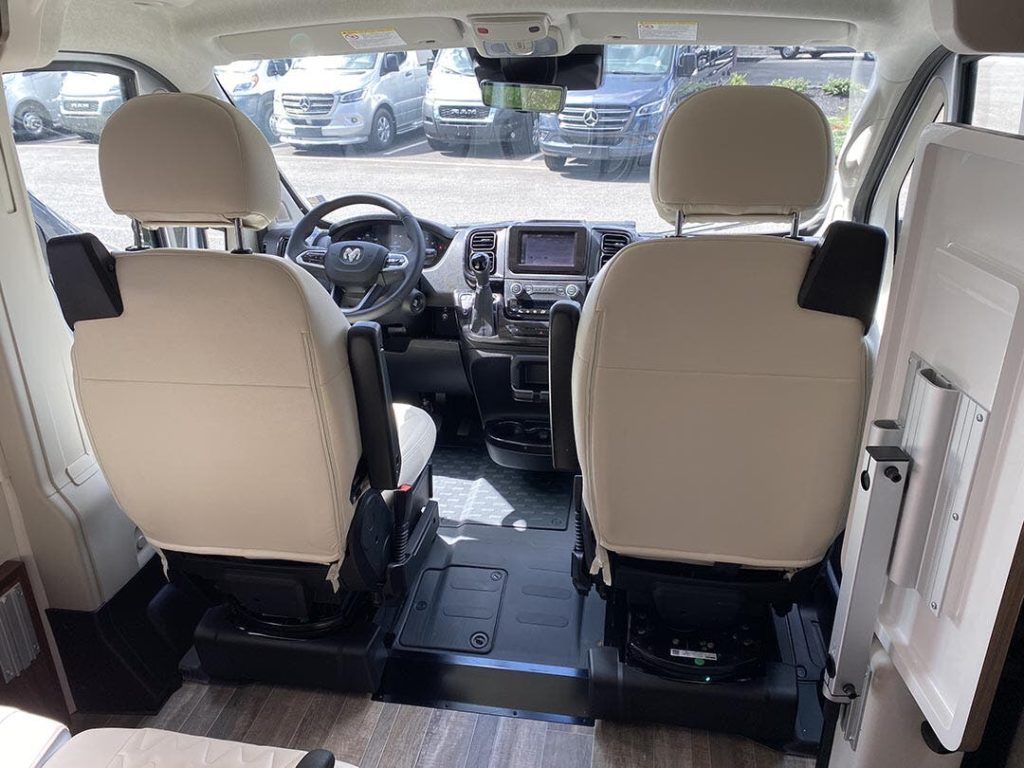

Radio/rearview monitor system touchscreen, steering wheel controls, rear camera and USB ports • Cab seats adjustable headrest, and slide/swivel/recline • Airbags driver and passenger front, side curtain, side seat bolster • Cruise control • 3-point seat belts • Electric power steering • Power mirrors w/defrost and turn signal • Power door locks w/remote • Power windows • 12-volt powerpoints • Digital rearview mirror • Crosswind assist • Sunvisors • Front and cab window privacy panels • Carpet floor mat • Appliqué package • SuperSprings® SumoSprings® (front and rear) • Passive entry • Push button start • Traffic sign assist • Full-speed forward collision warning plus • Pedestrian automatic emergency braking system • Post collision braking

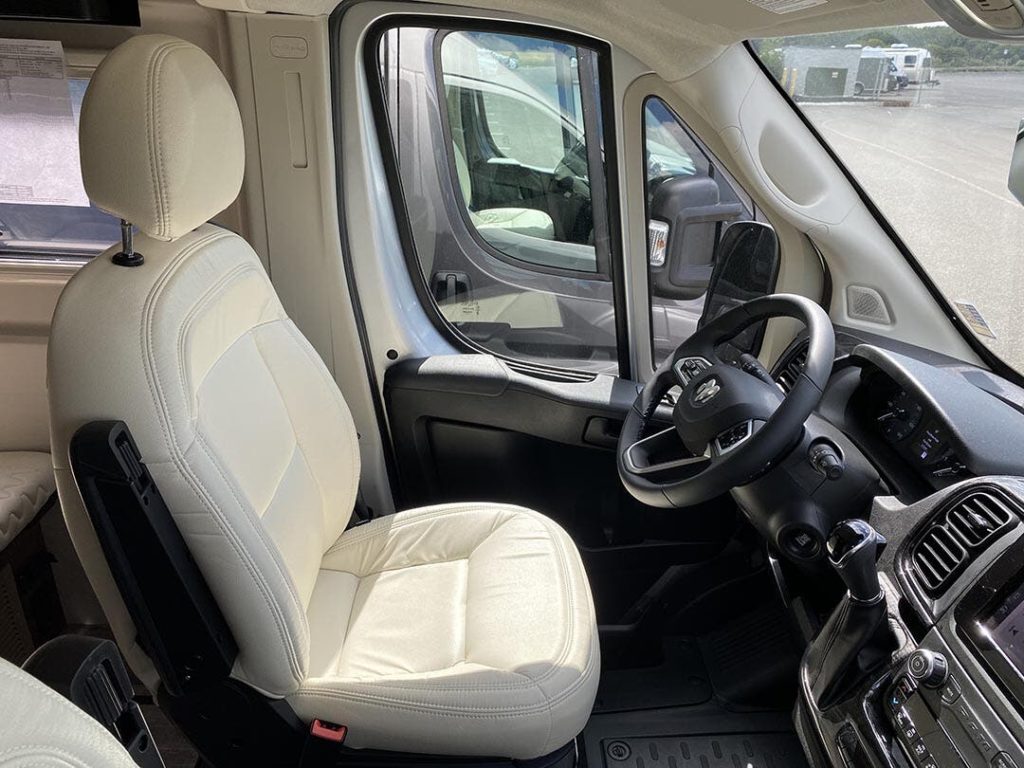

Optional Equipment: Cab seats w/Ultraleather® covering
INTERIOR

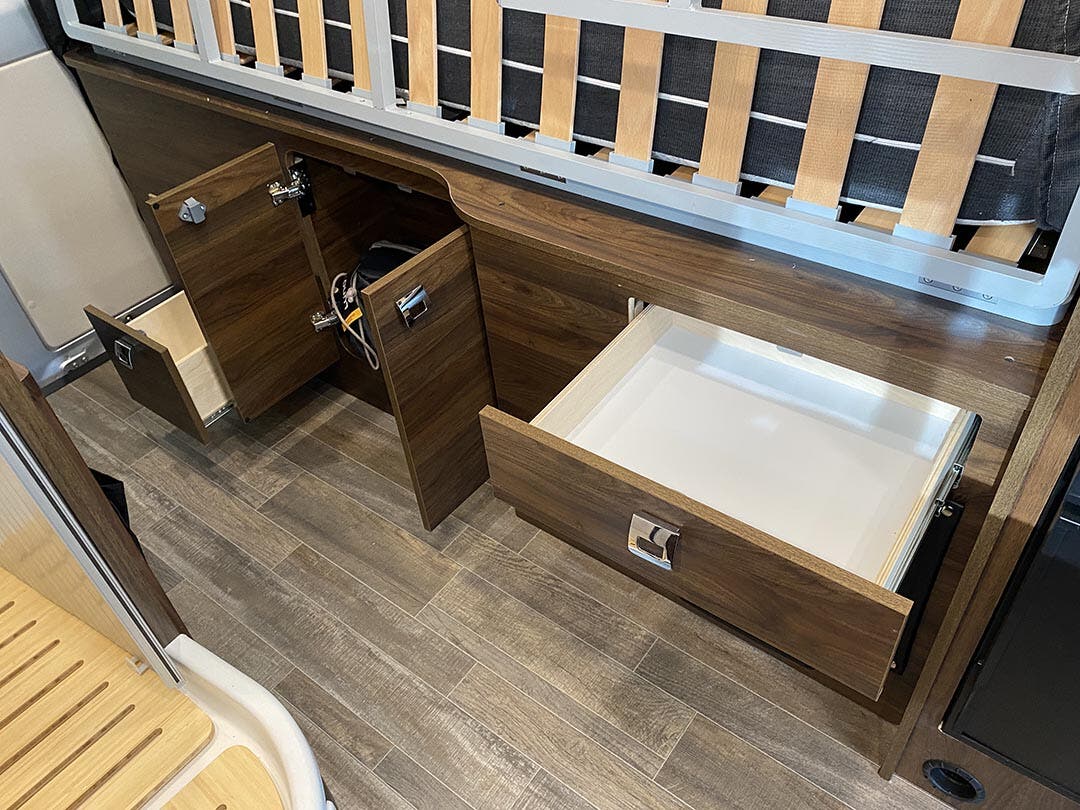

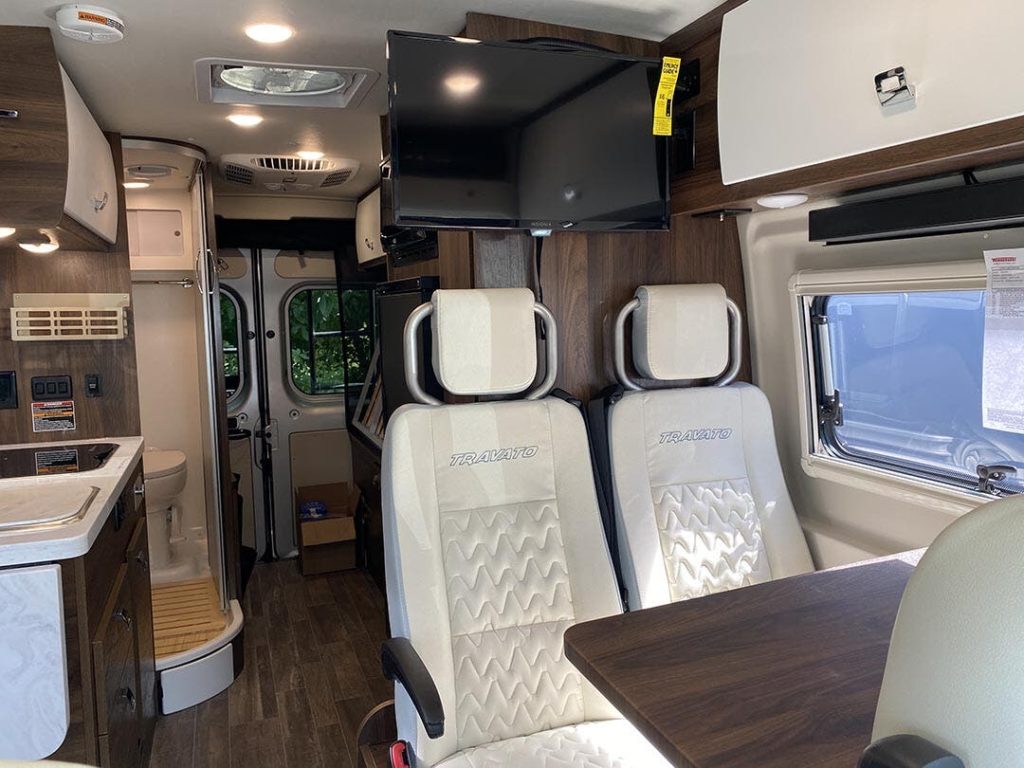

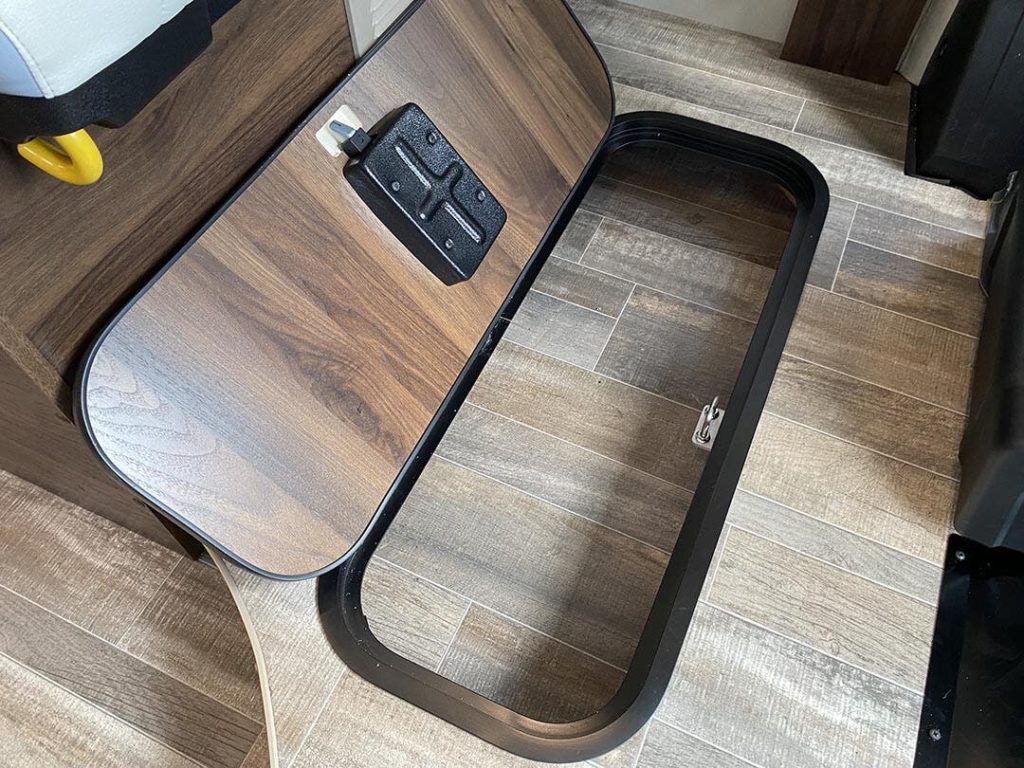

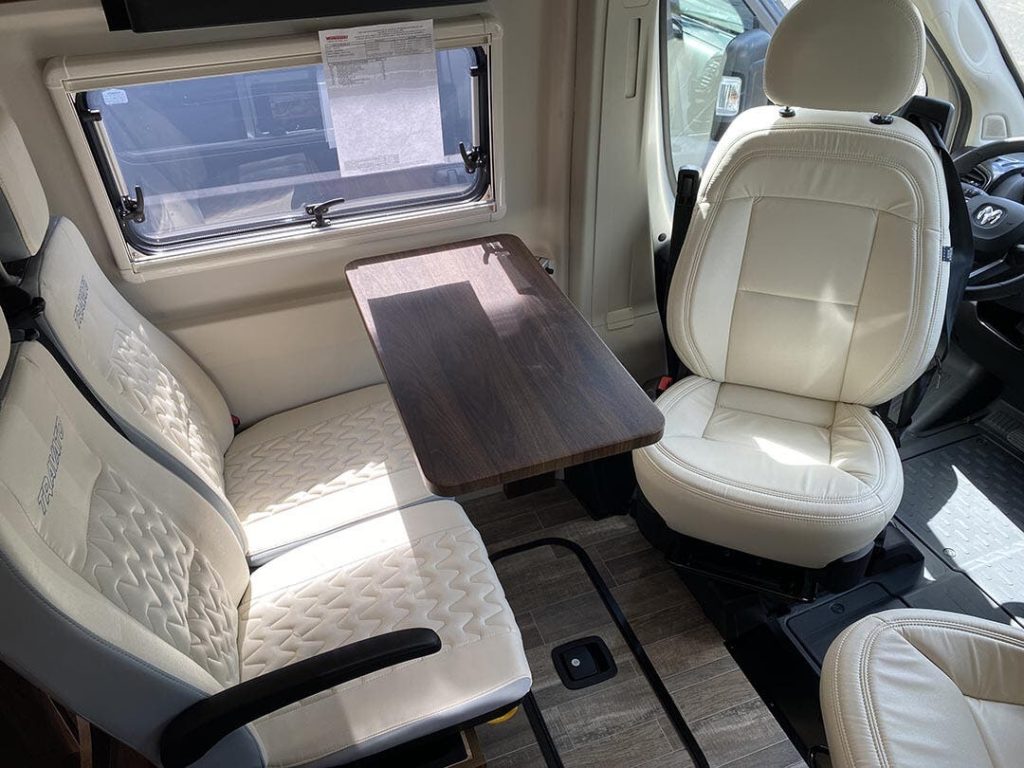

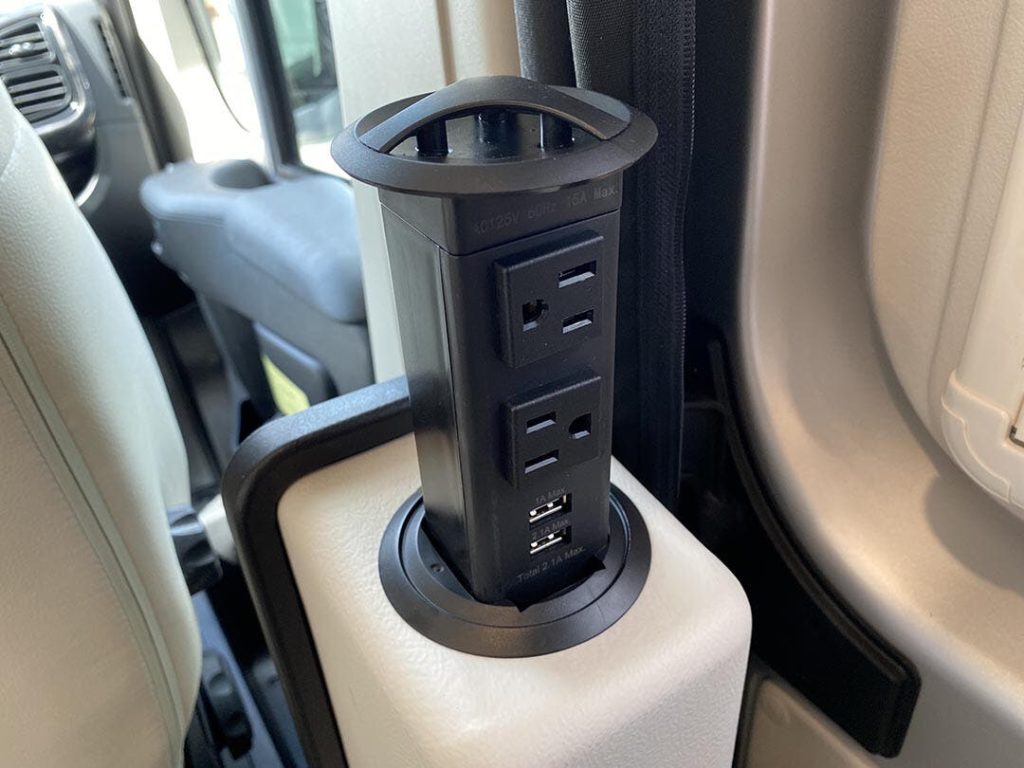

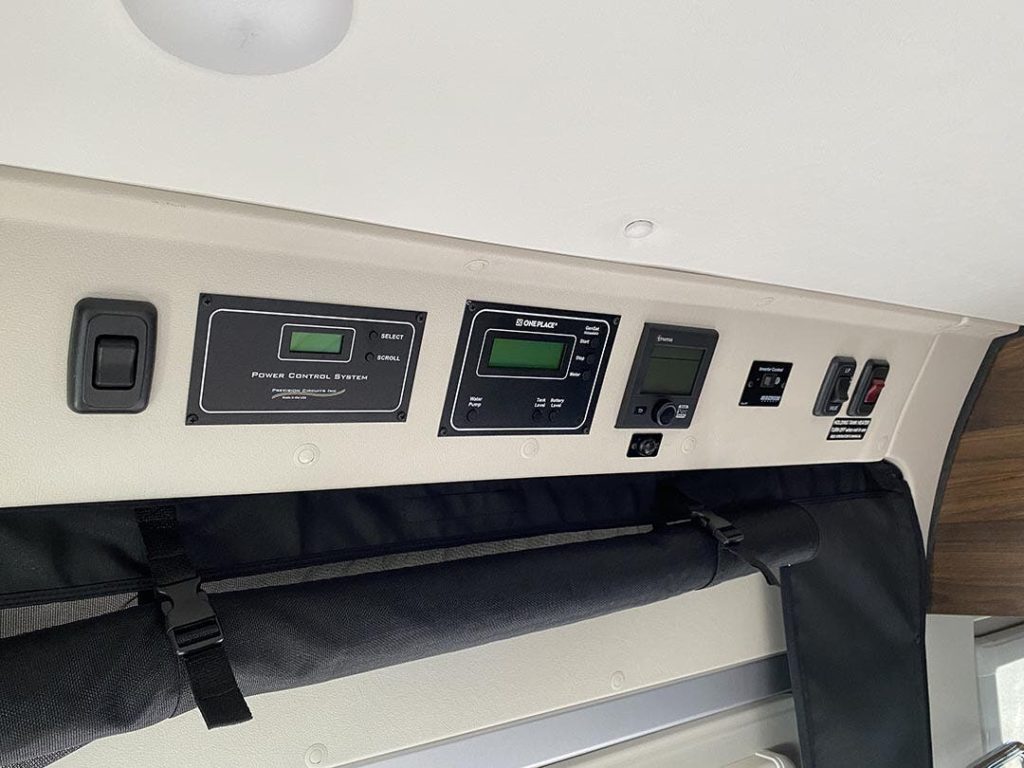

24″ HDTV and Bluetooth® soundbar • Pedestal w/pop-up outlets and mount for table • Dinette seating w/3-point seat belts (59G, 59GL) • Amplified digital TV antenna • LED ceiling lights • Blackout cassette shades • Soft vinyl ceiling • Tinted coach windows • Systems monitor panel • Deluxe powered ventilator fan w/rain cover • Removable/adjustable table • Below floor storage • Anything Keeper™ drop down storage baskets • RAM® Tough-Track™ Mounts throughout • Reading lights • Gear bag pocket storage (59G, 59GL) • Roof wiring access port • Insulated rear window zipper coverings
Optional Equipment: Dual-pane acrylic windows w/screen and blackout cassette shades • Woven floor mat • Front cab air mattress 30″ x 65″ w/support base, cordless pump, repair kit and storage bag
GALLEY

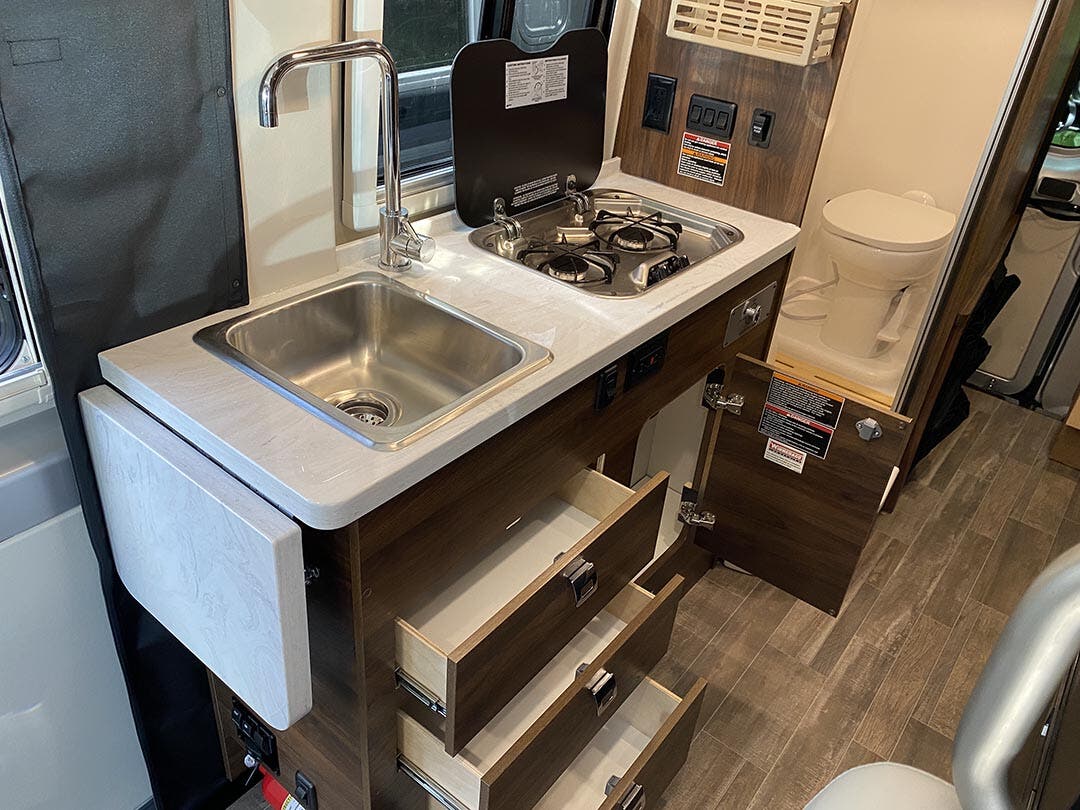

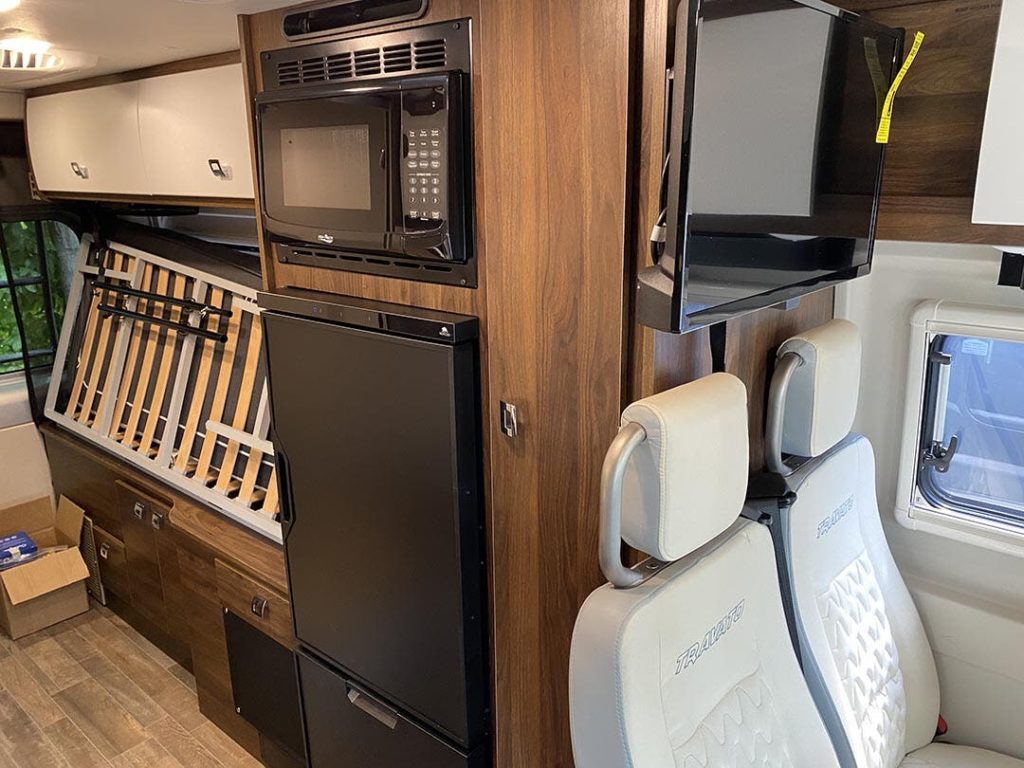

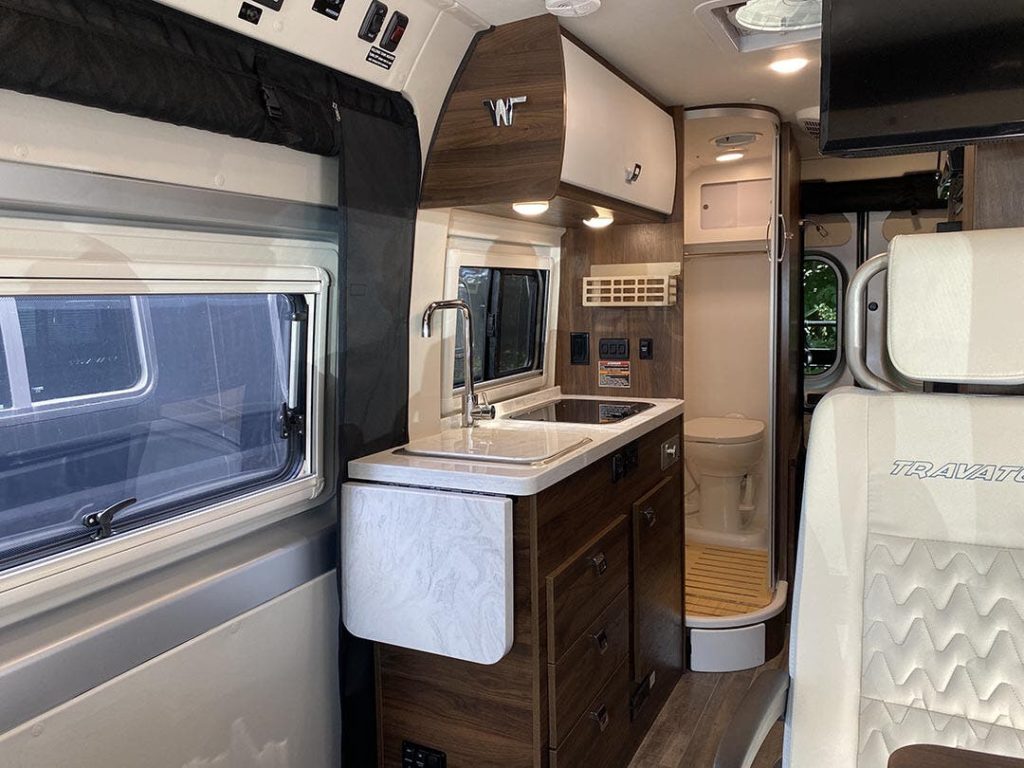

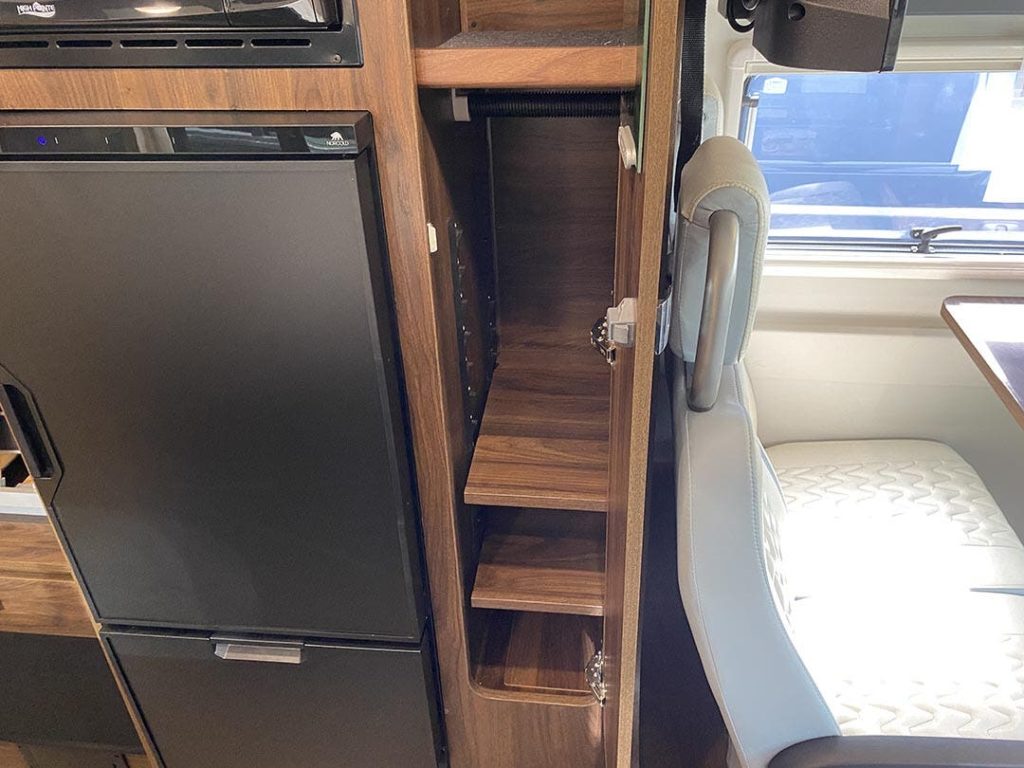

Corian® countertop • Flip-up countertop extension (59G, 59GL) • Microwave oven w/touch controls • 2-burner range LP cooktop w/glass cover and heat shield (59G, 59K) • Single burner induction cooktop (59GL, 59KL) • Single door 4.3 cu. ft. compressor-driven refrigerator/freezer 12-volt (59K, 59KL) • Two-door 6.0 cu. ft. compressor-driven refrigerator/freezer 12-volt (59G, 59GL) • Stainless steel sink w/Corian sink cover • Cold water filtration system (galley) • Spice Rack • Pull-out countertop extension (59K, 59KL)
BATH

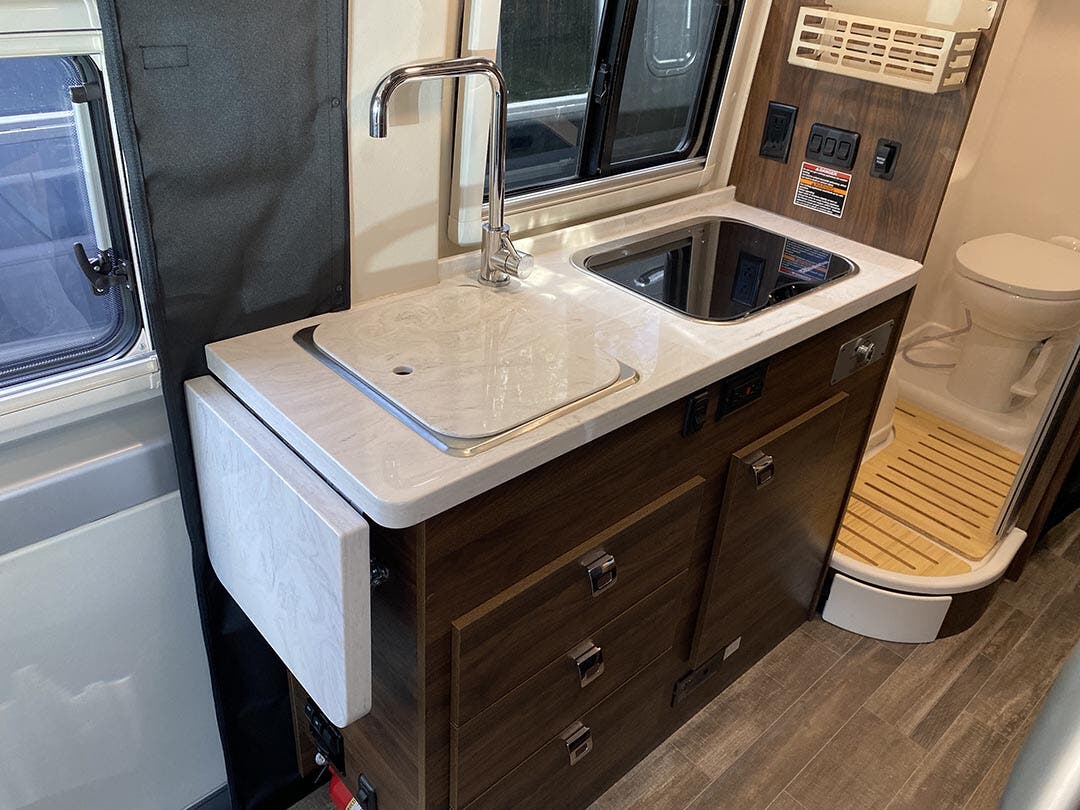

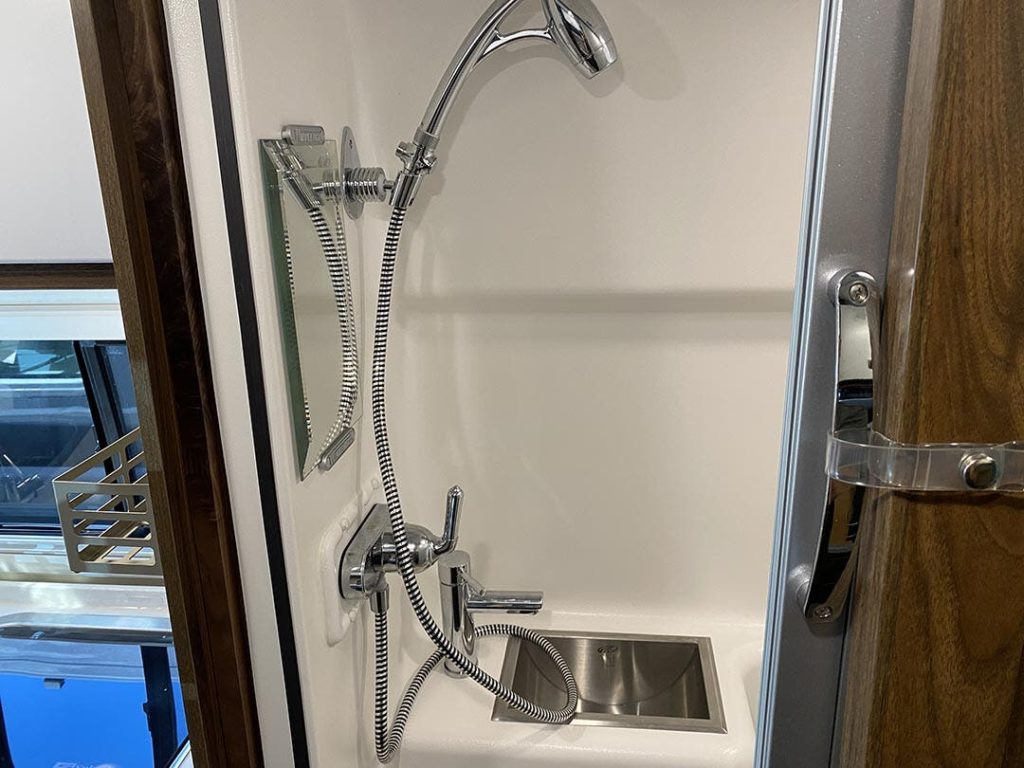

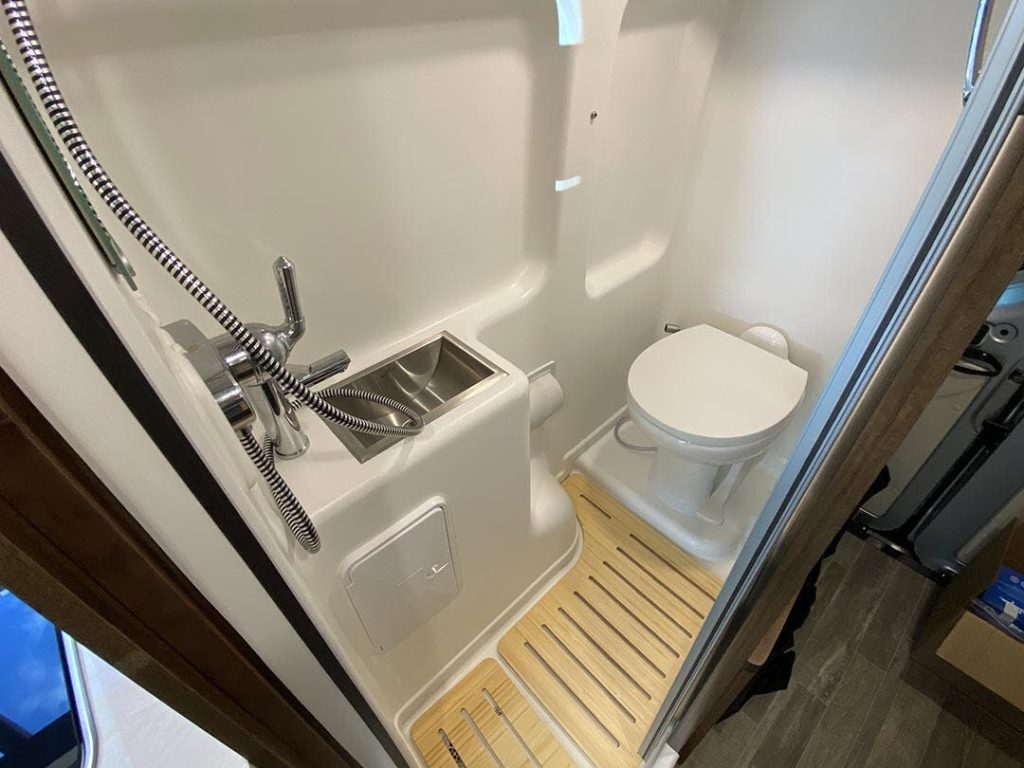

Flexible showerhead • Medicine cabinet • Mirror • Fold-down sink (59K, 59KL) • Toilet w/foot pedal and sprayer • Shower curtain • Shower package w/showerpan • Shower w/wall surround (59G, 59GL) • Stainless steel sink (59G, 59GL) • Tissue holder • Towel bar • Sliding tambour bath door (59G, 59GL) • Two-piece sliding door (59K, 59KL) • Powered roof vent • Wardrobe cabinet (59K,59KL)
BEDROOM

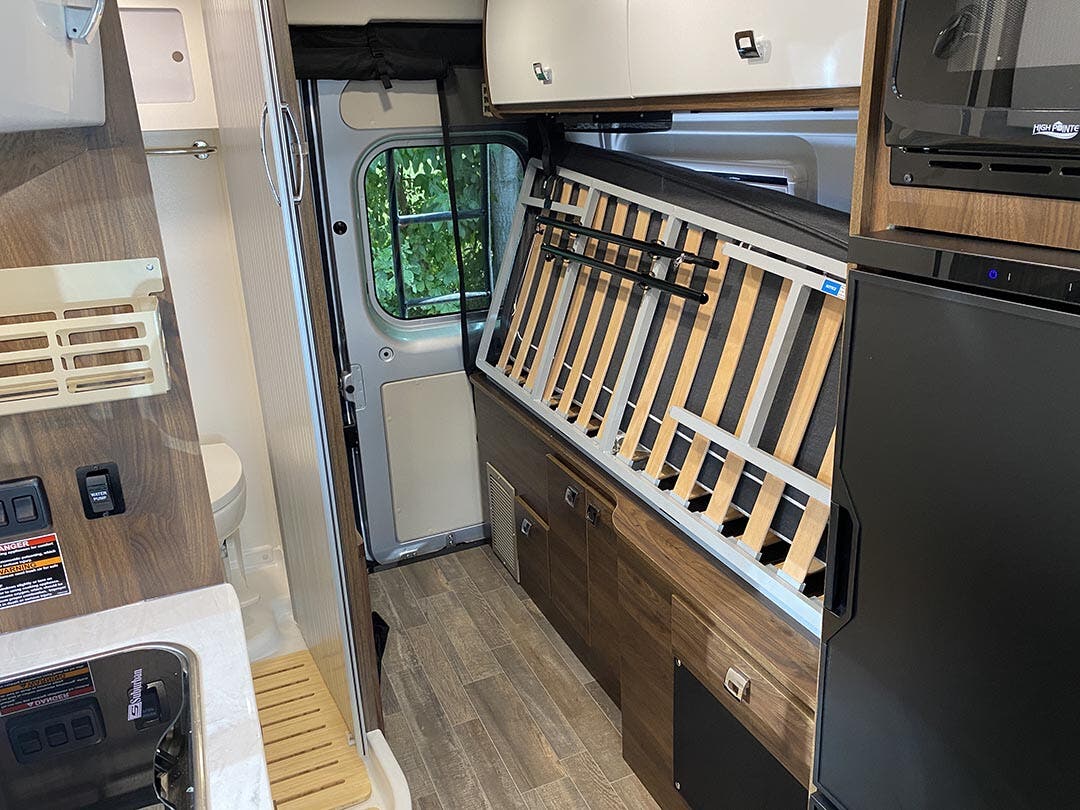

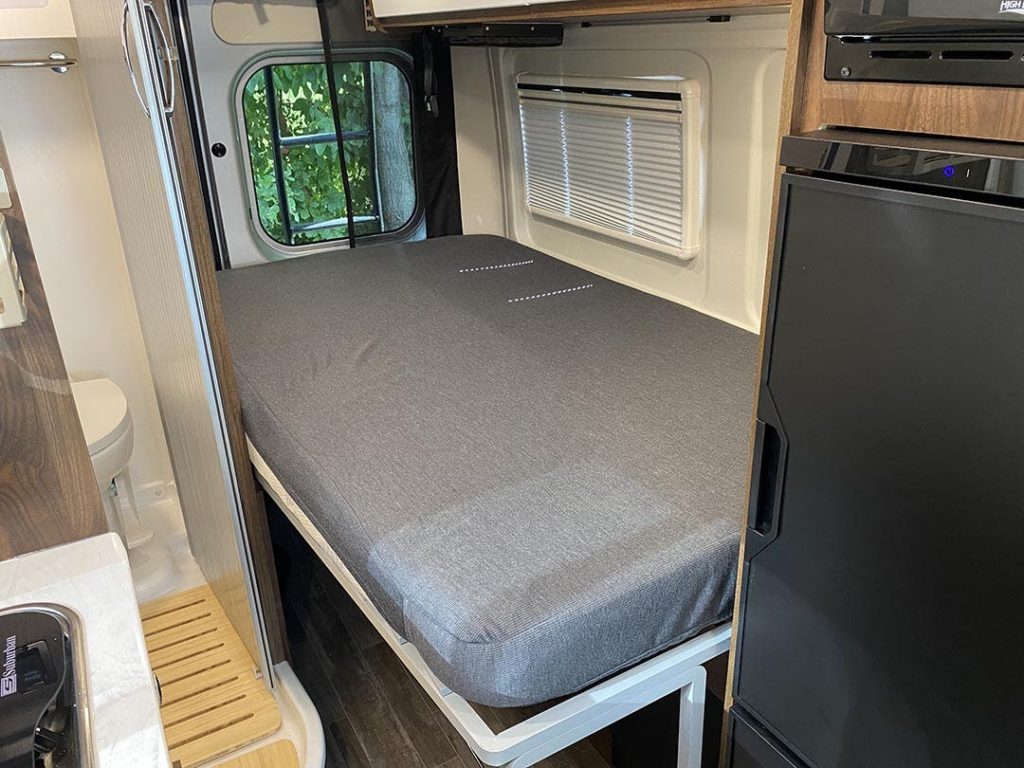

Double bed w/WinnSleep® system and support leg/step (59G, 59GL) • Twin beds w/WinnSleep system and storage below passenger side (59K, 59KL) • Flex Bed kit (59K, 59KL)
EXTERIOR

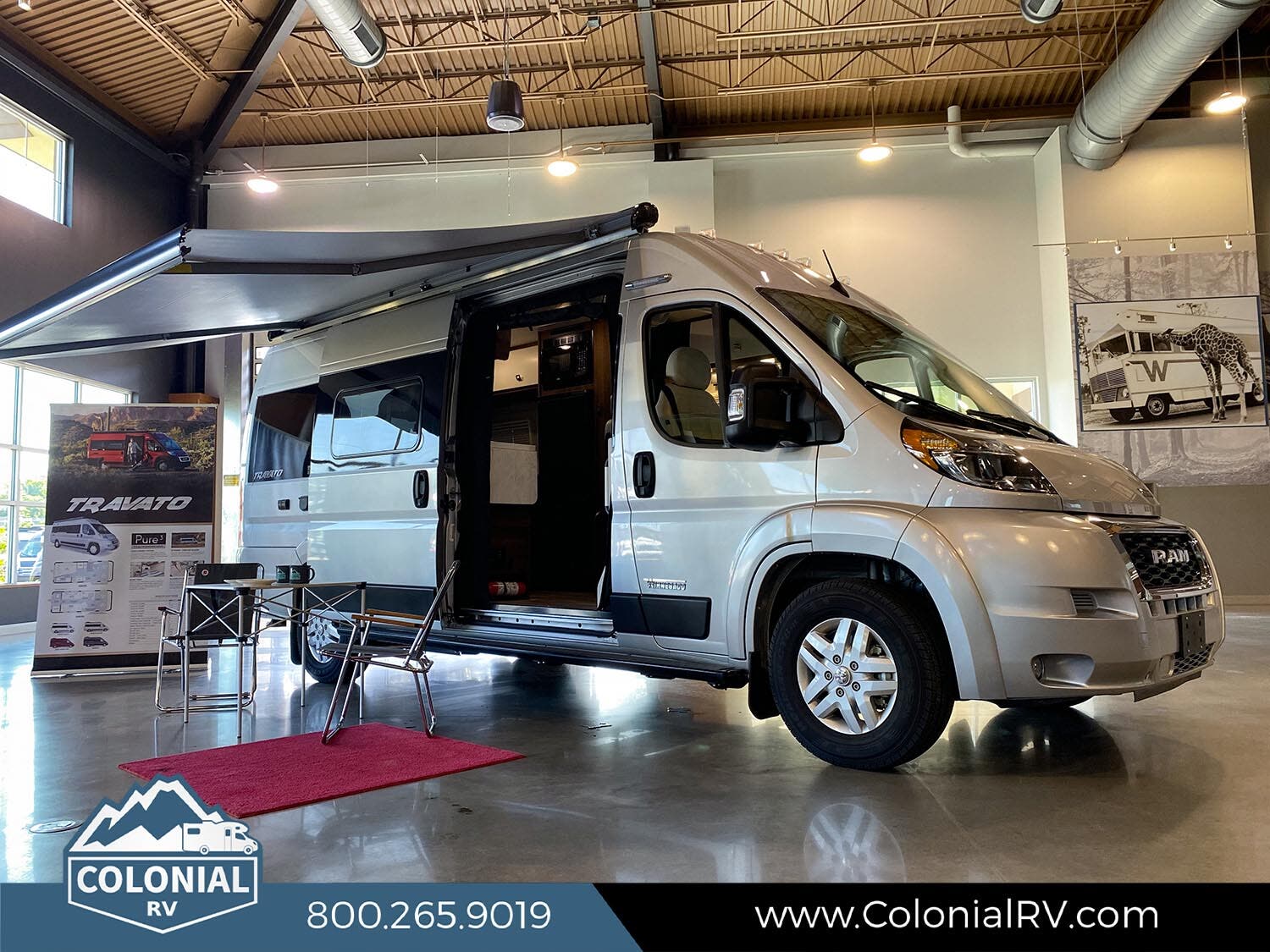

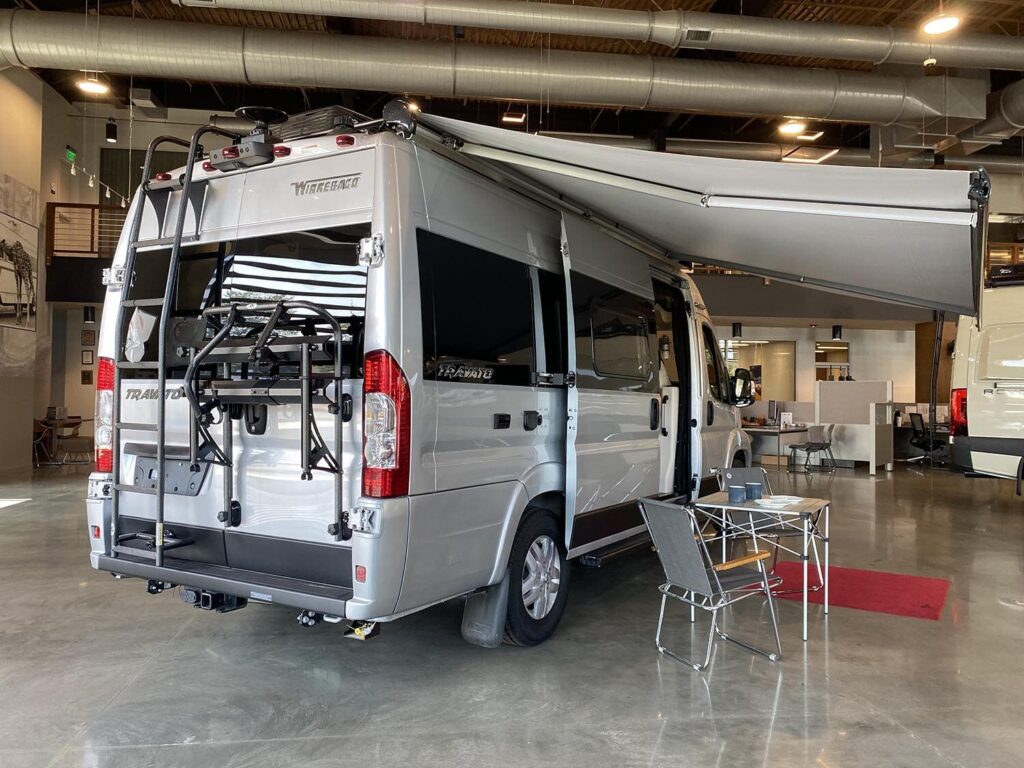

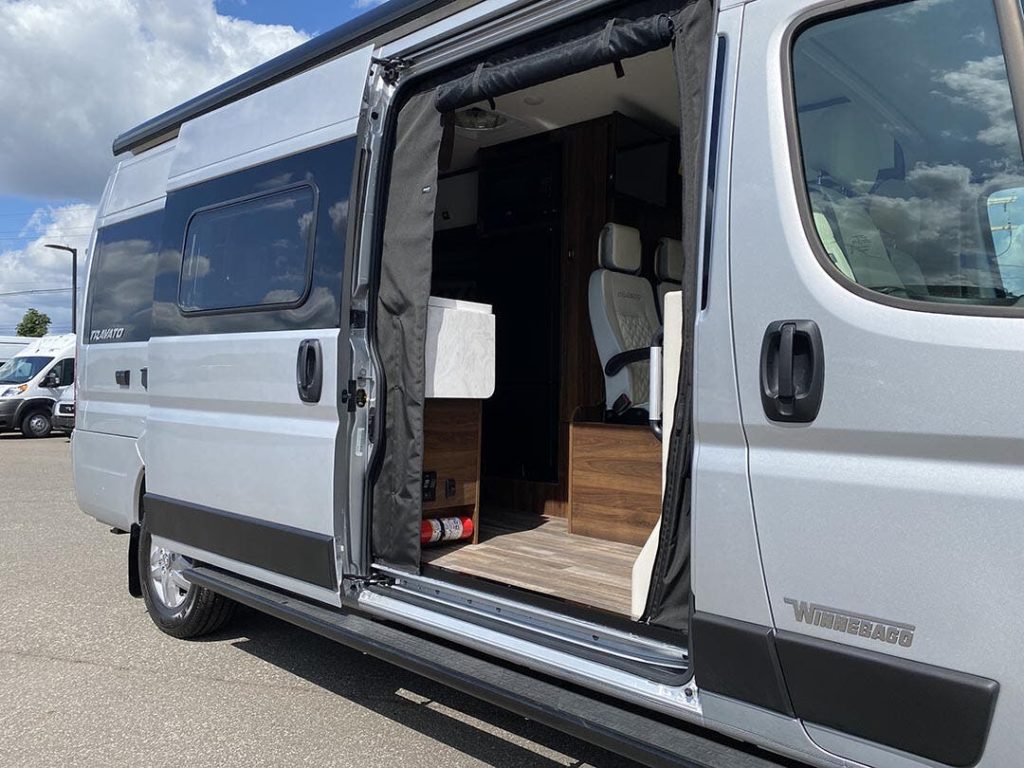

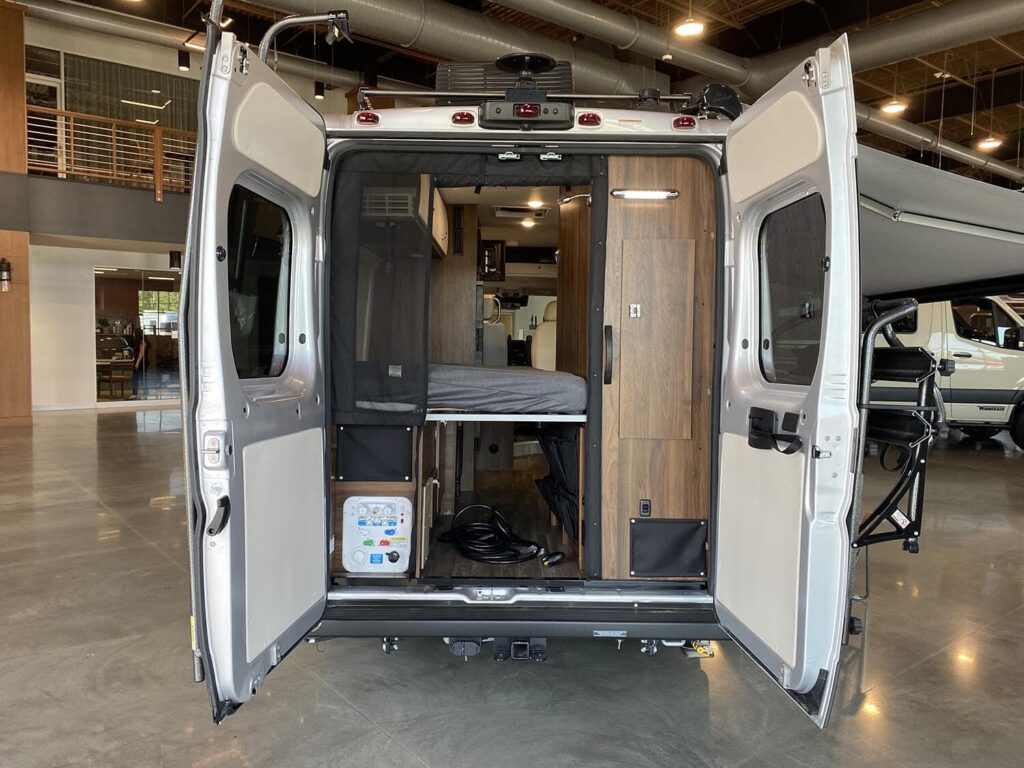

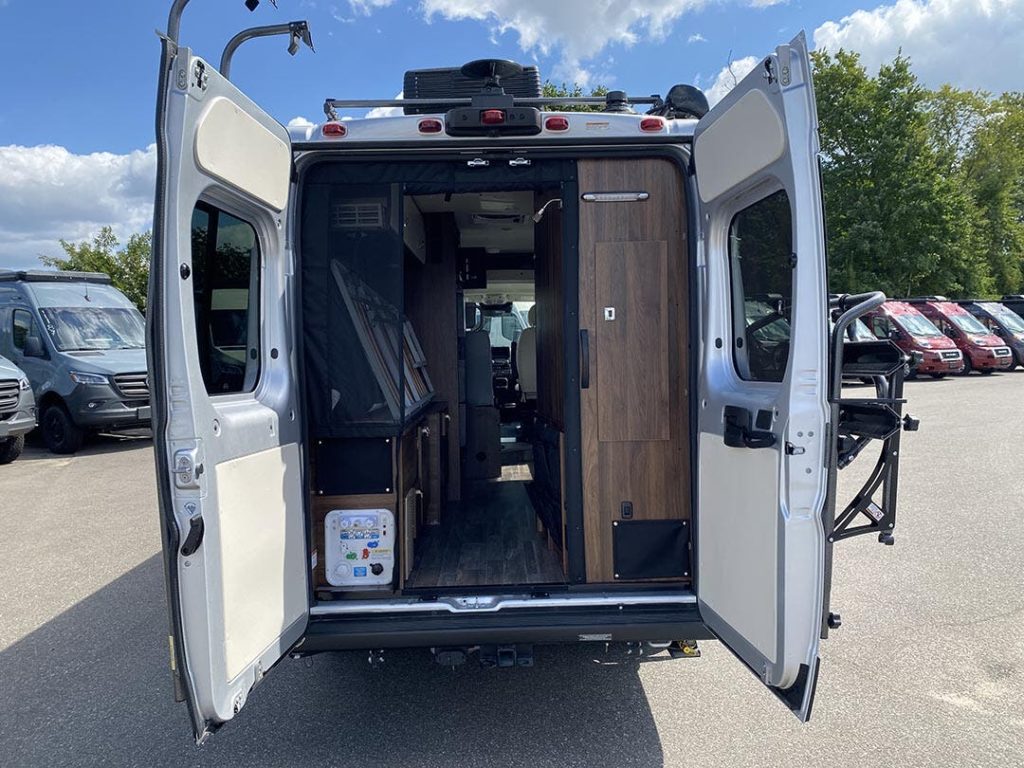

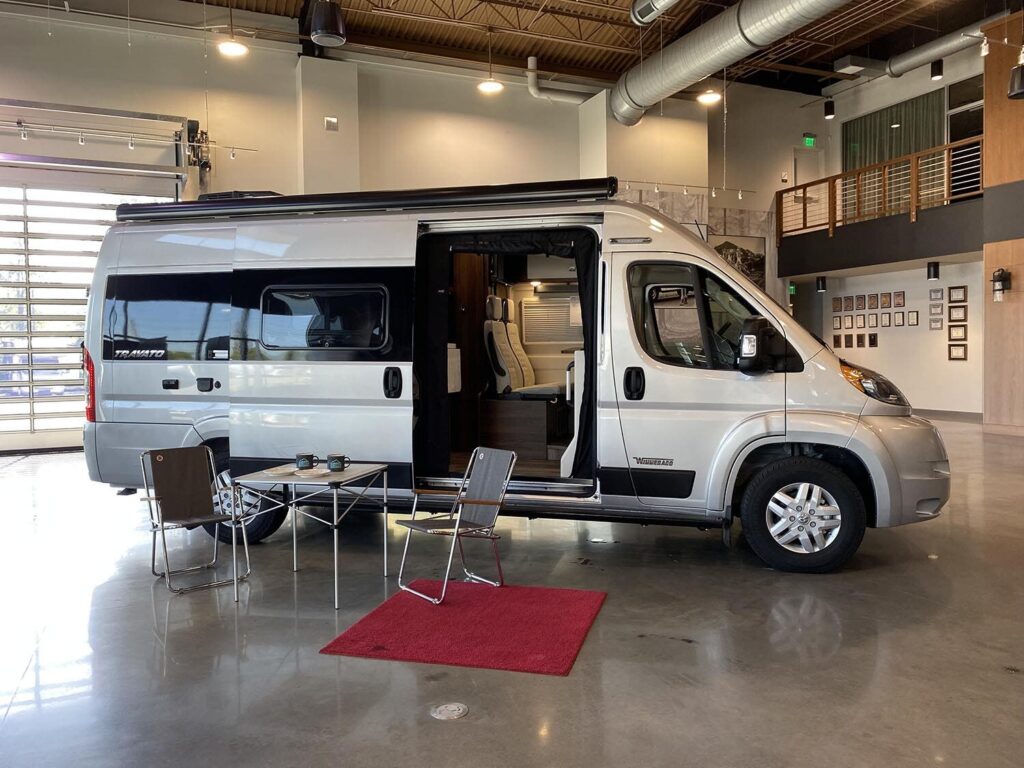

Powered patio awning w/LED lighting and Bluetooth control • Porch light w/interior switch • Driver’s side service light • Assist bar w/integrated RAM® Tough-Track™ mount (sliding entrance door) • Assist bar (rear entrance door) • Rear door latch convenience strap • Side screen door w/magnetic closures • Rear screen door • Rod and privacy screen (provided for rear annex) • Aluminum running boards w/logoed tread, ground-effect lighting and pet loop attachment

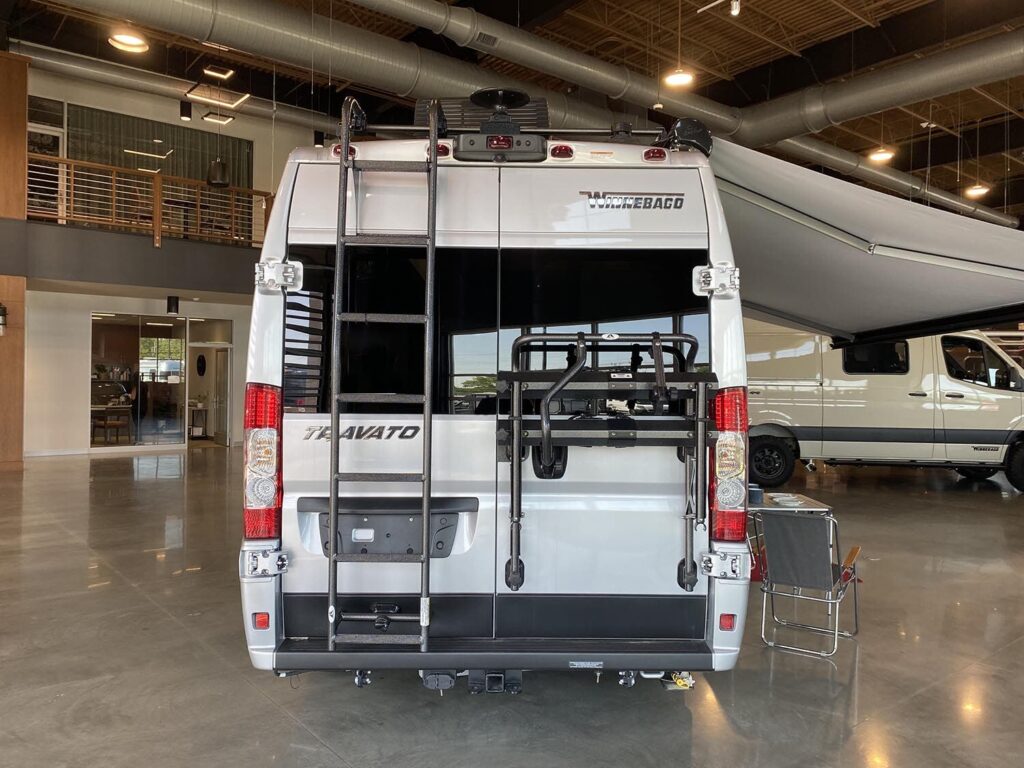

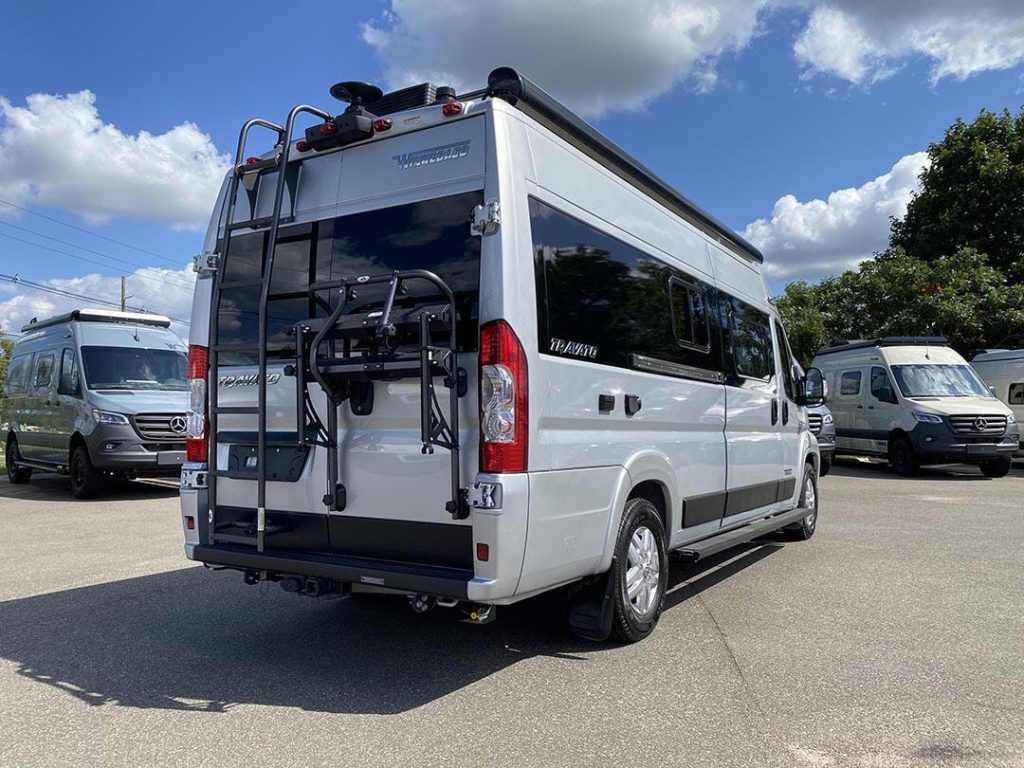

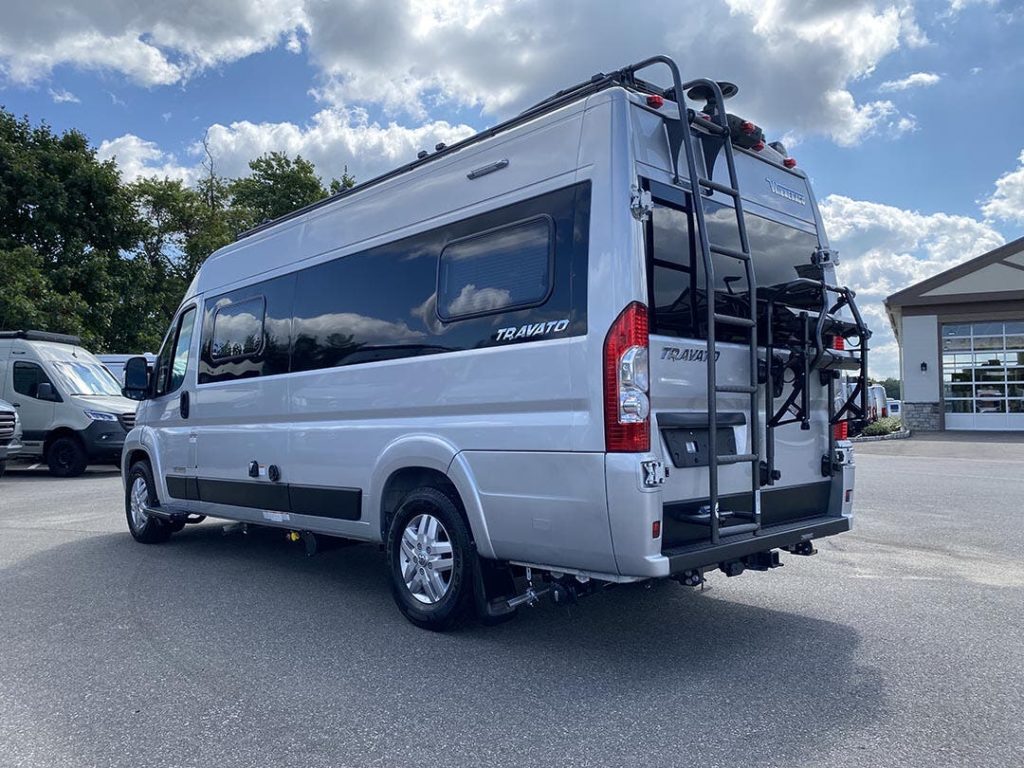

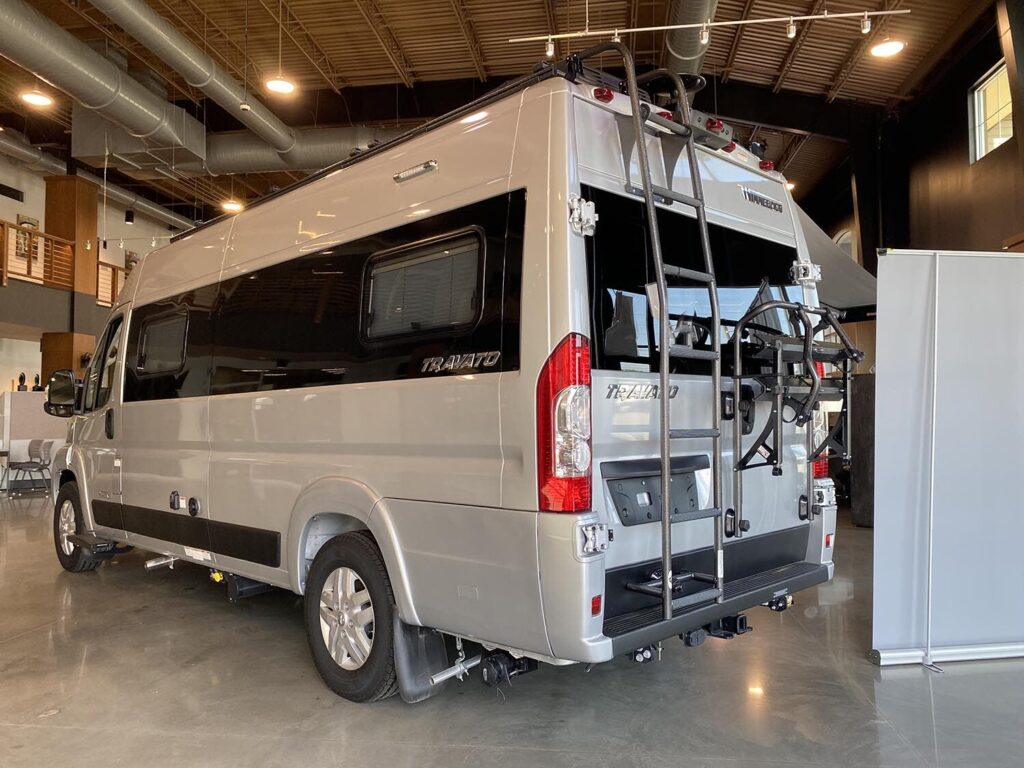

Optional Equipment: Bike rack • Movable ladder • Luggage rack
HEATING & COOLING SYSTEM
Coleman®-Mach® 10 NDQ air conditioner w/directional vents, Bluetooth® control and built-in thermostat with auto mode • Truma Combi® Eco Plus Heating System w/two 850-watt heating elements
ELECTRICAL SYSTEM
Pure3 Energy Management System (59GL, 59KL) 3-module lithium-ion energy pack, 3,600-watt inverter, Bluetooth control module, energy pack heating system and a second dedicated alternator powered by the chassis engine • Cummins Onan® QG 2800i gas generator (59G, 59K) • AC/DC load center, 45-amp. converter/charger • Auxiliary start circuit • 2 deep-cycle Group 31 batteries (59G, 59K) (AGM maintenance-free) • Coach battery disconnect system • Automatic dual-battery charge control • 30-amp. power cord • Exterior TV jack • Exterior AC/DC receptacle • Energy Management System • 215-watt solar panels, solar charge controller w/junction box and plugs for additional solar panels • 1,000-watt pure sine wave inverter (59G, 59K)
Optional Equipment: Pure Energy Management System (59GL, 59KL) 4-module lithium-ion energy pack, 3,600-watt inverter, Bluetooth control module, energy pack heating system and a second dedicated alternator powered by the chassis engine
PLUMBING SYSTEM
LPG accessory connection (patio area) • Water center control panel includes all control valves, connection points and exterior wash station w/pump switch • 10′ sewer hose • Winterization package w/labeling, water heater bypass valve and siphon tube • On-demand water pump • Permanent-mount LP tank w/gauge • Macerator pump (59G, 59GL gray tank only) • Eco-Hot® water system • Holding tank flushing system • Heated drainage system
SAFETY
LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Fog lamps
WARRANTY
12-month/24,000-mile basic warranty
