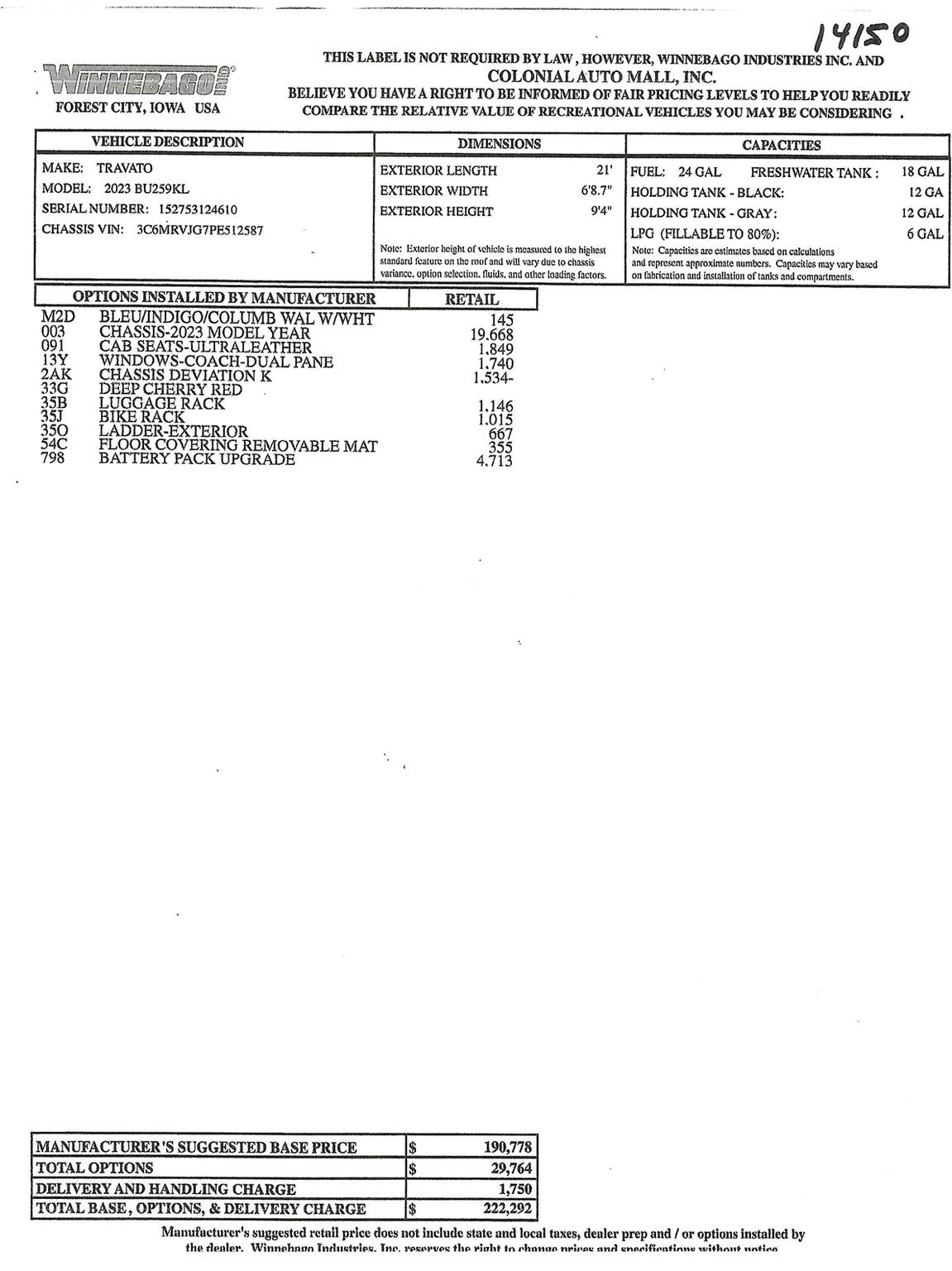

Options Included
M2D: Bleu/Indigo/Columbian Walnut W/White
003: 2023 Model Year Chassis
091: Ultraleather Cab Seats
13Y: Dual Pane Coach Windows
2AK: Chassis Deviation K (DRIVER & PASSENGER chassis Seat (only) does not have the manual 6way controls- it has 4way manual)
33G: Paint & Graphics – Deep Cherry Red
35B: Luggage Rack
35J: Bike Rack
35O: Ladder – Exterior
54C: Removable Floor Mat
798: Battery Pack Upgrade
| 59G | 59GL | 59K | 59KL | |
|---|---|---|---|---|
| Exterior Length | 21′ | 21′ | 21′ | 21′ |
| Exterior Height | 9’4″ | 9’4″ | 9’4″ | 9’4″ |
| Exterior Width | 6’9″ | 6’9″ | 6’9″ | 6’9″ |
| Awning Length | 13′ | 13′ | 13′ | 13′ |
| Interior Height | 6’3″ | 6’3″ | 6’3″ | 6’3″ |
| Interior Width | 6’2″ | 6’2″ | 6’2″ | 6’2″ |
| Freshwater Tank Capacity (gal.) | 18 | 18 | 18 | 18 |
| Water Heater Capacity (gal.) | 2.6 | 2.6 | 2.6 | 2.6 |
| Holding Tank Capacity — Black (gal.) | 11 | 11 | 12 | 12 |
| Holding Tank Capacity — Gray (gal.) | 14 | 14 | 13 | 12 |
| LP Capacity (lbs.) | 25 | 25 | 25 | 25 |
| Fuel Capacity (gal.) | 24 | 24 | 24 | 24 |
| GCWR (lbs.) | 12,000 | 12,000 | 12,000 | 12,000 |
| GVWR (lbs.) | 9,350 | 9,350 | 9,350 | 9,350 |
| GAWR – Front (lbs.) | 4,629 | 4,629 | 4,629 | 4,629 |
| GAWR – Rear (lbs.) | 5,291 | 5,291 | 5,291 | 5,291 |
| Wheelbase | 159″ | 159″ | 159″ | 159″ |
| Sleeps | 2 | 2 | 2 | 2 |
CHASSIS
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 9-speed automatic 62TE transmission, 180-amp. alternator • 4-wheel ABS brakes • Stylized aluminum wheels Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight
CAB CONVENIENCES
Radio/rearview monitor system touchscreen, steering wheel controls, rear camera and USB ports • Cab seats adjustable headrest, and slide/swivel/recline • Airbags driver and passenger front, side curtain, side seat bolster • Cruise control • 3-point seat belts • Electric power steering • Power mirrors w/defrost and turn signal • Power door locks w/remote • Power windows • 12-volt powerpoints • Digital rearview mirror • Crosswind assist • Sunvisors • Front and cab window privacy panels • Carpet floor mat • Appliqué package • SuperSprings® SumoSprings® (front and rear) • Passive entry • Push button start • Traffic sign assist • Full-speed forward collision warning plus • Pedestrian automatic emergency braking system • Post collision braking
Optional Equipment: Cab seats w/Ultraleather® covering
INTERIOR
24″ HDTV and Bluetooth® soundbar • Pedestal w/pop-up outlets and mount for table • Dinette seating w/3-point seat belts (59G, 59GL) • Amplified digital TV antenna • LED ceiling lights • Blackout cassette shades • Soft vinyl ceiling • Tinted coach windows • Systems monitor panel • Deluxe powered ventilator fan w/rain cover • Removable/adjustable table • Below floor storage • Anything Keeper™ drop down storage baskets • RAM® Tough-Track™ Mounts throughout • Reading lights • Gear bag pocket storage (59G, 59GL) • Roof wiring access port • Insulated rear window zipper coverings
Optional Equipment: Dual-pane acrylic windows w/screen and blackout cassette shades • Woven floor mat • Front cab air mattress 30″ x 65″ w/support base, cordless pump, repair kit and storage bag
GALLEY
Corian® countertop • Flip-up countertop extension (59G, 59GL) • Microwave oven w/touch controls • 2-burner range LP cooktop w/glass cover and heat shield (59G, 59K) • Single burner induction cooktop (59GL, 59KL) • Single door 4.3 cu. ft. compressor-driven refrigerator/freezer 12-volt (59K, 59KL) • Two-door 6.0 cu. ft. compressor-driven refrigerator/freezer 12-volt (59G, 59GL) • Stainless steel sink w/Corian sink cover • Cold water filtration system (galley) • Spice Rack • Pull-out countertop extension (59K, 59KL)
BATH
Flexible showerhead • Medicine cabinet • Mirror • Fold-down sink (59K, 59KL) • Toilet w/foot pedal and sprayer • Shower curtain • Shower package w/showerpan • Shower w/wall surround (59G, 59GL) • Stainless steel sink (59G, 59GL) • Tissue holder • Towel bar • Sliding tambour bath door (59G, 59GL) • Two-piece sliding door (59K, 59KL) • Powered roof vent • Wardrobe cabinet (59K,59KL)
BEDROOM
Double bed w/WinnSleep® system and support leg/step (59G, 59GL) • Twin beds w/WinnSleep system and storage below passenger side (59K, 59KL) • Flex Bed kit (59K, 59KL)
EXTERIOR
Powered patio awning w/LED lighting and Bluetooth control • Porch light w/interior switch • Driver’s side service light • Assist bar w/integrated RAM® Tough-Track™ mount (sliding entrance door) • Assist bar (rear entrance door) • Rear door latch convenience strap • Side screen door w/magnetic closures • Rear screen door • Rod and privacy screen (provided for rear annex) • Aluminum running boards w/logoed tread, ground-effect lighting and pet loop attachment
Optional Equipment: Bike rack • Movable ladder • Luggage rack
HEATING & COOLING SYSTEM
Coleman®-Mach® 10 NDQ air conditioner w/directional vents, Bluetooth® control and built-in thermostat with auto mode • Truma Combi® Eco Plus Heating System w/two 850-watt heating elements
ELECTRICAL SYSTEM
Pure3 Energy Management System (59GL, 59KL) 3-module lithium-ion energy pack, 3,600-watt inverter, Bluetooth control module, energy pack heating system and a second dedicated alternator powered by the chassis engine • Cummins Onan® QG 2800i gas generator (59G, 59K) • AC/DC load center, 45-amp. converter/charger • Auxiliary start circuit • 2 deep-cycle Group 31 batteries (59G, 59K) (AGM maintenance-free) • Coach battery disconnect system • Automatic dual-battery charge control • 30-amp. power cord • Exterior TV jack • Exterior AC/DC receptacle • Energy Management System • 215-watt solar panels, solar charge controller w/junction box and plugs for additional solar panels • 1,000-watt pure sine wave inverter (59G, 59K)
Optional Equipment: Pure Energy Management System (59GL, 59KL) 4-module lithium-ion energy pack, 3,600-watt inverter, Bluetooth control module, energy pack heating system and a second dedicated alternator powered by the chassis engine
PLUMBING SYSTEM
LPG accessory connection (patio area) • Water center control panel includes all control valves, connection points and exterior wash station w/pump switch • 10′ sewer hose • Winterization package w/labeling, water heater bypass valve and siphon tube • On-demand water pump • Permanent-mount LP tank w/gauge • Macerator pump (59G, 59GL gray tank only) • Eco-Hot® water system • Holding tank flushing system • Heated drainage system
SAFETY
LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Fog lamps
WARRANTY
12-month/24,000-mile basic warranty
*Disclaimer: Winnebago recommends following the winter use guidelines and winterization procedures outlined in your owner’s manual whenever camping in freezing conditions. Because features, specifications, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle. In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
