*XL package provides 18” extended chassis at rear

SPECIFICATIONS

Exterior length: 24’ 1”

Exterior width (without mirrors): 6’ 8”

Interior aisle width: 28”

Exterior height: (with roof AC) 9’ 7”

Interior standing height: 6’ 2”

Wheelbase: 170”

Gross vehicle weight rating: 11,030 lbs.

Occupant & cargo carrying capacity*: 3,000 lbs.

Gross combined weight rating*: 15,250 lbs.

Towing – tow weight*: 5,000 lbs.

Towing – tongue weight*: 750 lbs.

Fuel type: Diesel

Fresh water capacity: 33 gal.

Black holding tank capacity: 10 gal.

Gray holding tank capacity: 21 gal.

2017 ROADTREK CS ADVENTUROUS

The Ultimate Small Motorhome for the Real RVer

Built on the renowned Mercedes-Benz Sprinter Chassis and designed with the avid RVer or camper in mind, the CS Adventurous turns every trip into an adventure. Camping in style has never been easier or more enjoyable as this coach provides all the comforts and conveniences you’ll need after a long day of exploring the outdoors.

EXTERIOR

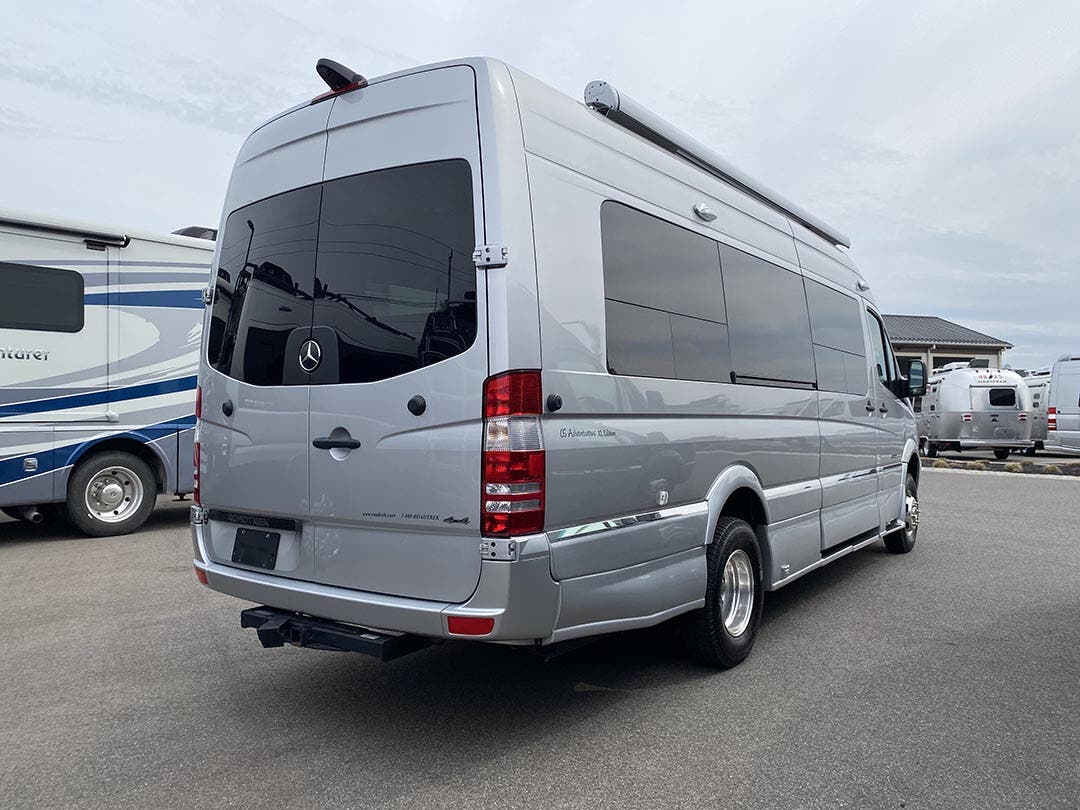

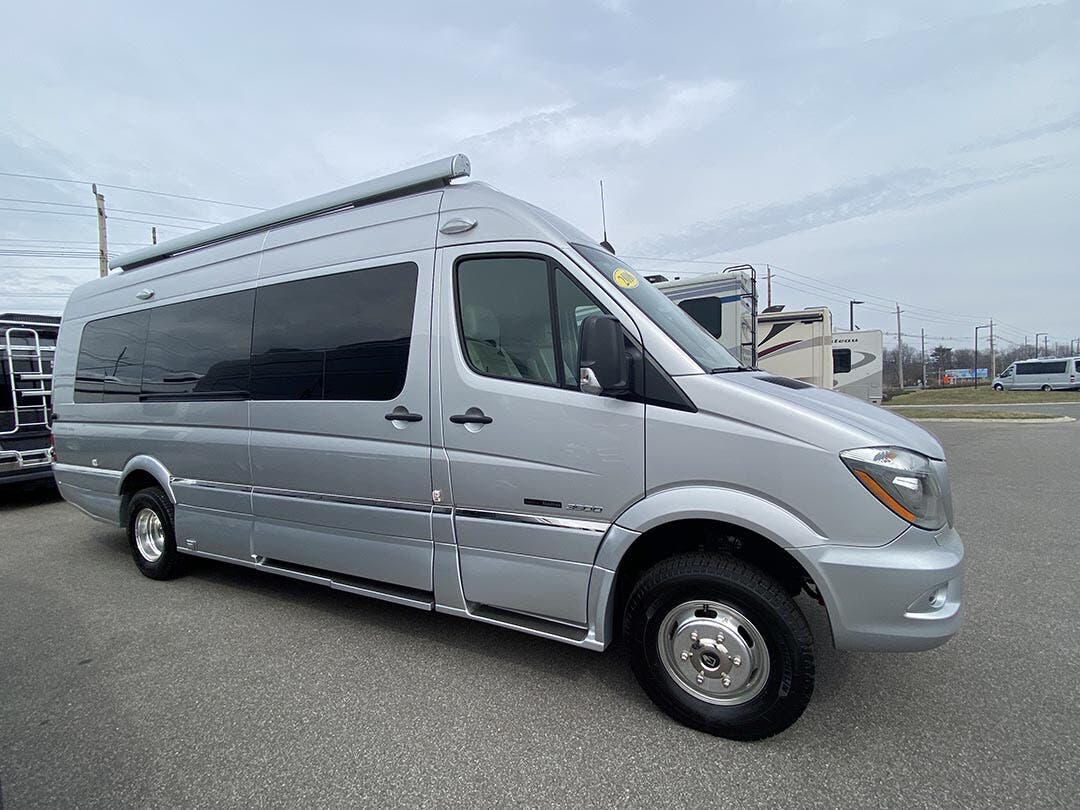

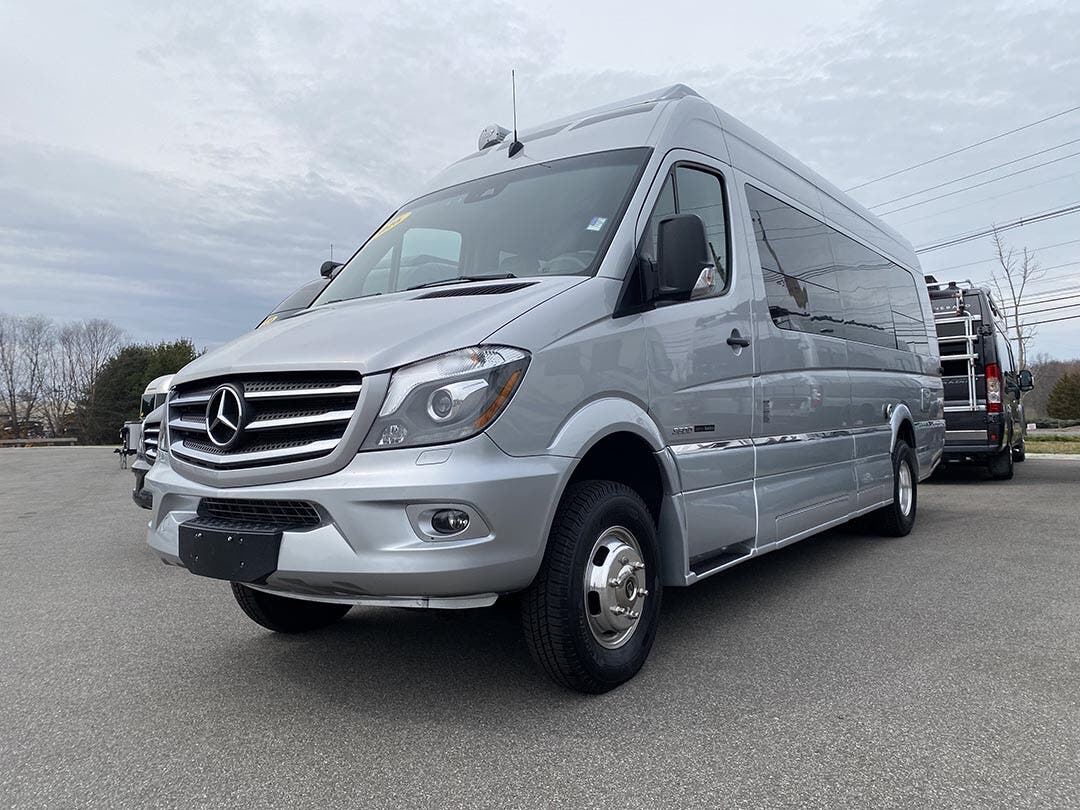

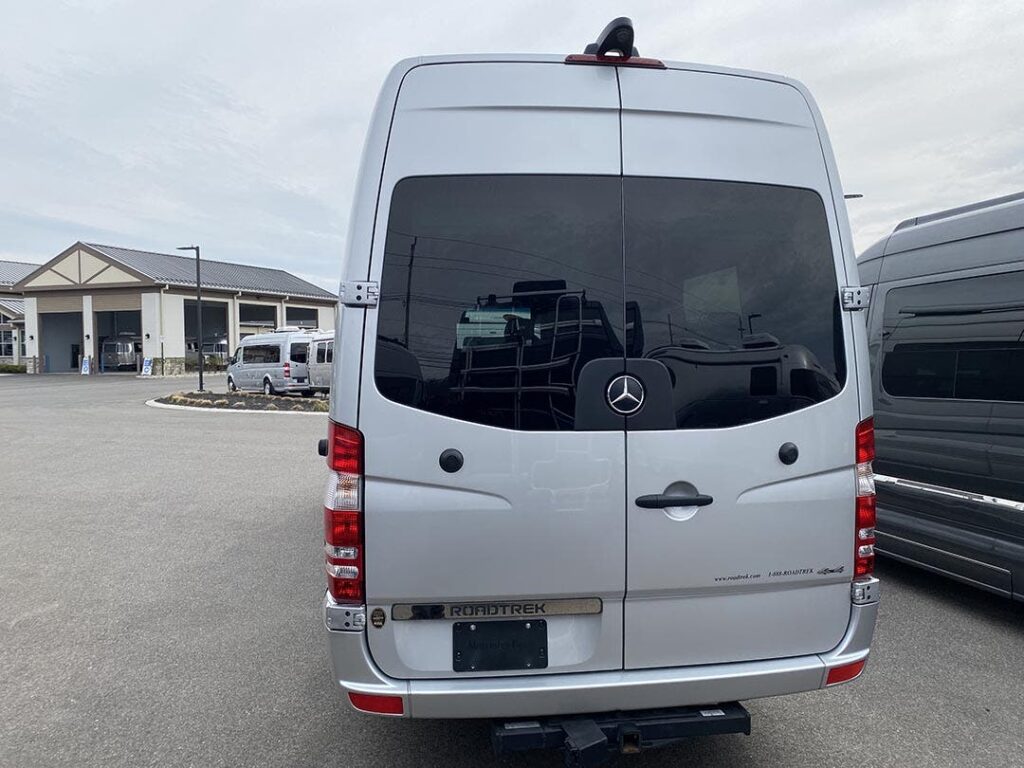

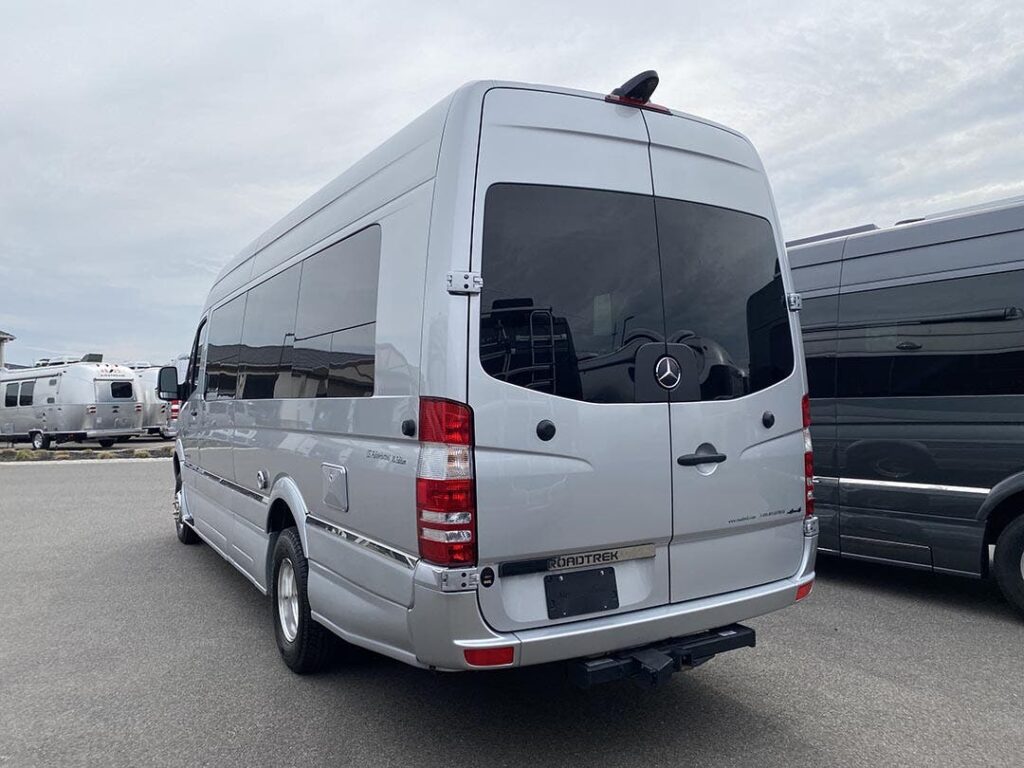

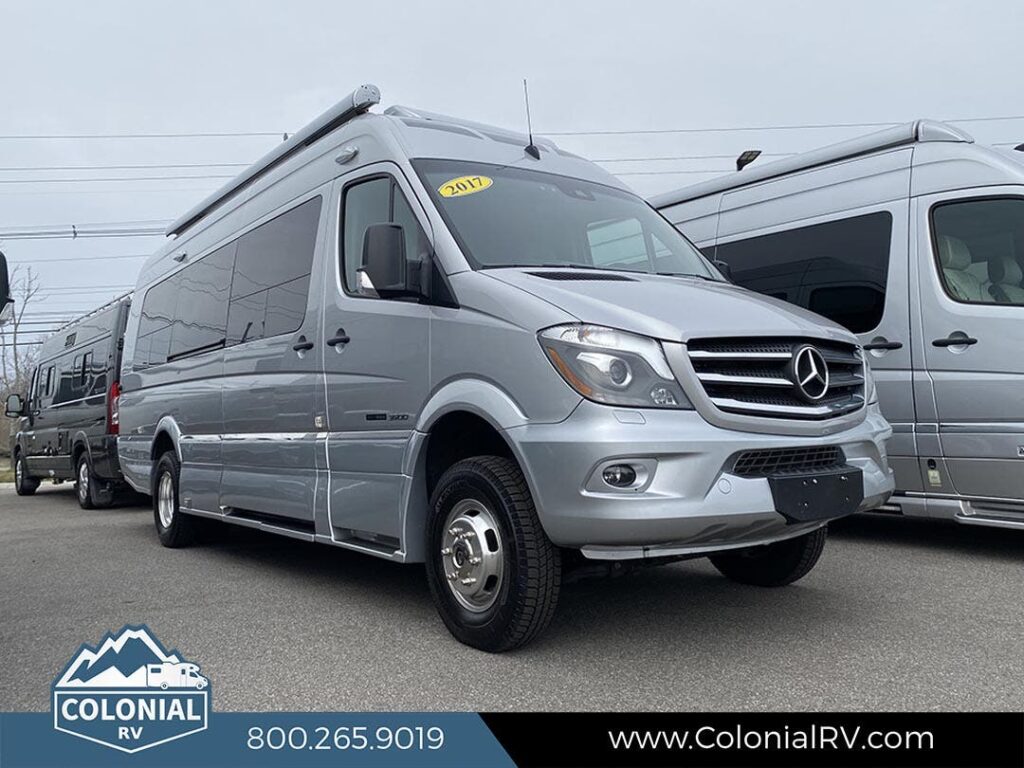

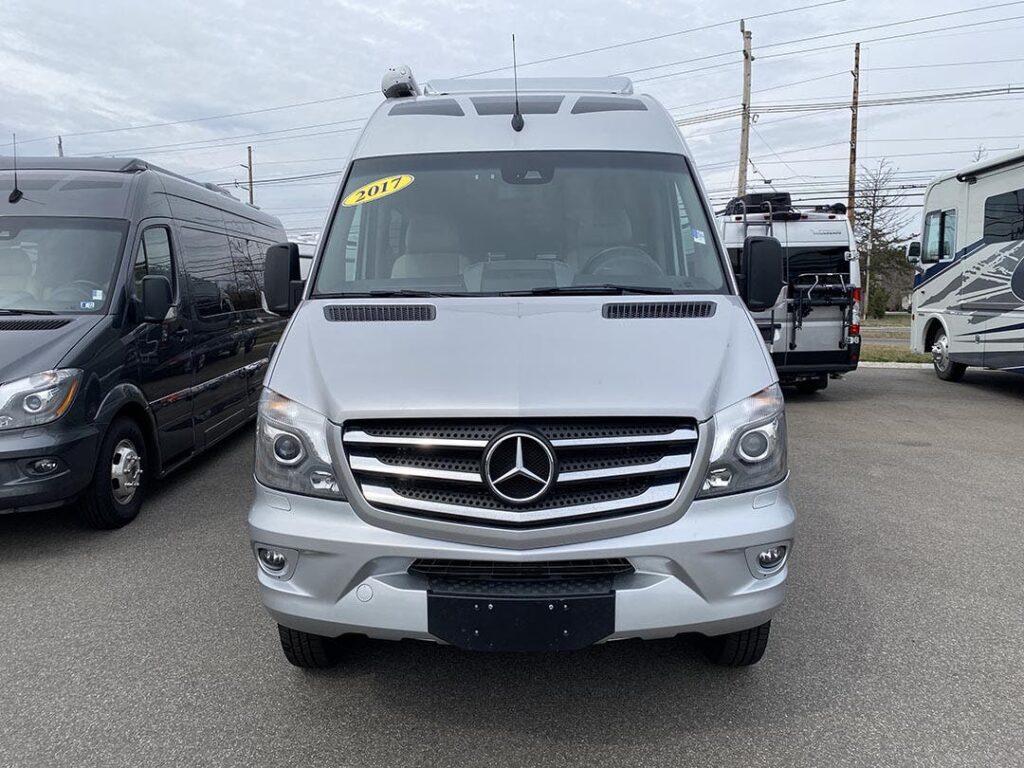

Sleek styling, clean lines, large windows and beautiful color options are just some of the exterior features that bring the CS Adventurous to life. Based on the 170” long wheelbase of the regular Mercedes Sprinter Chassis, it features plenty of room for all your RVing needs while still providing the ease of driving and parking that Roadtrekers know and love.

• Large frameless windows allow natural light to shine in and enhance the view

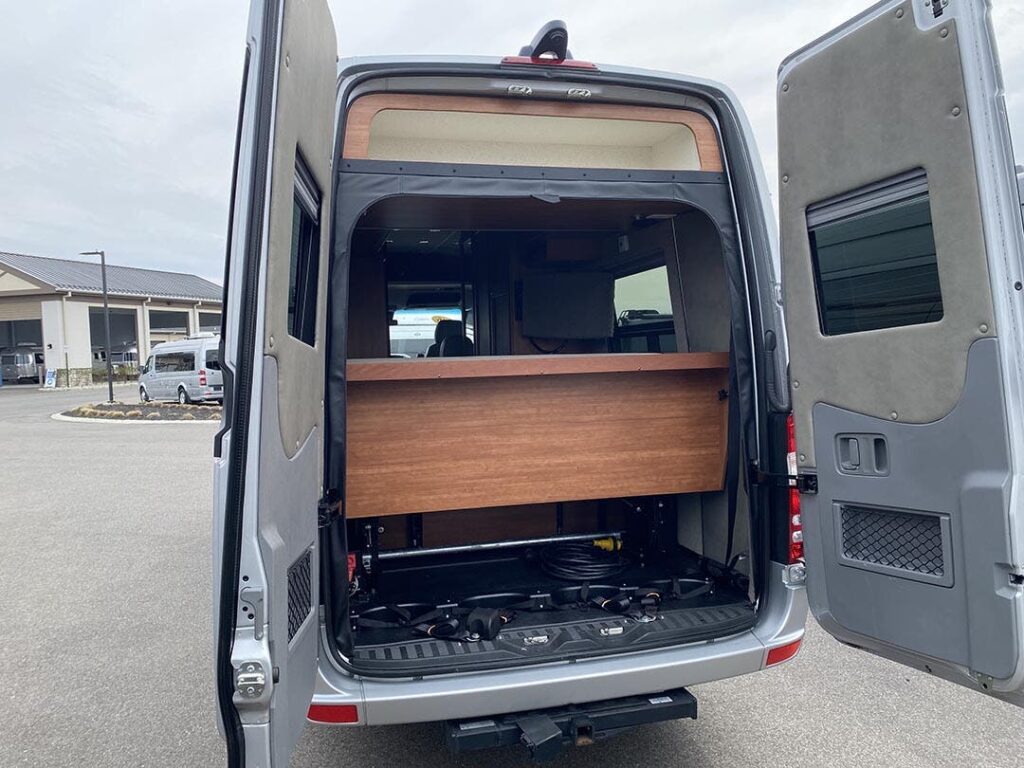

• Underside spare tire storage allows easy access to both rear doors
• Beautifully crafted ground effects add to the clean and stylish exterior finish
• Retractable power awning
• Optional XL package provides an additional 18” in length for storage

INTERIOR

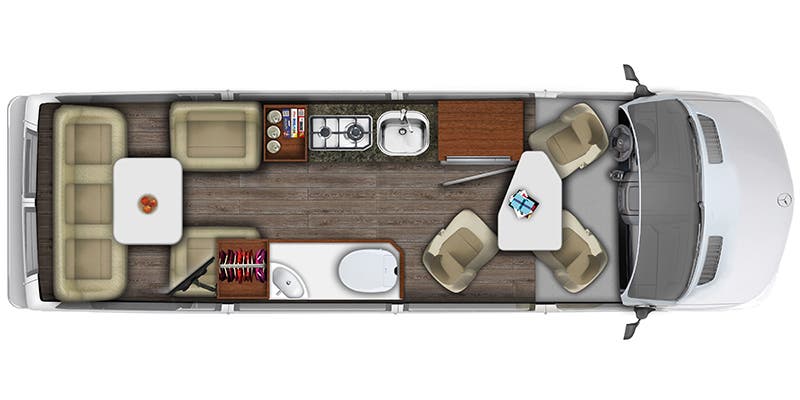

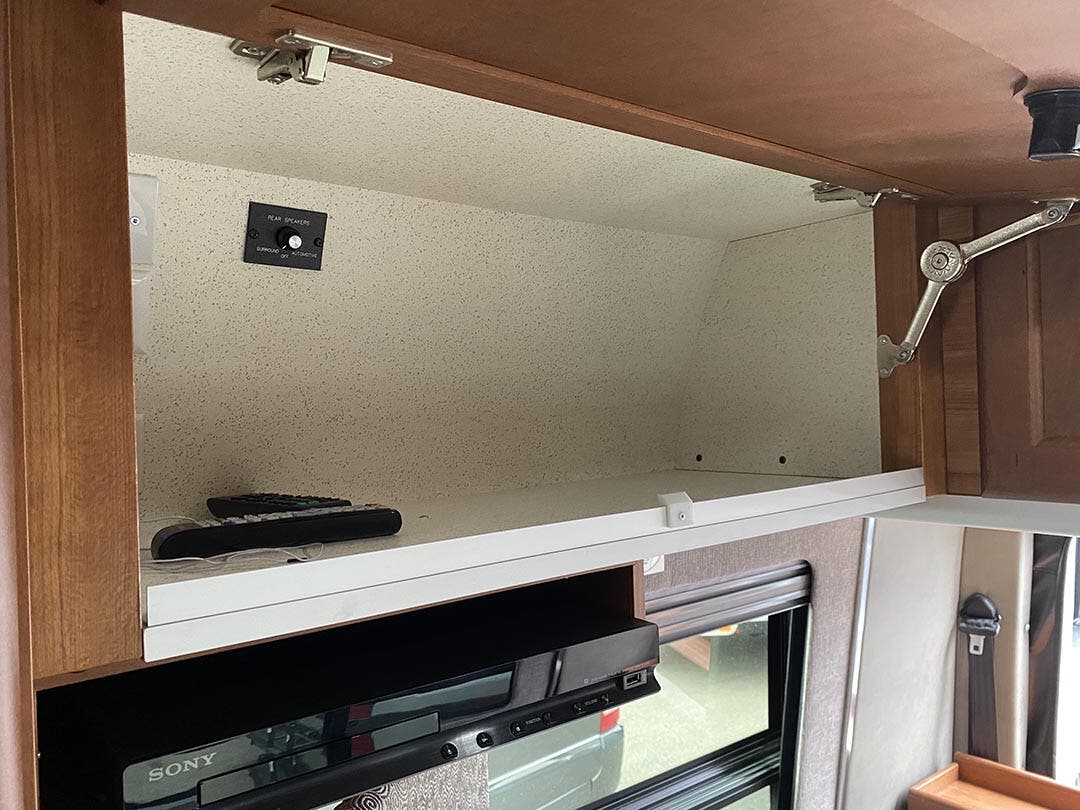

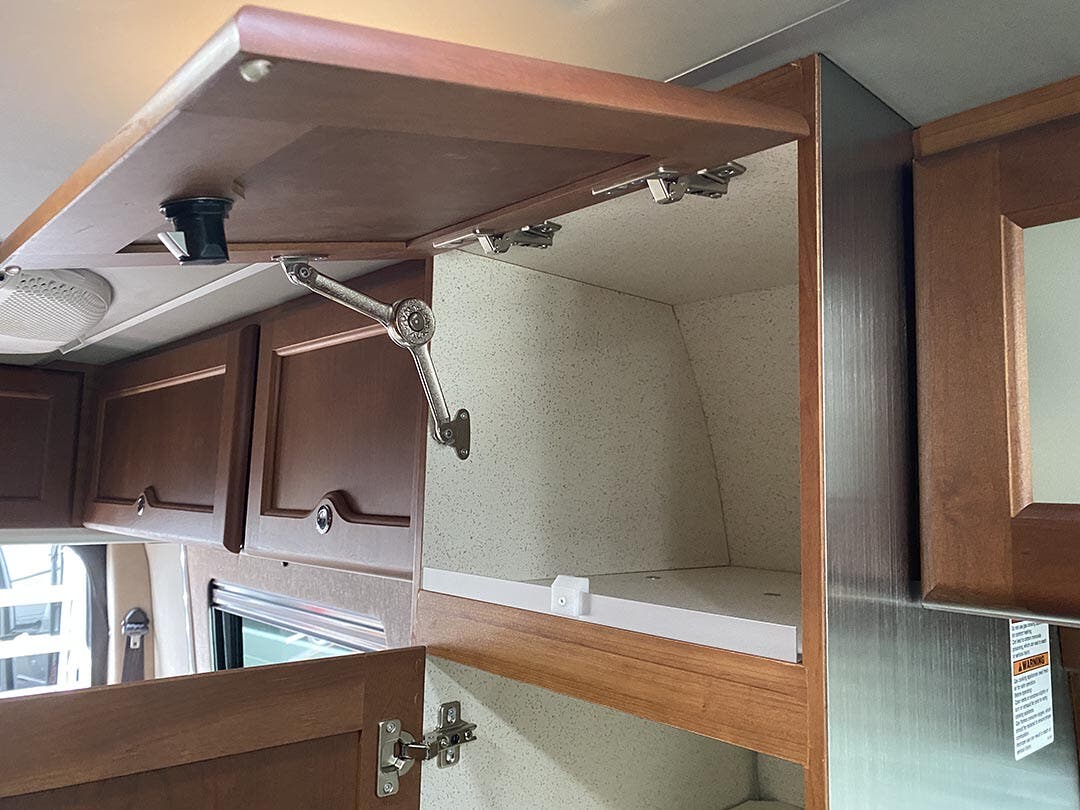

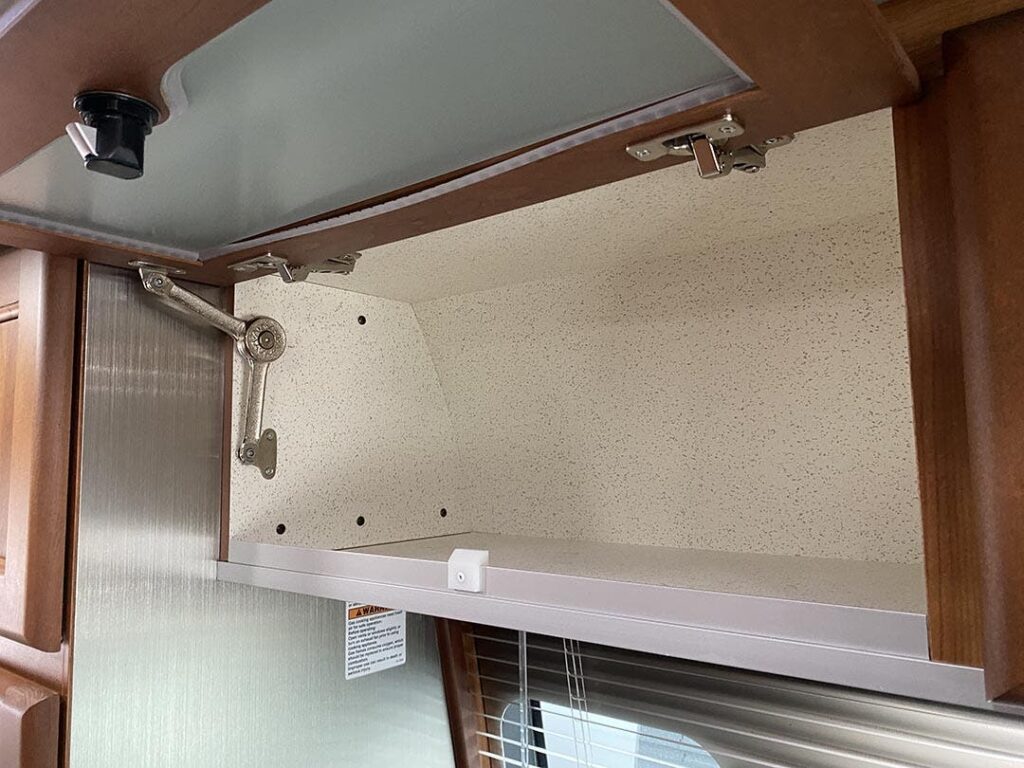

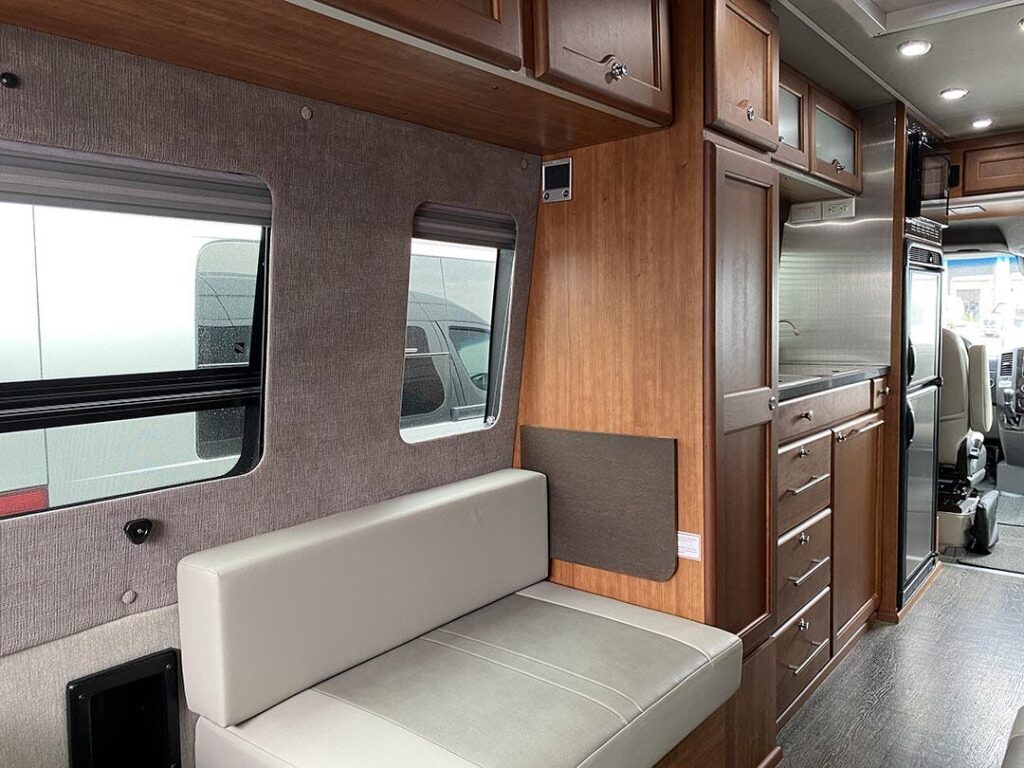

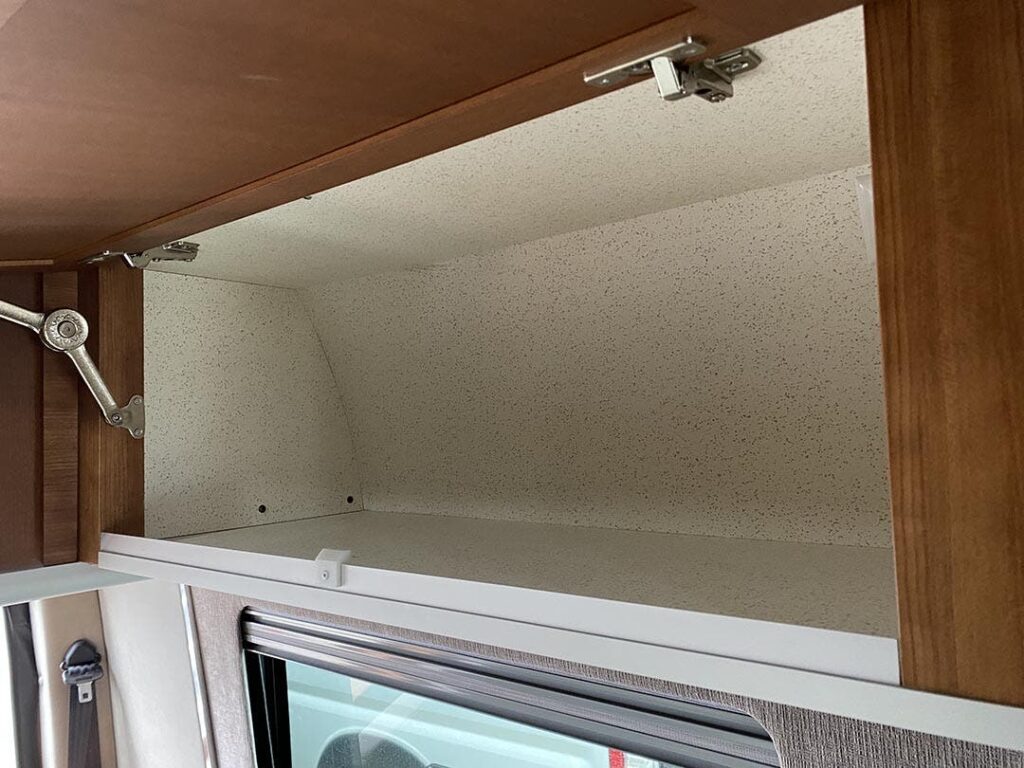

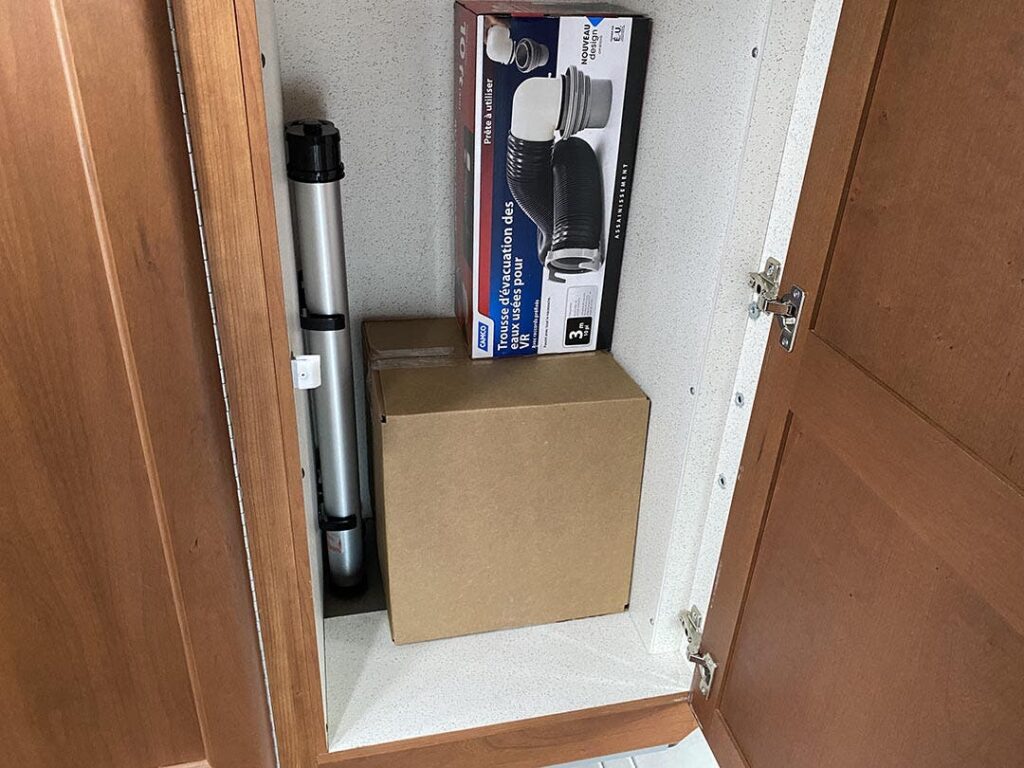

The beautiful, functional and elegantly designed interior leaves no space untouched, ensuring you can pack all your required travel essentials no matter how long you plan to be away. The floor plan features an expanded galley with a large refrigerator and tons of storage options. The sleek interior styling, bright lighting and subtle finishing touches will have you feeling at home the minute you step inside.

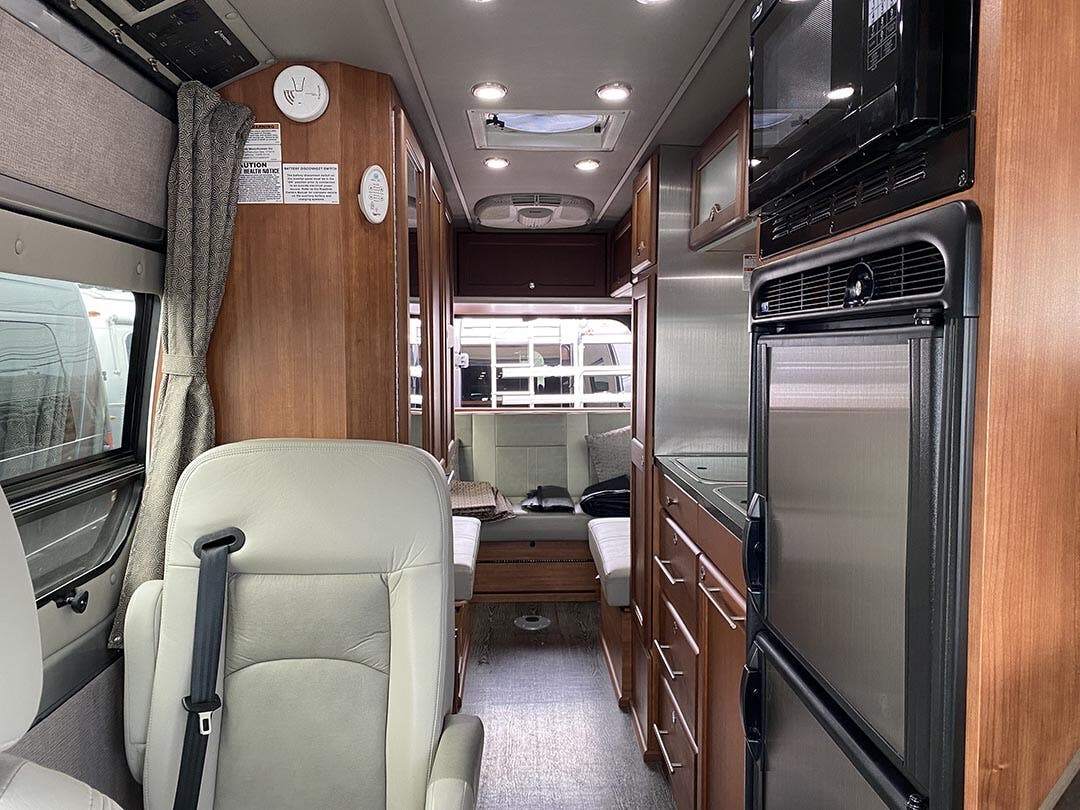

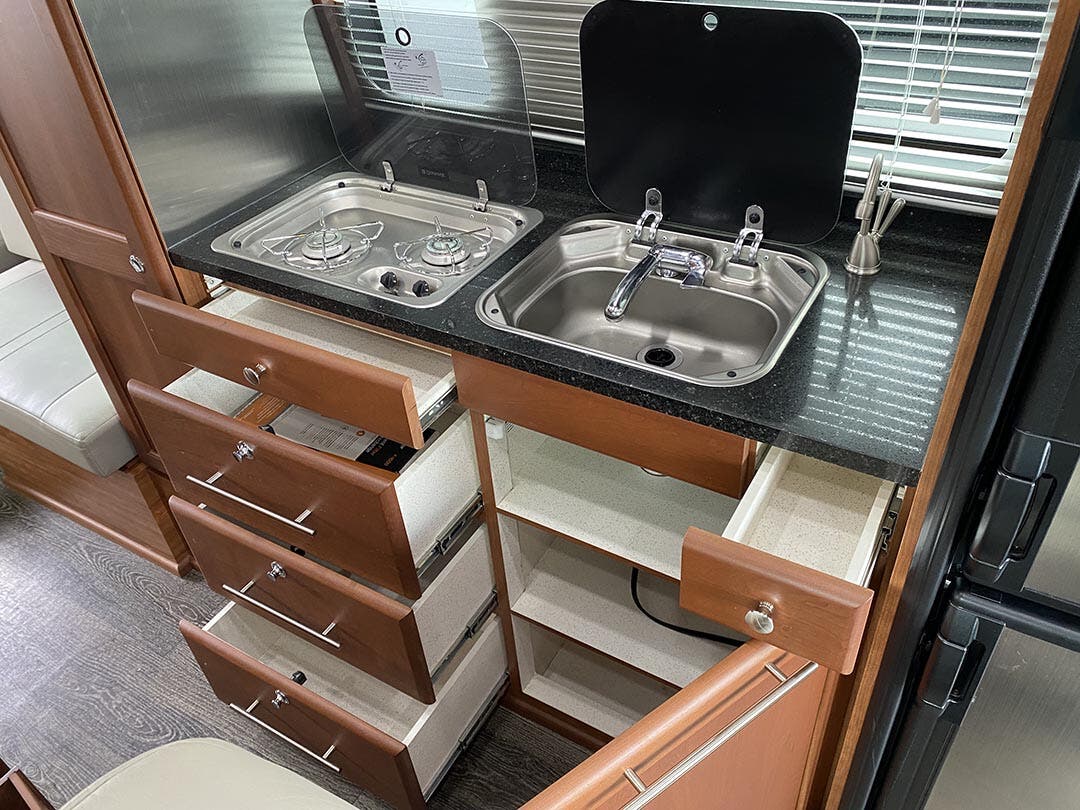

• Expanded galley features a 7.0 cu. ft. refrigerator, convection microwave and abundant storage
• Hydronic heating system provides in-floor radiant heat throughout as well as supplementary radiant heat in the bathroom
• Filtered drinking water and on demand hot water

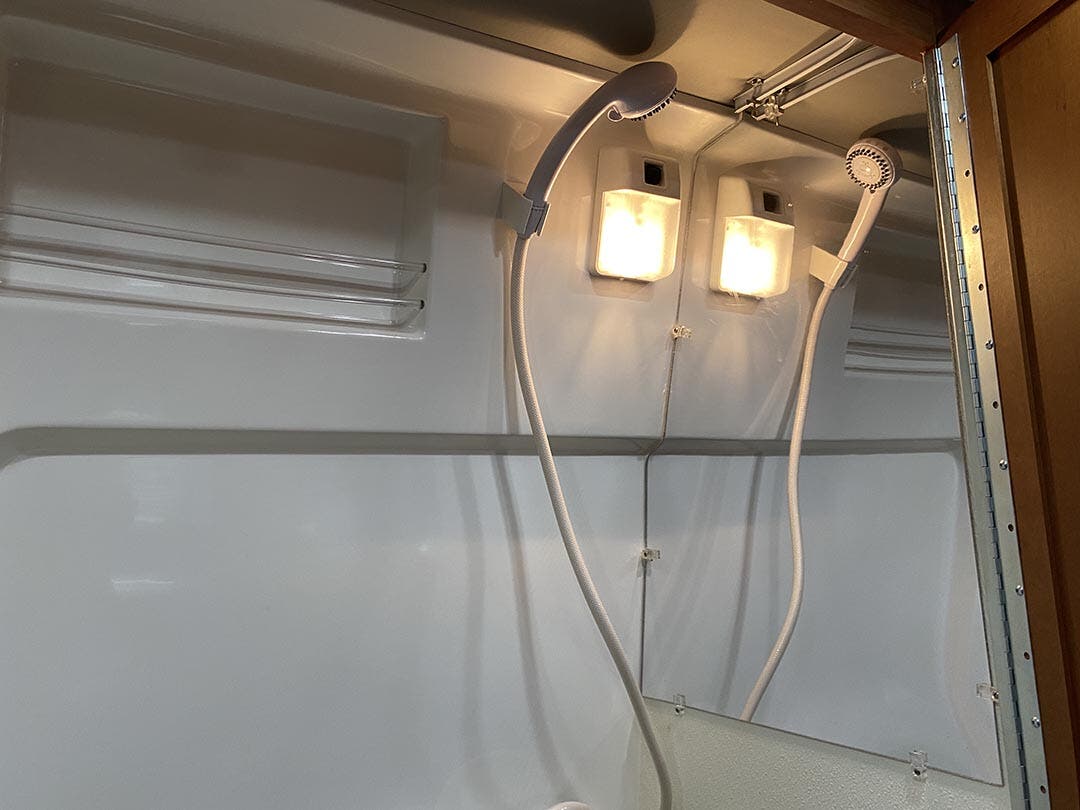

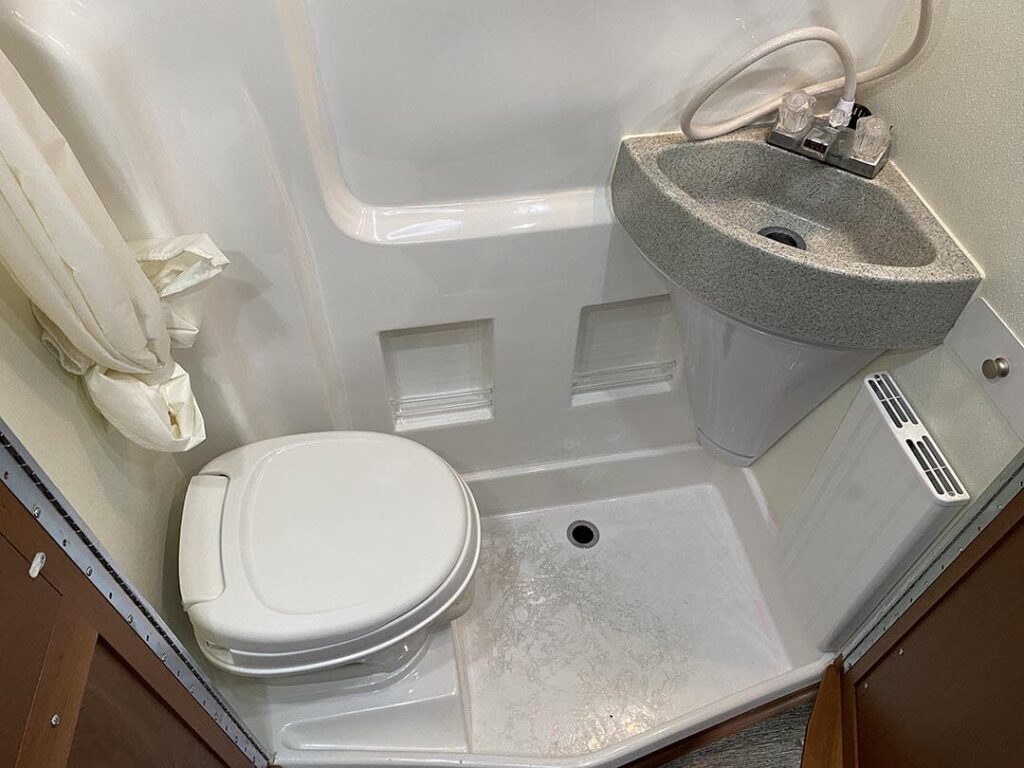

• Spacious and permanent bathroom with stand-up or sit-down shower

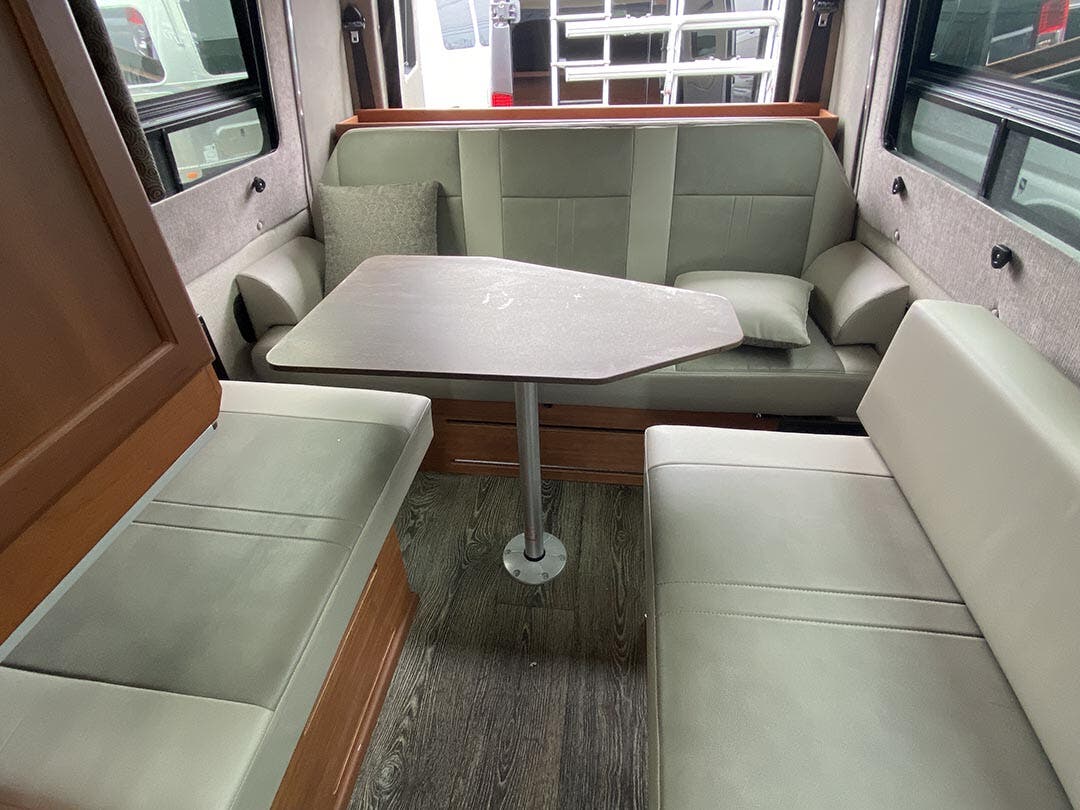

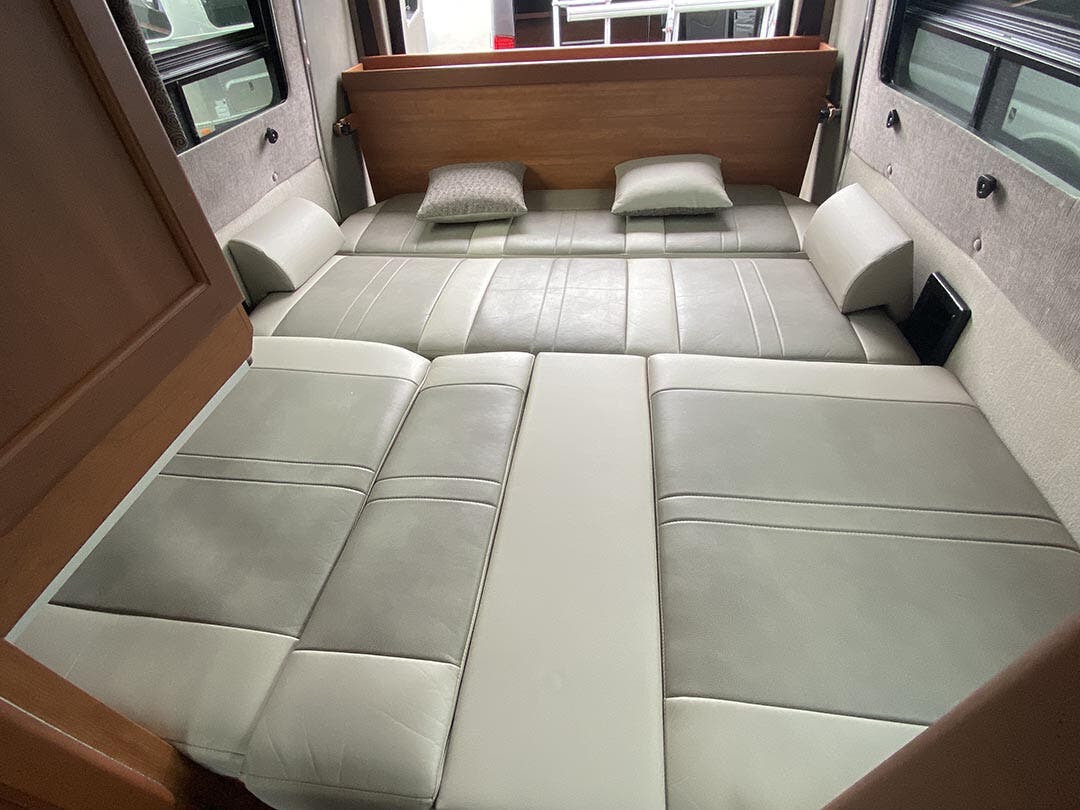

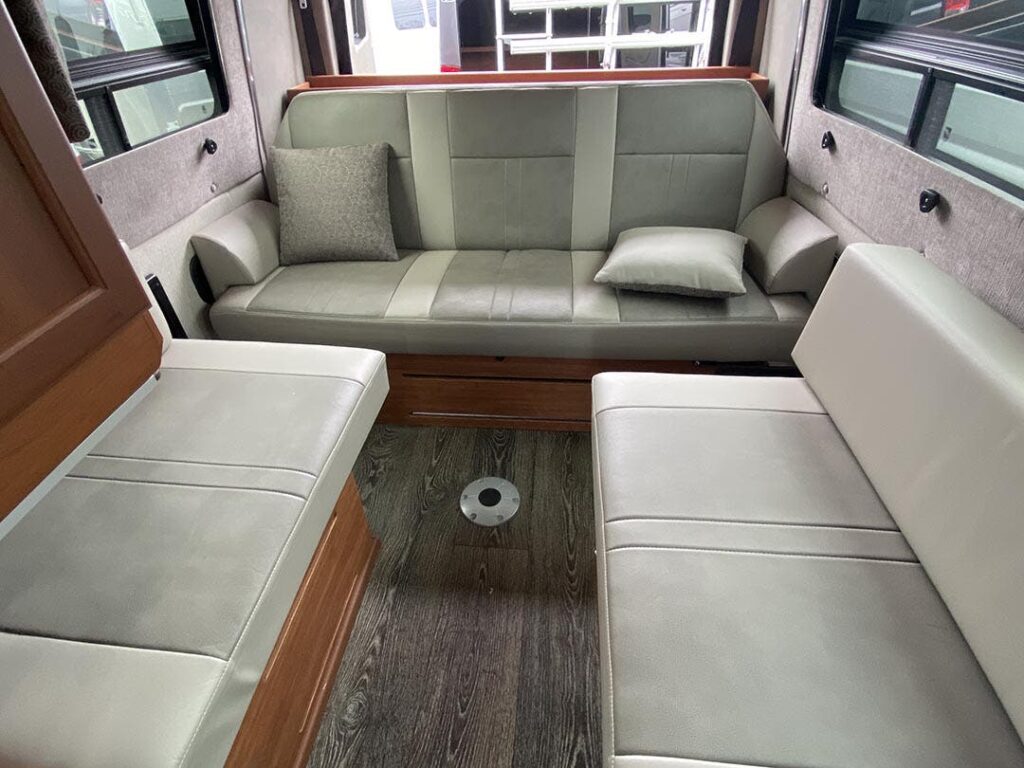

• Roomy enough to sleep up to three and seat up to six
• Enhanced safety features available, including blind spot monitoring, lane keeping, collision prevention and high beam assist

CHASSIS FEATURES

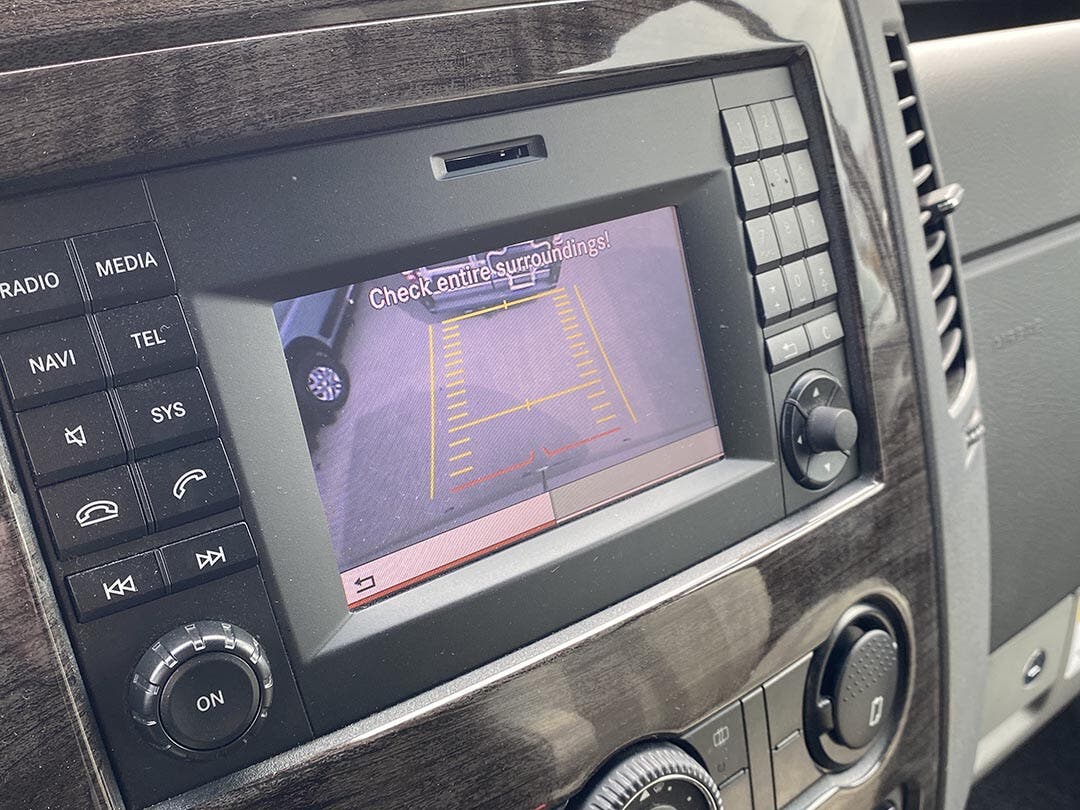

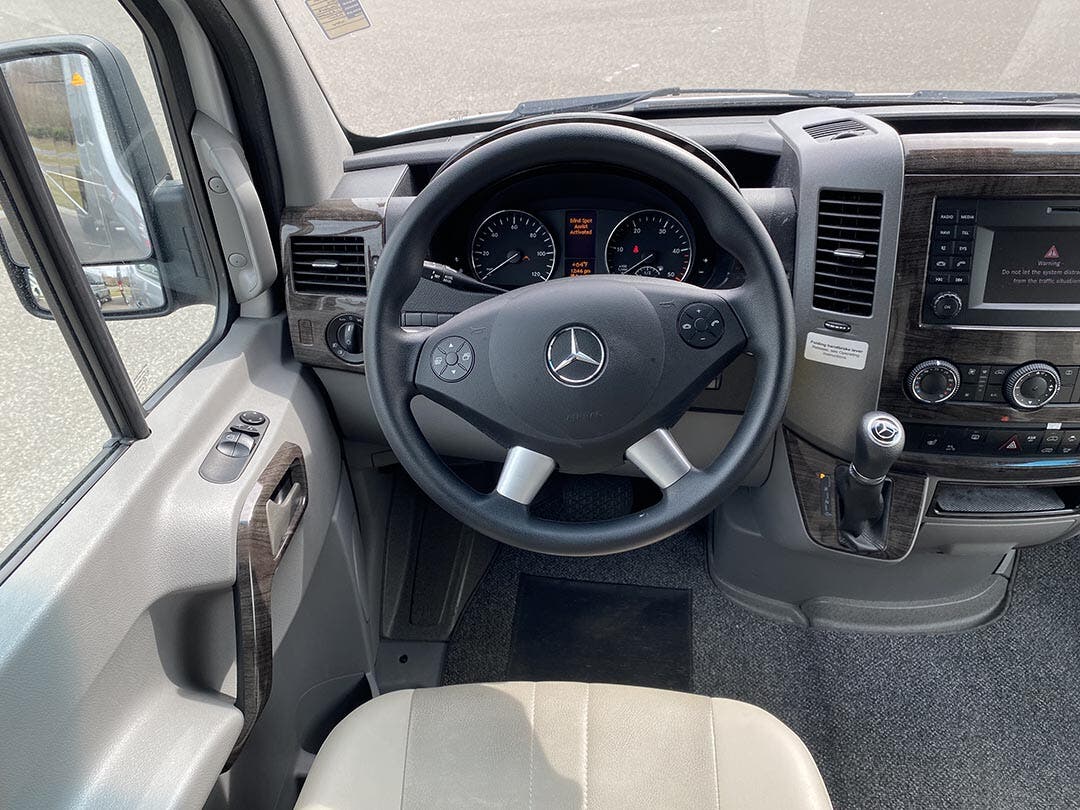

Airbag – driver & passenger • Alternator – 14 V/220 AMP • Axle – rear – 3.92 (USA) 4.18 (CAN) ratio • Battery – 760 AMP • Brakes – anti-lock (ABS), four wheel disc • Camera – rearview backup • Climate control – electronic with glove box cooler • Cooling – transmission oil – external • Cruise control • Engine – 3.0 L CRD V6 turbo diesel BlueTec® • Headlights – automatic on/off • Power – 140 kW/188 HP • Radio – Mercedes Becker Map Pilot Navigation System with • Bluetooth & on-dash keypad, audio 15 FM/AM, aux-in, USB Receiver – Class III • Stability program – adaptive (accounts for load) • Theft deterrent system • Tilt steering • Tire storage – vehicle underside between axles • Tires – LT215/85R16E black wall dual rear • Torque – 440 Nm/325 lb.-ft. • Traction control • Transmission – automatic 5-speed heavy duty • Window operation – power; front doors only • Wiring harness for towing – E40 wire harness & 7 pin connector

COACH FEATURES

Air conditioner – 110 V, 11,000 BTU roof mount • Awning – 13’ 2” (4,000 mm) power awning • Bathroom – permanently enclosed with sink & shower • Batteries – two 6 V AGM, 2,400 W • Connection – external – 110 V with detachable power cord • Detectors – smoke, propane & CO • Furnace – propane in-floor radiant heating, 10,000 BTU • Home theater system with 5.1 surround sound & dual center speakers with DVD, CD, AM/FM radio, dual use rear speakers • Microwave oven – 110 V convection, 28 L/1.0 cu. ft., 1,800 W convection/1,000 W microwave • Monitor panel – water, propane & battery charge levels, battery disconnect & generator hour meter • Power inverter – 12/110 V, 3,000 W with remote • Propane tank – 60 L/16 U.S. gal., 70 lbs. • Rear power sofa – fabric • Refrigerator – 12 V/110 V compressor driven with thermostat, 7.0 cu. ft. • Sewage disposal system – 12 V macerator sewage pump • Storage compartments (exterior) – one below floor • Stove – propane; two burner recessed with flush cover & built-in igniter • Water heater – propane, 11 L/3 U.S. gal., 10,000 BTU • Water system – on demand 12 V with water pump

THE LISTED ITEMS ARE STANDARD ON THIS MODEL AT NO EXTRA CHARGE UNLESS REPLACED BY OPTIONAL EQUIPMENT.
