Floor Length: 20′ 3″

Overall Length: 24′ 9″

Width (Exterior): 96 3/8″

Height (Exterior) w/Optional A/C: 10′ 2″

Height (Interior): 78″

Dry Weight: 4450

Hitch Weight: 440

Cargo Capacity: 1750

GAWR (Per Axle): 3100

GVWR: 6200

Fresh Tank (Gal): 45

Gray Tank (Gal): 45

Black Tank (Gal): 45

EXTERIOR

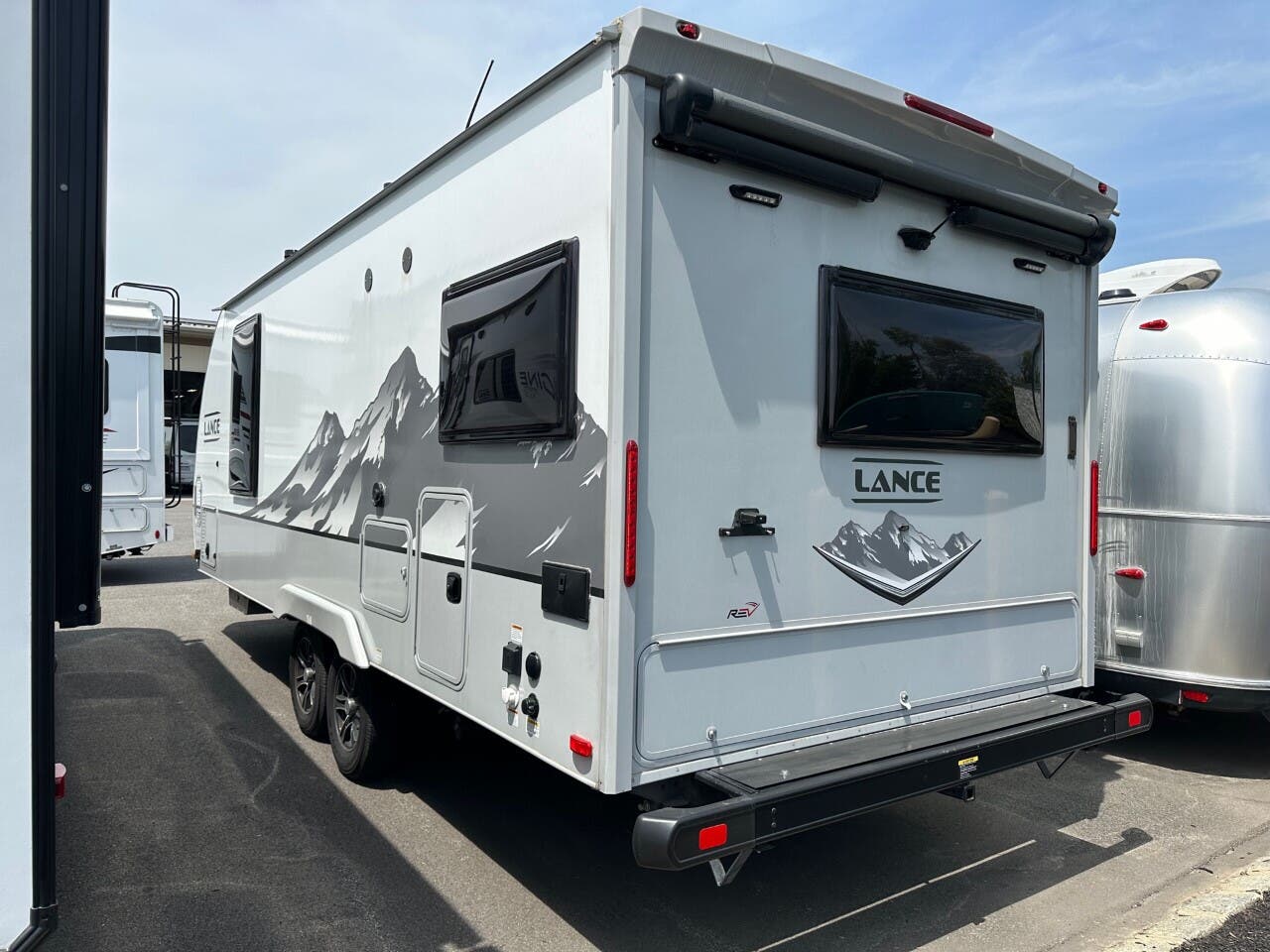

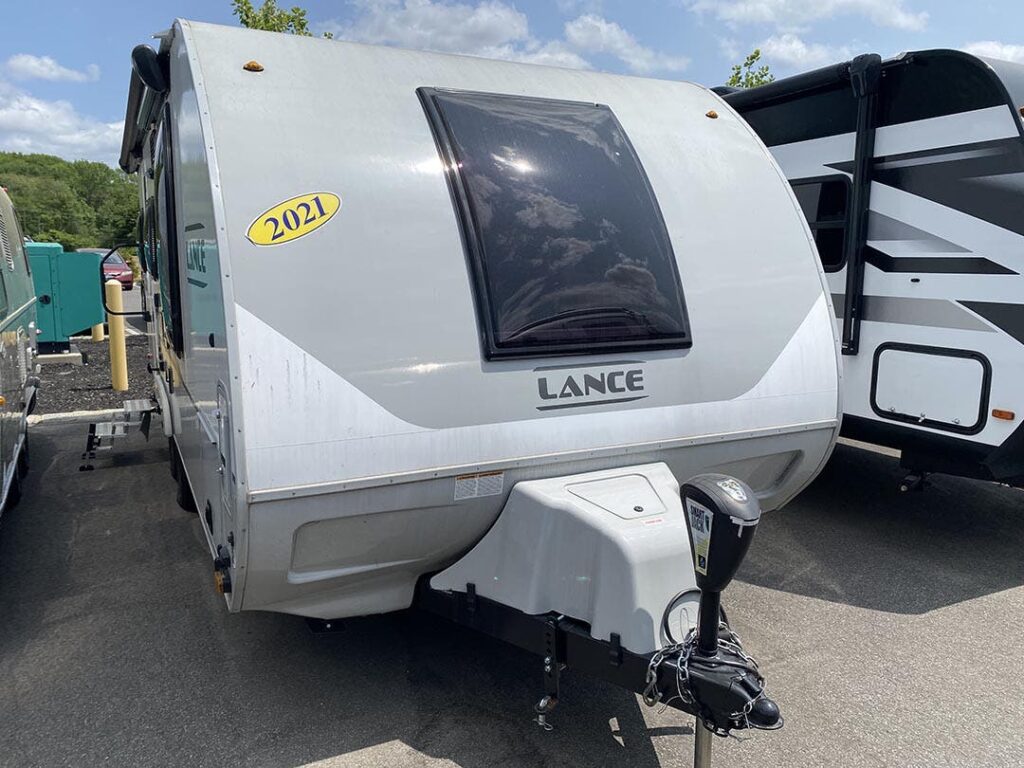

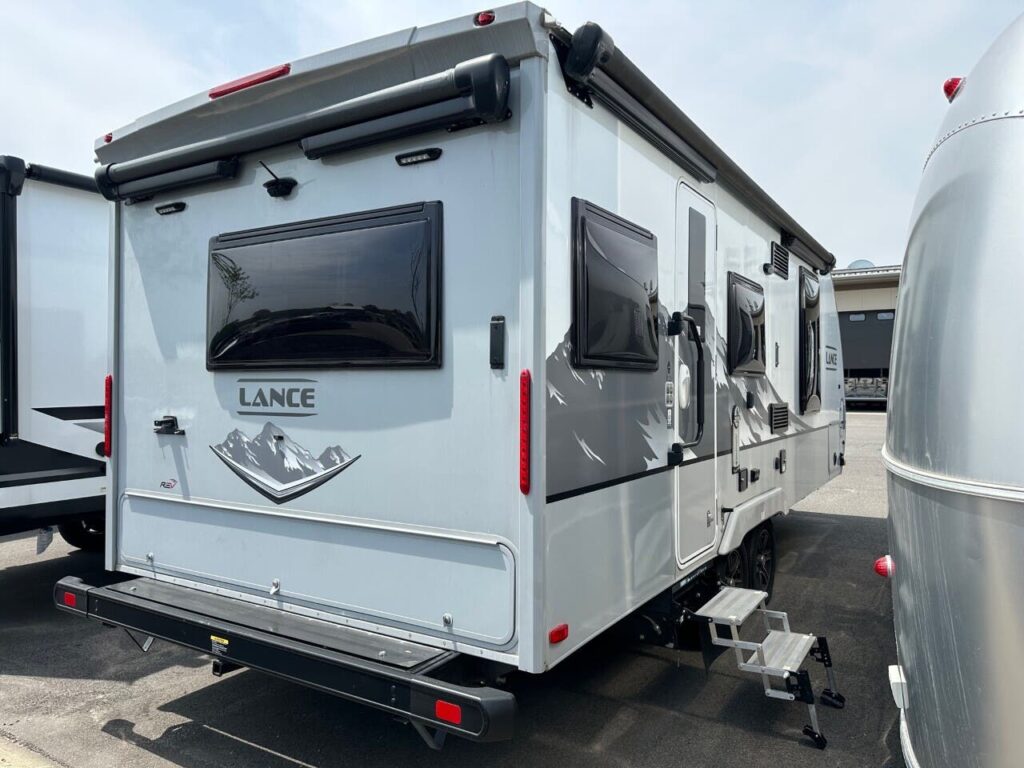

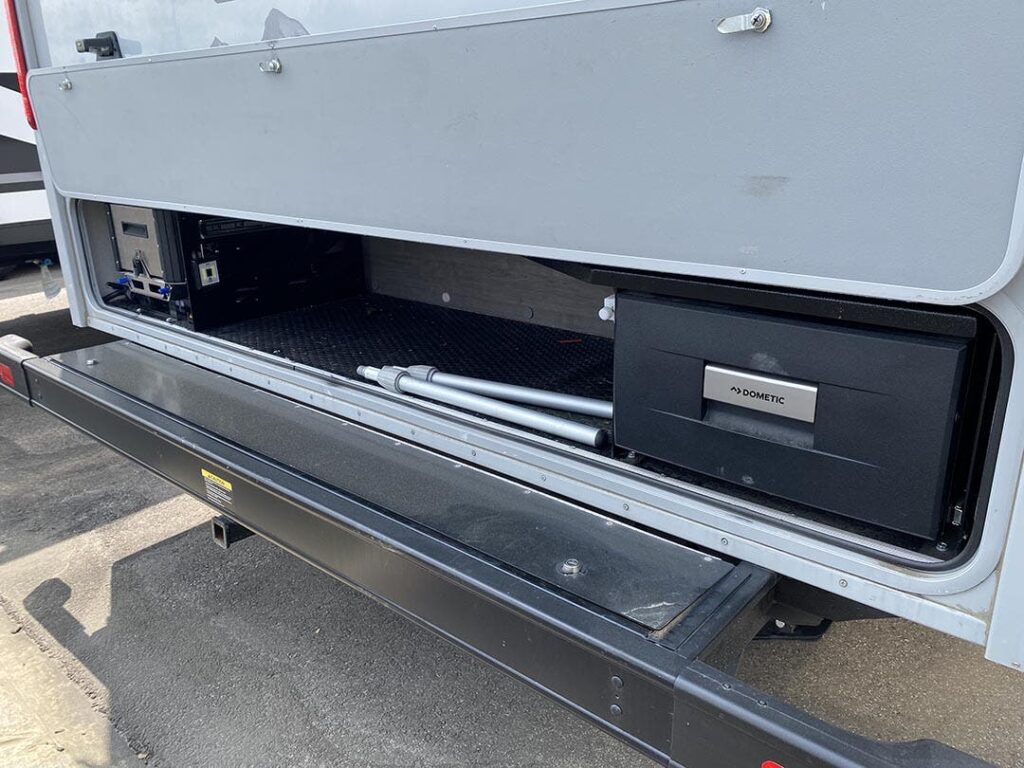

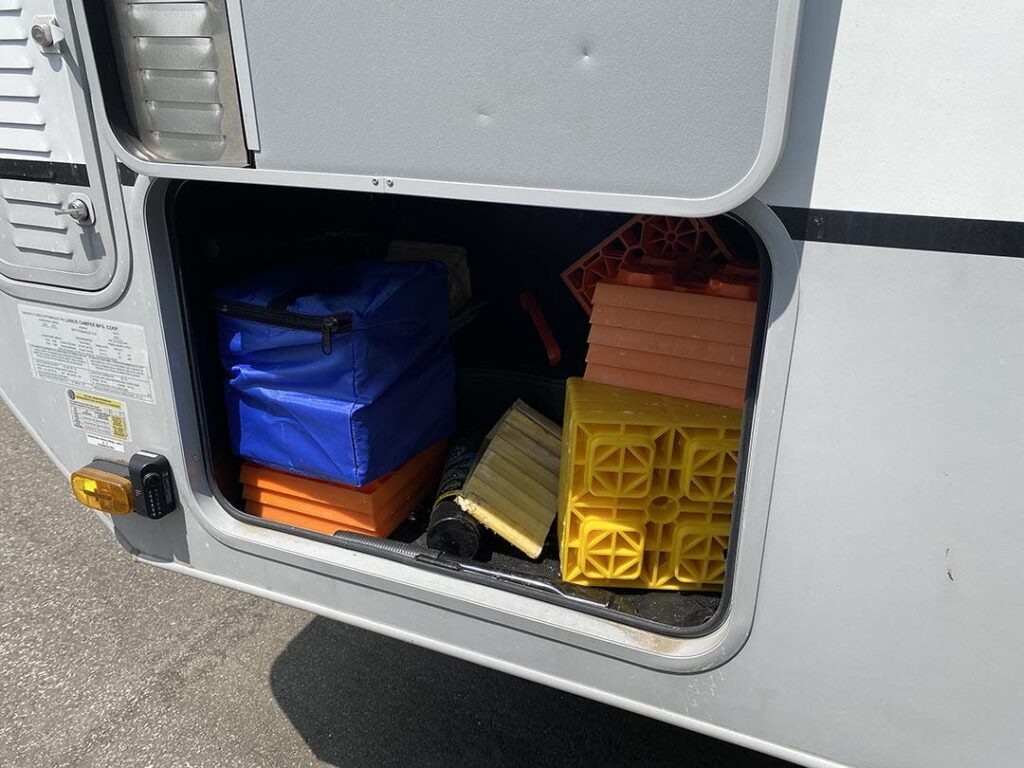

Laminated Fiberglass Bonded Exterior w/Azdel Substrate • Manual Tongue Jack • Manual Stabilizer Jacks w/Foot Pad • Spare Tire Carrier w/Wheel Lug Wrench • Car Cord/Safety Chain Storage Holder • Double Step – 24″ (*2 ea.) • Courtesy Entry Step Well Lighting – LED • Aerodynamic Front Section Profile • Fiberglass Front Wrap w/Formed TPO Lower Gravel Guard and LP Tank Cover • Formed Jewel LED Docking Lights • Rear TPO Eyebrow w/Formed Vertical Side Pillars and Integrated LED Lighting • Large Curved Acrylic Tinted Thermopane Front Euro Window • LED Tail Lights • LED License Plate Light w/Holder • Radius Cornered Storage Compartment Doors • Slam Latch on Pass-Thru Storage Compartment Door • Roof Vent in Bed Area • Roof Vent in Living Area • Skylight in Galley/Dinette Area • Exterior Wash Station • Exterior Propane Connection • 48” Portable Folding Table w/Built-In Exterior Storage Feature • Exterior LCD Mounting Puck w/Removable LCD Bracket

CONSTRUCTION/INSULATION

One-Piece Roof • Tapered Exterior Roof Design • Laminated, Insulated Floor and Ceiling • Block Foam Insulation Throughout • Aluminum Framed Sidewalls • Aluminum Framed Floor and Ceiling • Azdel Interior Panel Walls

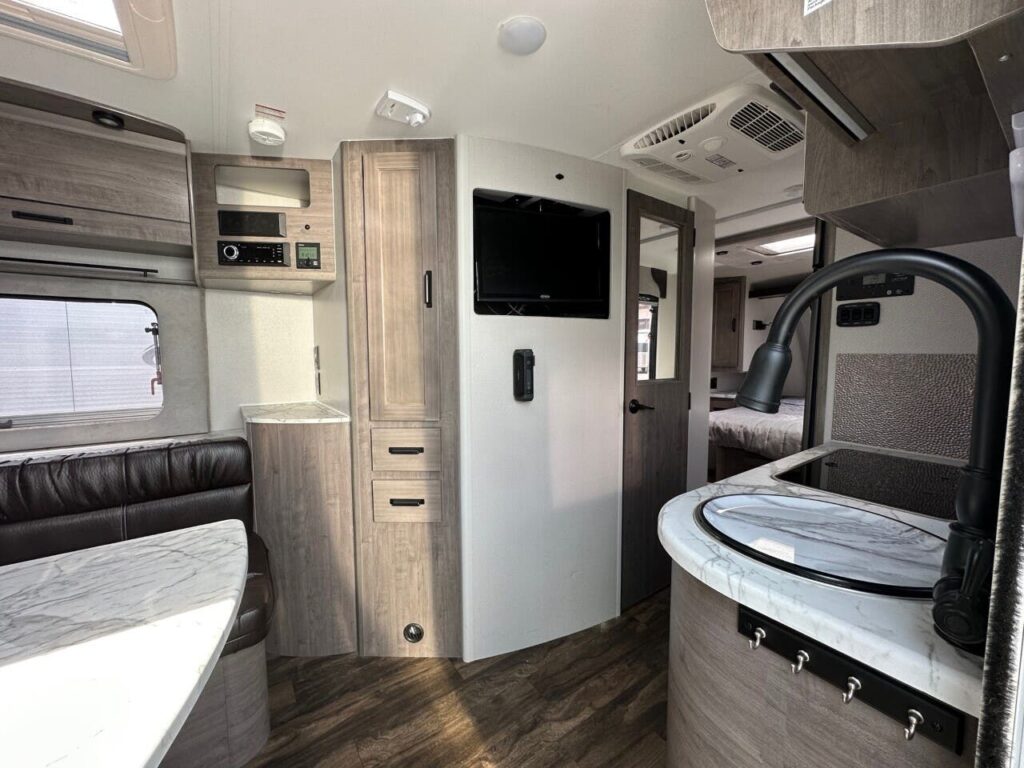

INTERIOR/DECOR

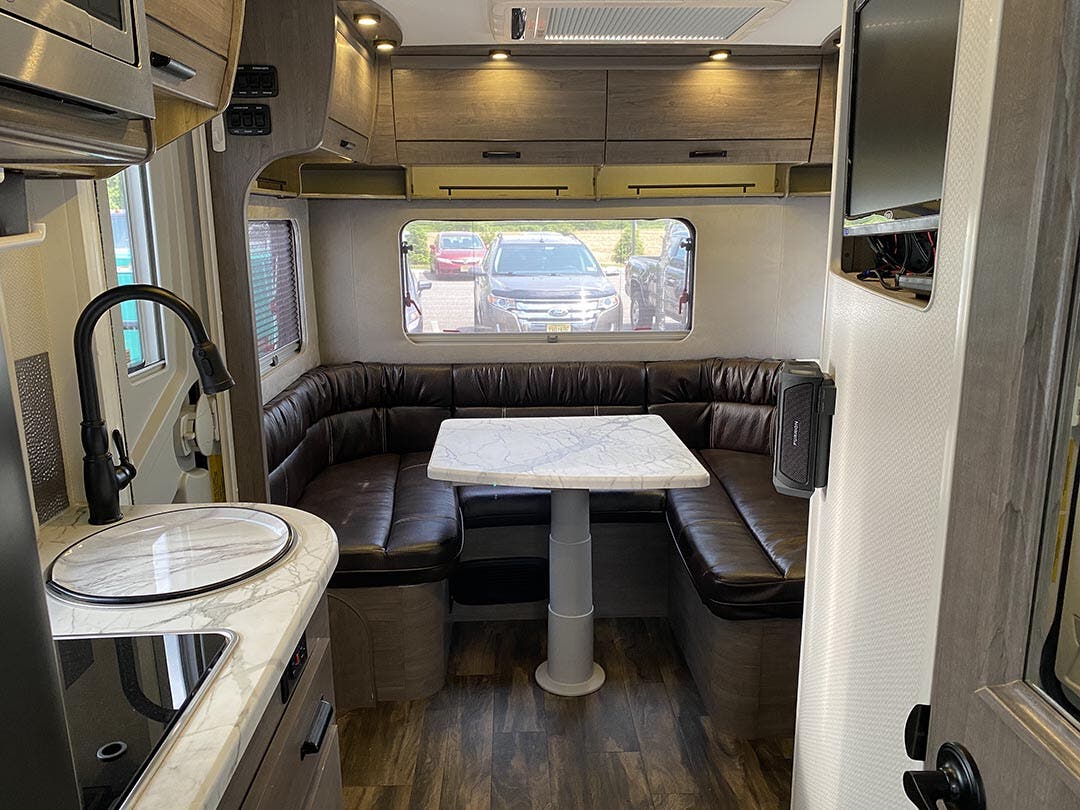

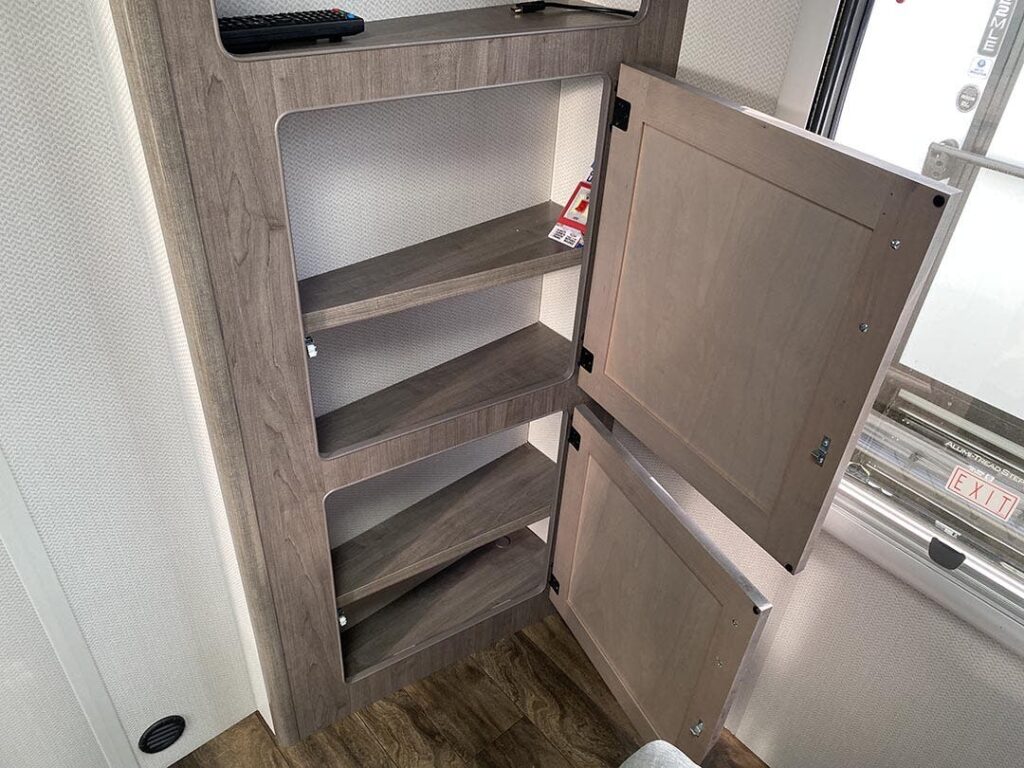

Surf-X Pseudo Solid Surface Lightweight Countertops and Tables • Hardwood Framed Flat Panel Cabinet Doors (Shaker Styling) • Decorative Pull Cabinet Hardware • Euro-Ply Cabinet Construction • Valance Boxes w/Lambrequins • Entry Door Pull Shade

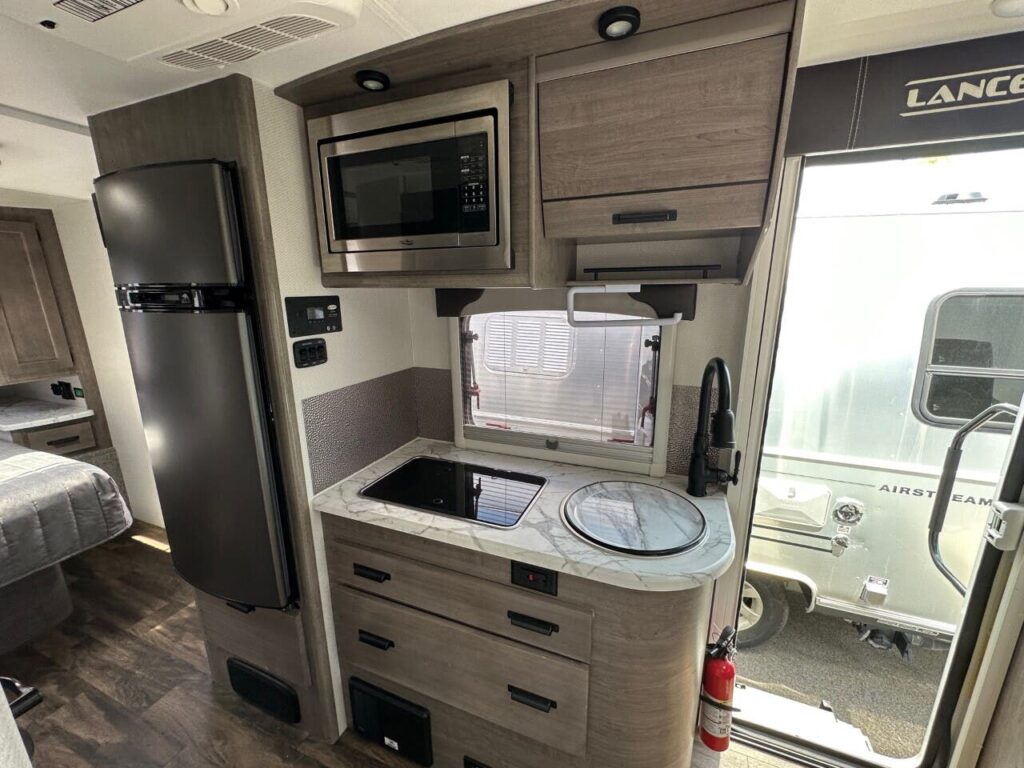

GALLEY

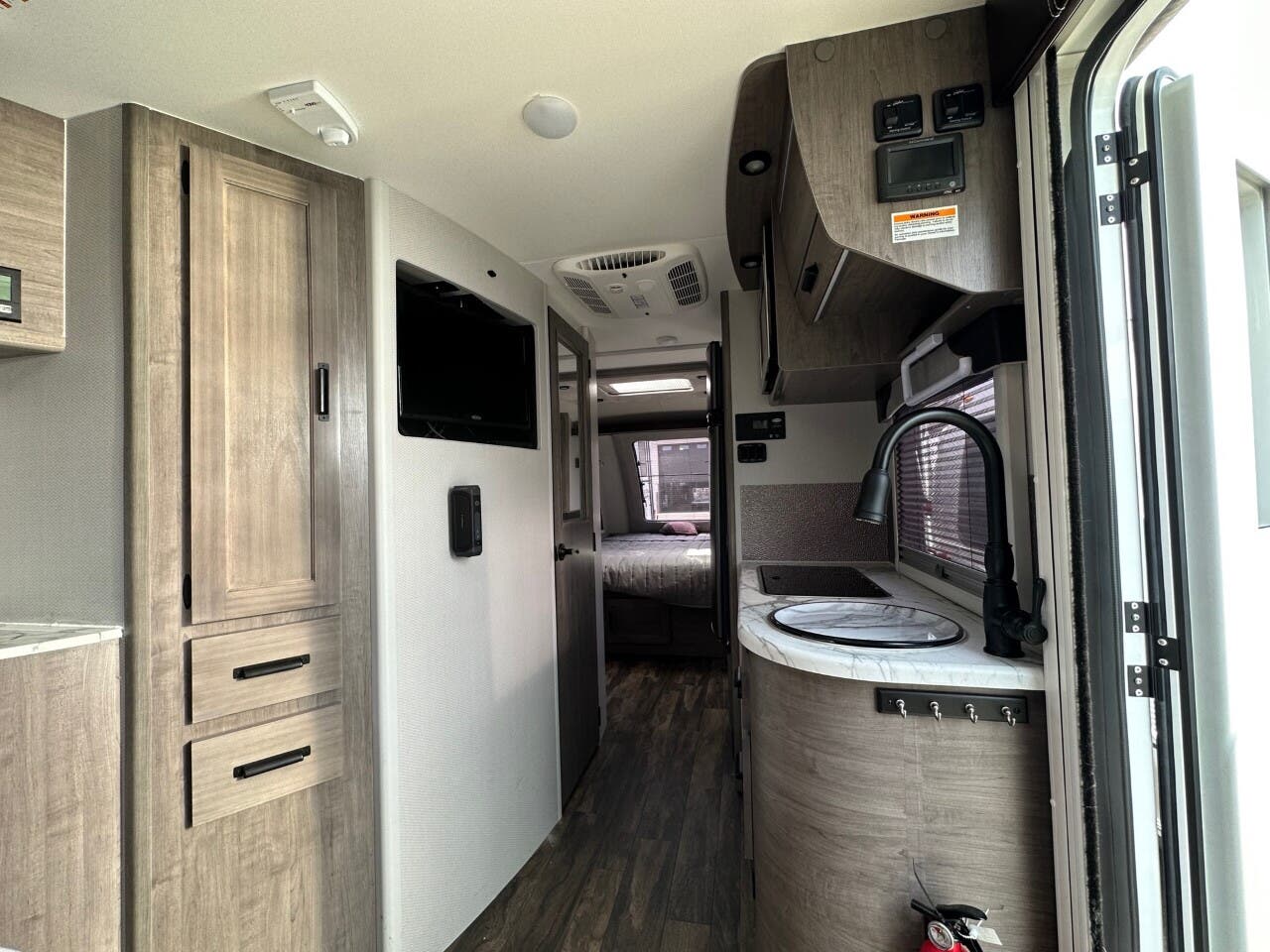

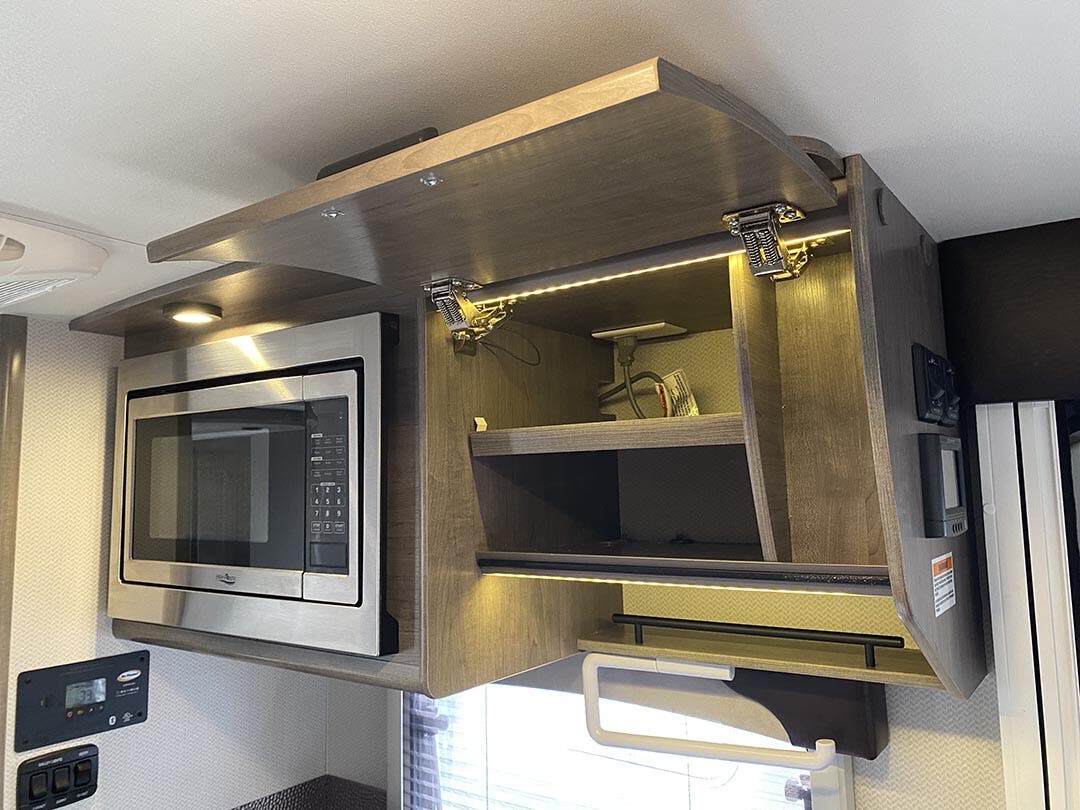

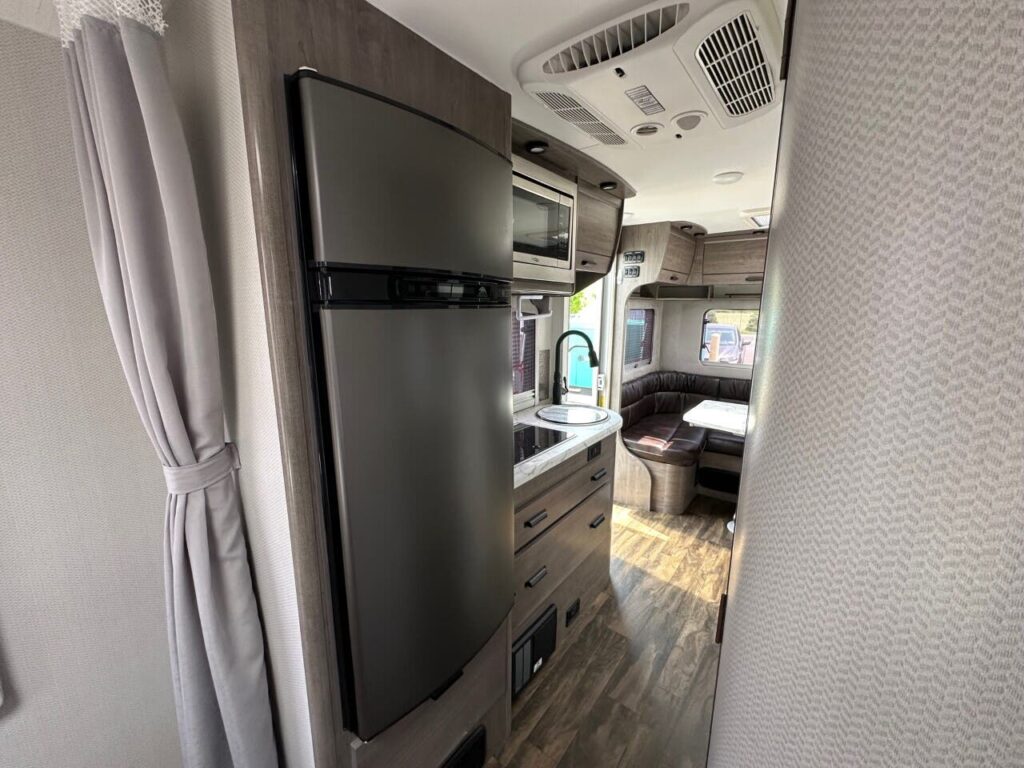

“Flush Mount” 2-Burner Stainless Steel Euro Cooktop w/Glass Cover • Stainless Steel Range Hood w/Light & Fan • “Euro” Overhead Cabinetry Design w/Accent Puck LED Lighting • Backsplash • Residential Single Lever Galley Faucet w/Pull-Out Sprayer • Magazine and Spice Racks

BATHROOM

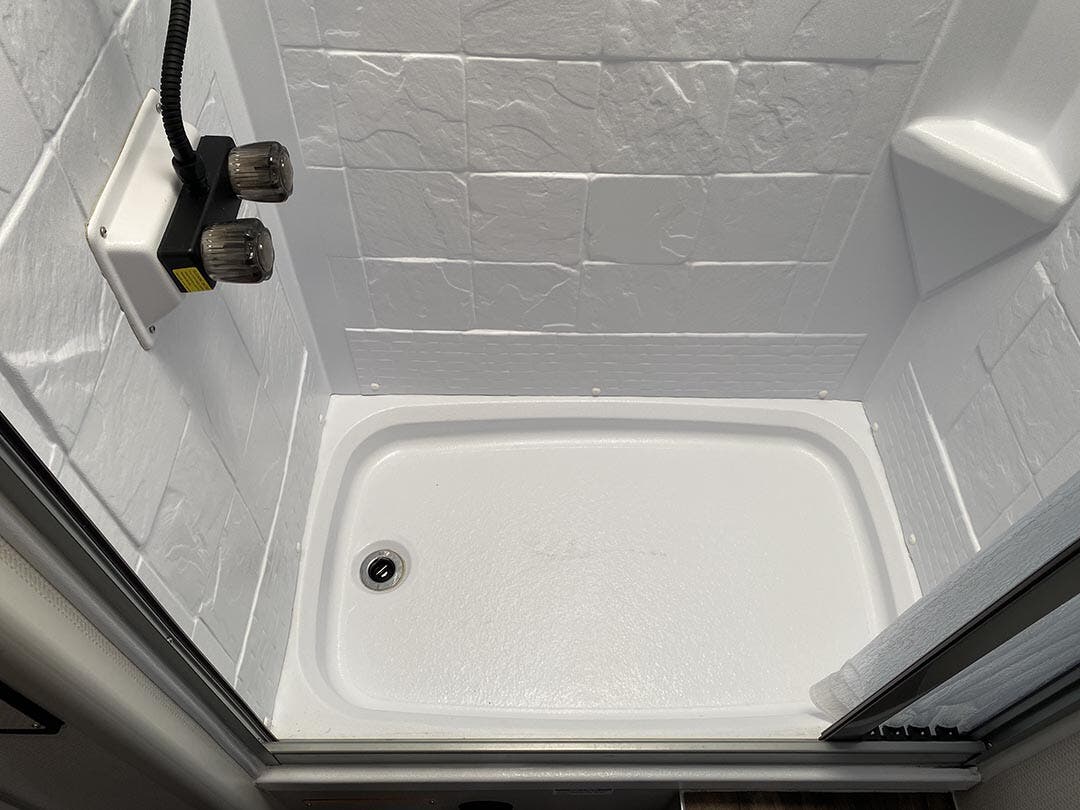

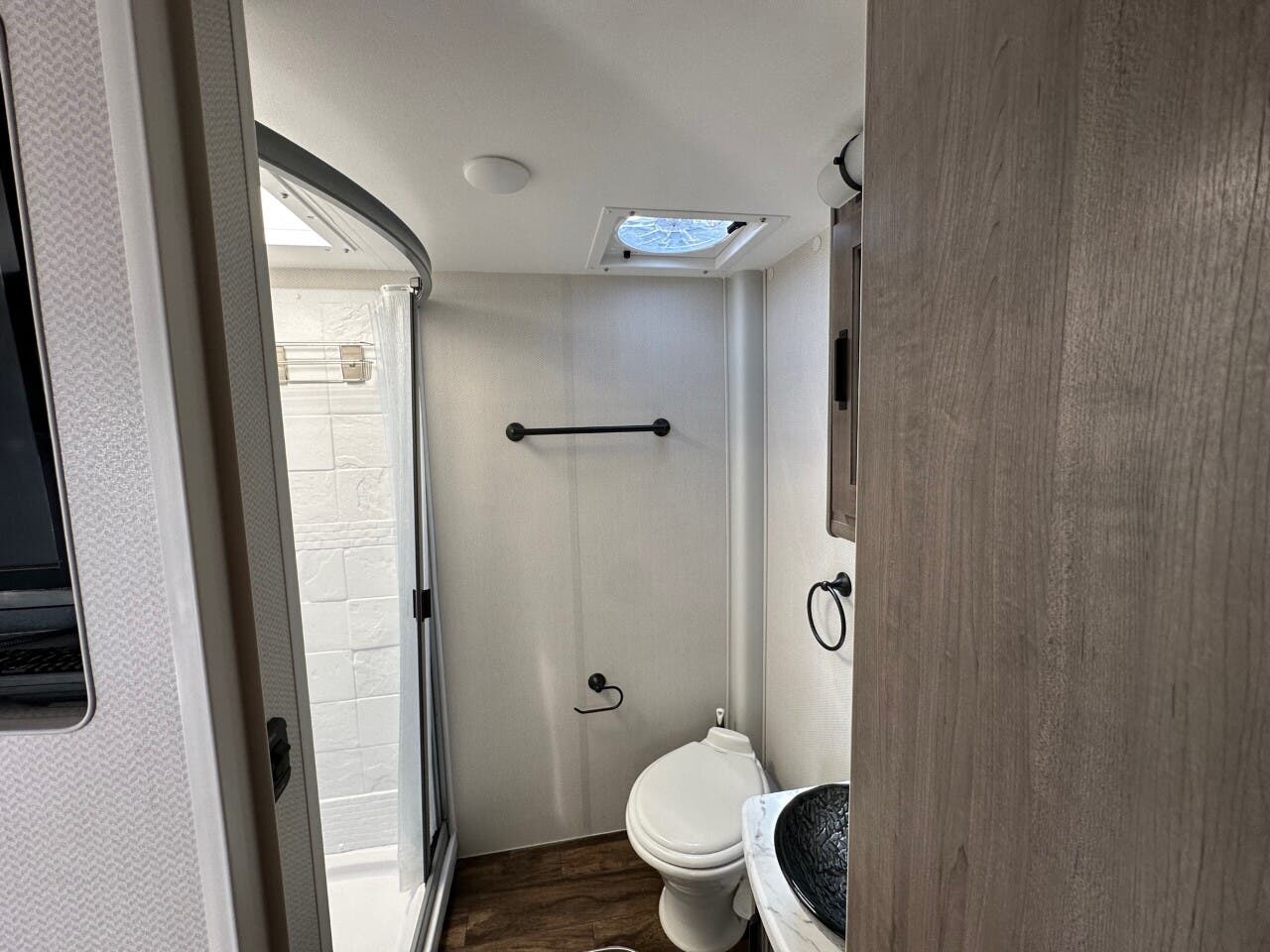

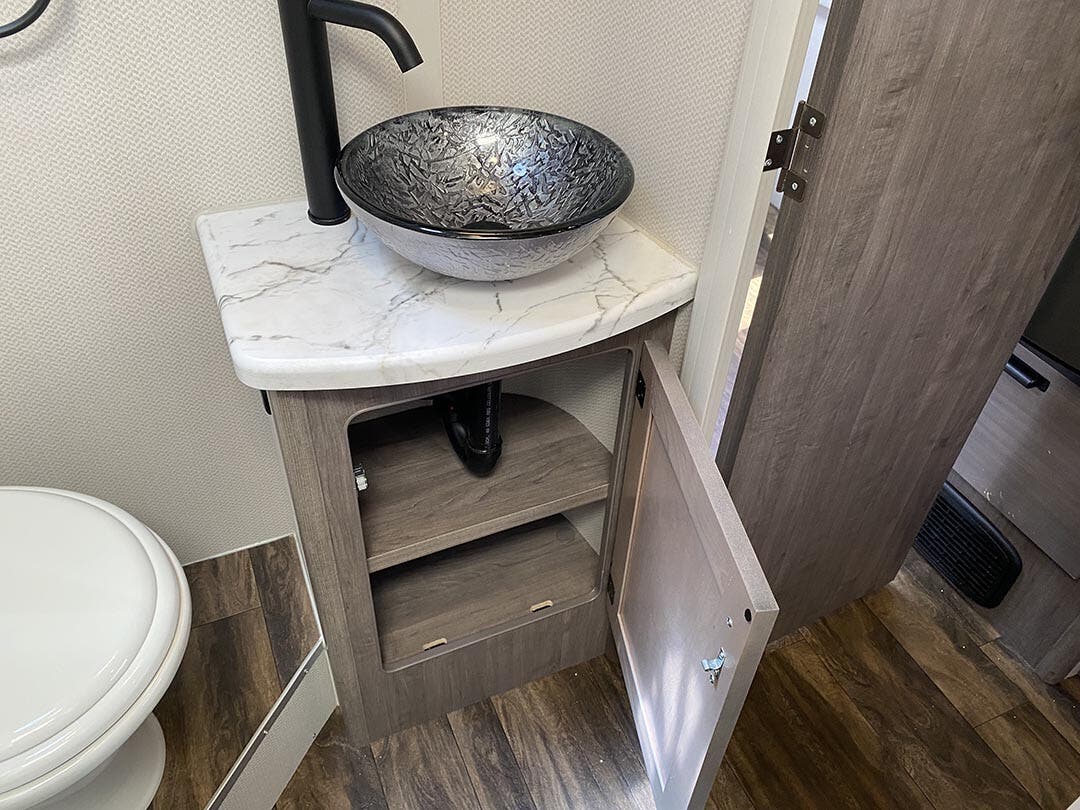

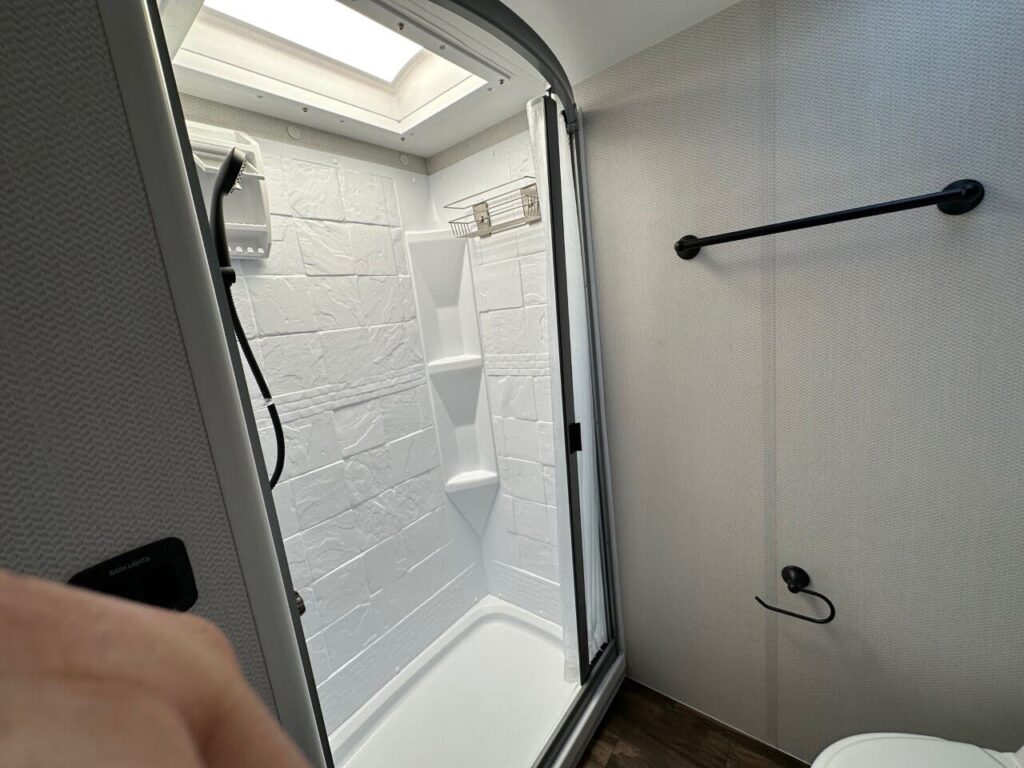

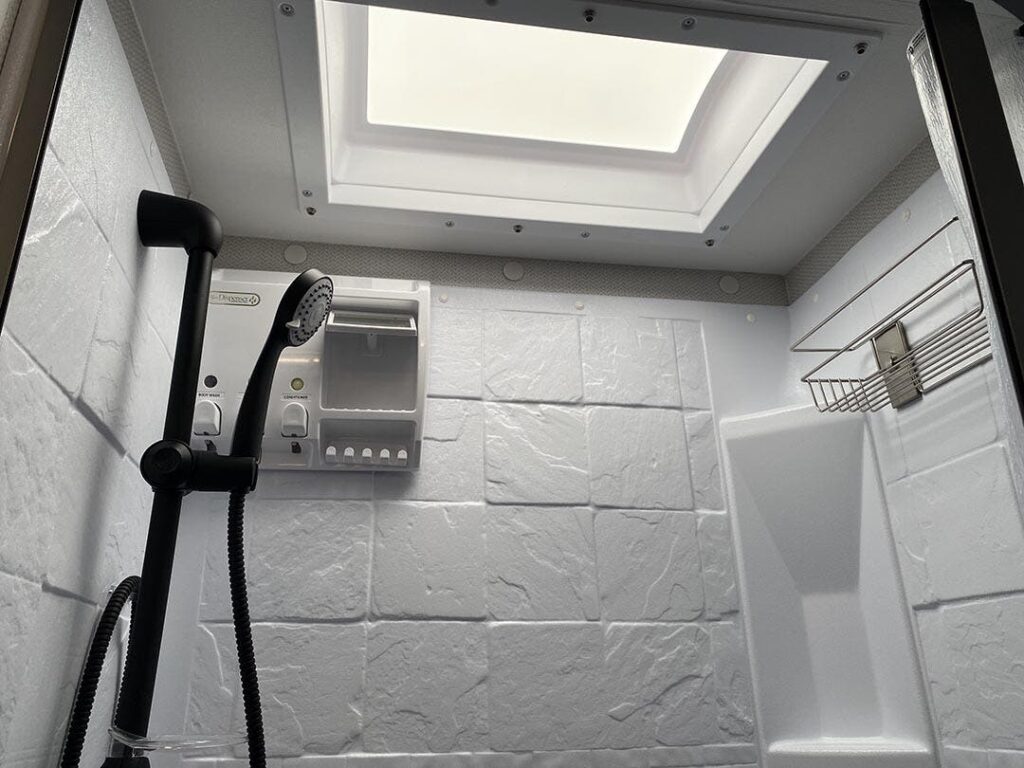

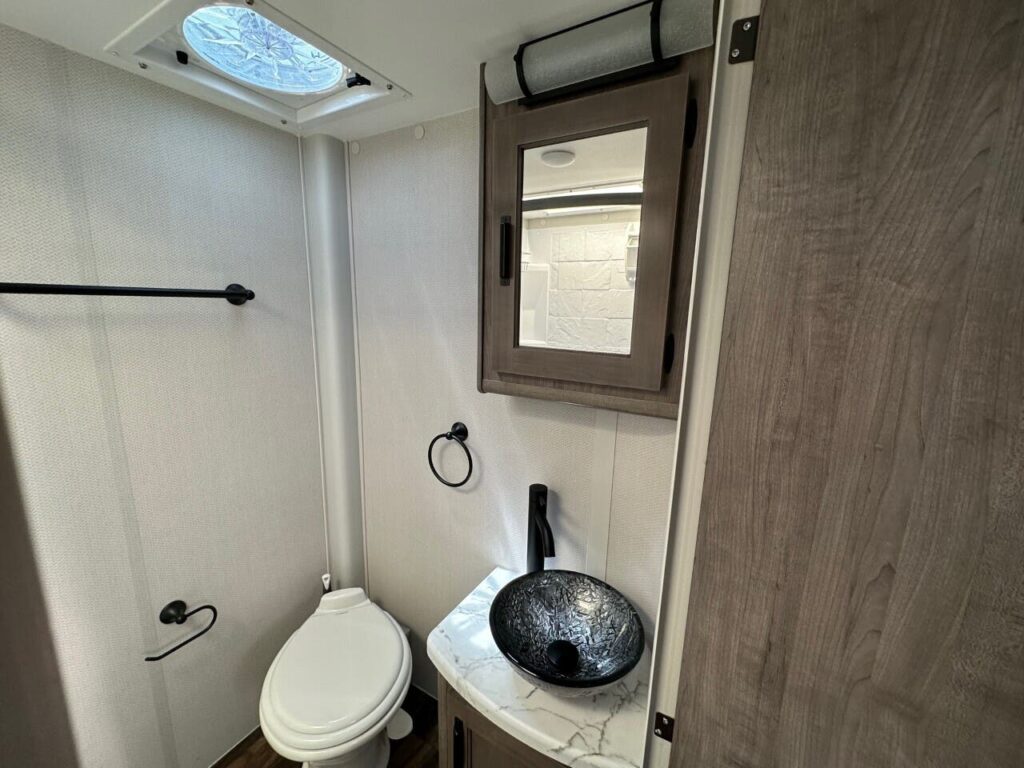

Marine Toilet – Foot Pedal – Porcelain • Black Tank Flush • Residential “Vessel” Lavy Sink • High Rise Single Lever Faucet • Shower Pan • Adjustable Slide Bar Shower Head Assembly • Medicine Cabinet w/Mirror Door • Mirror on Bath Door • Residential Radius “Soft” Shower Door Enclosure • Skylight – Dual Pane • Ducted Heat

ELECTRICAL

Systems Monitor Panel • 12V/USB Charging Port(s) • Battery Condition Indicator – LED • 60 Amp Converter/Loadcenter • LED Interior Lighting – Ceiling • LED Interior Lighting – Under Overheads • Decorative LED Lighting – S/O Ceiling • Storage Compartment Lighting • Locking Dual Battery Compartment w/Sliding Tray • Battery Disconnect – Manual • Wall Switched Lighting • LED Vanity Lighting Over Medicine Cabinet • Pre-Wired for Roof A/C • Wall Thermostat • Pre-Wired for Fantastic Vent • Power Roof Vent in Bath • Pre-Wired for TV Ant/Park/Sat Cable • TV Antenna HD • AM/FM/DVD Stereo w/Bluetooth App • LED Patio Light – Switched • LED Hitch Light – Switched • Solar on the Side Pre-Wire (Receptacle)
