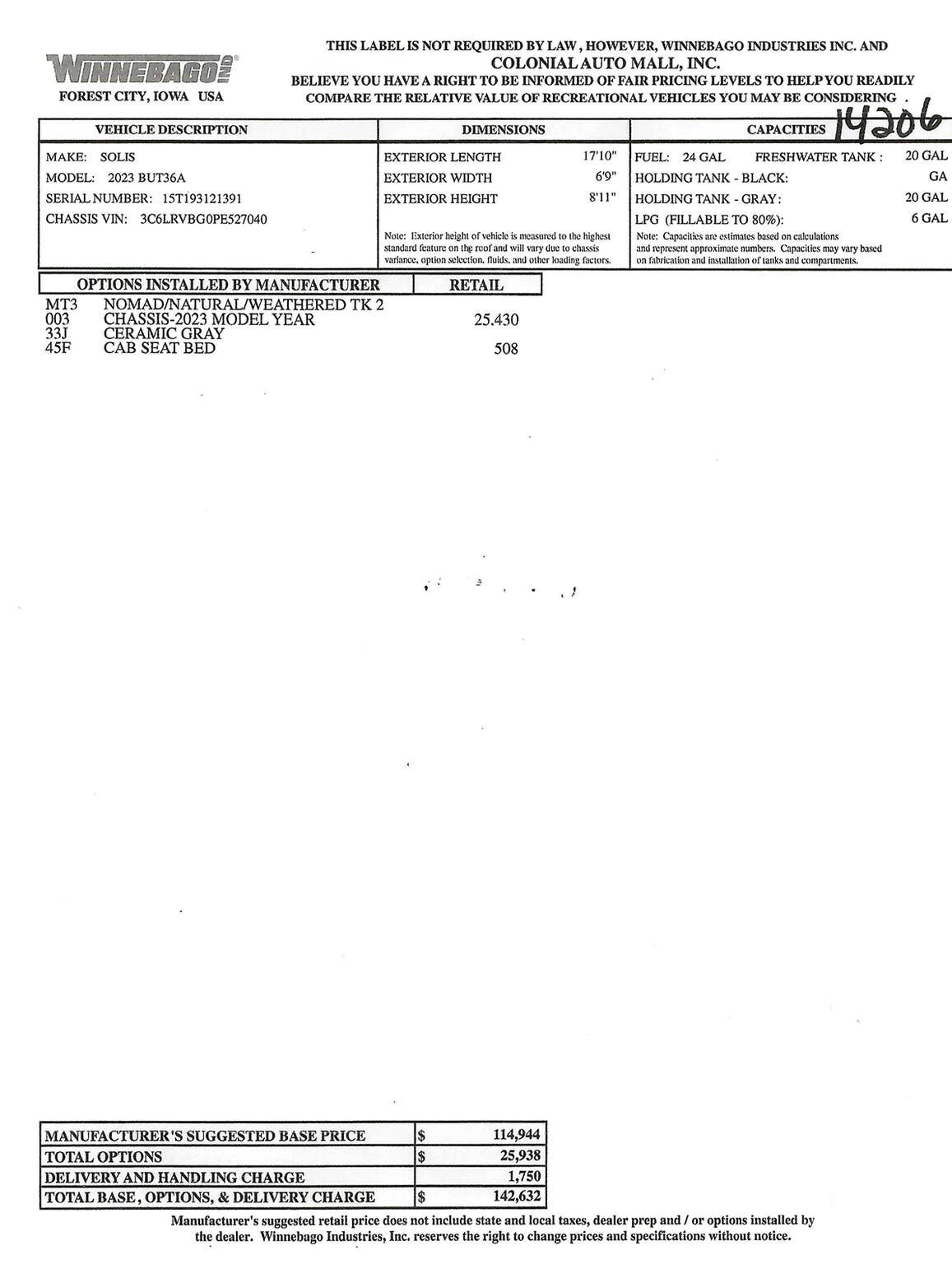

Options Included:
MT3: Nomad/Natural/Weathered Teak 2
003: 2023 Model Year Chassis
33J: Ceramic Gray
45F: Cab Seat Bed
| 36A | |||
|---|---|---|---|
| Exterior Length | 17’10″ | ||
| Exterior Height | 9’5″ | ||
| Exterior Width | 6’9″ | ||
| Interior Height | 6’3″ | ||
| Interior Width | 6’2″ | ||
| Freshwater Tank Capacity (gal.) | 20 | ||
| Holding Tank Capacity – Gray | 20 | ||
| LP Capacity (gal.) | 20 | ||
| Fuel Capacity (gal.) | 24 | ||
| GCWR (lbs.) | 12,000 | ||
| GVWR (lbs.) | 8,550 | ||
| GAWR – Front (lbs.) | 4,629 | ||
| GAWR – Rear (lbs.) | 5,291 | ||
| Wheelbase | 136″ | ||
| Cassette Toilet Capacity (gal.) | 3.2 | ||
| Sleeps | 3 | ||
CHASSIS
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 6-speed automatic 62TE transmission, 180-amp. alternator • 4-wheel ABS brakes • Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight • 4-pin wiring connector
CAB CONVENIENCES
Radio/Rearview Monitor System 5″ LCD color touch screen, steering wheel controls, color rear camera and USB ports • Cab seats adjustable headrest, slide/swivel/recline, and driver’s side right armrest • Airbags driver and passenger • Cruise control • Digital rearview mirror • Crosswind assist • 3-point seat belts • Power assist steering • Manual adjust mirrors • Power door locks w/remote • Power windows • 12-volt powerpoints • Sunvisors • Front and cab window privacy panels
INTERIOR
LED ceiling lights • Tinted coach windows • Systems monitor panel • Deluxe powered ventilator fan • Dinette w/two facing seats (converts to sofa/daybed and includes one 3-point seatbelt) • Multi-use storage area w/cupholders and charging center • Removable/adjustable table w/two mounting positions • MOLLE panel retention gate w/galley storage pack • Reading lights • Roof wiring access port • Zippered window coverings • Heavy duty vinyl flooring throughout • Gear space w/L-track cargo tie down system
GALLEY
Laminate countertop • 2-burner range top w/glass cover • 3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer • Stainless steel sink
BATH
Portable toilet (stored under rear facing dinette seat)
BEDROOM
Murphy+ bed w/mattress cover • Slat bed system
EXTERIOR
Porch light w/interior switch (passenger side) • Assist bar handle • Side screen door • Rear screen door • Aluminum running board w/logoed tread and pet loop attachment • Fold-down exterior table • Rod and privacy screen (provided for rear annex)
HEATING & COOLING SYSTEM
Truma® VarioHeat™ • Coleman®-Mach™ 10 NDQ air conditioner
ELECTRICAL SYSTEM
AC/DC load center, 55-amp. converter/charger • Auxiliary start circuit • 2 deep-cycle Group 31 batteries (AGM maintenance-free) • Coach battery disconnect system • Automatic dual-battery charge control • 30-amp. power cord • 170-watt solar panel w/controller
PLUMBING SYSTEM
Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door) • 10′ sewer hose • On-demand water pump • Removable LP cylinder • Fresh water sight glass
SAFETY
LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Child seat tether anchor
WARRANTY
12-month/24,000-mile basic warranty
*Disclaimer: Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle. In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
