Options Included:
L33: Lennon/Taupe/Driftwood Charcoal
13Y: Dual Pane Coach Windows
16G: Ford 14,500 GVWR 7.3L 350HP V8
37A: Graphics – Chestnut
38W: Spare Tire
60M: Hydraulic Leveling Jacks
62K: Leatherette Cab Seats
70D: Sirius XM Satellite Radio
| 22M | 22R | 25B | 26T | 31H | 31K | |
|---|---|---|---|---|---|---|
| Length | 24’5″ | 23’10″ | 26′4″ | 28’5″ | 32’9″ | 32’9″ |
| Exterior Height | 10’11” (A) / 11′ (B) | 10’11” (A) / 11′ (B) | 11’ | 11’ | 11′ | 11′ |
| Exterior Width | 8’5.5″ | 8’5.5″ | 8’5.5″ | 8’5.5″ | 8’5.5″ | 8’5.5″ |
| Exterior Storage (cu. ft.) | 44.5 | 60.4 | 73.1 | 45 | 85 | 108.3 |
| Awning Length | 14′ | 14′ | 17′ | 17′ | 10′4″ | 20′ |
| Interior Height | 6’10″/6’5.5″* | 6’10” | 6’10″/6’5.5″* | 6’10″/6’5.5″* | 6’10″/6’5.5″* | 6’10″/6’5.5″* |
| Interior Width | 8’ | 8’ | 8’ | 8’ | 8′ | 8′ |
| Freshwater Tank Capacity (gal.) | 40 | 40 | 40 | 44 | 44 | 44 |
| Water Heater Capacity (gal.) | 6 | 6 | 6 | 6 | 6 | 6 |
| Holding Tank Capacity — Black (gal.) | 40 | 21 | 21 | 35 | 37 | 30 |
| Holding Tank Capacity — Gray (gal.) | 45 | 24 | 26 | 41 | 34 | 30 |
| LP Capacity (lbs.) | 76.14 | 76.14 | 76.14 | 76.14 | 76.14 | 76.14 |
| Fuel Capacity (gal.) | 55 | 55 | 55 | 55 | 55 | 55 |
| GCWR (lbs.) | 18,500 (A) 22,000 (B) | 18,500 (A) 22,000 (B) | 22,000 | 22,000 | 22,000 | 22,000 |
| GVWR (lbs.) | 12,500 (A) 14,500 (B) | 12,500 (A) 14,500 (B) | 14,500 | 14,500 | 14,500 | 14,500 |
| GAWR – Front (lbs.) | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 |
| GAWR – Rear (lbs.) | 8,500 (A) 9,600 (B) | 8,500 (A) 9,600 (B) | 9,600 | 9,600 | 9,600 | 9,600 |
| Wheelbase | 158″ | 158″ | 182″ | 190″ | 220″ | 220″ |
| Sleeps | 5 | 5 | 6 | 6 | 8 | 7 |
(A.) Ford E350 Chassis (B.) Ford E450 Chassis
CHASSIS
(A) Ford® E350 Chassis 350-hp 7.3L V8 Premium engine, TorqShift 6-speed automatic transmission w/overdrive, 210-amp. alternator (22M, 22R) • (B) Ford E450 Chassis 350-hp 7.3L V8 Premium engine, TorqShift 6-speed automatic transmission w/overdrive, 210-amp. alternator (25B, 26T, 31H, 31K) • 4-wheel ABS • Rear auxiliary springs (26T, 31H, 31K) • Trailer hitch 7,500-lb. drawbar/500-lb. maximum vertical tongue weight • 7-pin wiring connector • Stainless Steel wheel liners and valve extenders
Optional Equipment: (B) Ford E450 Chassis 350-hp 7.3L V8 Premium engine, TorqShift 6-speed automatic transmission w/overdrive, 210-amp. alternator (22M, 22R) • Hydraulic leveling jacks (front and rear) (26T, 31H, 31K) • Spare tire
CAB CONVENIENCES

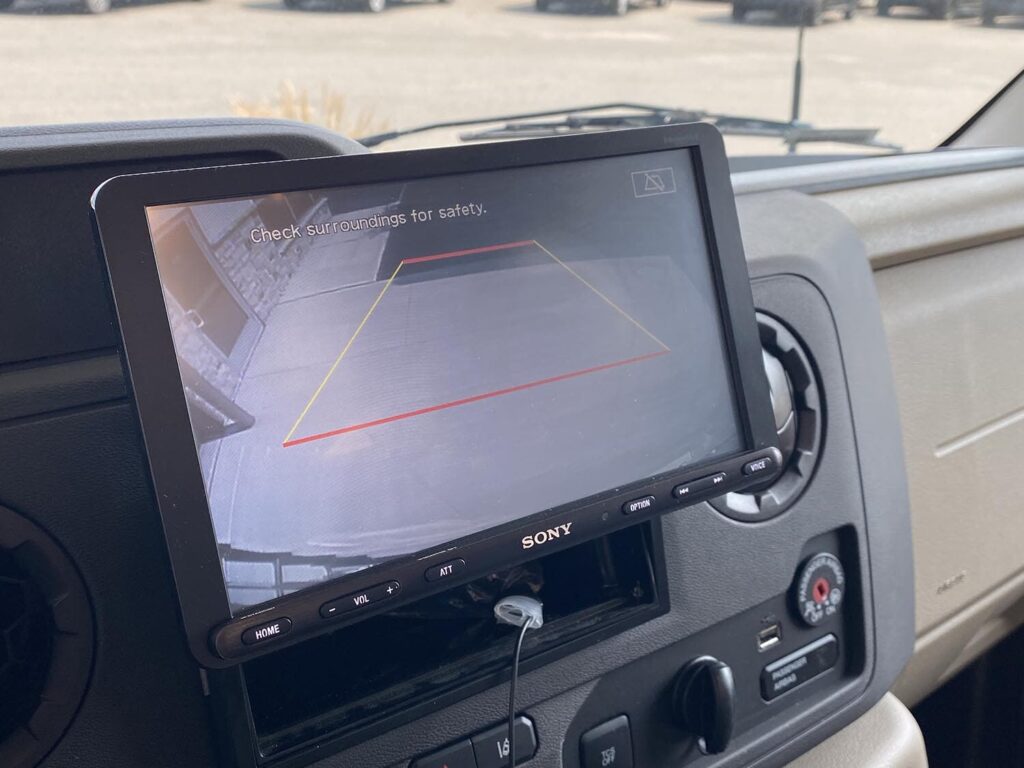

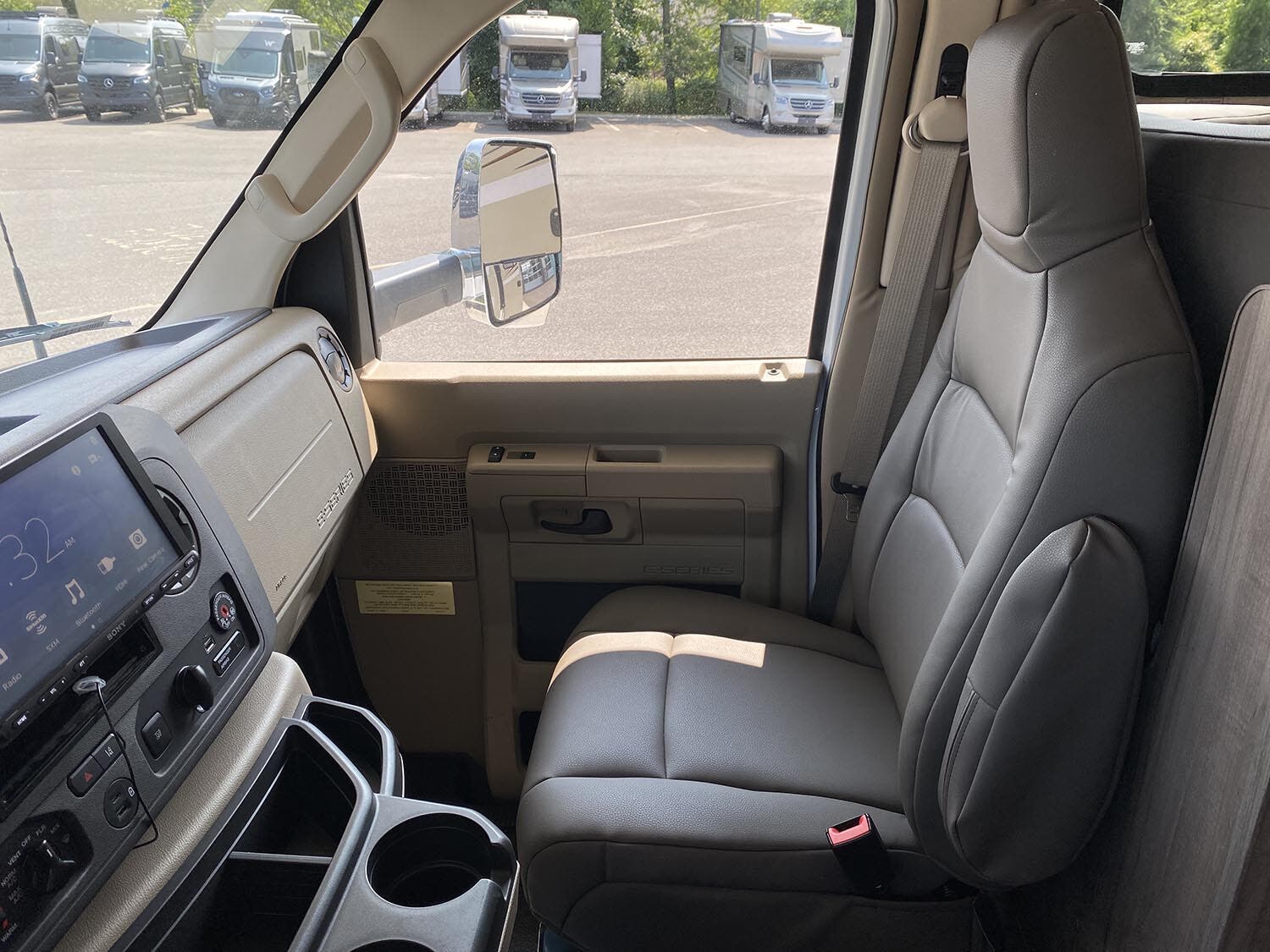

Cab seats armrests, fixed lumbar support, and multi-adjustable slide/recline • 3-point seat belts • Airbags driver and passenger • 12-volt powerpoint • Power steering w/tilt and cruise control • Power door locks • Sunvisors • Radio/Rearview Monitor System w/integrated 8.95″ multi-function touchscreen monitor and rear color camera, Bluetooth®, Apple CarPlay®, Android Auto™ and Sirius XM® ready (requires available receiver w/antenna upgrade) • Mirrors w/defrost, remote and video camera • Cab mat • Remote keyless entry • Auto headlight control • Electronic stability control • Hill start assist • Traction control • Adaptive cruise control • Automatic emergency braking • Auto high beam control • Distance alert • Driver monitoring • Forward collision warning • Lane departure warning • Post-collision warning • Tire pressure monitoring
Optional Equipment: Cab seats w/Ultrafabrics® UF2 Premium Leatherette covering • Swivel cab seat pedestal (31K) (driver and passenger)
INTERIOR

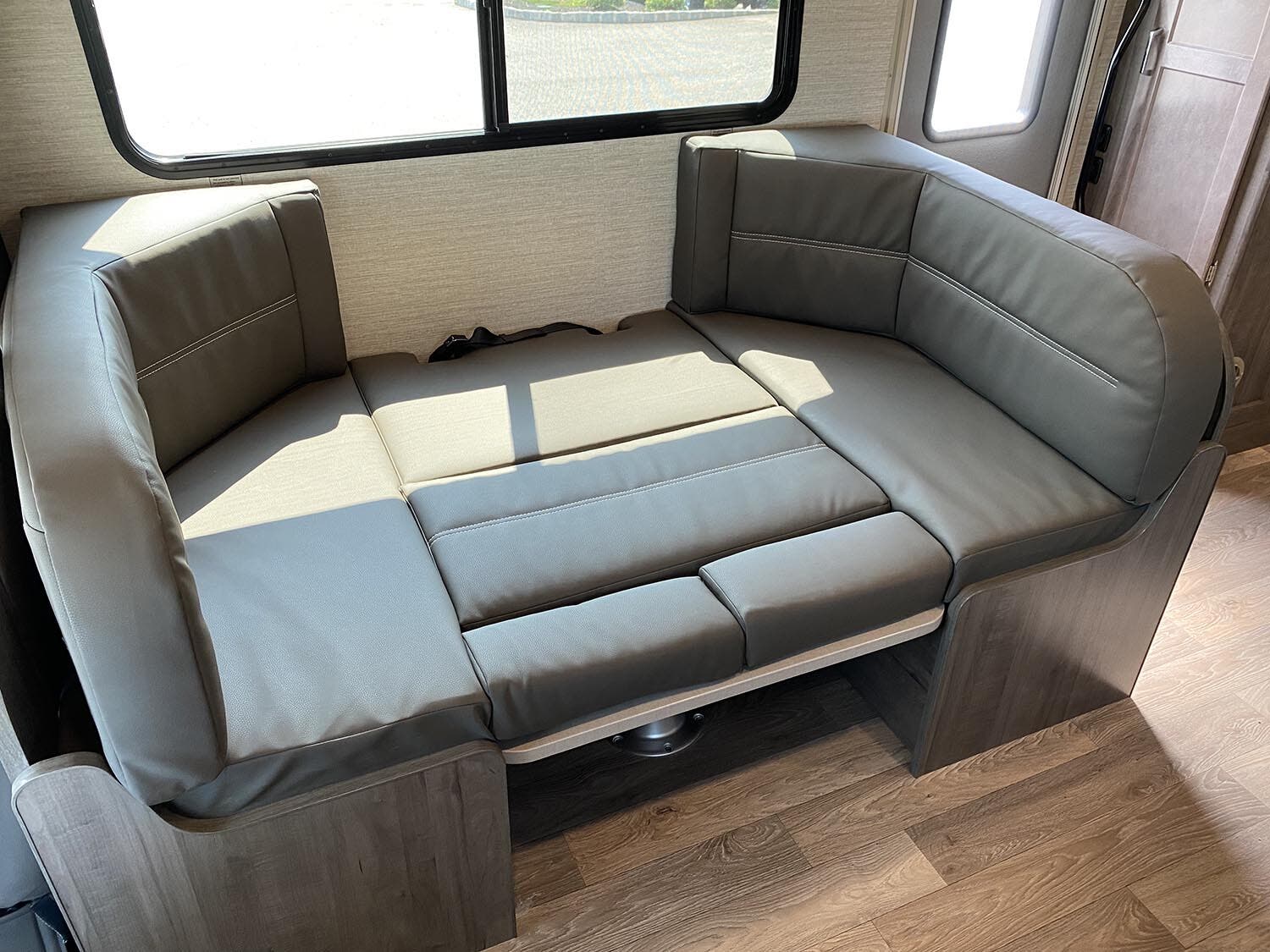

Amplified digital HDTV antenna • Black-out roller shades (lounge, dinette, and bedroom) • Mini blinds (galley, bath) • Systems monitor panel • Roof vent (bedroom and front bunk area) • Front wraparound curtain • Tinted windows • Vinyl ceiling • USB charger (dinette and bedroom) • LED lighting • 32″ HDTV w/DVD player • Vinyl flooring throughout • Sofa/bed (25B, 26T, 31H, 31K) • Assist bar • Dream dinette table mechanism (25B)
Optional Equipment: Dual-glazed, thermo-insulated windows • Sofa sleeper (31K) • Theater Seating (26T, 31H, 31K)
GALLEY

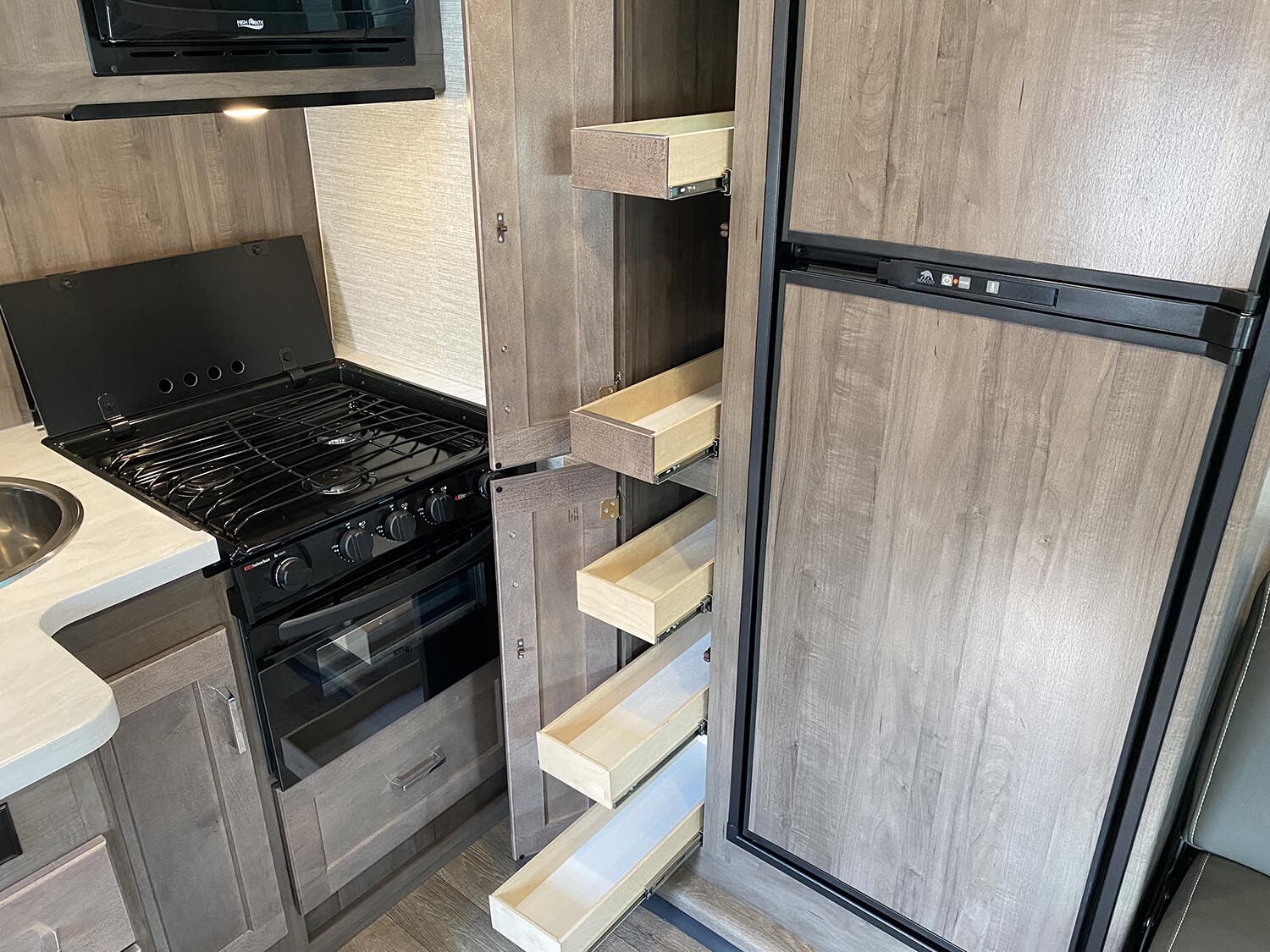

Corian® solid surface countertop • Microwave oven w/touch control • Vented range hood w/light • 3-burner range w/ glass cover and oven (glass cover NA 22R) • Pantry (22M, 26T, 31H, 31K) • 6.3 cu. ft. 2-way double-door refrigerator/freezer w/woodgrain paneling (22M, 22R, 25B) • 8.0 cu. ft. 2-way large double-door refrigerator/freezer w/woodgrain paneling (26T, 31H, 31K) • Single stainless steel sink (22R, 26T) • Double stainless steel sink (22M, 25B, 31H, 31K) • Flip-up counter extension (26T)
BATH

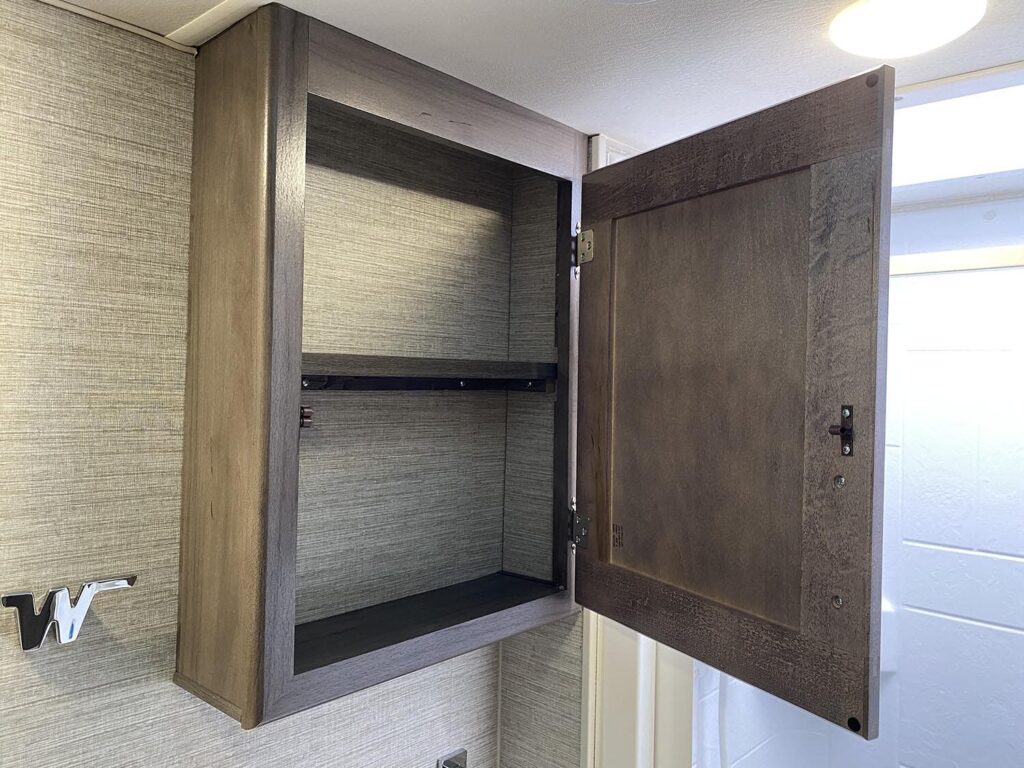

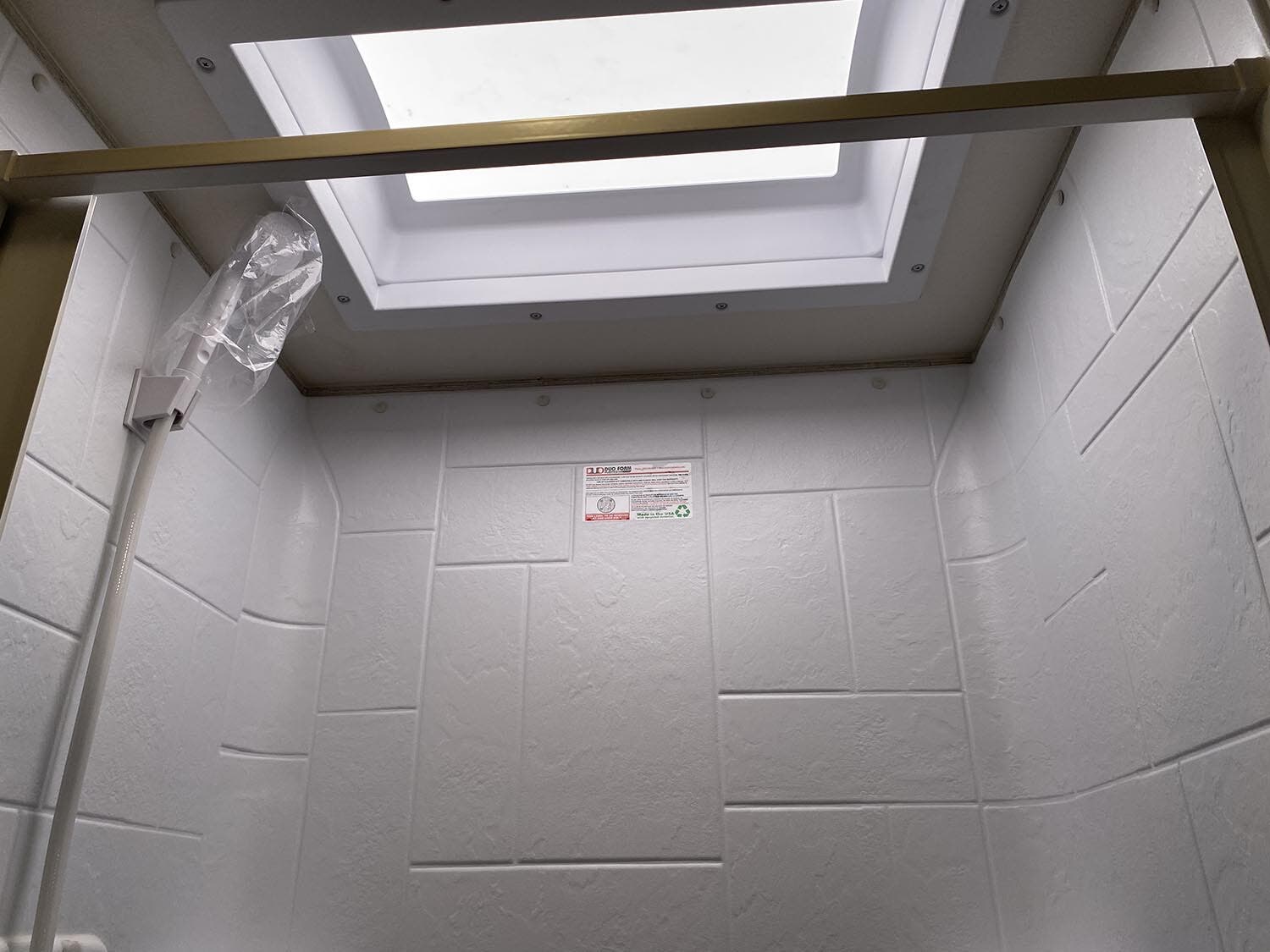

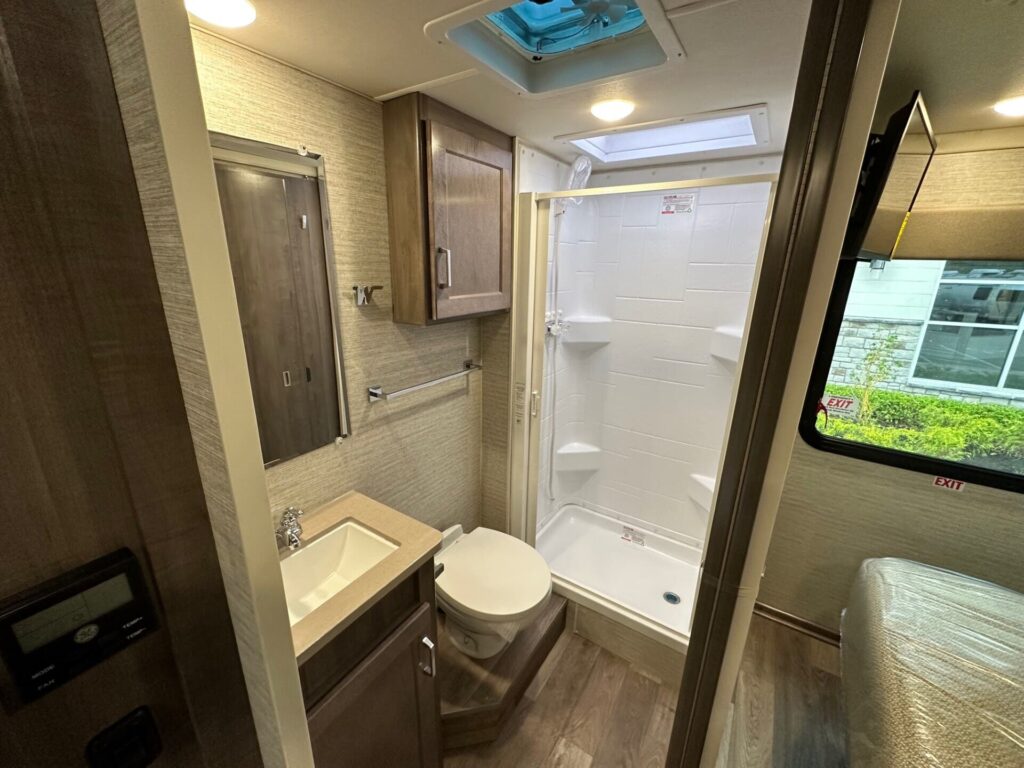

Shower 23″x34″ (22M, 22R, 25B) • Shower 24″x32″ (26T) • Shower 26″x30″ (31K) • Shower 26″x38″ (31H) • Lavatory cabinet • Medicine cabinet • Shower w/wall surround • Shower door with textured glass (31K) • Shower door w/retractable screen (22M, 22R, 25B, 26T, 31H) • Flexible showerhead • Skylight • Powered roof vent • Toilet w/foot pedal • Tissue holder • Robe hook(s) • Towel bar(s)
BEDROOM

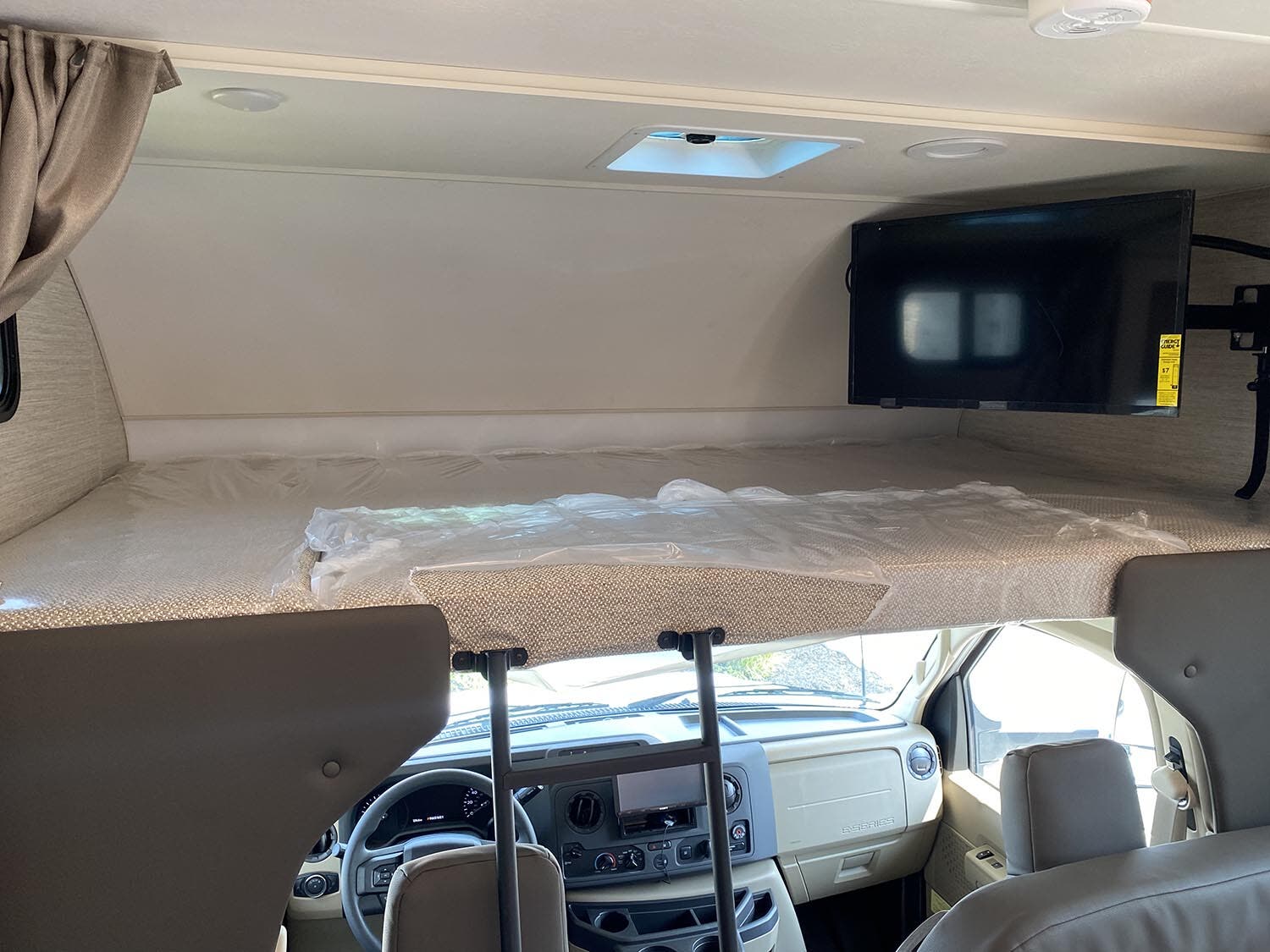

Double bed w/foam mattress, headboard and mattress cover (22R, 25B) • Queen bed w/foam mattress, headboard, and mattress cover (22M, 26T, 31H, 31K) • Bunk beds w/covered foam mattresses, mattress covers, storage compartment, and privacy curtains (31H) • Wardrobe (22M, 22R, 25B, 26T) • 24″ HDTV
EXTERIOR

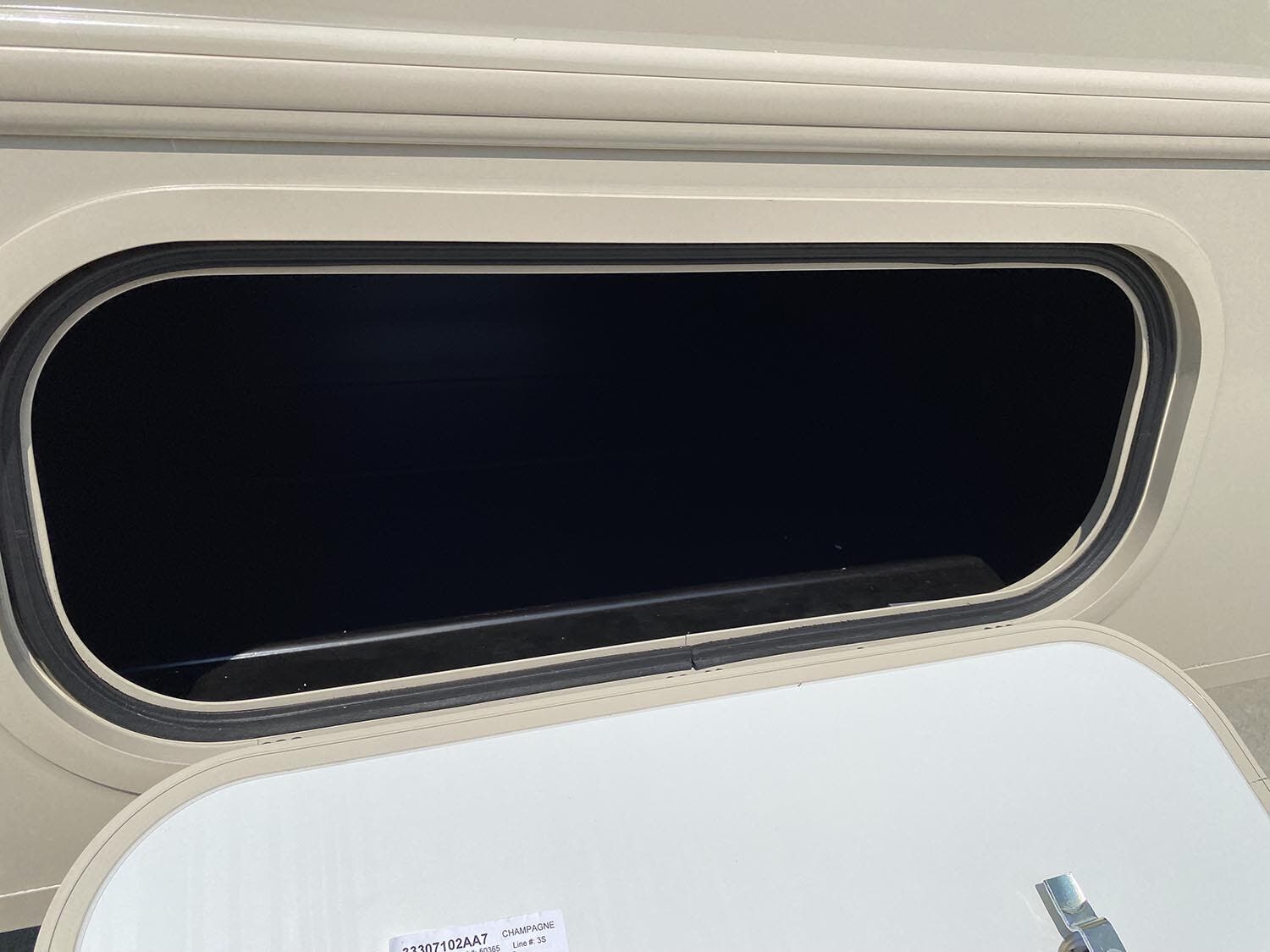

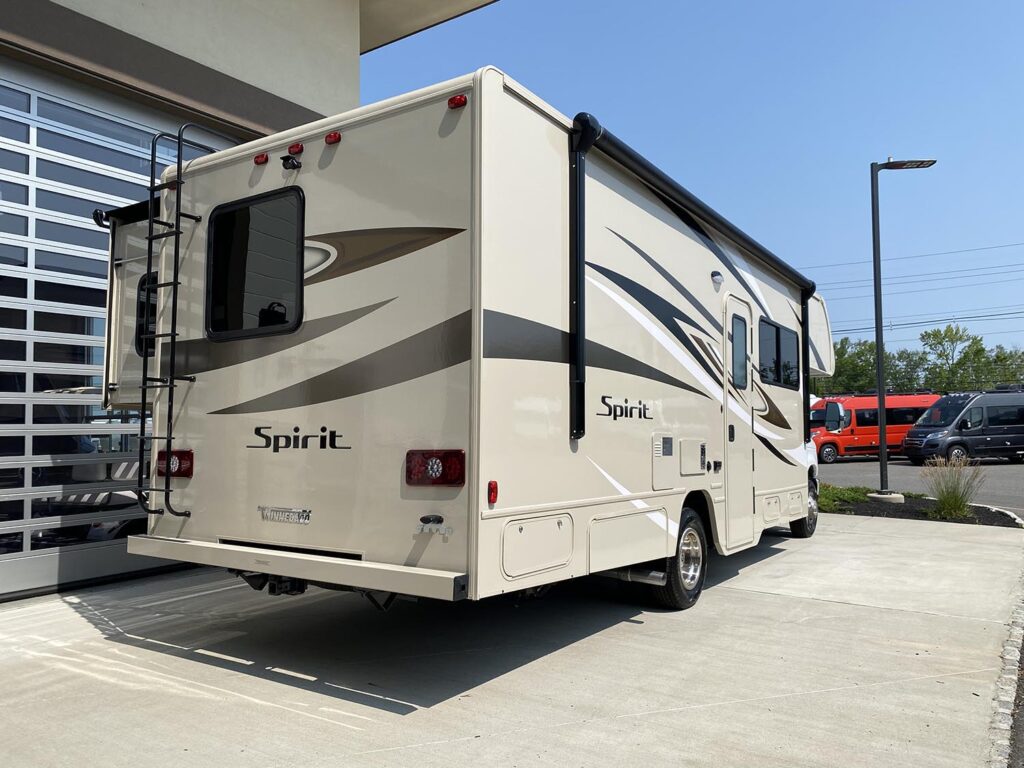

Premium high-gloss fiberglass skin • Porch light w/interior switch • Running boards • Large lighted trunk storage compartment • Powered patio awning w/LED lighting • Molded front cap • Ladder
HEATING & COOLING SYSTEM
20,000 BTU furnace (22M, 22R, 25B) • 30,000 BTU furnace (26T, 31K, 31H) • 15,000 BTU air conditioner
ELECTRICAL SYSTEM
AC/DC load center, 55-amp. converter/charger • 30-amp. power cord • TV jack and AC receptacle near entrance door • Coach battery disconnect system • Automatic dual-battery charge control • 4,000-watt Cummins Onan® Microquiet™ generator • 2-deep cycle, Group 24 battery • Auxiliary start circuit • AC/DC 1,000-watt inverter
PLUMBING SYSTEM

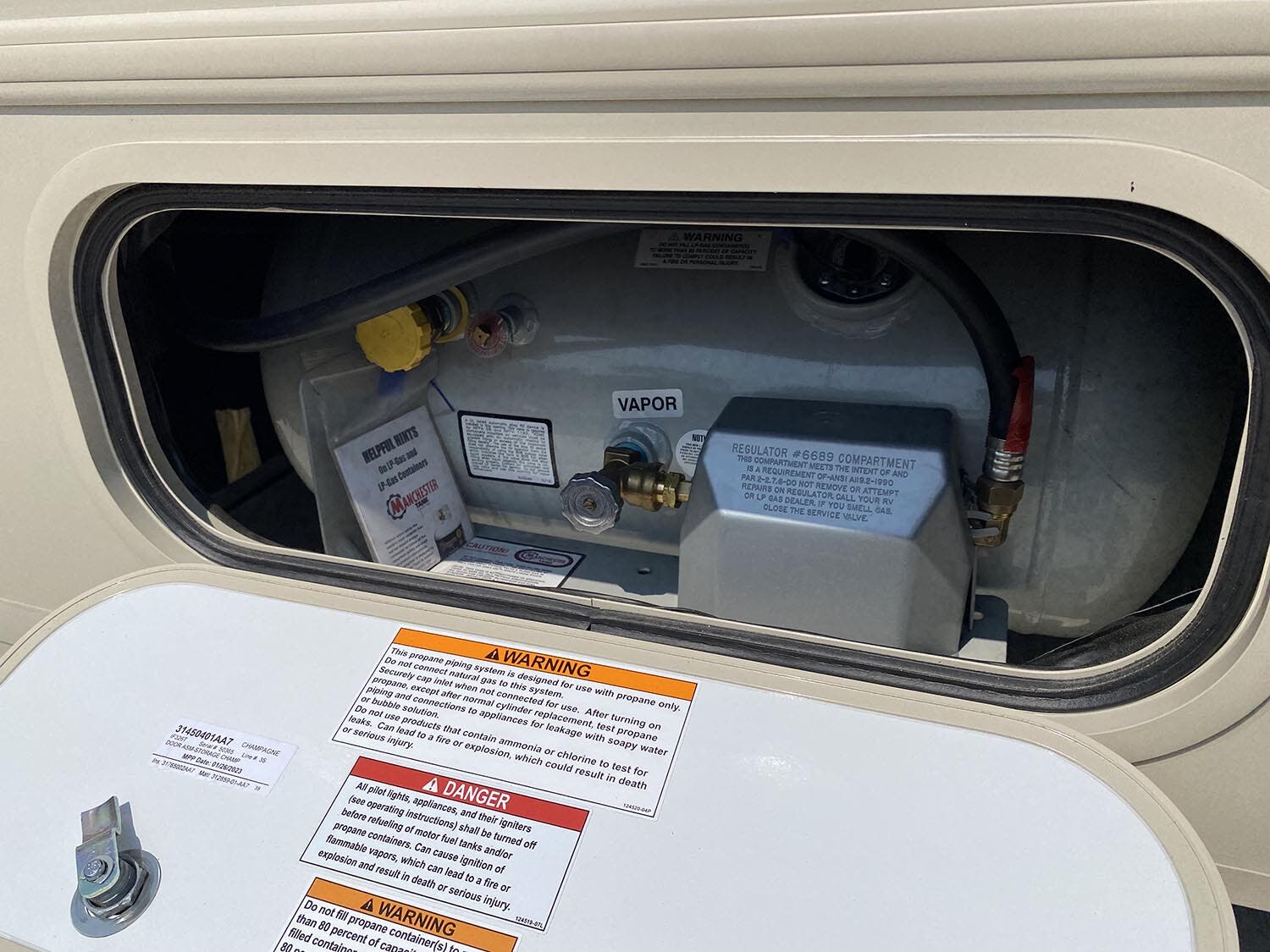

Pressurized city water hookup w/tank fill • On-demand water pump • 6-gallon LP water heater w/electronic ignition • Heated drainage system • Holding tank flushing system (black tank only) • Permanent-mount LP tank w/gauge
SAFETY
LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Child seat tether anchor
WARRANTY
12-month/15,000-mile basic limited warranty* • 36-month/36,000-mile limited warranty on structure* • 10-year limited parts-and-labor warranty on roof skin*
*See your dealer for complete warranty information.
