Options Included:
L30: Harmony/Taupe/Columbian Walnut W/White
1MA: Entertainment System
13Y: Dual Pane Coach Windows
60M: Hydraulic Leveling Jacks – Auto
62F: Primera Driver & Passenger Seats
95E: Full Body Paint – Bay Mist II
Weights & Measures
| 24D | 24J | 24V | ||
| Length | 25’6″ | 25’6″ | 25’6″ | |
| Exterior Height | 11′ | 11′ | 11′ | |
| Exterior Width | 7’ 6.25″ | 7’ 6.25″ | 7’ 6.25″ | |
| Exterior Storage (cu.ft.) | 30 | 43 | 33.6 | |
| Awning Length | 16′ | 16′ | 16′ | |
| Interior Height | 6’ 8″ | 6’ 8″ | 6’ 8″ | |
| Interior Width | 7’ 3″ | 7’ 3″ | 7’ 3″ | |
| Freshwater Tank Capacity (gal) | 30 | 37 | 31 | |
| Water Heater Capacity | Continuous | Continuous | Continuous | |
| Holding Tank Capacity – Black (gal.) | 41 | 41 | 41 | |
| Holding Tank Capacity — Gray (gal) | 41 | 41 | 41 | |
| LP Capacity (lbs.) | 50.76 | 50.76 | 50.76 | |
| Fuel Capacity (gal.) | 24.5 | 24.5 | 24.5 | |
| GCWR (lbs.) | 15,250 | 15,250 | 15,250 | |
| GVWR (lbs.) | 11,030 | 11,030 | 11,030 | |
| GAWR – Front (lbs.) | 4,410 | 4,410 | 4,410 | |
| GAWR – Rear (lbs.) | 7,720 | 7,720 | 7,720 | |
| Wheelbase | 170″ | 170″ | 170″ | |
| Seating Capacity | 4 | 5 | 4 | |
| Sleeping Capacity | 4 | 4 | 4 |
CHASSIS
Mercedes-Benz® Sprinter Chassis • 3.0 L 6-cylinder, 188-hp, turbo-diesel engine 7G -Tronic automatic transmission, 220-amp. alternator • Adaptive ESP technology • Hydraulic brakes w/ABS • Trailer Hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector • Stylized aluminum wheels
Optional Equipment: Hydraulic leveling jacks w/automatic controls (front and rear)
CAB CONVENIENCES
MBUX Touchscreen Multimedia Infotainment Center with Navigation, WiFi hotspot, Intelligent Voice Control and Rear Color Camera • Airbags driver, passenger, side and curtain • Heated power control cab seats — armrest, adjustable lumbar support, headrest, recline, slide, and manual swivel • 3-point seat belts • Climate control • Leather-wrapped steering wheel • Power door locks w/remote • Power windows • Power mirrors w/defrost and turn signals • Cruise control • Active lane keeping assist • Active braking assist • Rain sensor w/integrated wet wiper system • Power assist steering w/tilt wheel • 12V/USB powerpoints • Folding windshield and cab window blinds • Dash appliqué package • 2 cab seat lounge cushions • Hill start assist • Crosswind assist • Attention assist
Optional Equipment: Cab seats w/Ultrafabrics® UF Select covering
INTERIOR

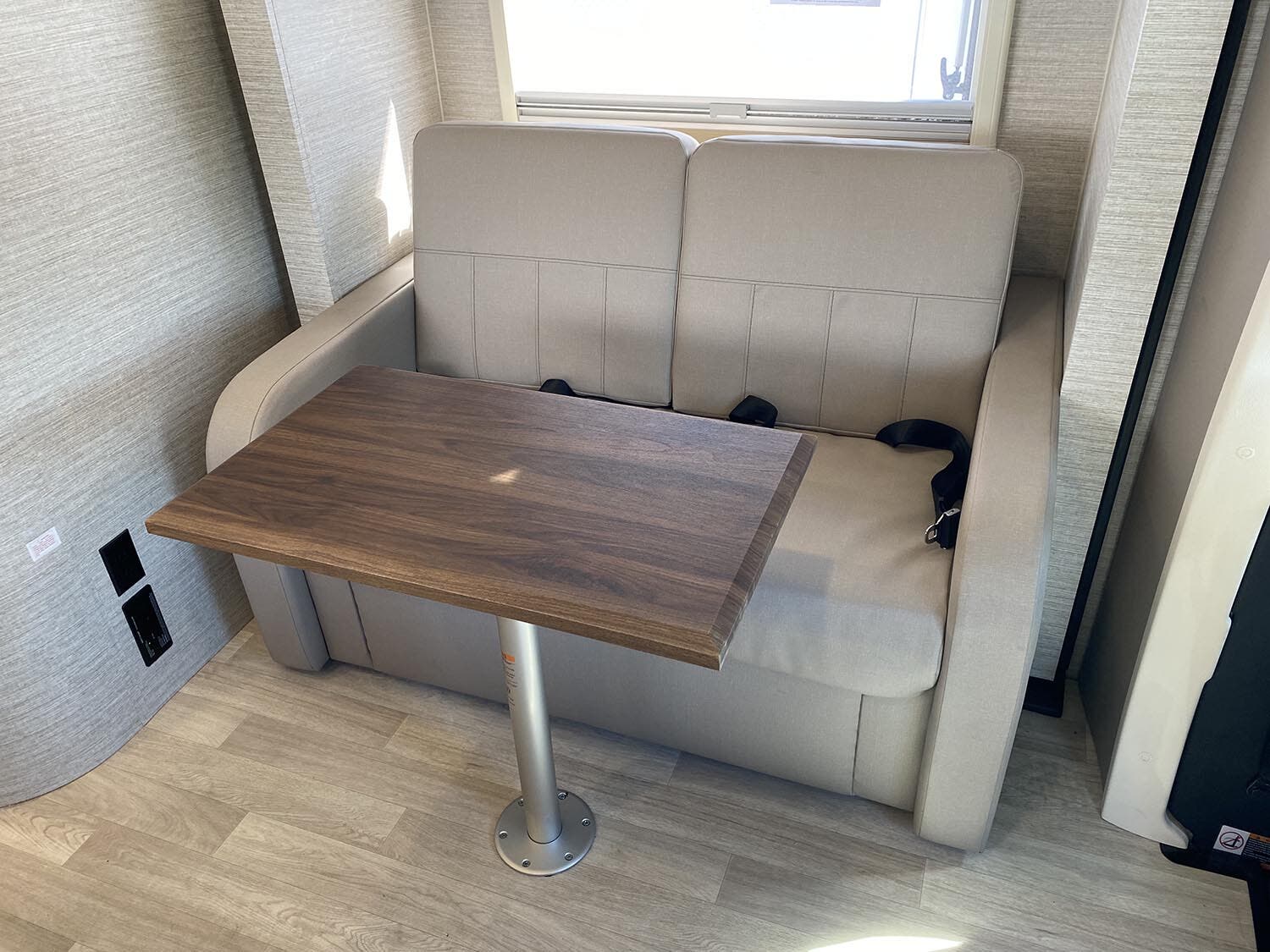

32″ HDTV • U-Shaped dinette (24D, 24J) • TrueComfort+ sofa w/table (24V) • LED lights • Satellite system ready • Amplified digital HDTV antenna • Powered roof vent — rain cover, electric lift, remote control, thermostat operation (front bunk) • MCD® solar/blackout roller shades • Systems monitor panel • Tinted coach windows • Assist bar • Vinyl flooring throughout • Soft vinyl ceiling • 110V/12V/USB charging stations • Roof wiring access port
Optional Equipment: Dual pane acrylic windows • Dual recliners w/table (24V) • Theater seating w/swivel tables (24D, 24J) • Entertainment System Blu-ray disc player and Bluetooth® Soundbar

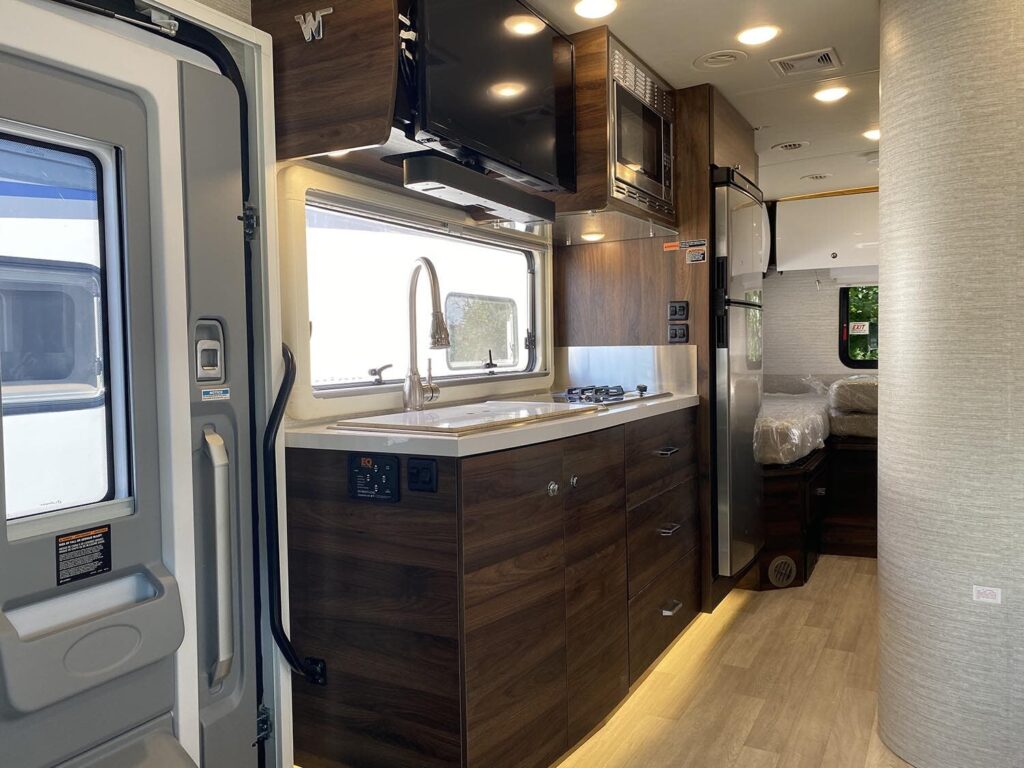

GALLEY

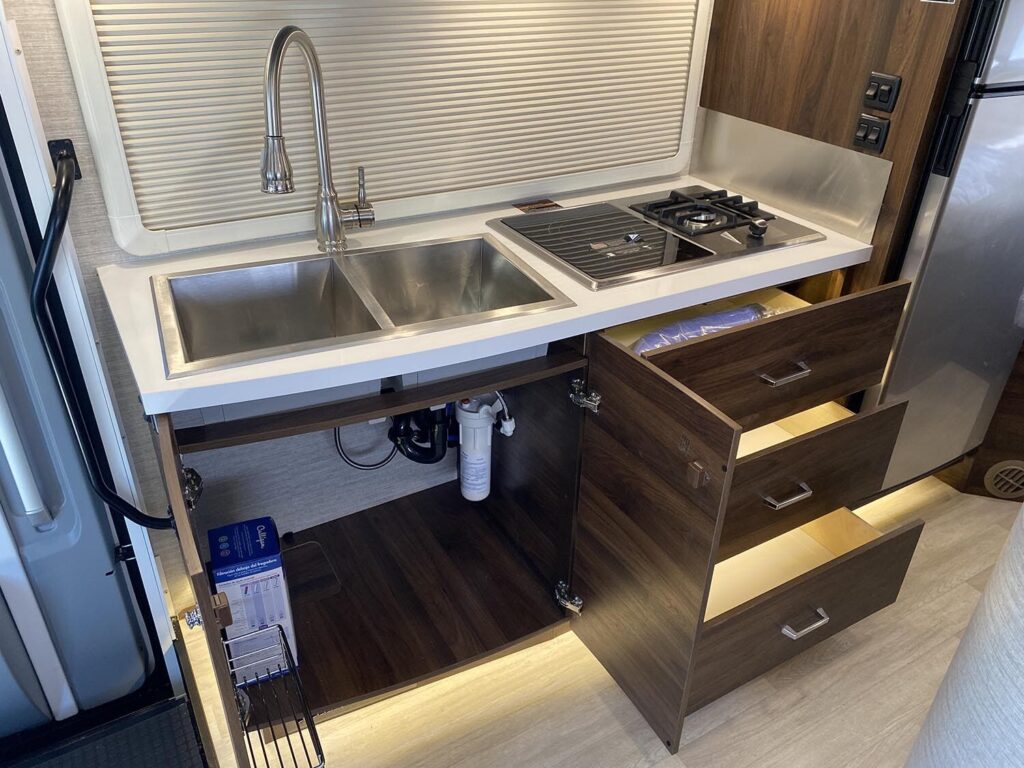

Laminate countertops • Microwave/convection oven w/touch control • 2-burner induction & LP range cooktop • 10.0 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer • Cold water filtration system • Water-pump switch w/light • Pantry (24D, 24J) • Cabinets with accent lighting • Lighted soft close drawers • Integrated paper towel holder • Double stainless steel sink w/2 sink covers • Mini Blinds • Toe kick lighting

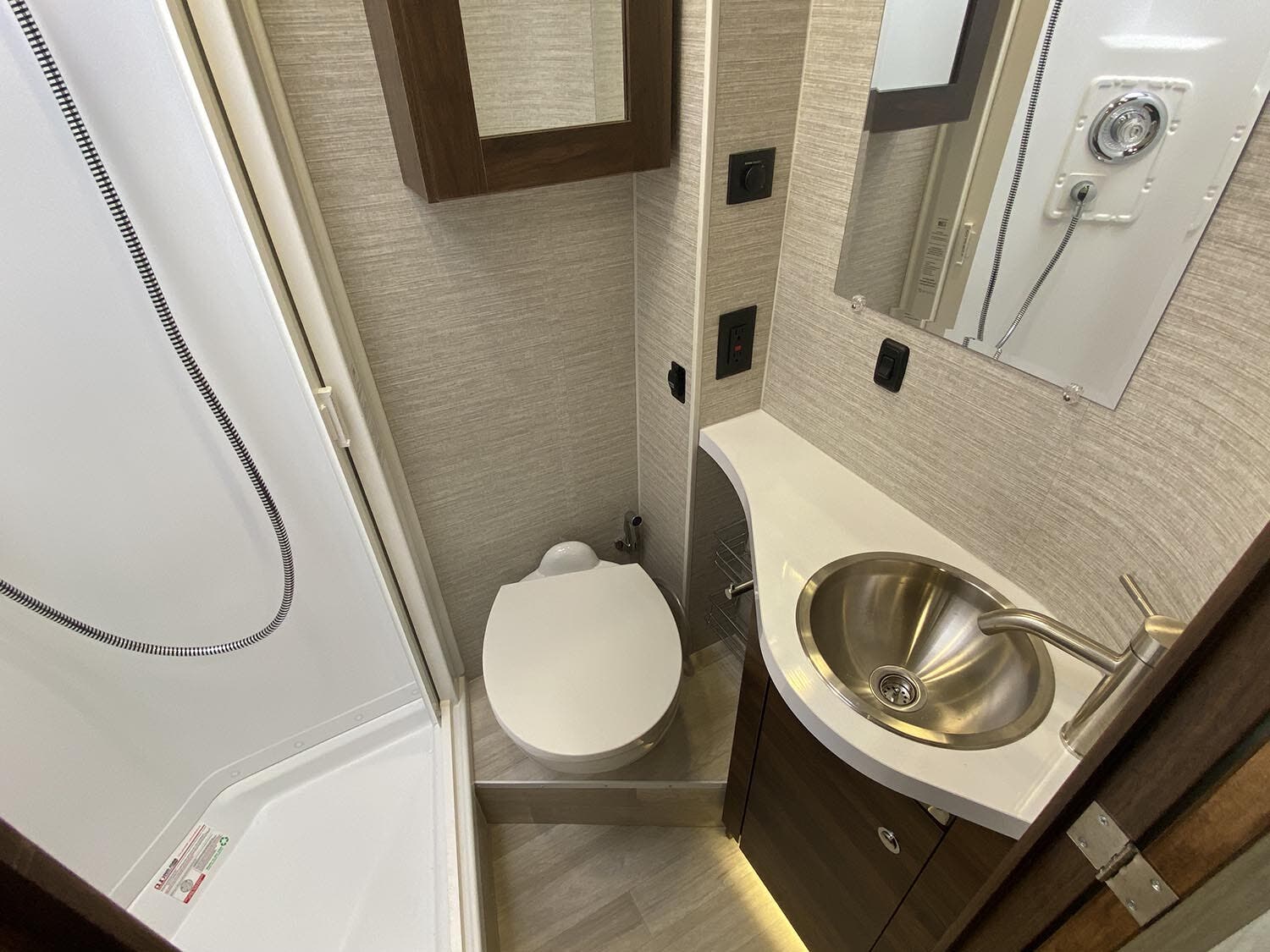

BATH
Shower 24″ x 32″ (24D, 24J) • Shower 19″ x 28″ x 34″ (24V) • Retractable, self-cleaning shower screen • Oxygenics® flexible showerhead • Shower skylight • Porcelain toilet w/foot pedal and sprayer (24J, 24V) • Composite Toilet (24D) • Powered roof vent w/rain cover • Lavatory cabinet • Medicine cabinet • Mini blinds (24D) • Towel rack (24V) • Towel bar(s) (24J, 24V) • Tissue holder • Removable clothes rod • Robe hook(s) • Integrated facial tissue holder • Toe kick lighting
BEDROOM
Murphy+ bed w/deluxe queen mattress, Euro-suspension system, gel foam topper (24D) • Corner bed w/headboard, foam mattress, mattress cover and access to storage below (24J) • Flex Bed System twin beds/king bed w/foam mattresses and access to storage below (24V) • FROLI® deluxe sleeping system (24J, 24V) • MCD® blackout roller shades • Wardrobe cabinet • Metal clothes rod • Room divider curtain • Anything Keeper™ drop down storage above bed (24J, 24V) • 110V/12V/USB charging stations (24J, 24V) • 110V/USB charging station (24D) • 24″ LED HDTV (24J, 24V)
EXTERIOR

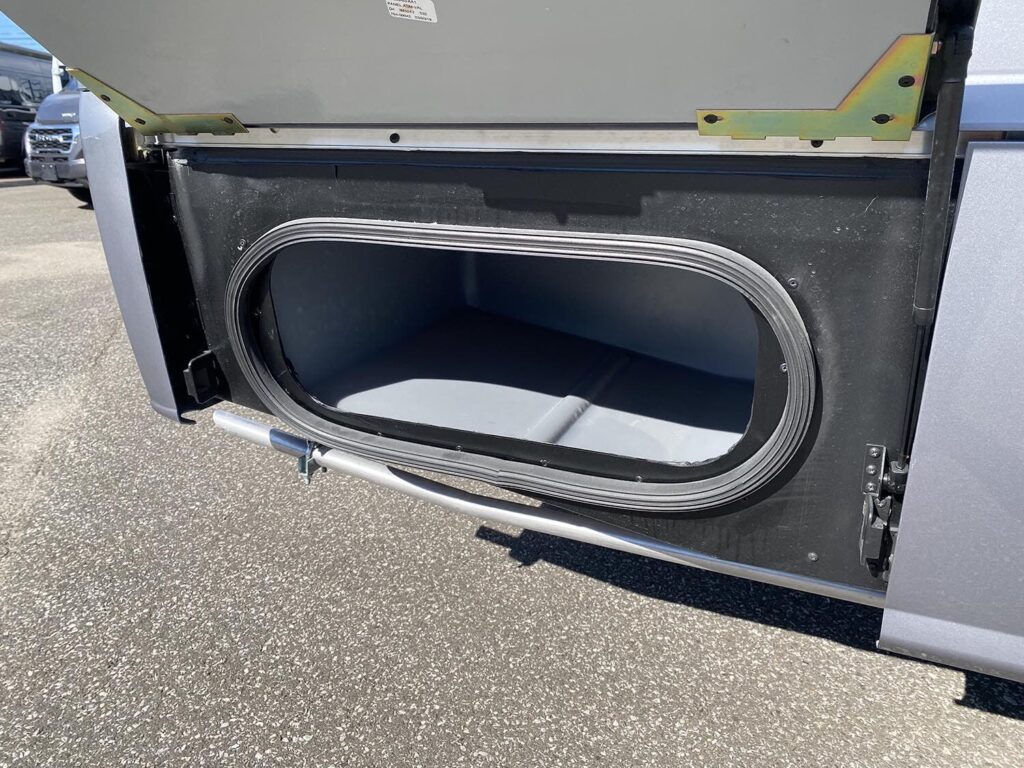

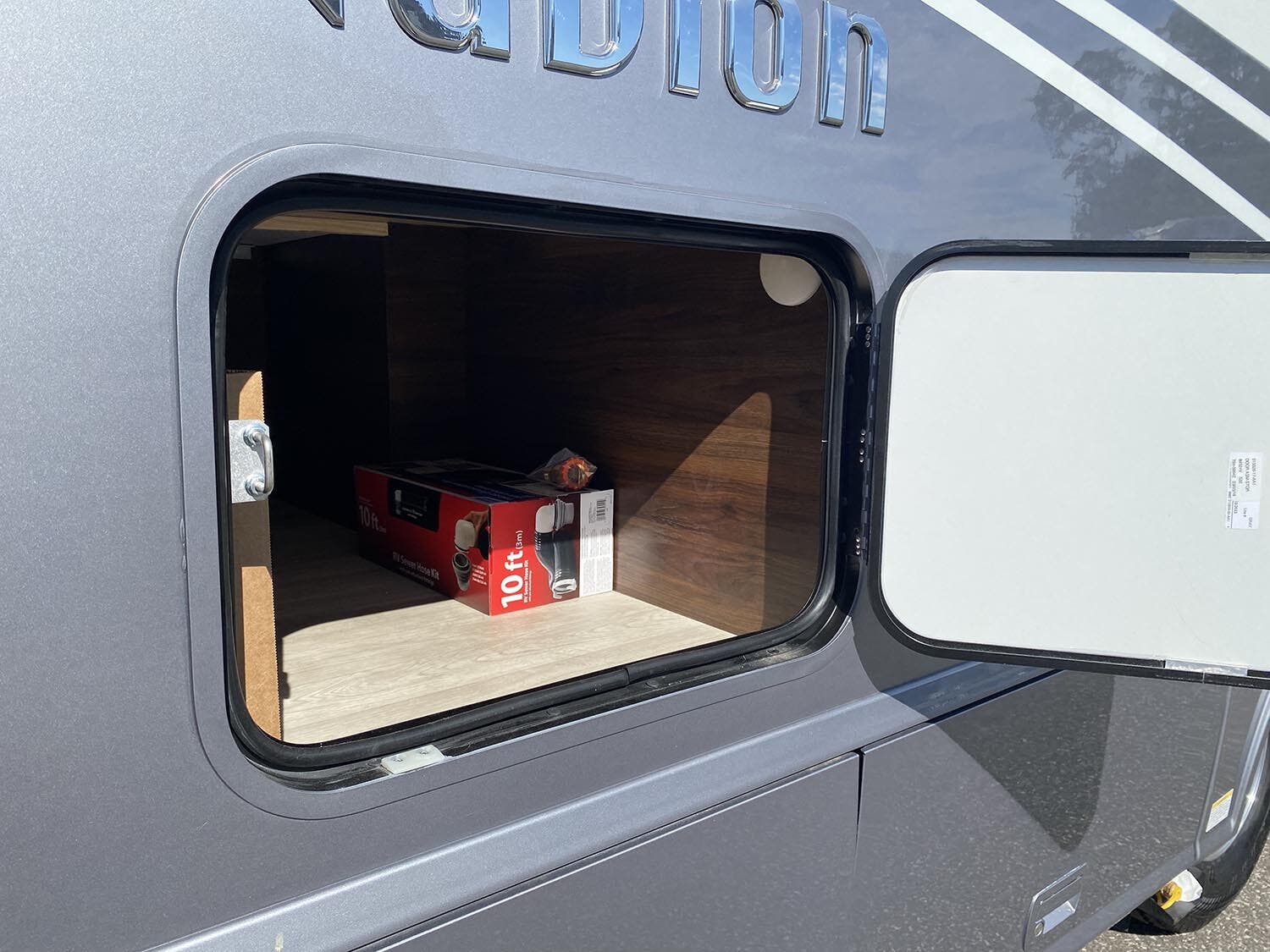

Automatic entrance door step • LED porch light w/interior switch • Stepwell light w/interior switch • Front and rear mud flaps • Aluminum cab steps w/logoed tread and loop attachment • Powered patio awning w/LED lights • Large pass-through storage compartment (24D, 24J) • Ladder
HEATING & COOLING SYSTEM
15,000 BTU air conditioner w/heat pump • 20,000 BTU low-profile ducted furnace
ELECTRICAL SYSTEM
Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch • Automatic dual battery charge control Exterior AC duplex • Exterior antenna jack • Generator auto transfer switch • Battery disconnect system (coach) • AC/DC load center/converter unit • 2 deep-cycle, Group 31 RV batteries • 3,600-watt Cummins Onan® MicroQuiet™ LP generator • 2,000-watt pure sine wave DC/AC inverter • (2) 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel
Optional Equipment: Lithium Ion Smart Batteries • 3,200-watt Cummins Onan® Diesel generator
PLUMBING SYSTEM

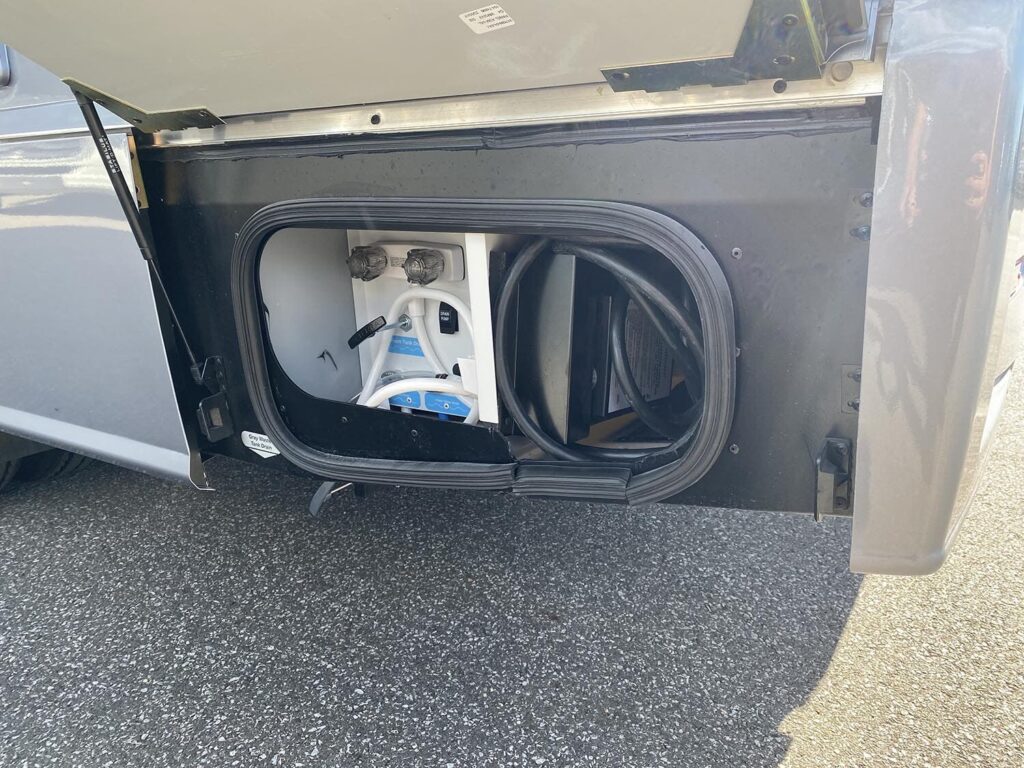

Service Center — color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch • Truma AquaGo® Comfort Plus Tankless water heater • TrueLevel™ holding tank monitoring system • Heated drainage system • 10′ sewer hose • Winterization Package water heater bypass valve and siphon tube • On-demand water pump • Lockable water tank fill • Sewage pump macerator (24V) • Permanent-mount LP tank w/gauge • LPG accessory connection (patio area) • Black holding tank flushing system
SAFETY
LPG leak, smoke and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Child seat tether anchor (24D, 24J) • High-mount brake lamps • Daytime running lamps
WARRANTY
12-month/15,000-mile limited warranty • 36-month/36,000-mile limited warranty on structure • 10-year limited parts-and-labor warranty on roof skin
*Disclaimer: Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle. In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
