** Executive Model **
PU1: Black Sand/Walnut
002: 2022 Model Year Chassis
1KL: Ram Chassis – 8,900# GVWR. Gas Van
33A: Bright White
5AV: Wheelchair Lift
60A: Pop-Top Sleeping
68Y: TV – Main
ACCESSIBILITY ENHANCED
The Roam is a purpose-built motorhome that incorporates thoughtful features throughout to enhance, and provide the ultimate in privacy and comfort for travelers in wheelchairs.
Built on the proven Ram chassis The foundation of the Roam™ is the Ram® chassis, a proven package that delivers ample power, fuel-efficiency and agile handling, and incorporates a full suite of safety features, including blind-spot monitoring, rear camera and cross-wind assist.
Remote-controlled wheelchair lift for easy access The Braun UVL wheelchair lift with wireless remote and 750-lb. capacity, provides easy access into and out of the Roam, while integrated tie-downs secure the wheelchair and allow you to use it as another seat while you travel.
A private bathroom everywhere you go The Roam bath features an integrated shower and a cassette-style toilet, and eliminates the inconvenience and stress of trying to find a clean, accessible restroom while away from home.
A comfortable place to rest or sleep At the push of a button, the Roam’s powered sofa/bed converts into a comfortable sleeping space for overnight camping — or for taking a rest between the day’s activities. Bring the whole family with an optional, easy-to-use pop-top, which comfortably sleeps two.

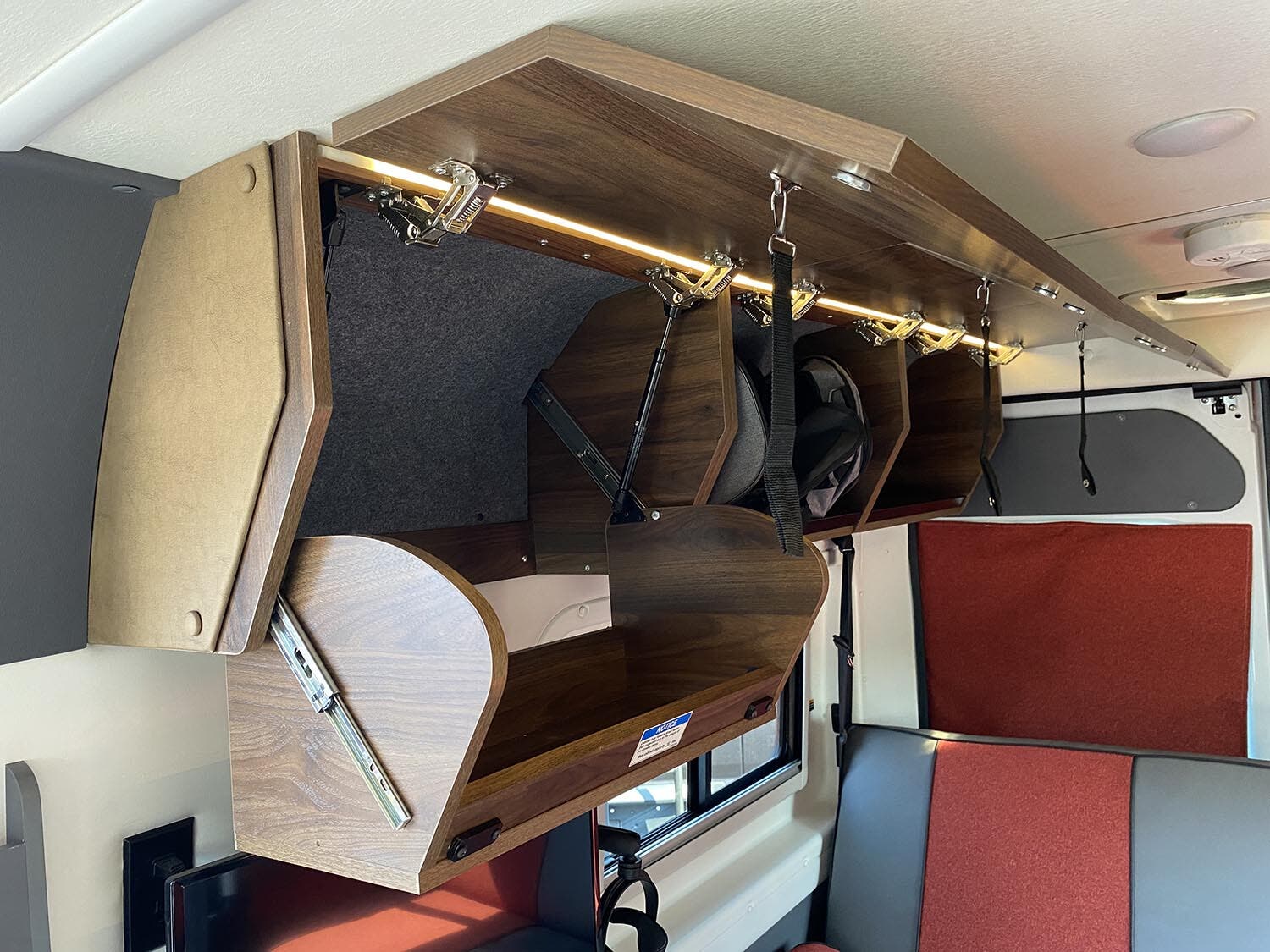

Smarter storage solutions Cabinets and storage compartments are designed to provide easy access while seated.
Convenient galley for meals on the go Designed with accessibility in mind, the galley includes a refrigerator, microwave and sink, plus an outlet for an induction cooktop, making it easy to bring along and prepare your favorite foods practically anywhere.
| U59RAC | U59RPT | |
|---|---|---|
| Exterior Length | 19’9″ | 19’9″ |
| Exterior Height | 9′ | 9′ |
| Exterior Width | 6’9″ | 6’9″ |
| Interior Height | 6’3″ | 6’3″ |
| Interior Width | 6’2″ | 6’2″ |
| Freshwater Tank Capacity (gal.) | 12 | 12 |
| Holding Tank Capacity — Gray (gal.) | 13 | 13 |
| Fuel Capacity (gal.) | 24 | 24 |
| GCWR (lbs.) | 12,000 | 12,000 |
| GVWR (lbs.) | 8,900 | 8,900 |
| GAWR – Front (lbs.) | 4,629 | 4,629 |
| GAWR – Rear (lbs.) | 5,291 | 5,291 |
| Wheelbase | 159″ | 159″ |
| Cassette Toilet Capacity (gal.) | 5 | 5 |
| Sleeps | 2 | 4 |
CHASSIS
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 9-speed automatic transmission, 180-amp. alternator • 4-wheel ABS brakes • Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight
CAB CONVENIENCES
Radio/Rearview Monitor System 7″ multimedia touchscreen infotainment center, steering wheel controls, color rear camera, Apple CarPlay®, Android Auto™, Bluetooth®, SiriusXM® (subscription required), JBL® Speakers and USB ports • All digital instrument cluster • Cab seats armrests, adjustable lumbar support, adjustable headrest, and slide/swivel/recline • Airbags driver and passenger front, side curtain, side seat bolster • Cruise control • 3-point seat belts • Power steering w/telescoping wheel • Power mirrors w/defrost and turn signal • Power door locks w/remote • Power windows • Digital rearview mirror • Crosswind assist • Blind spot monitoring • 12-volt powerpoints • Sunvisors • Front and cab window privacy panels • Carpet floor mat • SuperSprings® SumoSprings® (front and rear) • Wireless/keyless entry • Push button start
INTERIOR
Wheelchair tiedowns with (4) Q’Straint attachments • Shoulder belt near wheelchair tiedowns • LED ceiling lights • Tinted coach windows • Systems monitor panel • Roof vent (pop-top sleeping area) • USB charging ports • Heavy duty vinyl flooring throughout • Ladder (for pop-top) • (1) Pull-down cabinet for in-reach access • (4) Additional cabinets along the rear ceiling for storage • 24” TV
GALLEY
Corian countertop • Pull-out countertop extension • 3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer • Stainless steel sink • Microwave
BATH
Assist bar • Flexible showerhead • Mirror • Swiveling cassette toilet • Shower curtain • Shower w/wall surround • Toilet paper holder
BEDROOM
Sofa/bed w/two 3-point seat belts • Deluxe powered ventilator fan • Flip-up dinette table with extending leaf • Sleeps up to 4 with optional pop-top
EXTERIOR
Braun UVL wheelchair lift (750 lb. weight capacity) • Porch light w/interior switch (passenger side) • Assist bar near door • Aluminum running board w/logoed tread and pet loop attachment • Cab privacy screen
Optional Equipment: Pop-top sleeping area w/FROLI® sleep system
HEATING & COOLING SYSTEM
Coleman Mach 10 NDQ air conditioner (without pop-top) • Maxxair fan to increase ventilation • Elwell Timberline air and water heat
ELECTRICAL SYSTEM
AC/DC load center • Auxiliary start circuit • 2 deep-cycle Group 31 batteries (AGM maintenance-free) • Coach battery disconnect system • Automatic dual-battery charge control • 30-amp. power cord
PLUMBING SYSTEM
10′ sewer hose • On-demand water pump • Heated drainage system • Water center control panel includes all control valves, connection points and exterior wash station (located inside left rear door)
SAFETY
Smoke and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Post collision breaking • Pedestrian detection with forward collision mitigation
WARRANTY
12-month/15,000-mile basic warranty*
*Disclaimer: Winnebago recommends following the winter use guidelines and winterization procedures outlined in your owner’s manual whenever camping in freezing conditions. Because features, specifications, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle. In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
