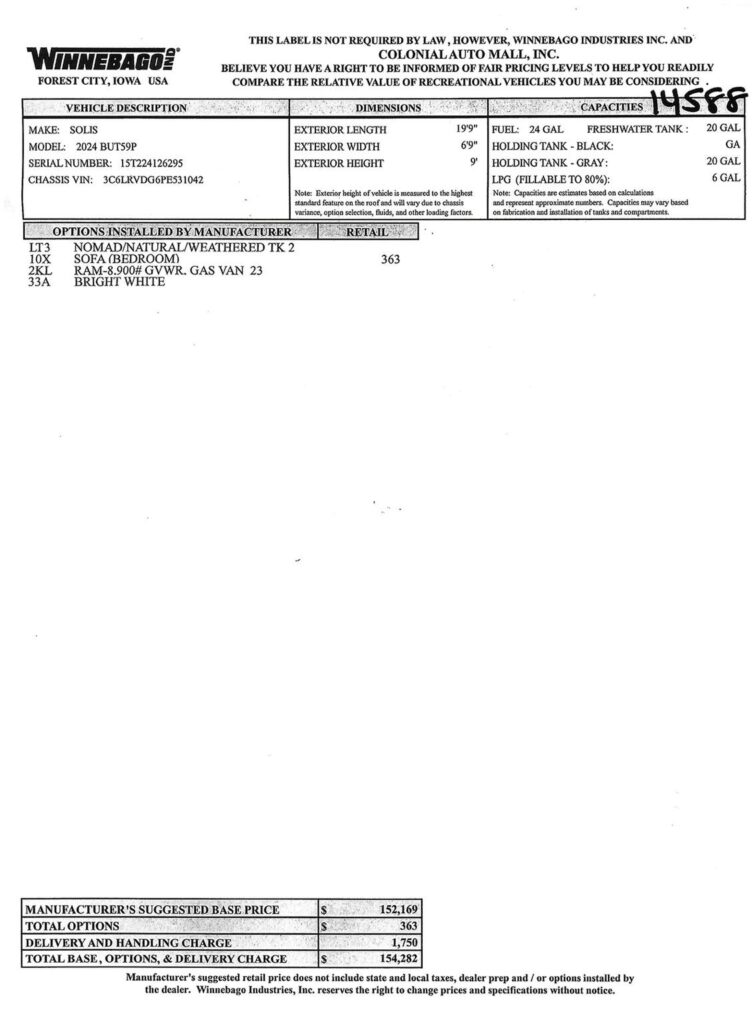

Options Included:
LT2: Nomad/Natural/Weathered Teak II
10X: Sofa (Bedroom)
2KL: 2023 Ram Chassis – 8,900# GVWR. Gas Van
33A: Paint & Graphics – Bright White
| 59P | 59PX | ||
|---|---|---|---|
| Exterior Length | 19’9″ | 21′ | |
| Exterior Height | 9′ | 9’5″ | |
| Exterior Width | 6’9″ | 6’9″ | |
| Interior Height | 6’3″ | 6’3″ | |
| Interior Width | 6’2″ | 6’2″ | |
| Freshwater Tank Capacity (gal.) | 20 | 20 | |
| Water Heater Capacity (gal.) | 2.6 | 2.6 | |
| Holding Tank Capacity – Gray | 20 | 20 | |
| LP Capacity (gal.) | 25 | 25 | |
| Fuel Capacity (gal.) | 24 | 24 | |
| GCWR (lbs.) | 12,000 | 12,000 | |
| GVWR (lbs.) | 8,900 | 9,350 | |
| GAWR – Front (lbs.) | 4,629 | 4,629 | |
| GAWR – Rear (lbs.) | 5,291 | 5,291 | |
| Wheelbase | 159″ | 159″ | |
| Cassette Toilet Capacity (gal.) | 5 | 5 | |
| Sleeps | 4 | 4 | |
CHASSIS
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 9-speed automatic transmission, 180-amp. alternator • 4-wheel ABS brakes • Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight
CAB CONVENIENCES

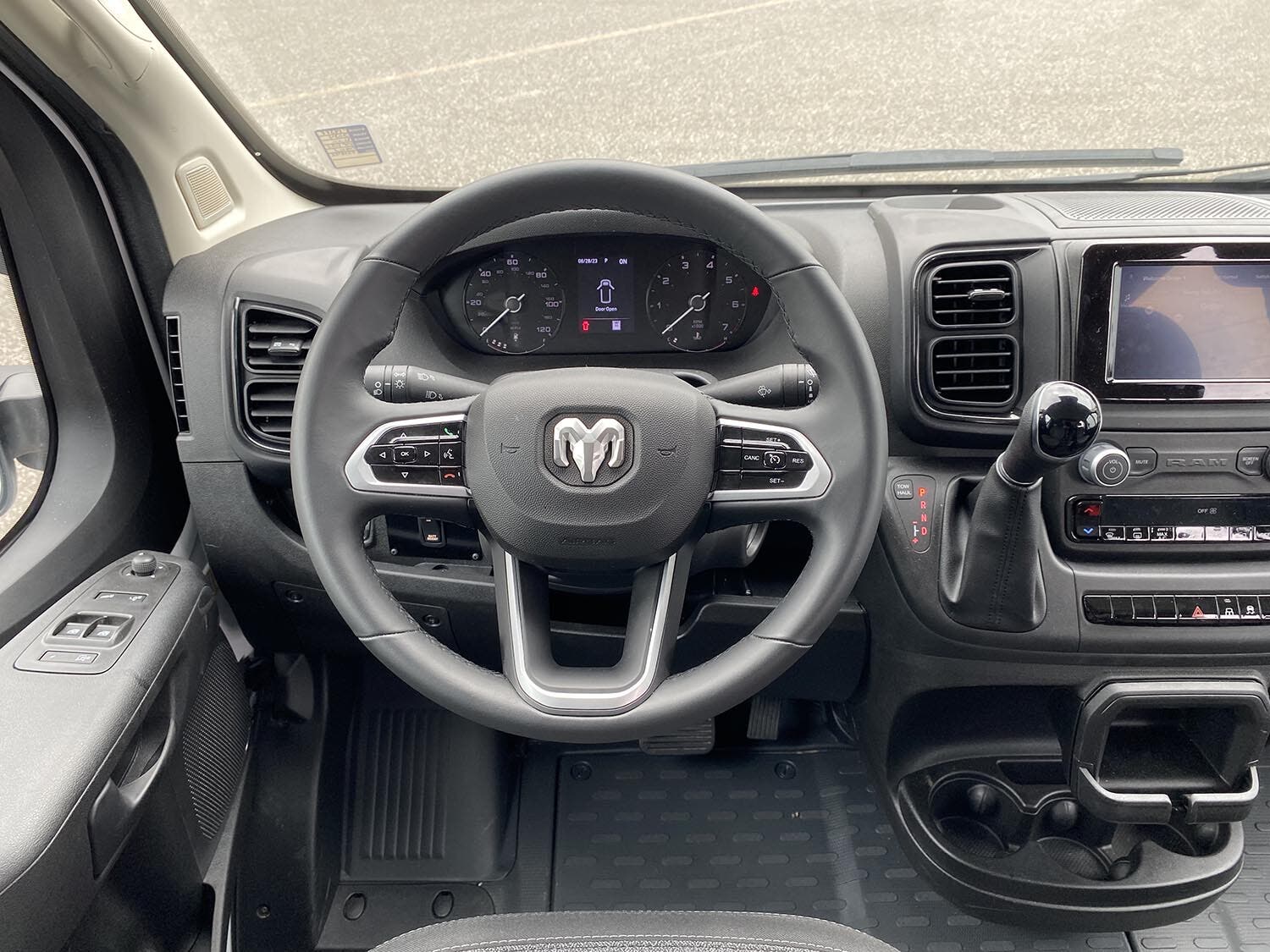

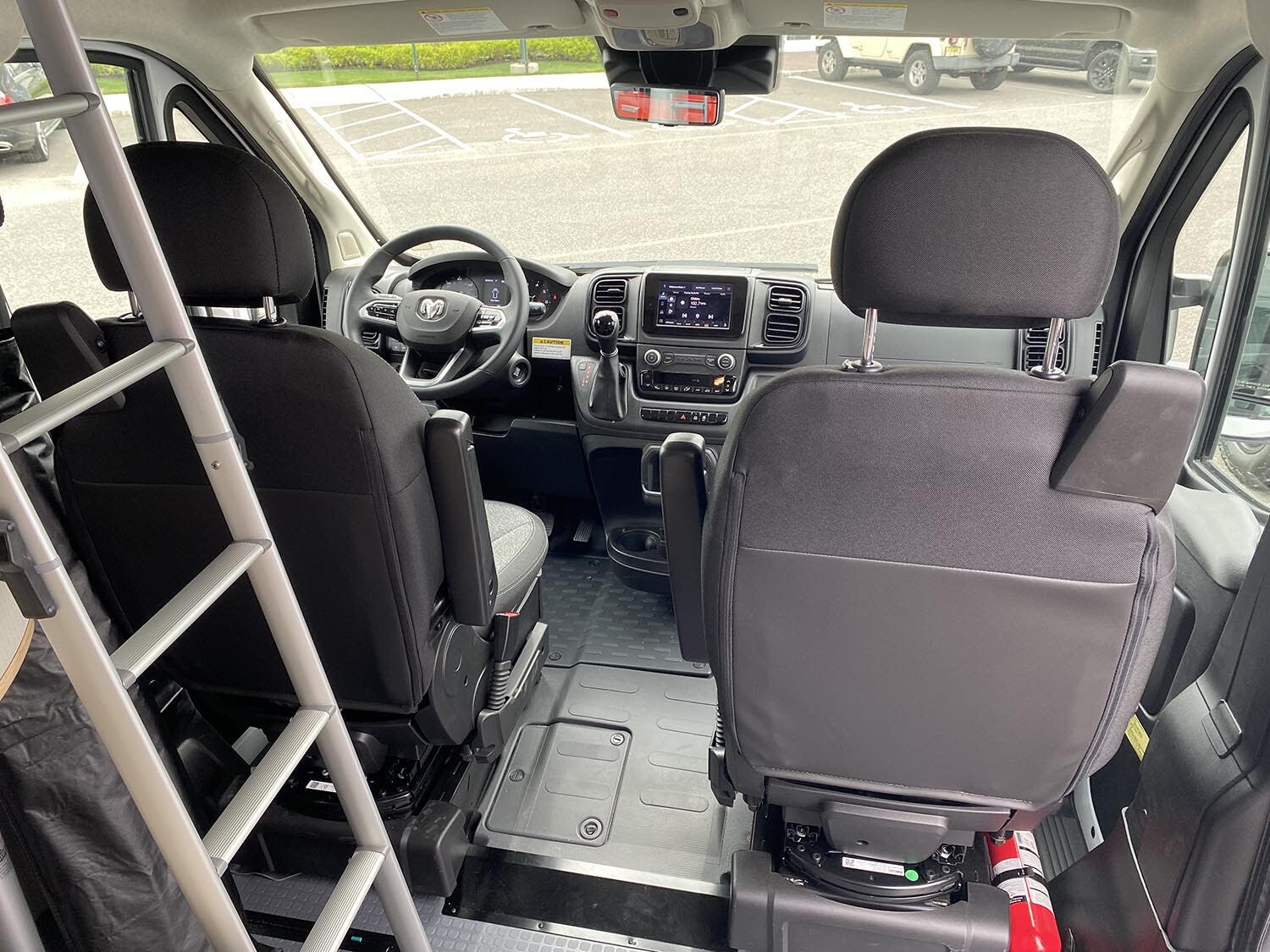

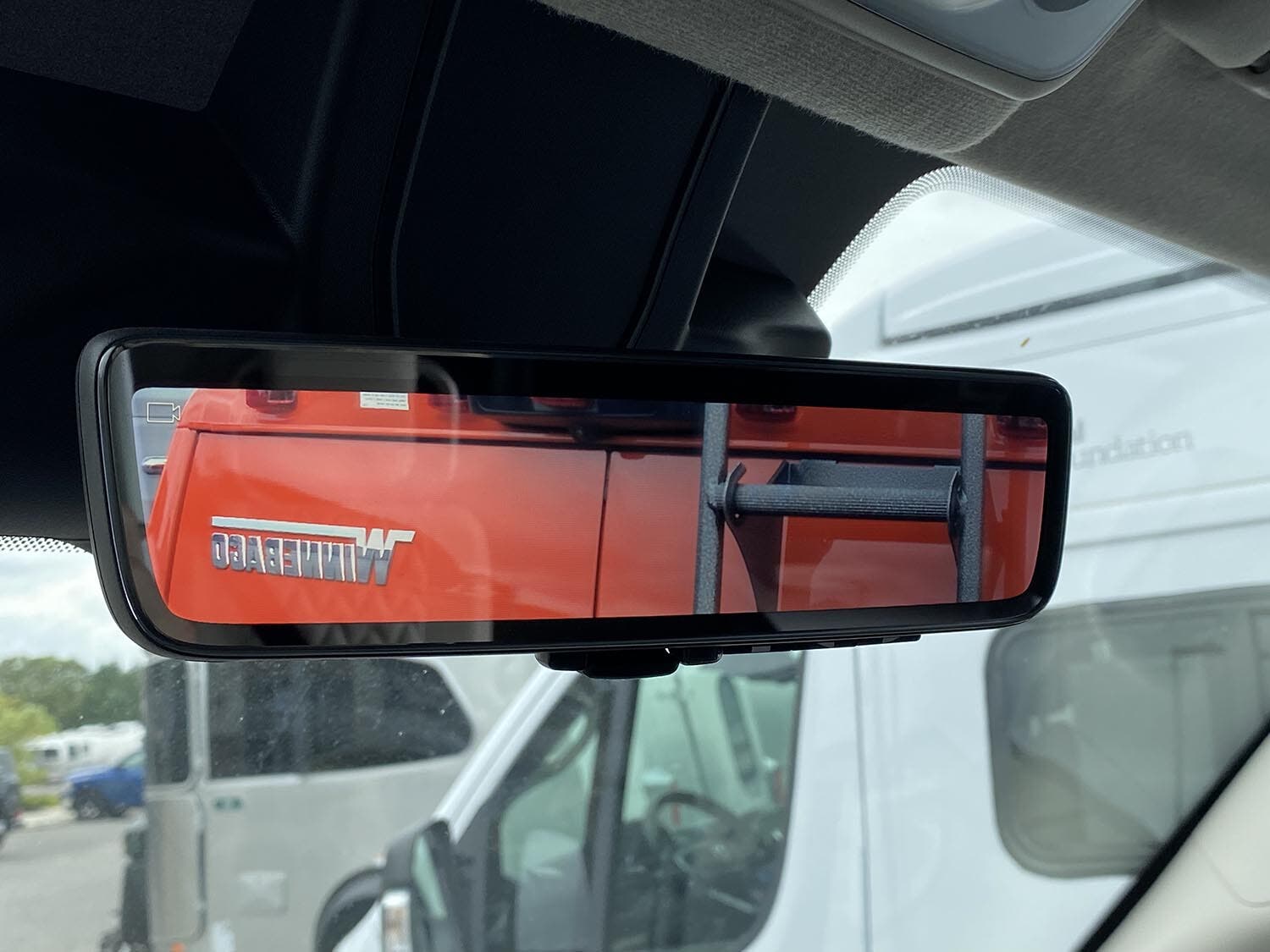

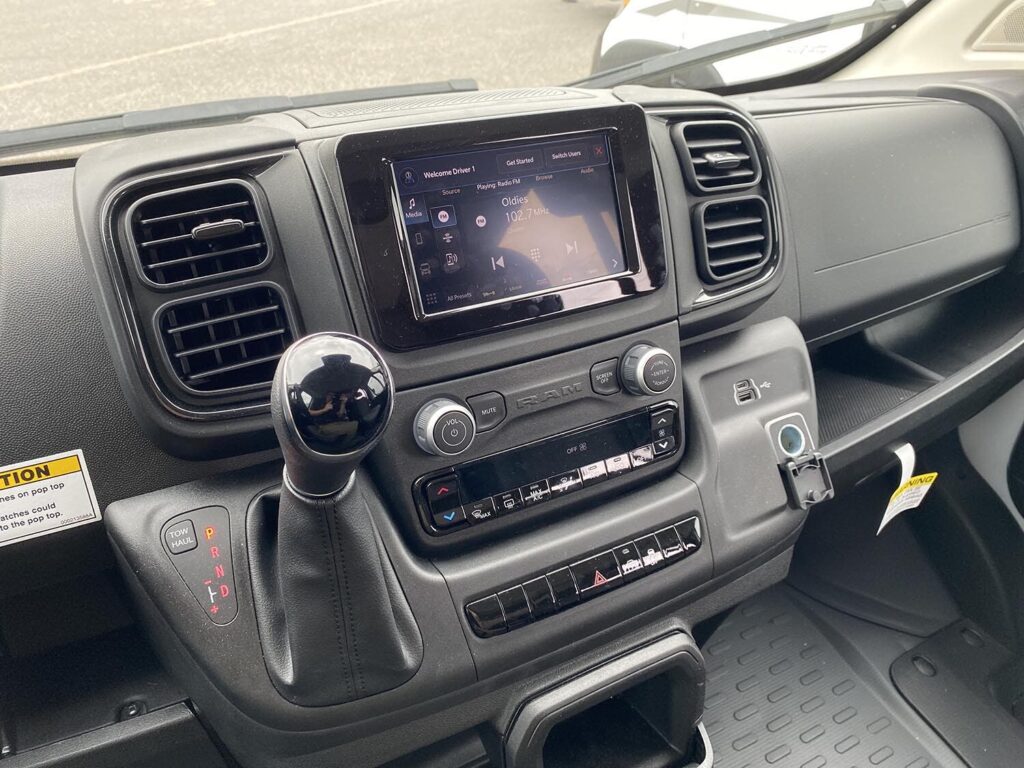

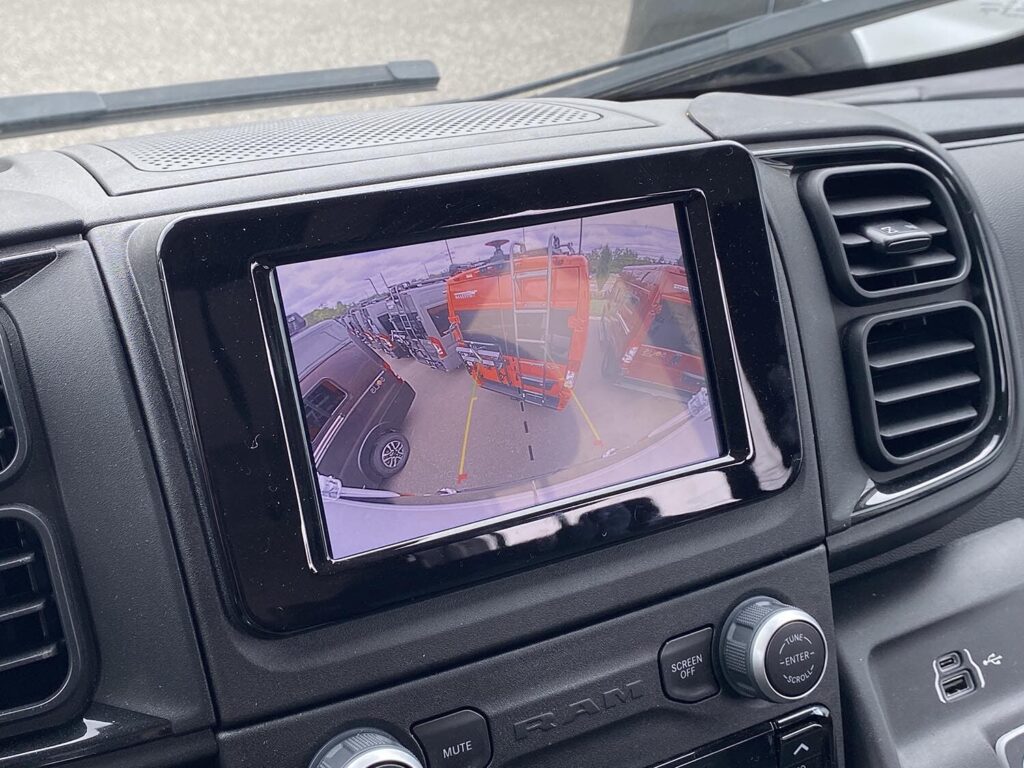

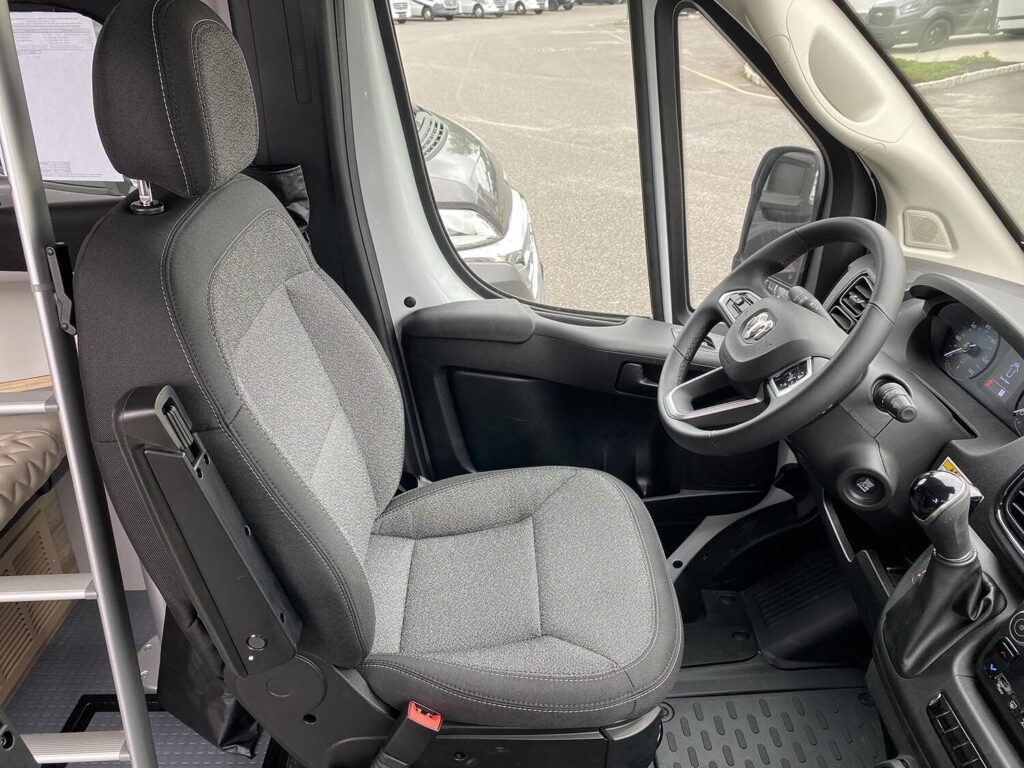

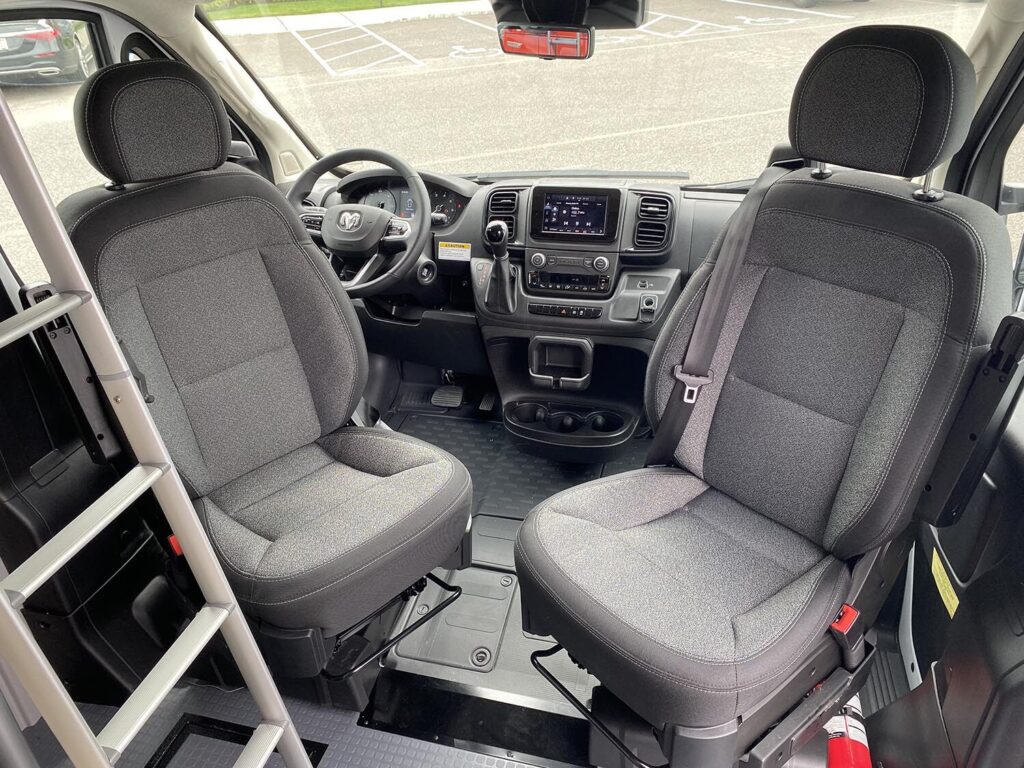

Radio/rearview monitor system touchscreen, steering wheel controls, rear camera and USB ports • Cab seats adjustable headrest, slide/swivel/recline • Airbags driver and passenger • Cruise control • Digital rearview mirror • Crosswind assist • 3-point seat belts • Electric power steering • Power mirrors w/defrost and turn signal (59PX) • Manual adjust mirrors w/turn signal (59P) • Power door locks w/remote • Power windows • 12-volt powerpoints • Sunvisors • Front and cab window privacy panels • Full-speed forward collision warning plus • Pedestrian automatic emergency braking system • Post collision braking • Push button start

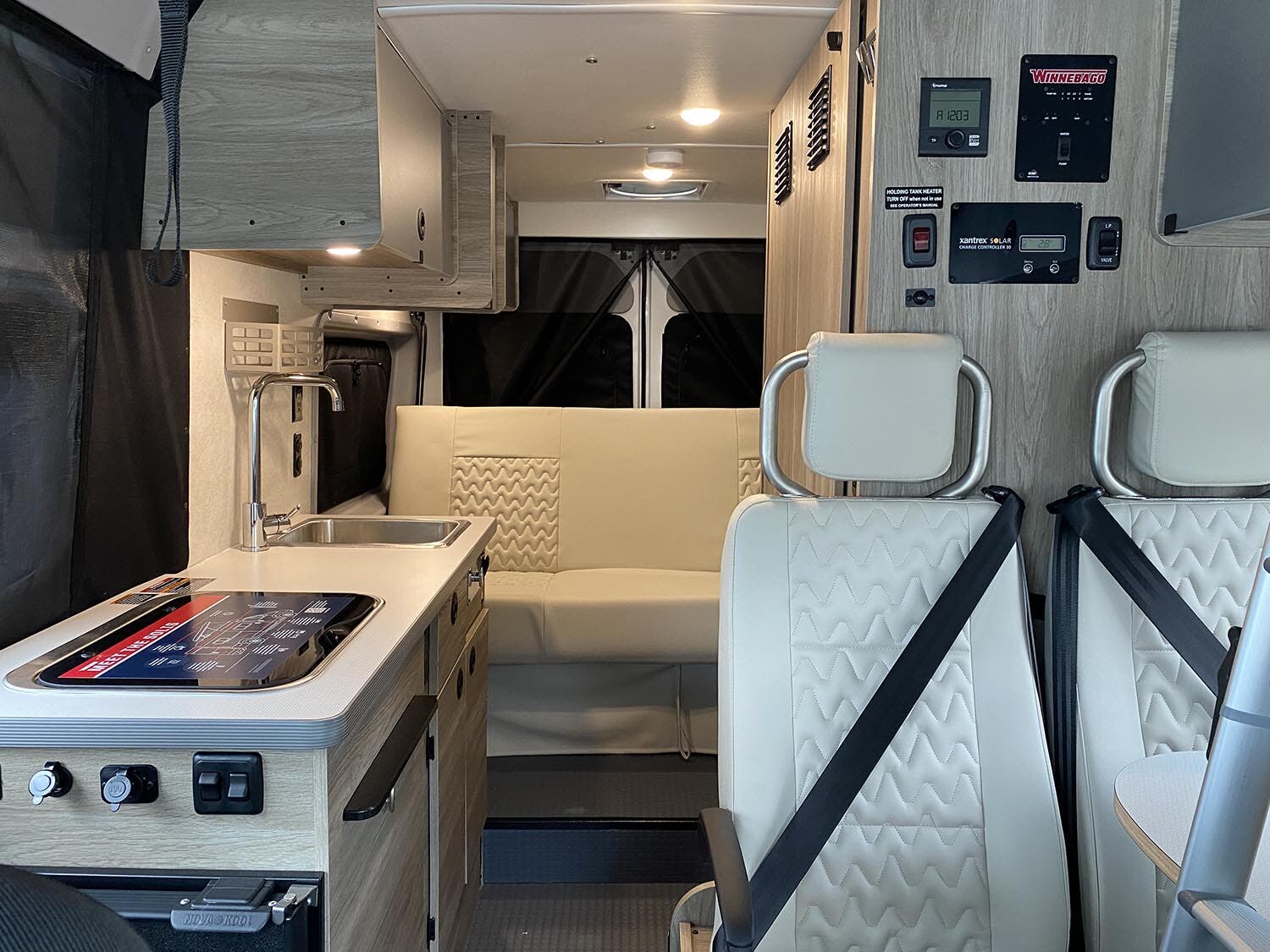

INTERIOR

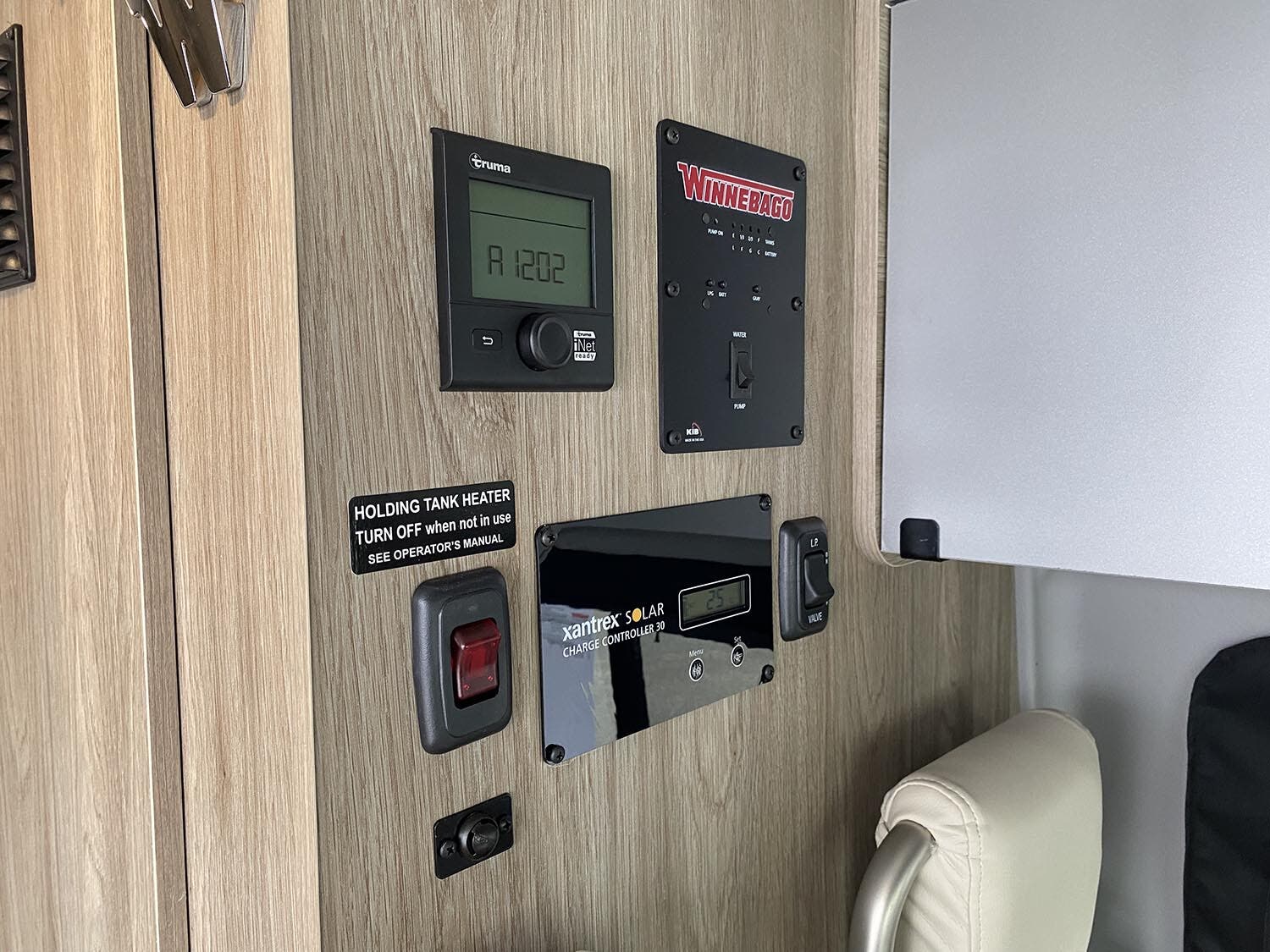

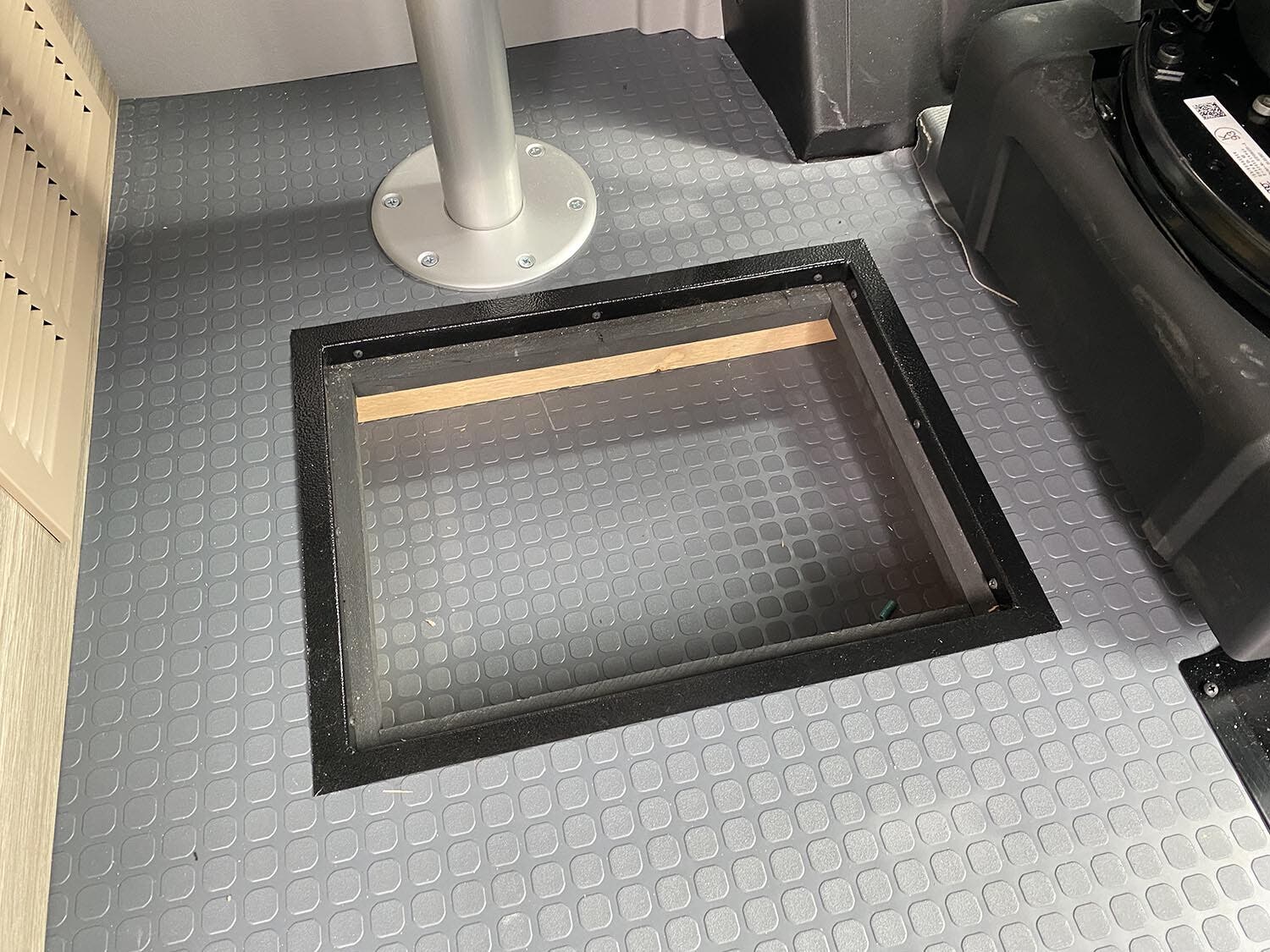

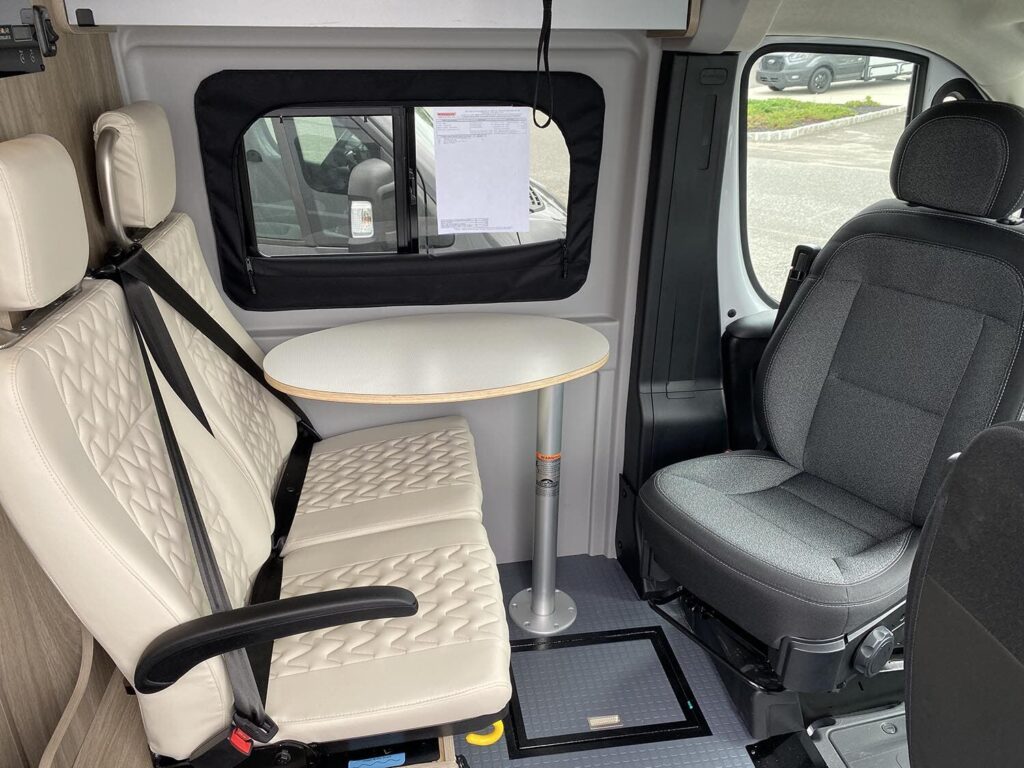

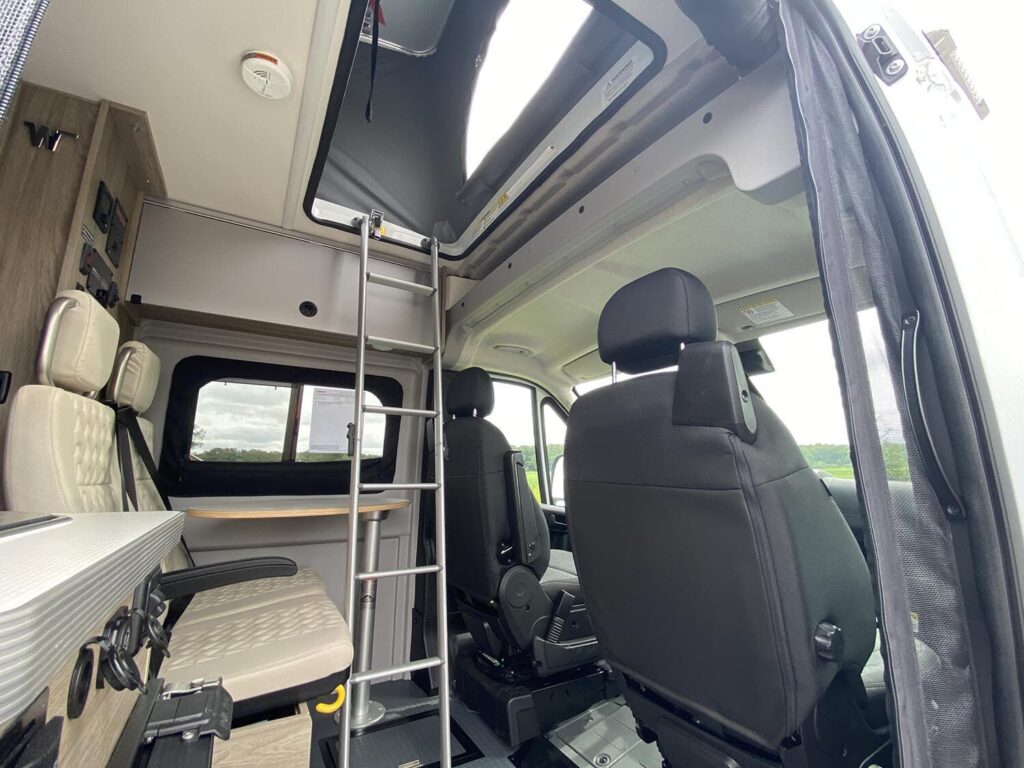

LED ceiling lights • Tinted coach windows • Systems monitor panel • Roof vent (Pop-top sleeping area) • Deluxe powered ventilator fan (59PX without pop-top) • Removable pedestal table • Below floor storage (lounge) • Reading lights • Roof wiring access port • Dinette seating w/3-point seat belts • USB charging ports • Zipped window coverings • Heavy duty vinyl flooring throughout • Ladder • Gear space w/L-track cargo tie down system (59PX)
Optional Equipment: Front cab air mattress 30″ x 65″ w/support base, cordless pump, repair kit and storage bag
GALLEY

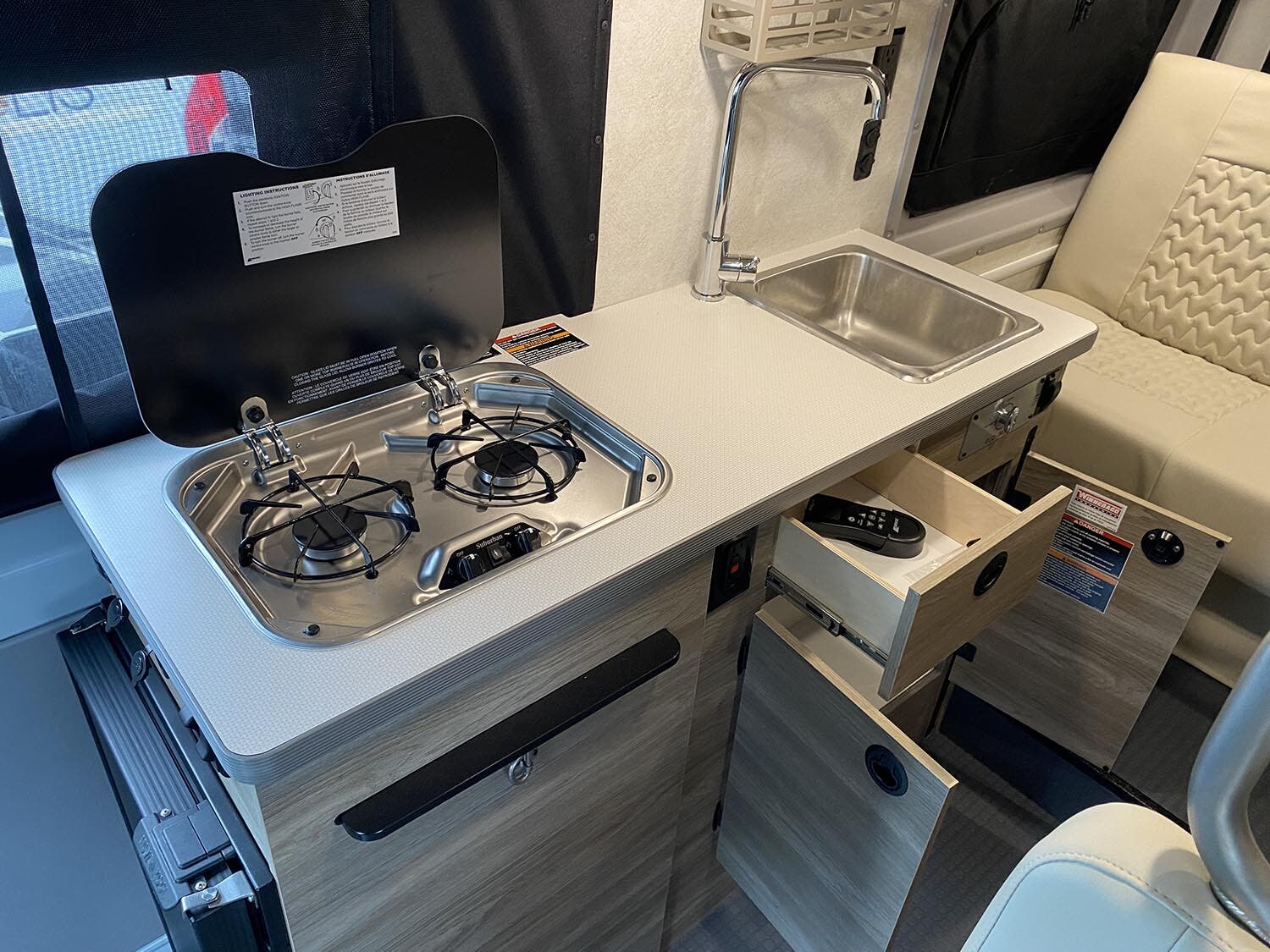

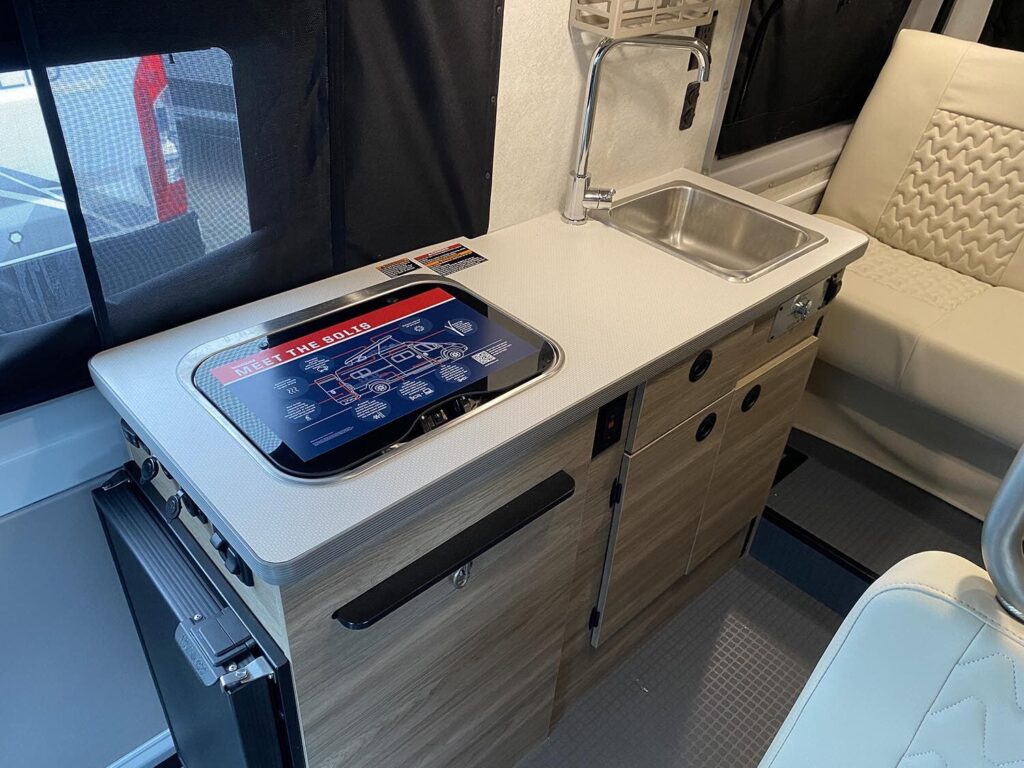

Laminate countertop • Pull-out countertop extension • 2-burner range top w/glass cover • 3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer • Stainless steel sink • Spice rack
BATH

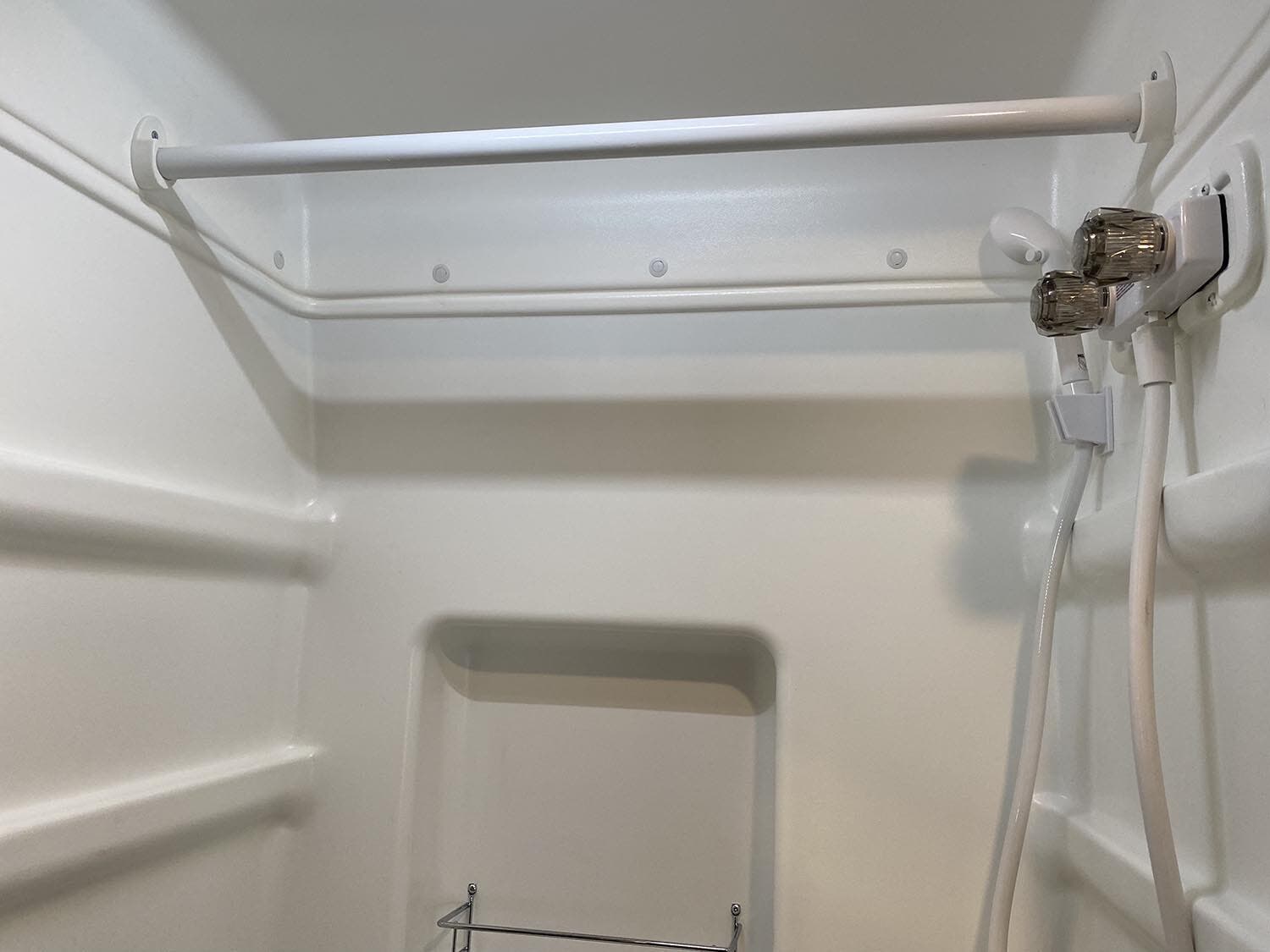

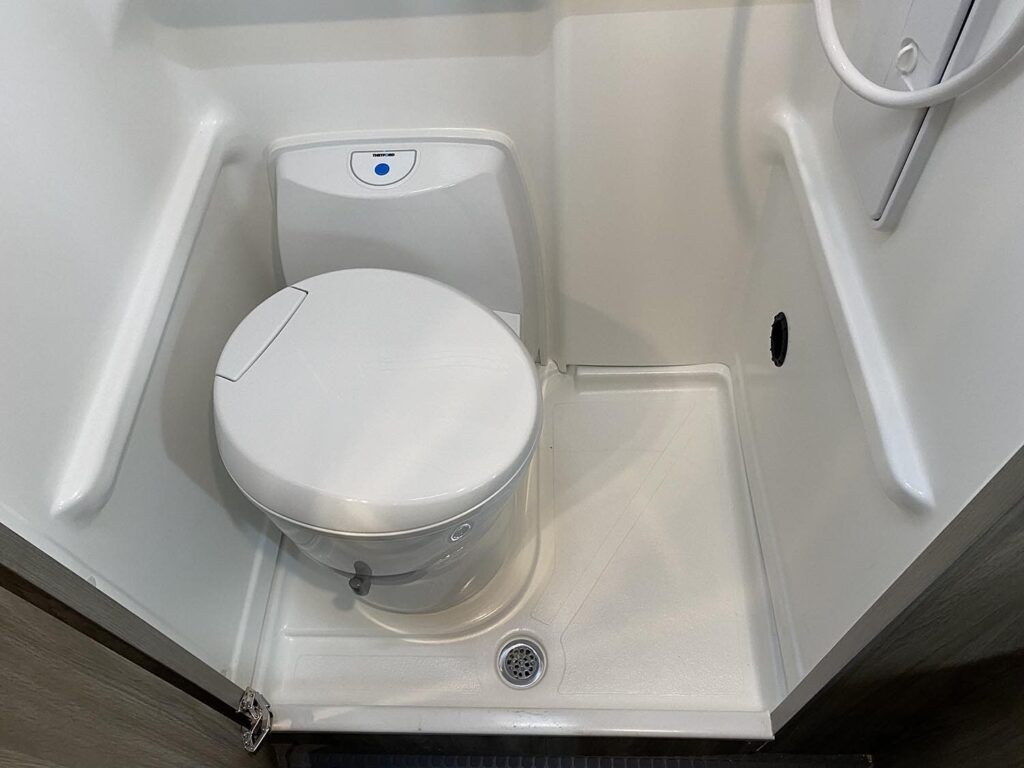

Flexible showerhead • Mirror • Removable clothes rod • Swiveling cassette toilet • Shower curtain • Shower w/wall surround • Tissue holder
BEDROOM
Murphy+ bed w/mattress cover and access to below floor storage • Slat bed system • Deluxe powered ventilator fan • Movable table (59P, 59PX) (Murphy+ bed option only, NA w/National Park Foundation Package)

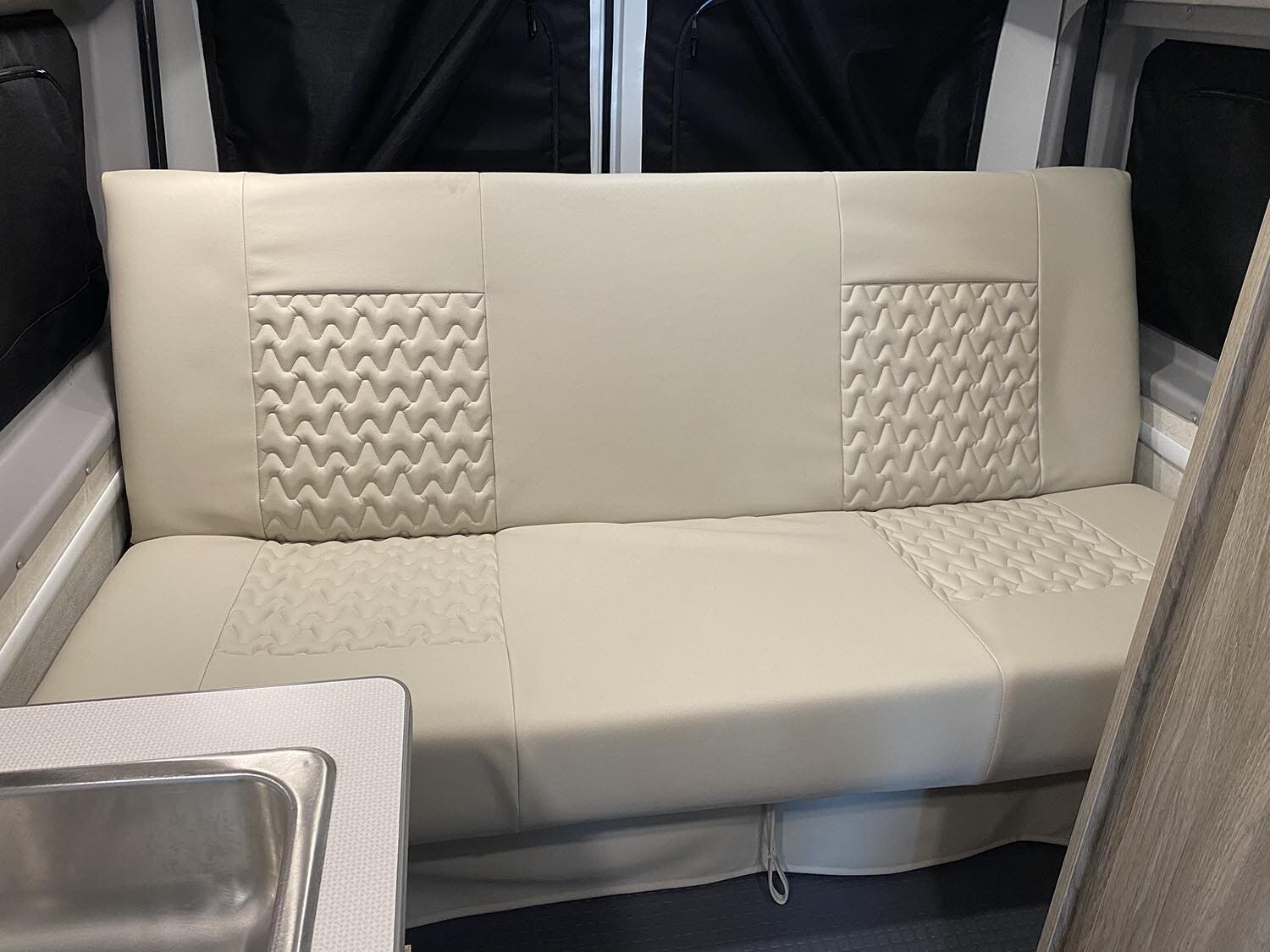

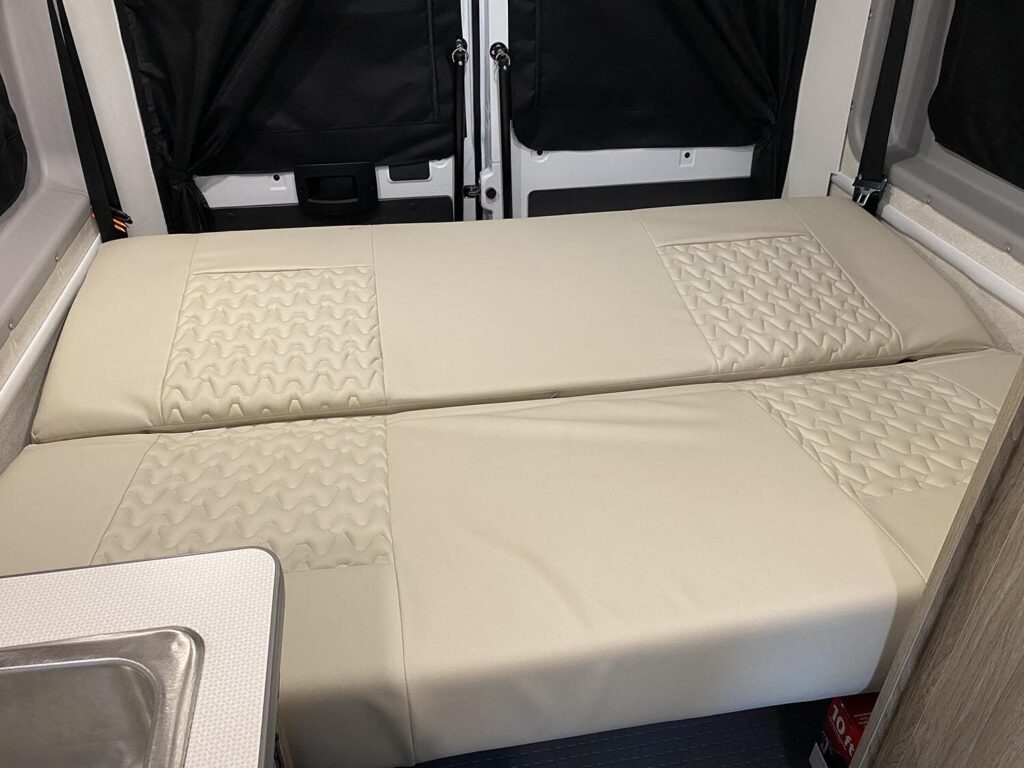

Optional Equipment: Sofa/bed w/two 3-point seat belts (59P, NA w/National Park Foundation Package)
EXTERIOR

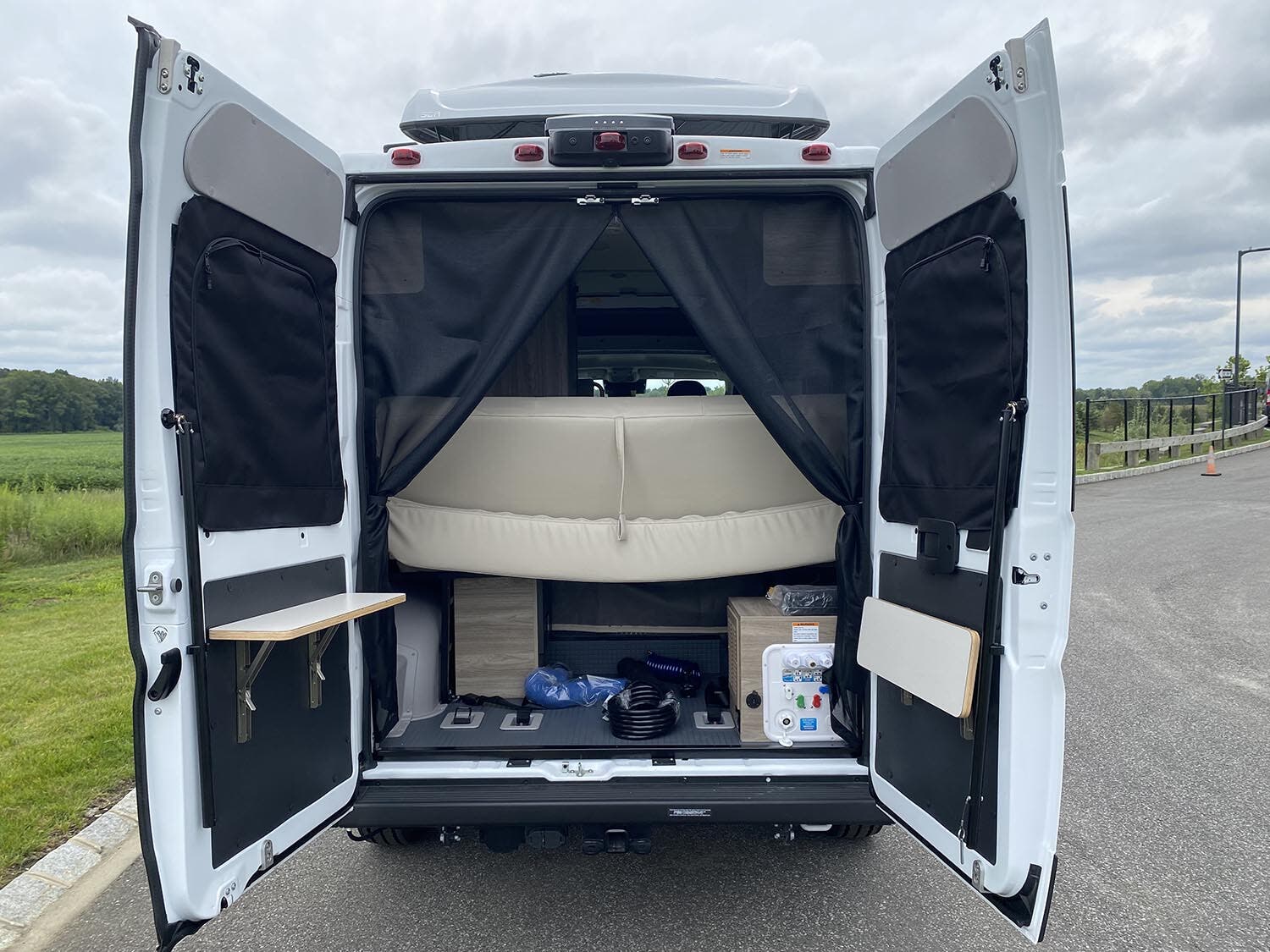

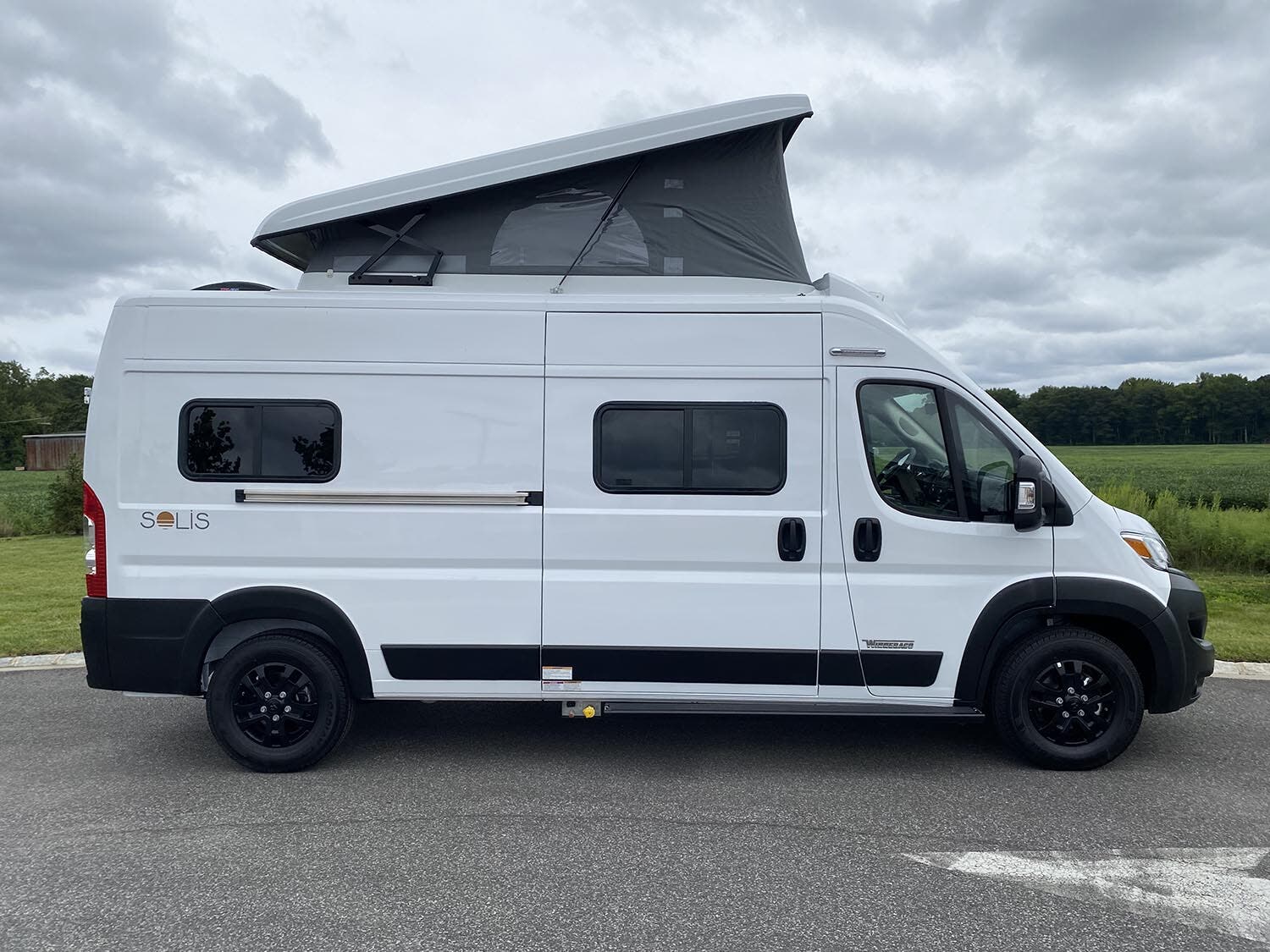

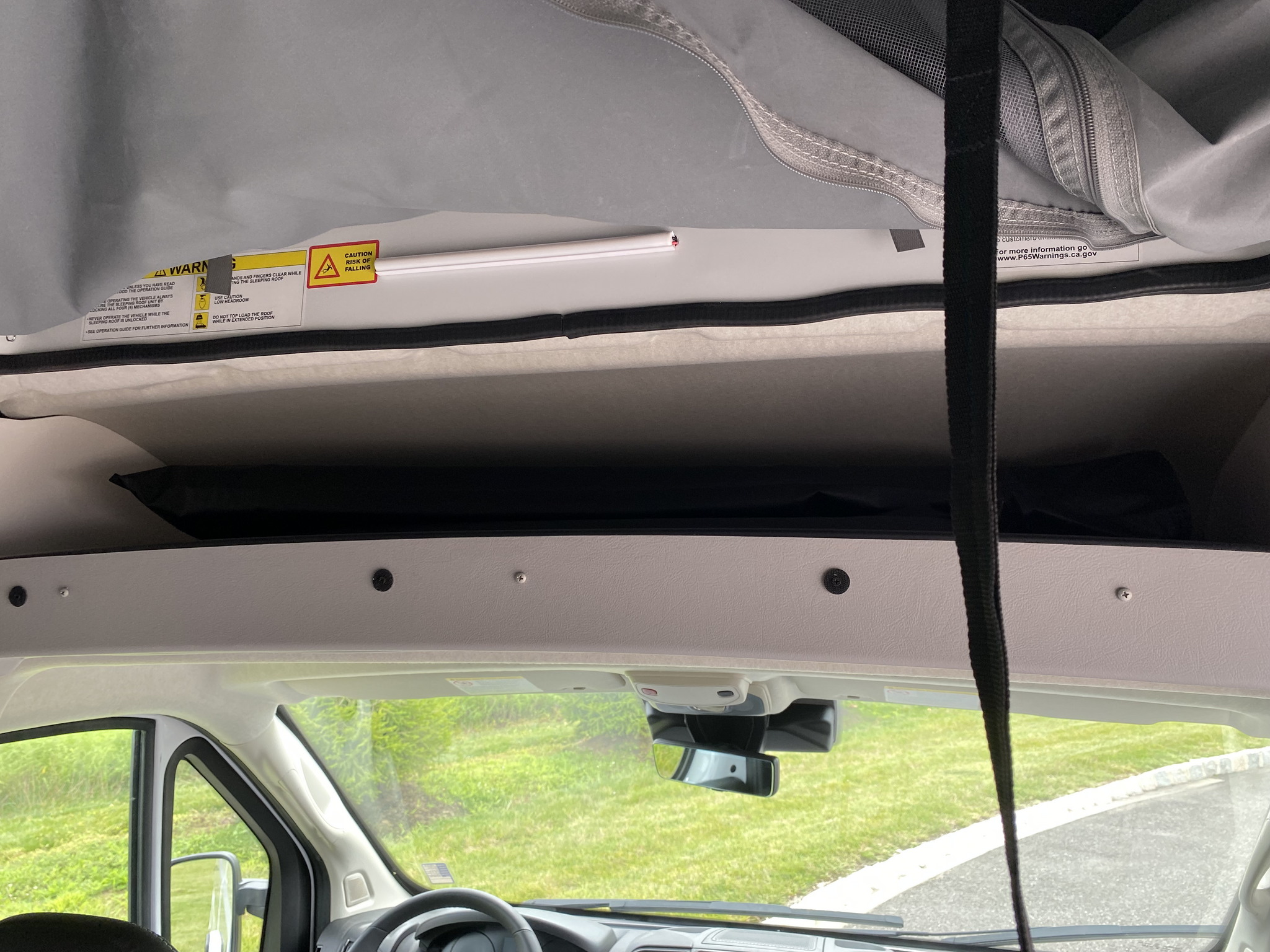

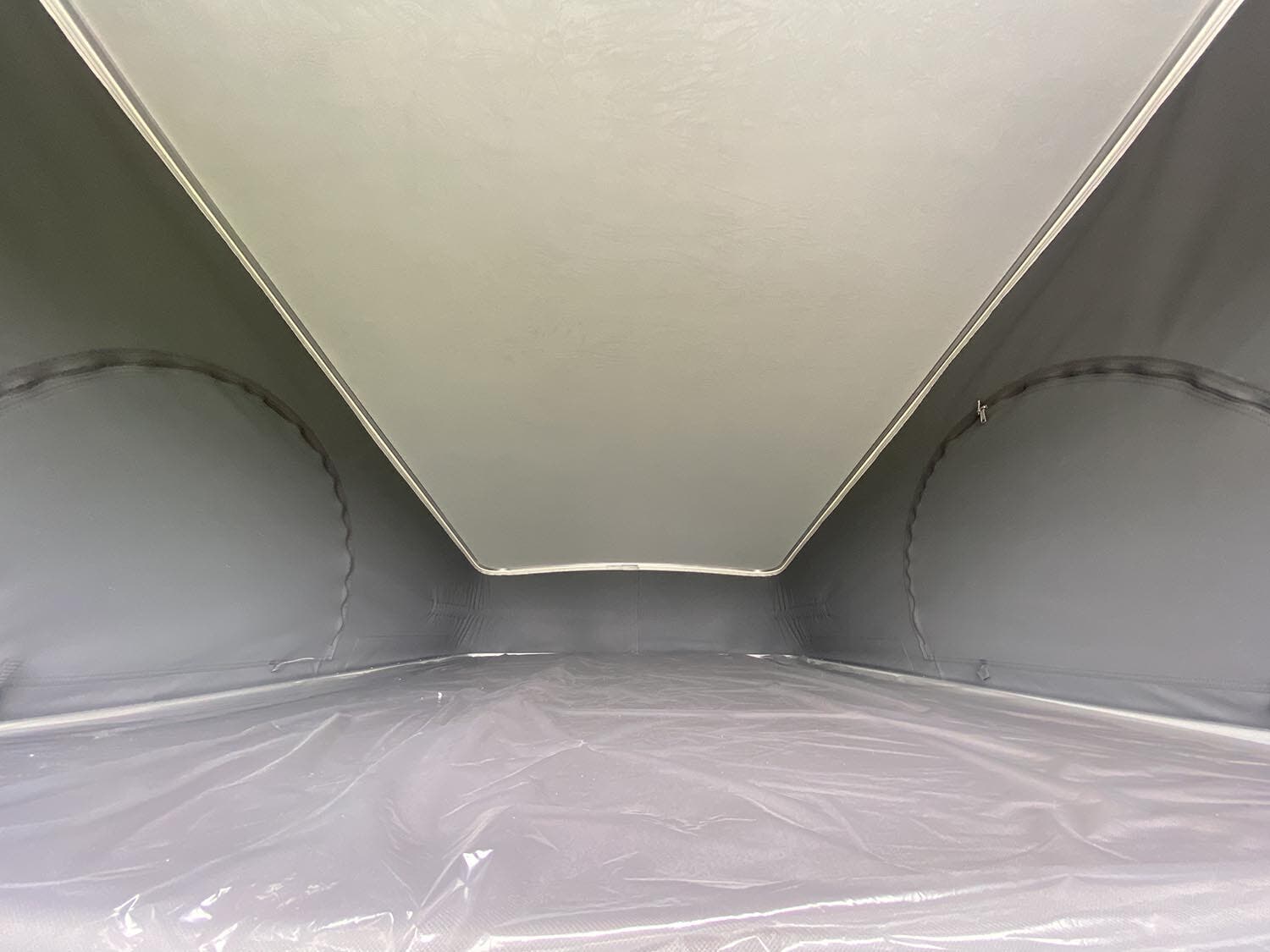

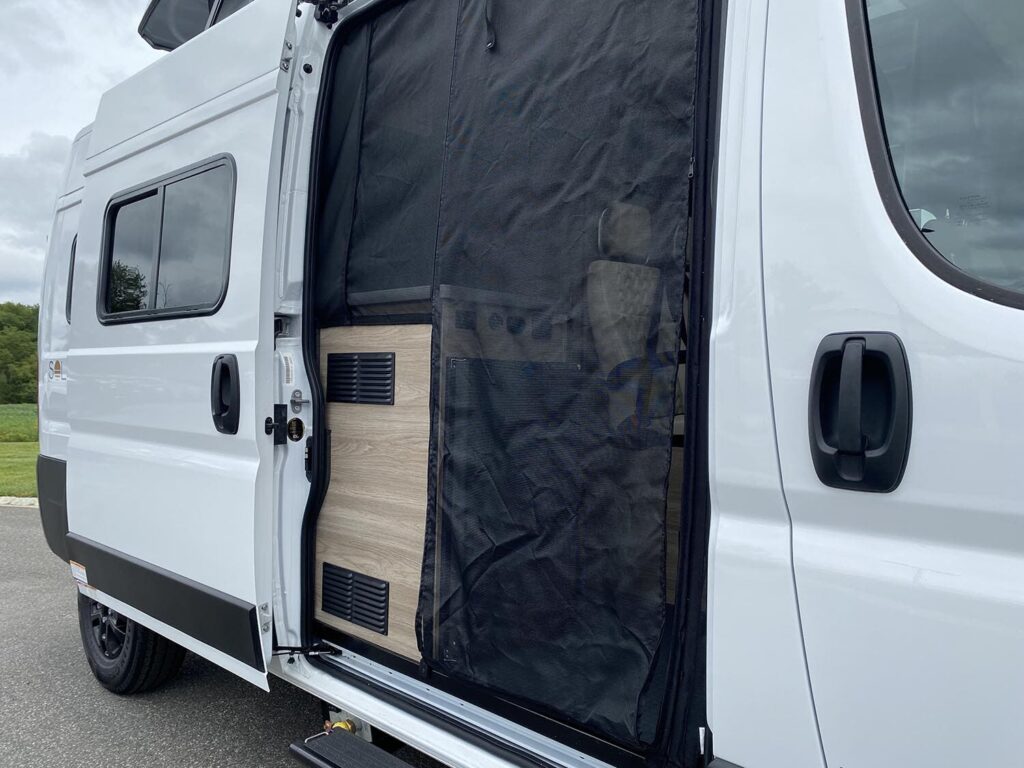

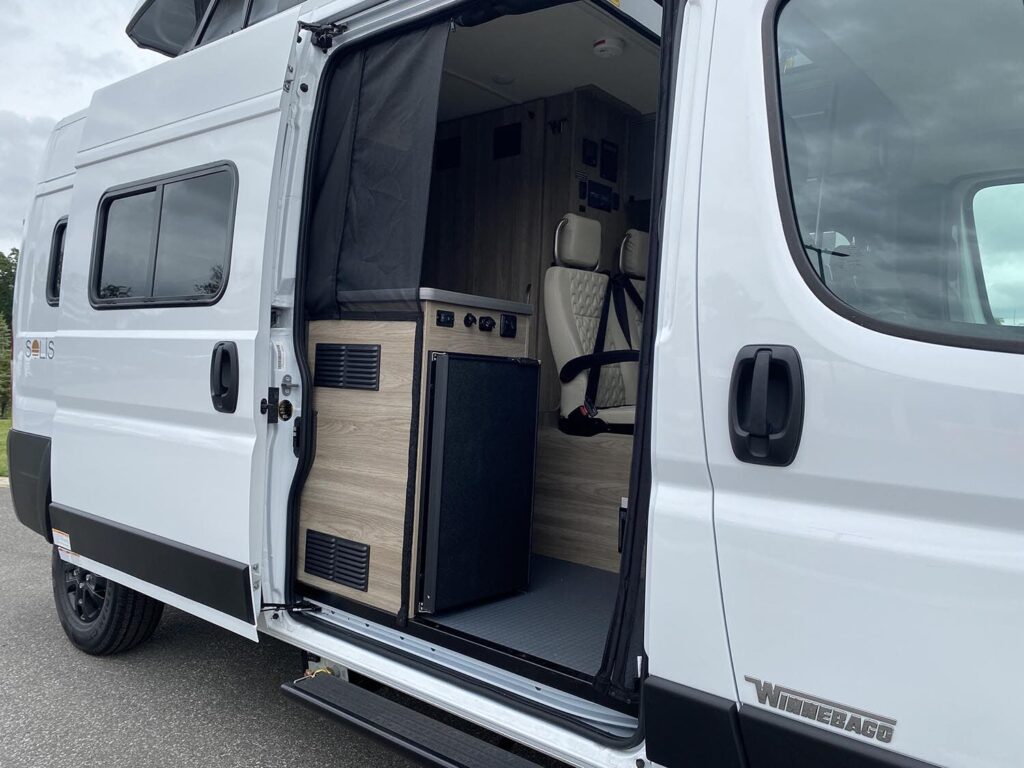

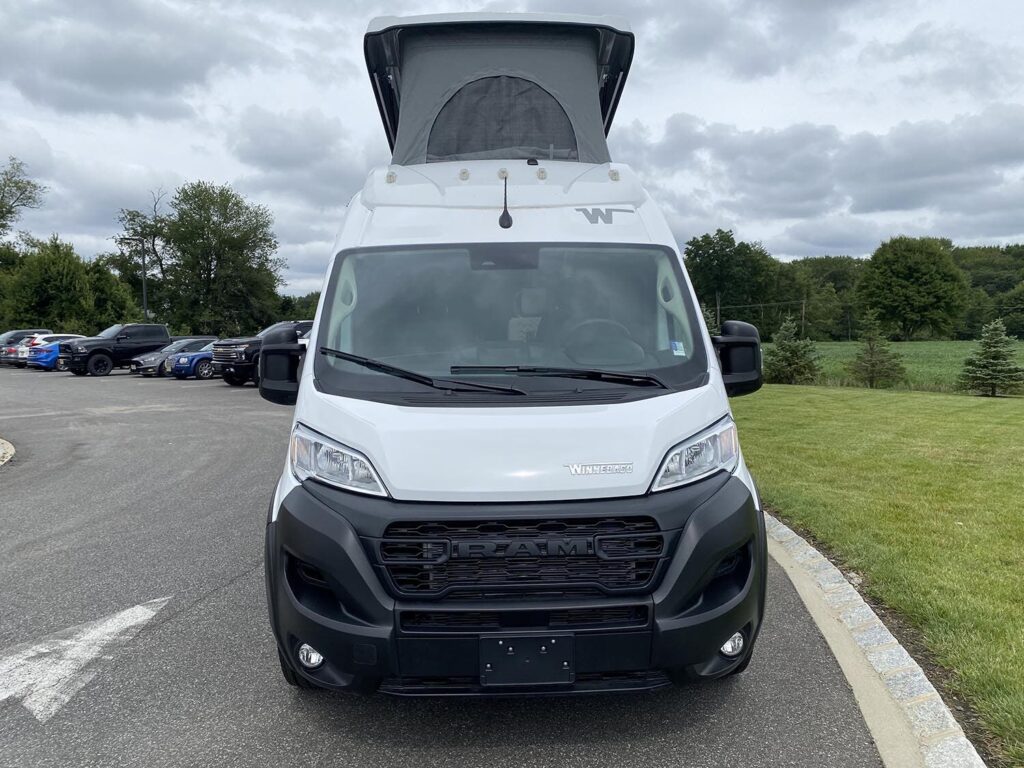

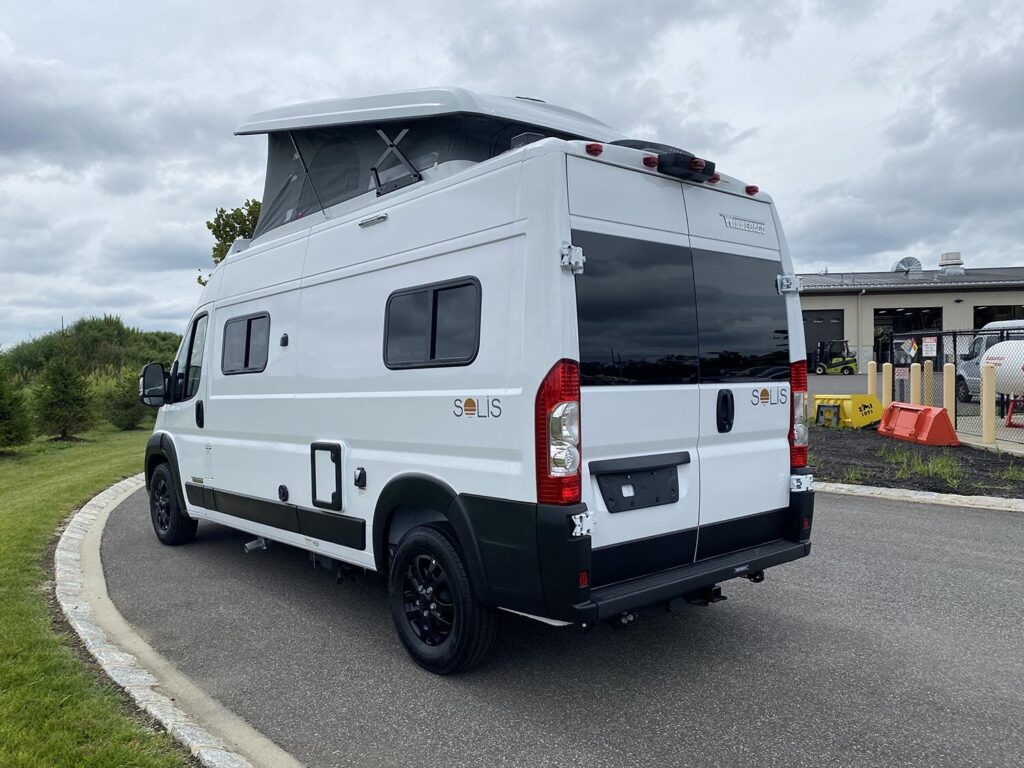

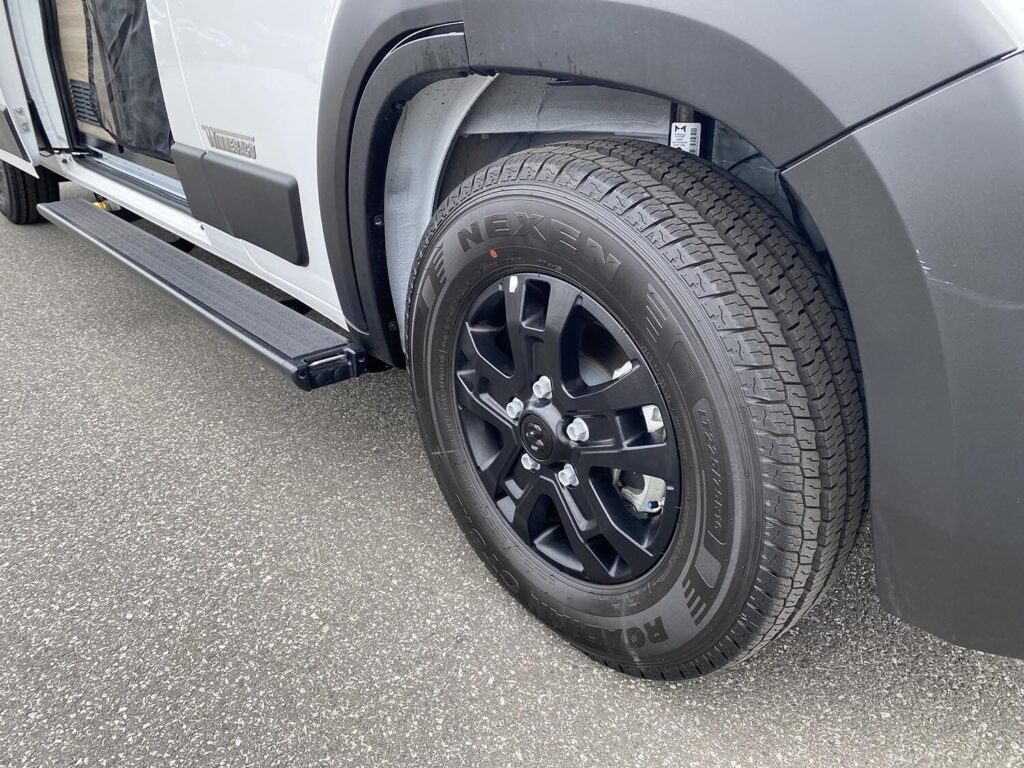

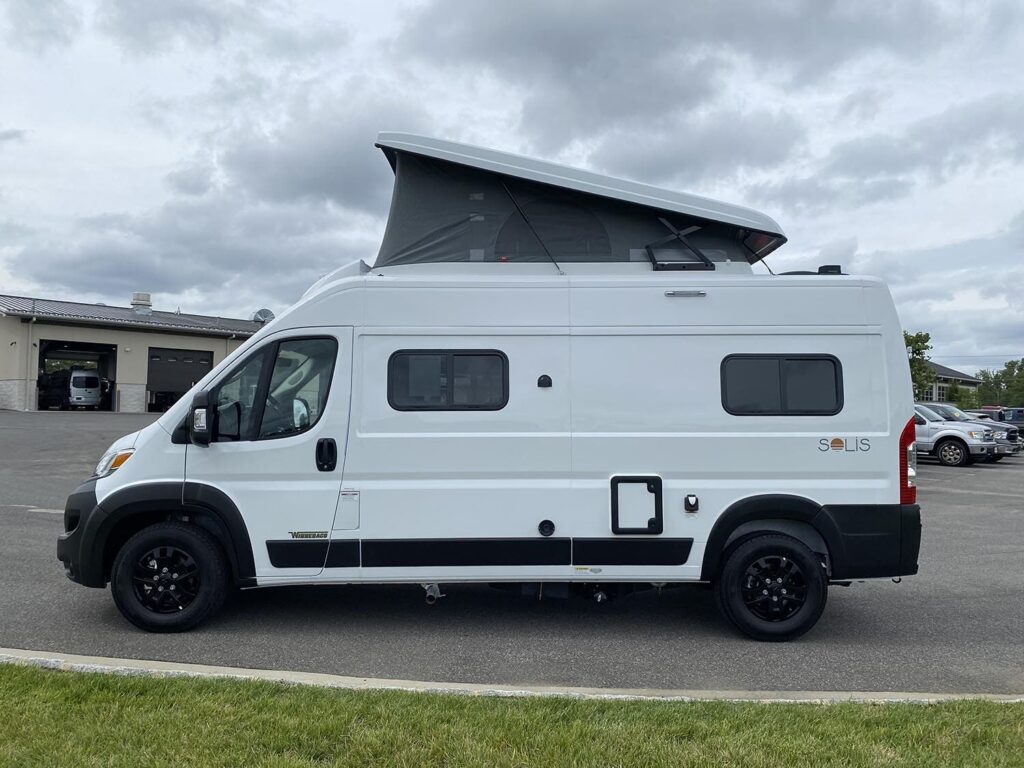

Pop-top sleeping area w/FROLI® sleep system • Porch light w/interior switch (passenger side) • Driver side service light w/interior switch • Assist bar • Side screen door • Rear screen door • Aluminum running board w/logoed tread and pet loop attachment • Rod and privacy screen (provided for rear annex)
Optional Equipment: Option to remove: Pop-top sleeping area w/FROLI sleep system
HEATING & COOLING SYSTEM
Truma Combi® Eco Heating System • Coleman®-Mach® 10 NDQ air conditioner w/directional vents (59PX)
Optional Equipment: 13,500 BTU air conditioner (59P without pop-top)
ELECTRICAL SYSTEM

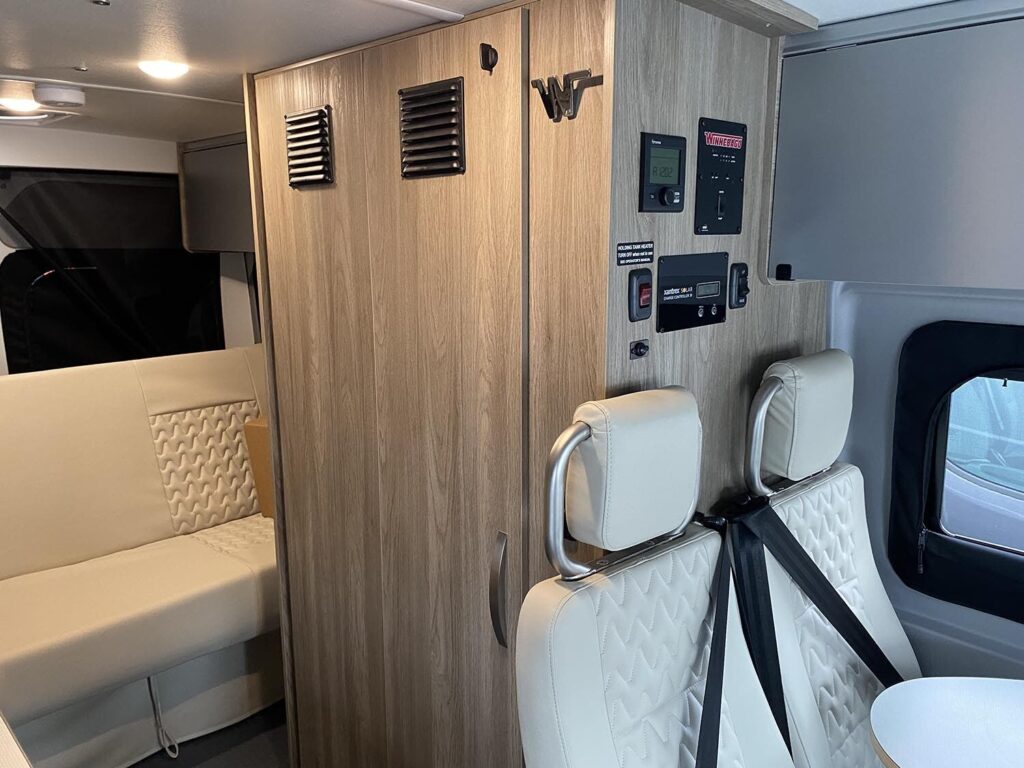

AC/DC load center, 55-amp. converter/charger • Auxiliary start circuit • 2 deep-cycle Group 31 batteries (AGM maintenance-free) • Cummins Onan® QG 2800i gas generator (59PX) • Coach battery disconnect system • Automatic dual-battery charge control • 30-amp. power cord • 220-watt flexible surface solar panel w/controller (w/pop-top) • 170-watt solar panel w/controller (without pop-top)
PLUMBING SYSTEM
Exterior wash station (located behind passenger seat) • 10′ sewer hose • On-demand water pump • Permanent-mount LP tank w/gauge • Fresh water sight glass • Heated drainage system • Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door) • Eco-Hot™ water system
SAFETY
LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Child seat tether anchor (only available w/sofa/bed option) • Fog lamps (59PX)
WARRANTY
12-month/24,000-mile basic warranty
