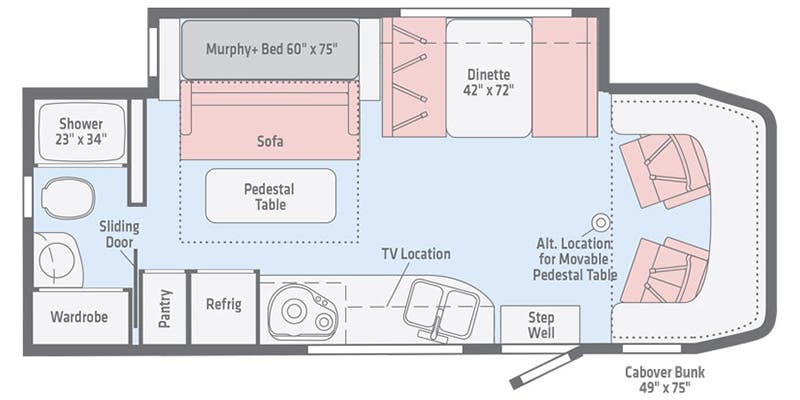

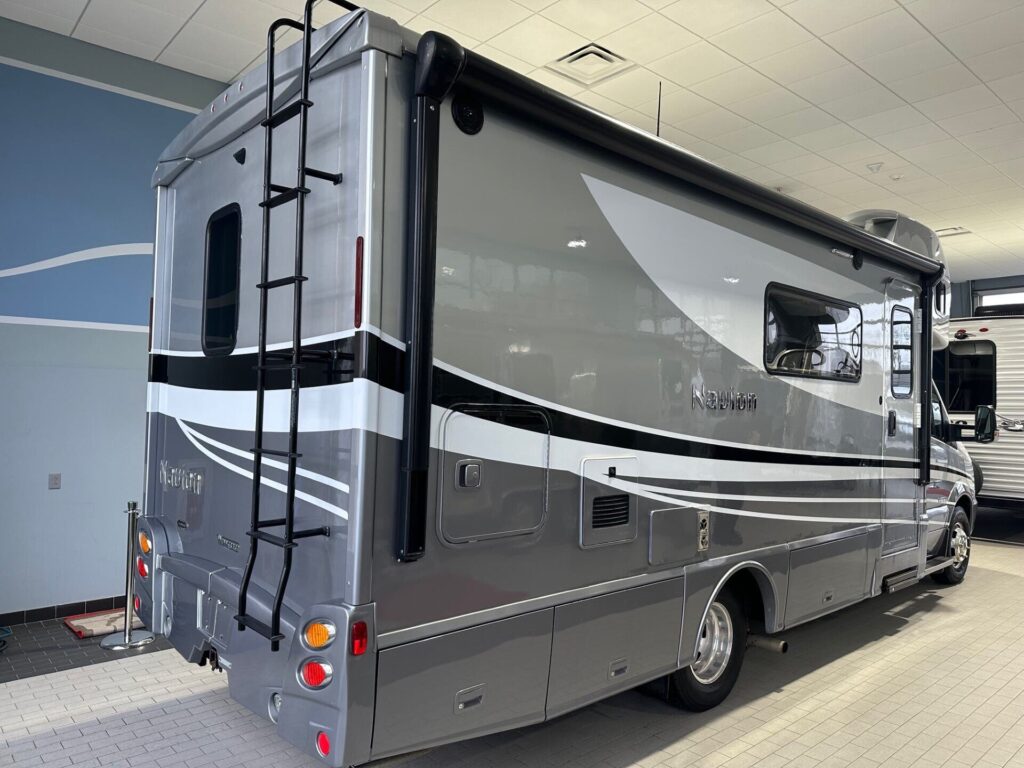

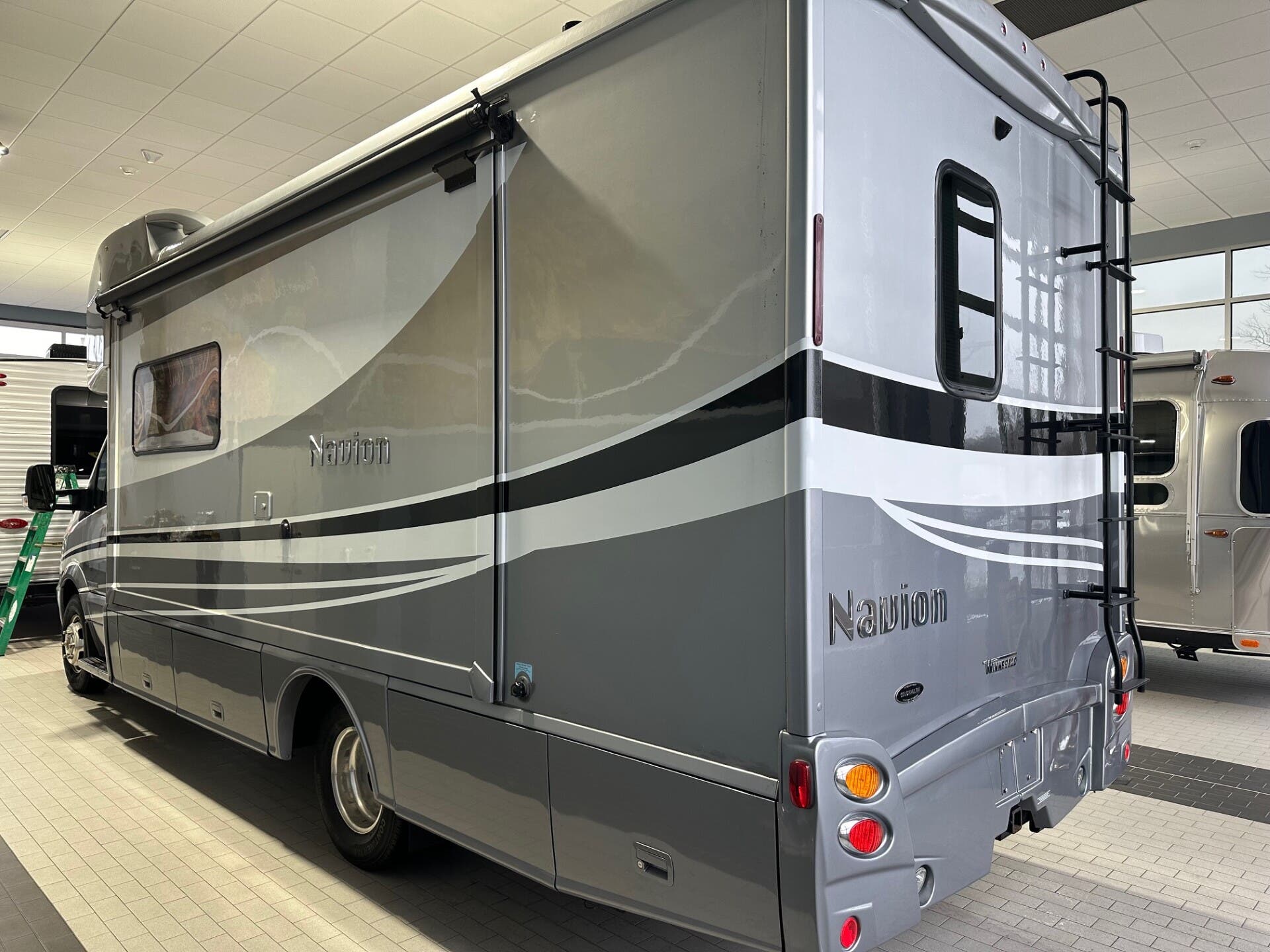

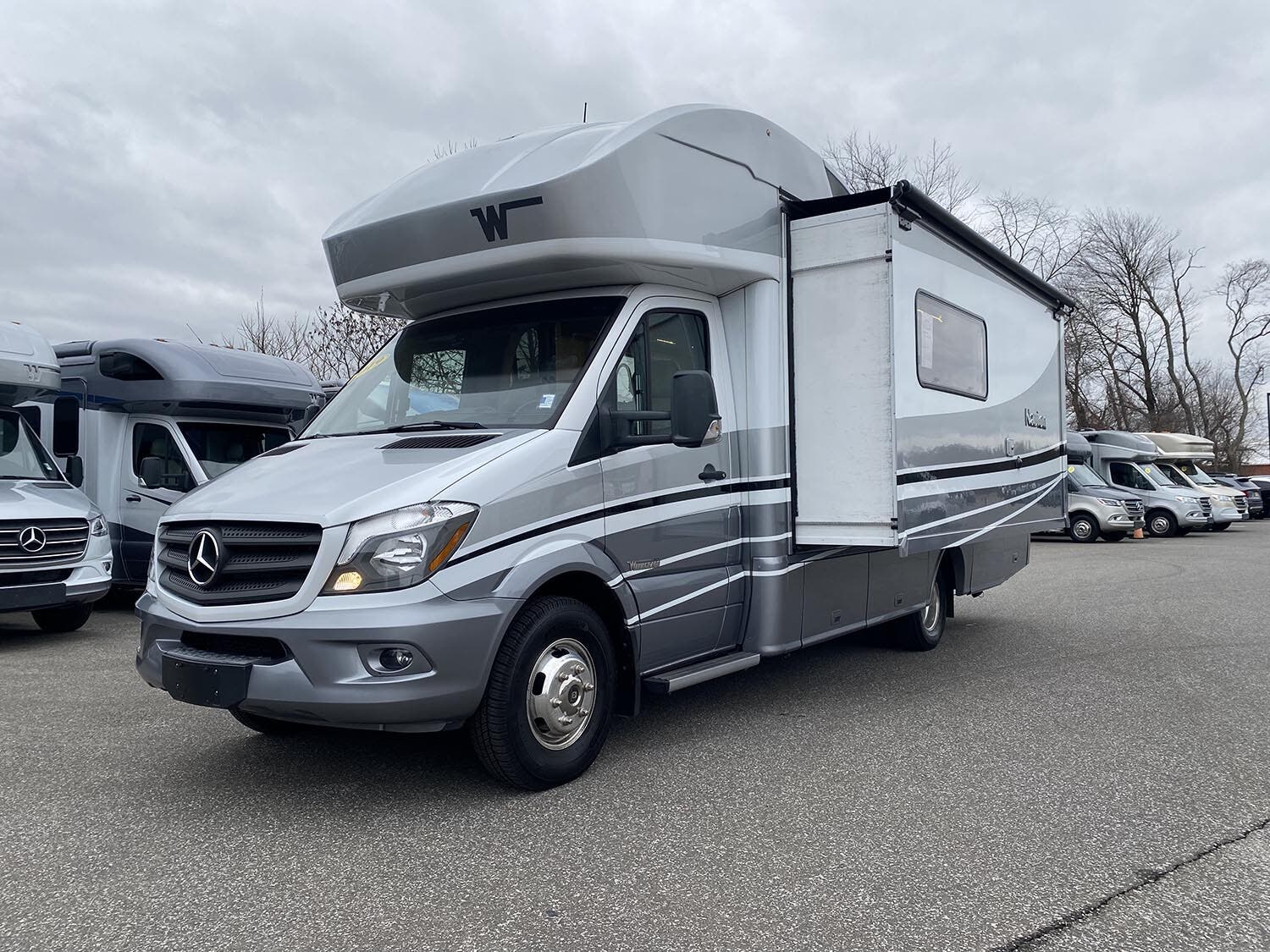

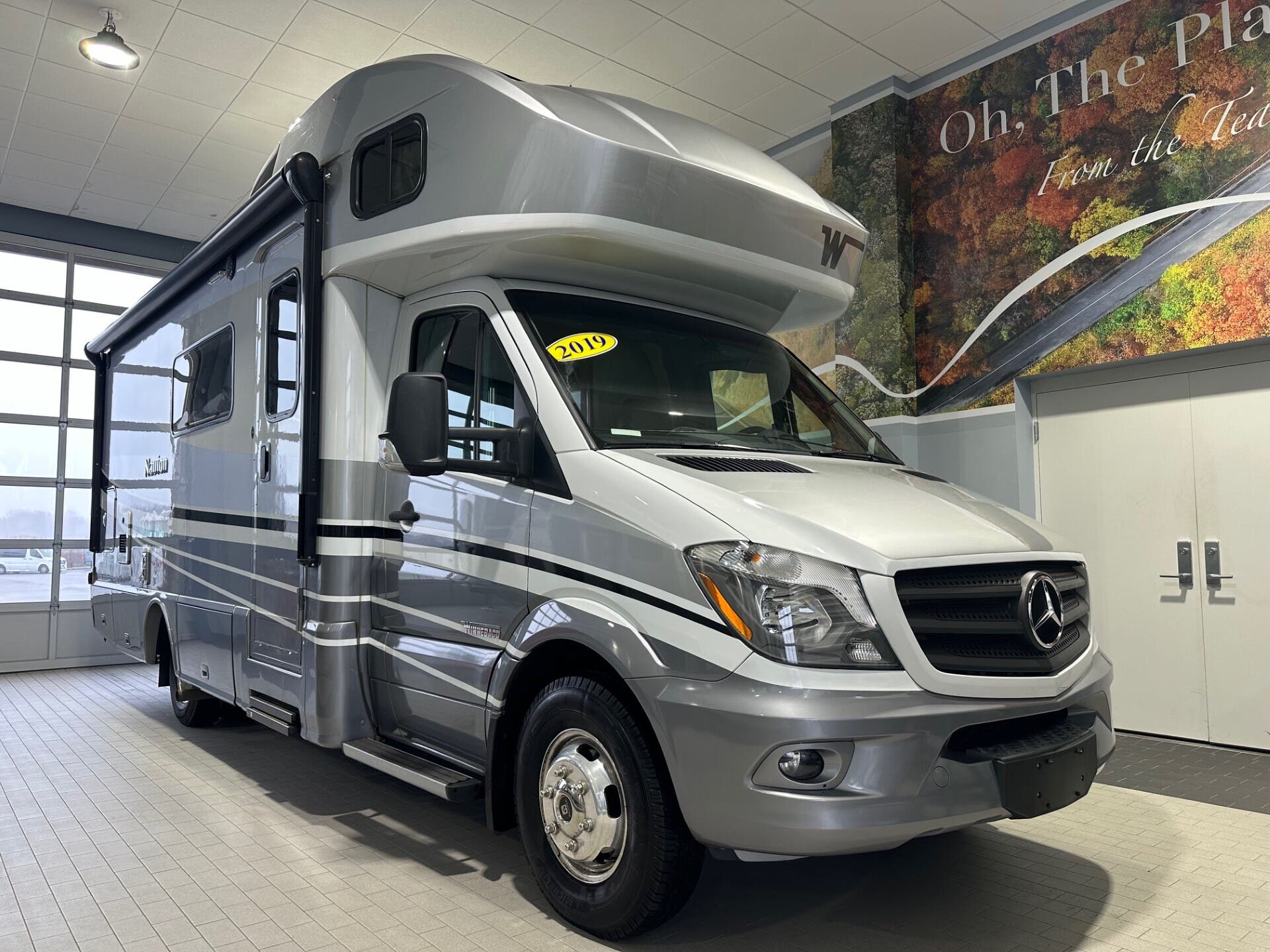

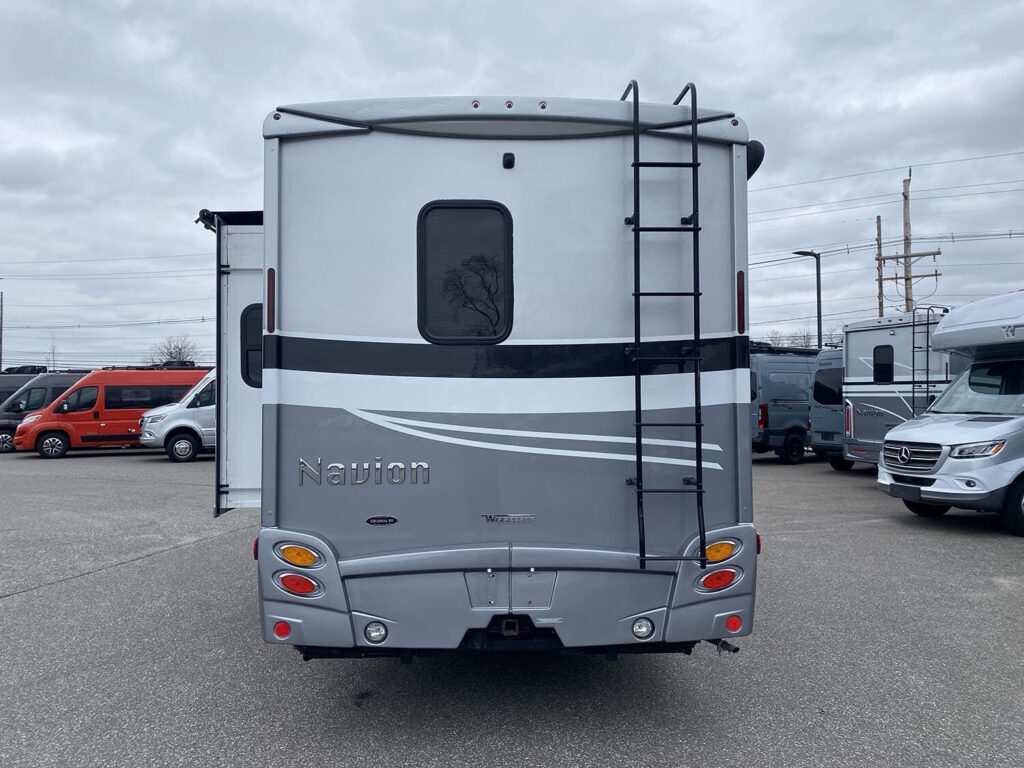

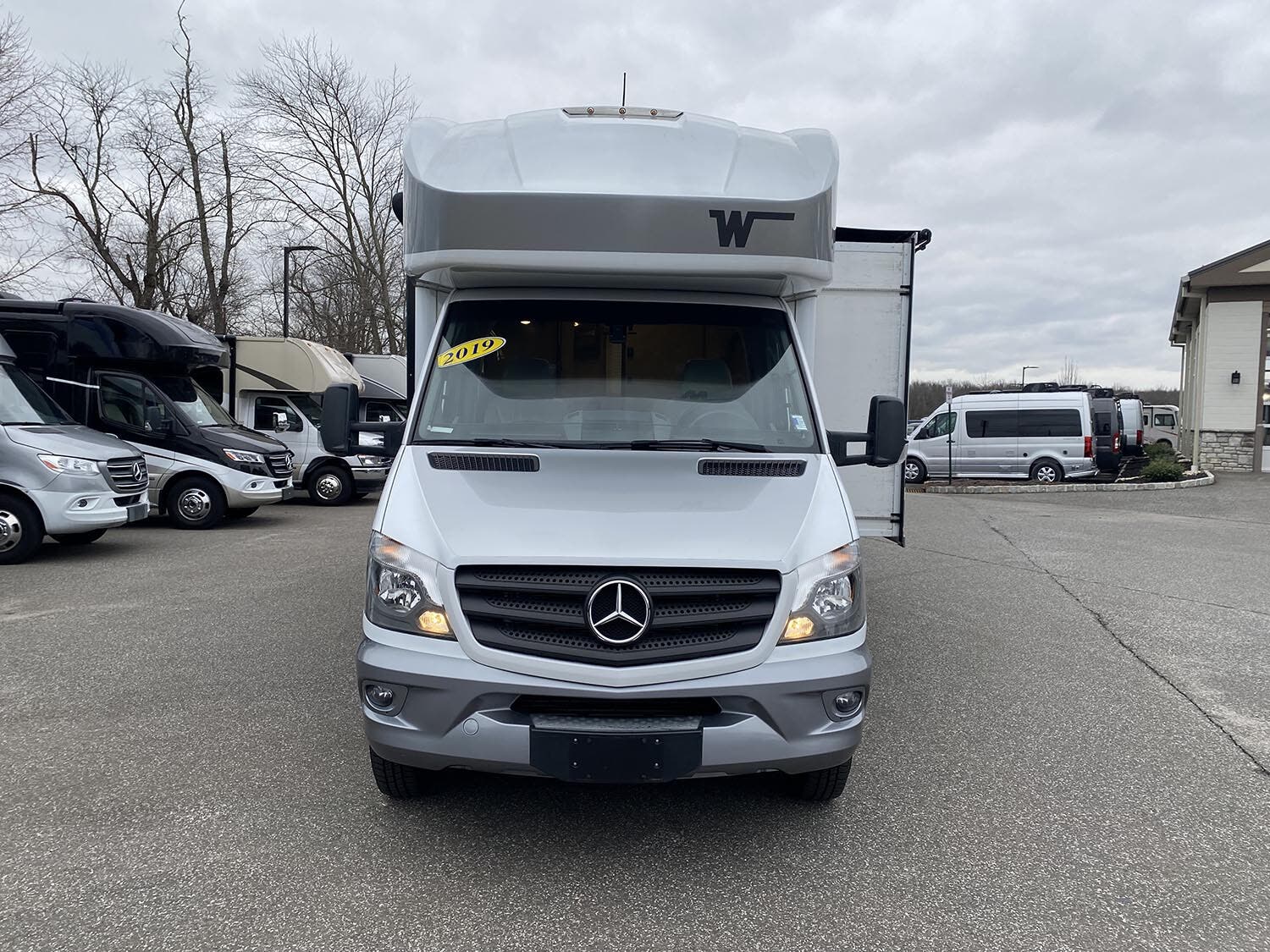

Floor Plans
OPTIONS INCLUDED:
J32: Zinc/Gray/HG Marbella Canvas
13Y: Dual Pane Coach Windows
153: LG Screen-Infotain GPS/ SirusXM
23T: Drainage System-Heated
28D: Window Blinds (3) CAB
29Z: A/C Heat Pump

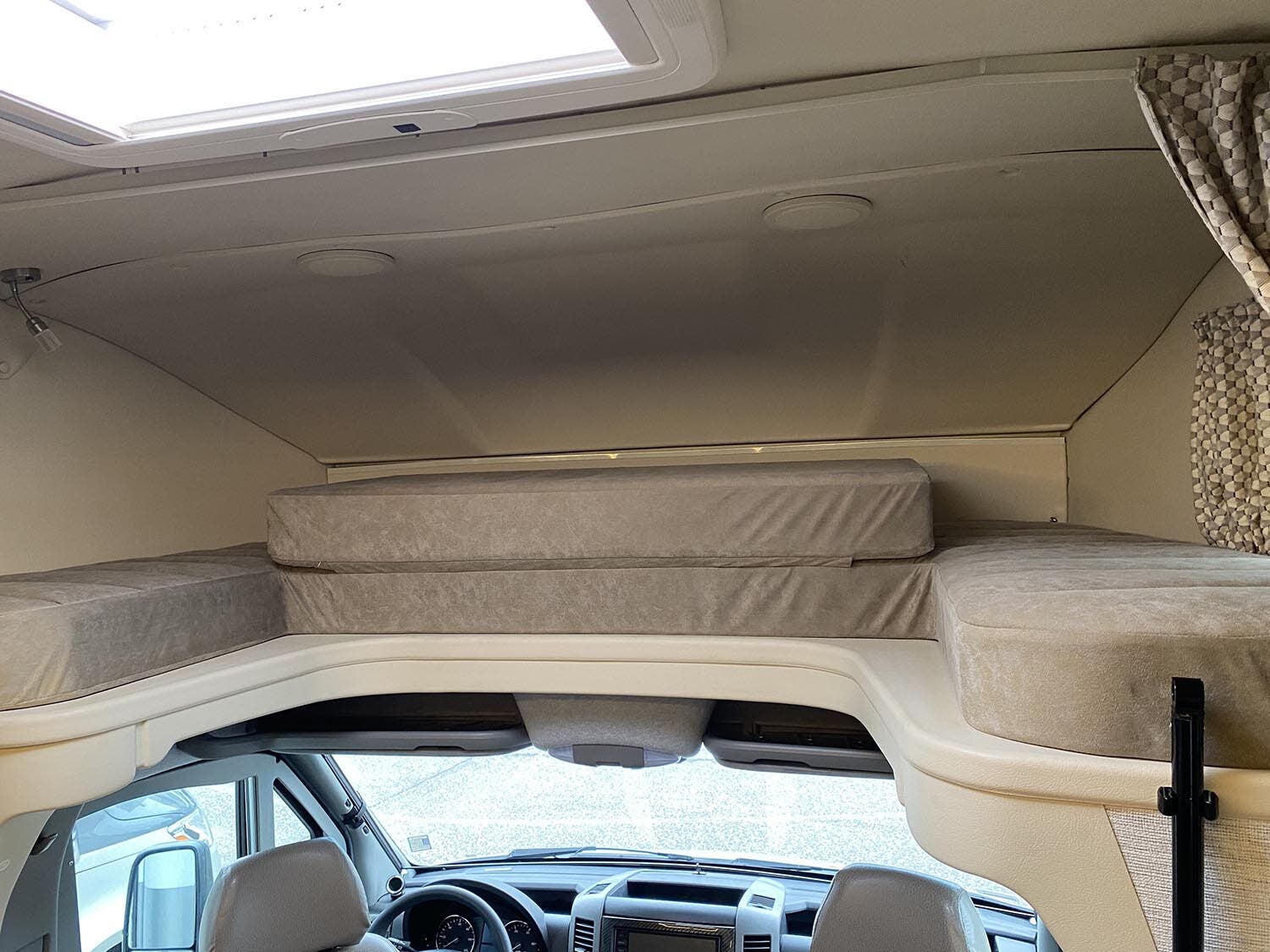

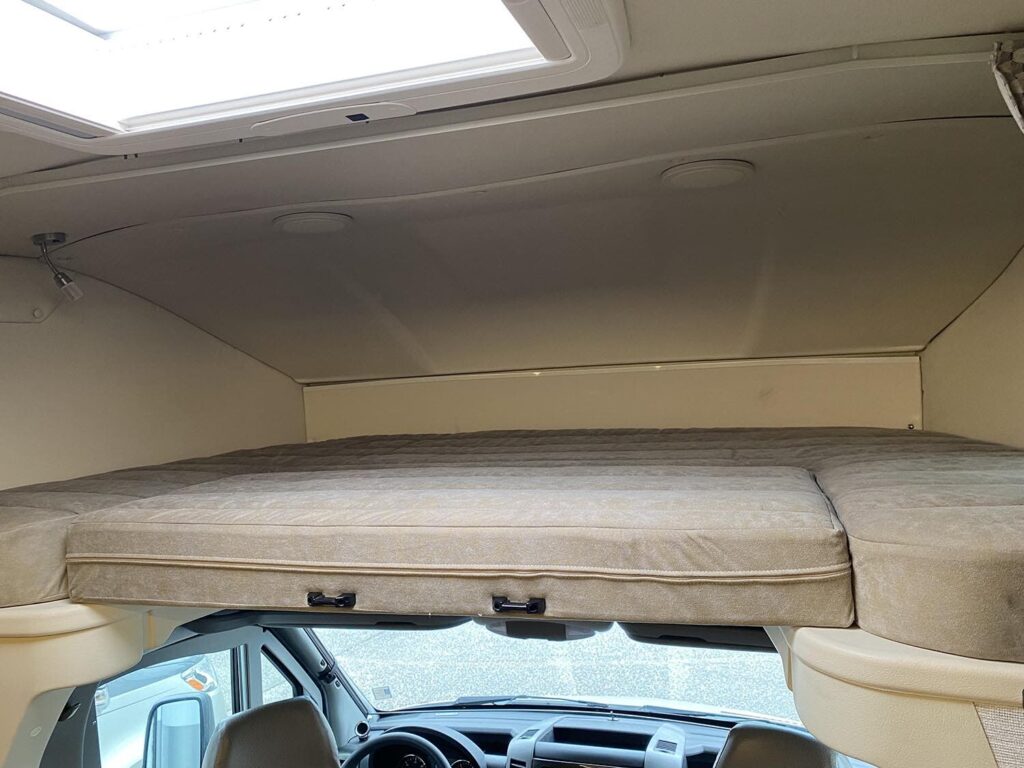

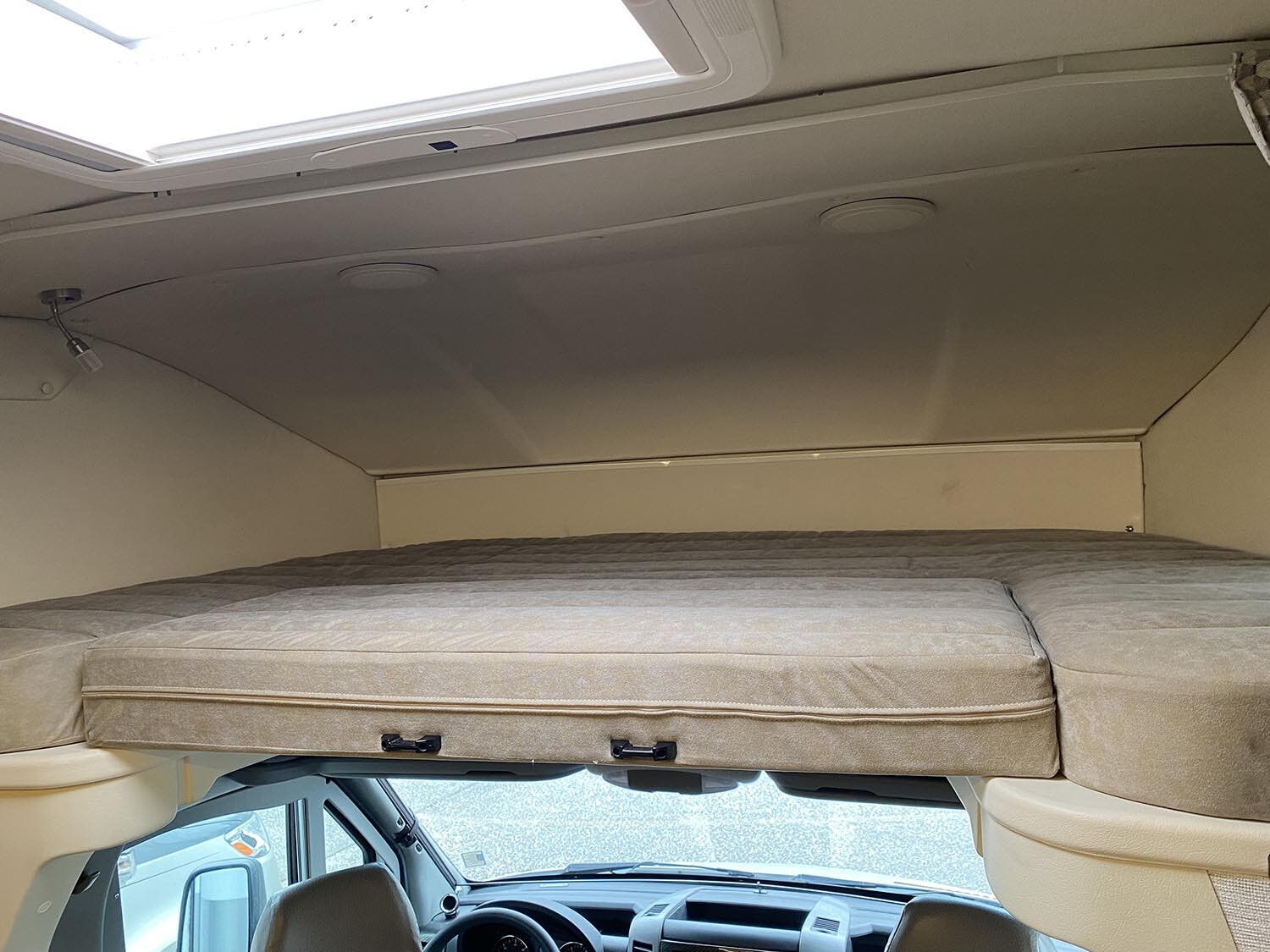

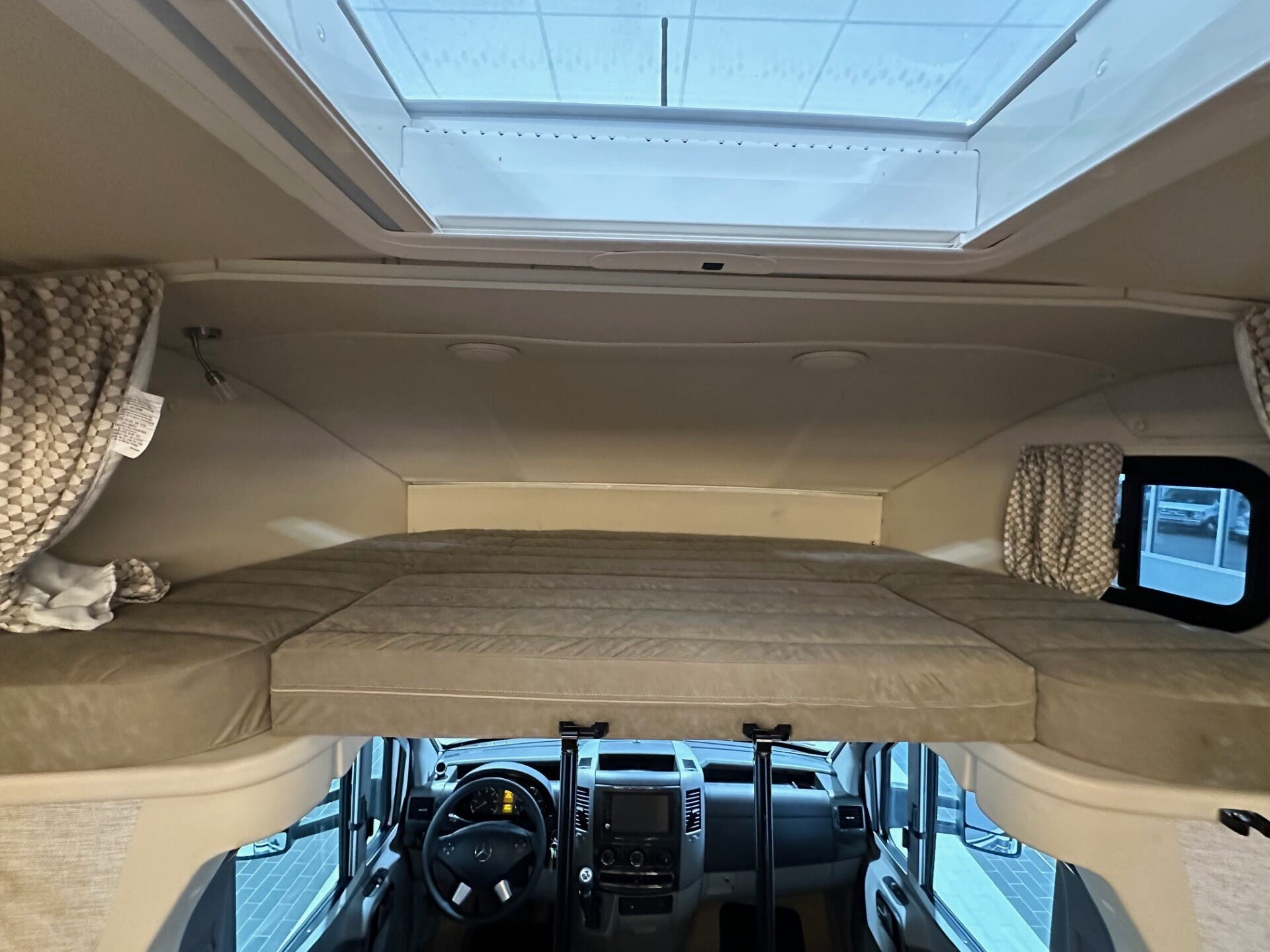

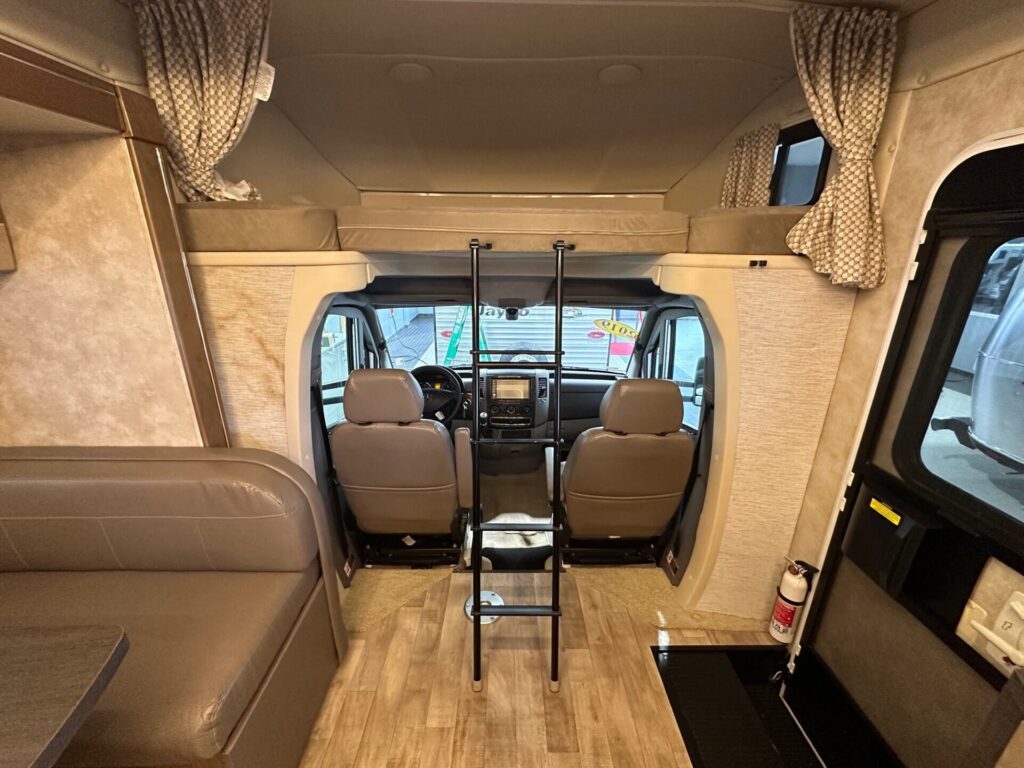

31T: Front Cab with Bed

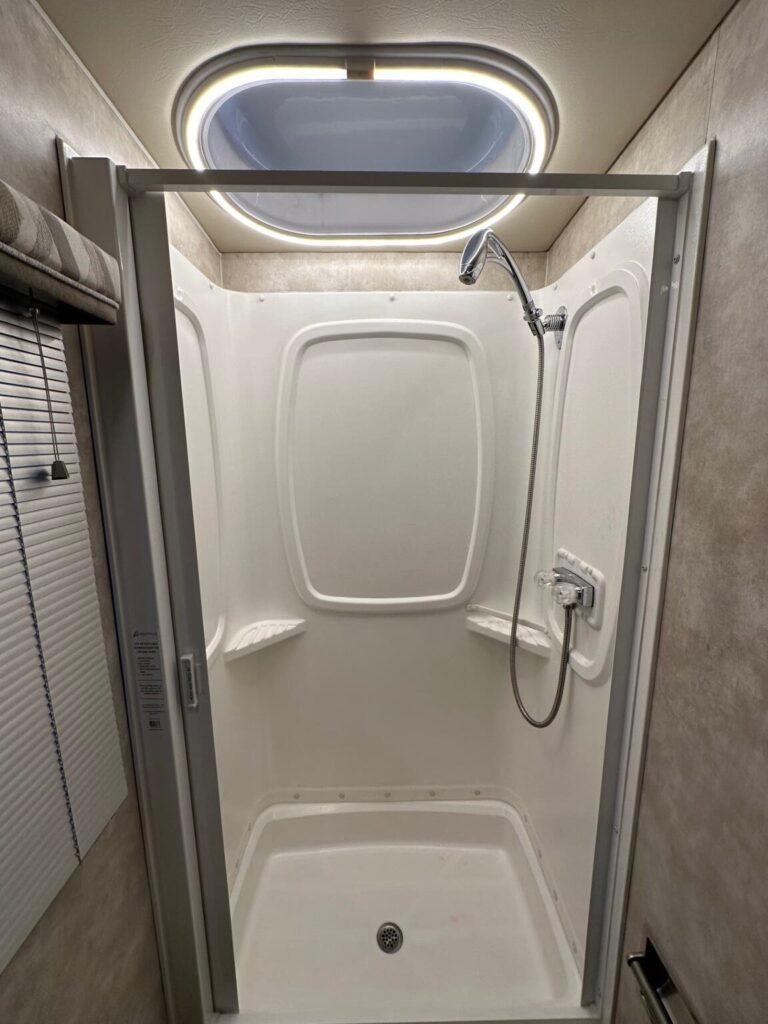

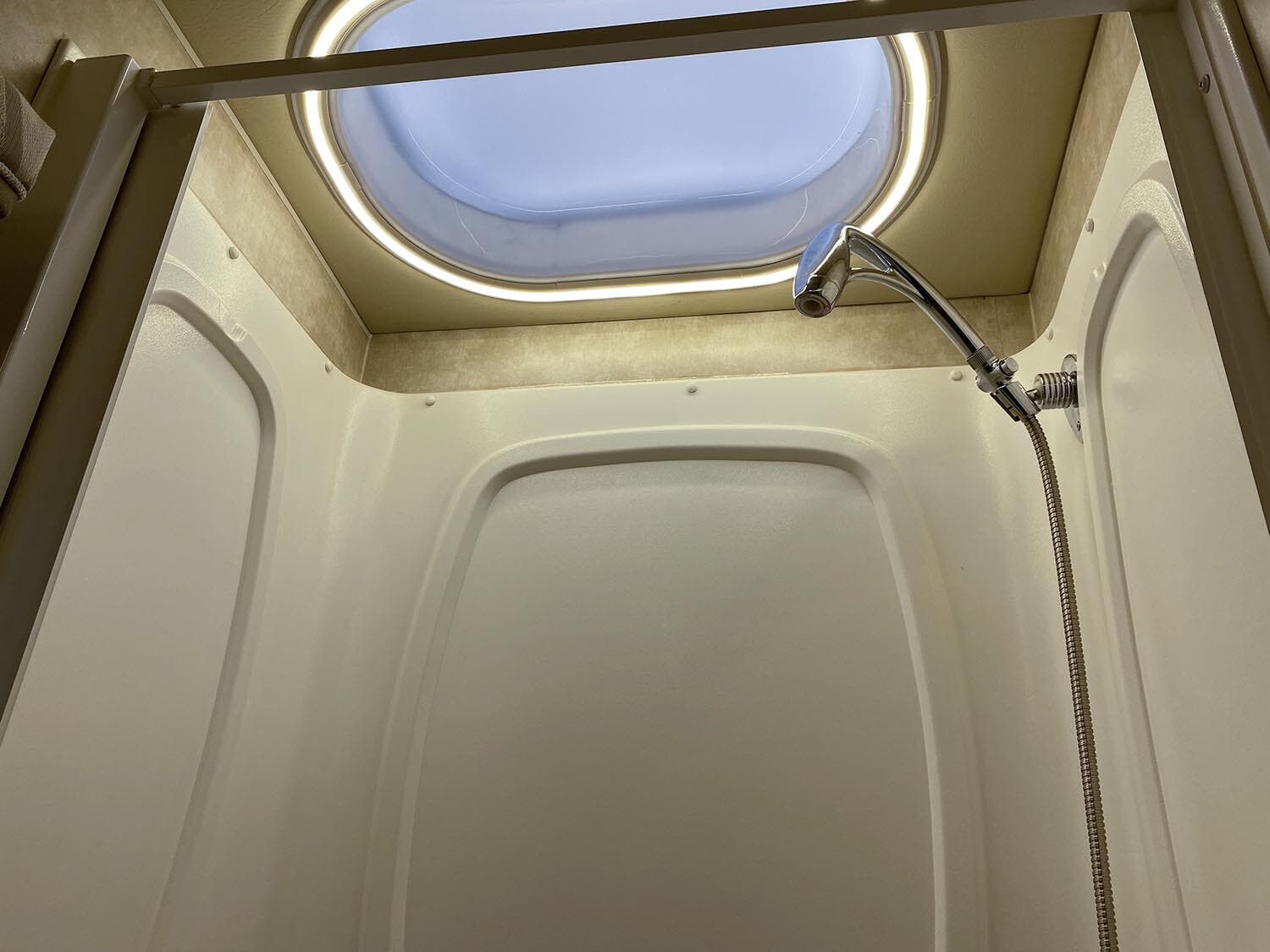

316: Skylight/roof vent. Power

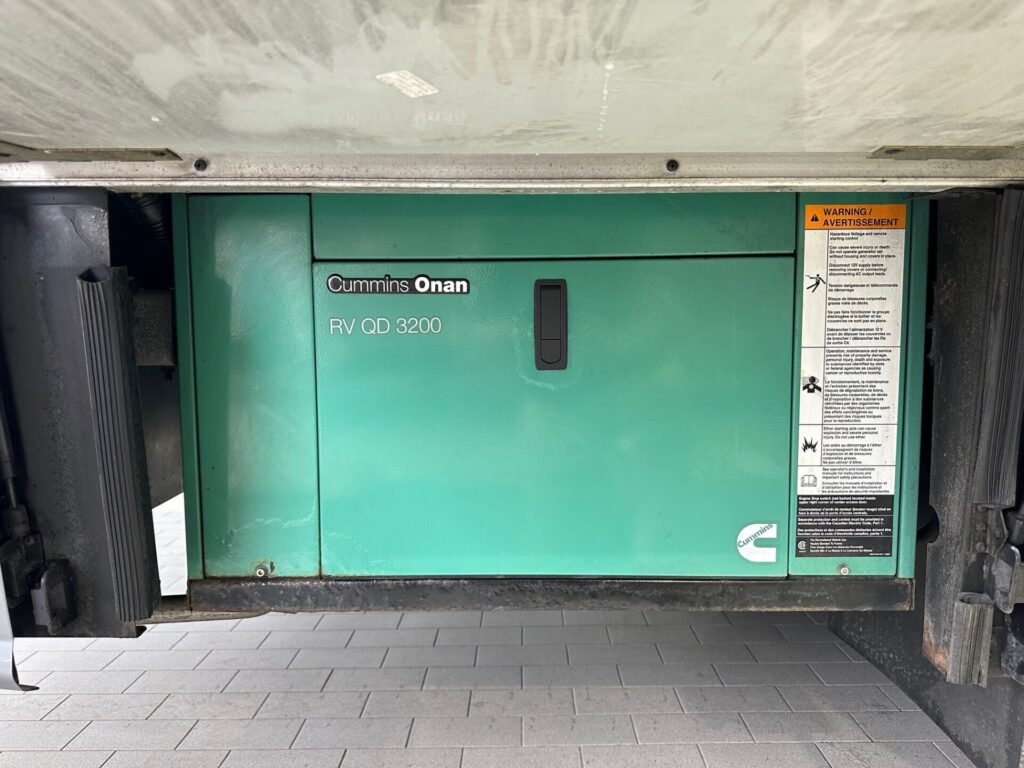

33F: 3.2KW Onan Diesel Generator
54W: Wheels-Stylized Aluminum
62E: Cab Seat Lounge Cushions
64A: Jacks-Stabilizing. Electric
95G: Full Body Paint: Bay Mist
Generator Hours: 116

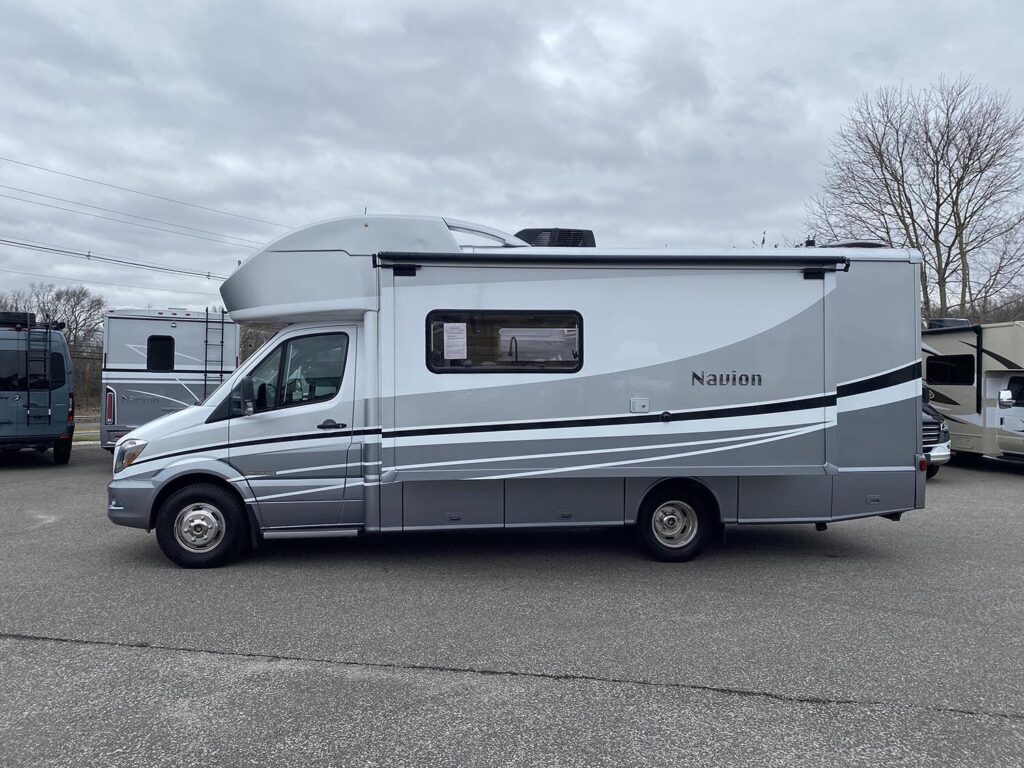

| 24D | 24G | 24J | 24V | |
|---|---|---|---|---|
| LENGTH | 25’8″ | 25’8″ | 25’8″ | 25’8″ |
| EXTERIOR HEIGHT | 11’1″ | 11’1″ | 11’1″ | 11’1″ |
| EXTERIOR WIDTH | 7’6″ | 7’6″ | 7’6″ | 7’6″ |
| EXTERIOR STORAGE (CU. FT.) | 39 | 53 | 48 | 43 |
| AWNING LENGTH | 16′ | 16′ | 16′ | 16′ |
| INTERIOR HEIGHT | 6’8″ | 6’8″ | 6’8″ | 6’8″ |
| INTERIOR WIDTH | 7’3″ | 7’3″ | 7’3″ | 7’3″ |
| FRESHWATER TANK CAPACITY (GAL.) | 30 | 31 | 32 | 31 |
| WATER HEATER CAPACITY (GAL.) | CONTINUOUS | CONTINUOUS | 6 | 6 |
| OPTIONAL WATER HEATER CAPACITY (GAL.) | N/A | N/A | CONTINUOUS | CONTINUOUS |
| HOLDING TANK CAPACITY – BLACK/GRAY (GAL.) | 40/34 | 36/40 | 34/40 | 36/36 |
| LP CAPACITY (GAL.) | 13 | 13 | 13 | 13 |
| FUEL CAPACITY (GAL.) | 26.4 | 26.4 | 26.4 | 26.4 |
| GCWR5 (LBS.) | 15,250 | 15,250 | 15,250 | 15,250 |
| GVWR (LBS.) | 11,030 | 11,030 | 11,030 | 11,030 |
| GAWR – FRONT (LBS.) | 4,410 | 4,410 | 4,410 | 4,410 |
| GAWR – REAR (LBS.) | 7,720 | 7,720 | 7,720 | 7,720 |
| WHEELBASE | 170″ | 170″ | 170″ | 170″ |
| SEATING CAPACITY | 4 | 3 | 5 | 4 |
CHASSIS
3.0L 6-CYLINDER, 188-HP, TURBO-DIESEL ENGINE, 5-SPEED AUTOMATIC TIP-SHIFT TRANSMISSION, 220-AMP. ALTERNATOR • Adaptive ESP® technology • Hydraulic brakes w/ABS • Trailer Hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector • Stainless steel wheel liners (24J, 24V) • Alcoa forged aluminum wheels (24G)

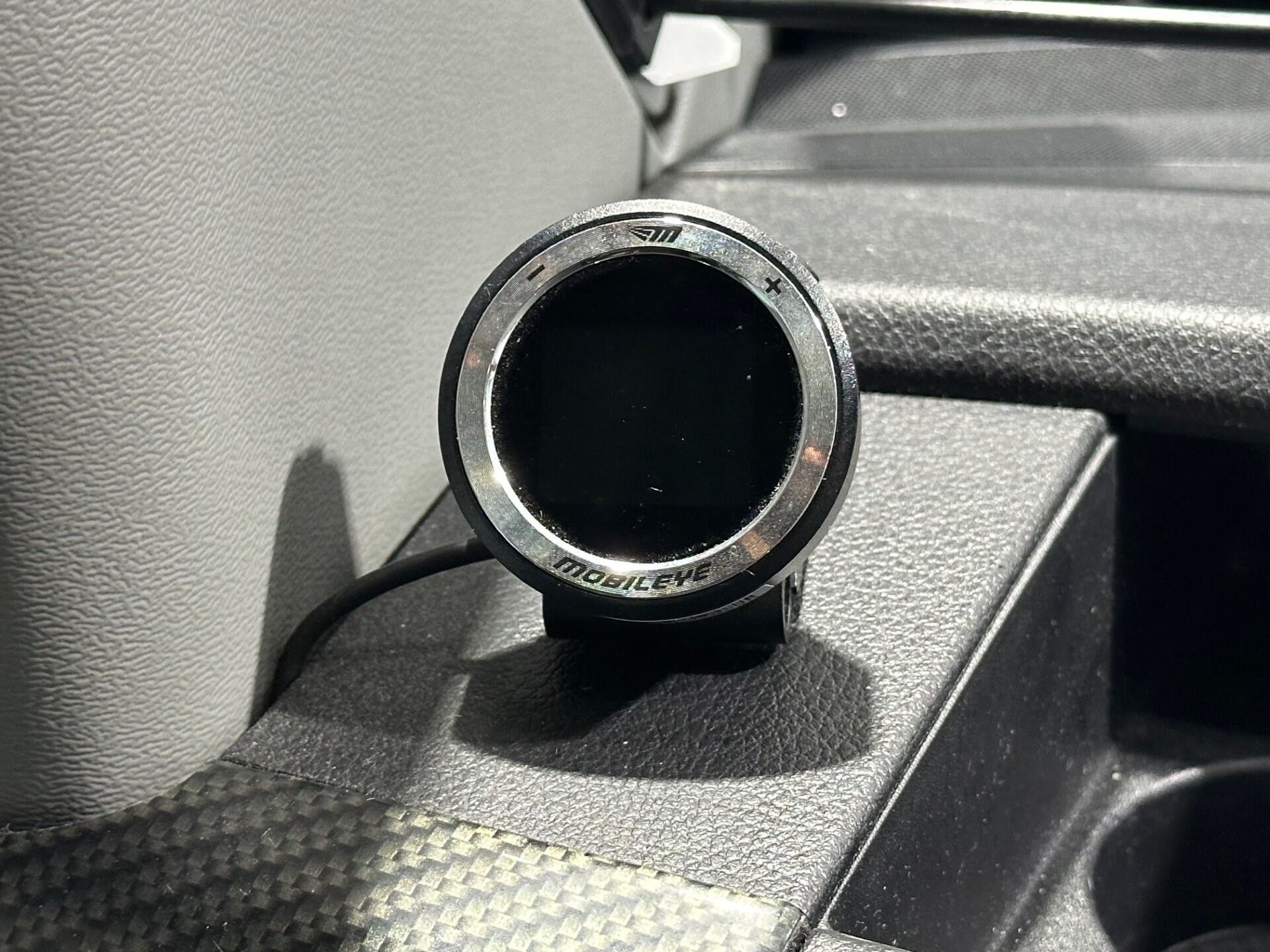

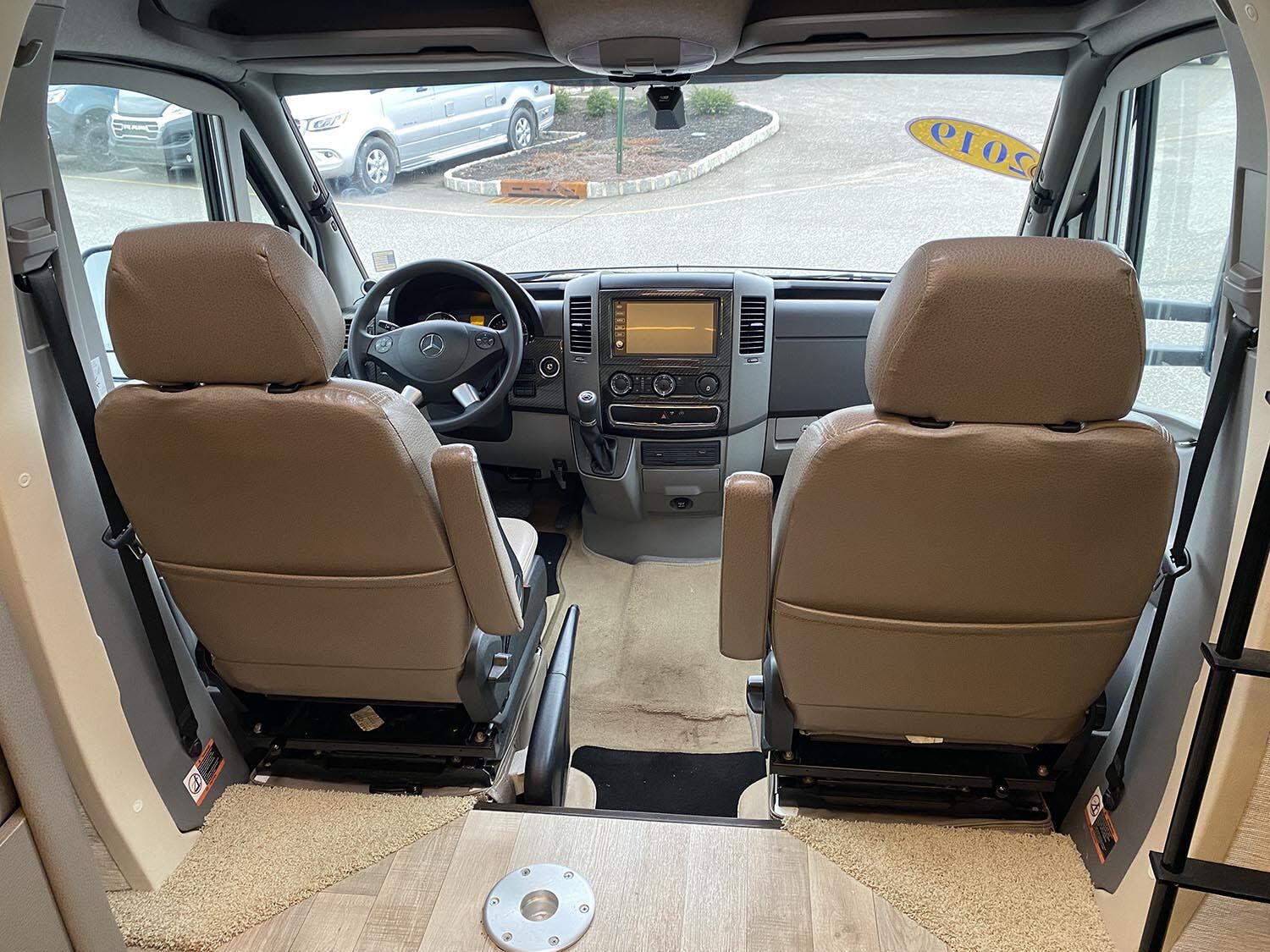

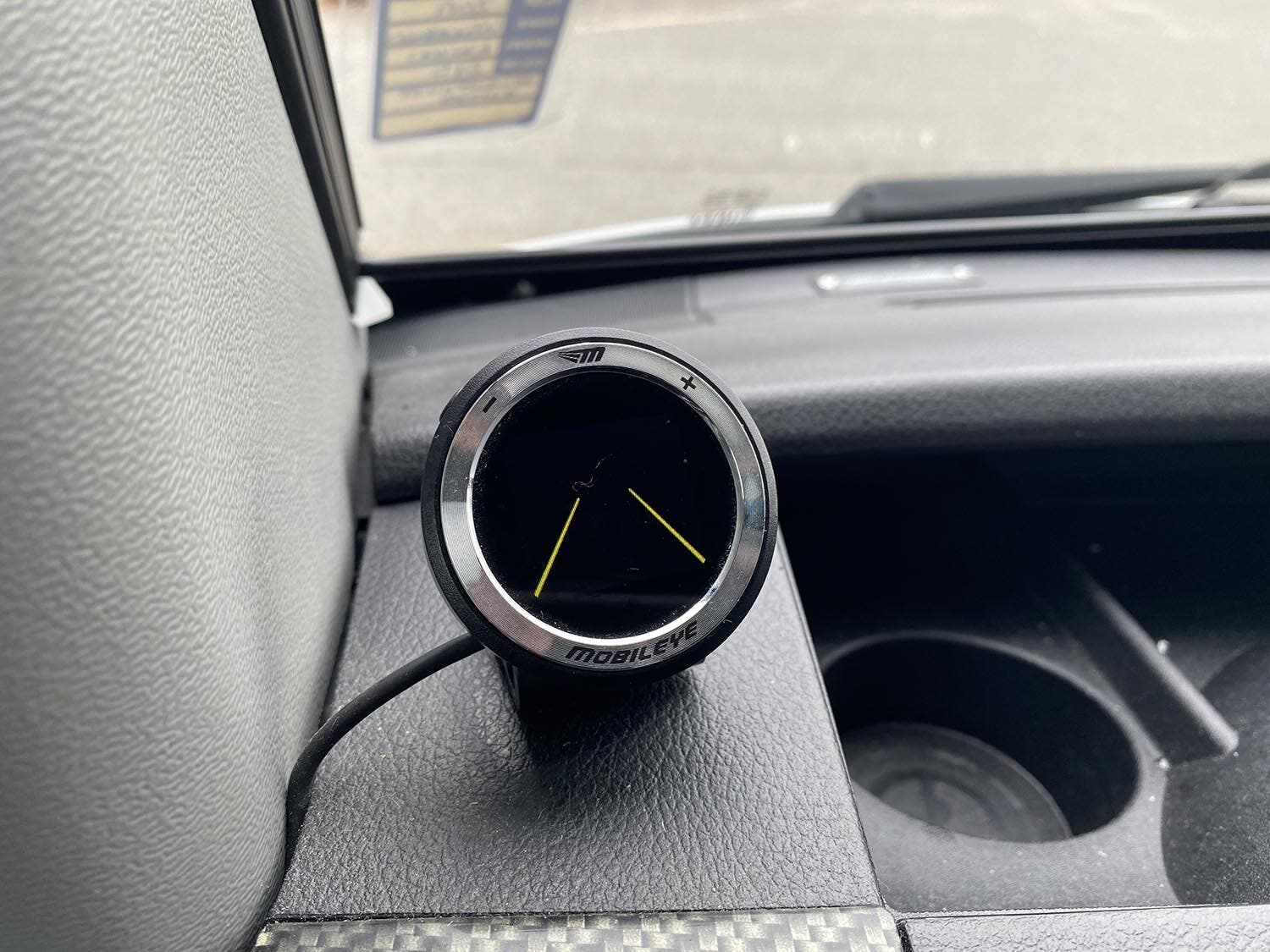

CAB CONVENIENCES

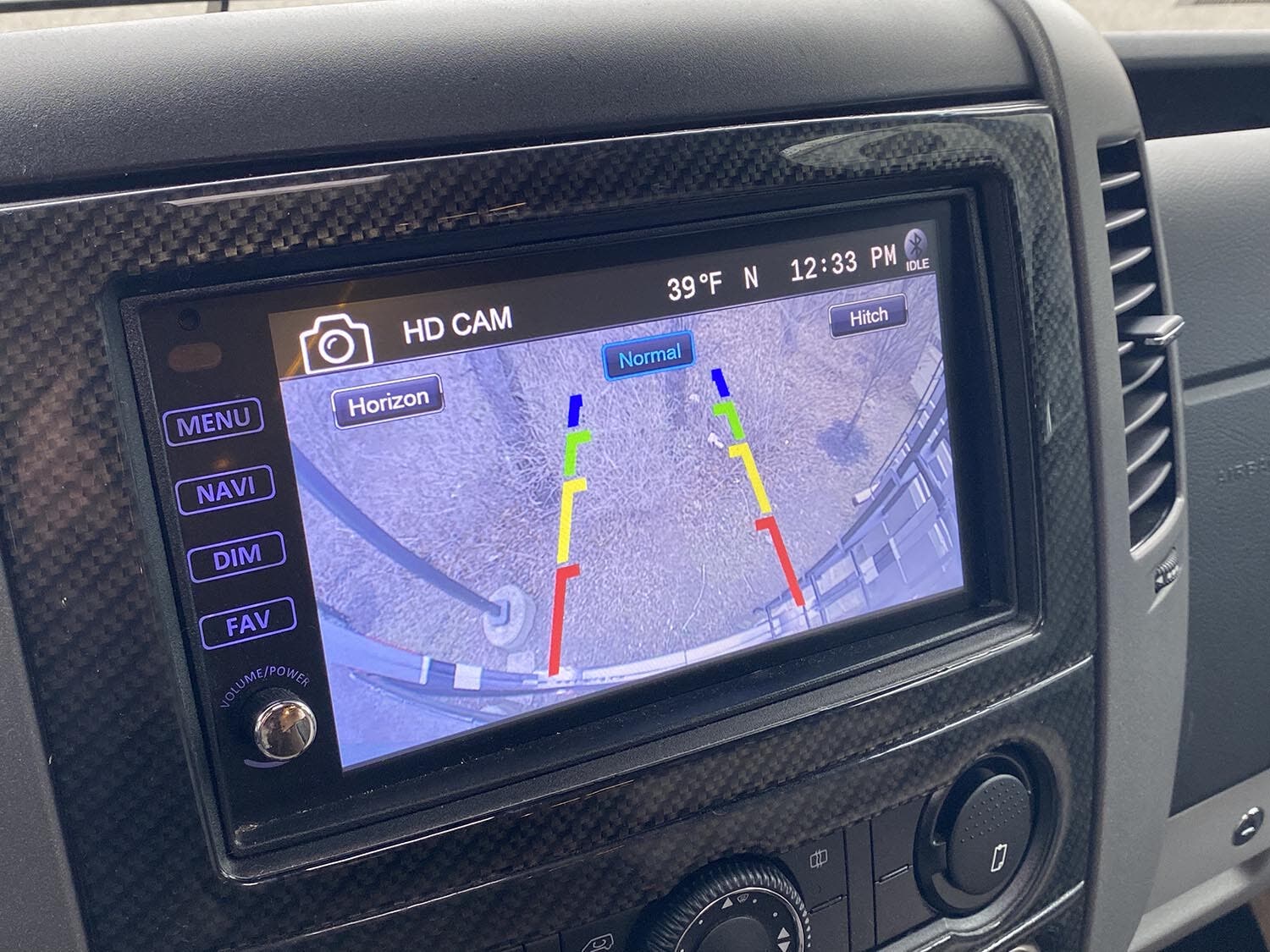

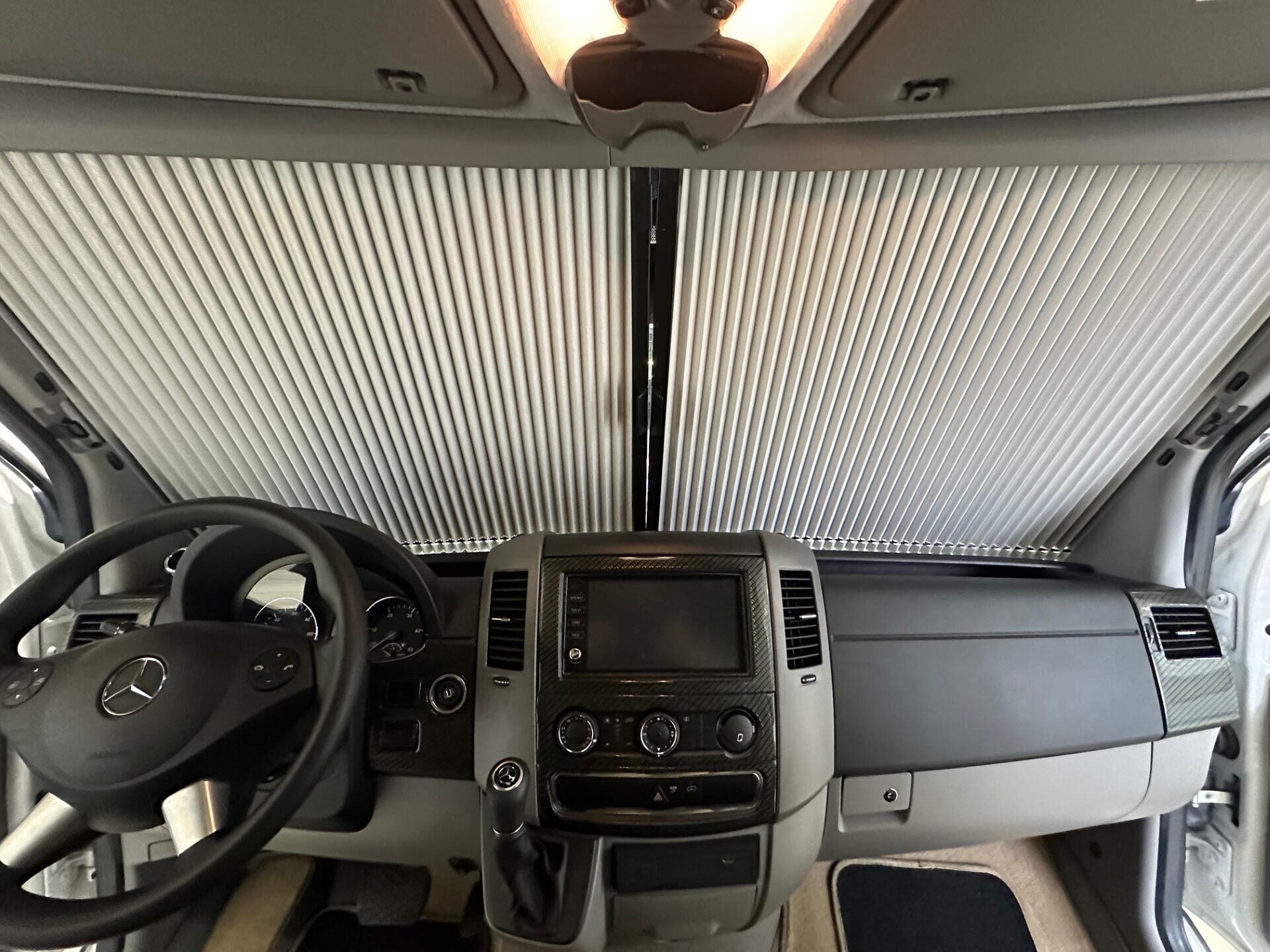

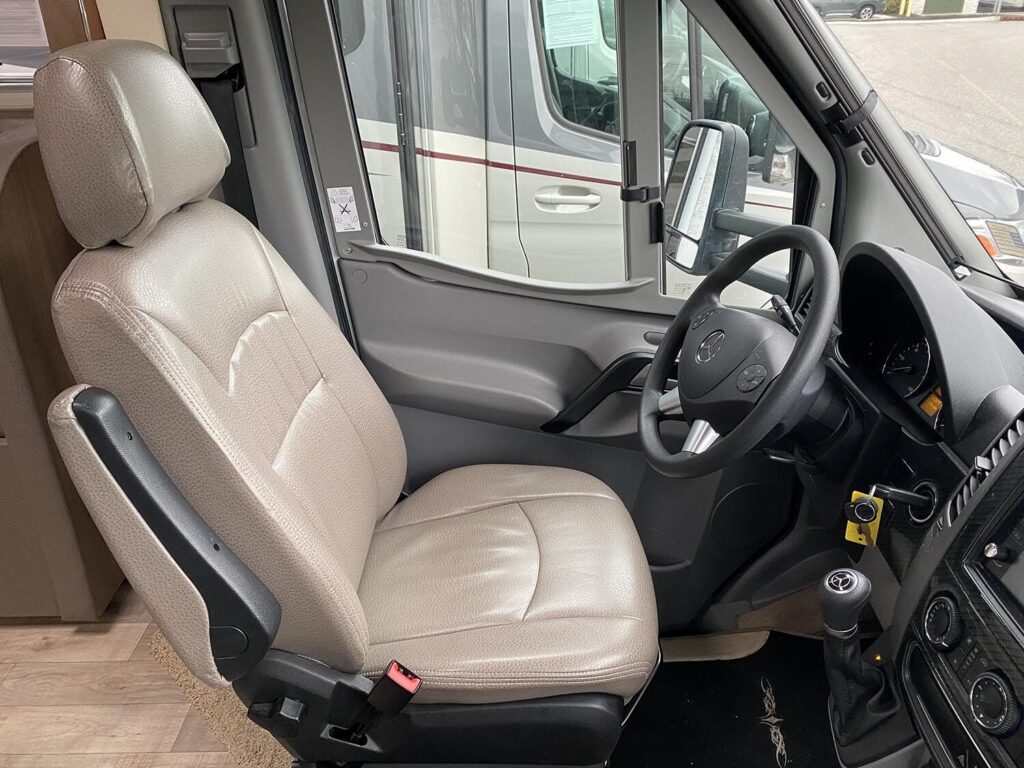

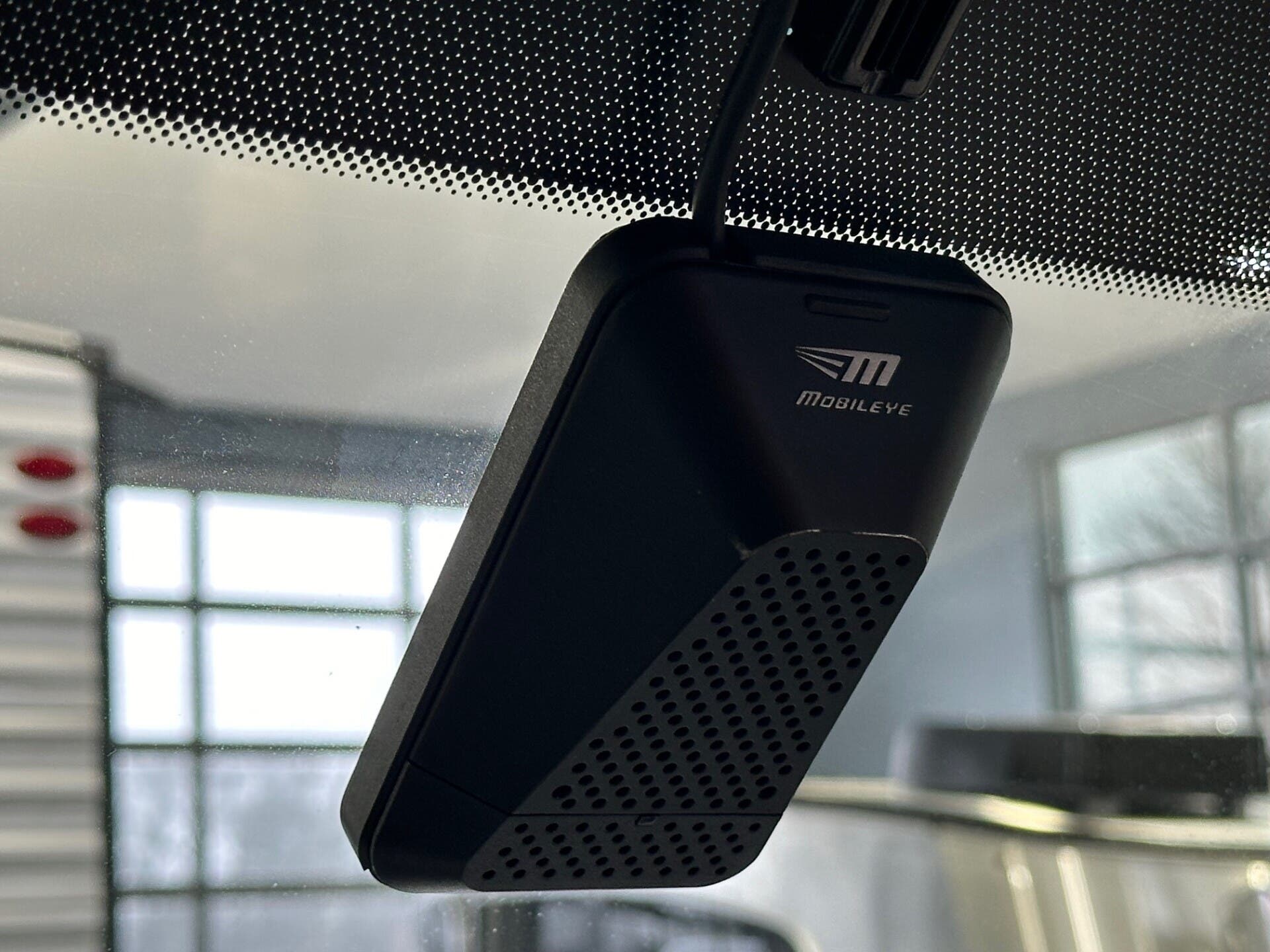

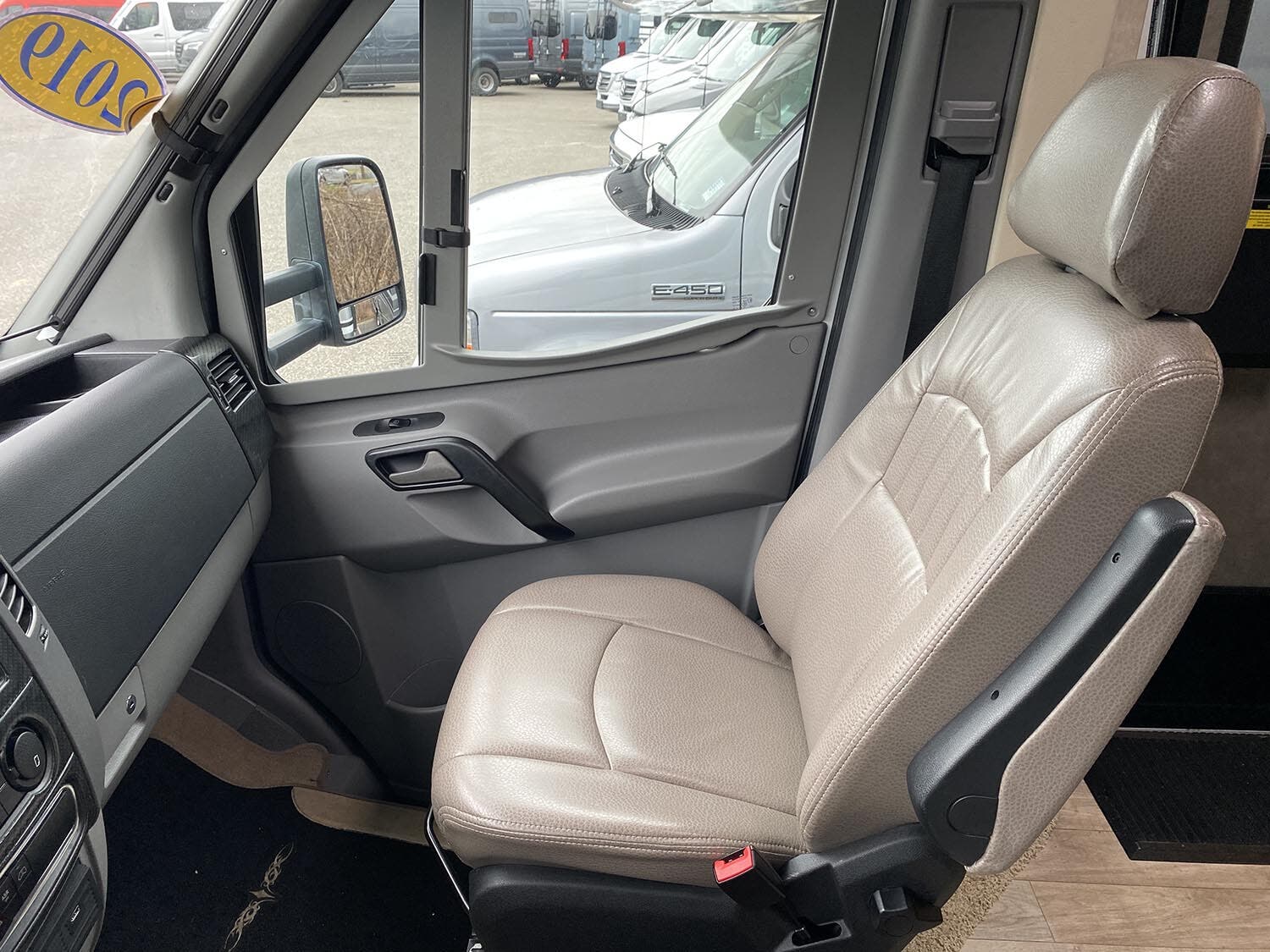

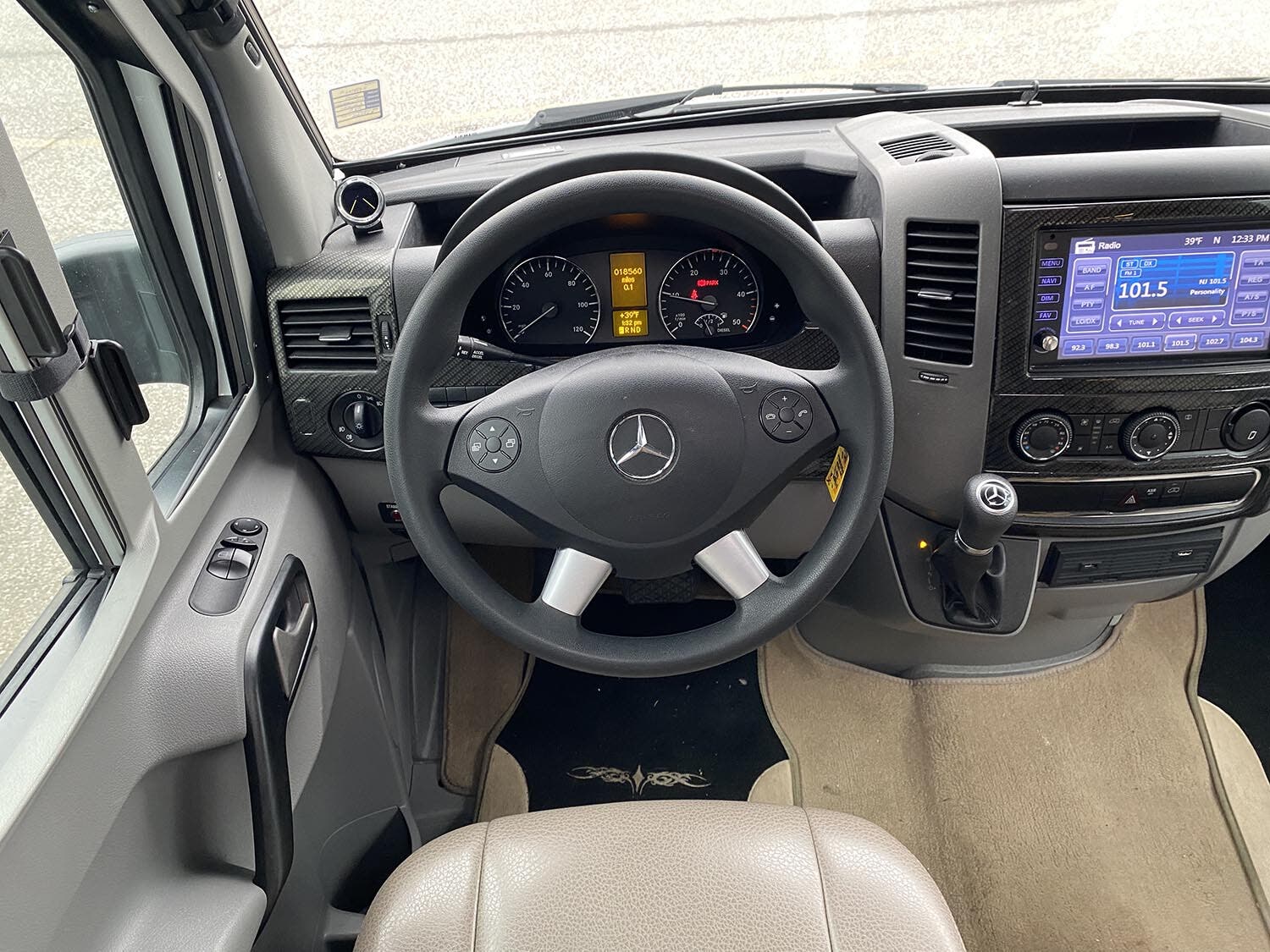

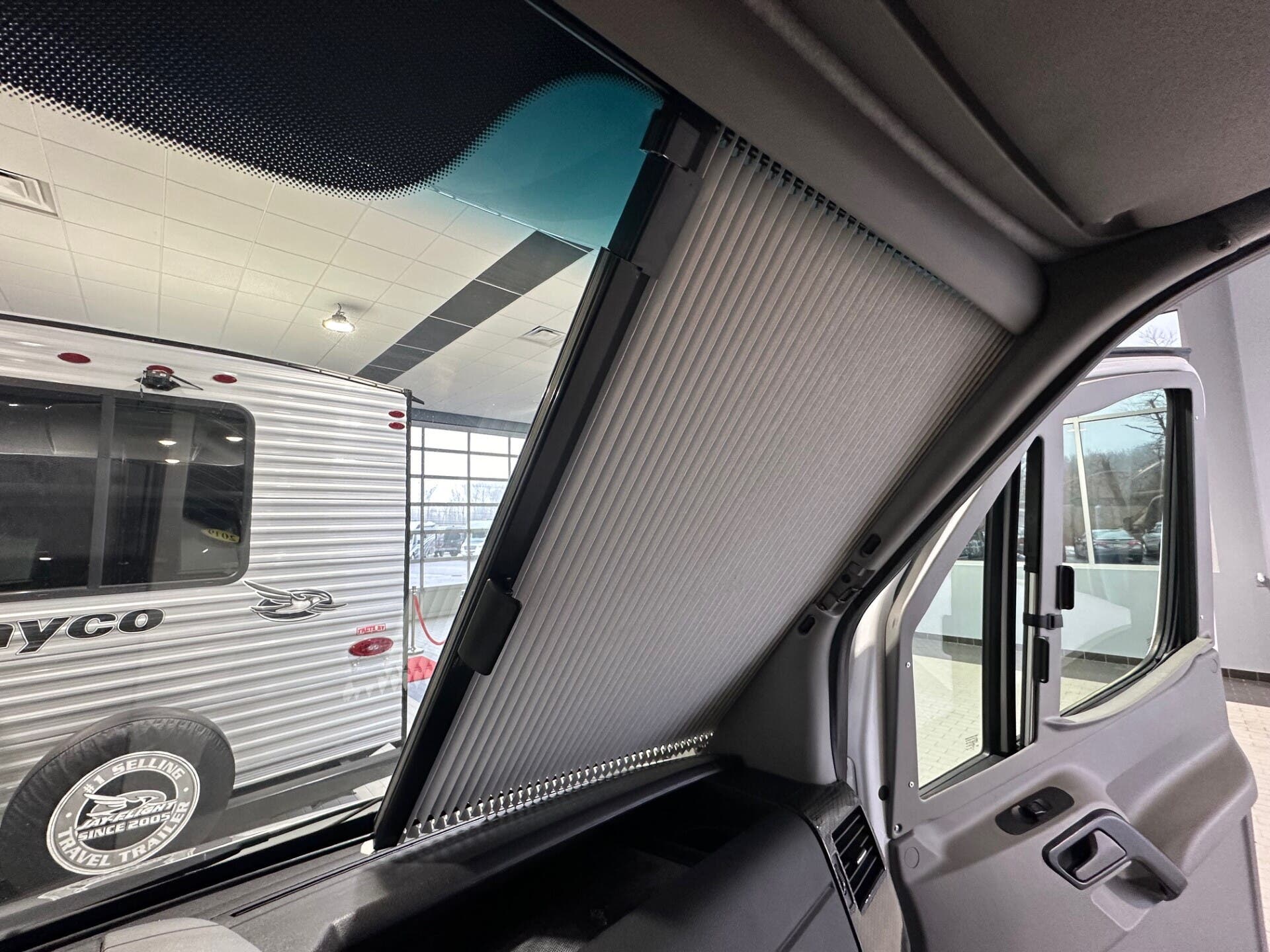

Radio/Rearview Monitor System DVD receiver with 6.2″ LCD color touch screen, handheld remote, iPod®/MP3 input, rear color camera, Bluetooth®, SiriusXM® (includes 90-day trial subscription), Spotify®, AppRadio One • Cab seats armrest, adjustable lumbar support, headrest, recline, swivel and slide • Airbags driver and passenger • 3-point seat belts • Power door locks w/remote • Power windows • Power mirrors w/defrost and turn signals • Cruise control • Chassis/house battery radio power switch • Power steering w/tilt wheel • Sunvisors • 12-volt powerpoints • Pleated windshield blinds • Privacy curtain (cab windows) • Dash appliqué package

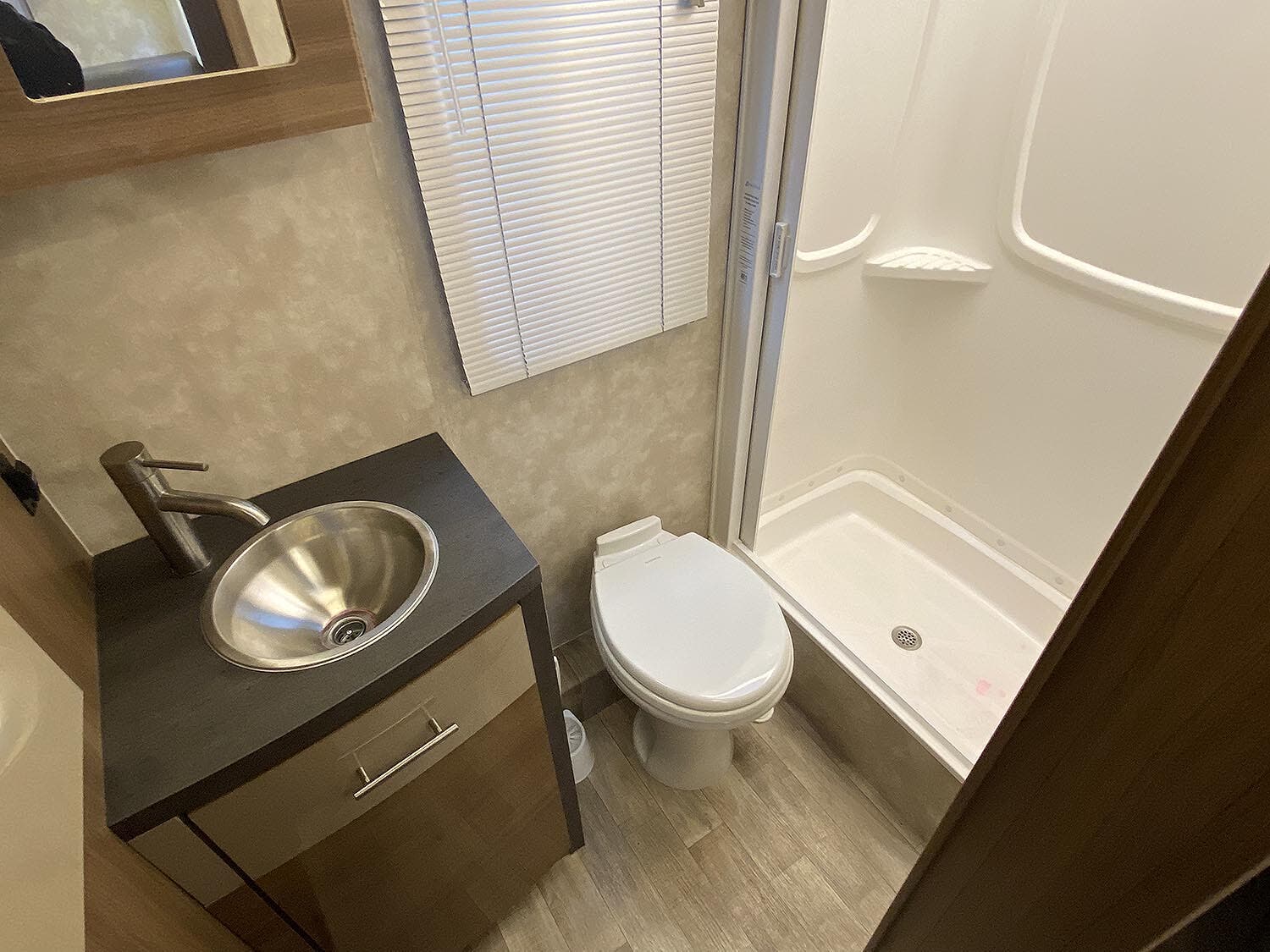

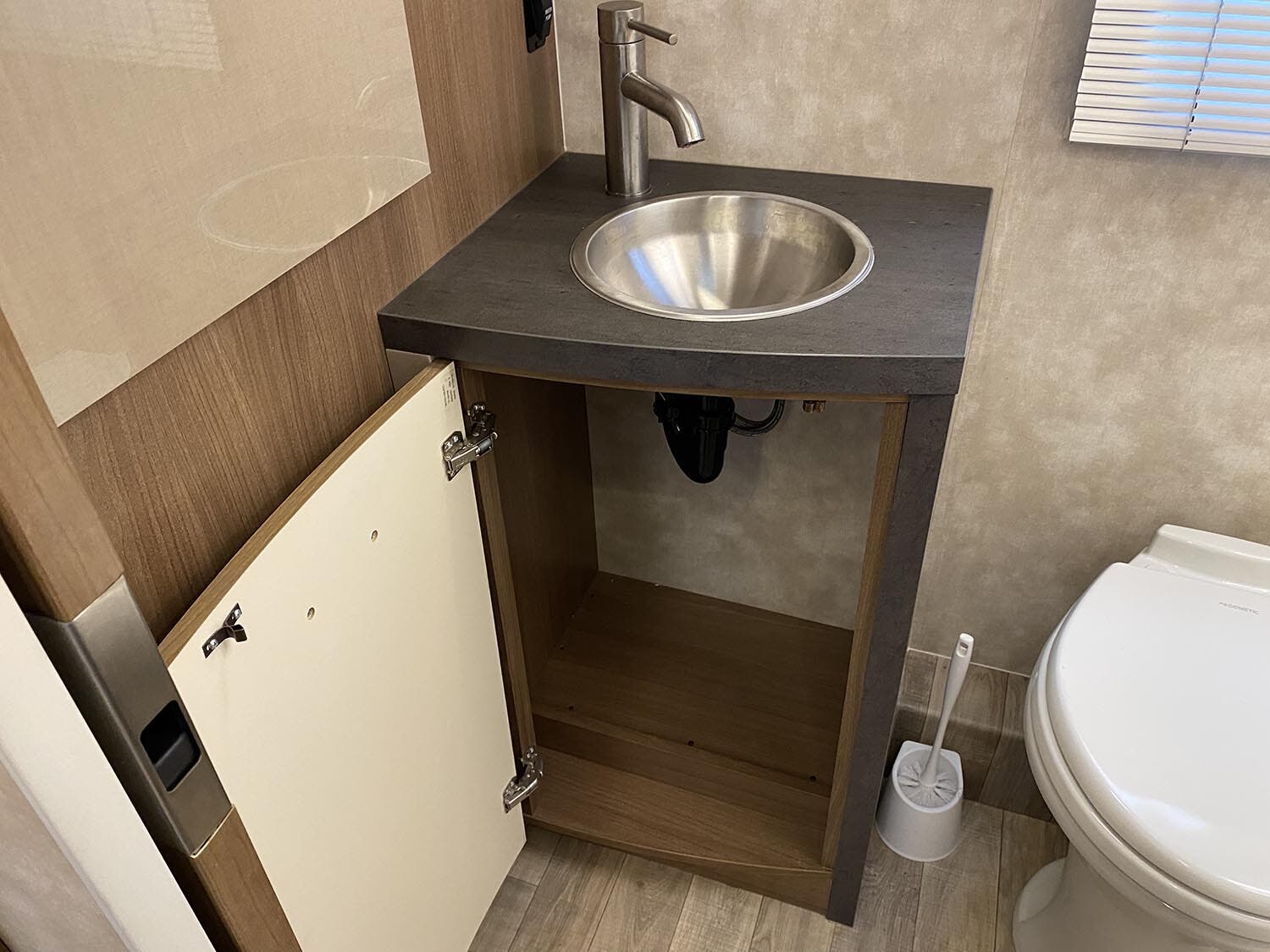

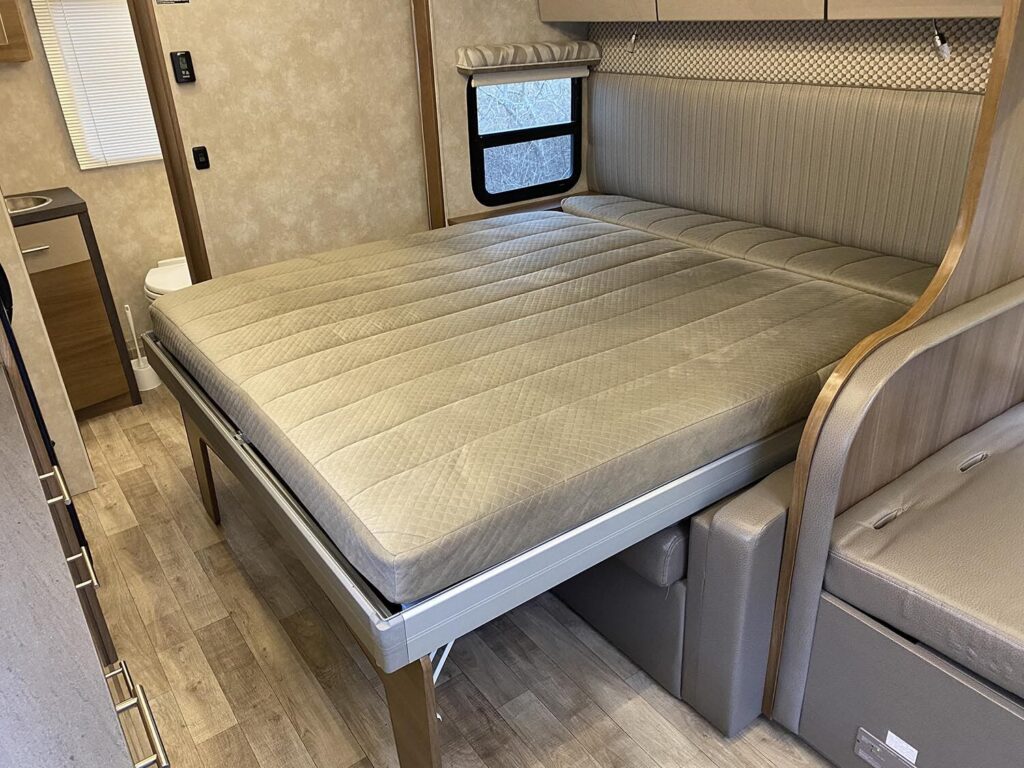

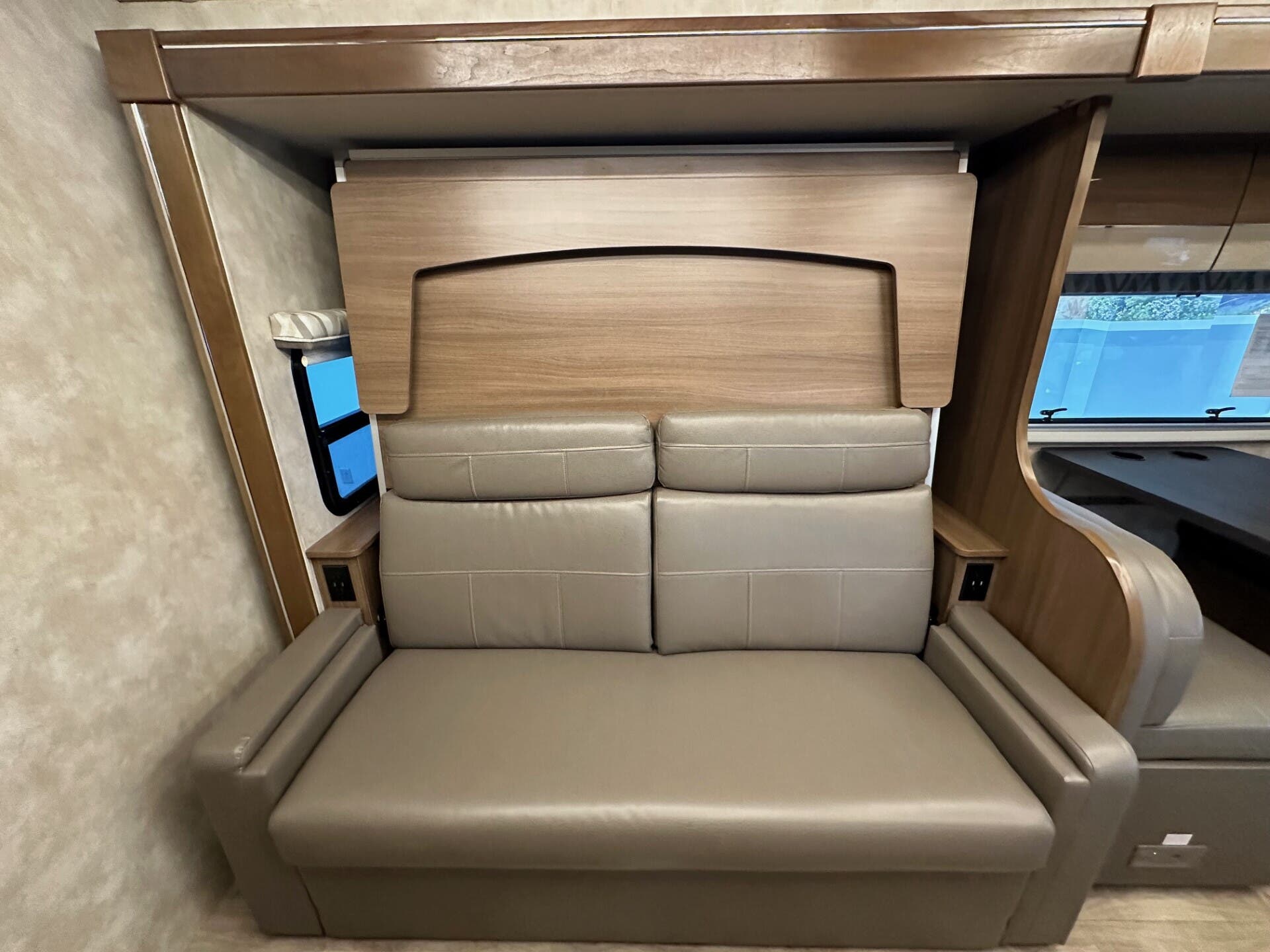

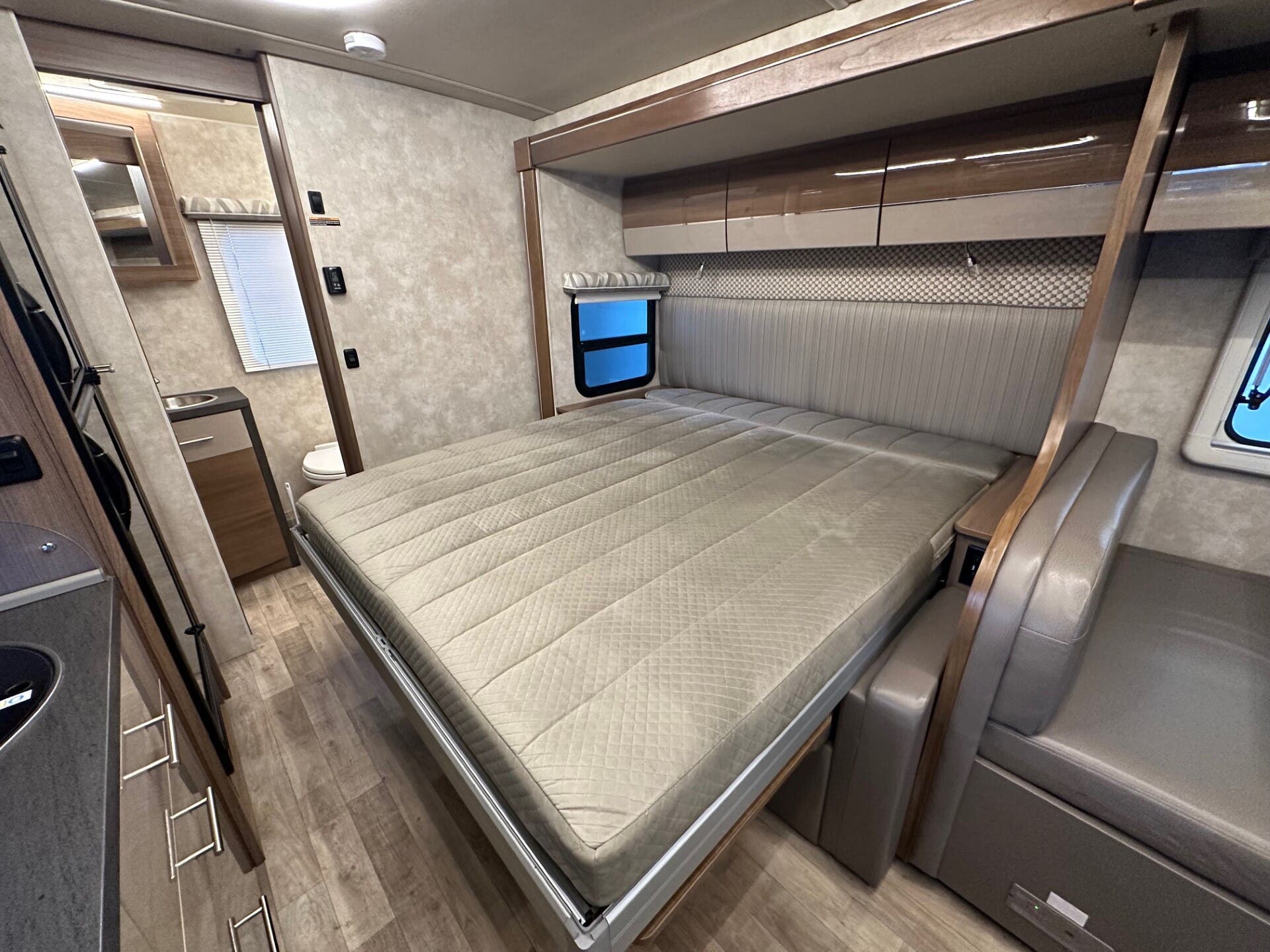

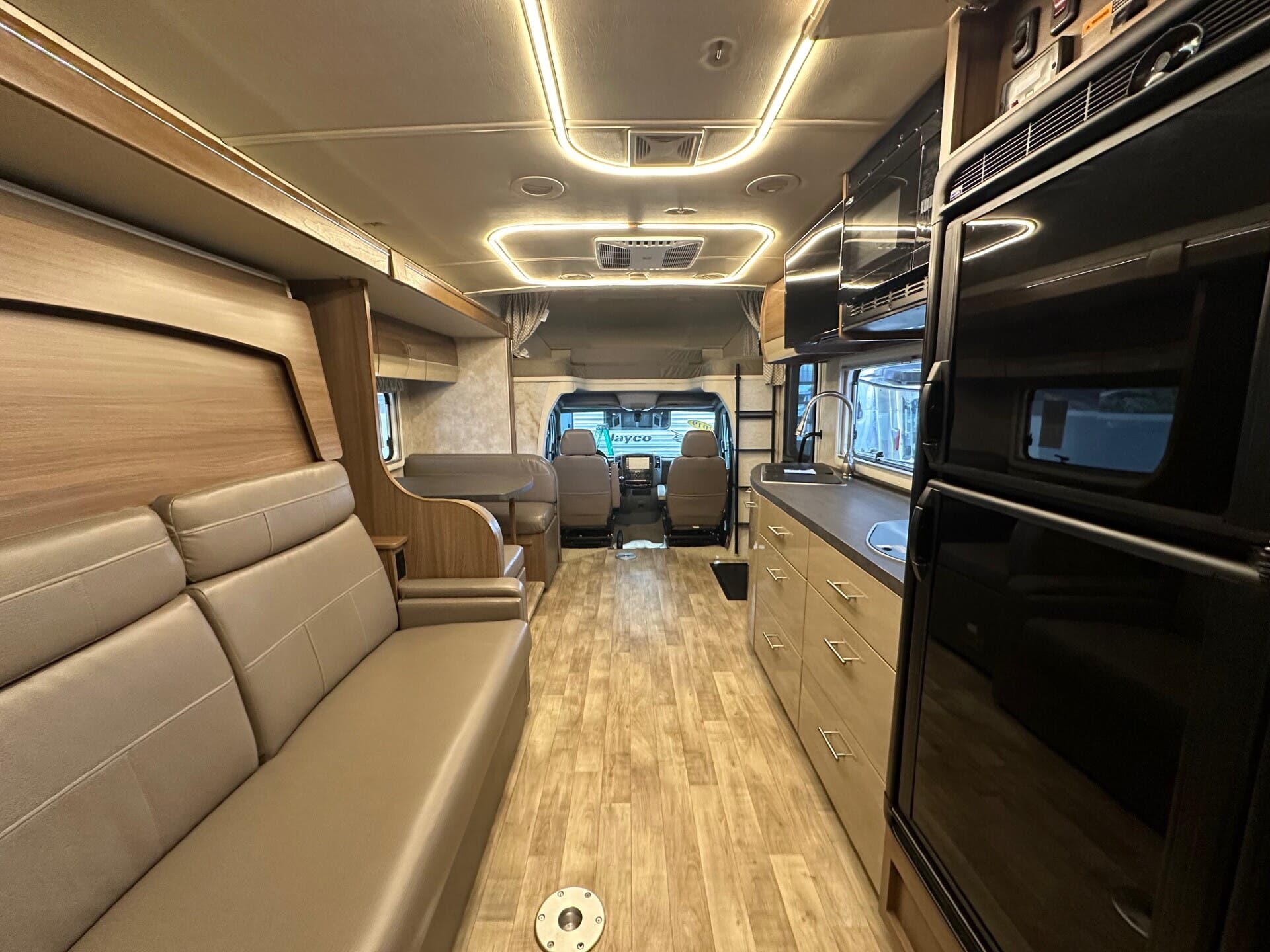

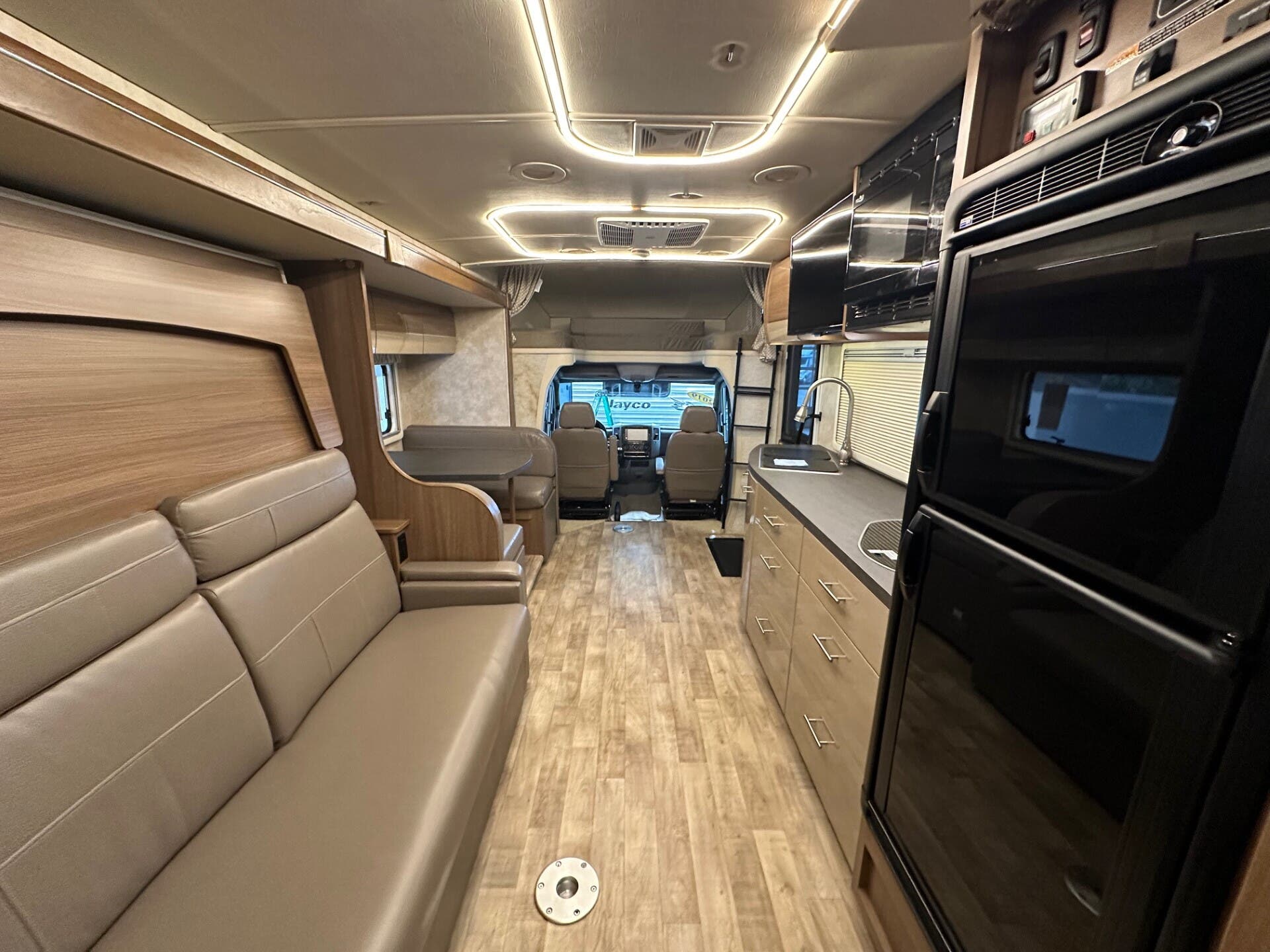

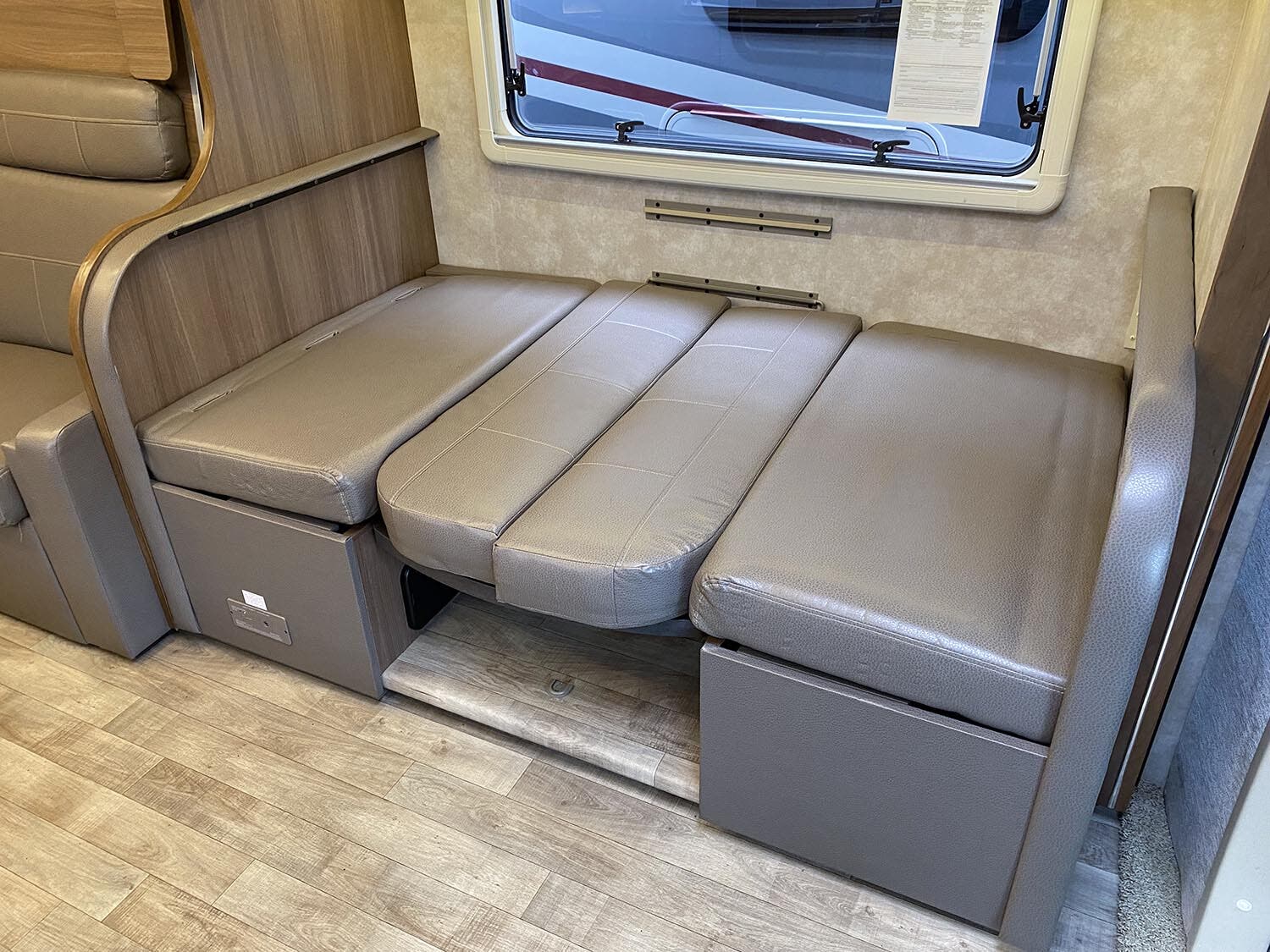

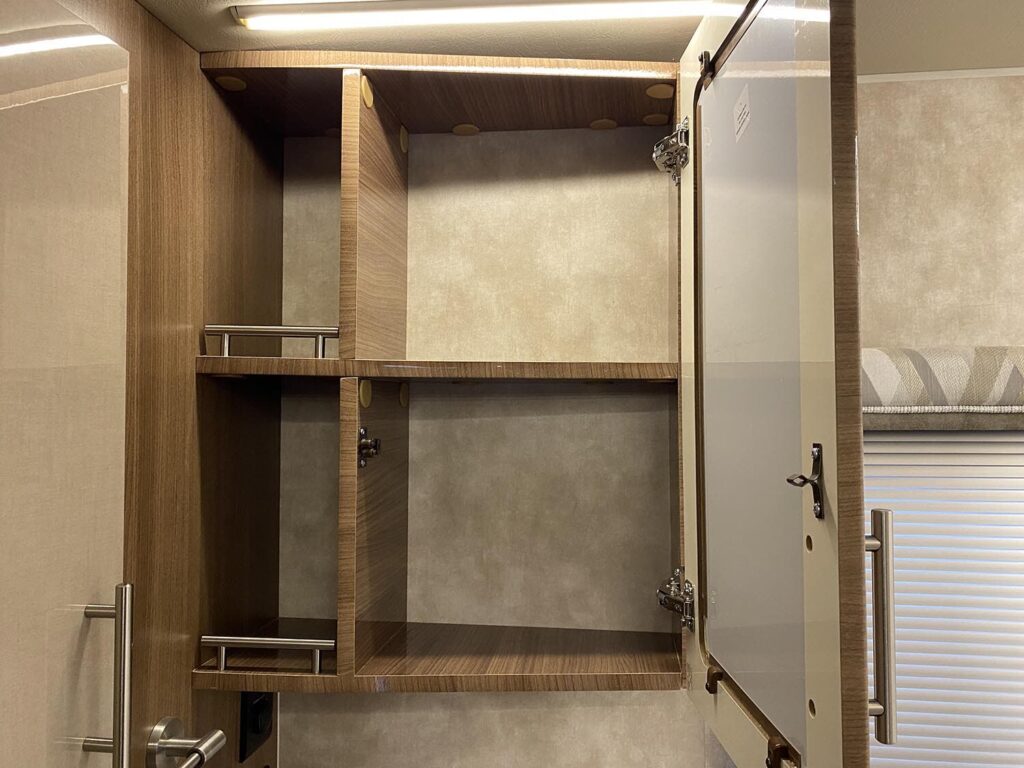

INTERIOR

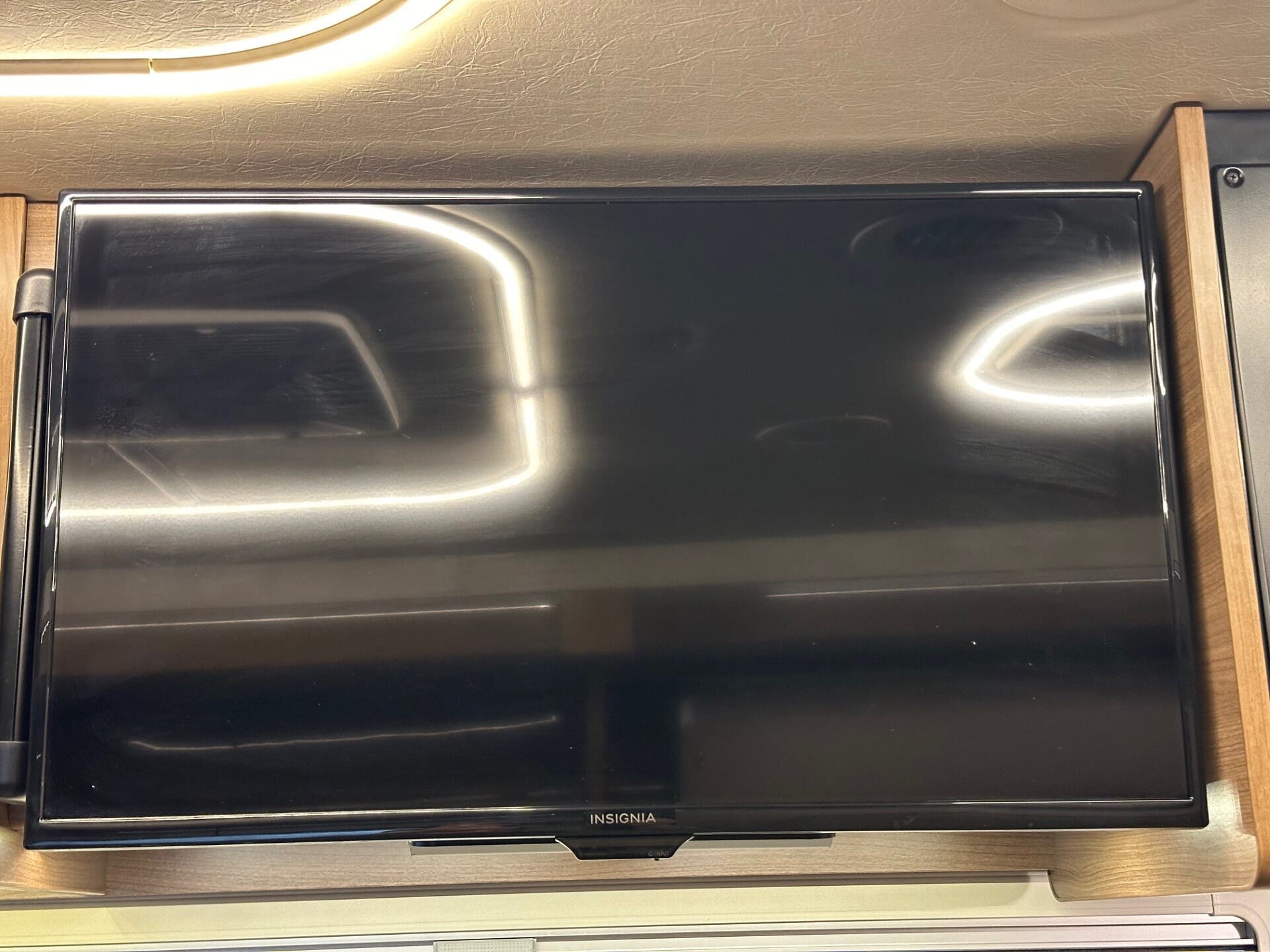

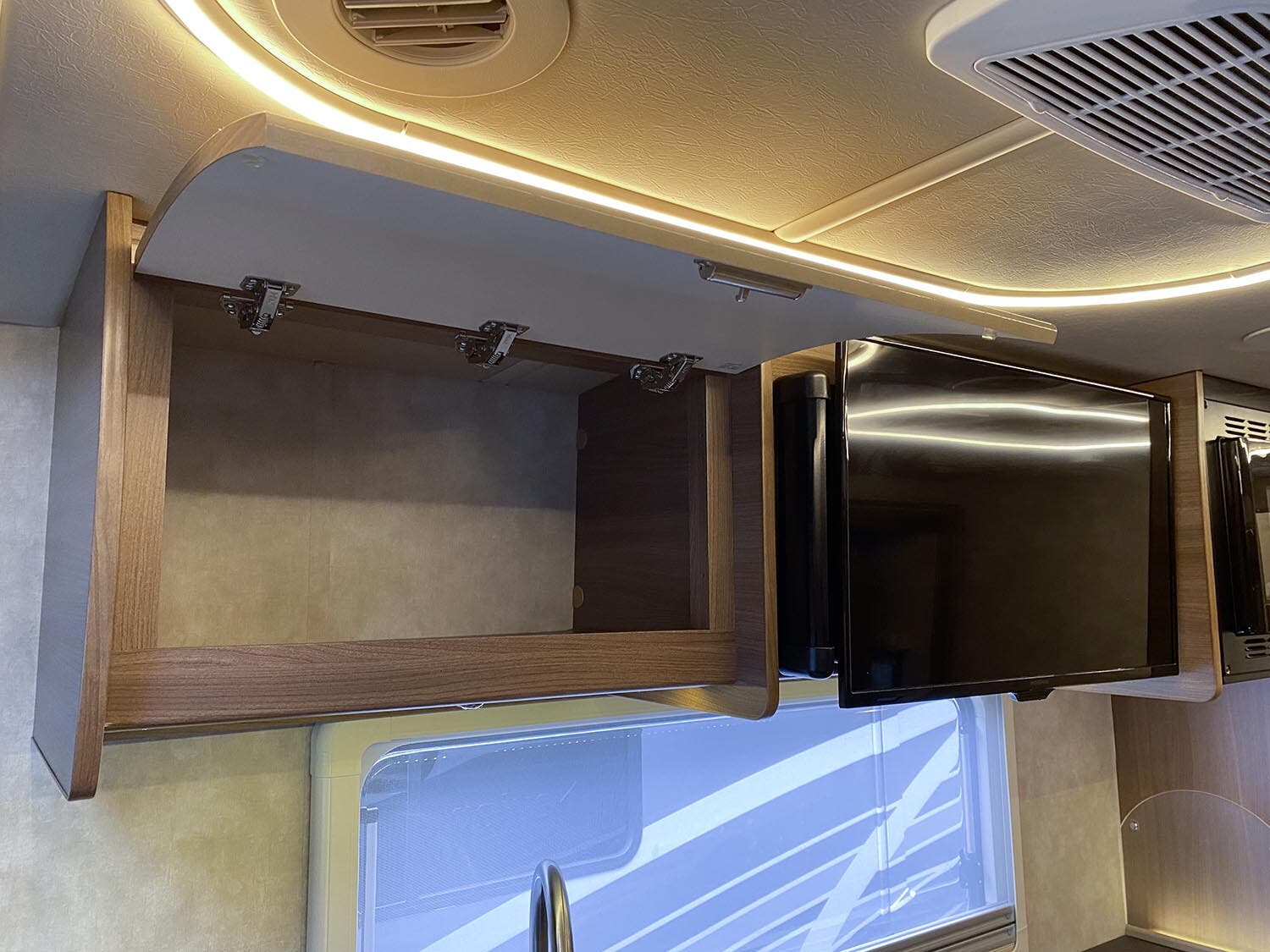

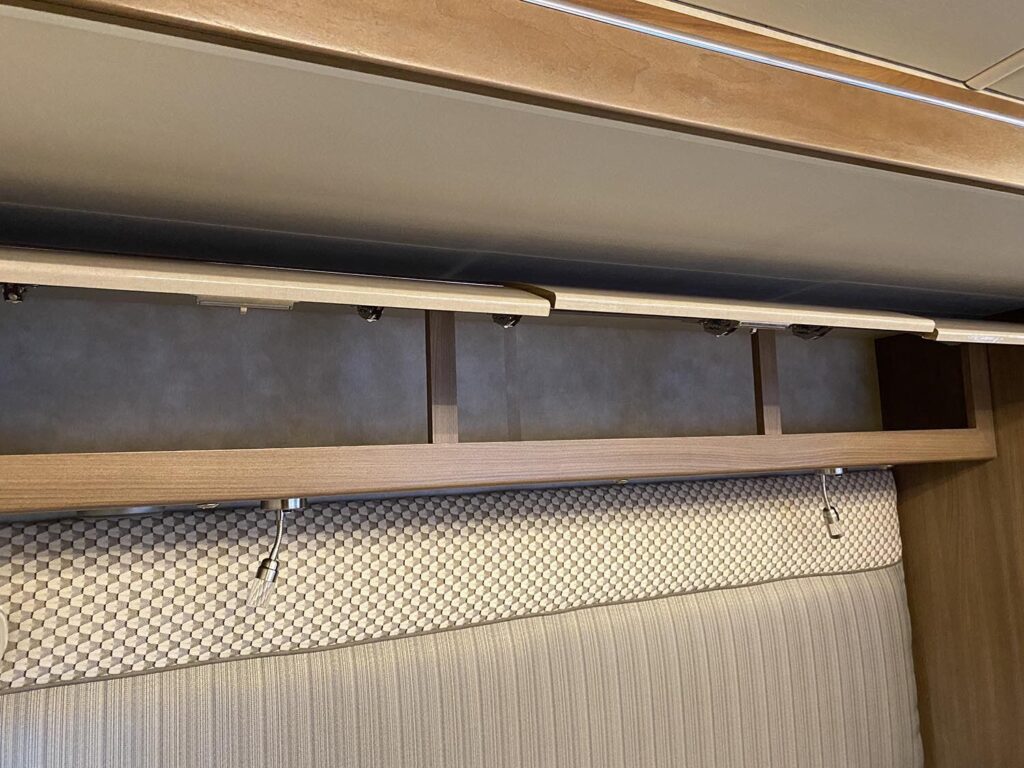

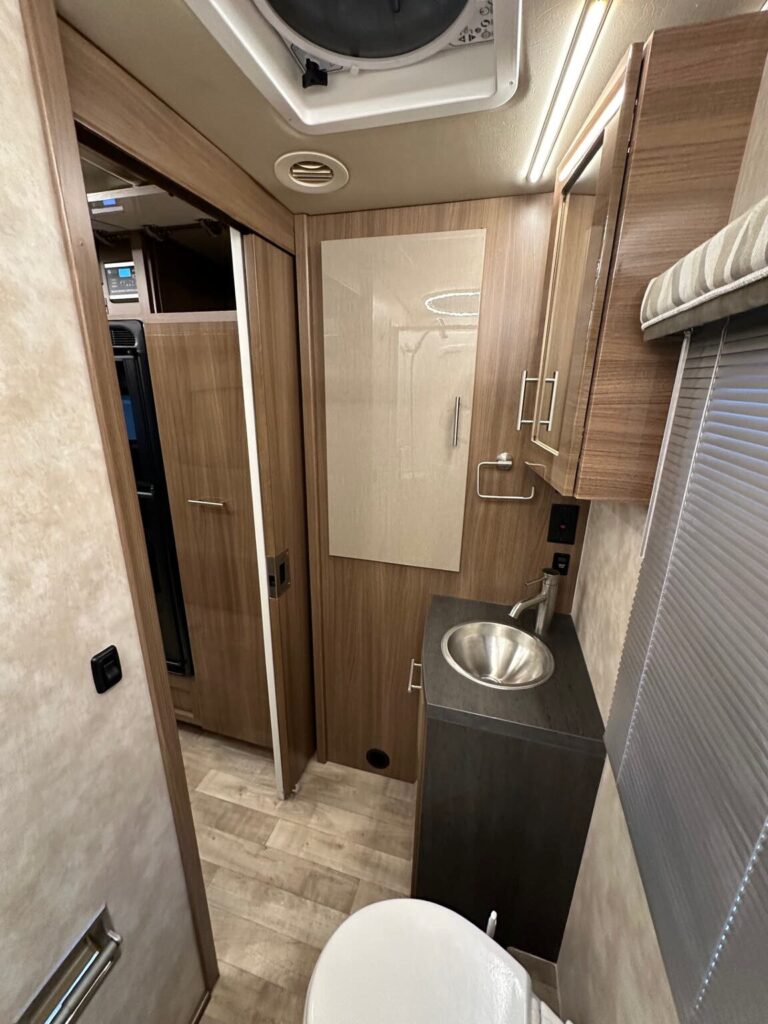

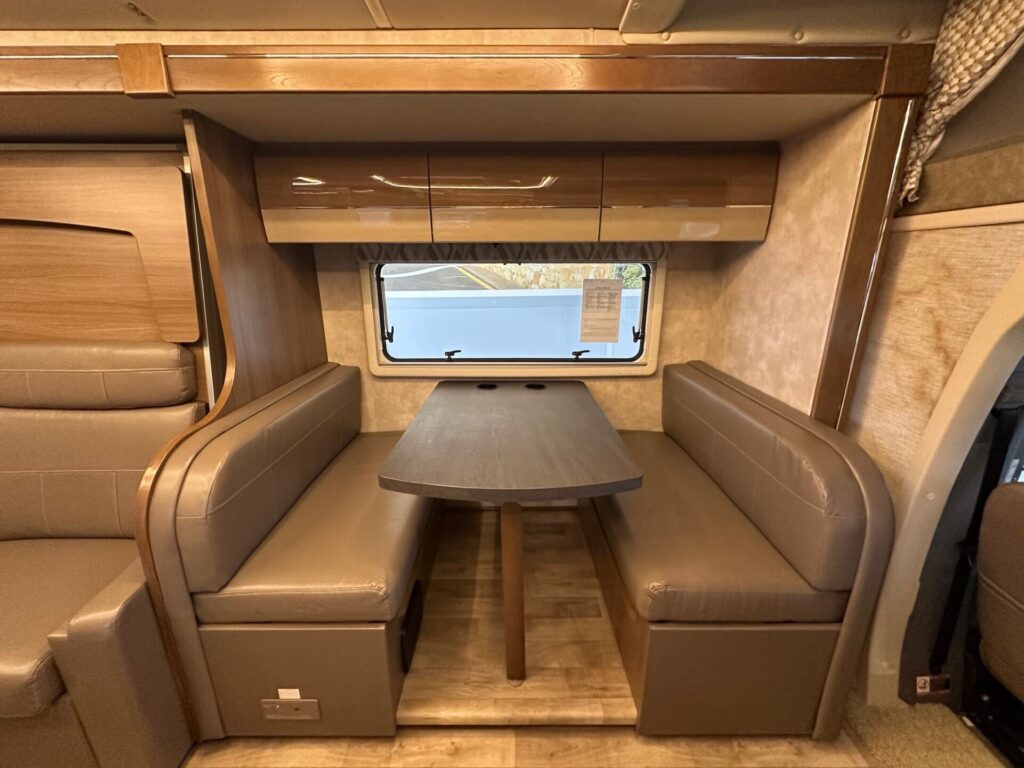

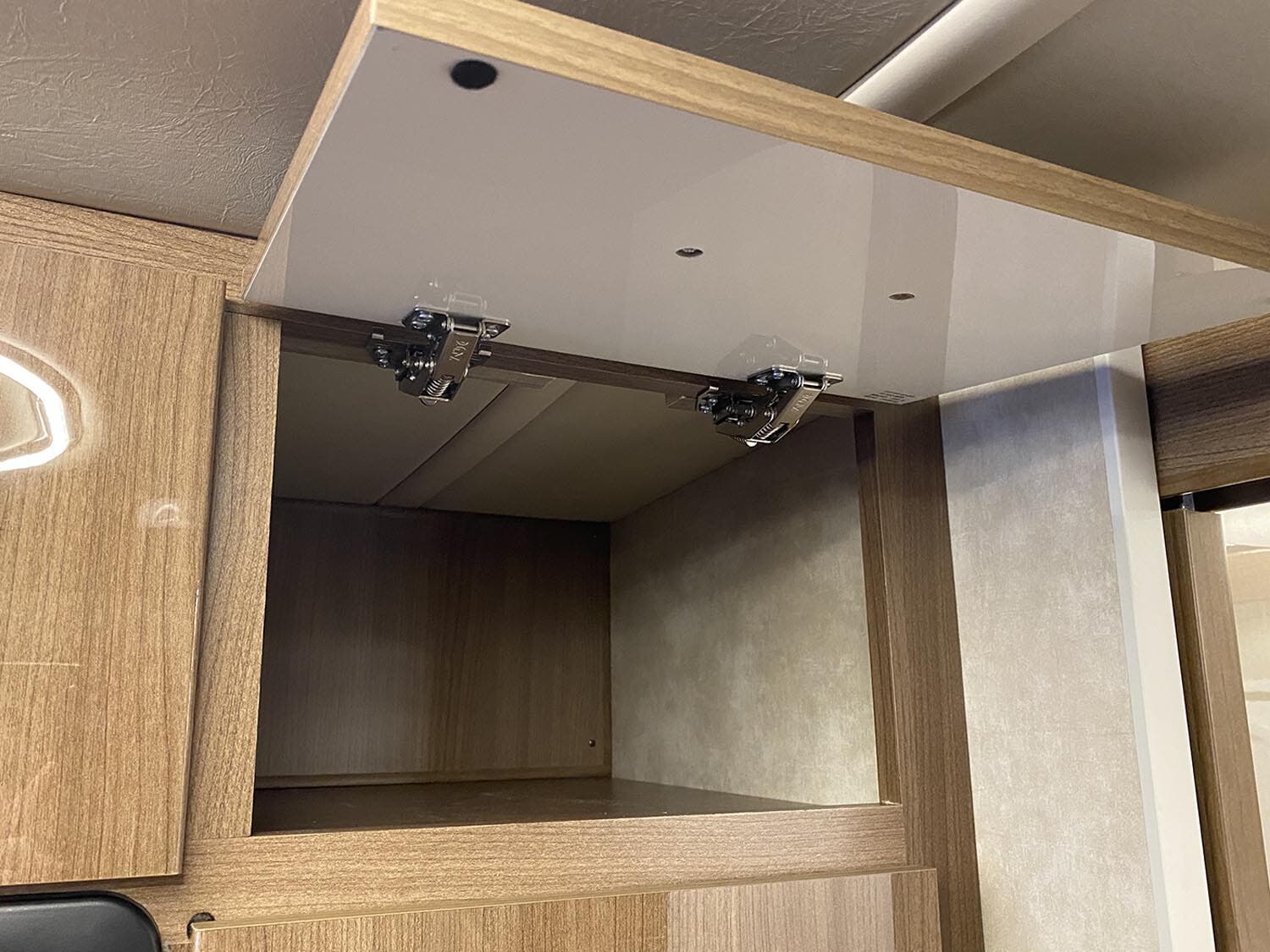

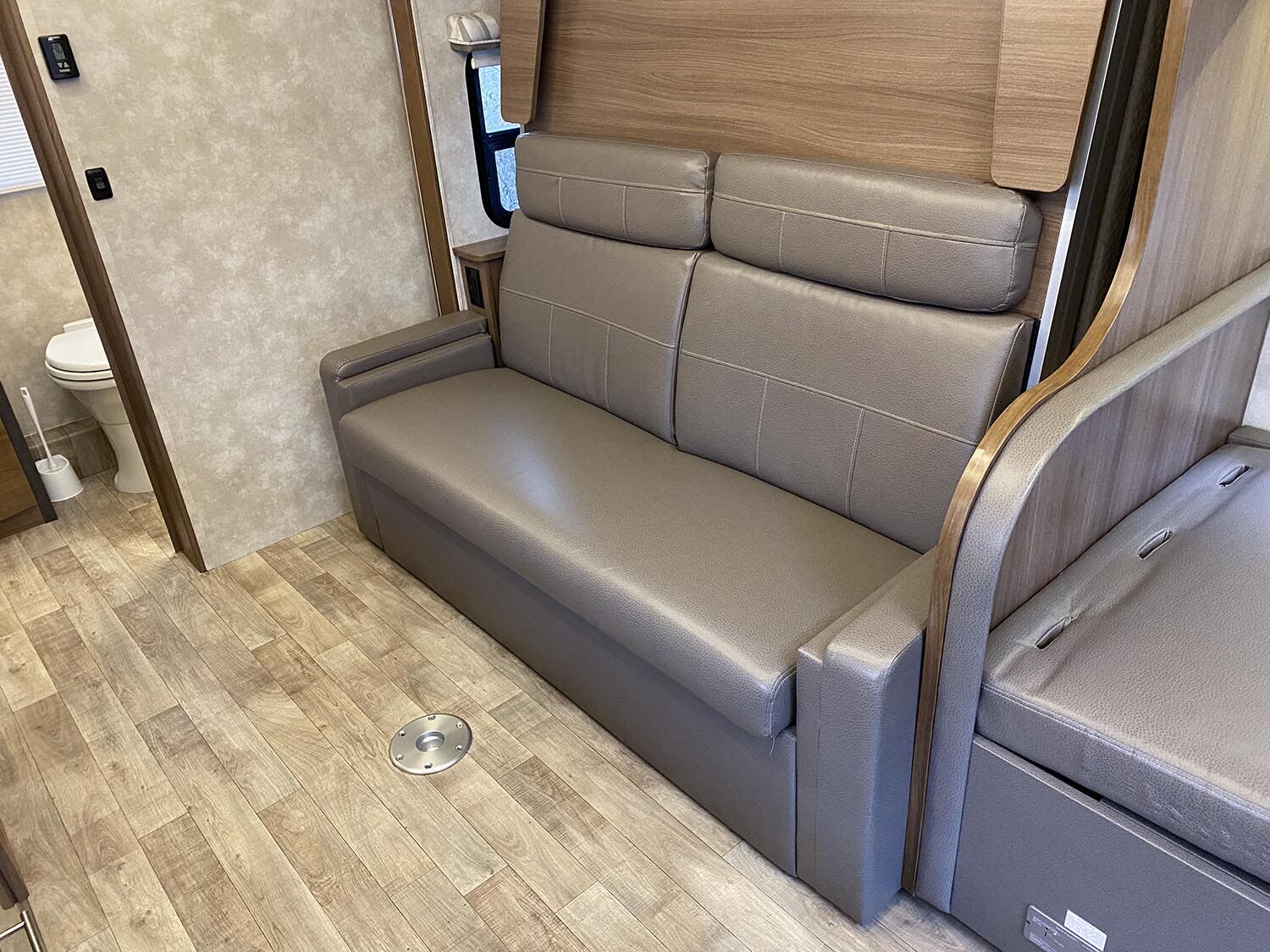

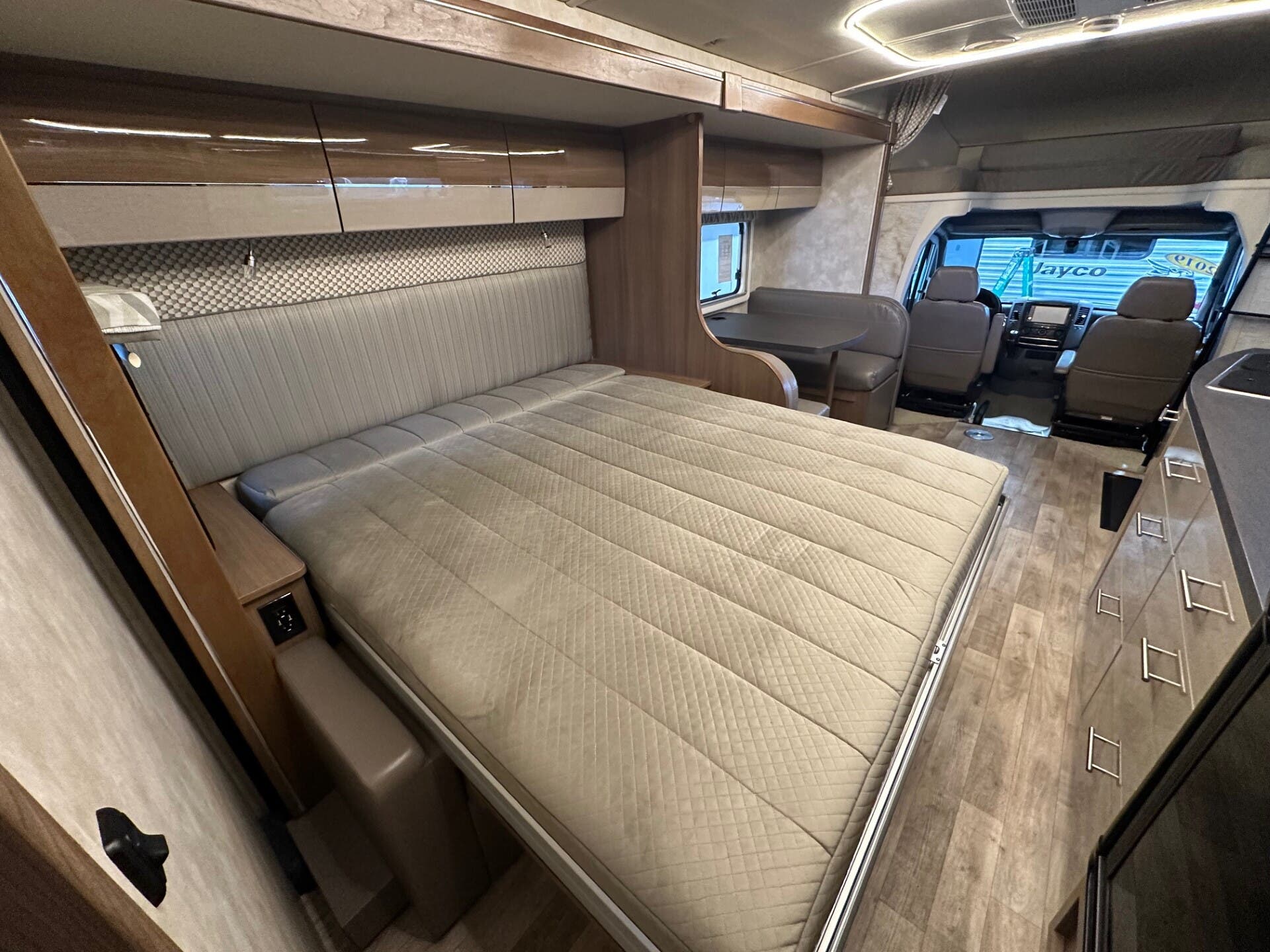

Stereo System AM/FM, alarm clock, CD/DVD player, input jack, Bluetooth®, 2 speakers and subwoofer • 28″ HDTV • LED lights • Satellite system ready • Monitor panel • Amplified digital HDTV antenna • Roof vent w/electric lift and ventilator fan (NA w/available powered skylight) • Mini blinds (galley) • Skylight w/shade • MCD solar/blackout roller shades • Tinted coach windows • Soft vinyl ceiling • Vinyl flooring throughout (24G front to bedroom) • Assist bar • USB charger • Interior Upgrade Package frosted galley backsplash w/accent lighting, 2 sink covers

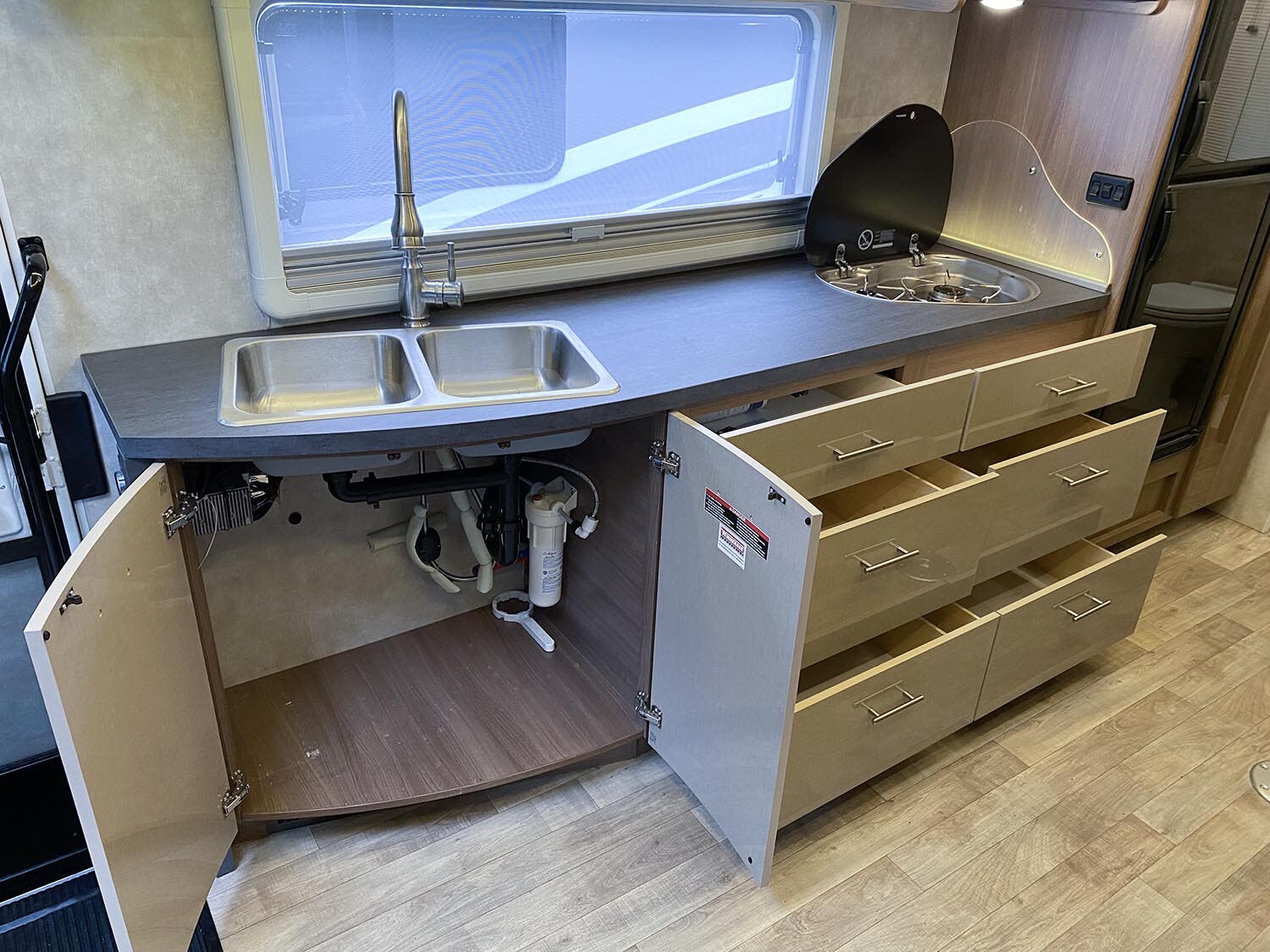

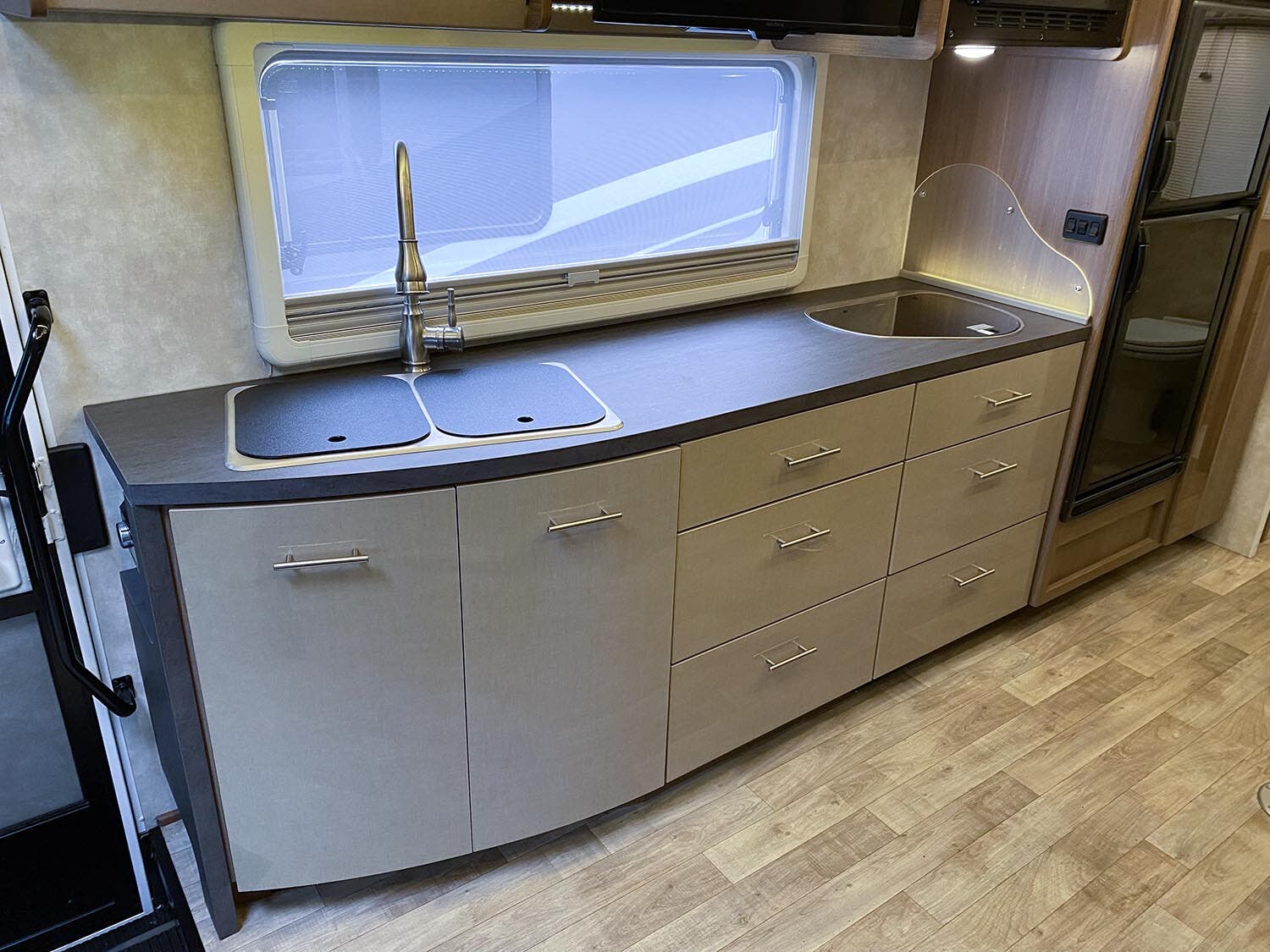

GALLEY

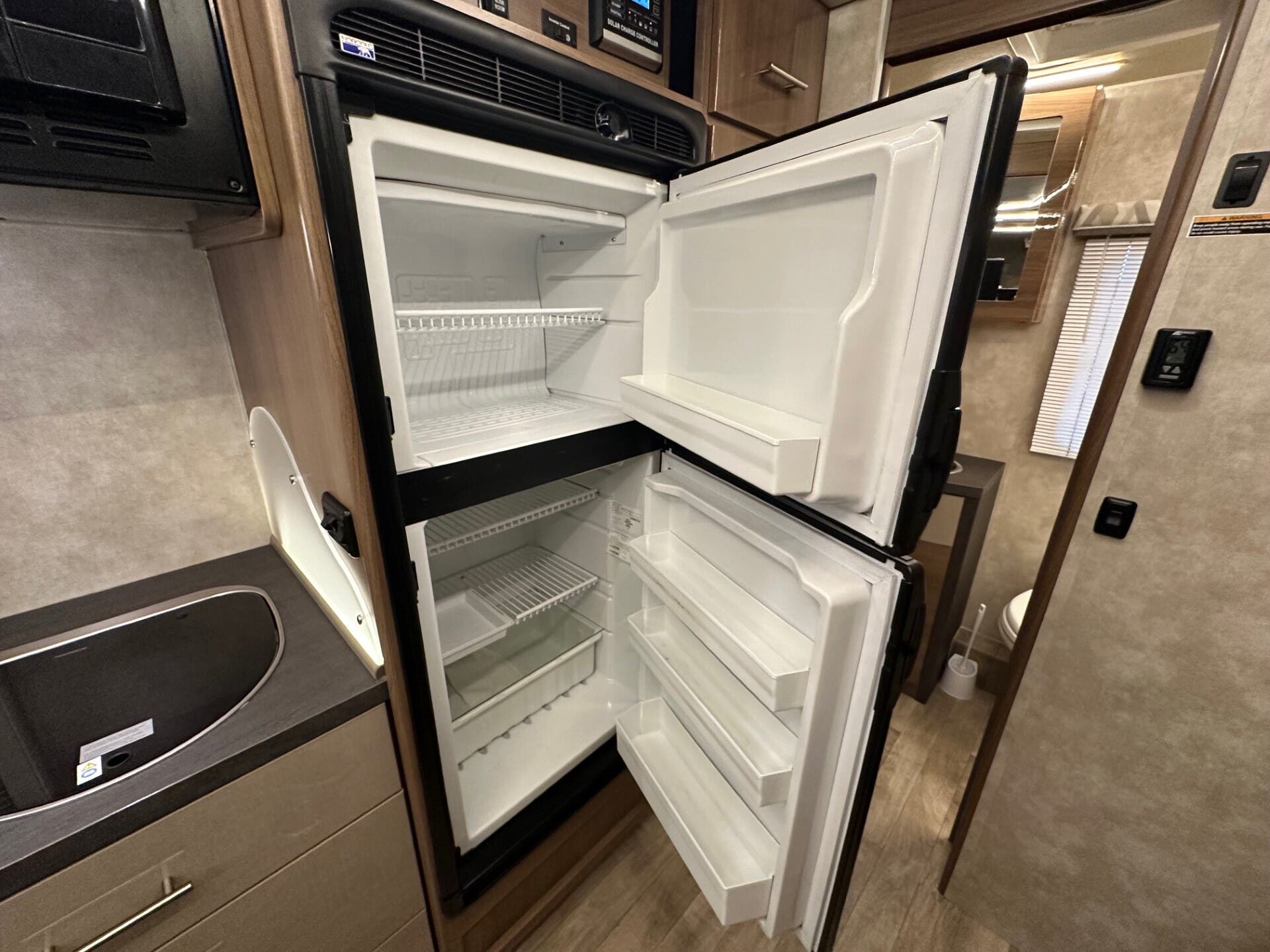

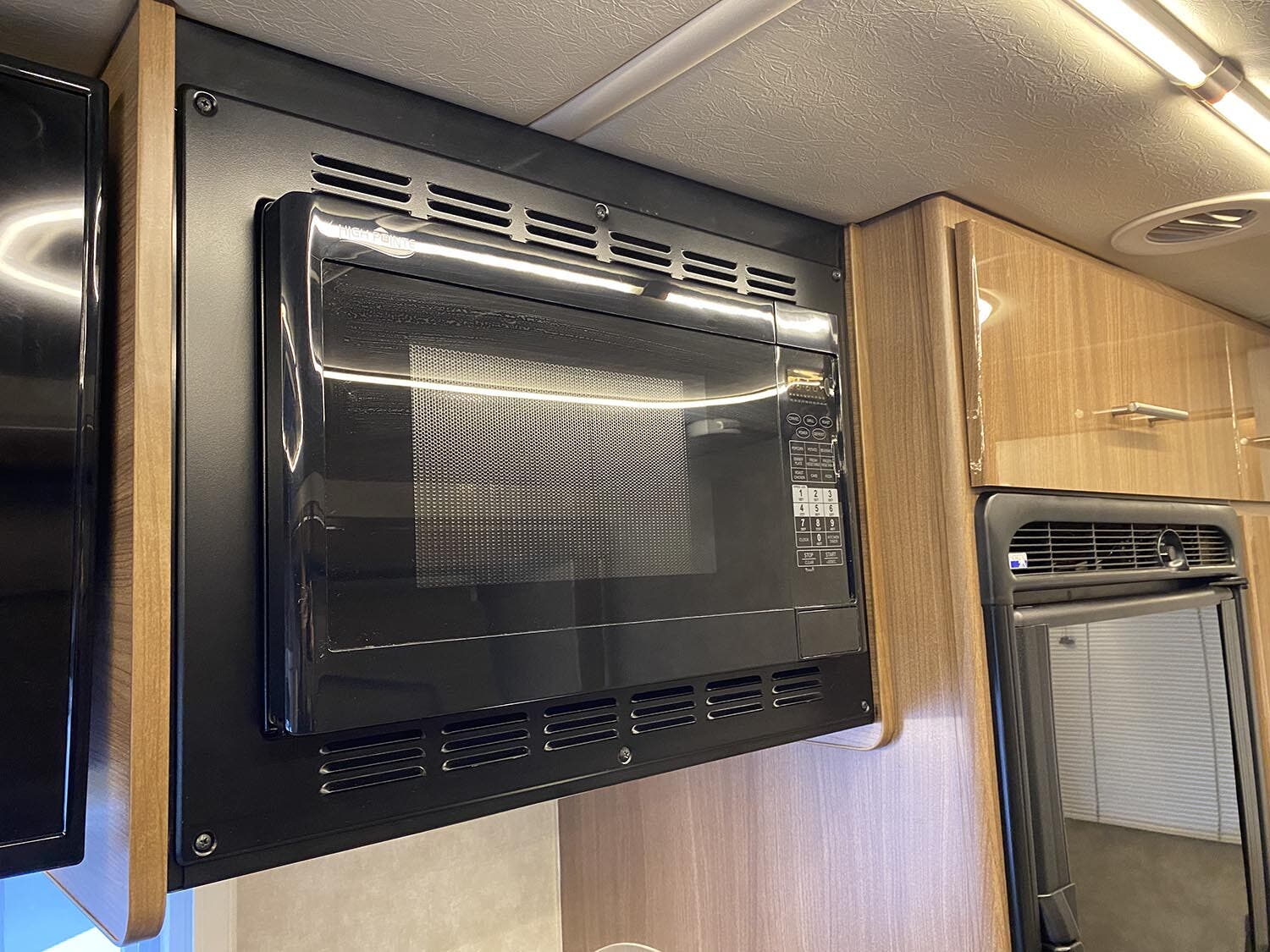

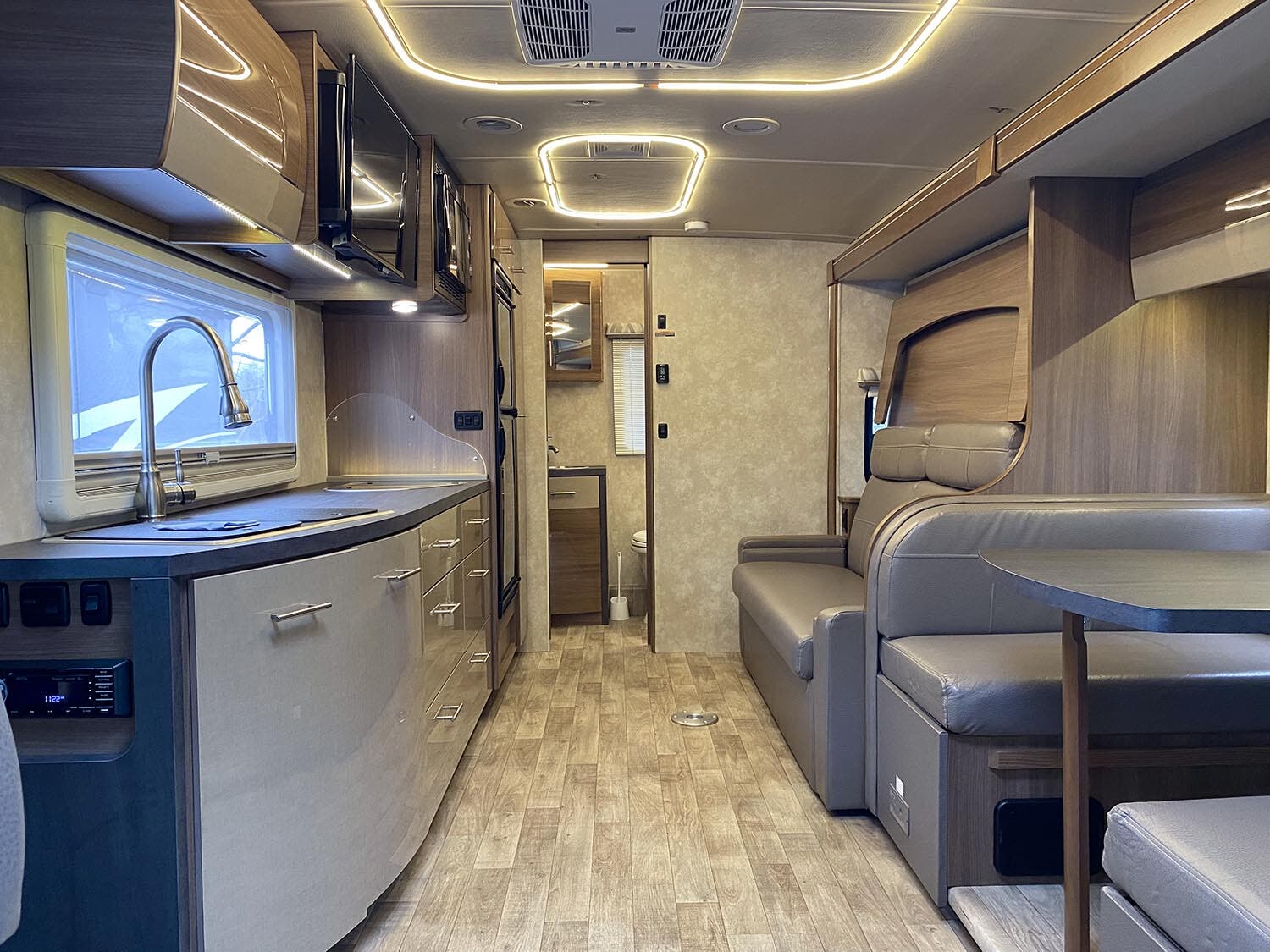

Laminate countertops • Microwave/convection oven w/touch control • 2-burner range top w/glass cover • Norcold® double-door refrigerator/freezer • Cold water filtration system • Water-pump switch w/light
HEATING & COOLING
15,000 BTU air conditioner • 20,000 BTU low-profile furnace

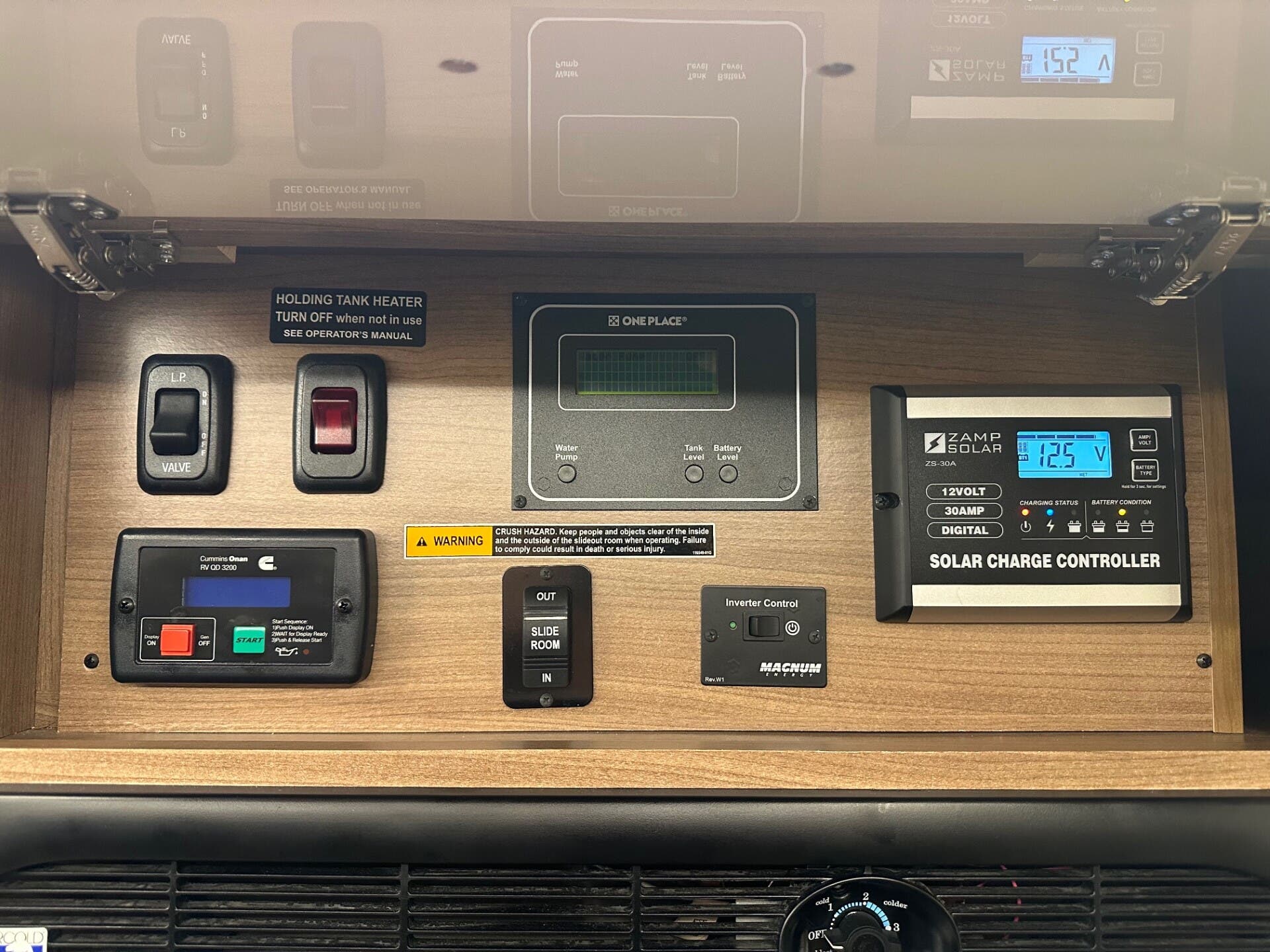

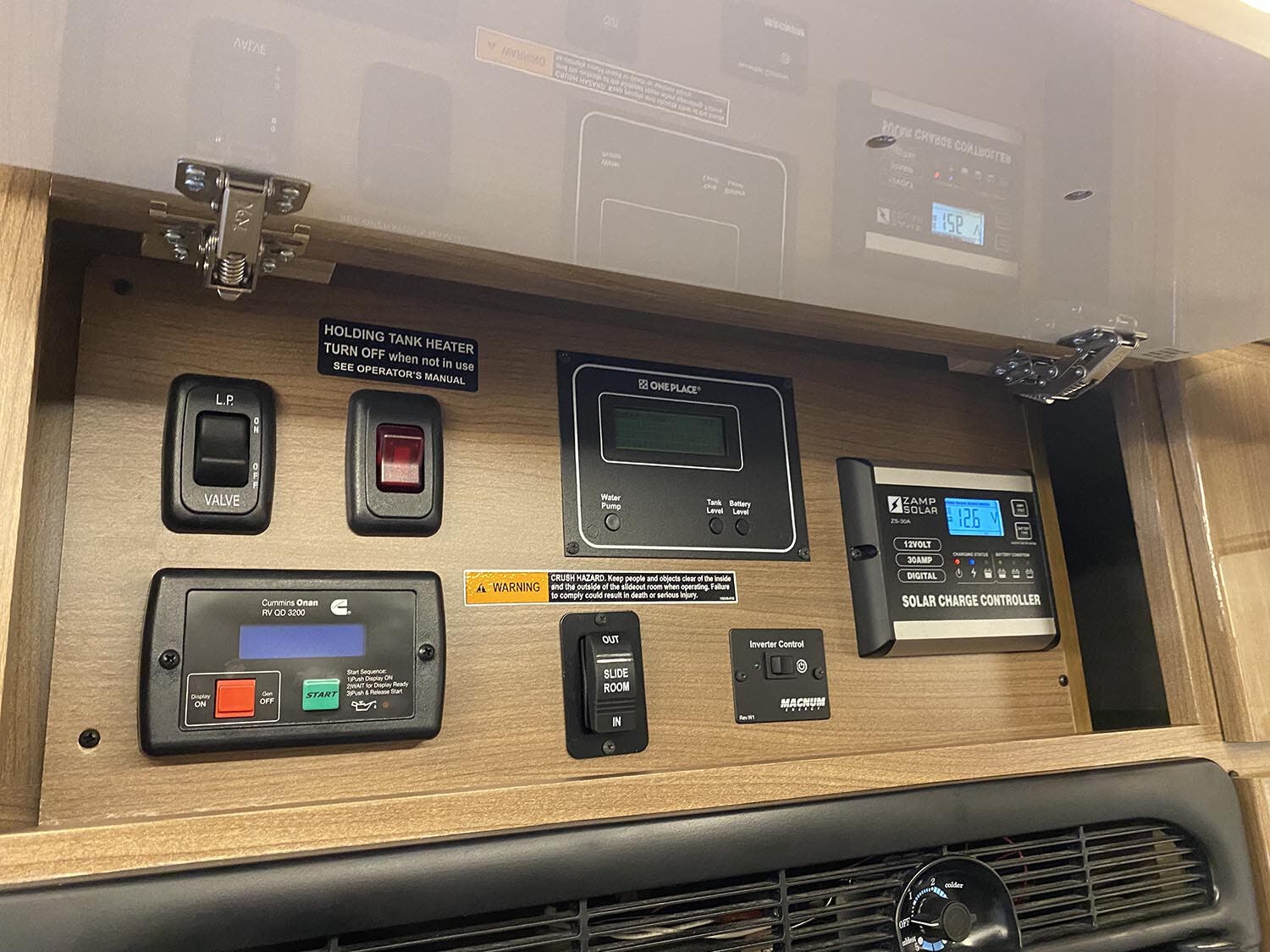

ELECTRICAL SYSTEM

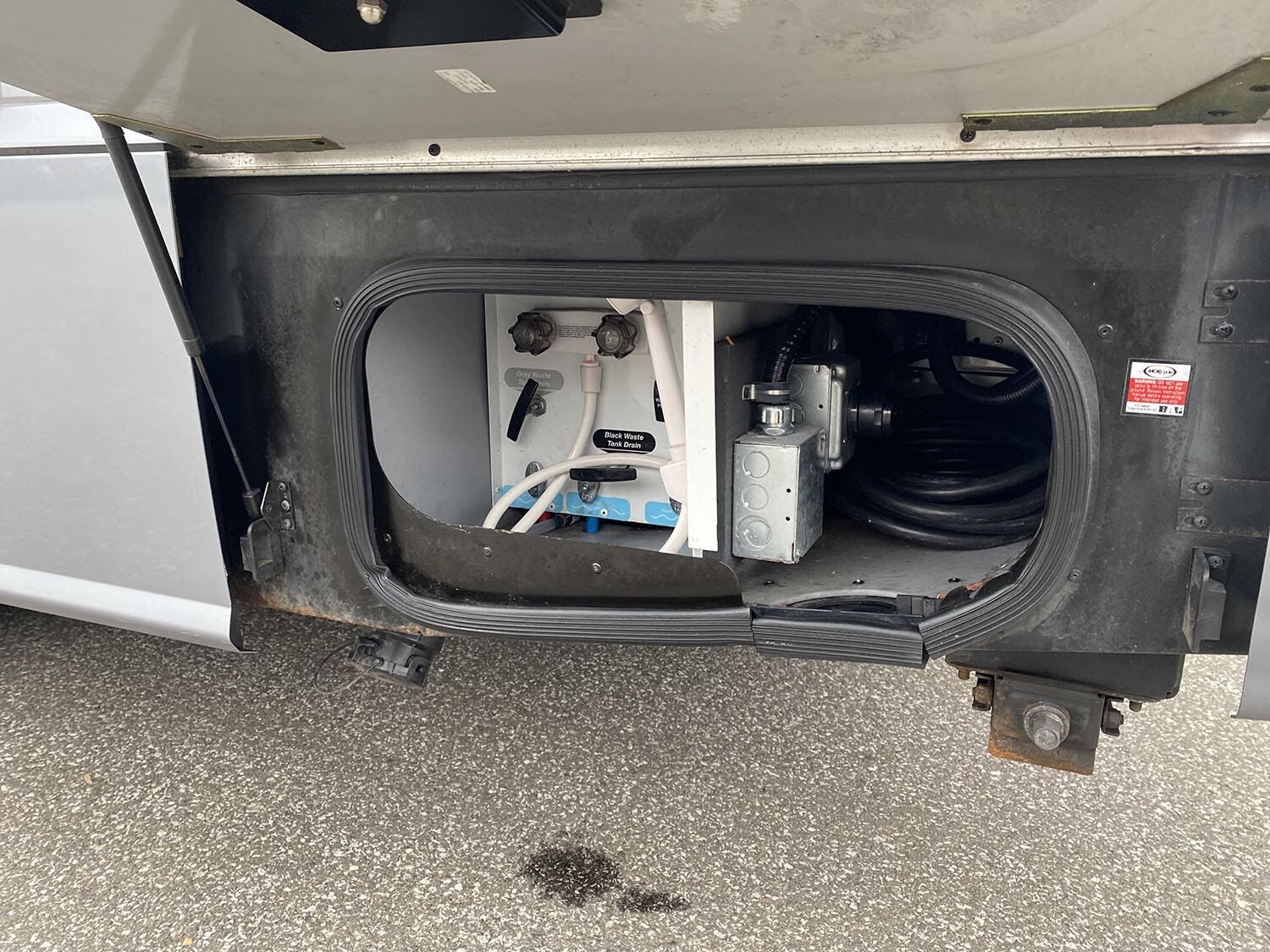

Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch • Auxiliary start circuit • Exterior AC duplex • Exterior antenna jack • Battery disconnect system (coach) • Automatic dual-battery charge control • AC/DC load center, 45-amp. converter/charger • 2 deep-cycle, Group 24 RV batteries • 3,600-watt Cummins Onan MicroQuiet™ LP generator • 1,000-watt DC/AC inverter
