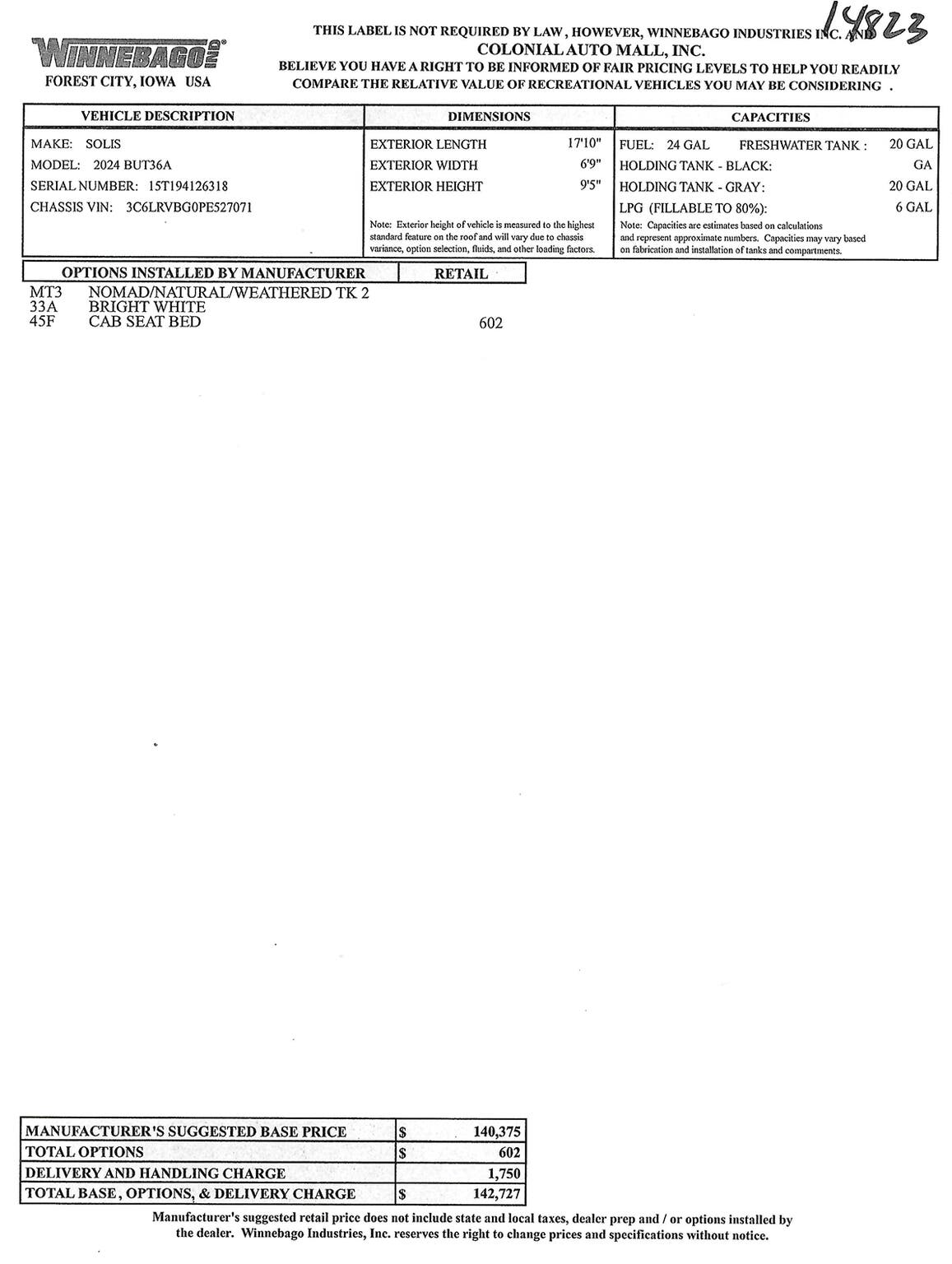

Options Included:
MT3: Nomad/Natural/Weathered Teak 2
33A: Bright White
45F: Cab Seat Bed
| 36B | 36A | |
|---|---|---|
| Exterior Length | 17’10” | 17’10” |
| Exterior Height | 9’5″ | 9’5″ |
| Exterior Width | 6’9″ | 6’9″ |
| Interior Height | 6’3″ | 6’3″ |
| Interior Width | 6’2″ | 6’2″ |
| Freshwater Tank Capacity (gal.) | 20 | 20 |
| Water Heater Capacity (gal.) | 2.6 | N/A |
| Holding Tank Capacity — Gray (gal.) | 20 | 20 |
| LP Capacity (lbs.) | 20 | 20 |
| Fuel Capacity (gal.) | 24 | 24 |
| GCWR (lbs.) | 12,000 | 12,000 |
| GVWR (lbs.) | 8,550 | 8,550 |
| GAWR – Front (lbs.) | 4,629 | 4,629 |
| GAWR – Rear (lbs.) | 5,291 | 5,291 |
| Wheelbase | 136″ | 136″ |
| Cassette Toilet Capacity (gal.) | 5.5 | 3.2 |
| Sleeps | 2 | 3 |
CHASSIS
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 9-speed automatic transmission, 180-amp. alternator • 4-wheel ABS brakes • Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight
CAB CONVENIENCES

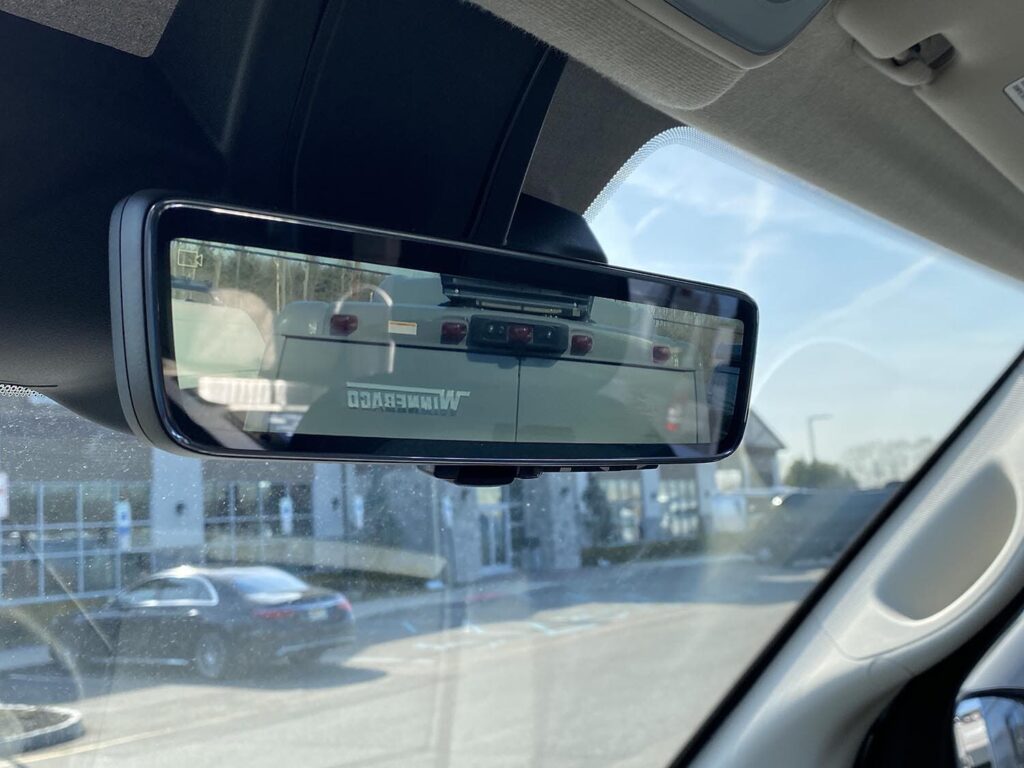

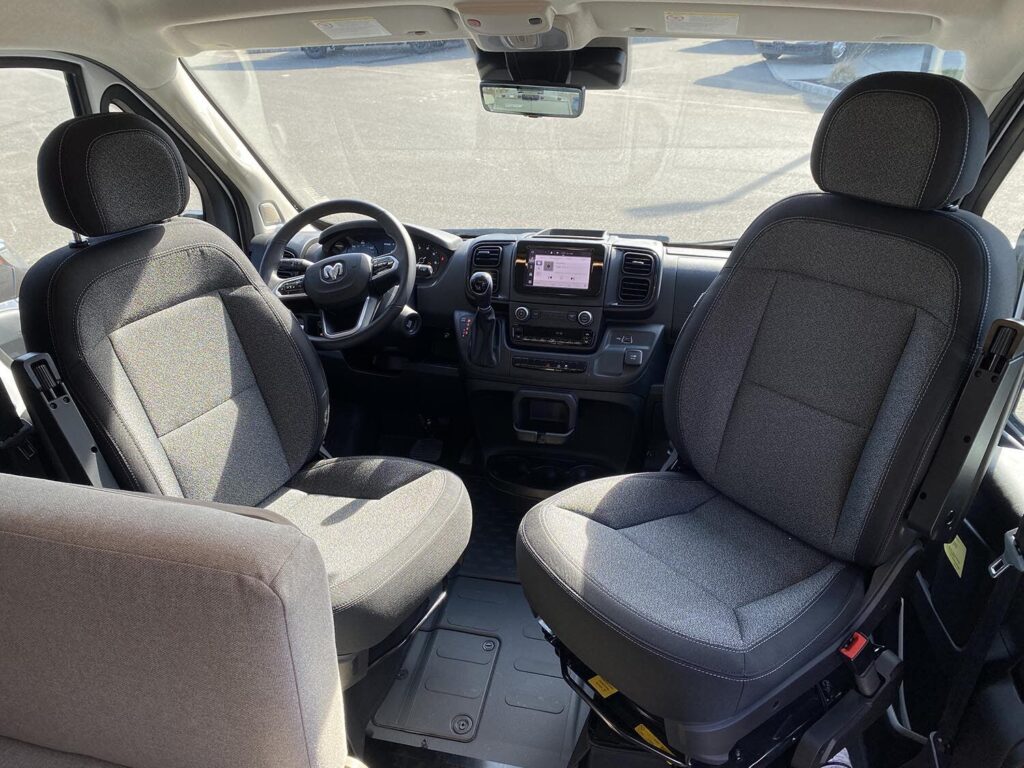

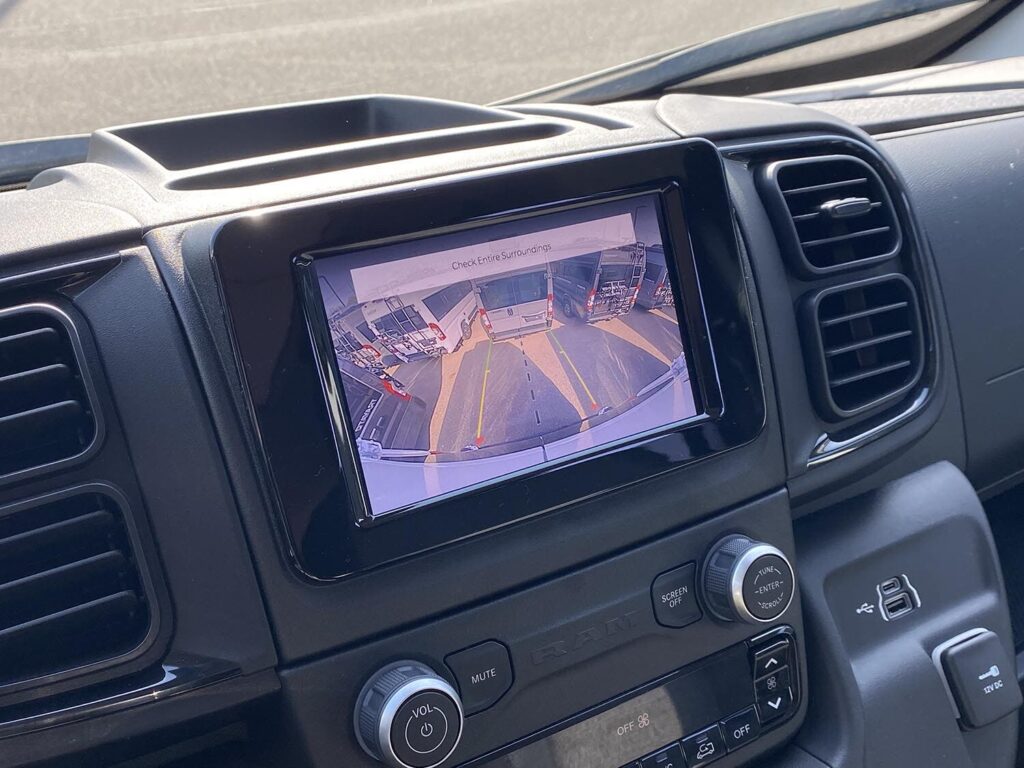

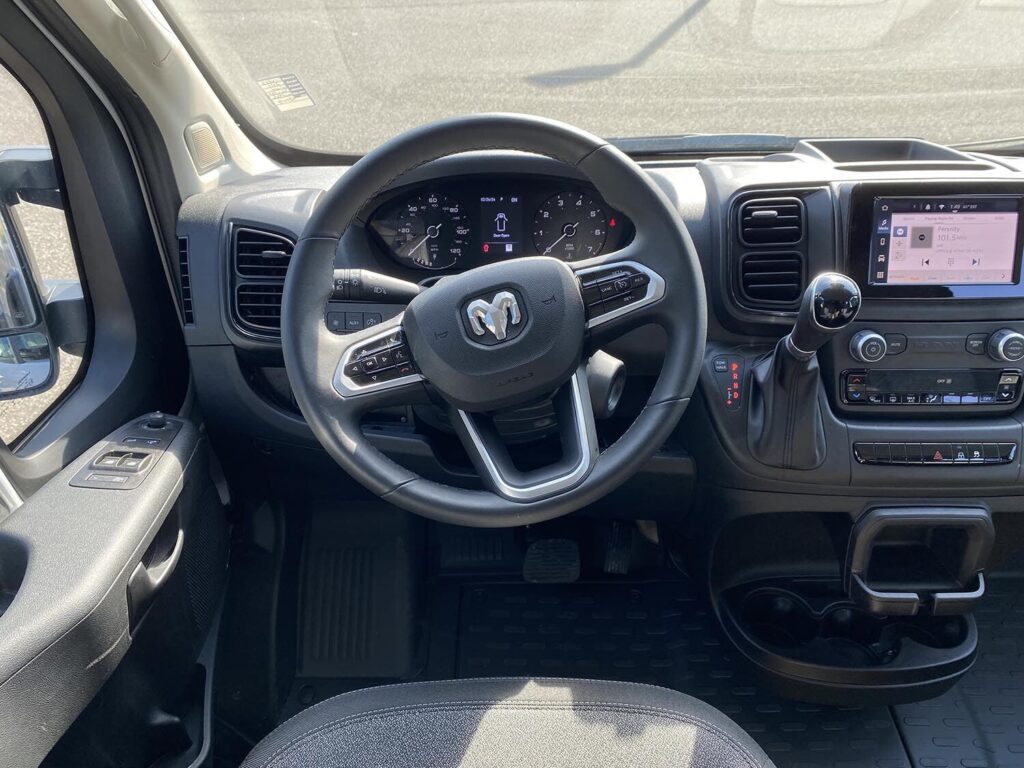

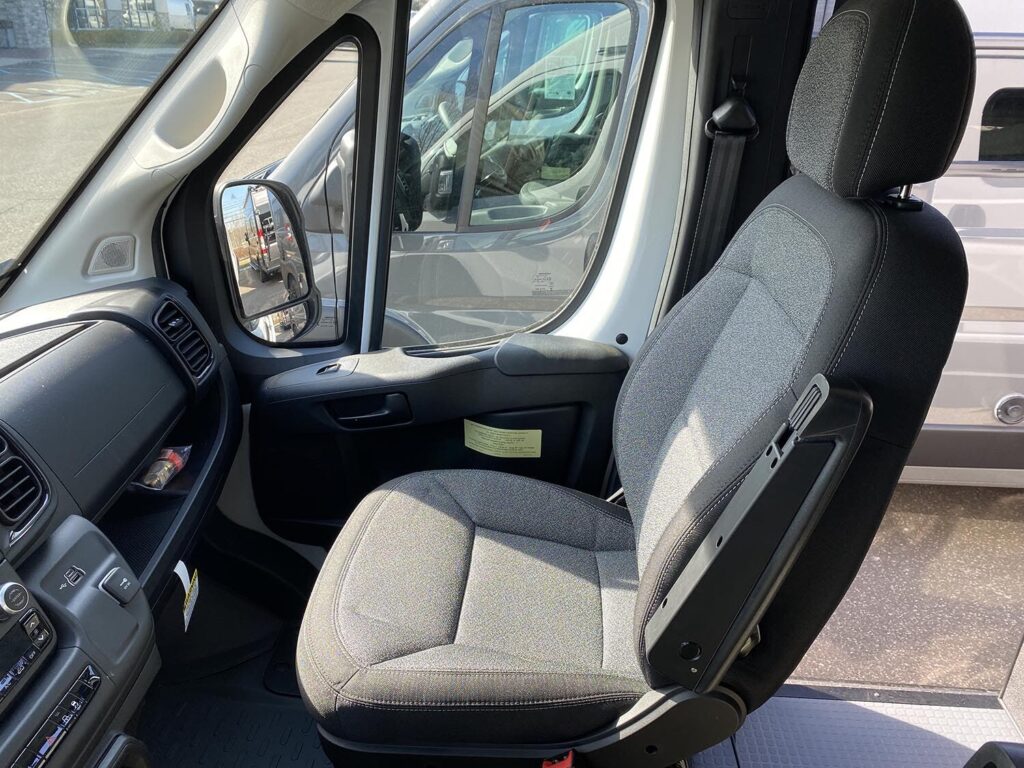

Radio/Rearview Monitor System 5″ LCD color touch screen, steering wheel controls, color rear camera and USB ports • Cab seats adjustable headrest, slide/swivel/recline • Airbags driver and passenger • Cruise control • Digital rearview mirror • Crosswind assist • 3-point seat belts • Electric power steering • Manual adjust mirrors w/turn signal • Power door locks w/remote • Power windows • 12-volt powerpoints • Sunvisors • Front and cab window privacy panels • Full-speed forward collision warning plus • Pedestrian automatic emergency braking system • Post collision braking • Push button start
INTERIOR

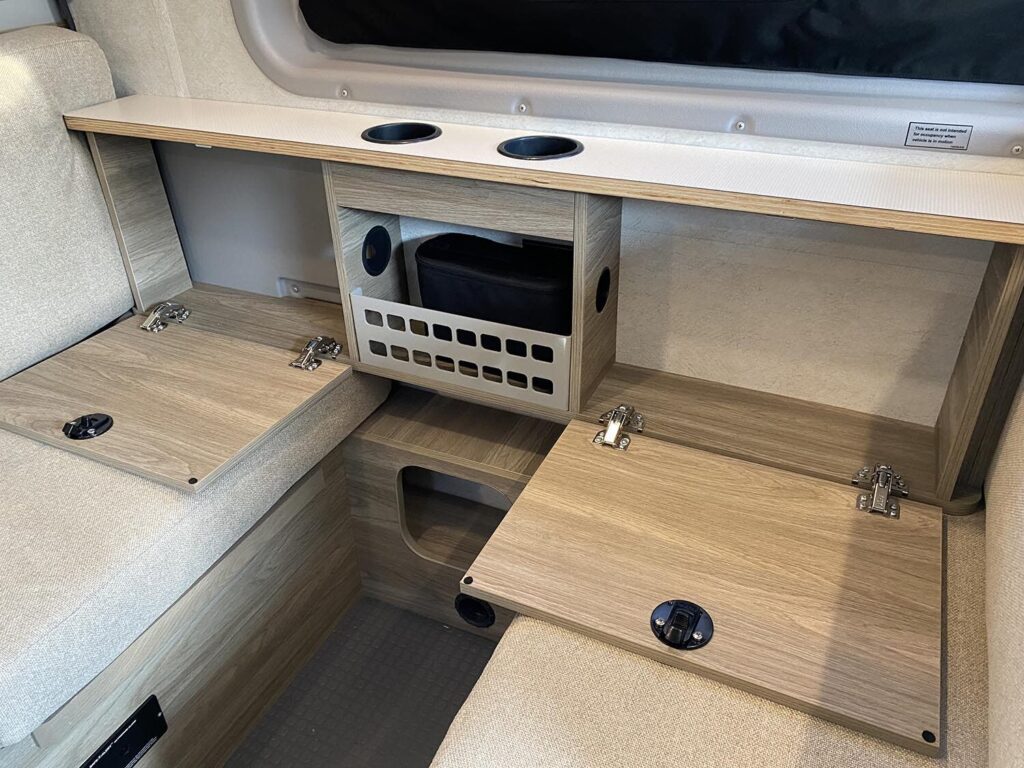

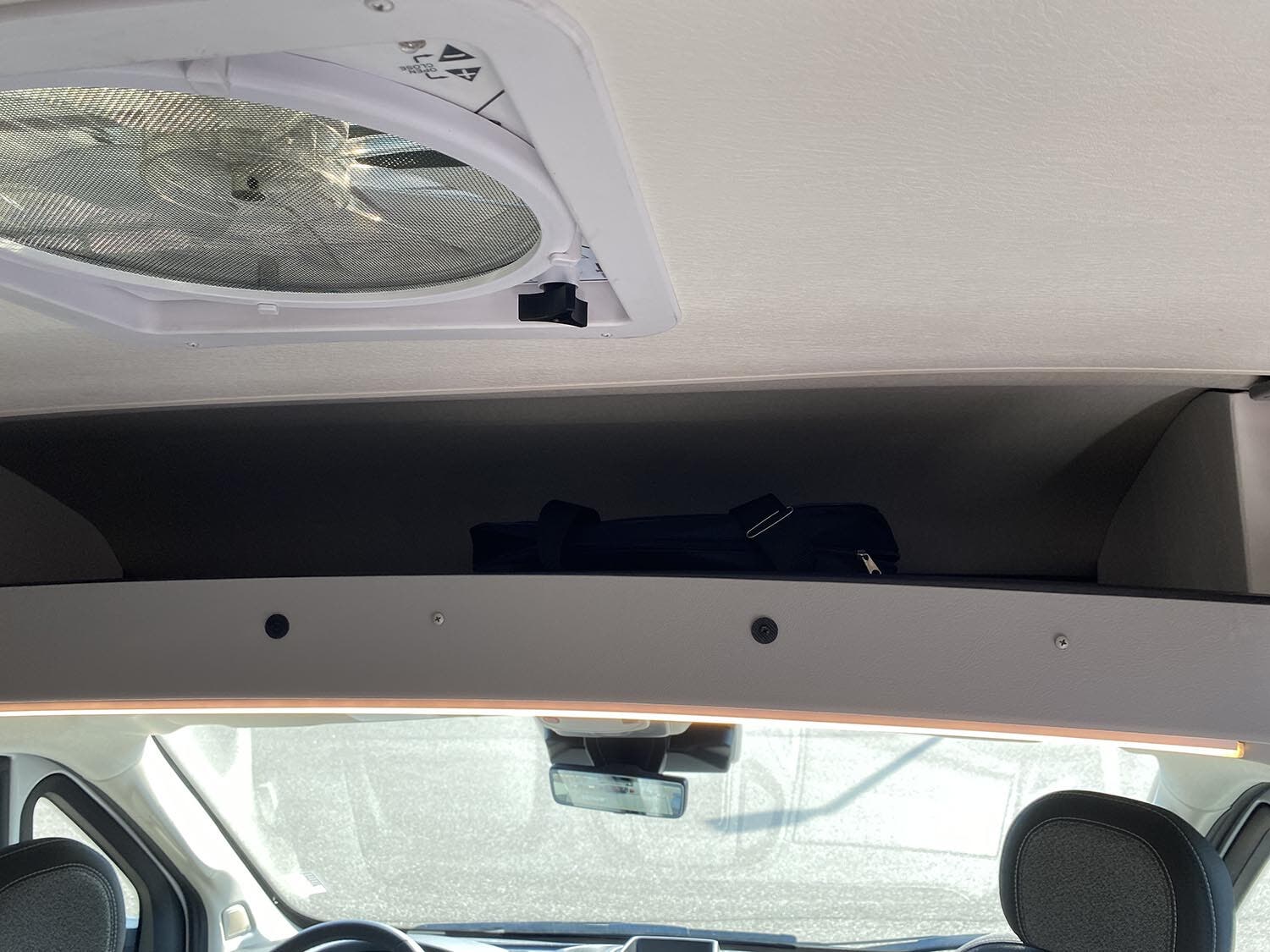

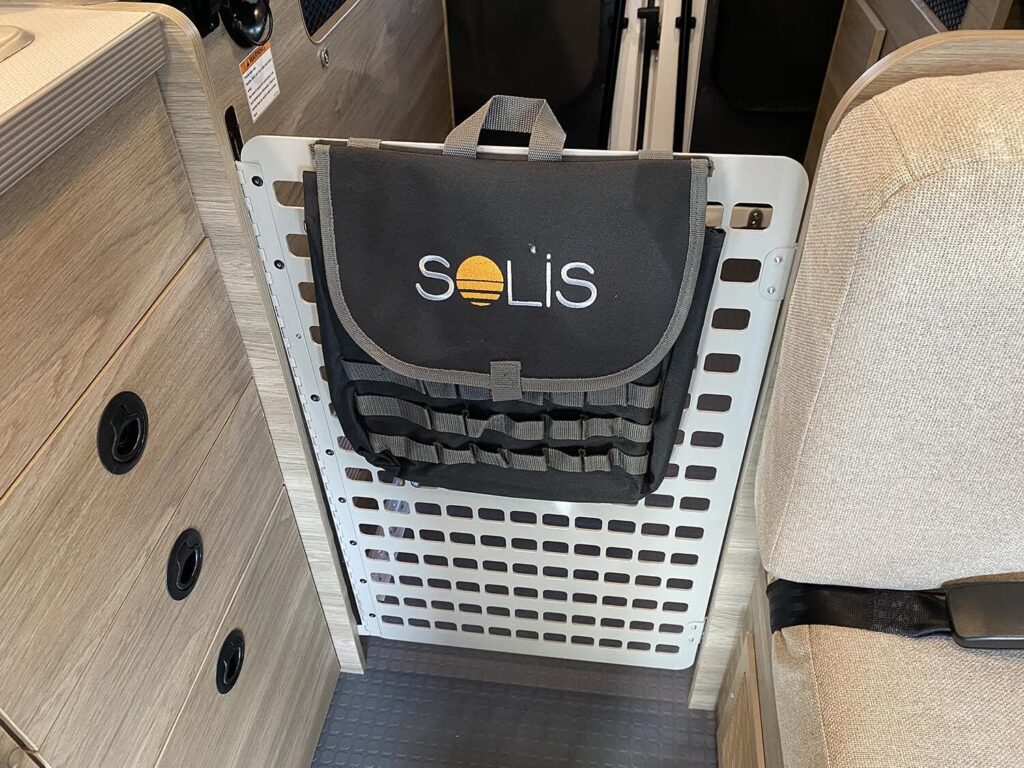

LED ceiling lights • Tinted coach windows • Systems monitor panel • Deluxe powered ventilator fan • Dinette w/two facing seats (converts to sofa/daybed and includes one 3-point seatbelt) (36A) • Dinette w/two facing seats (converts to sofa/ primary bed and includes two 3-point seatbelts) (36B) • Multi-use storage area w/cupholders and charging center (36A) • Removable/adjustable table w/two mounting positions (36A) • MOLLE panel retention gate w/galley storage pack (36A) • Reading lights Roof wiring access port • Zippered window coverings • Heavy duty vinyl flooring throughout • Gear space w/L-track cargo tie down system (36A) • USB charging ports
Optional Equipment: Front cab air mattress 30″ x 65″ w/support base, cordless pump, repair kit and storage bag
GALLEY

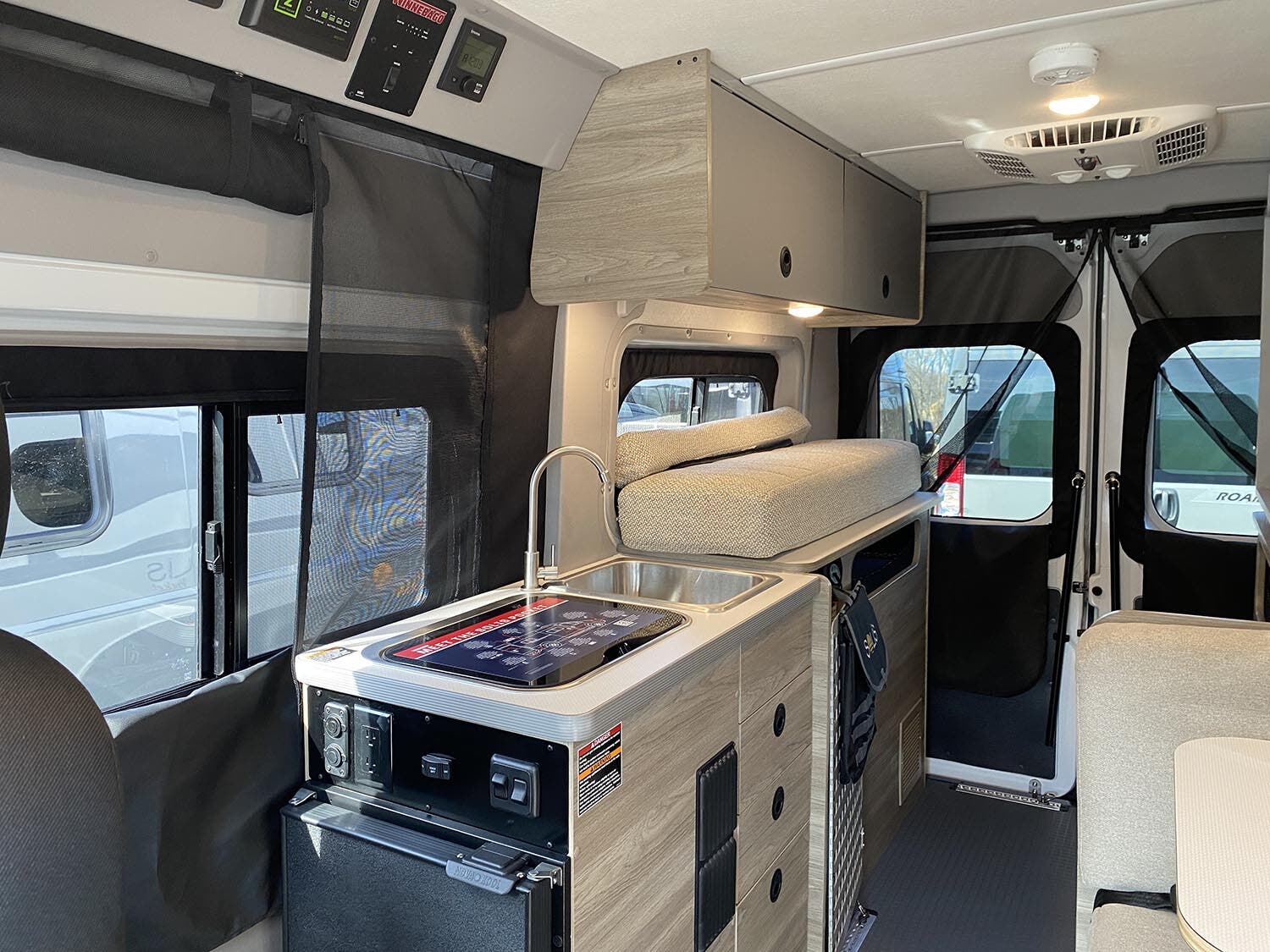

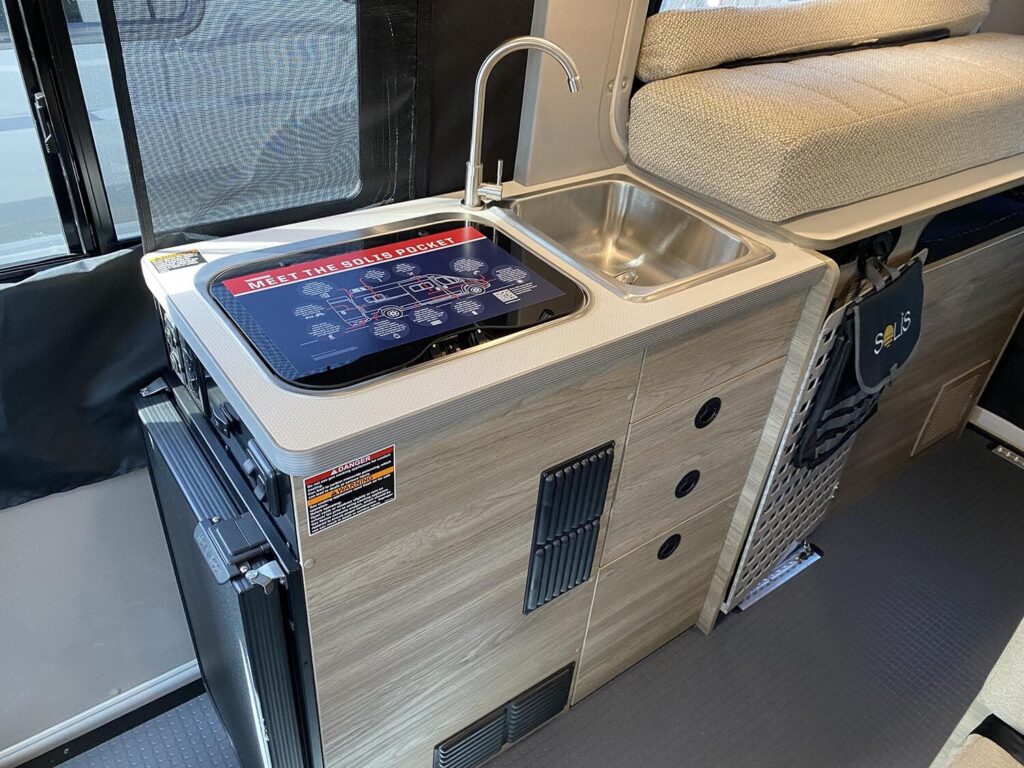

Laminate countertop • 2-burner range top w/glass cover • 3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer • Stainless steel sink
BATH

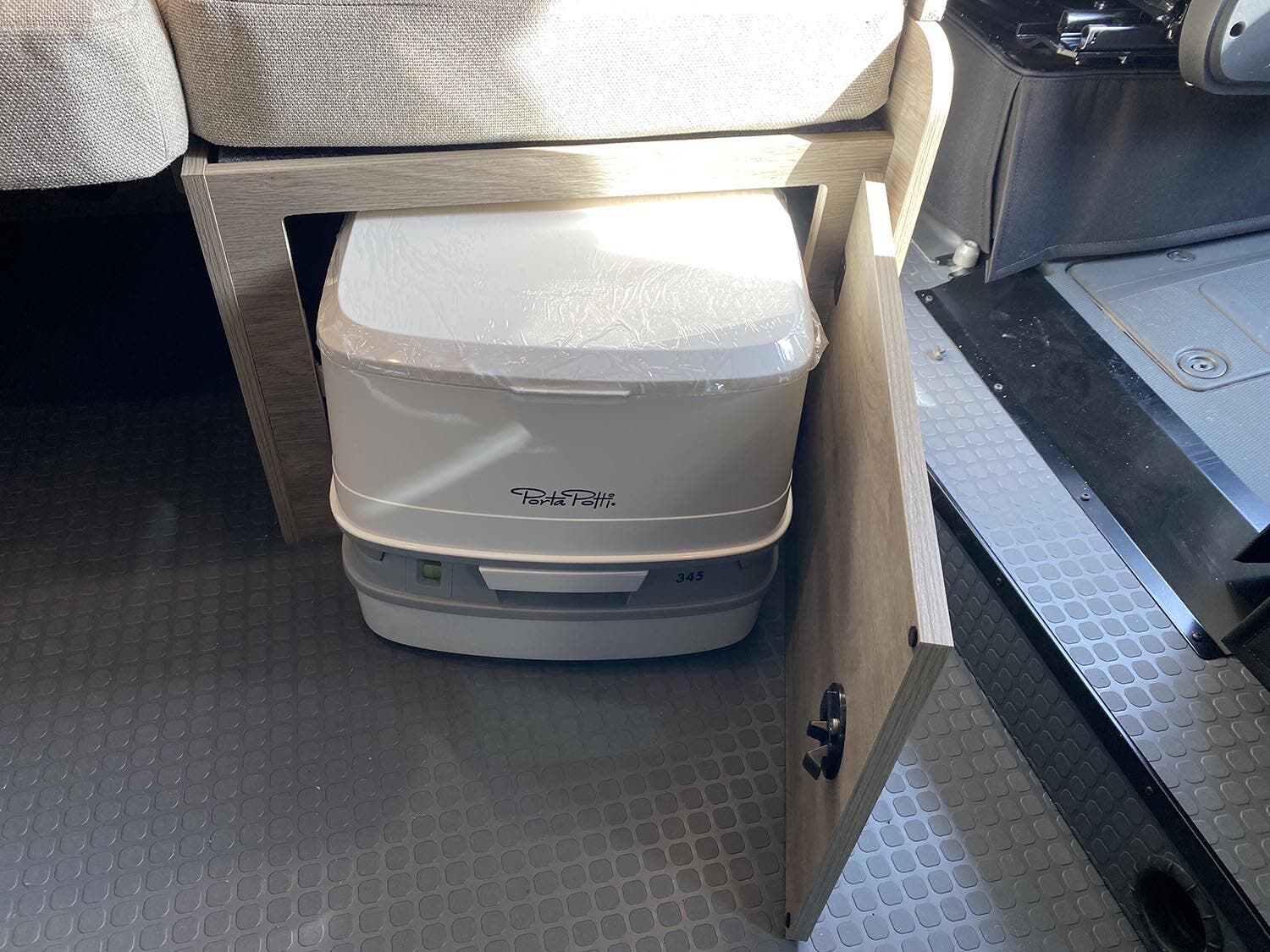

Portable toilet (stored under rear facing dinette seat) (36A) • Flexible shower head w/dual control faucet (36B) • Shower w/wall surround (36B) • Shower curtain (36B) • Removable cassette toilet (36B) • Stainless steel round sink (36B) • Medicine cabinet w/mirror (36B) • Powered roof vent (36B) • Wardrobe cabinet (MOLLE panel w/galley storage pack stored on rear face of cabinet) (36B)
BEDROOM

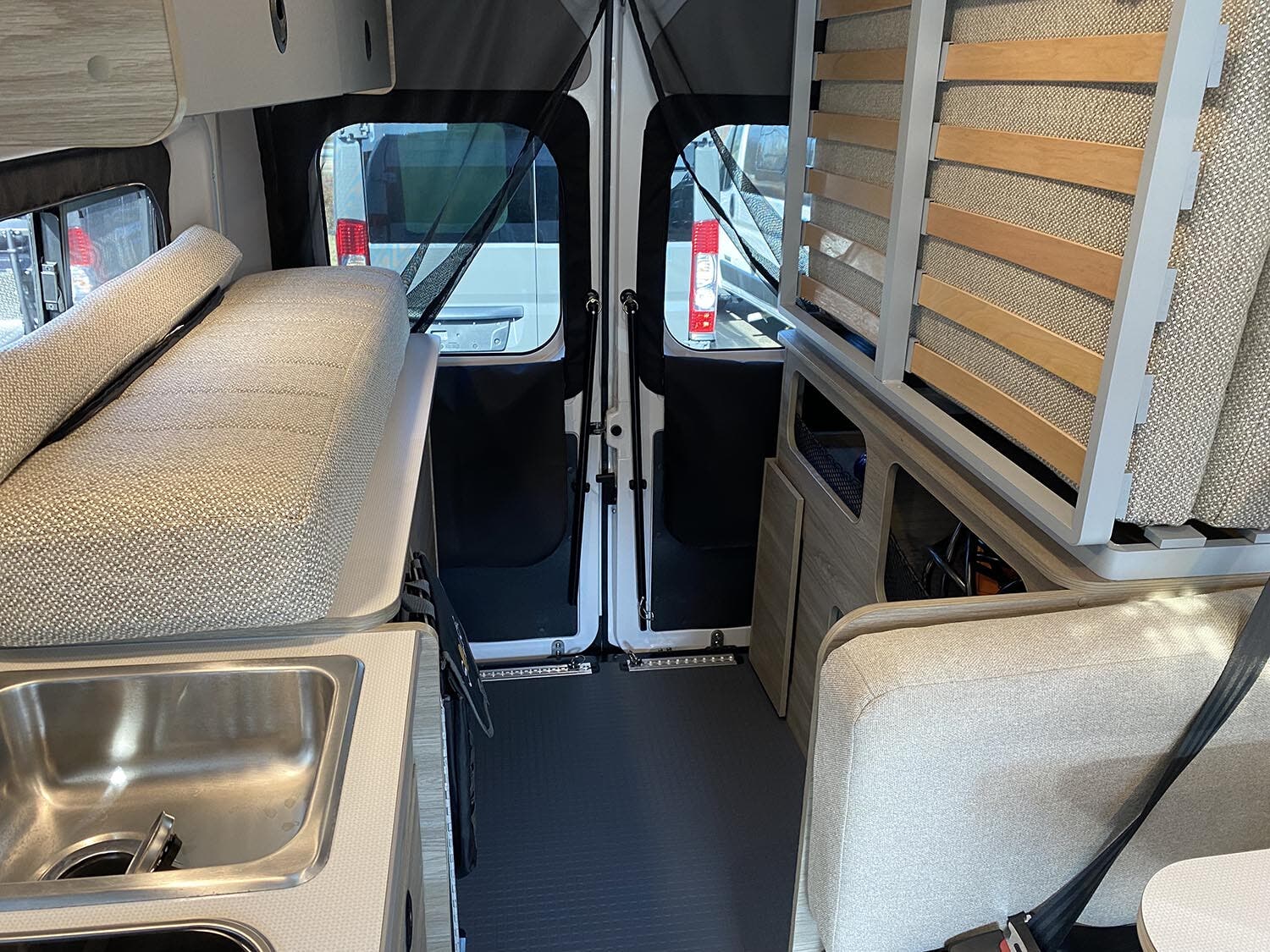

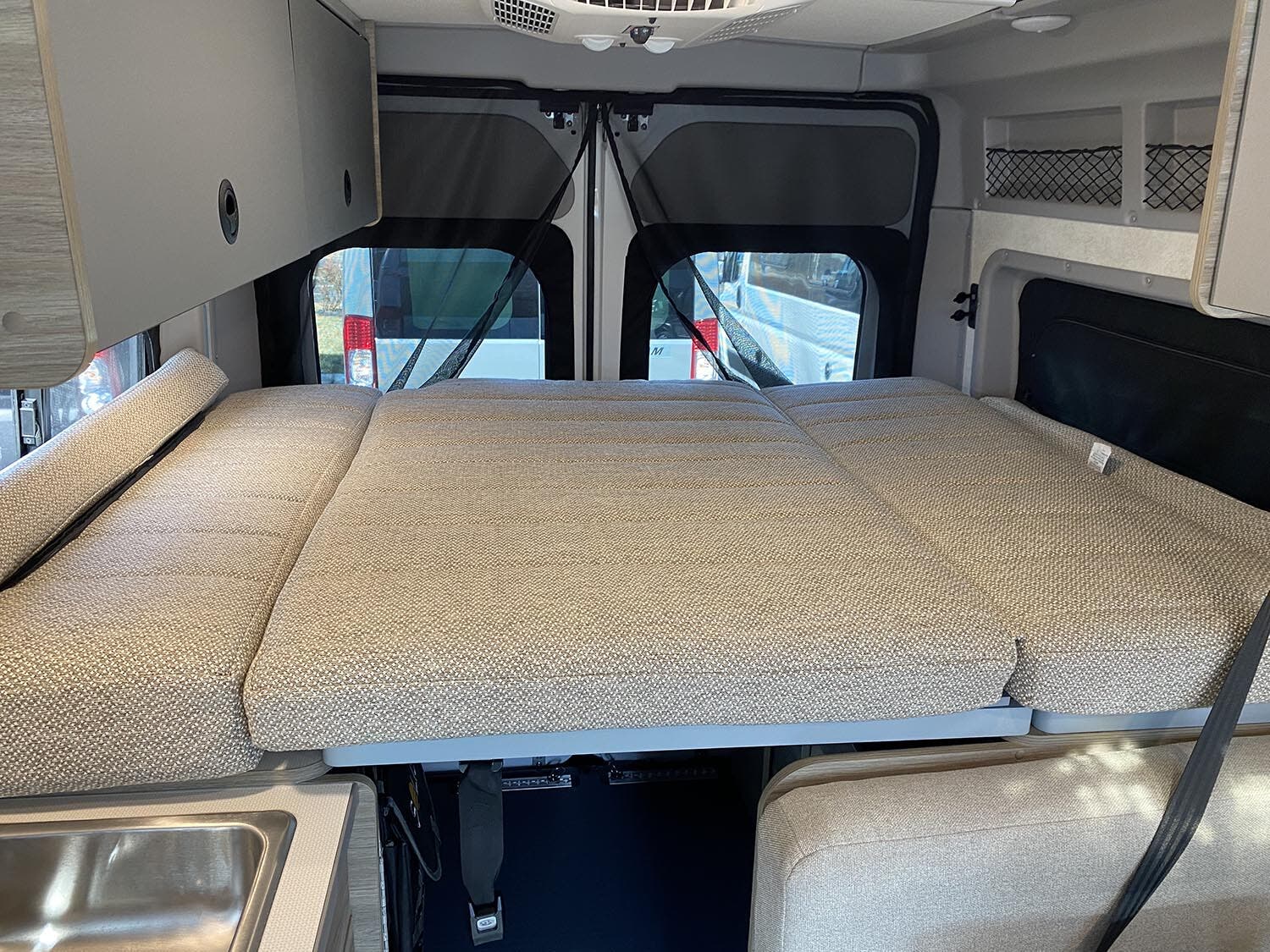

Murphy+ bed w/mattress cover, slat bed system and access to below floor storage (36A) • Convertible dinette bed (Single – 30″ x 75″, Double – 53″ x 75″) (36B)
EXTERIOR

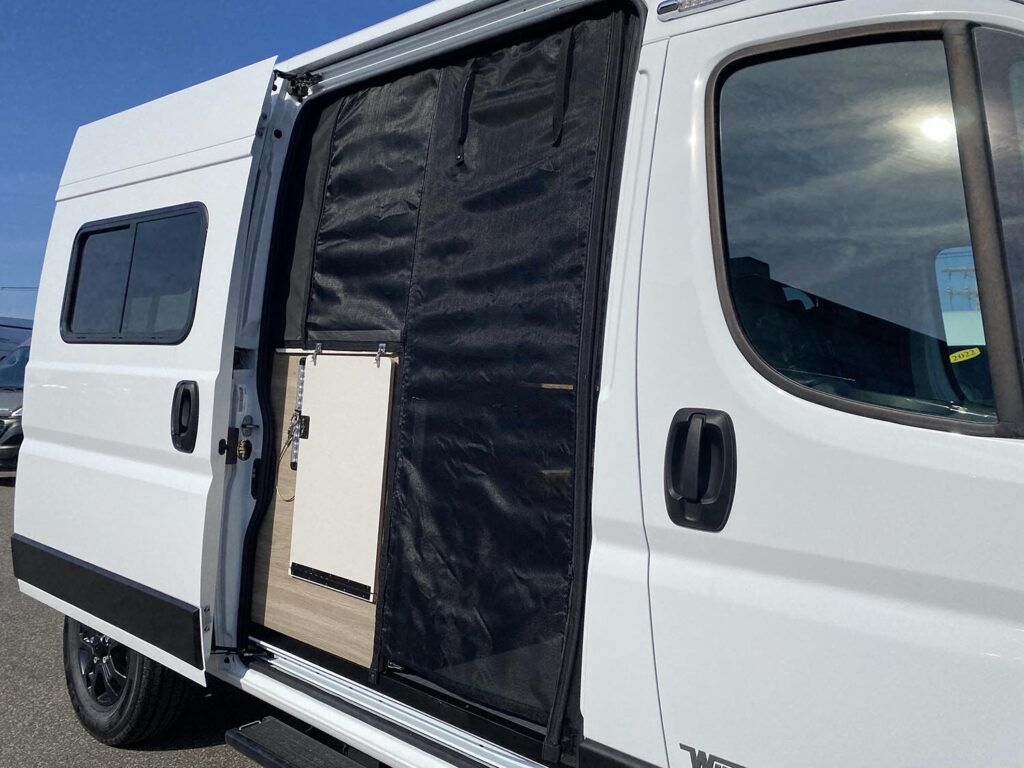

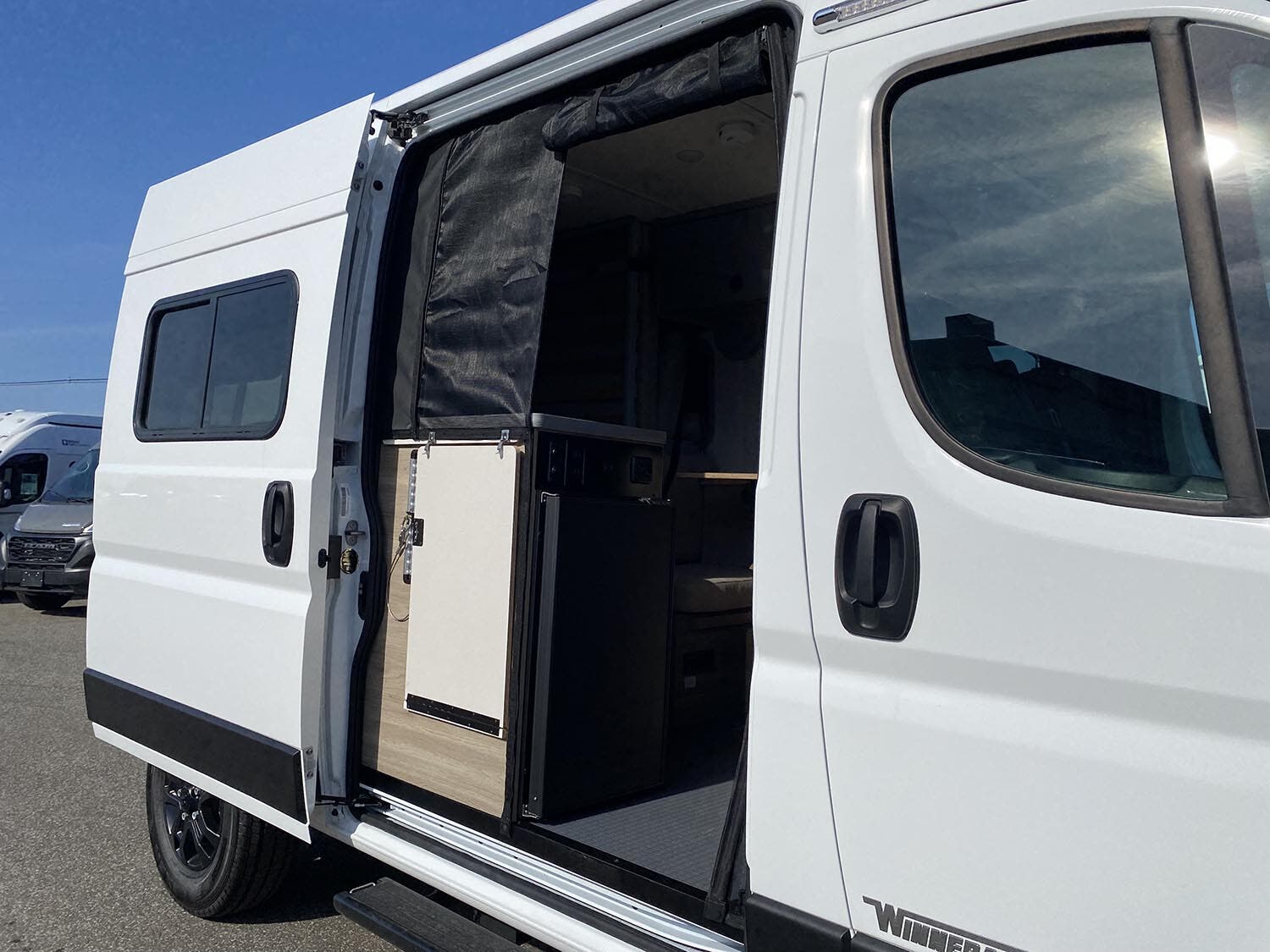

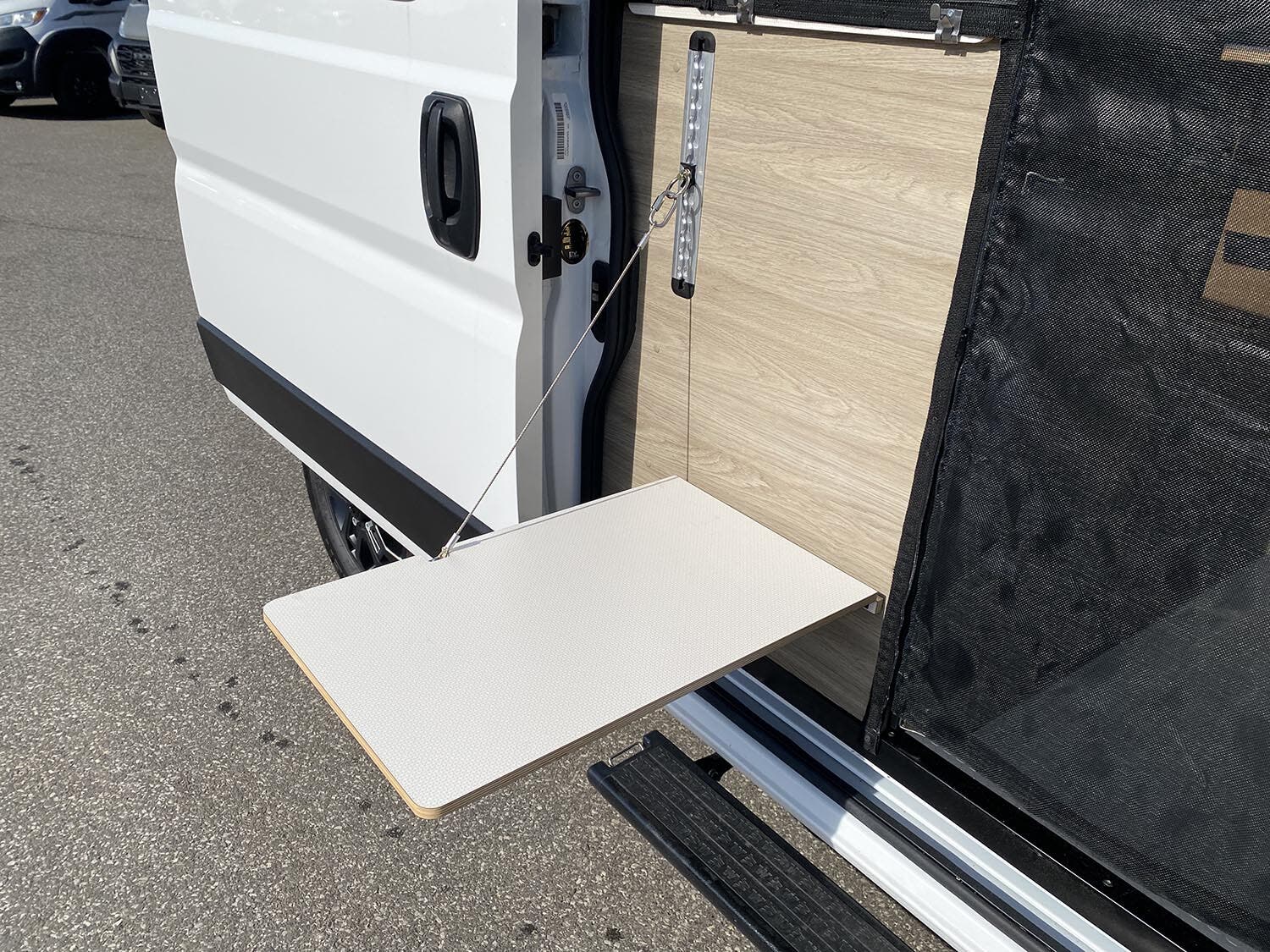

Porch light w/interior switch (passenger side) • Assist bar handle • Side screen door • Rear screen door • Aluminum running board w/logoed tread and pet loop attachment • Fold-down exterior table • Rod and privacy screen (provided for rear annex)
HEATING & COOLING SYSTEM
Truma® VarioHeat™ (36A) • 13,500 BTU air conditioner w/directional ducts and dial control • Truma Combi® Eco heating system (36B)
ELECTRICAL SYSTEM

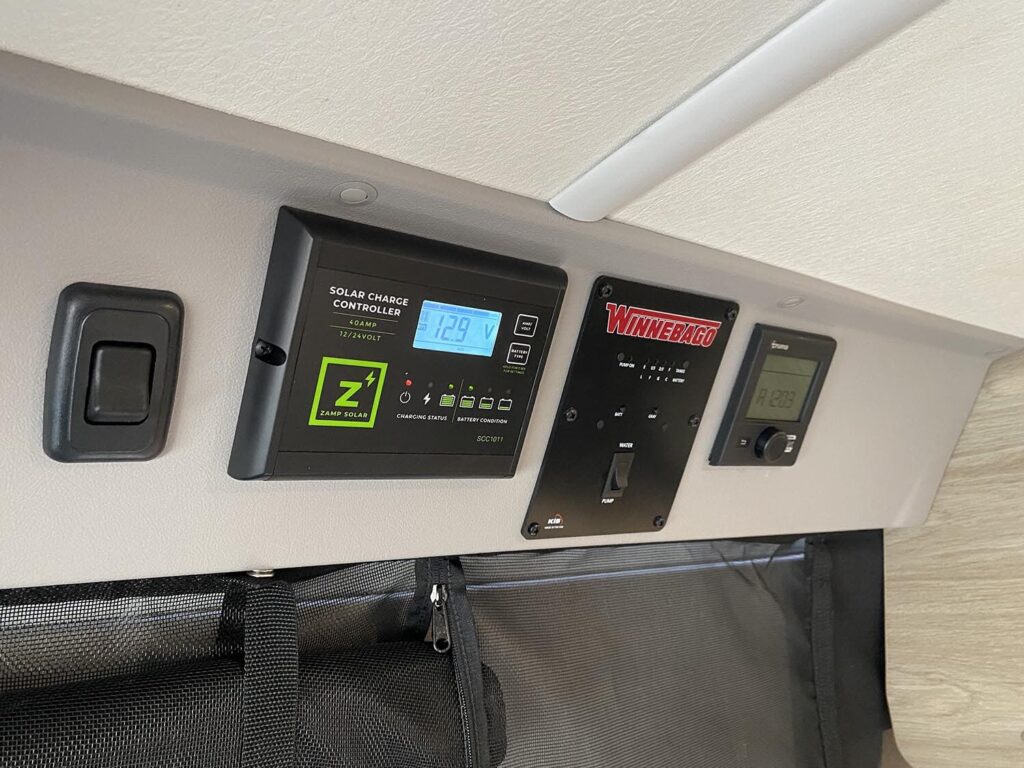

AC/DC load center, 55-amp. converter/charger • Auxiliary start circuit • 2 deep-cycle Group 31 batteries (AGM maintenance-free) • Coach battery disconnect system • Automatic dual-battery charge control • 30-amp. power cord • 170-watt solar panel w/controller (36A) • 190-watt solar panel w/controller (36B)
Optional Equipment: Winnebago® + EcoFlow® Power Kit Pro (5kWh lithium battery, 5-in-1 power management controller and touchscreen interface) (36B)
PLUMBING SYSTEM
Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door) • 10′ sewer hose • On-demand water pump • Removable LP cylinder • Fresh water sight glass • Eco-Hot™ water system (36B)
SAFETY
LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Child seat tether anchor
WARRANTY
12-month/24,000-mile basic warranty
