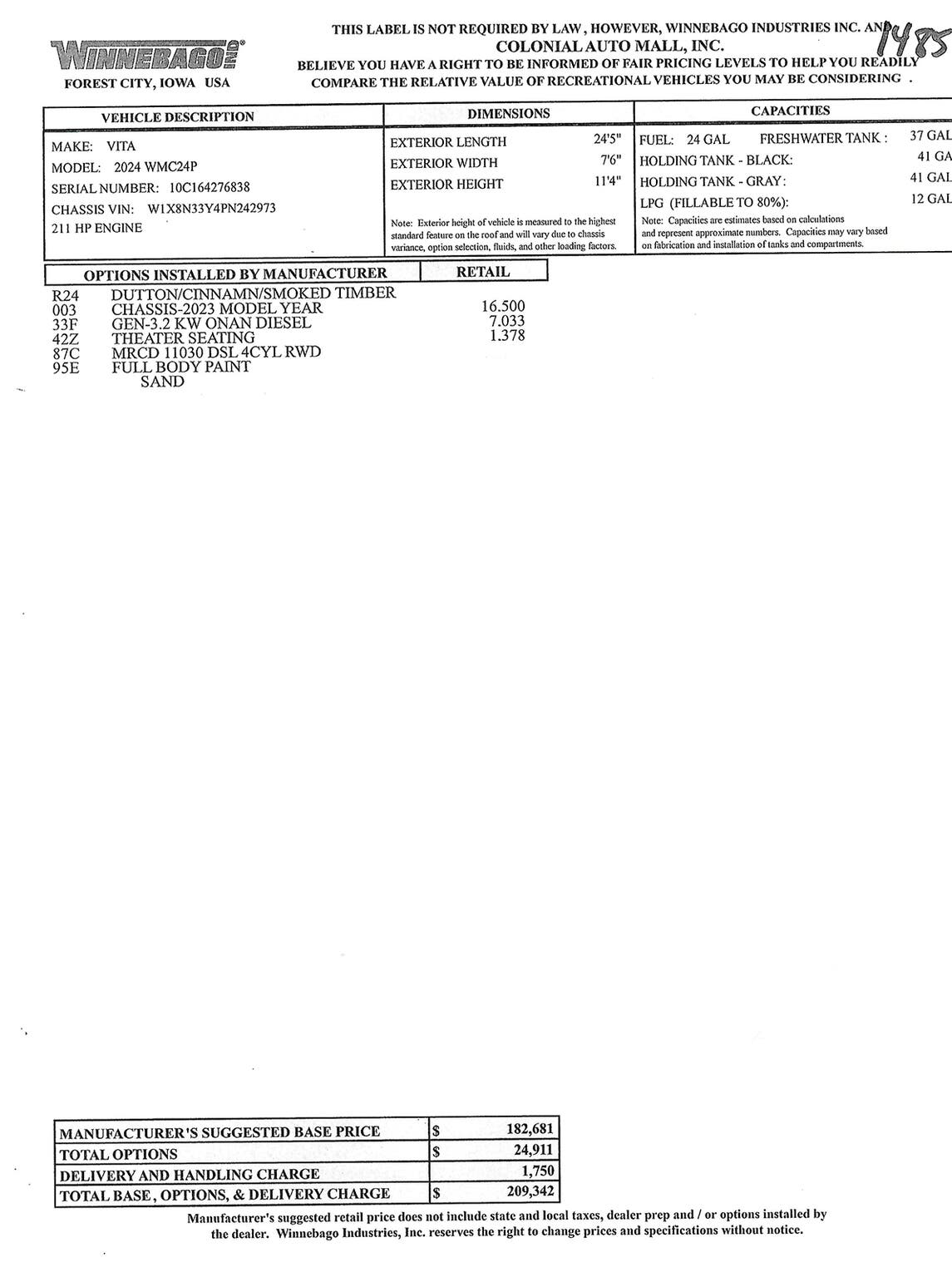

Options Included:
R24: Dutton/Cinnamn/Smoked Timber
003: 2023 Model Year Chassis
33F: 3.2 KW Onan Diesel Generator
42Z: Theater Seating
87C: Mercedes-Benz 2.0L 4-Cylinder RWD Chassis

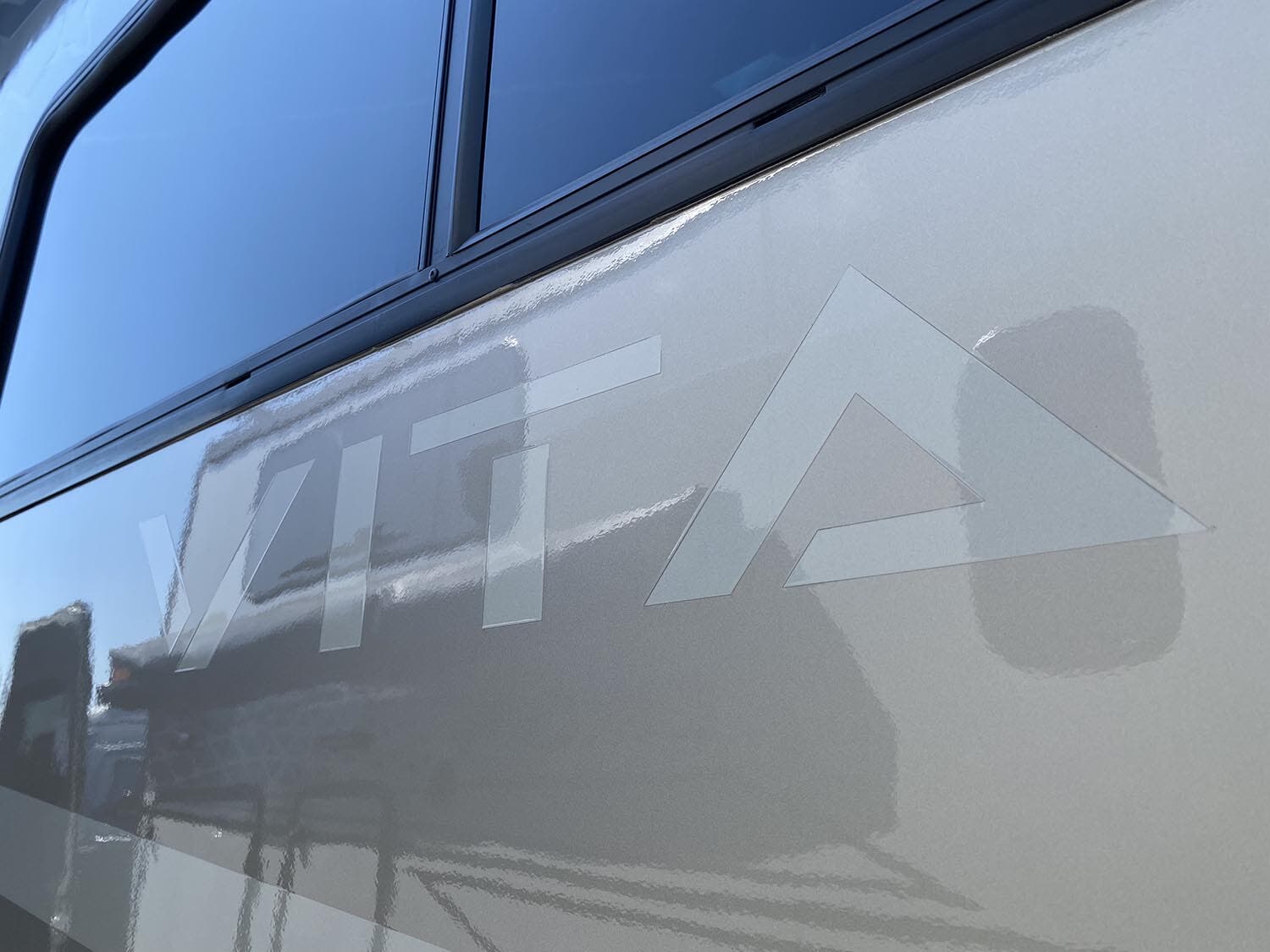

95E: Full Body Paint – Sand
WEIGHTS & MEASUREMENTS
| 24P | |
|---|---|
| Exterior Length | 24’5″ |
| Exterior Height | 11’4″ |
| Exterior Width | 7’6″ |
| Exterior Storage (cu. ft.) | 42 |
| Awning Length | 15′ |
| Interior Height | 7′ |
| Interior Width | 7’3″ |
| Freshwater Tank Capacity (gal.) | 37 |
| Water Heater Capacity (gal.) | 6 |
| Holding Tank Capacity — Black (gal.) | 41 |
| Holding Tank Capacity — Gray (gal.) | 41 |
| LP Capacity (lbs.) | 51.6 |
| Fuel Capacity (gal.) | 24.5 |
| GCWR (lbs.) | 15,249 |
| GVWR (lbs.) | 11,030 |
| GAWR – Front (lbs.) | 4,081 |
| GAWR – Rear (lbs.) | 7,721 |
| Wheelbase | 170″ |
| Sleeps | 4 |

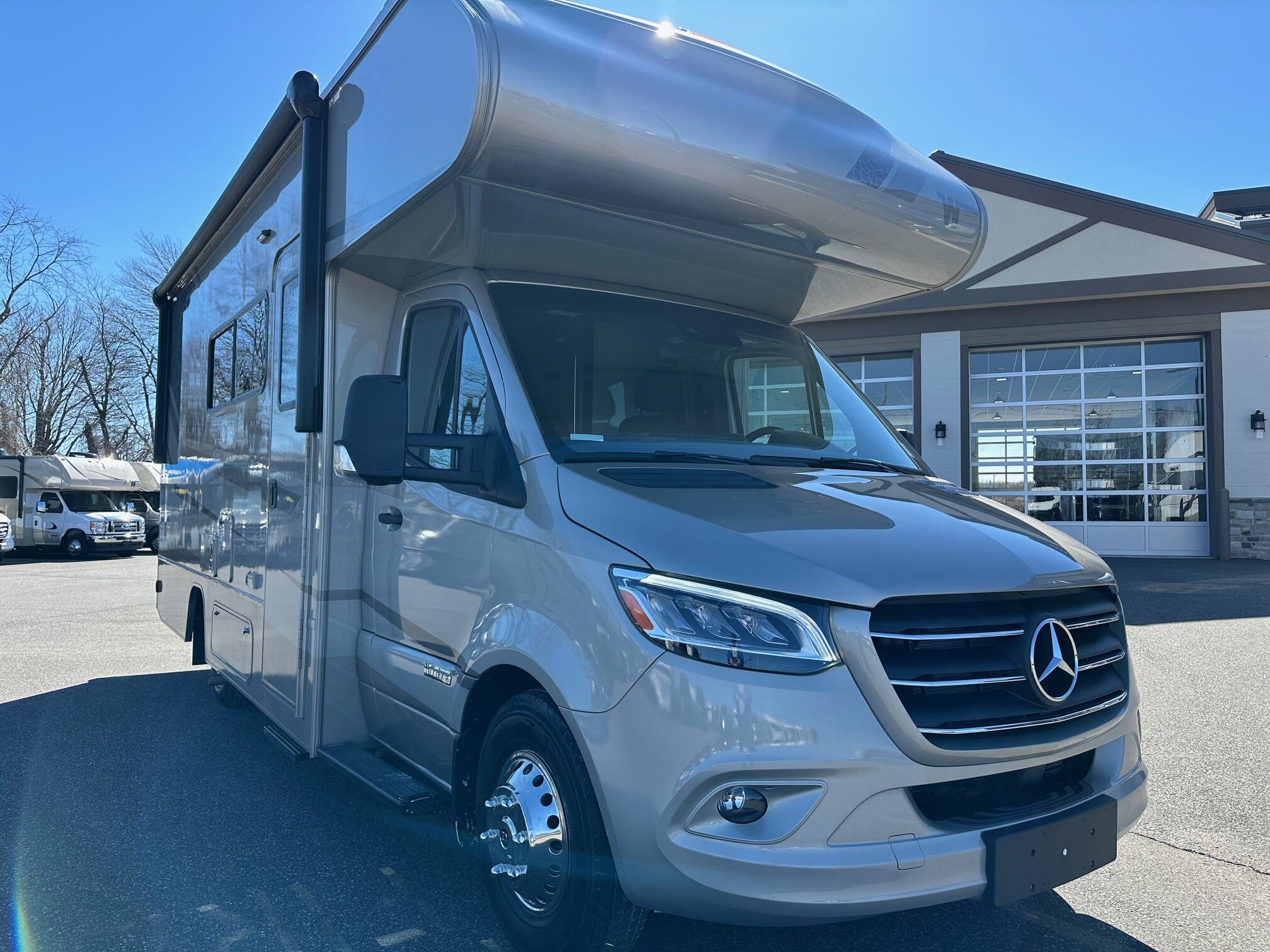

CHASSIS
Mercedes-Benz® 2.0L 4-Cylinder High Output Diesel • 211 HP @ 3,600 RPM 332 lb-ft torque @ 1600 – 2400 RPM • 9G-TRONIC Plus Automatic Transmission • 4-wheel ABS brakes • Trailer Hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight • 7-pin wiring connector • Hydraulic leveling jacks w/automatic controls (front and rear) • Stainless steel wheel liners • Spare tire

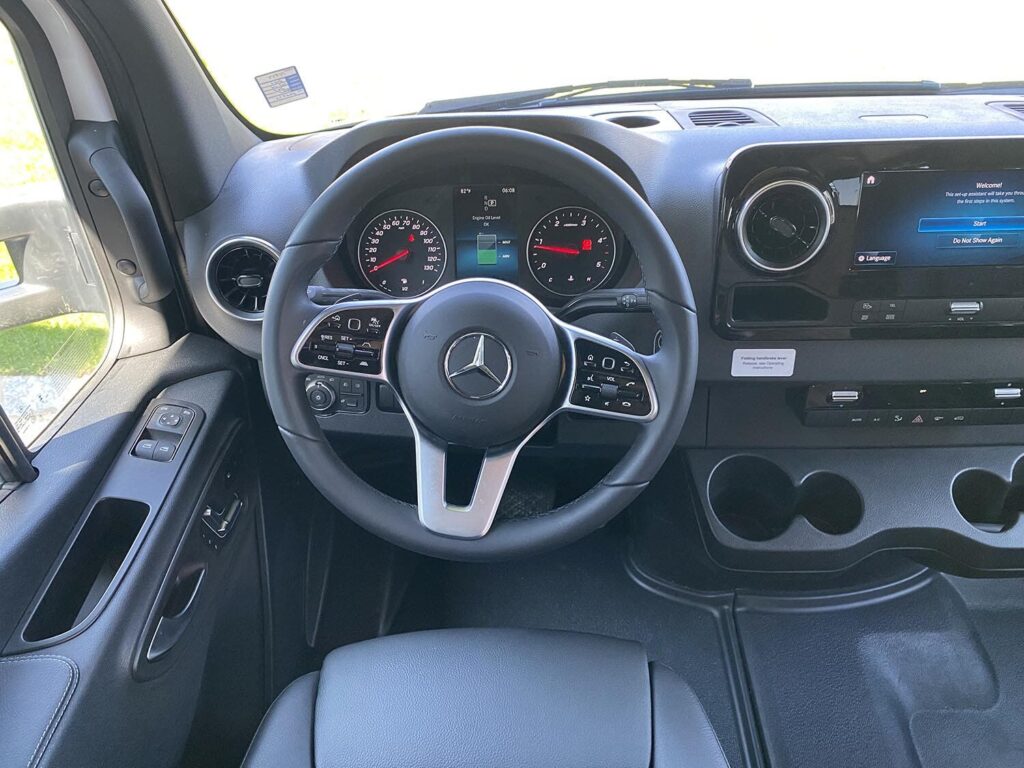

CAB CONVENIENCES

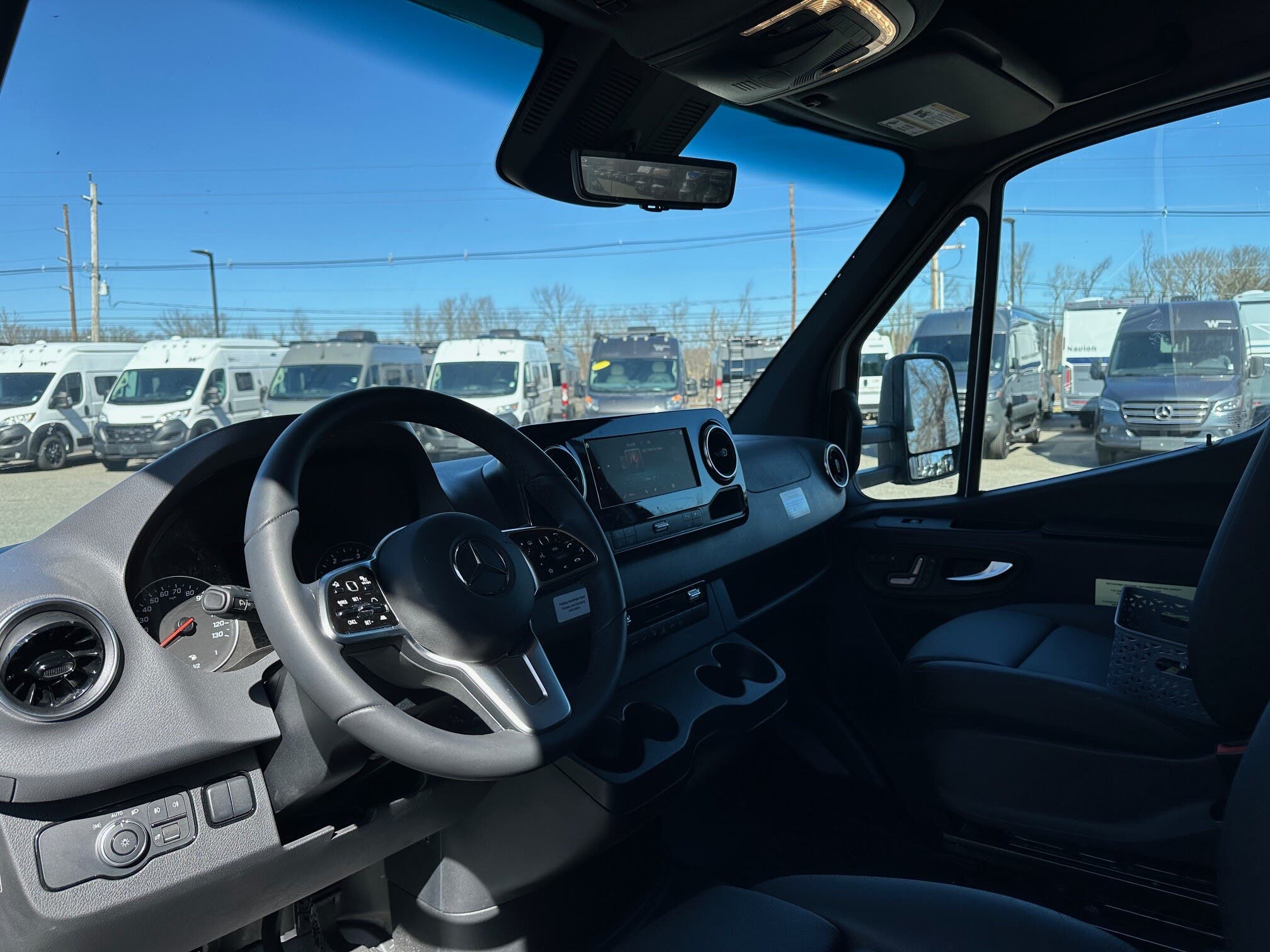

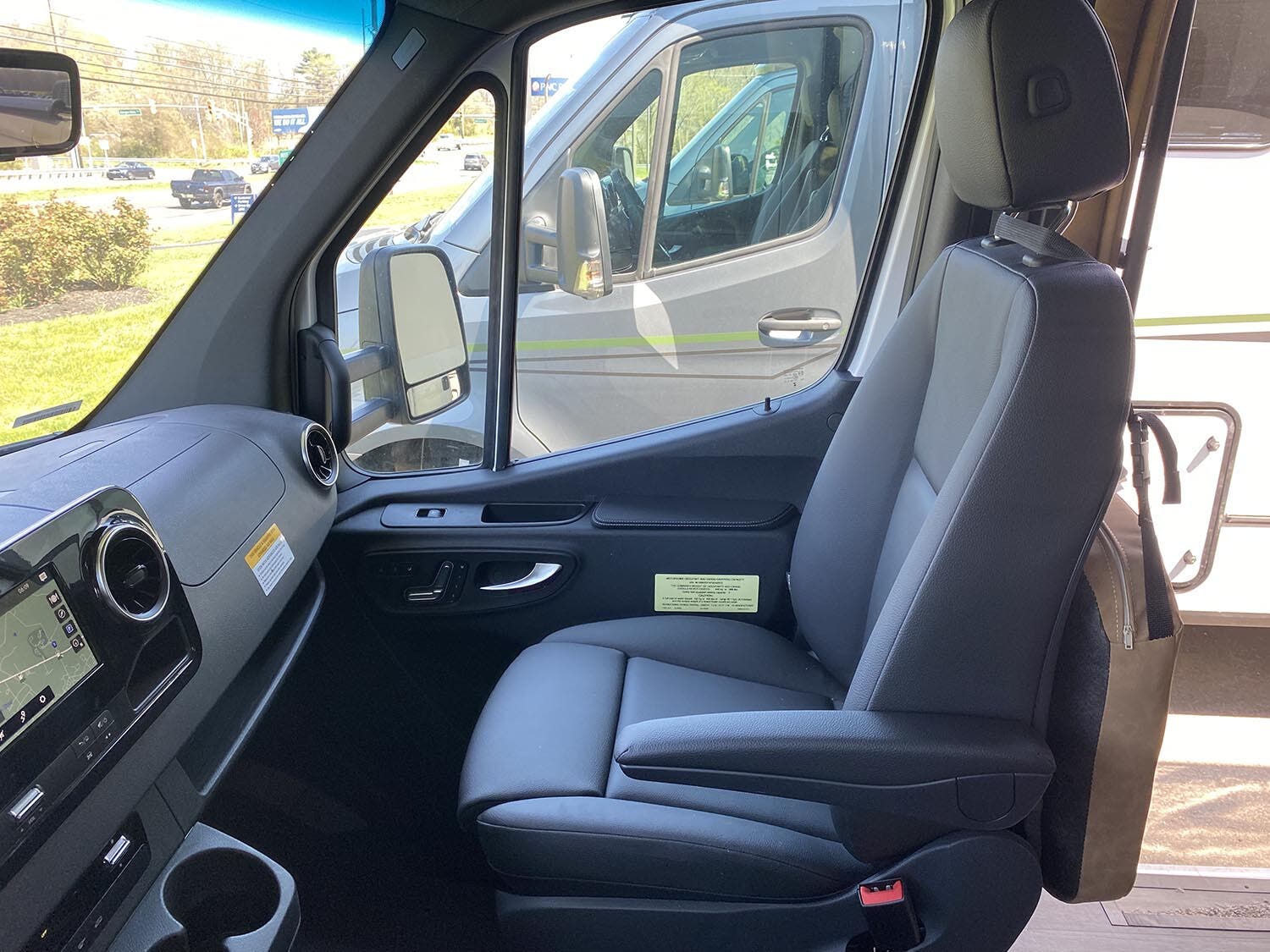

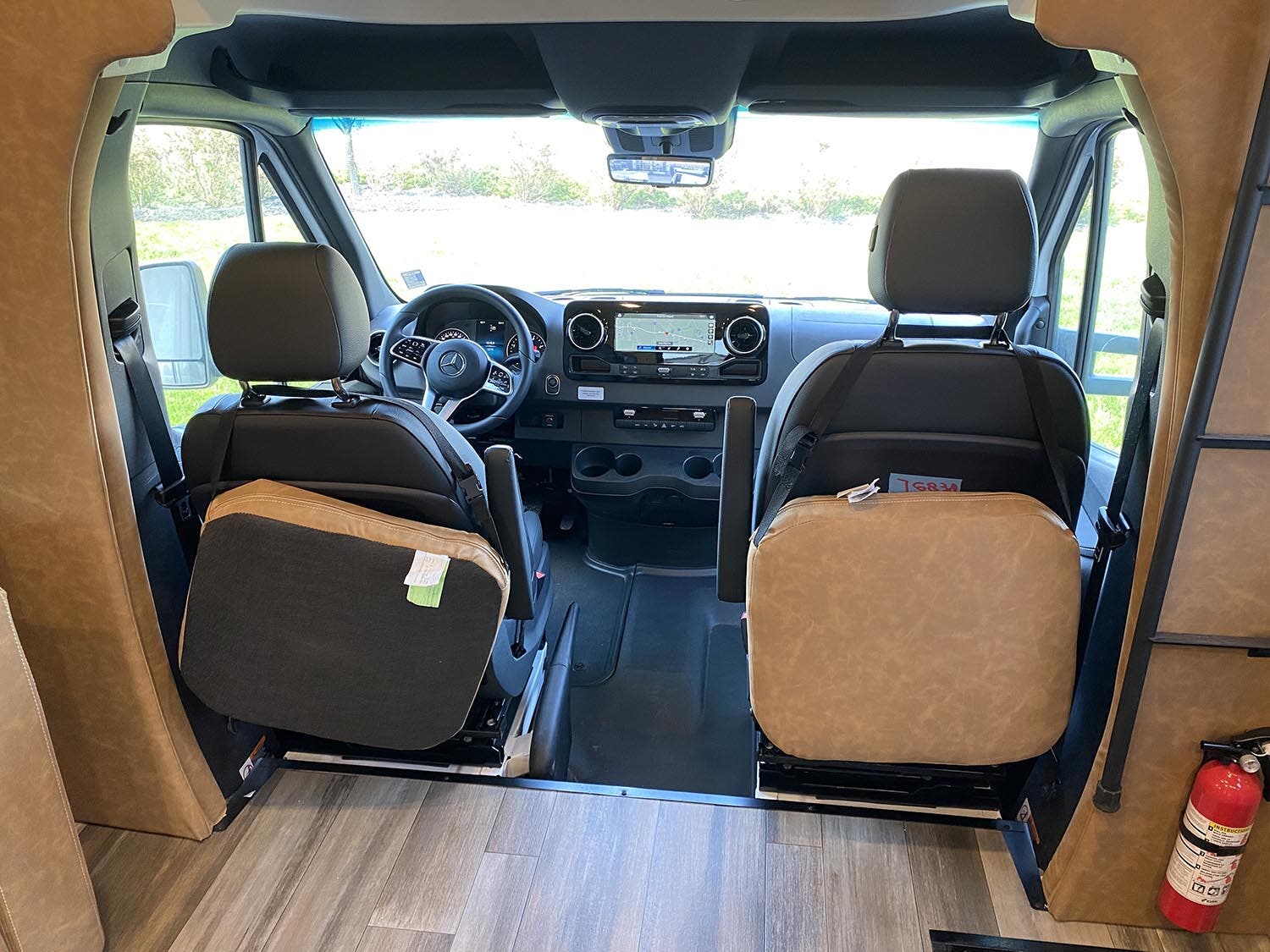

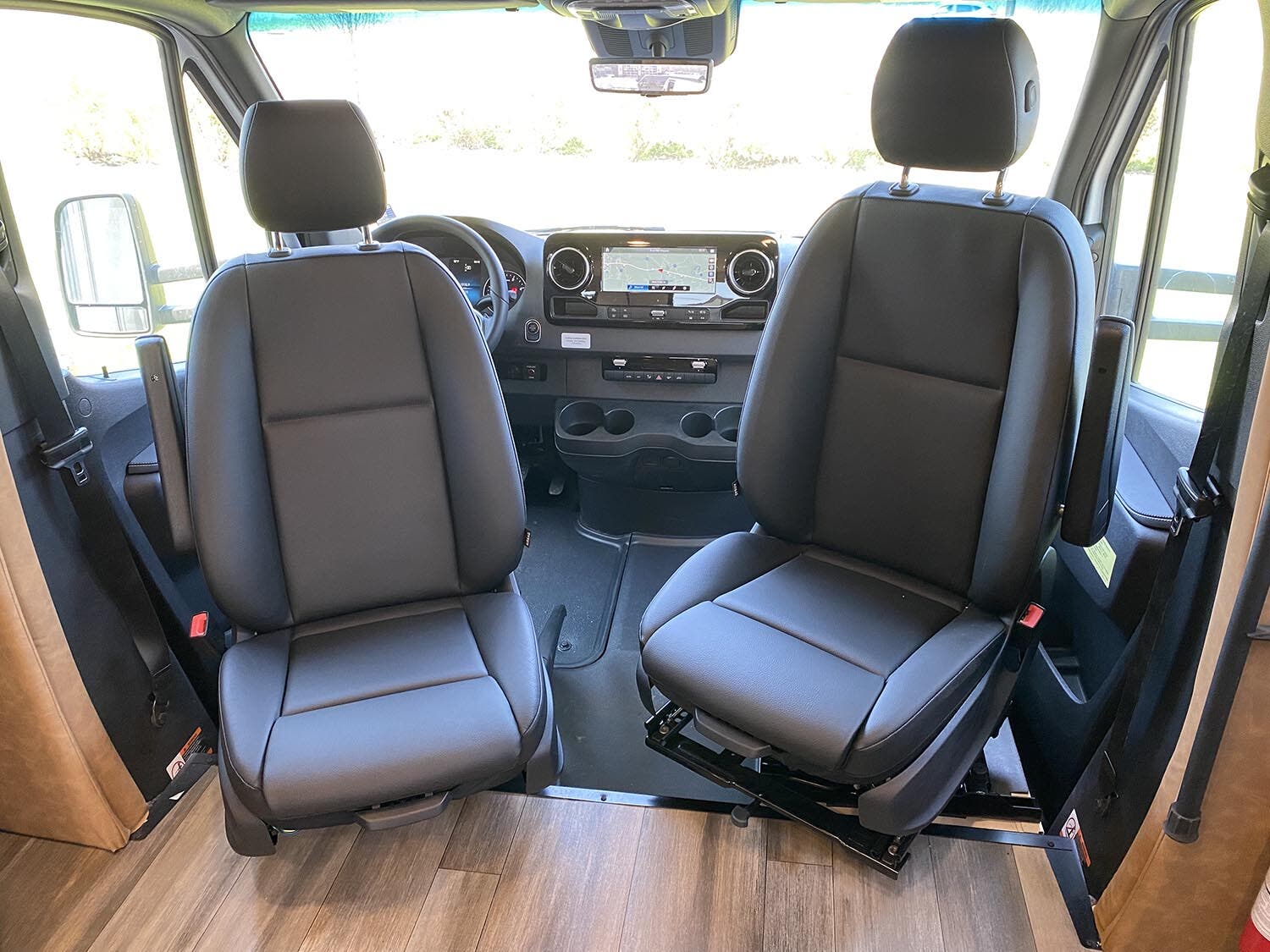

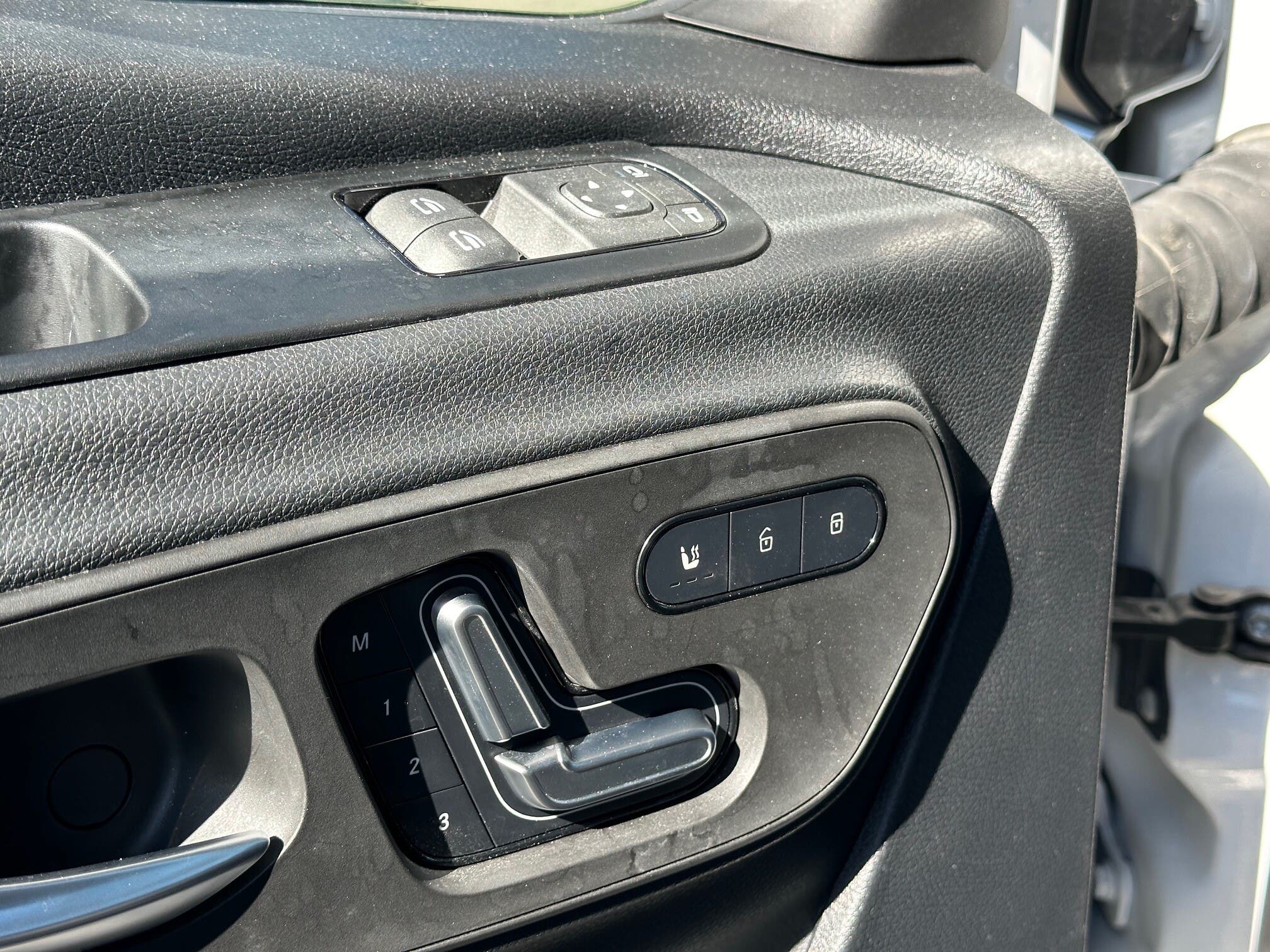

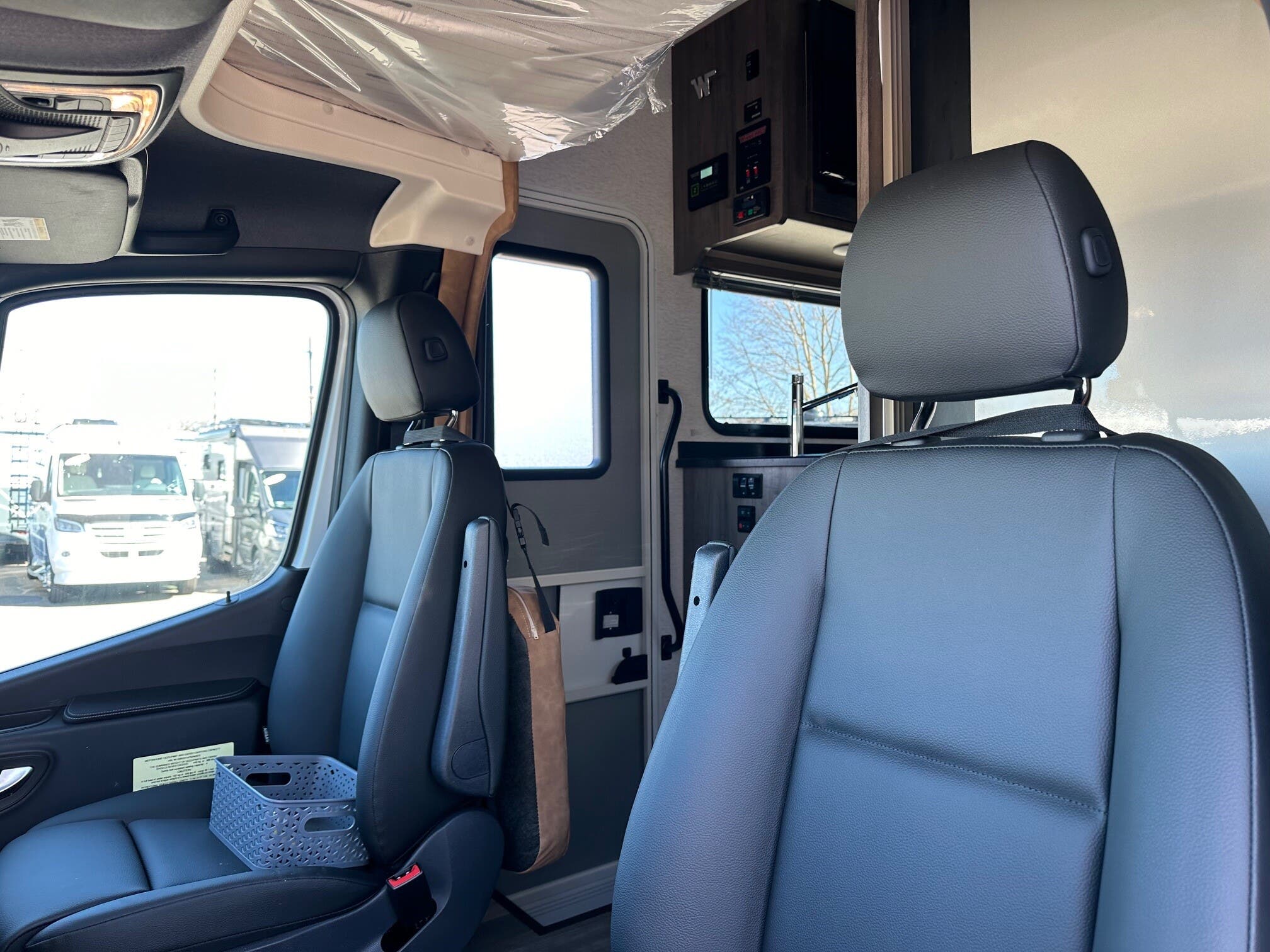

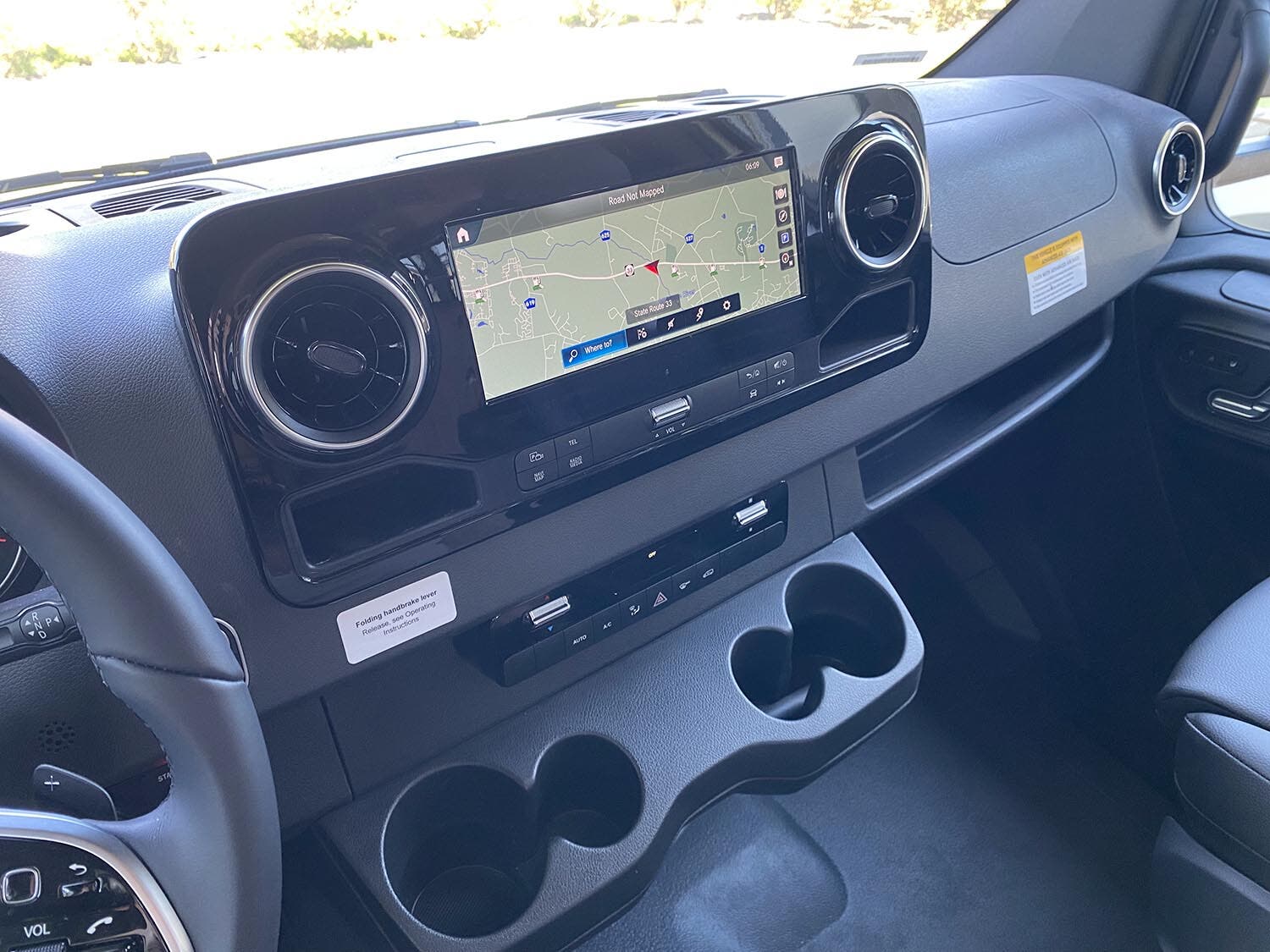

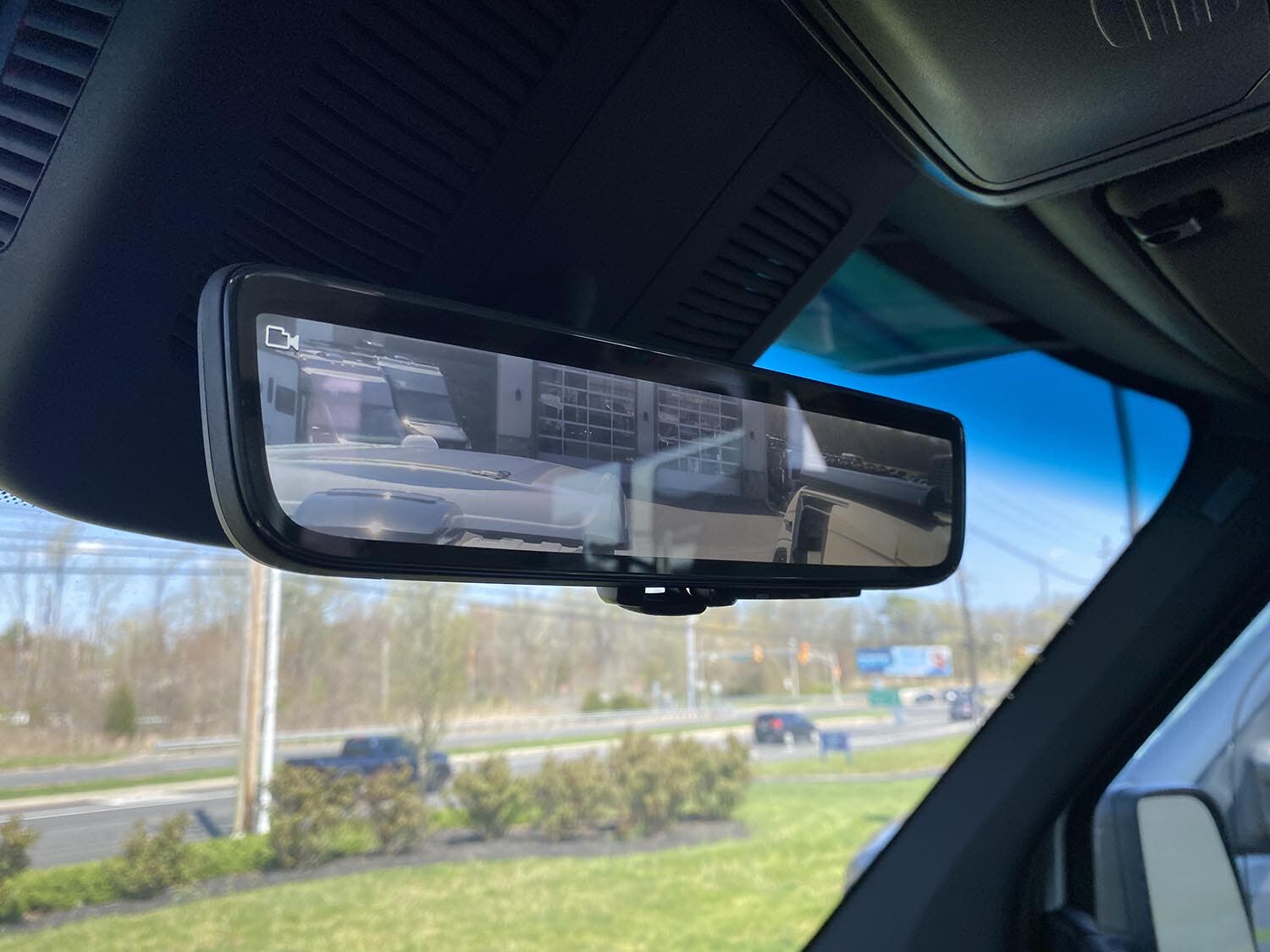

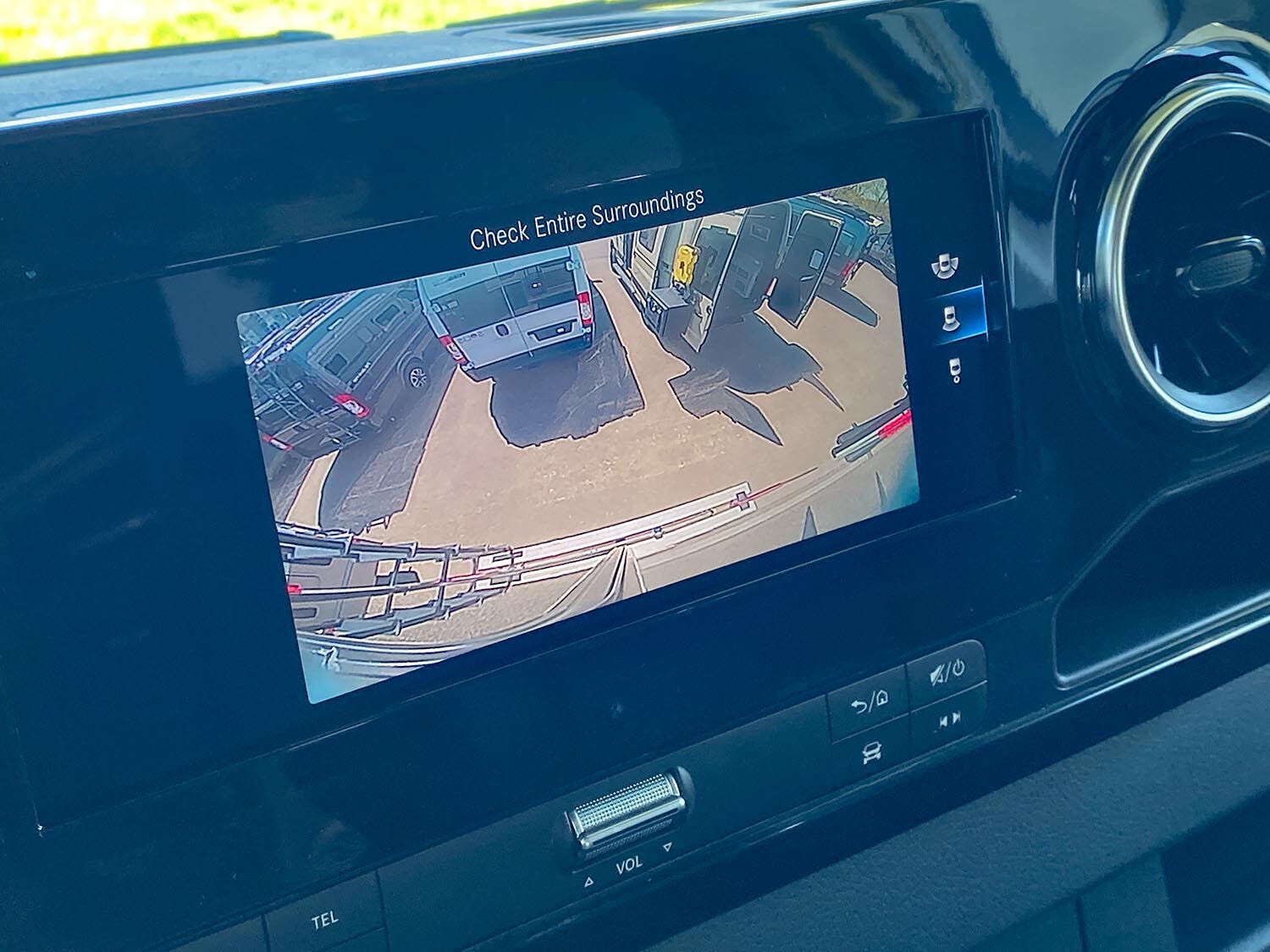

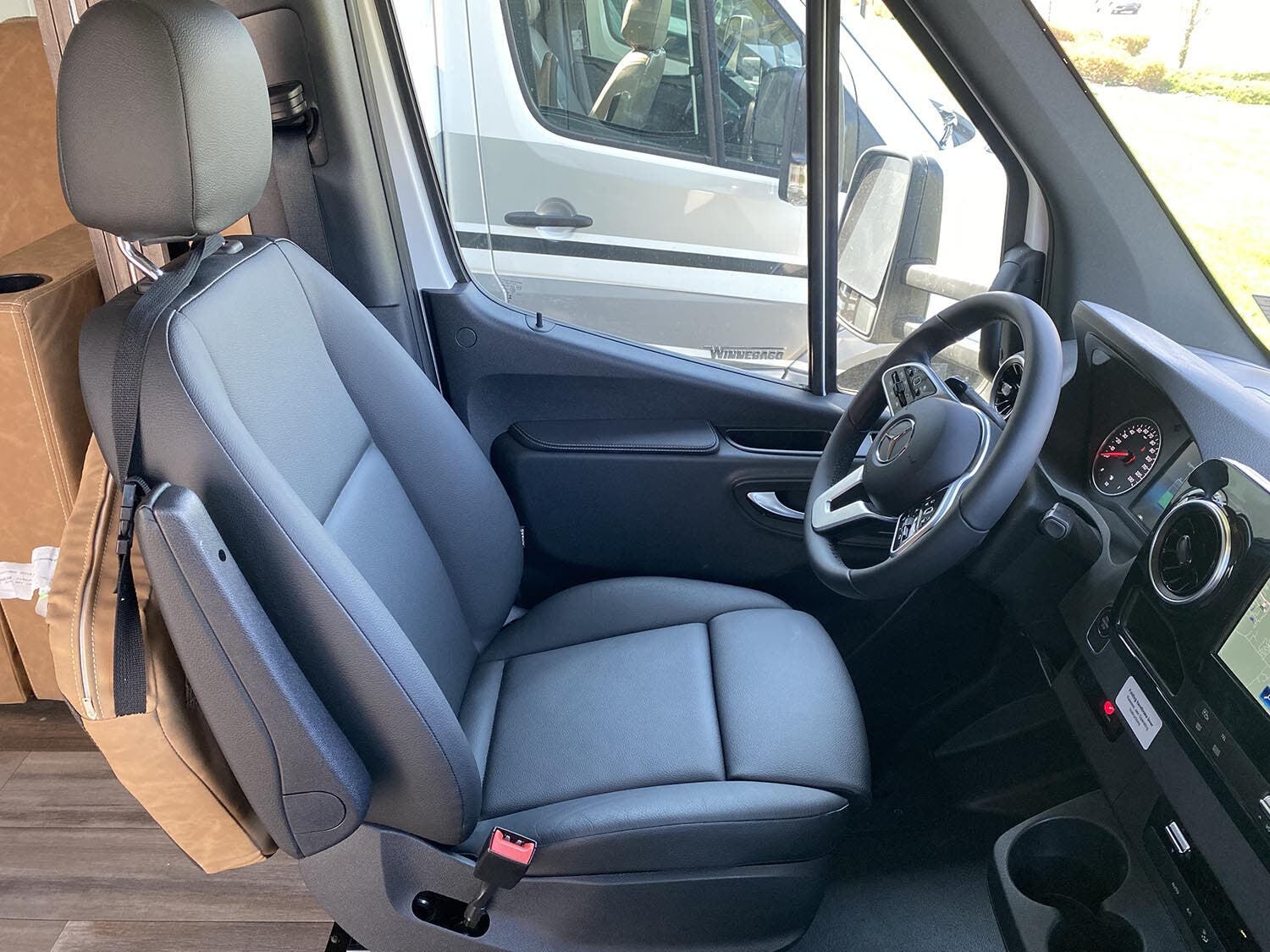

MBUX® Touchscreen Multimedia Infotainment Center w/navigation and rear view camera system • Power-adjustable, heated cab seats w/armrest, adjustable lumbar support, headrest, recline, slide and manual swivel • 3-point seat belts • Airbags driver and passenger • Power door locks w/remote control • Power windows • Sunvisors • Automatic climate control • Wireless charging center and 12V/USB power points • Power mirrors w/defrost and turn signals • Power assist steering w/tilt wheel • Leather wrapped steering wheel • Cruise control • Lane keeping assist • Active braking assist • Attention assist • Hill start assist • Crossswind assist • Rain sensor w/integrated wet wiper system • Daytime running lamps • High-mount brake lamps • Privacy screens for windshield and cab door windows • 2 cab seat lounge cushions

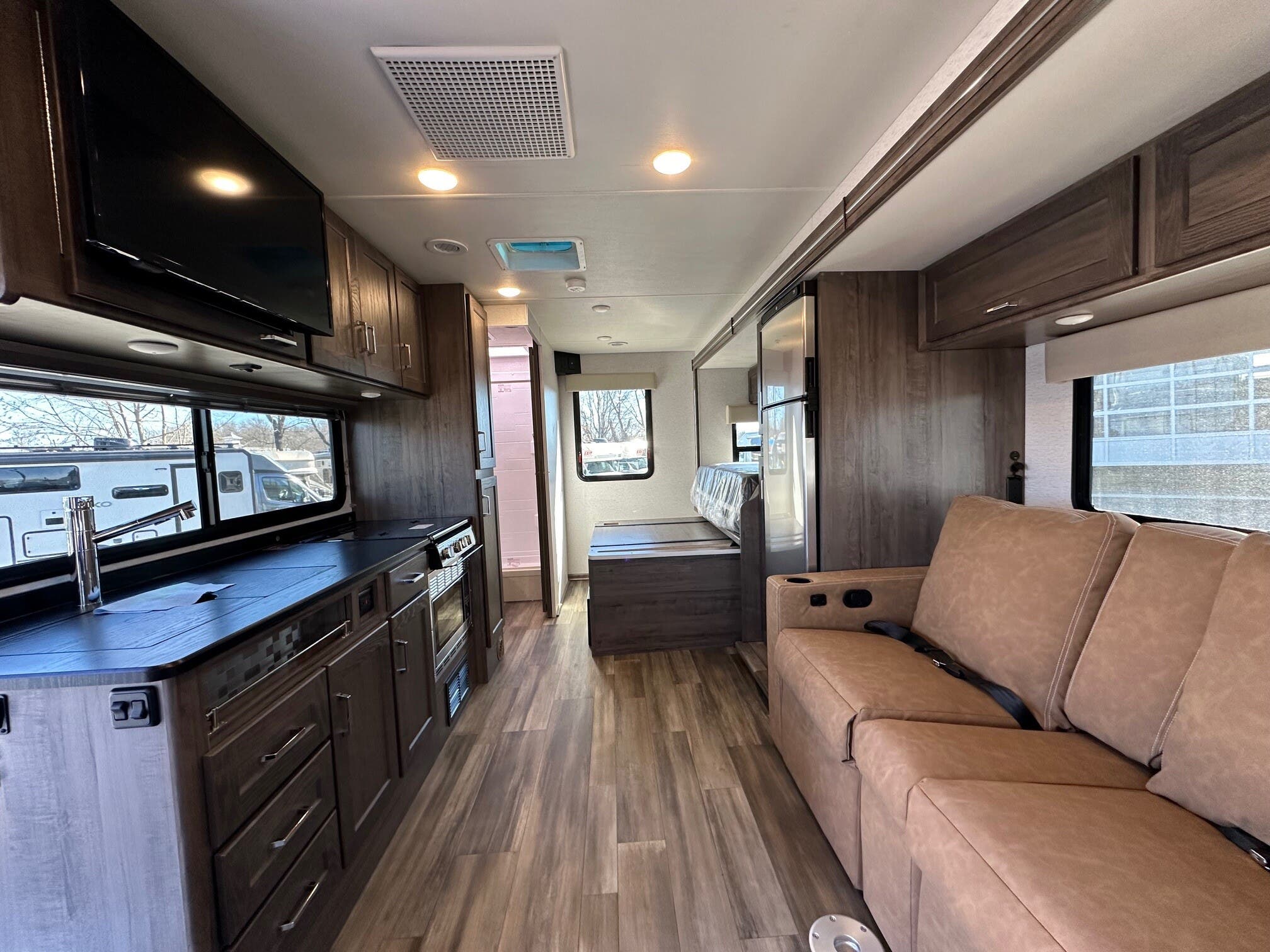

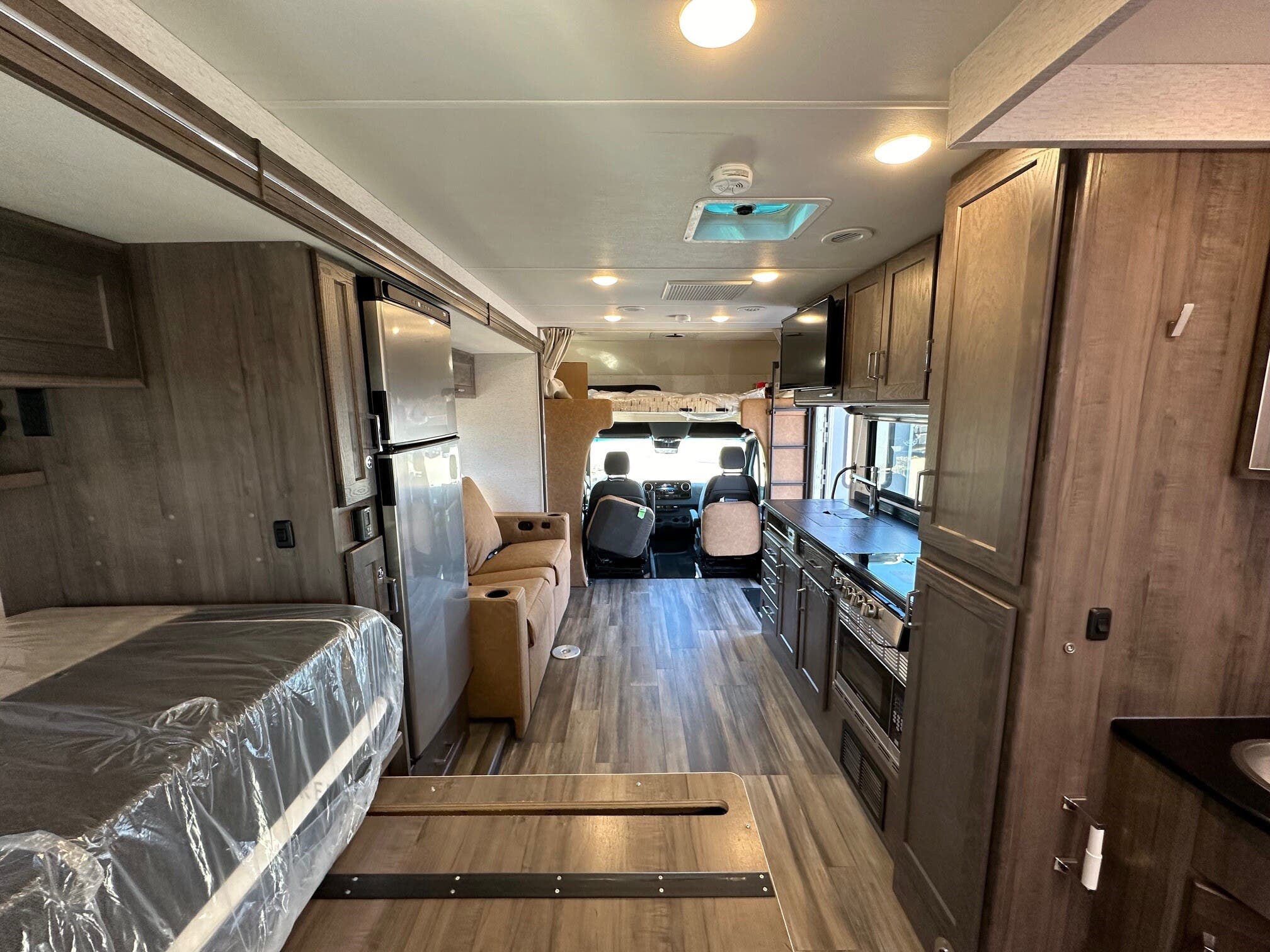

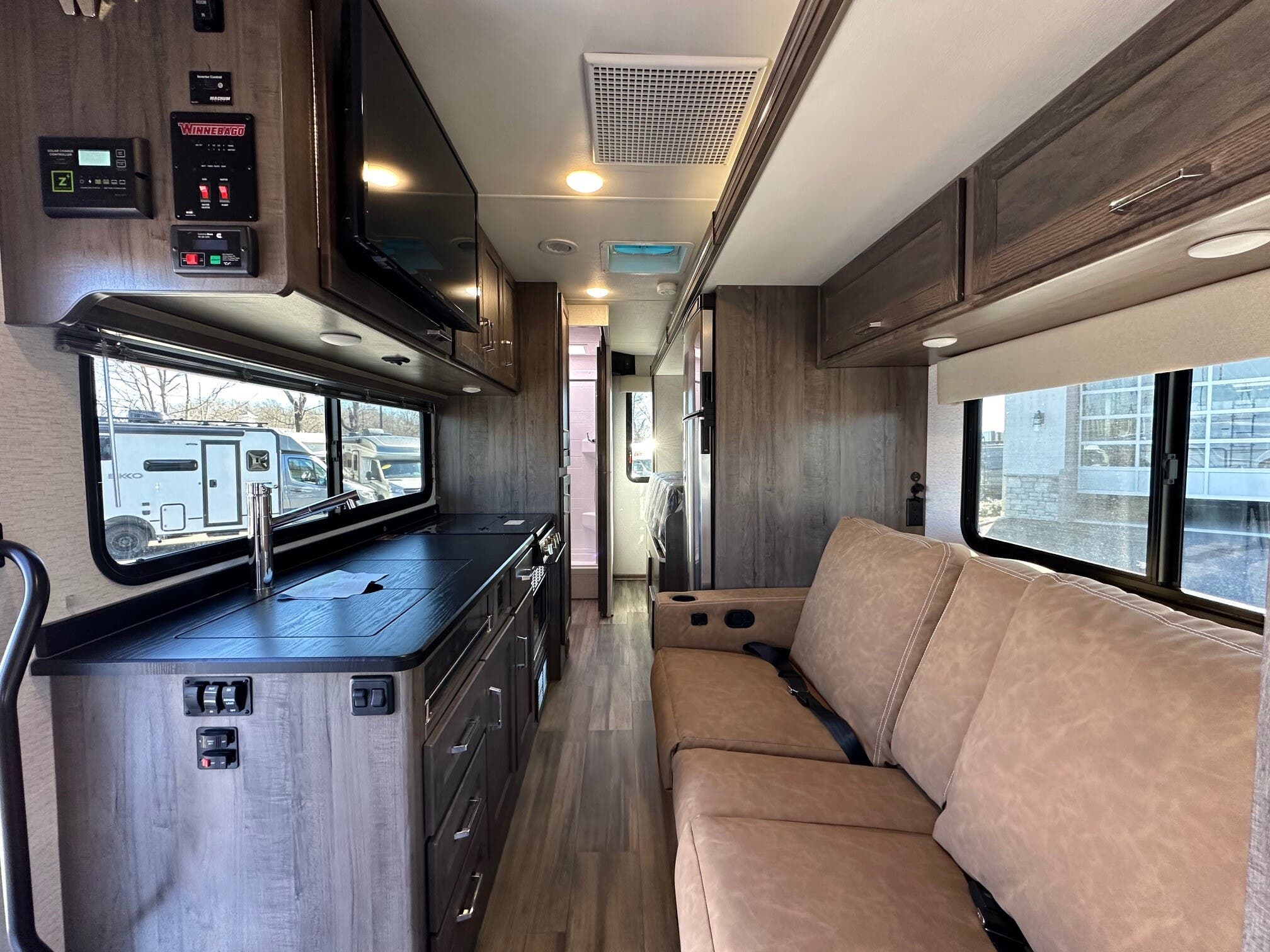

INTERIOR

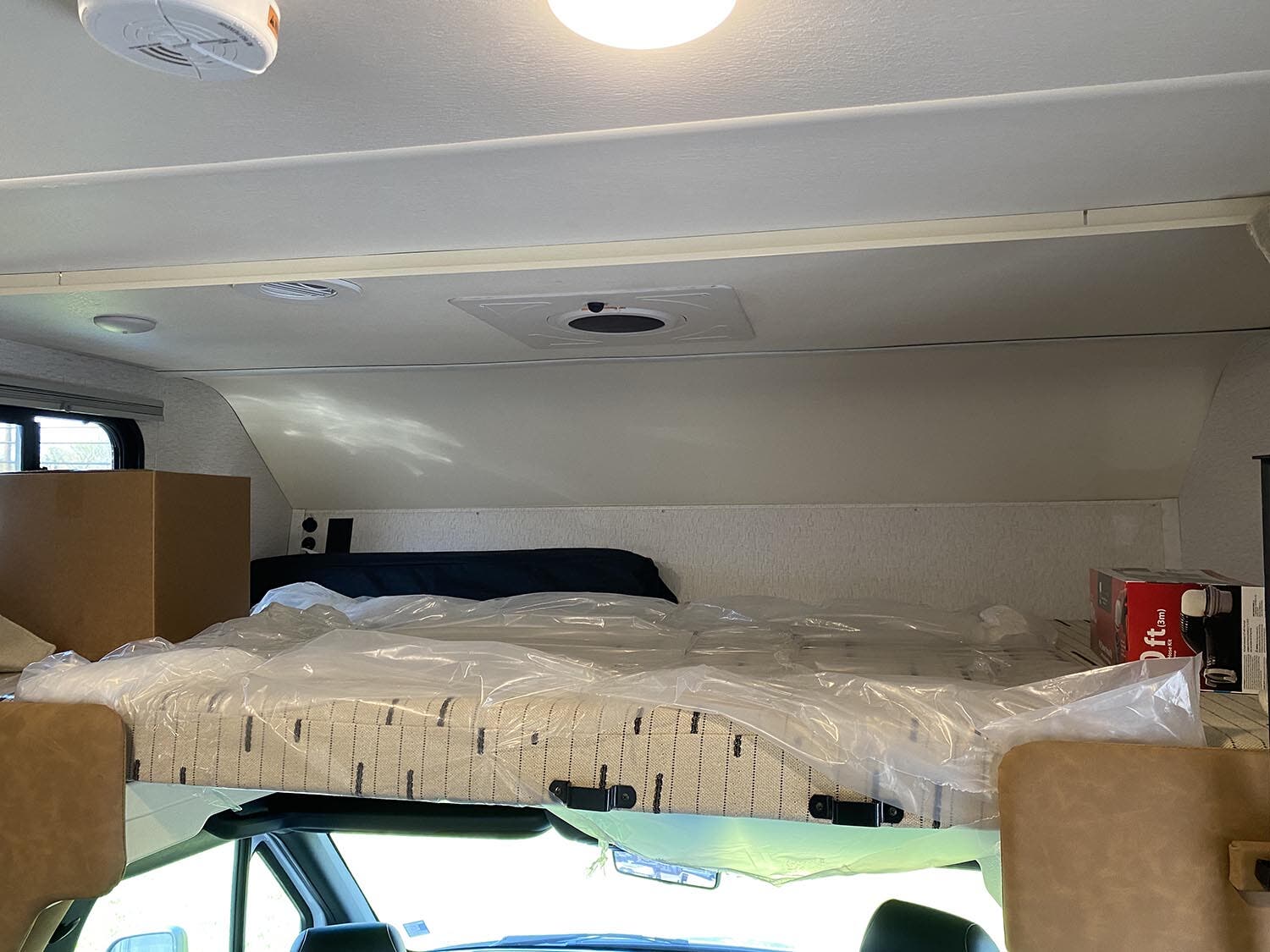

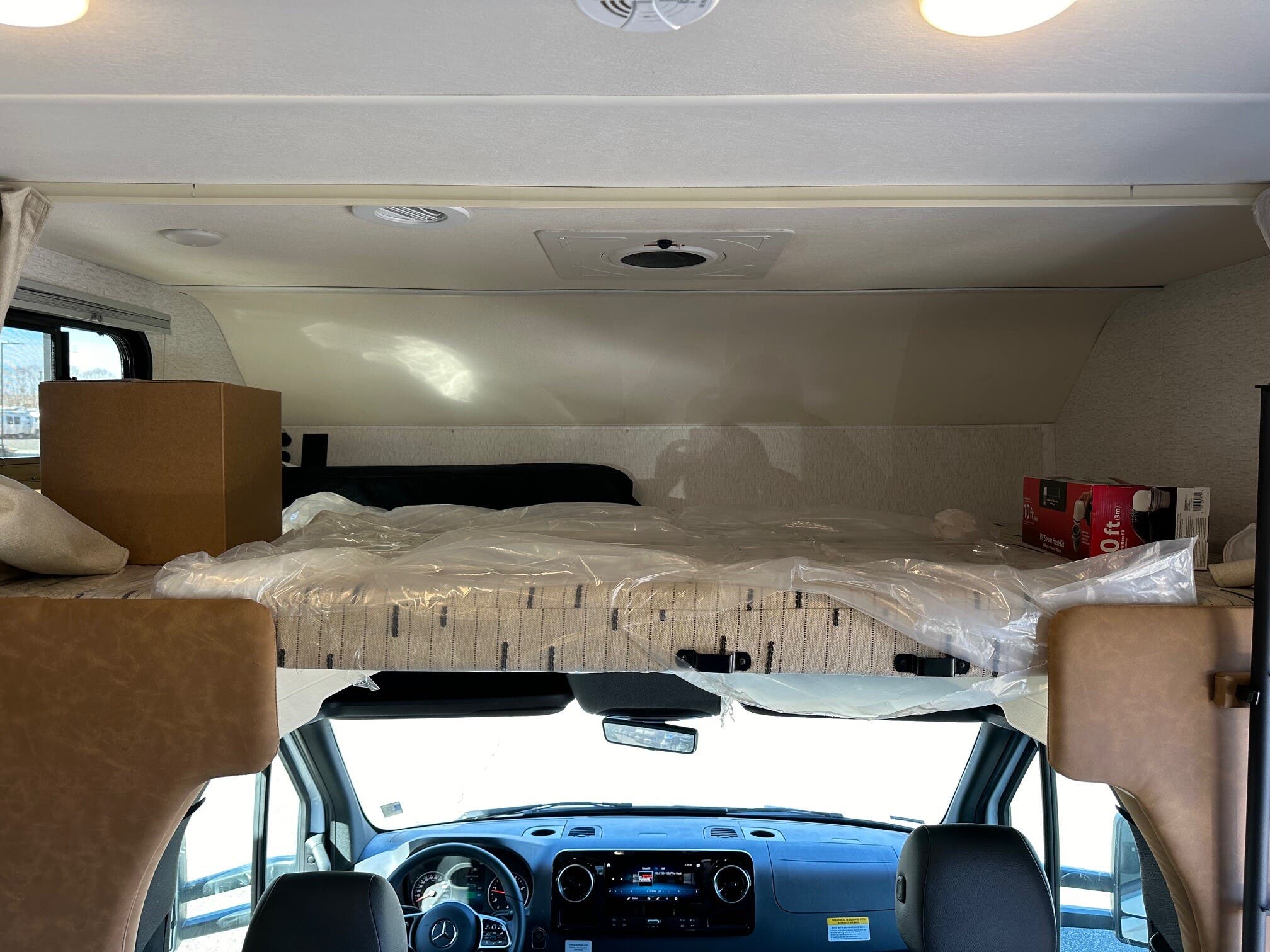

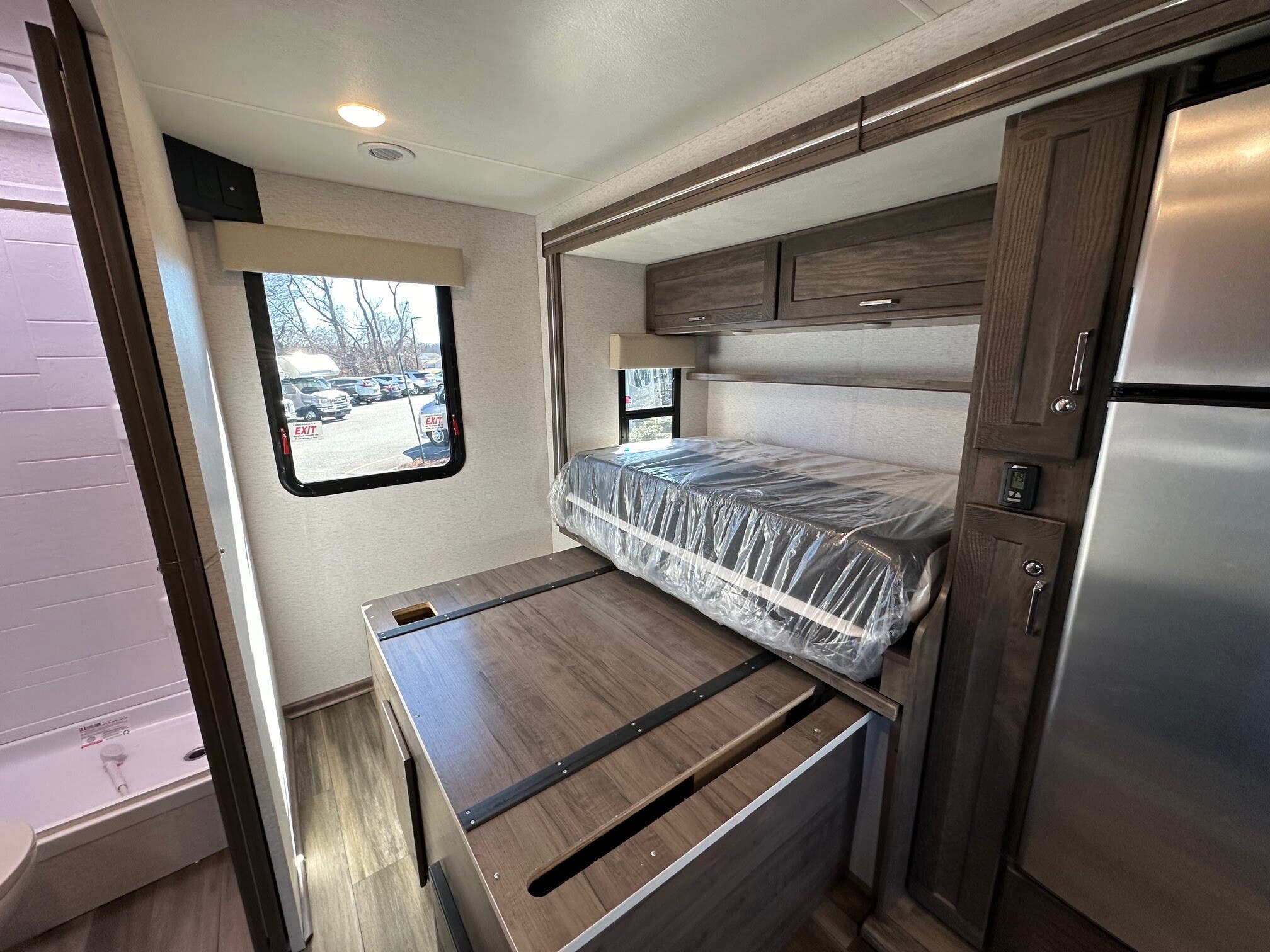

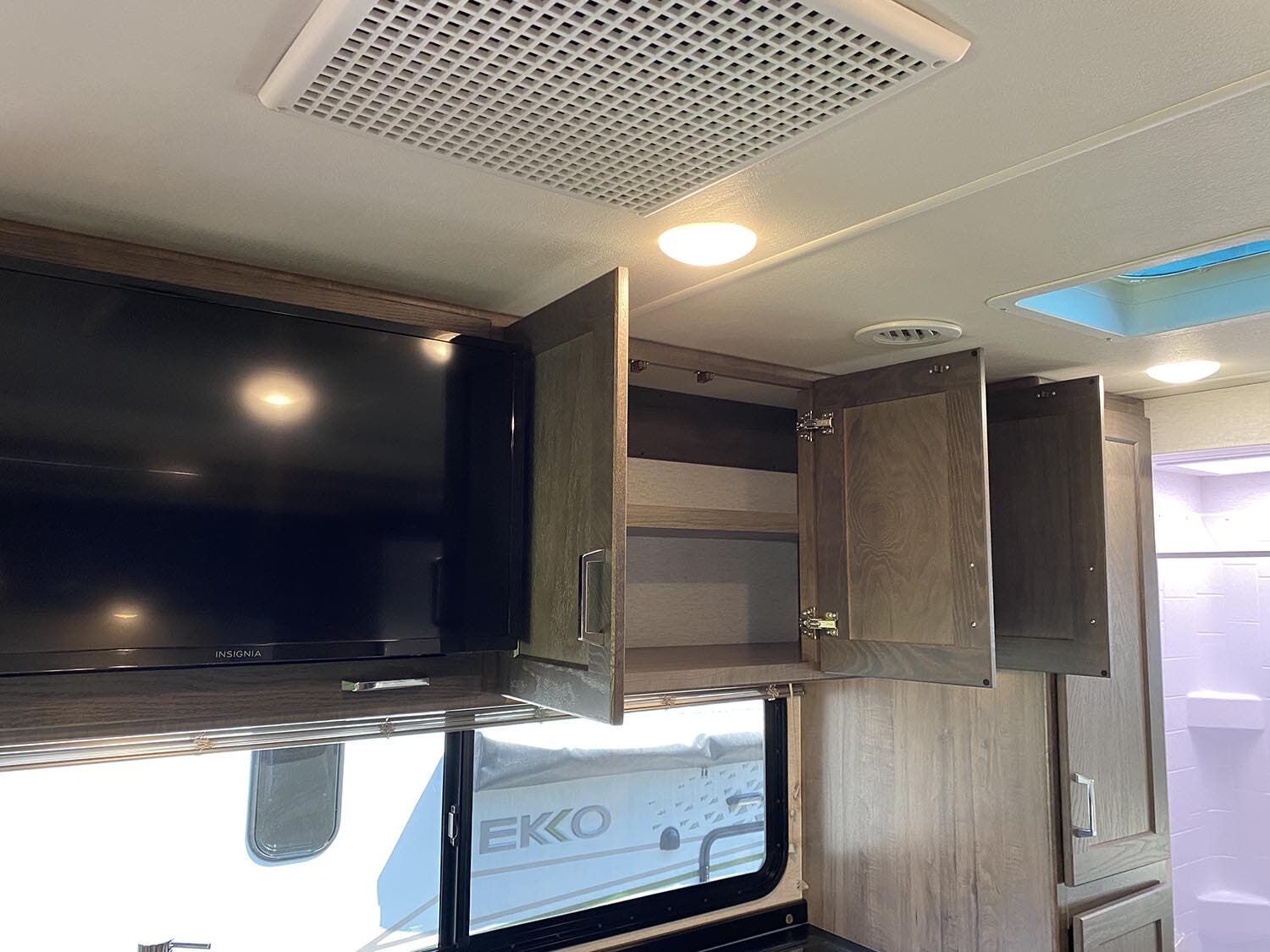

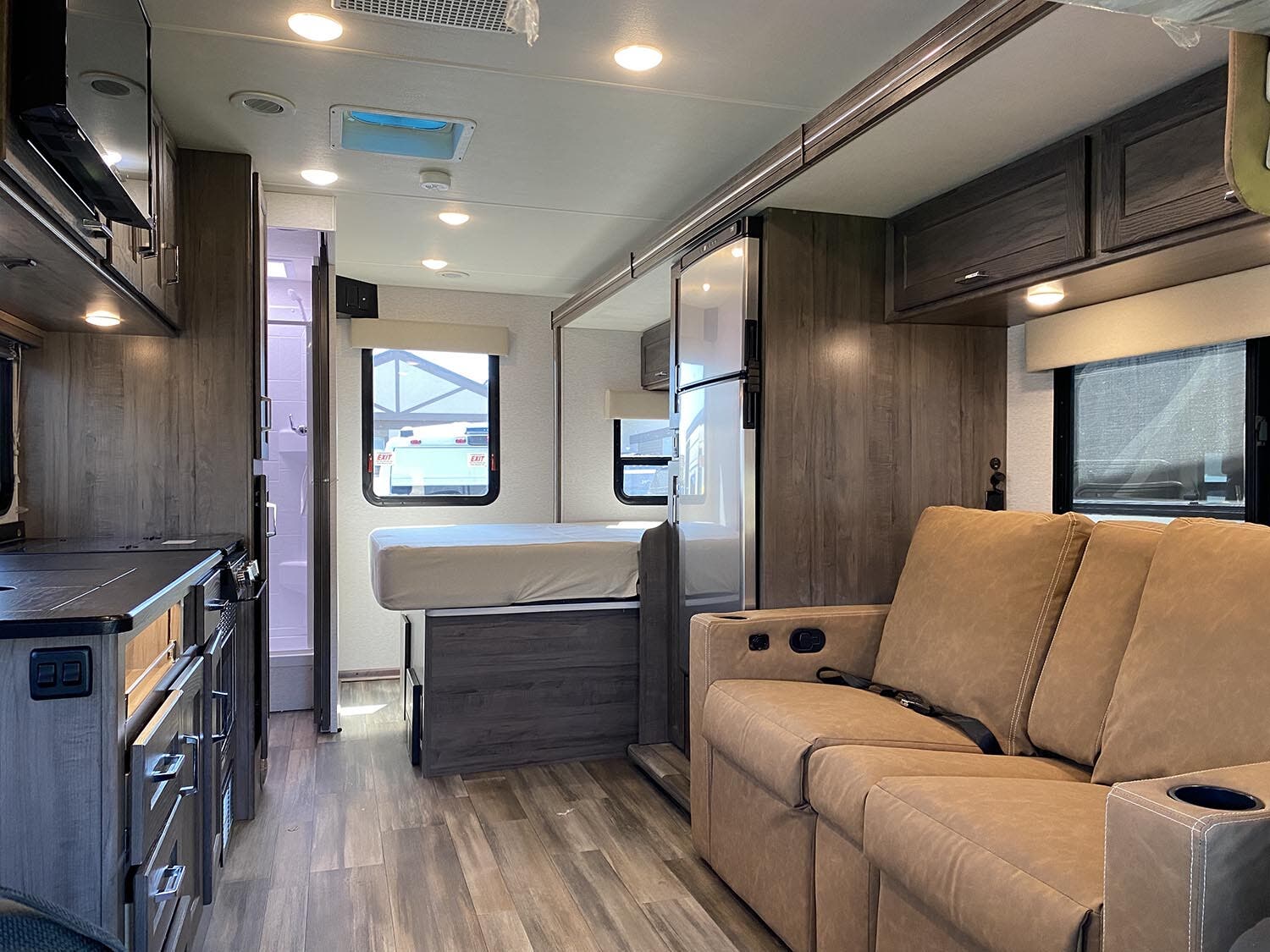

Dinette seating and sleeping w/storage below • SuperShell® Sleeper deck w/bunk ladder, divider curtain and 110V/12V/USB charge points • LED ceiling lights • 110V/12V/USB charging ports throughout • Roof access wiring port • 32″ Smart LED HDTV • Amplified digital HDTV antenna • Systems monitor panel • Powered roof vent w/rain cover (front bunk) • Roof vent (galley) • Tinted coach windows • Mini blinds (galley) • Blackout roller shades • Assist bar • Vinyl flooring throughout

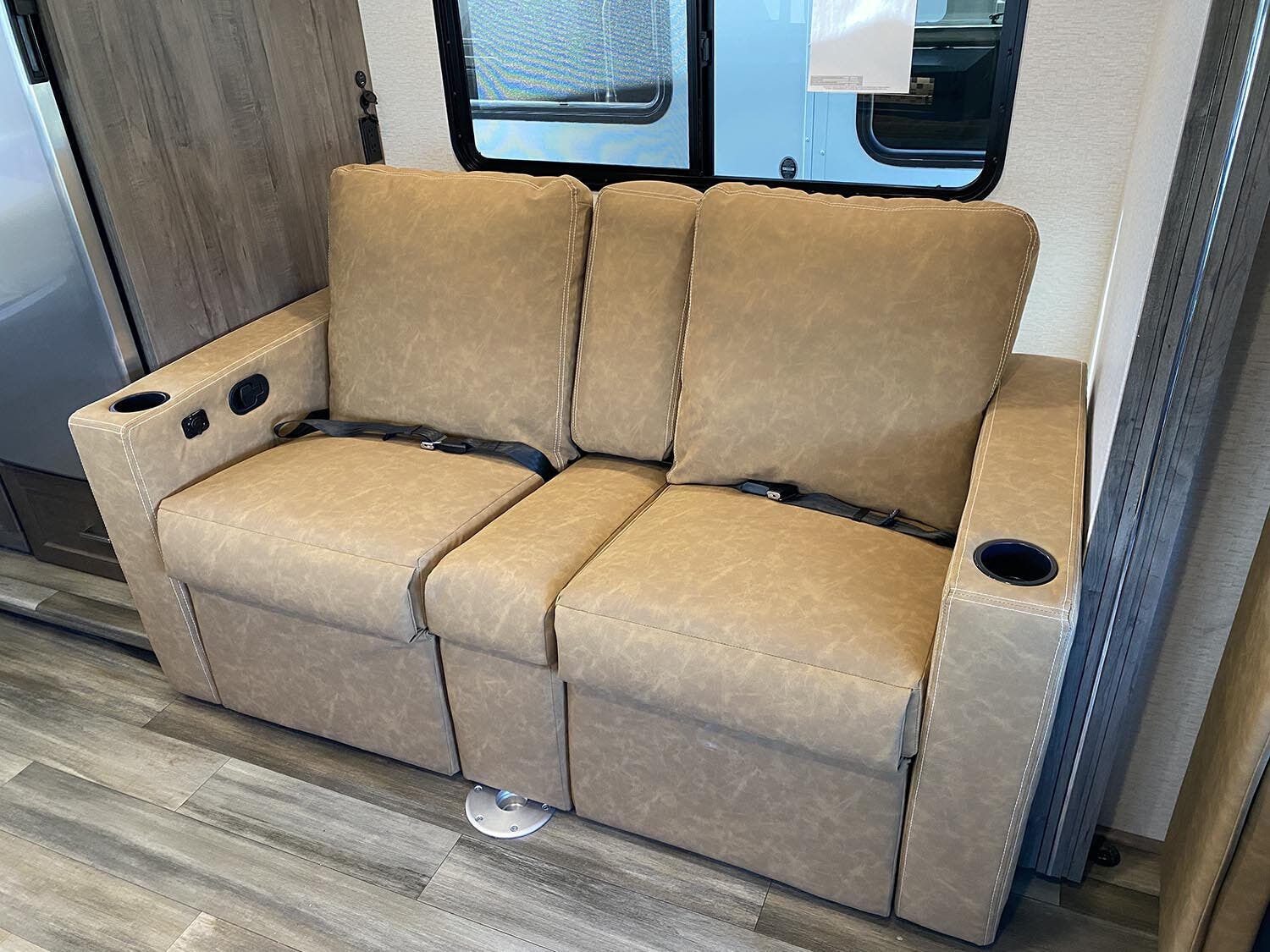

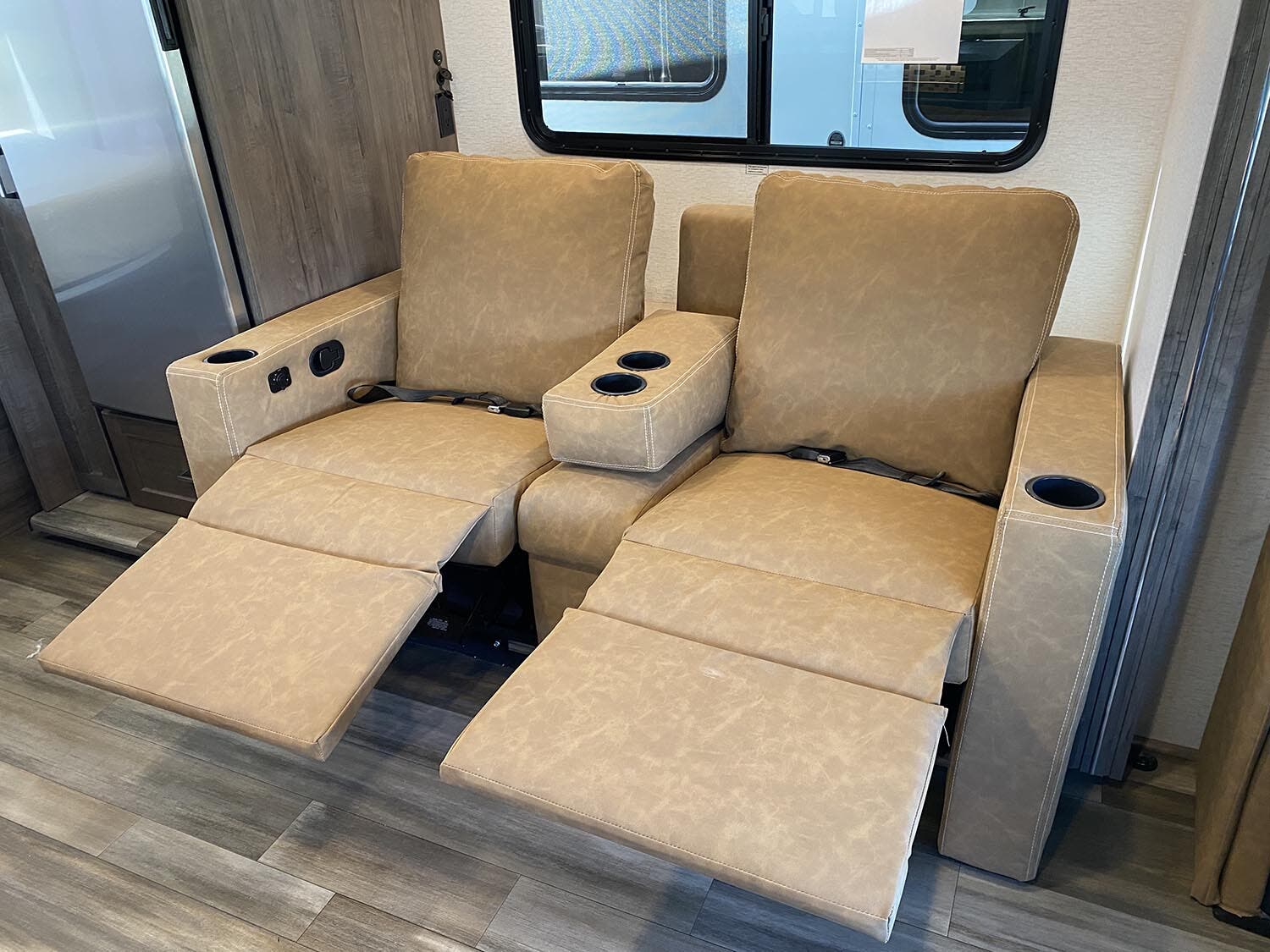

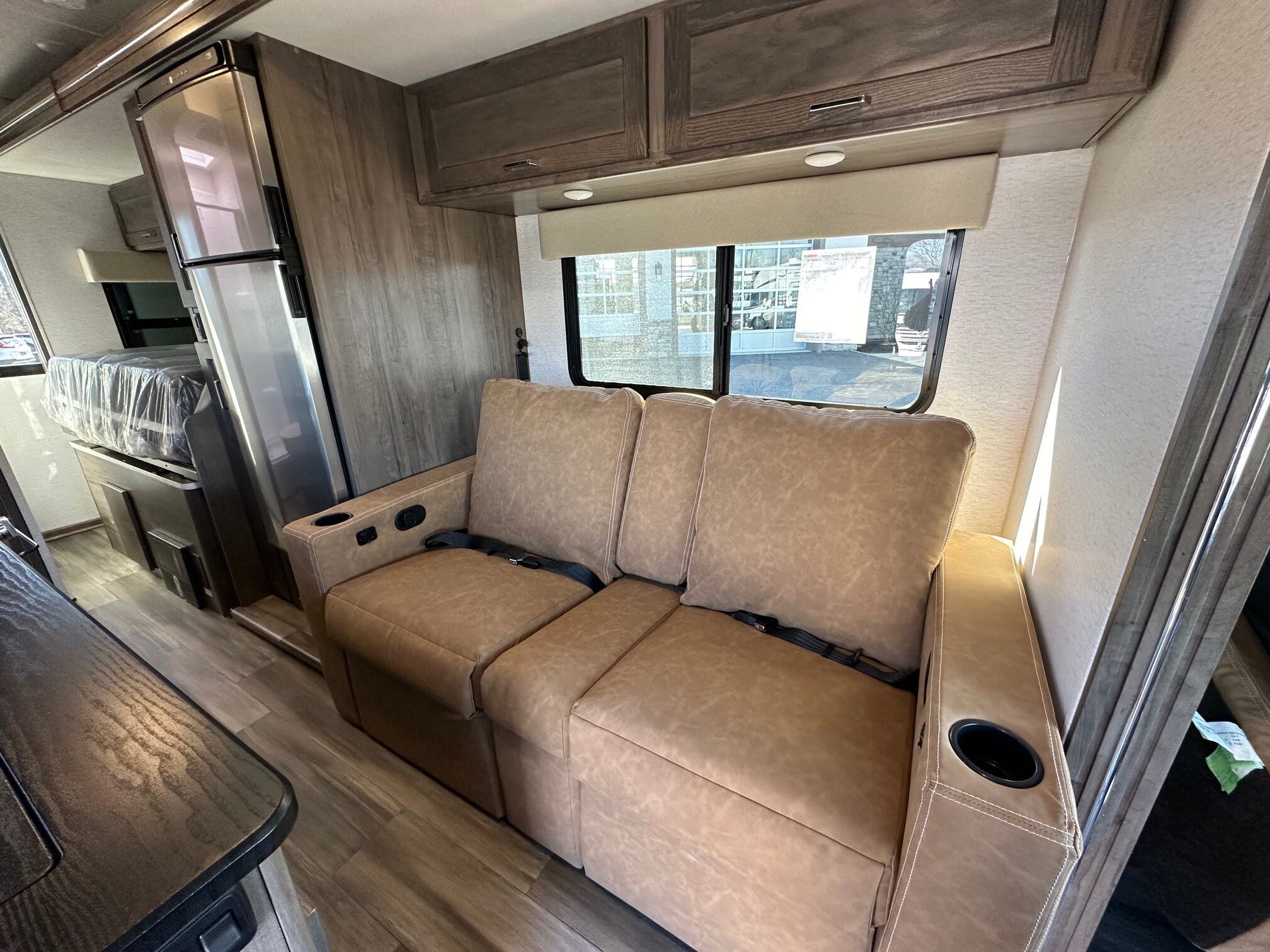

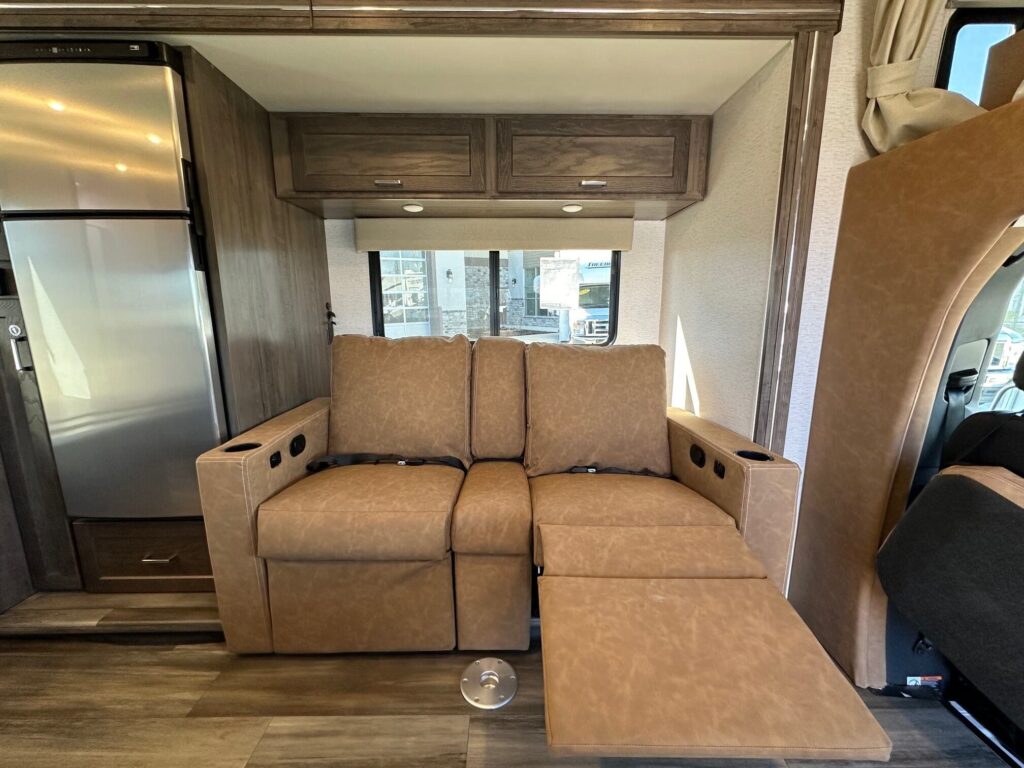

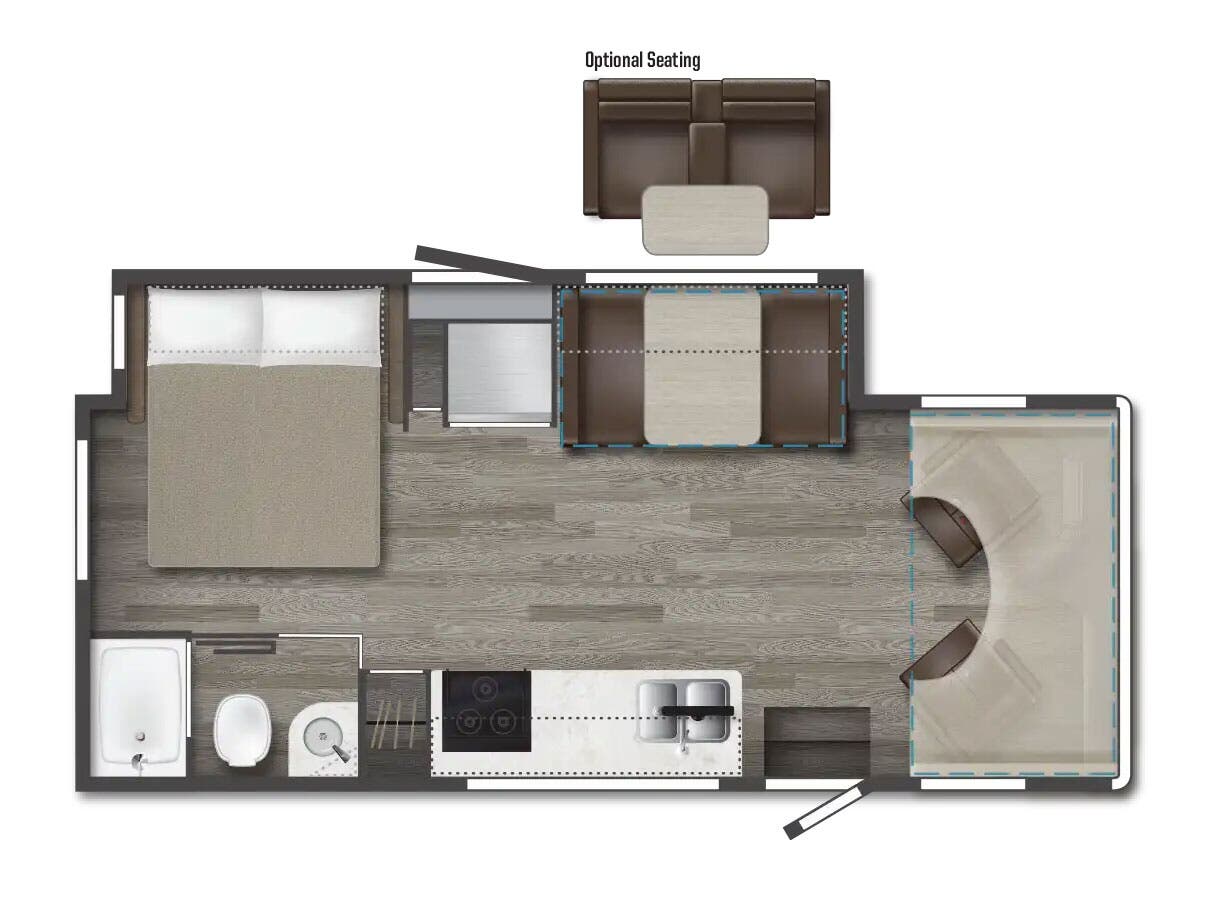

Optional Equipment: Theater seating w/dual cupholders, USB charging outlets and removable pedestal table

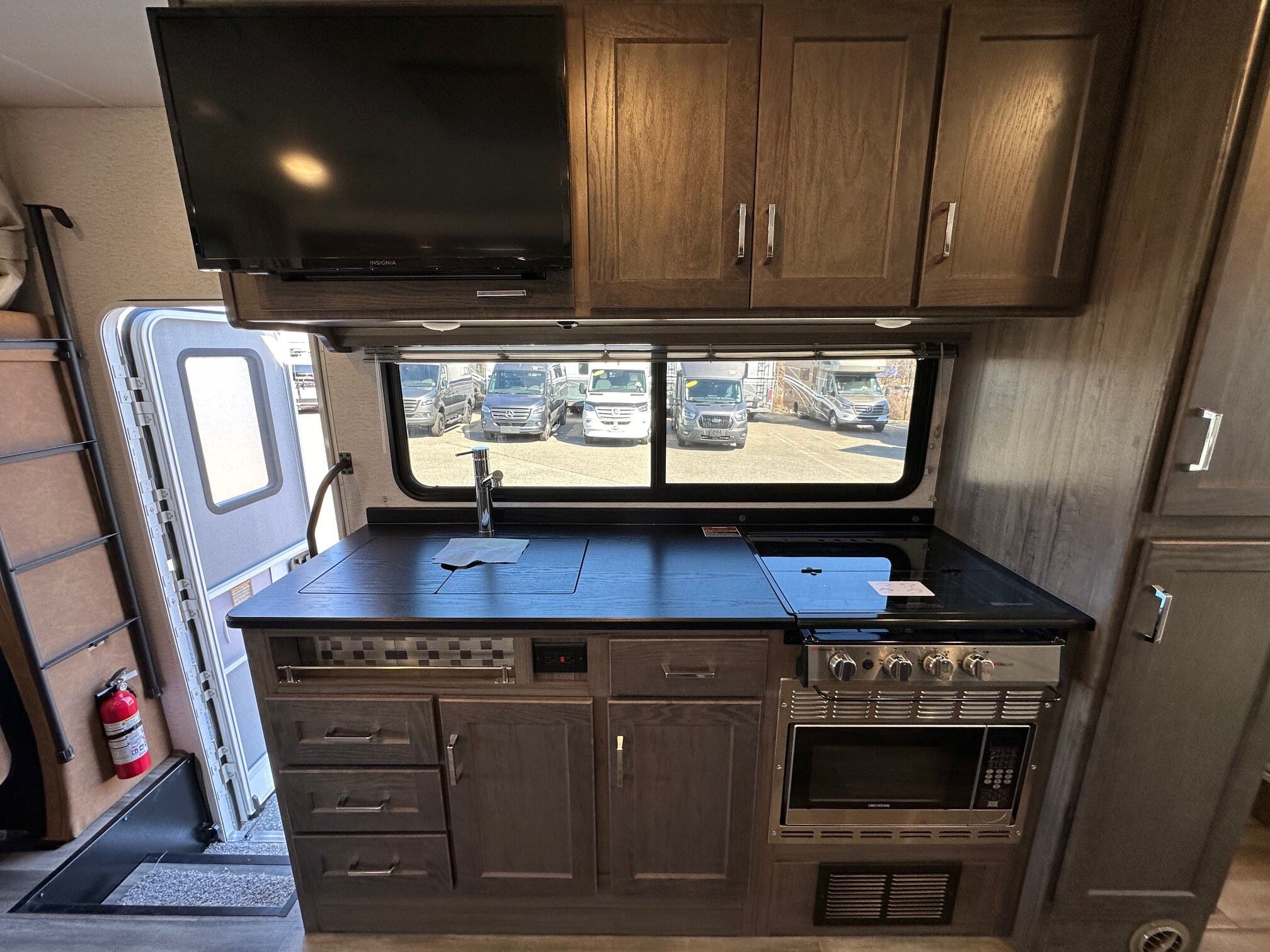

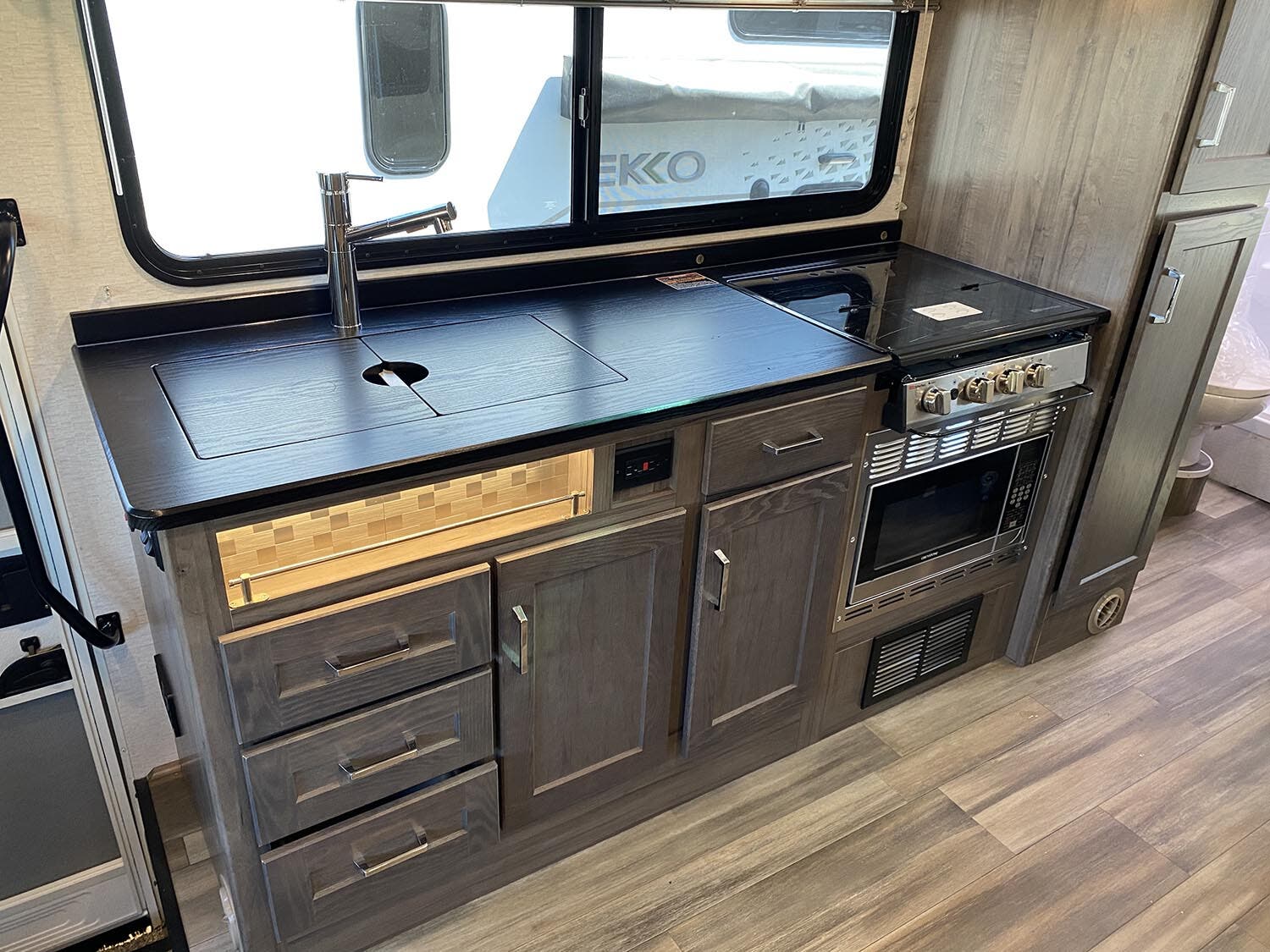

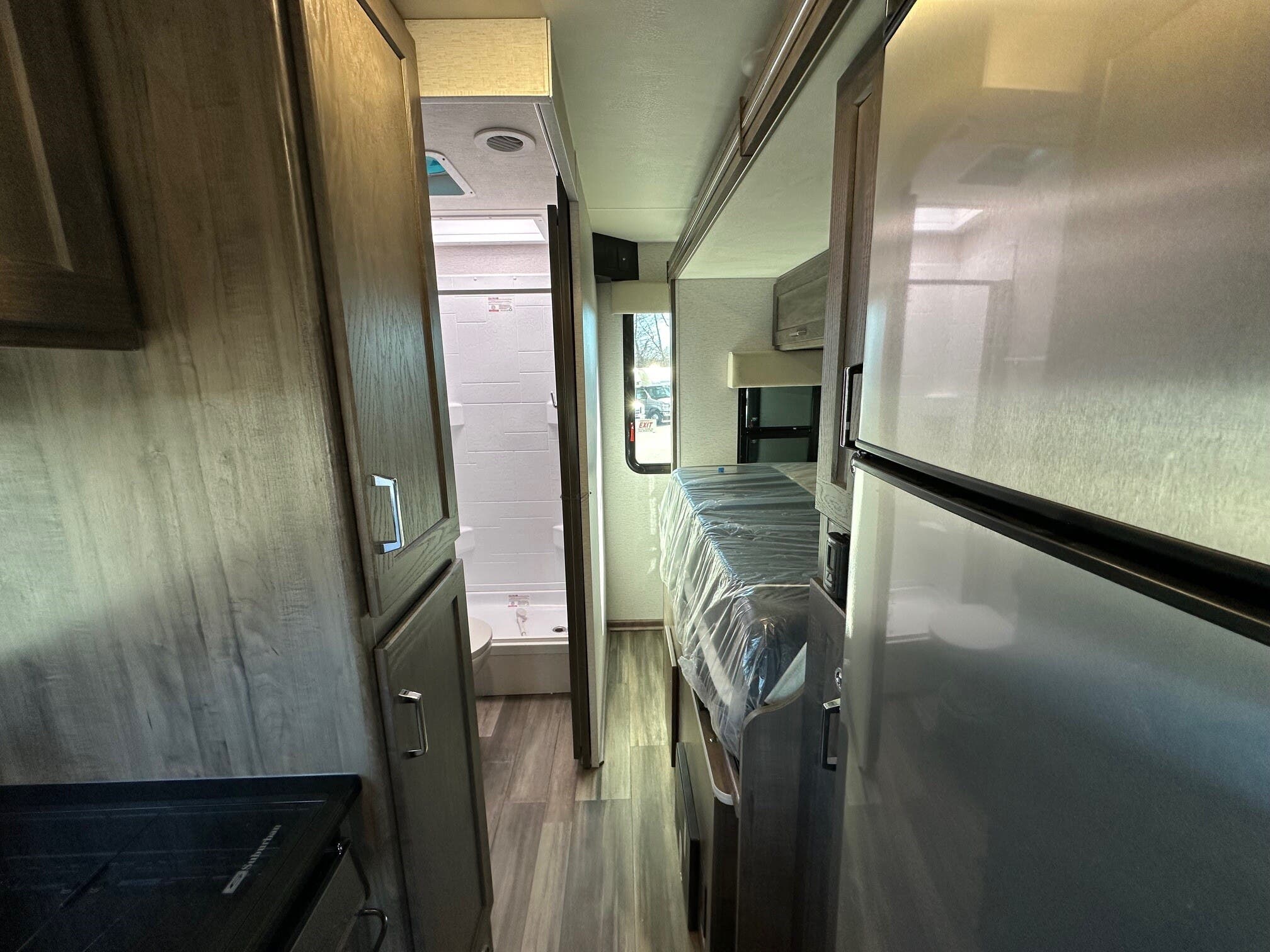

GALLEY

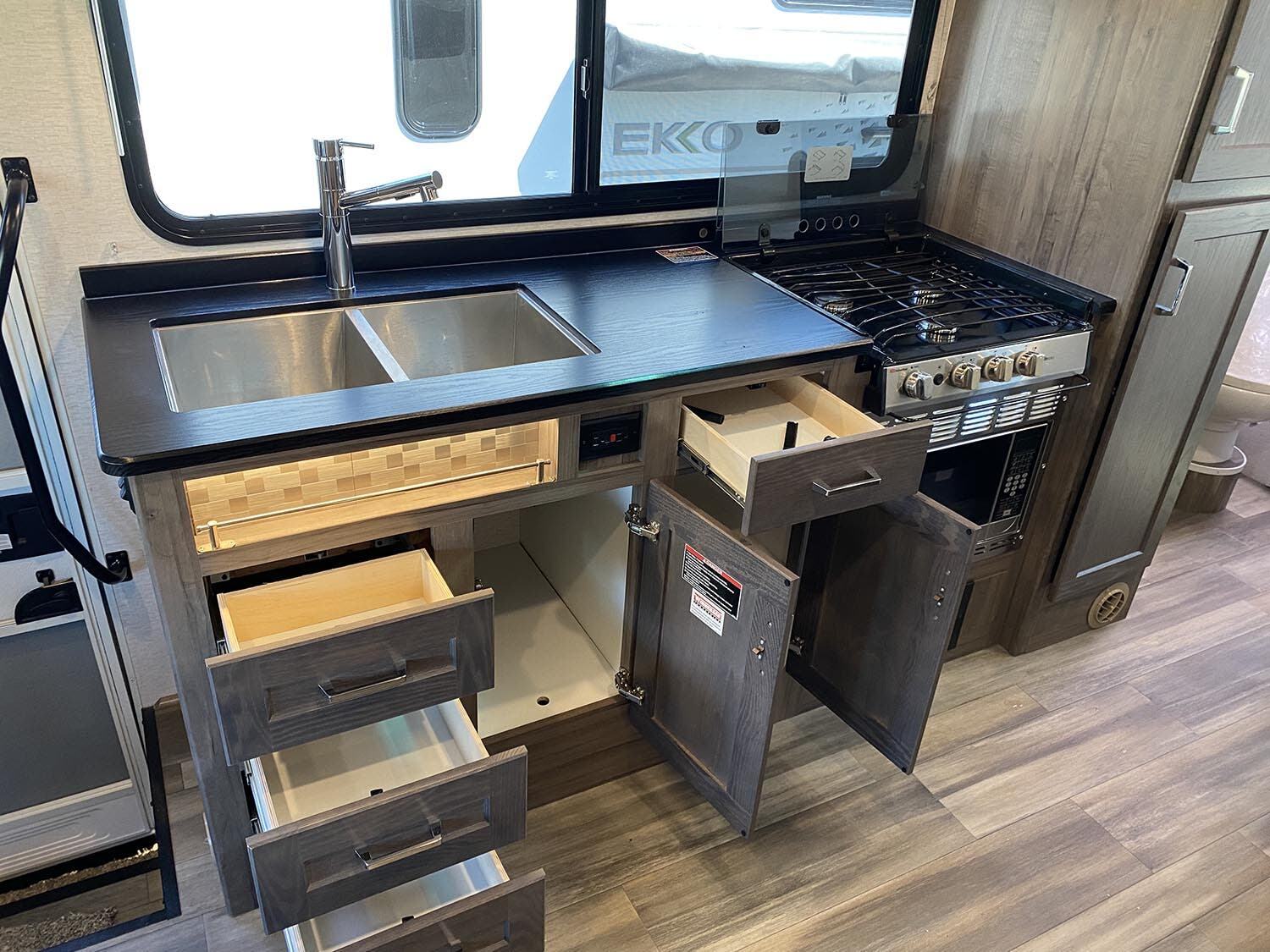

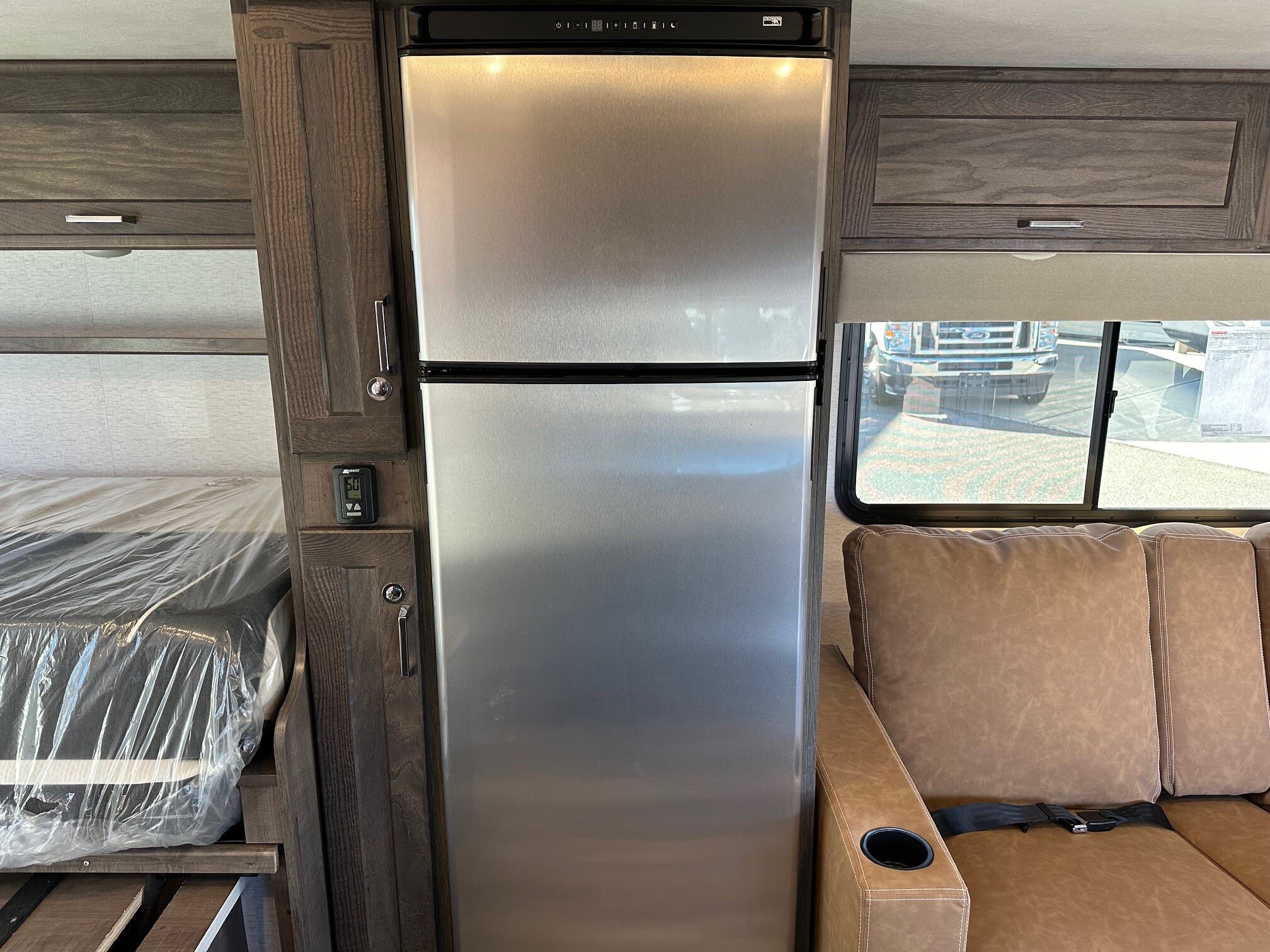

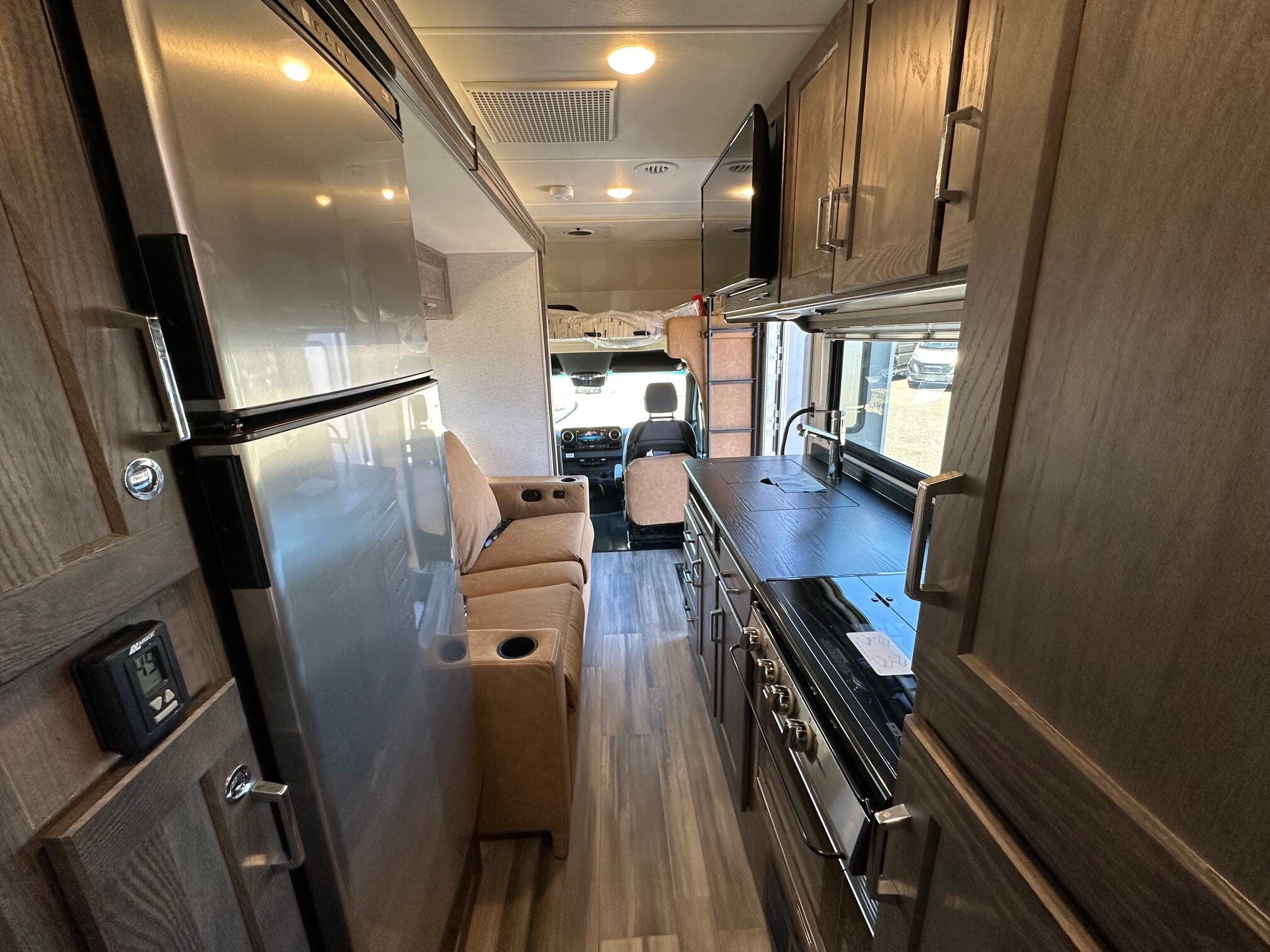

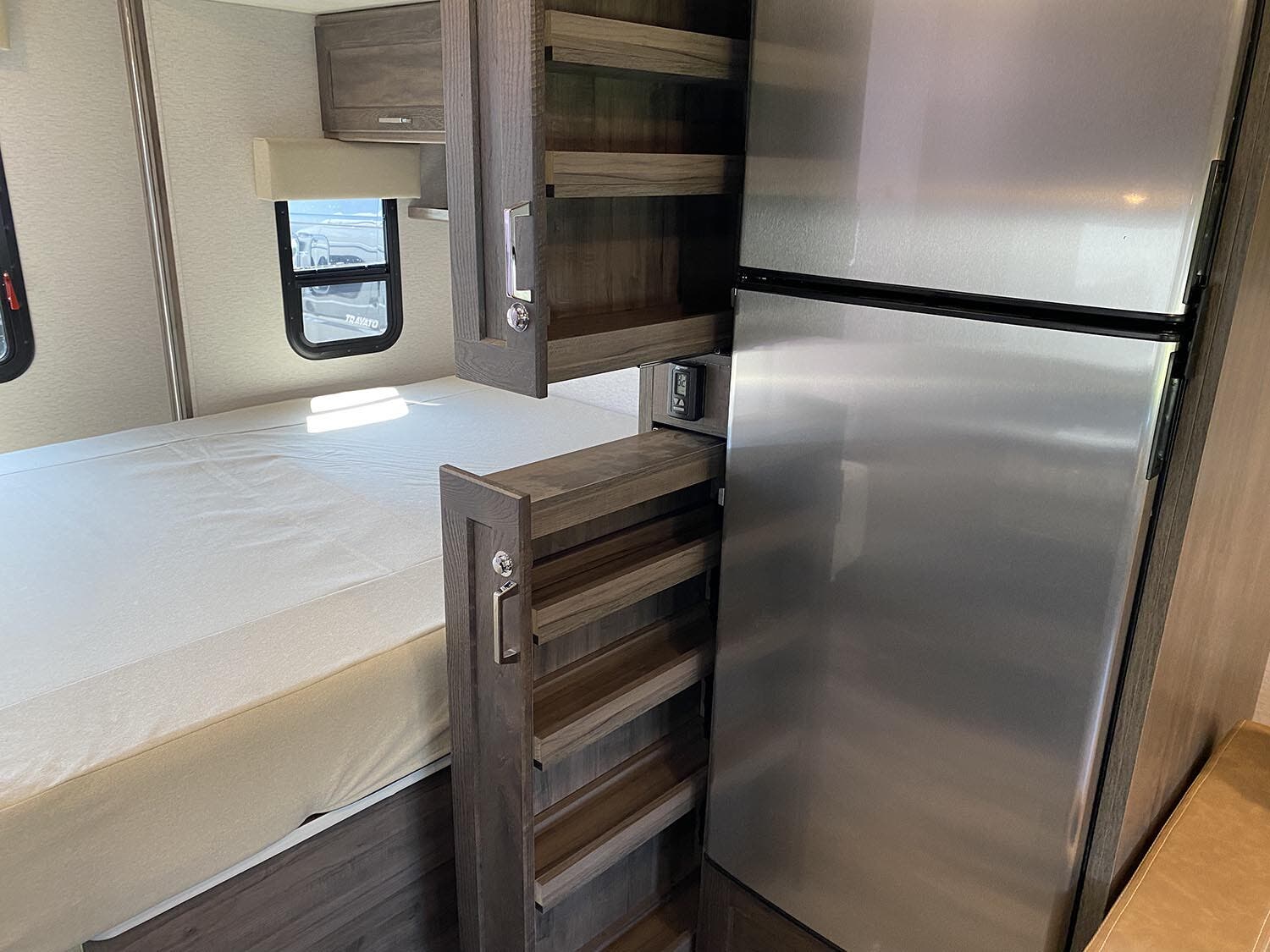

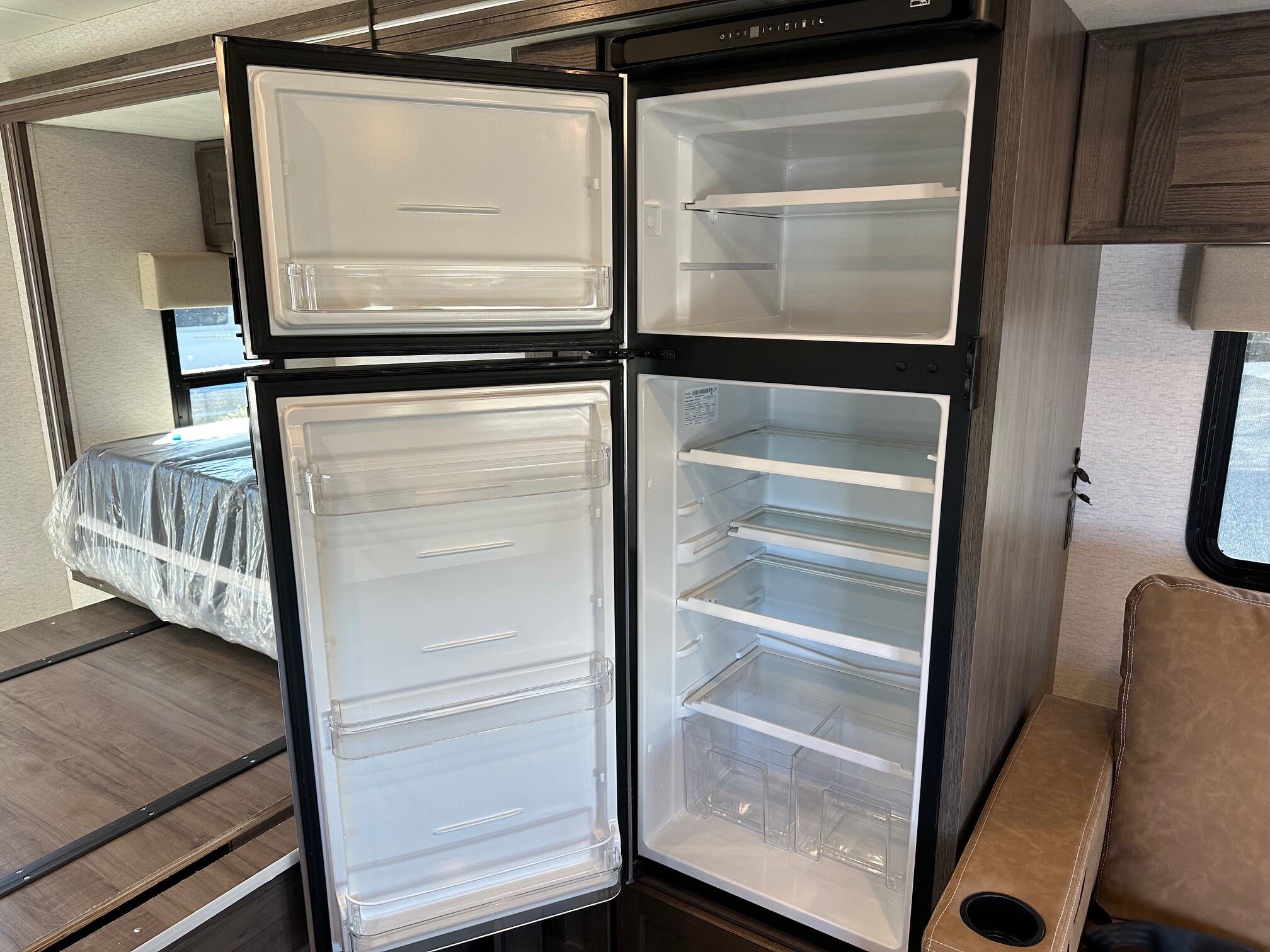

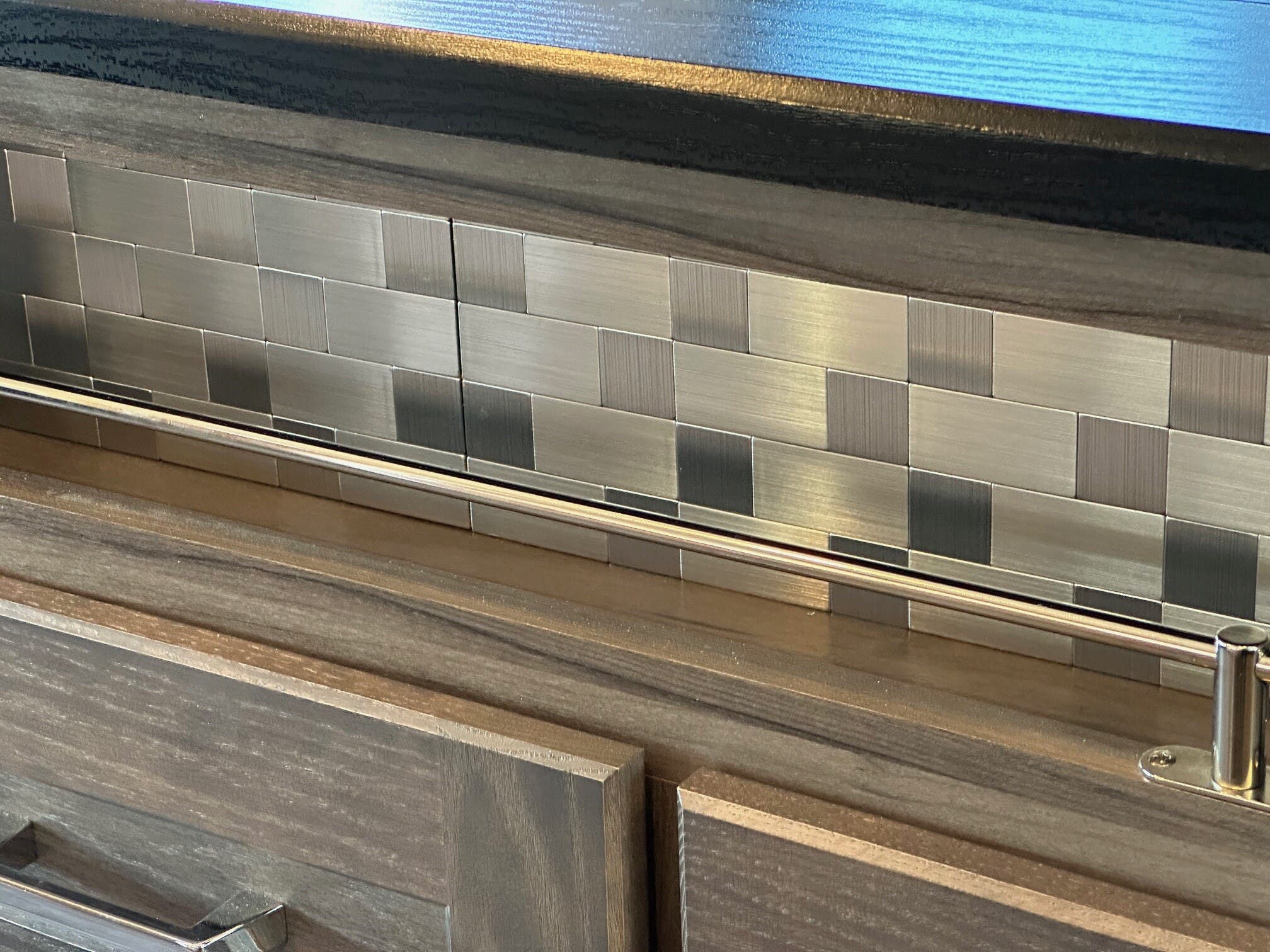

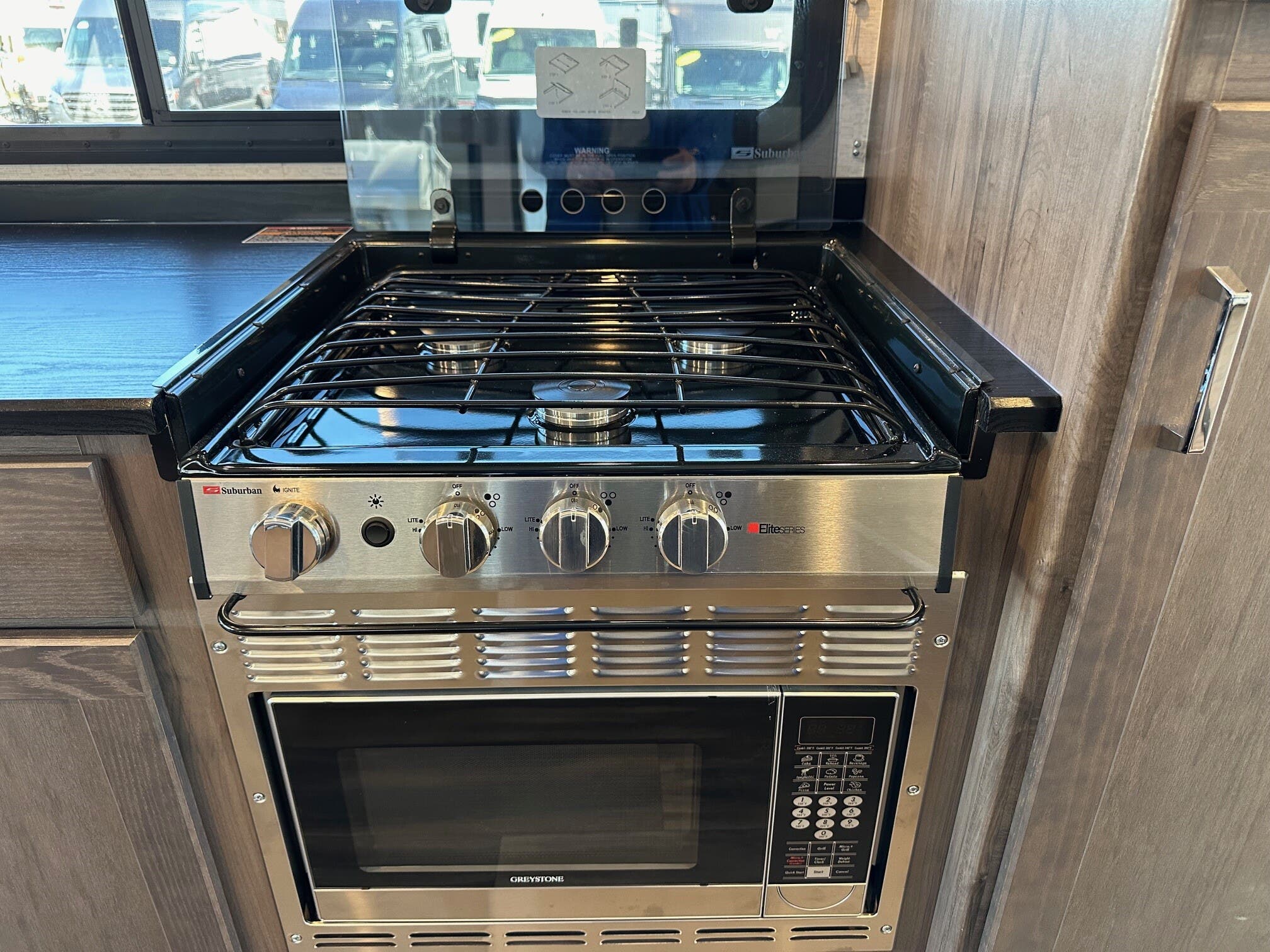

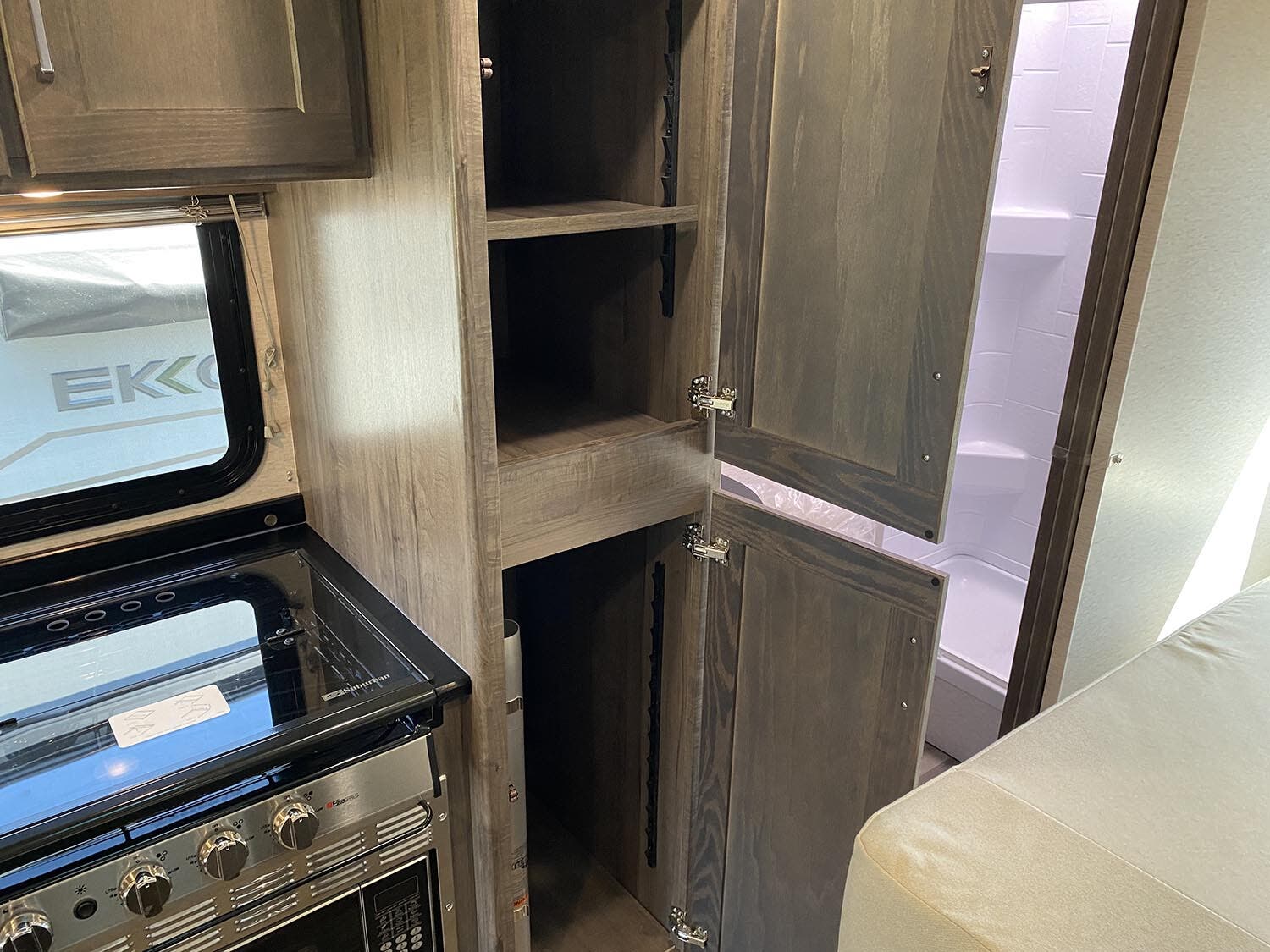

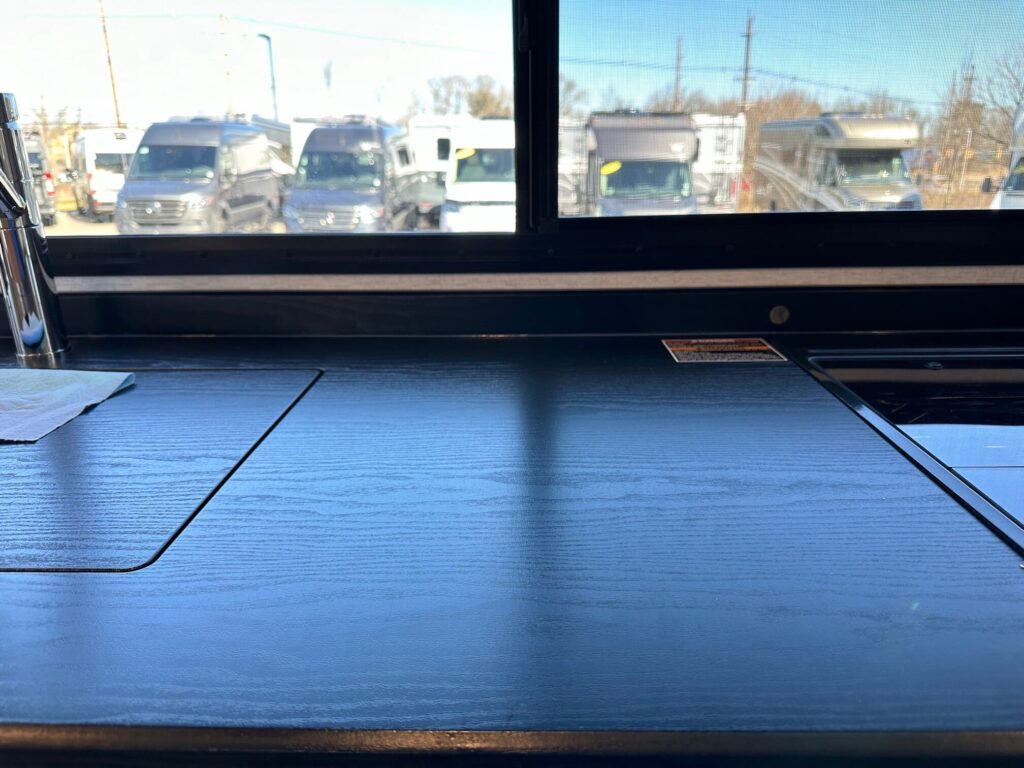

Thermoformed countertops w/decorative backsplash • Microwave/convection oven • 3-burner LP range top w/folding glass cover • Double-door 10.0 cu. ft. 12V compressor driven refrigerator/freezer • Pantry w/pull-out pantry boxes and adjustable shelves • Stainless steel double sink w/single control faucet and two sink covers • Lighted spice rack

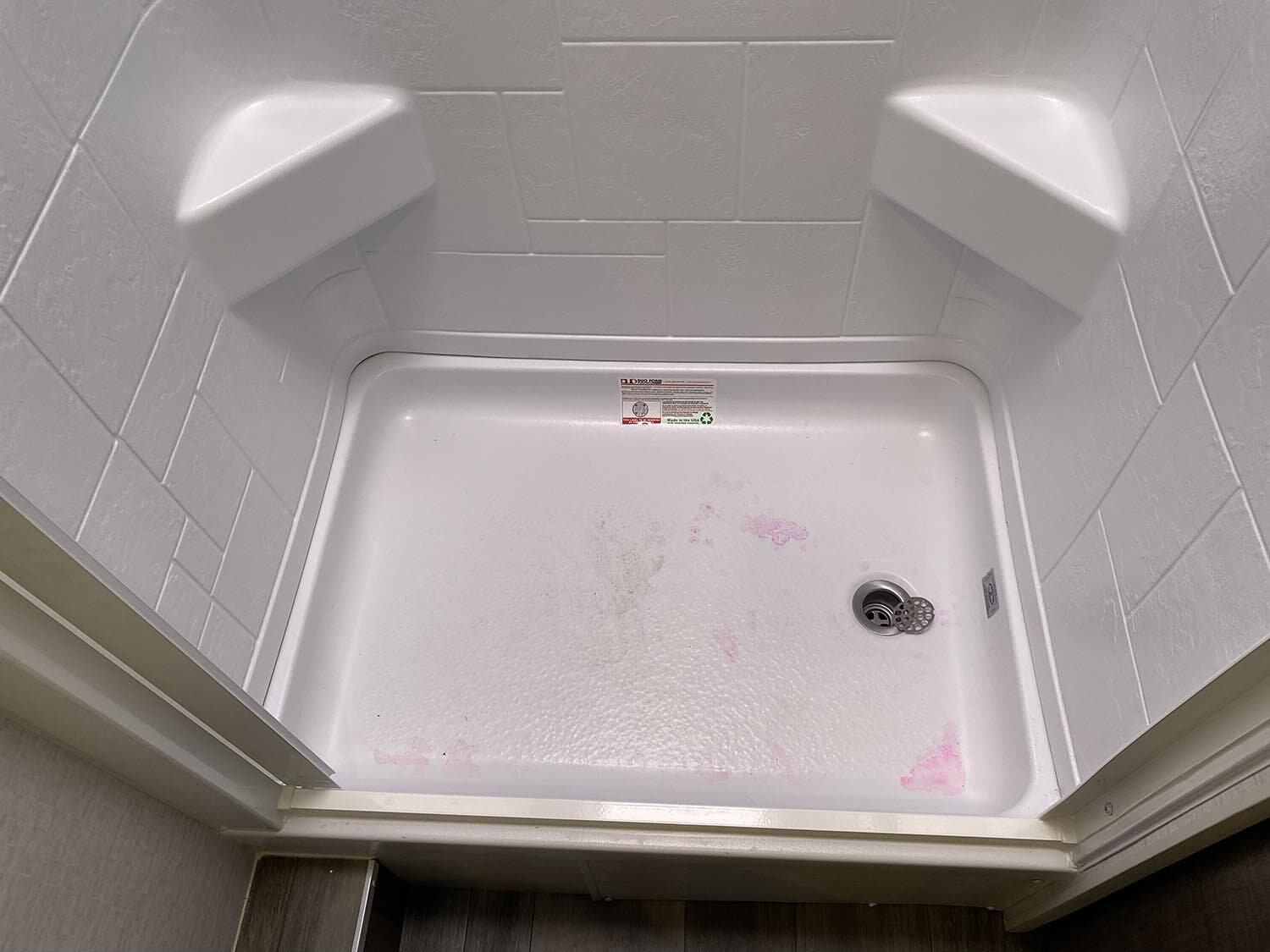

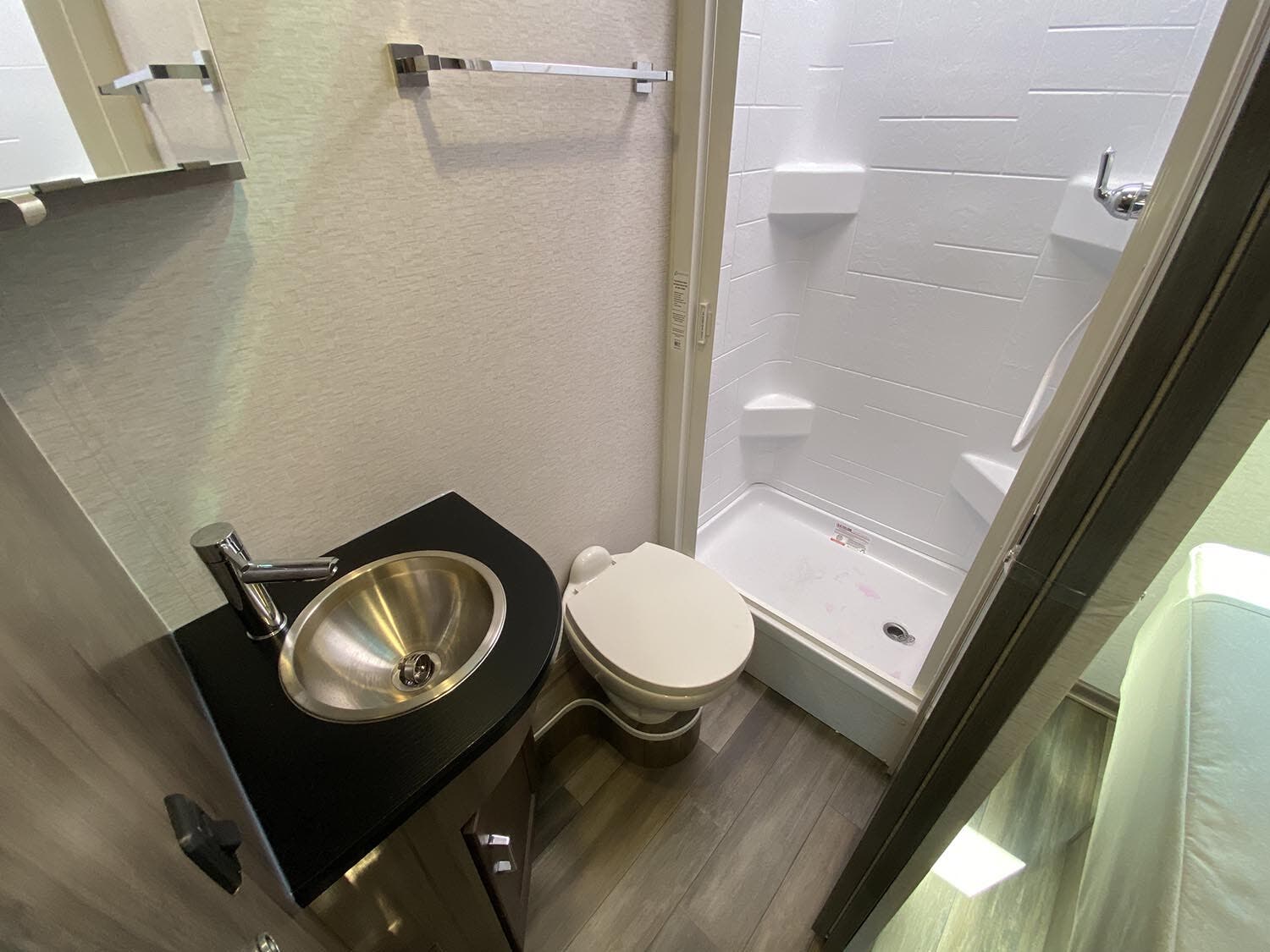

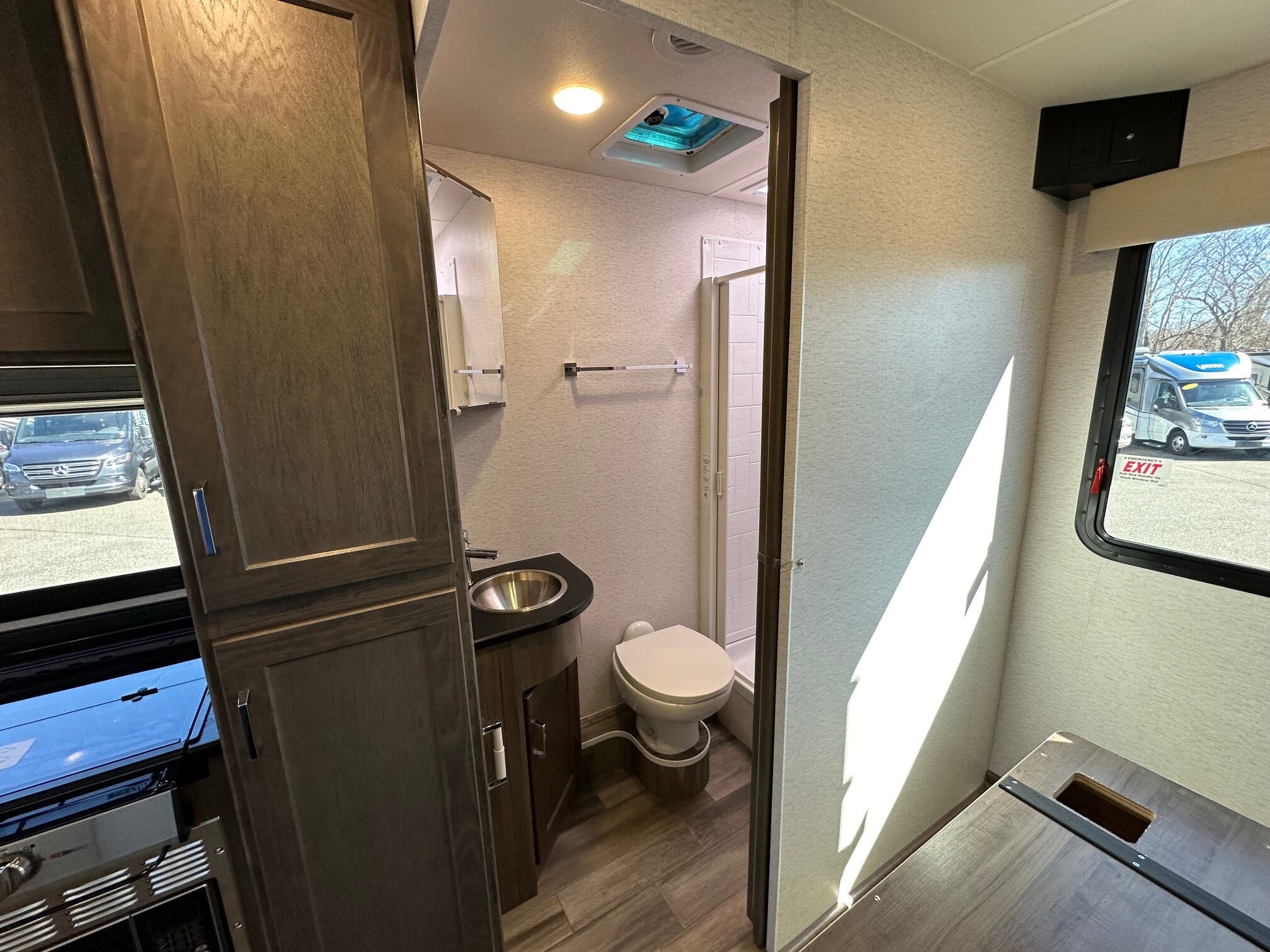

BATH

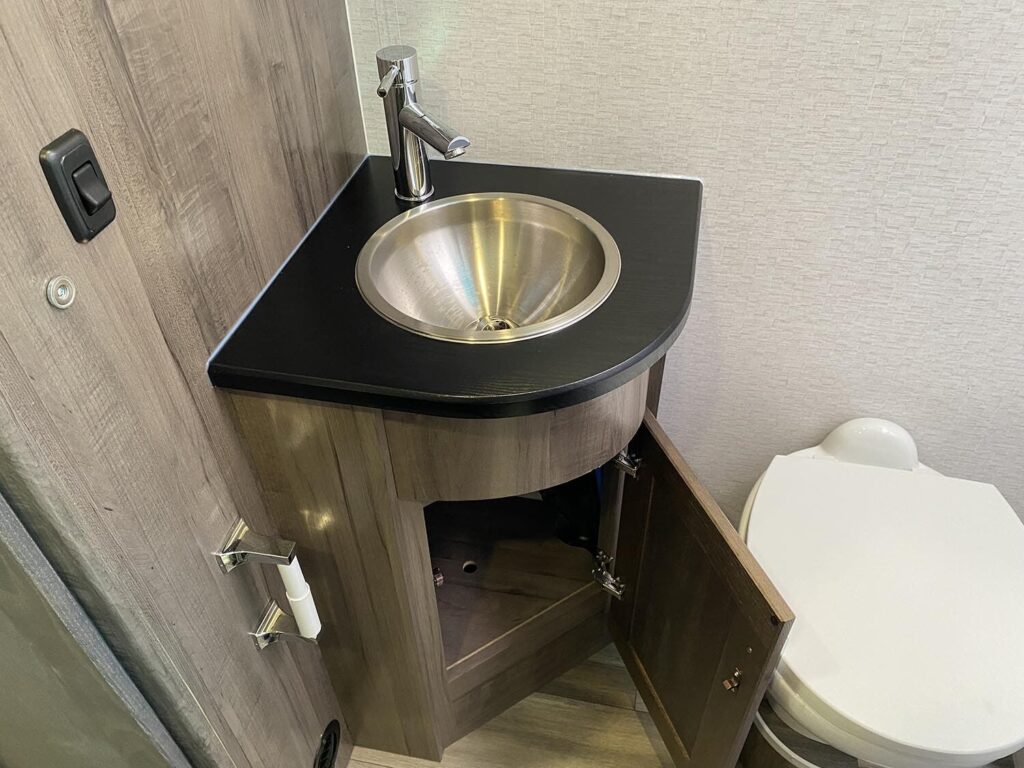

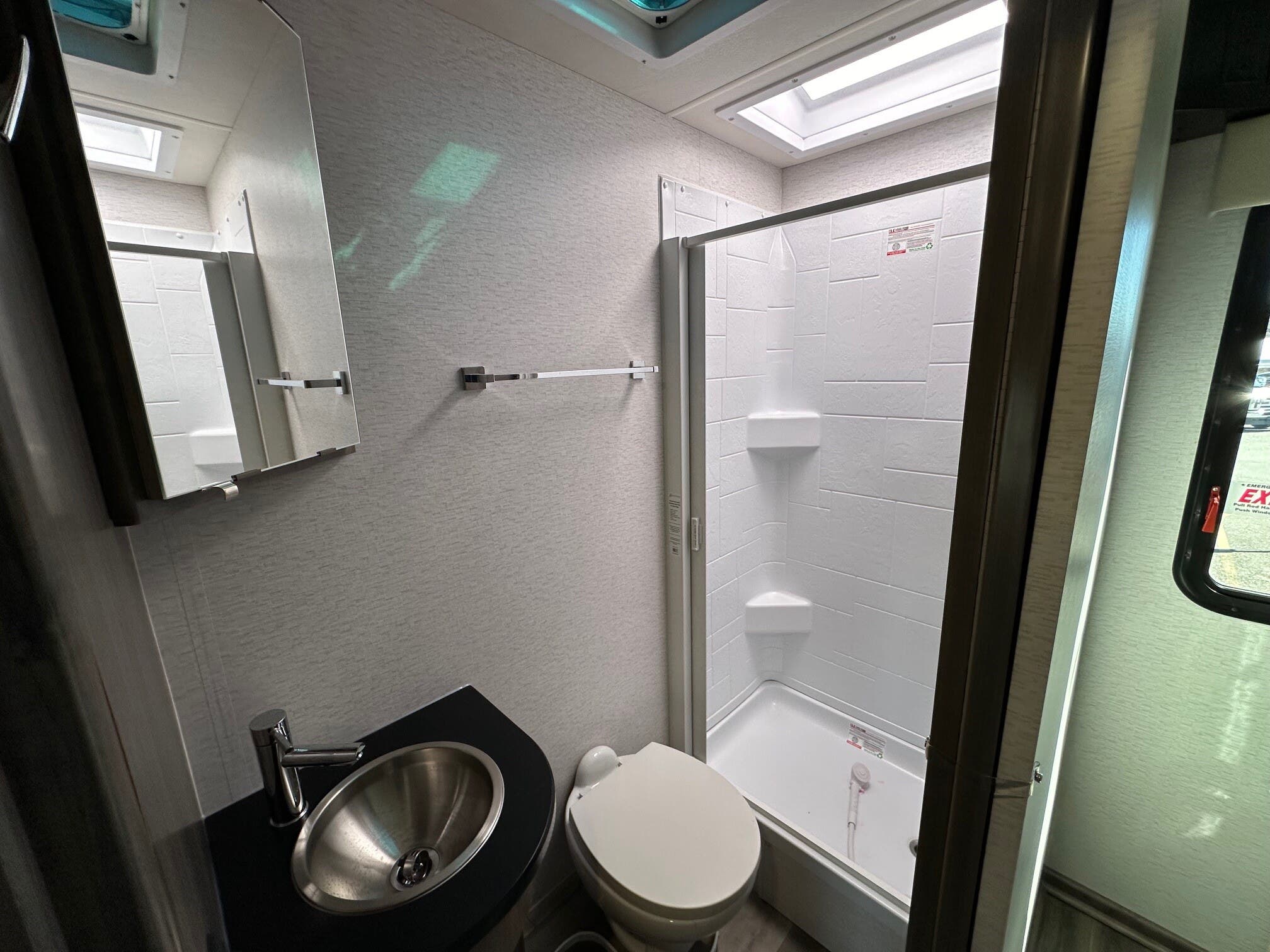

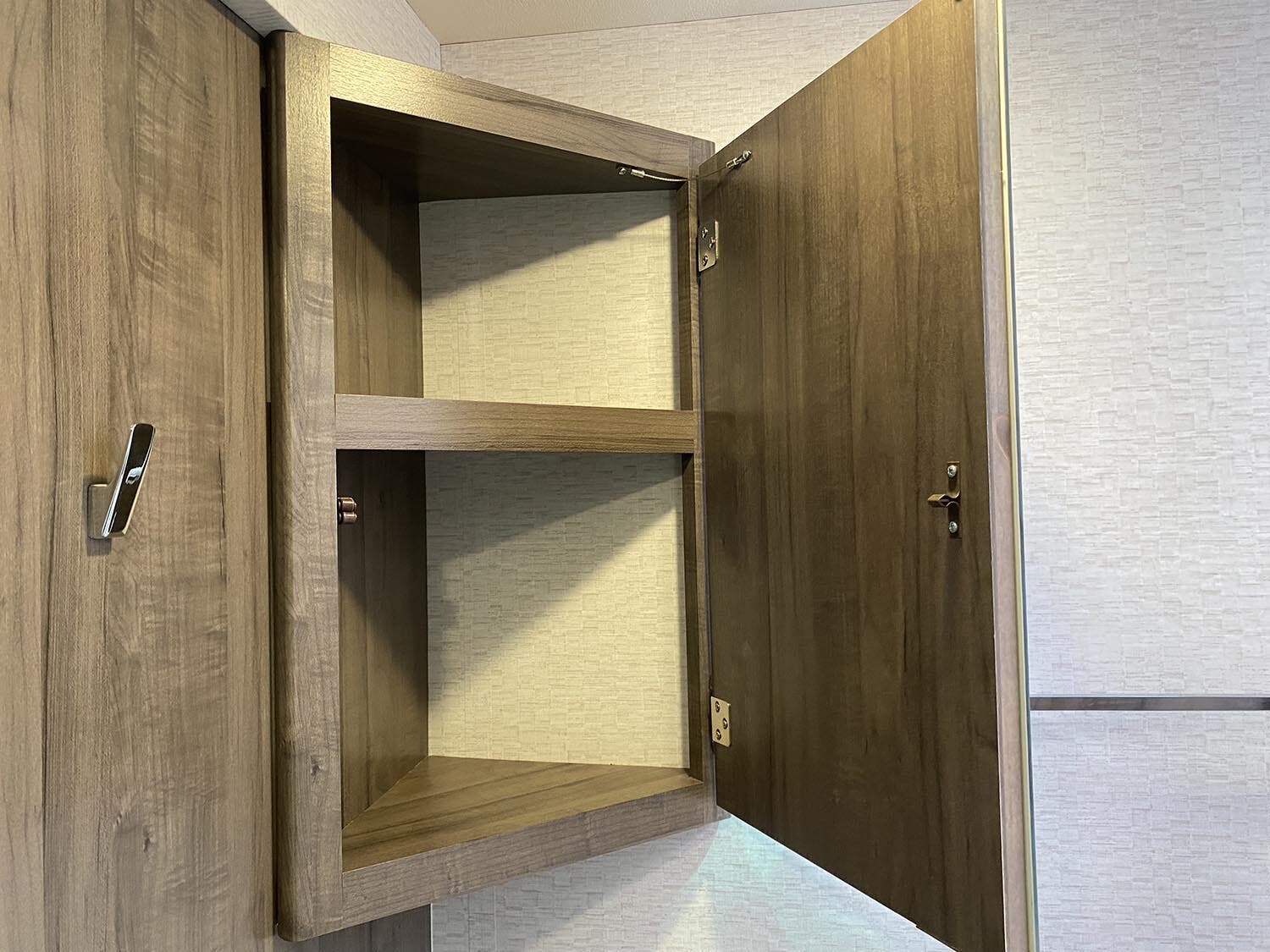

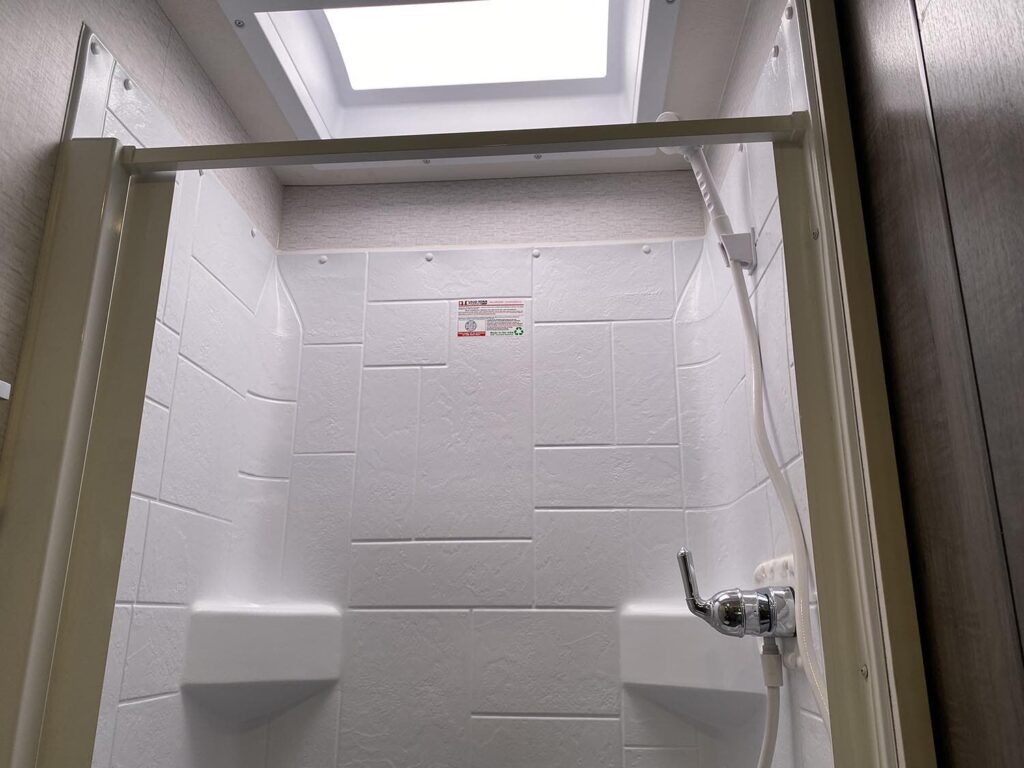

Sliding bi-fold bathroom door • Shower w/wall surround • Retractable, self-cleaning shower screen • Flexible showerhead • Shower skylight • Round stainless steel sink w/single control faucet • Porcelain toilet w/foot pedal and sprayer • Powered roof vent • Towel bar • Tissue holder • Robe hooks • Medicine cabinet • Lavatory cabinet

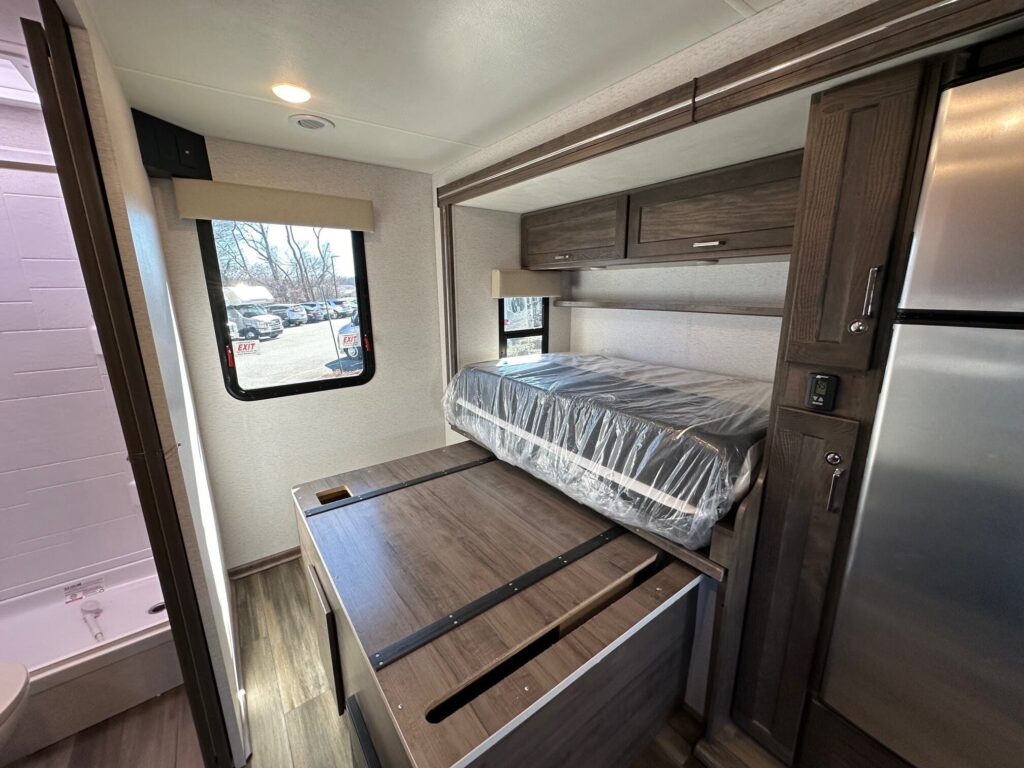

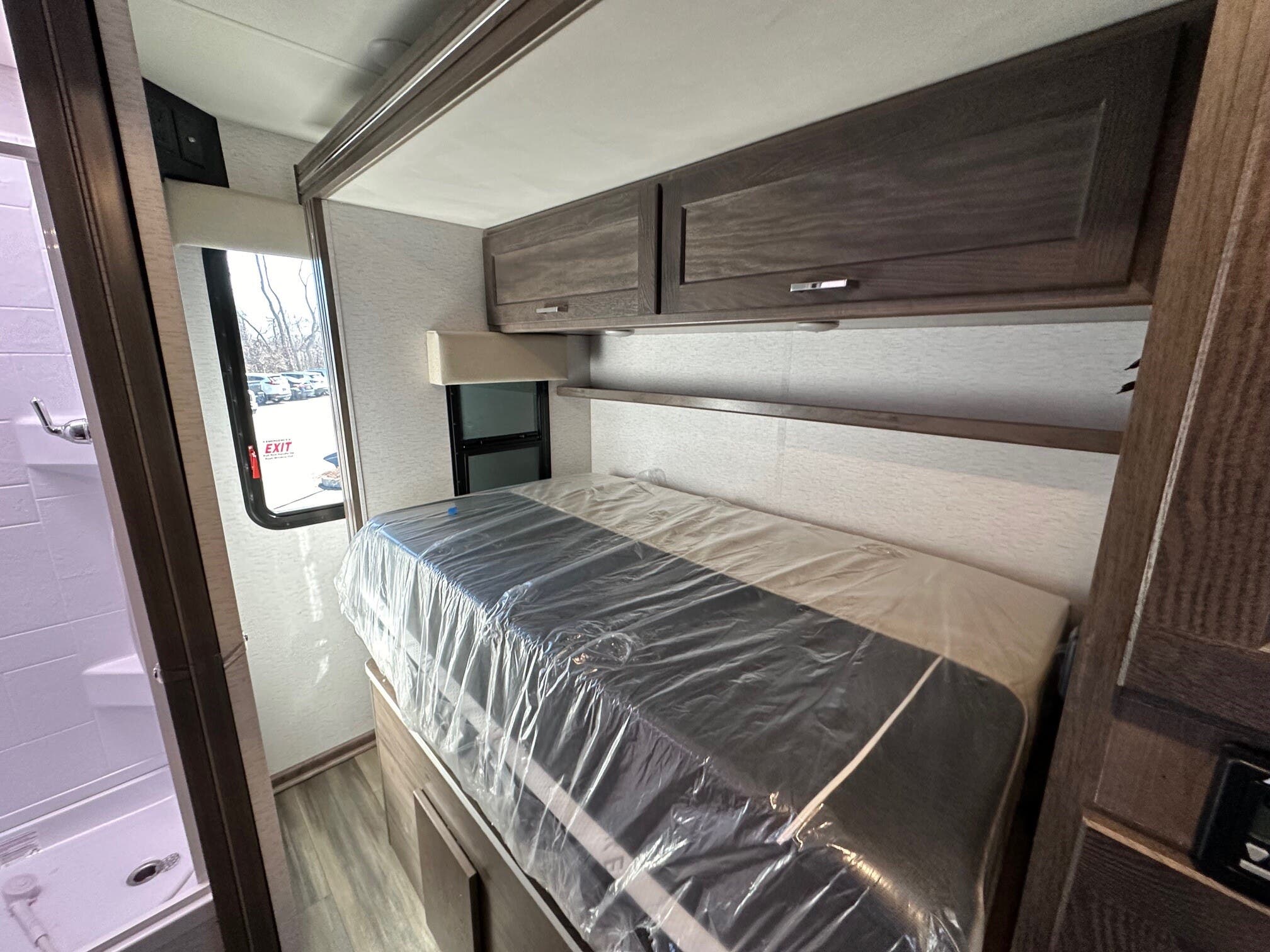

BEDROOM

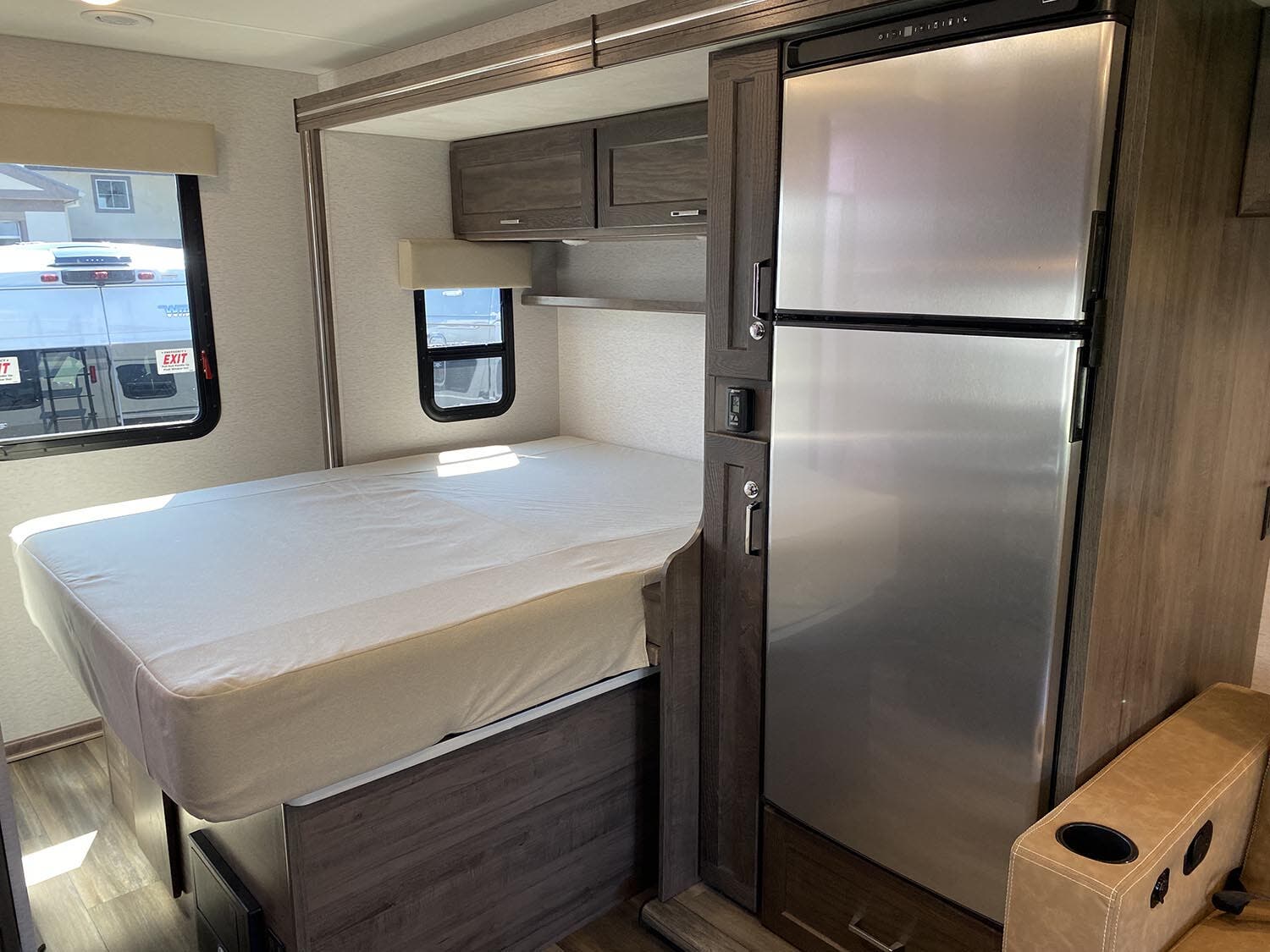

Queen bed w/WinnSleep® technology • Wardrobe cabinet w/removable metal clothes rod and adjustable shelves

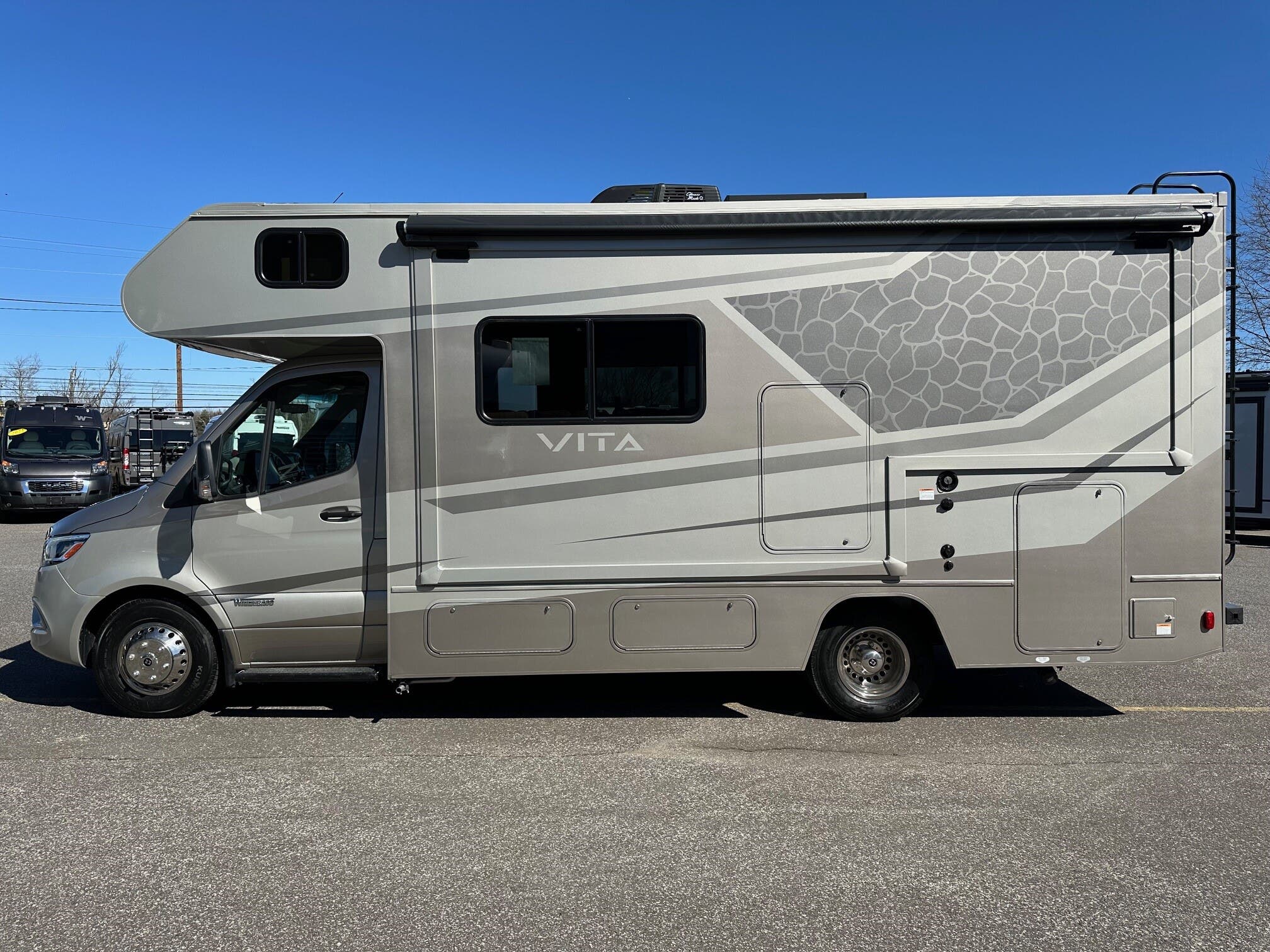

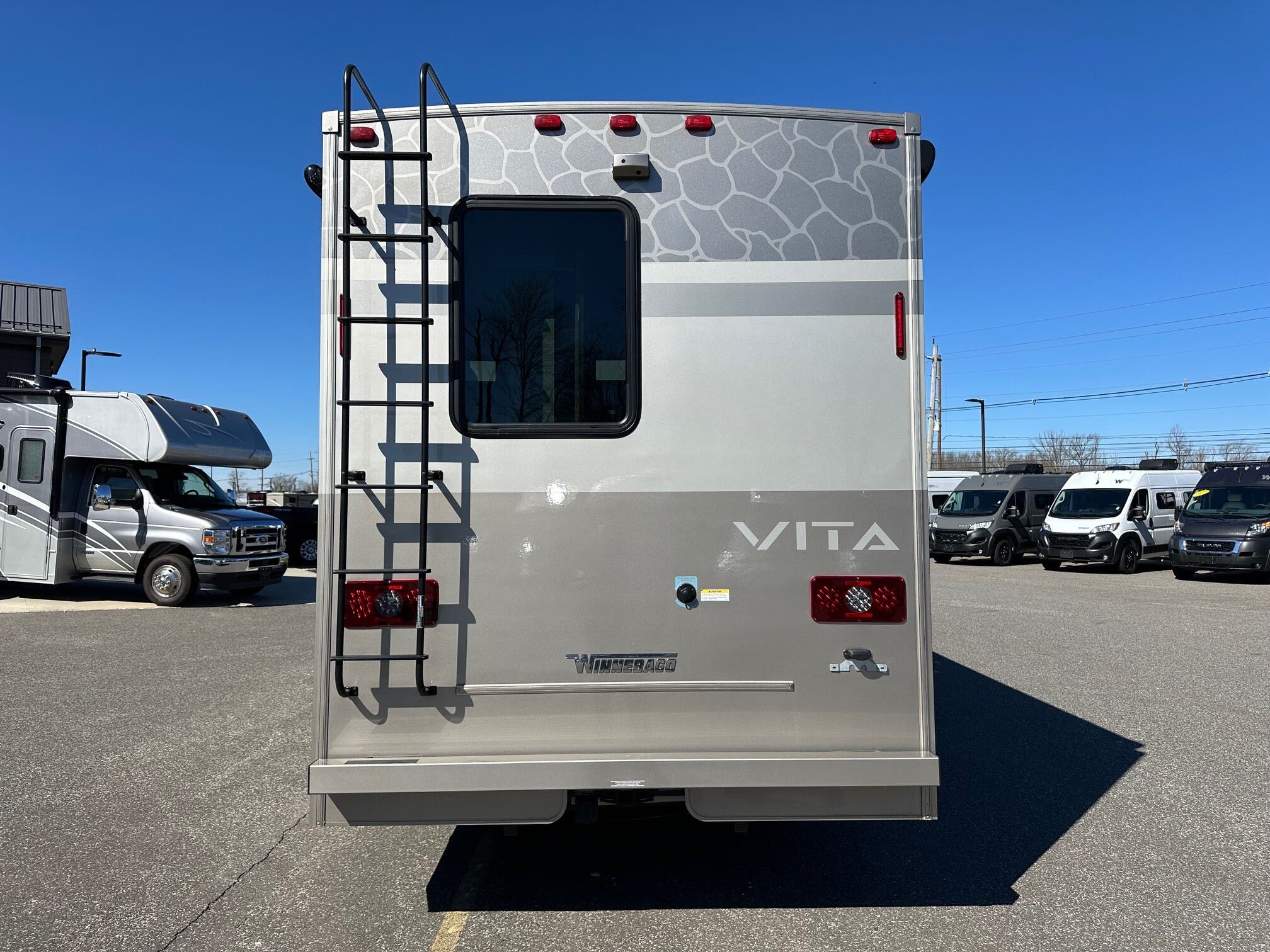

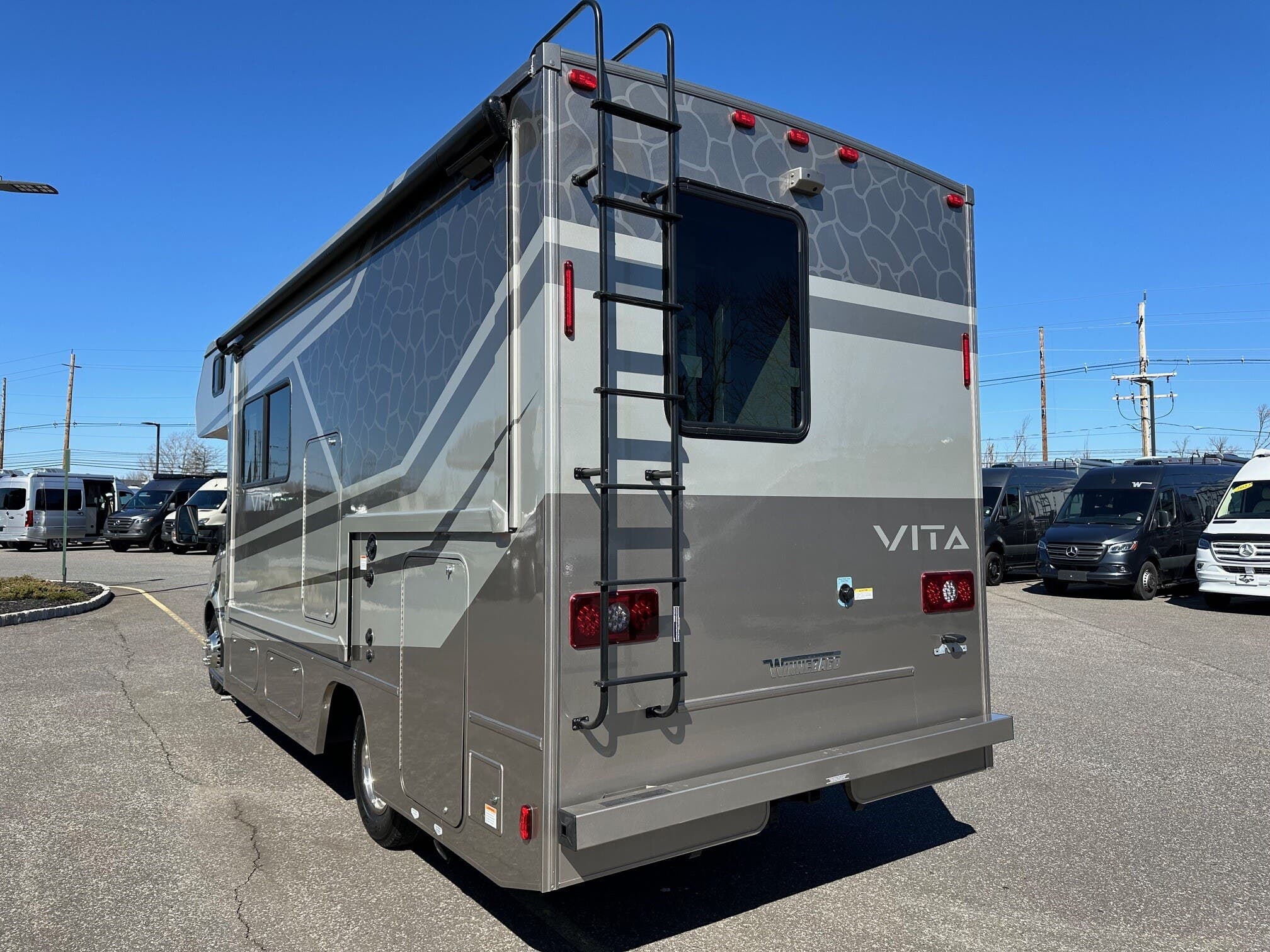

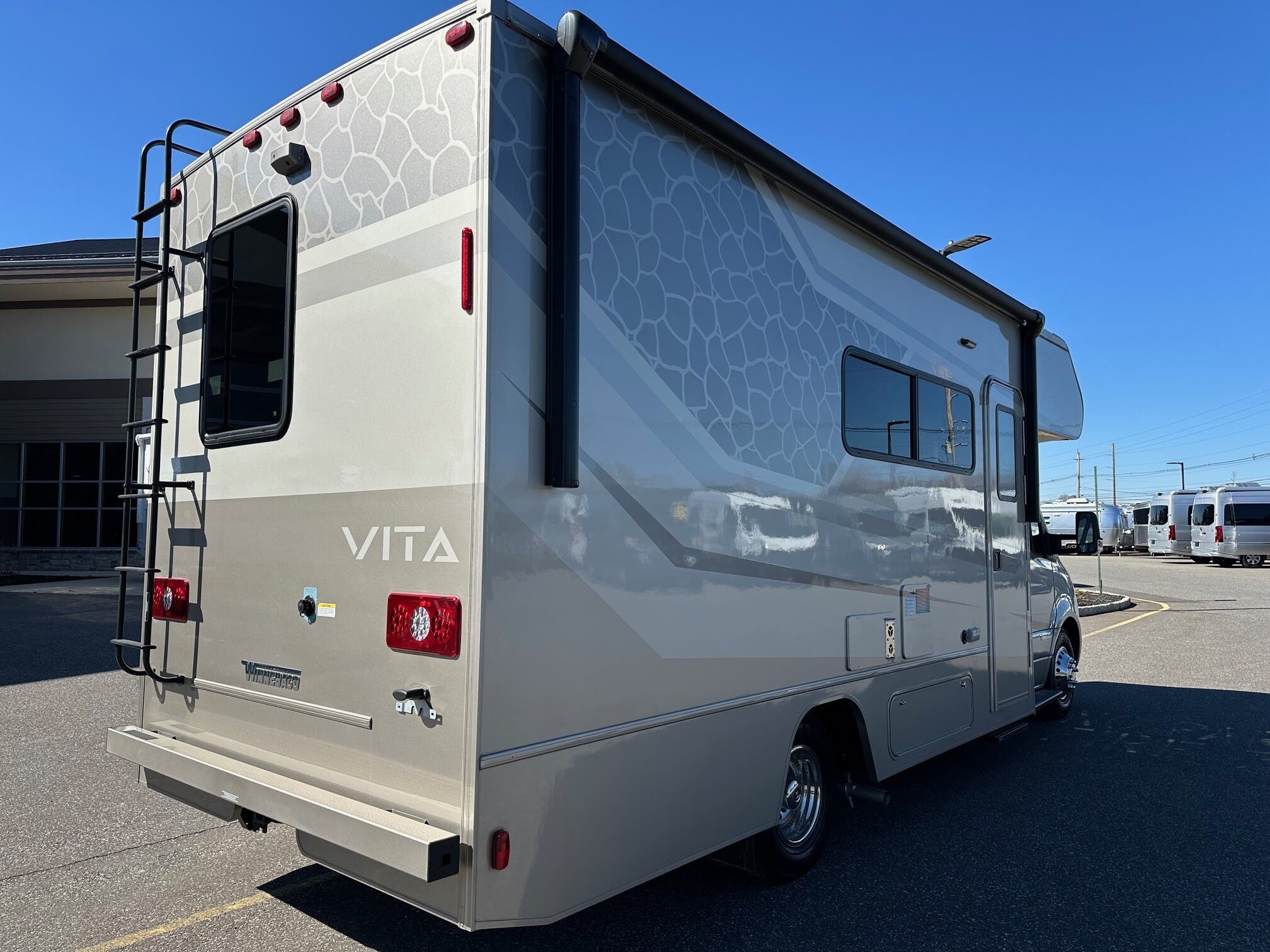

EXTERIOR

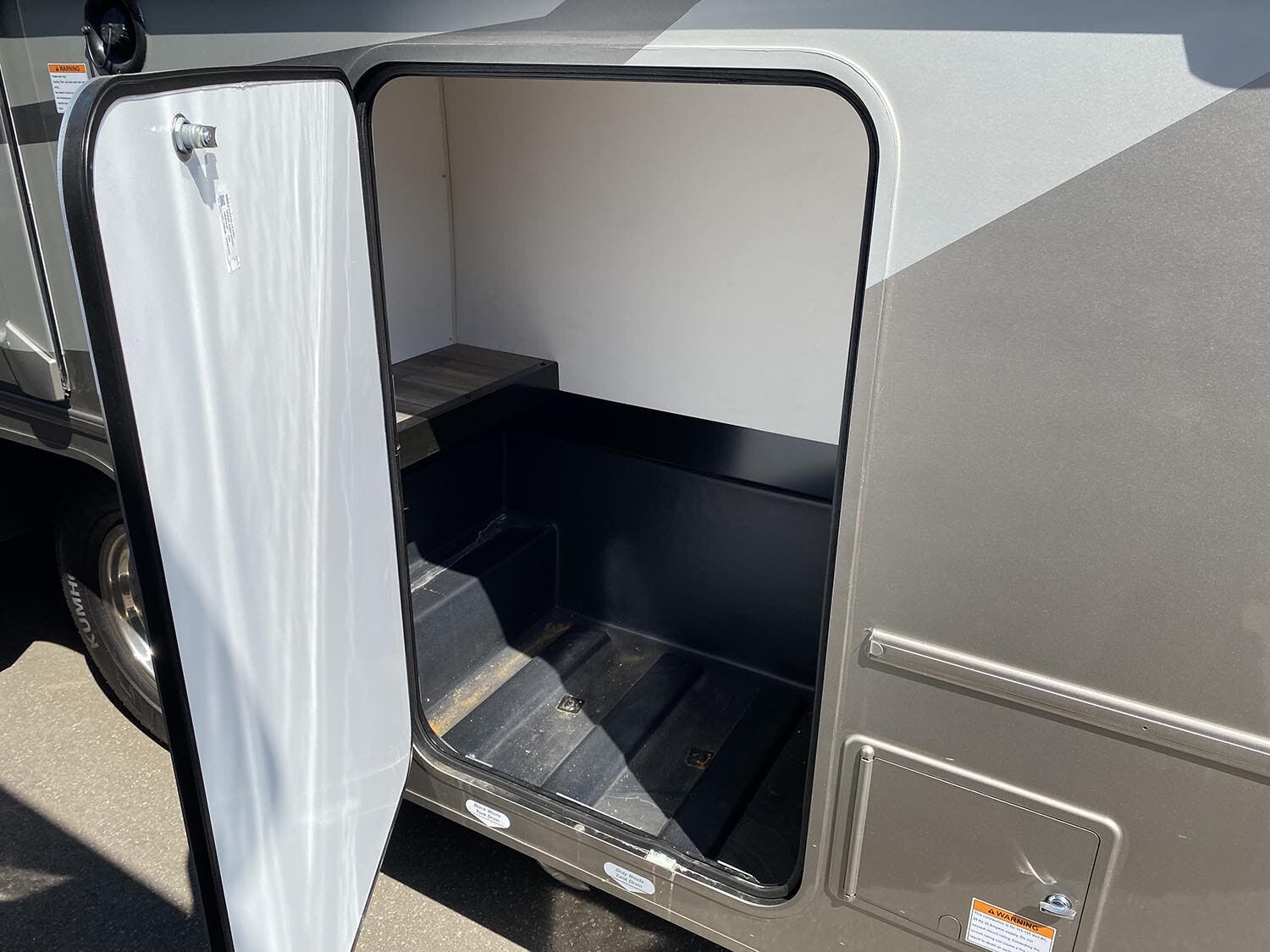

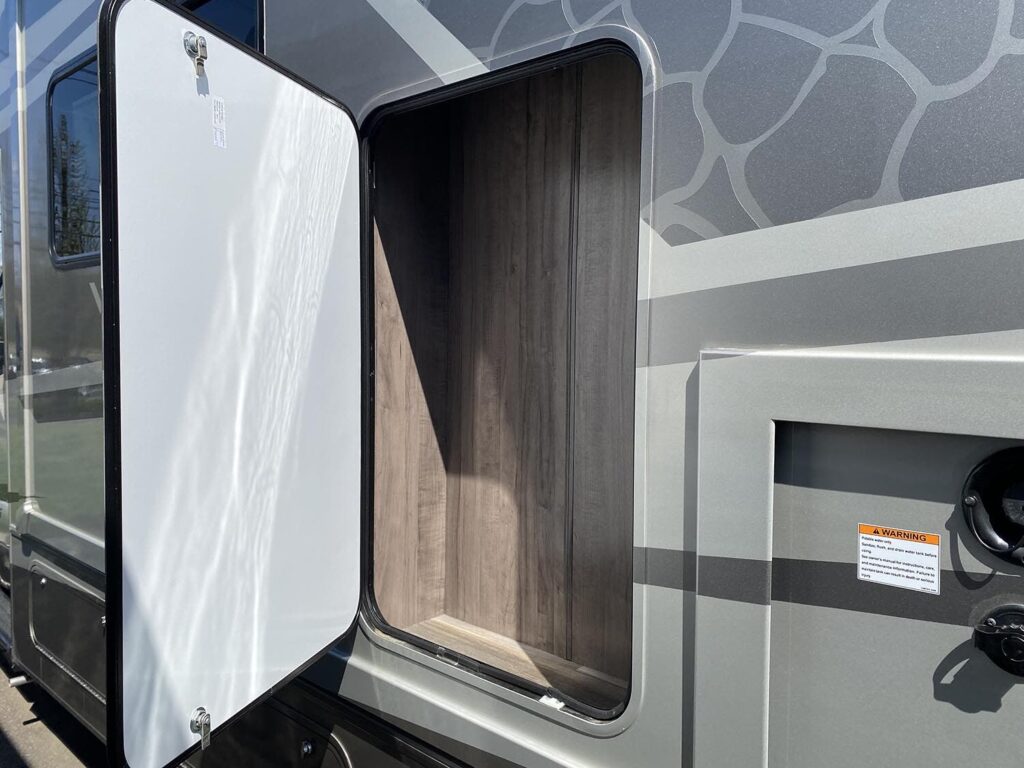

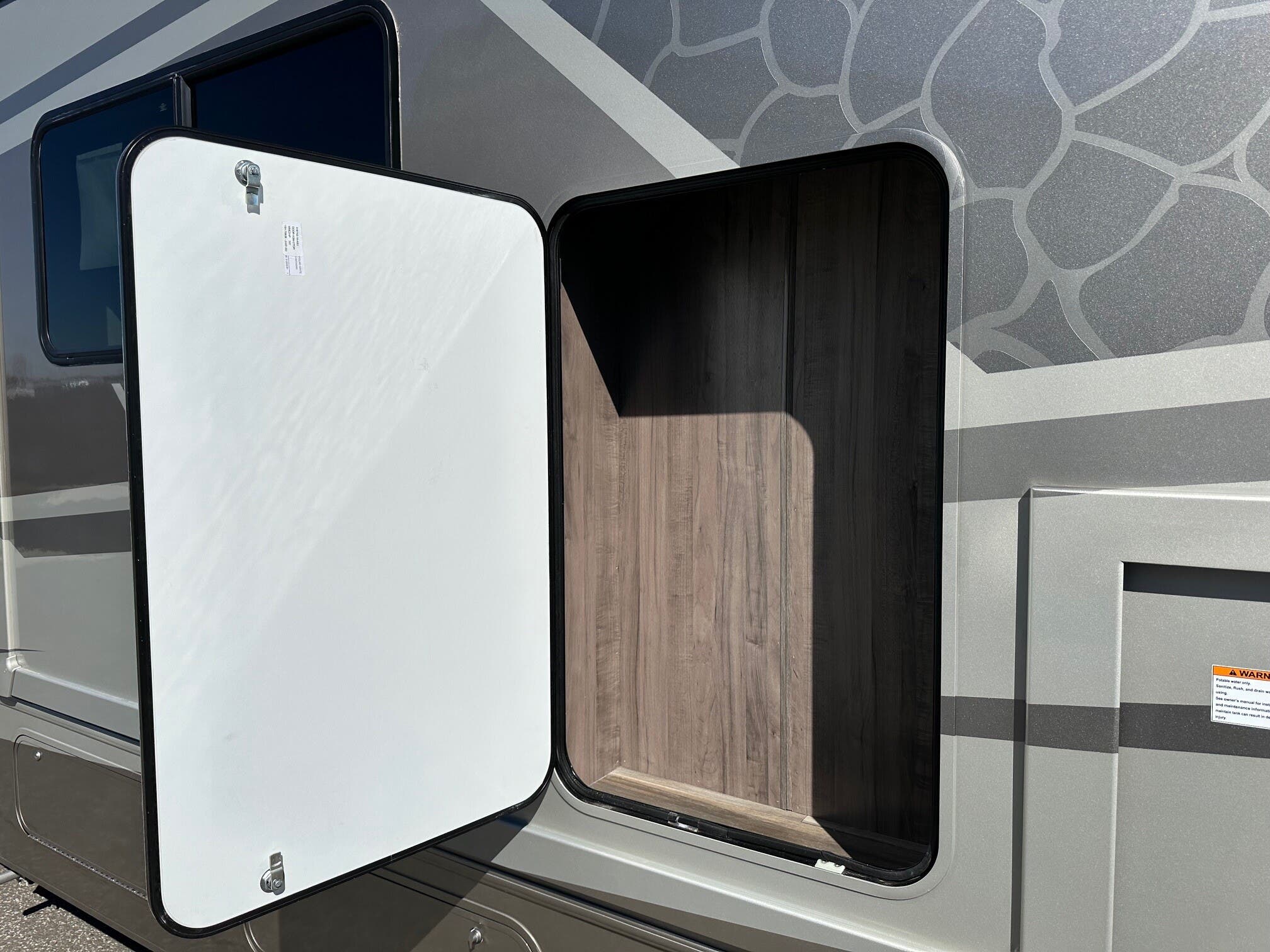

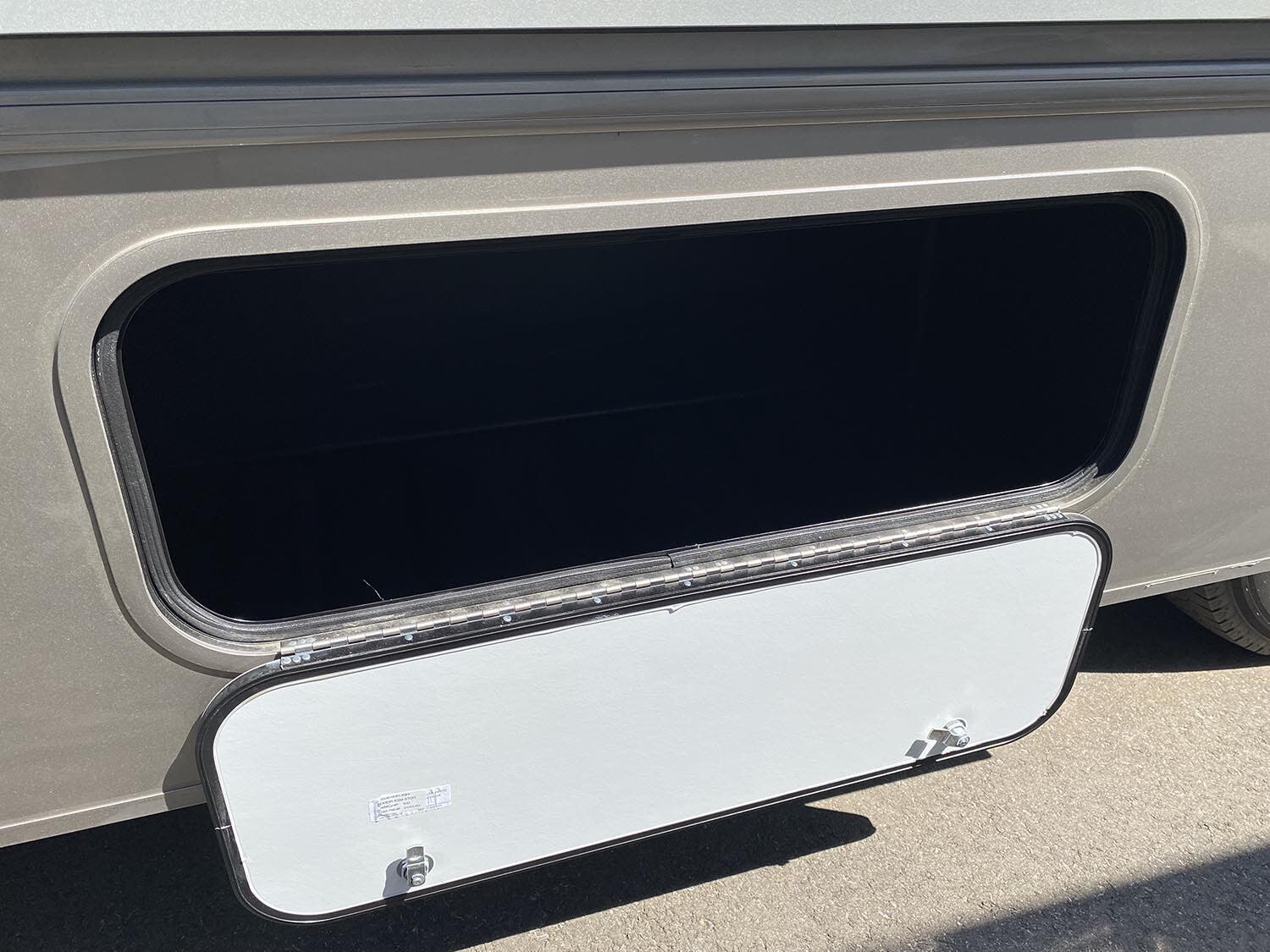

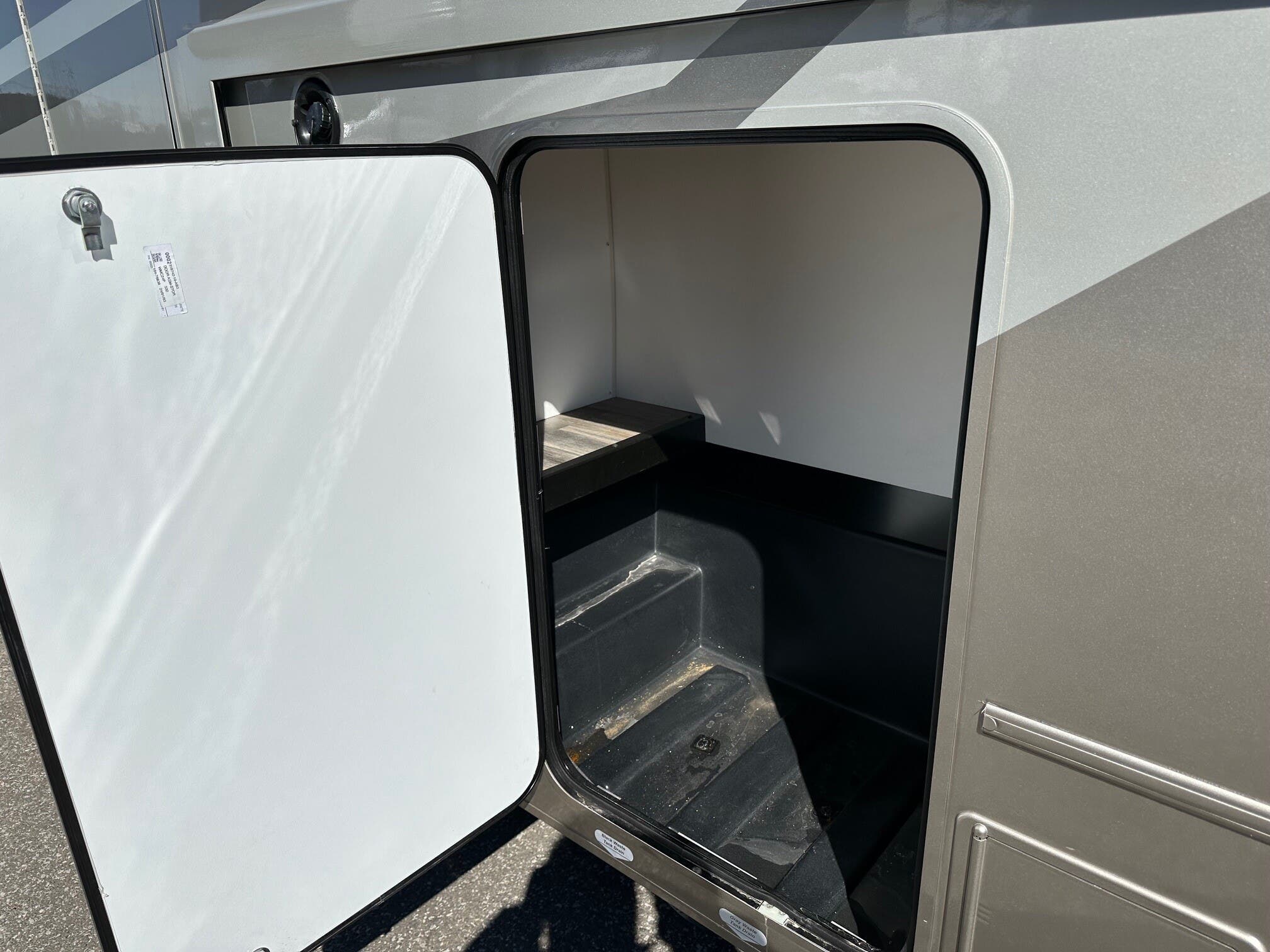

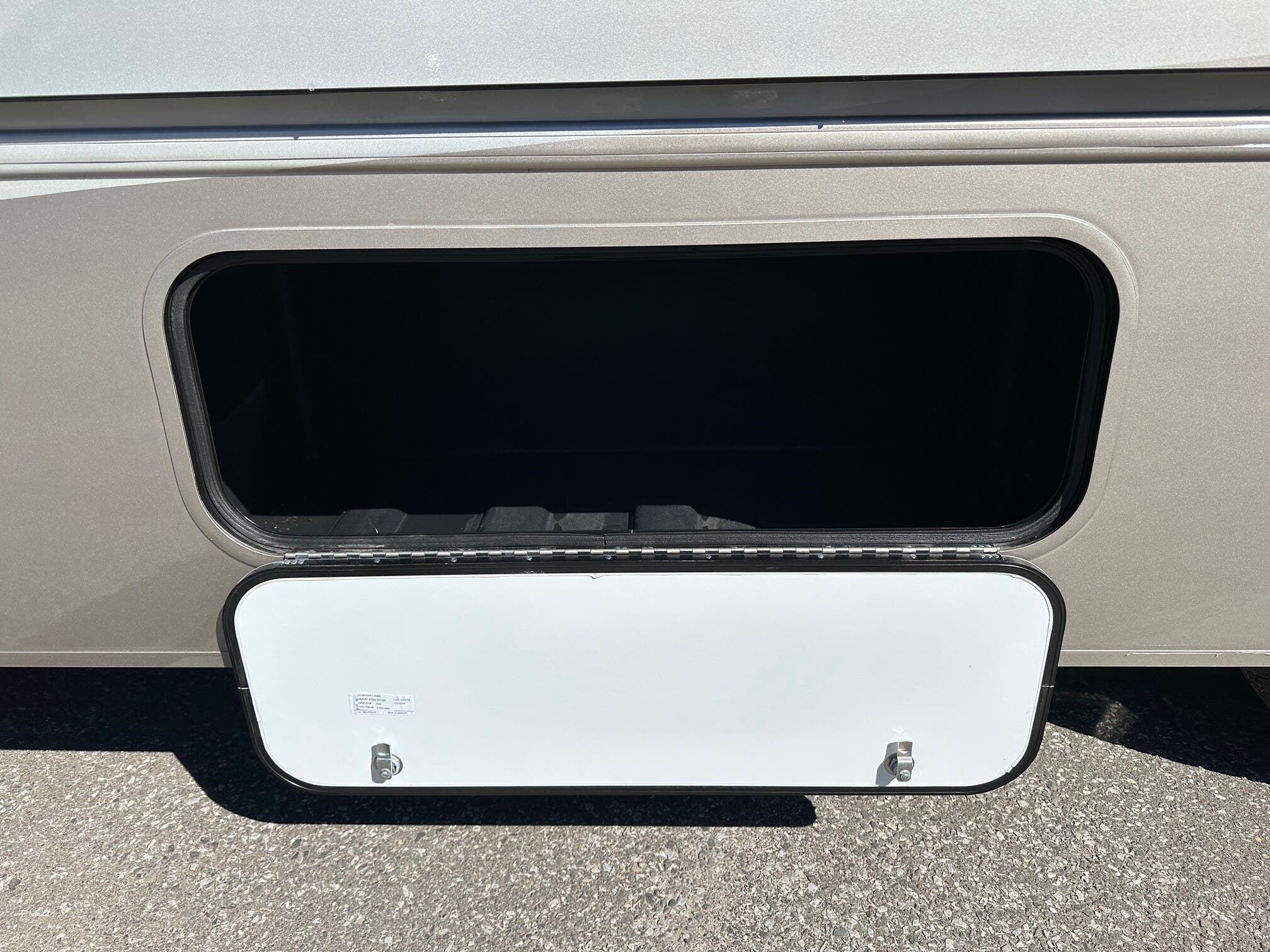

LED porch light w/interior switch • Powered patio awning w/LED lighting • Lighted storage compartment (rear left) • Ladder • Entrance screen door • Aluminum cab steps w/logoed tread • Front mud flaps • Right rear mud flap
HEATING & COOLING SYSTEM
13,500 BTU ducted, quiet air conditioner • 20,000 BTU low-profile ducted furnace
ELECTRICAL SYSTEM
2 deep-cycle, Group 31 RV batteries • 1,000-watt pure sine wave DC/AC inverter • 3,600-watt Cummins Onan® MicroQuiet™ LP generator • (2) 100-watt solar panel/battery charger w/controller, junction box and plug for additional portable solar panel • Coach battery disconnect system • Automatic dual-battery charge control • AC/DC load center, 55-amp. converter/charger • 30-amp. power cord • Exterior AC duplex • Exterior antenna jack • Cable TV input • Portable satellite dish hookup

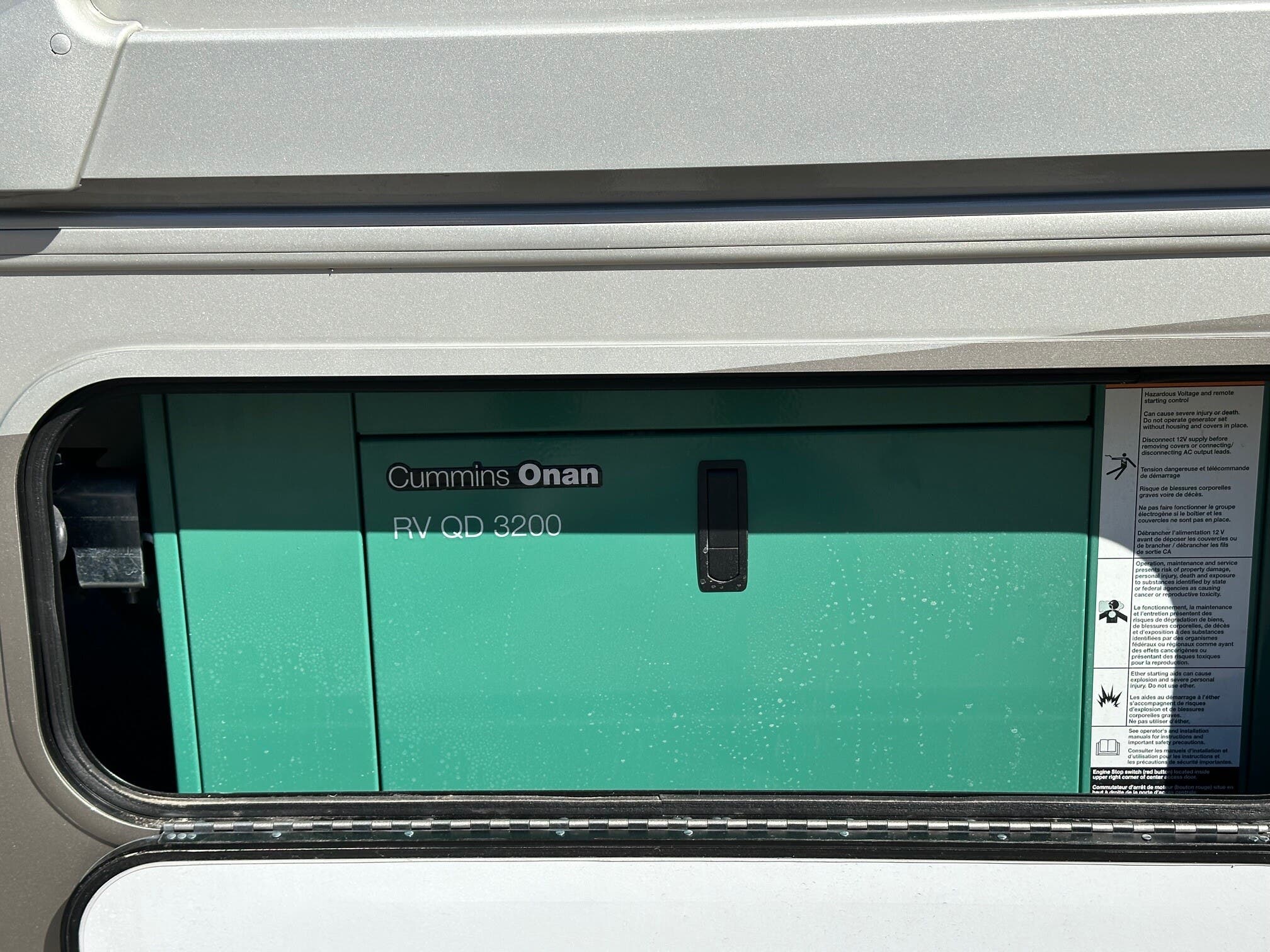

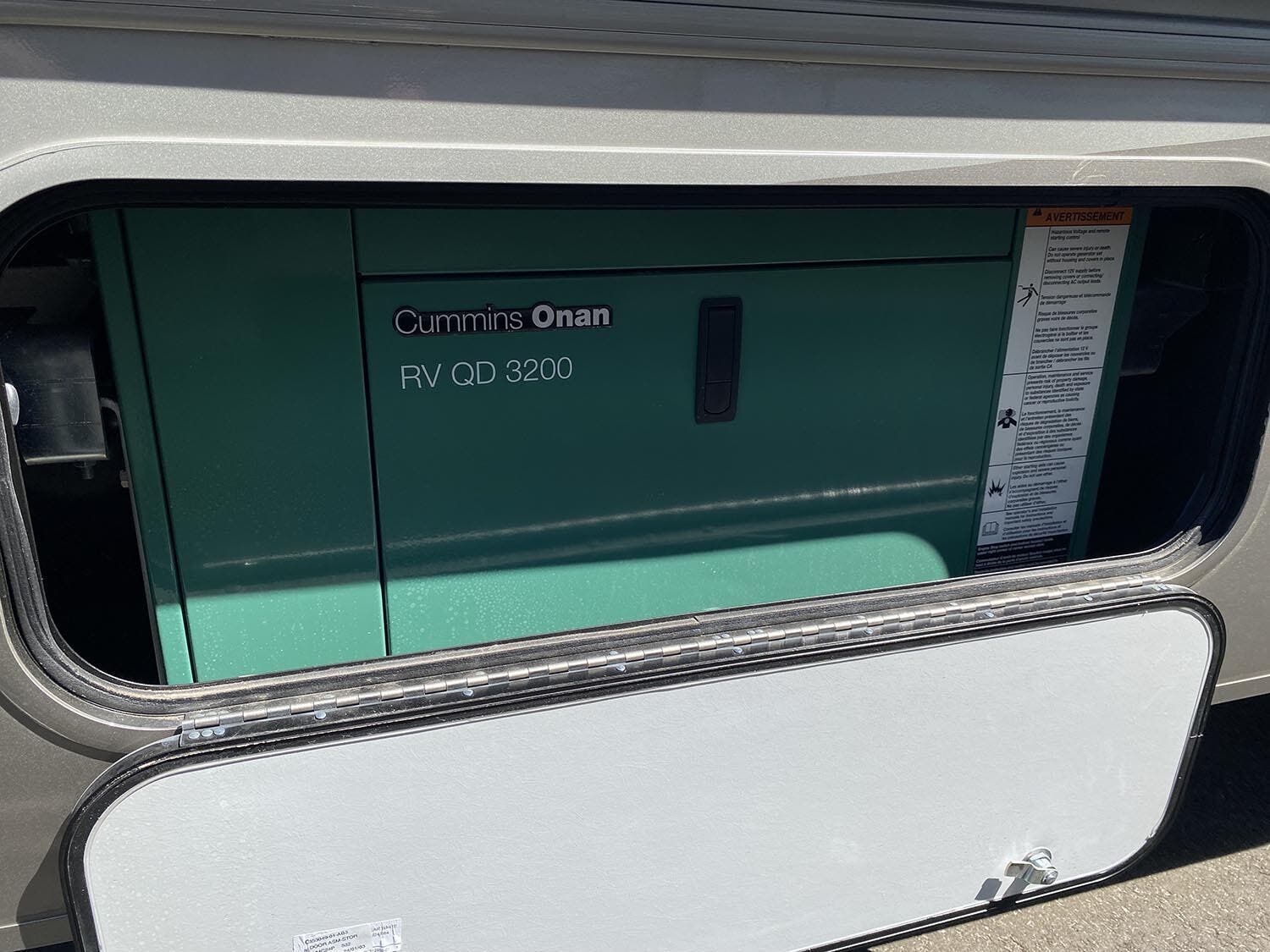

Optional Equipment: 3,200-watt Cummins Onan® diesel generator
PLUMBING SYSTEM

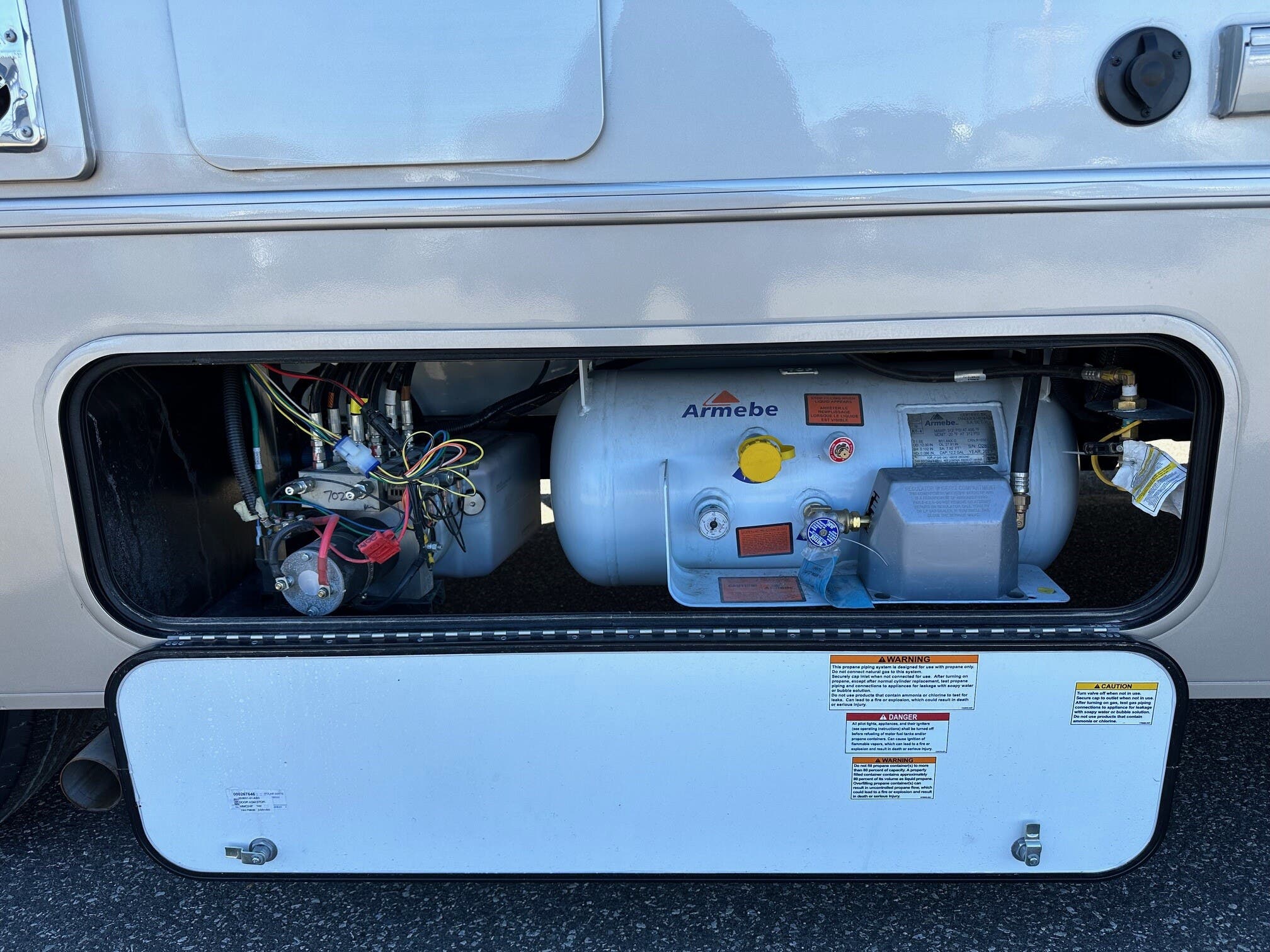

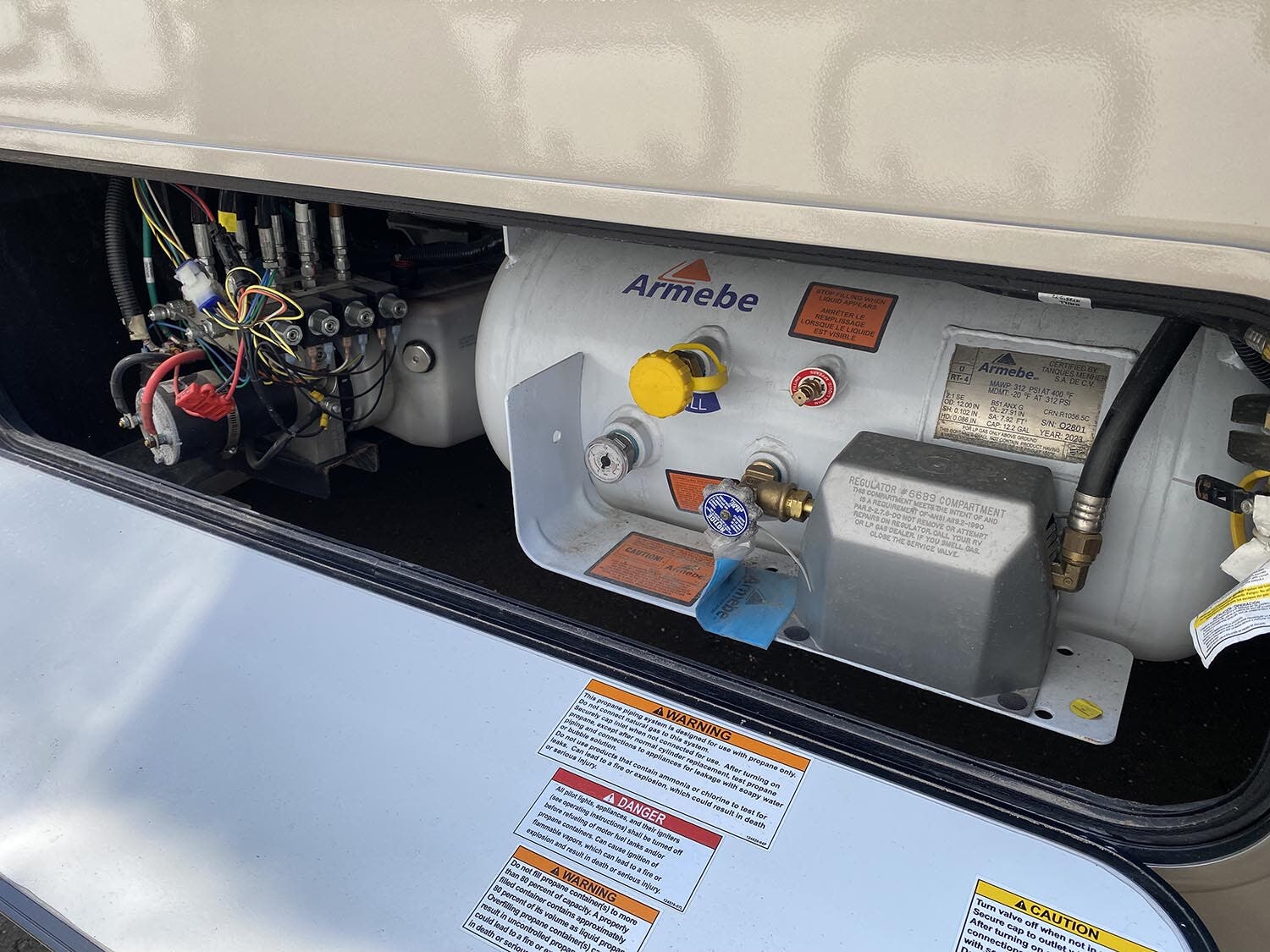

Pressurized city water hookup • Gravity water tank fill • 6-gal. LP water heater w/electric ignition • On-demand water pump • Winterization package w/water heater bypass valve and siphon tube • Holding tank flushing system • LPG accessory connection (patio area) • Permanent-mount LP tank w/gauge
SAFETY
LP, smoke and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Child seat tether anchor (dinette)
WARRANTY
12-month/15,000-mile basic limited warranty* • 36-month/36,000-mile limited warranty on structure* • 10-year limited parts-and-labor warranty on roof skin*
*See your dealer for complete warranty information
