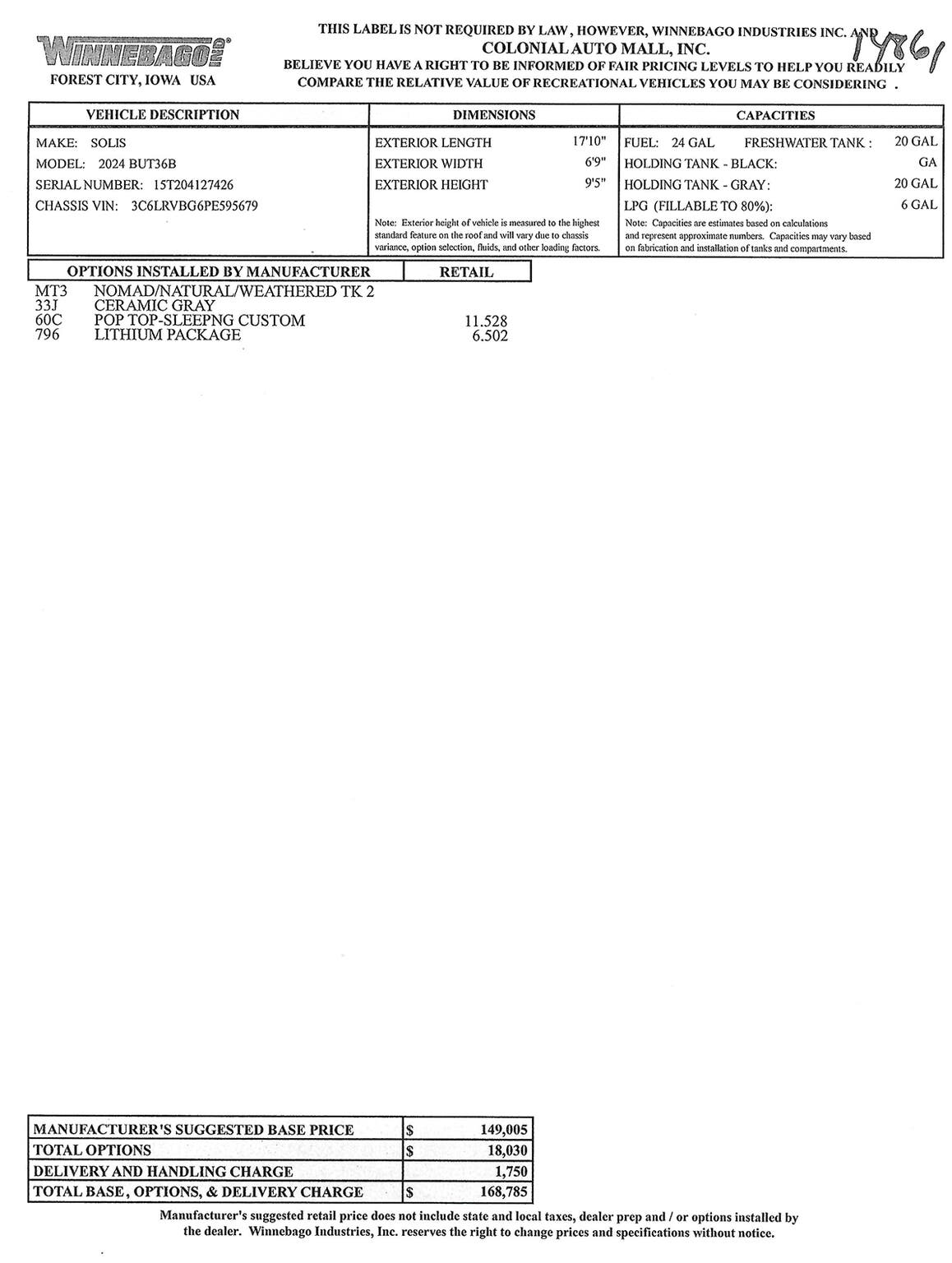

MT3: Nomad/Natural/Weathered Teak 2
33J: Ceramic Gray

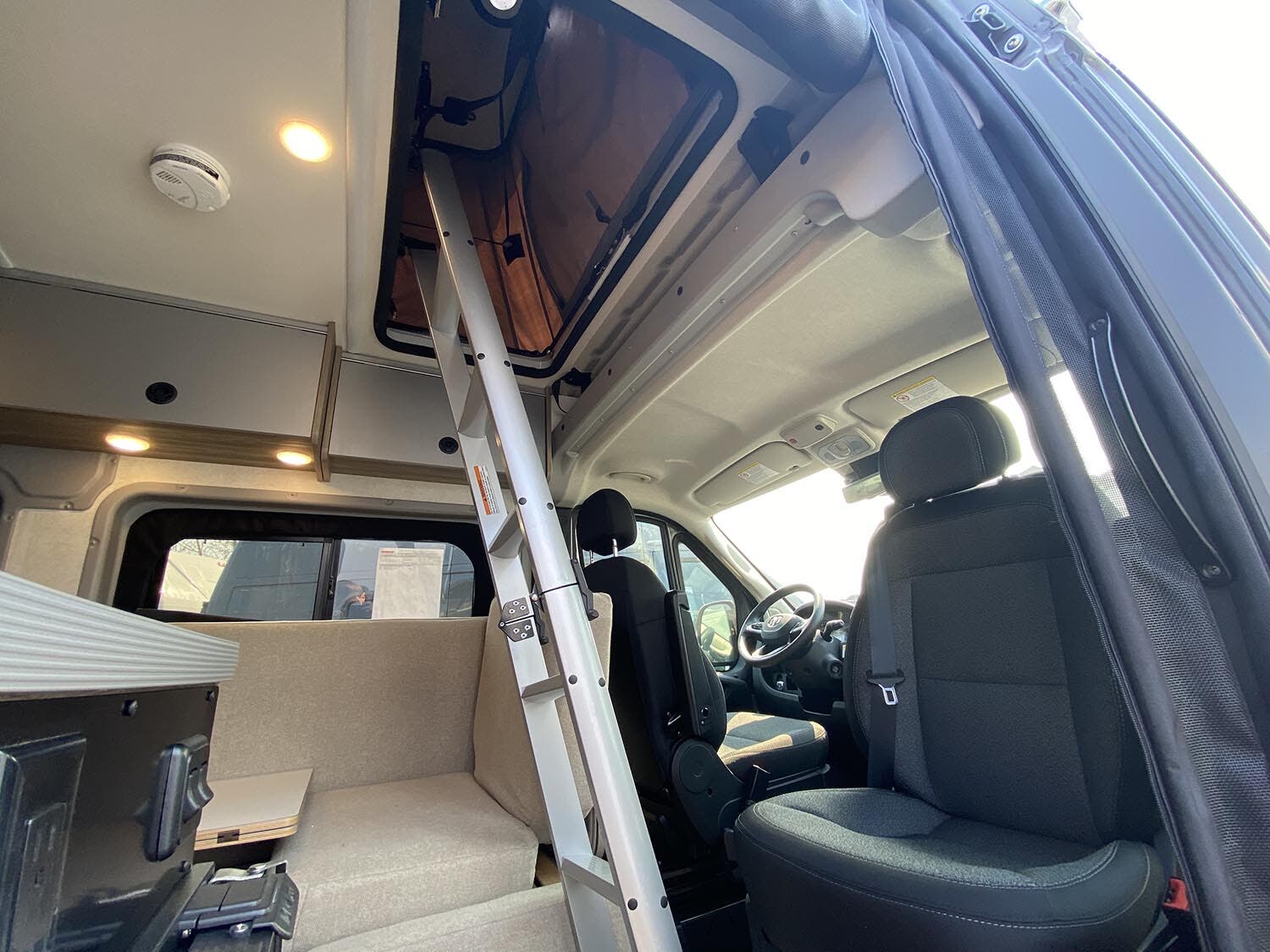

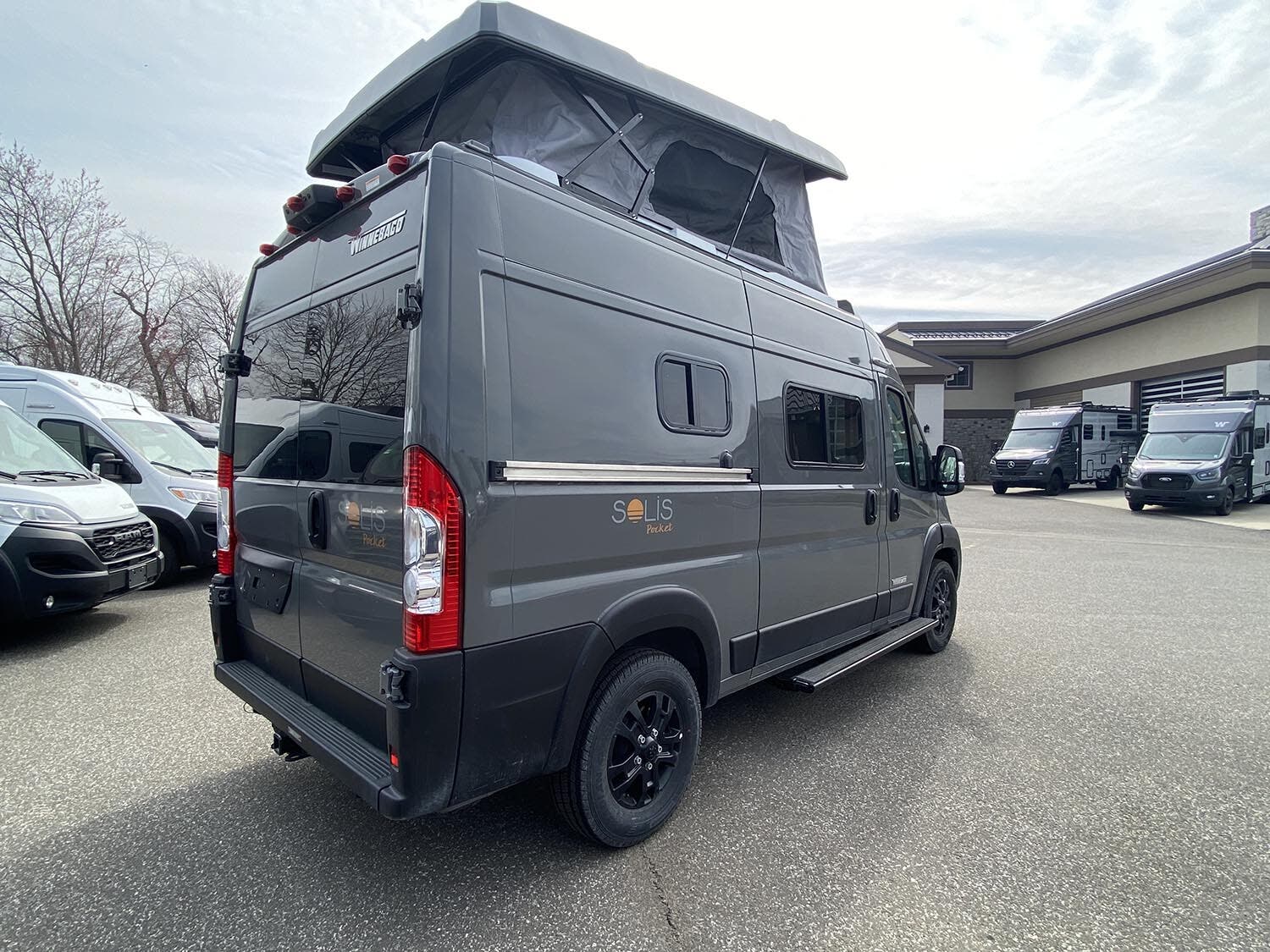

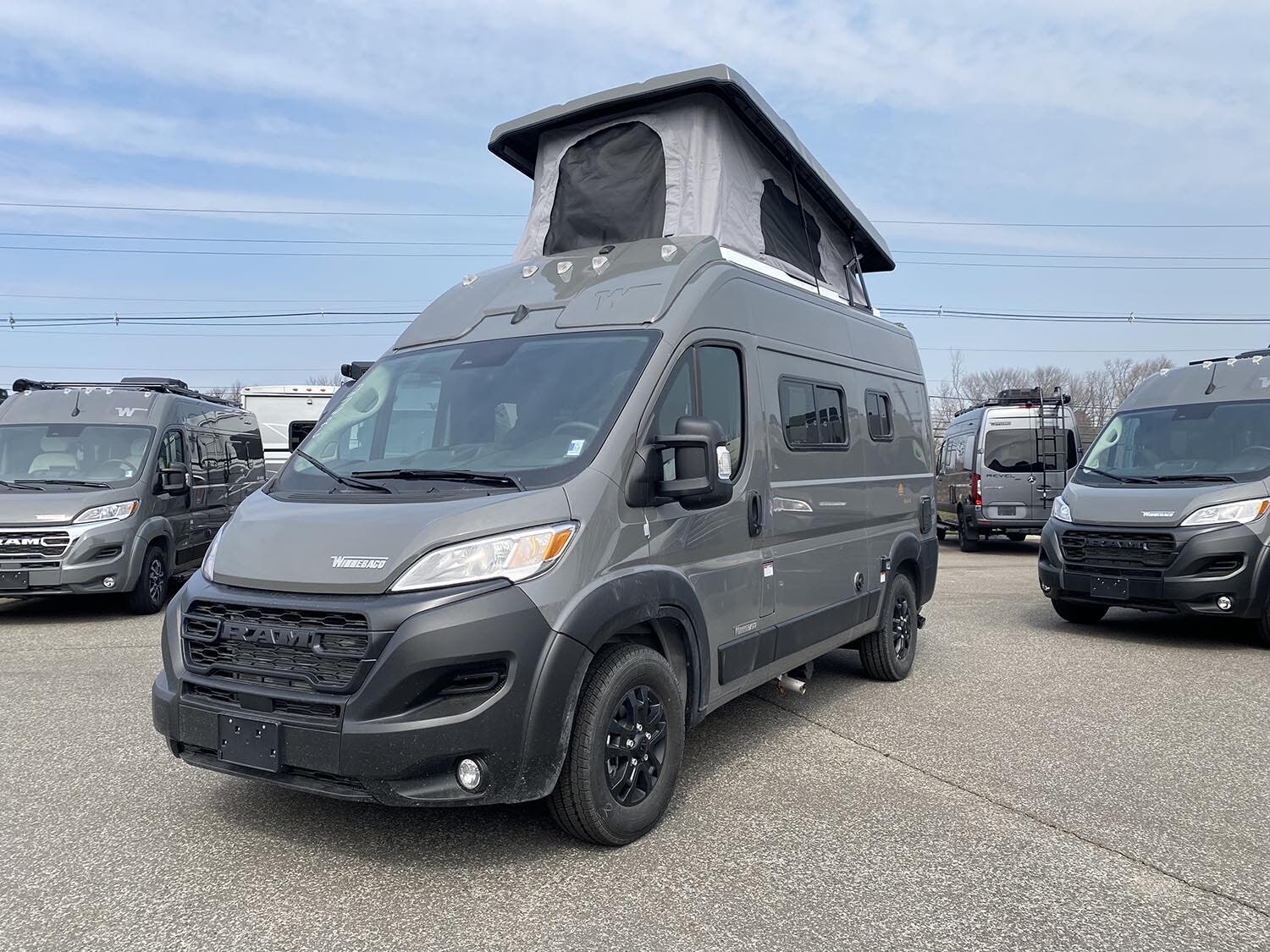

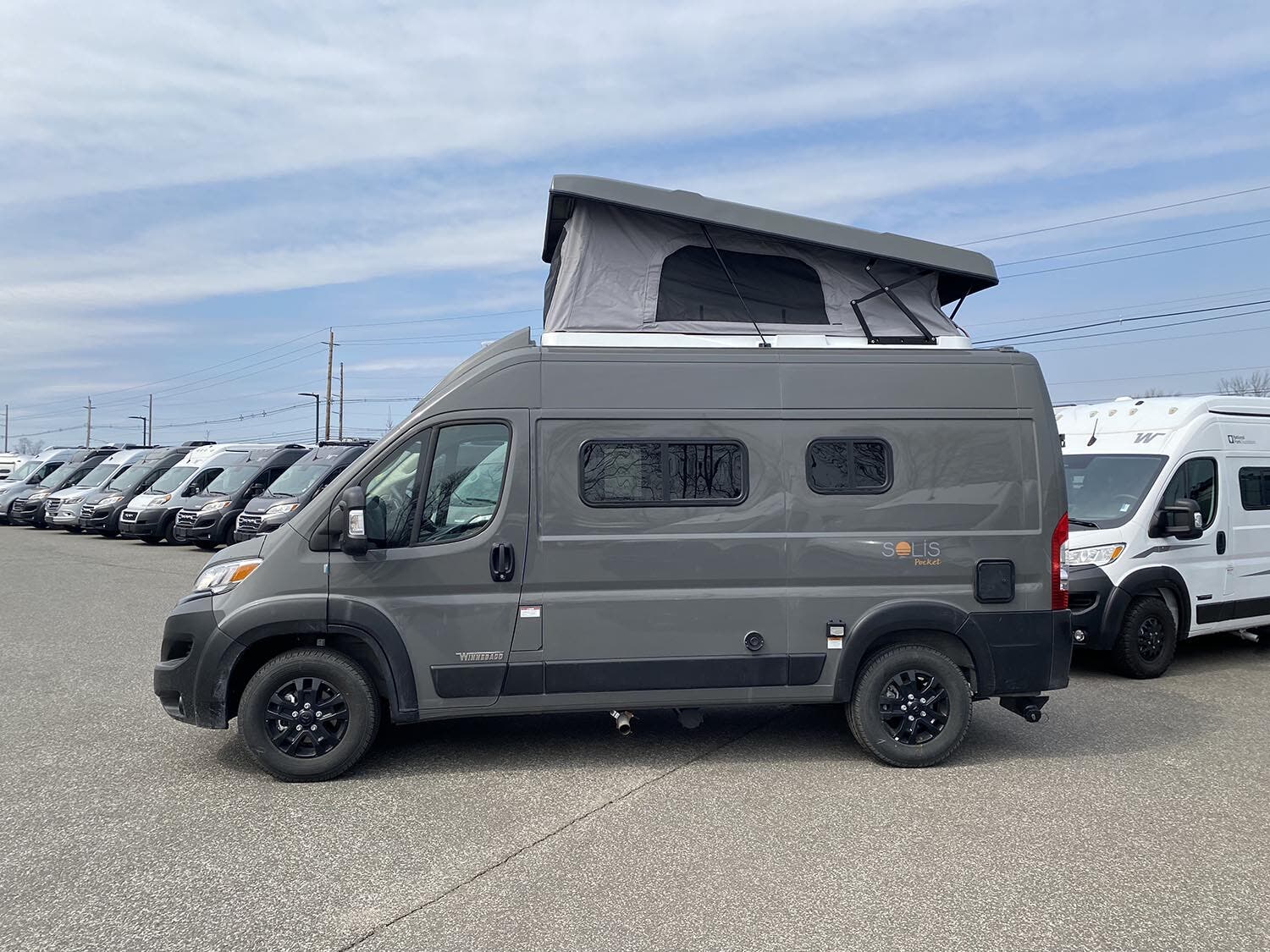

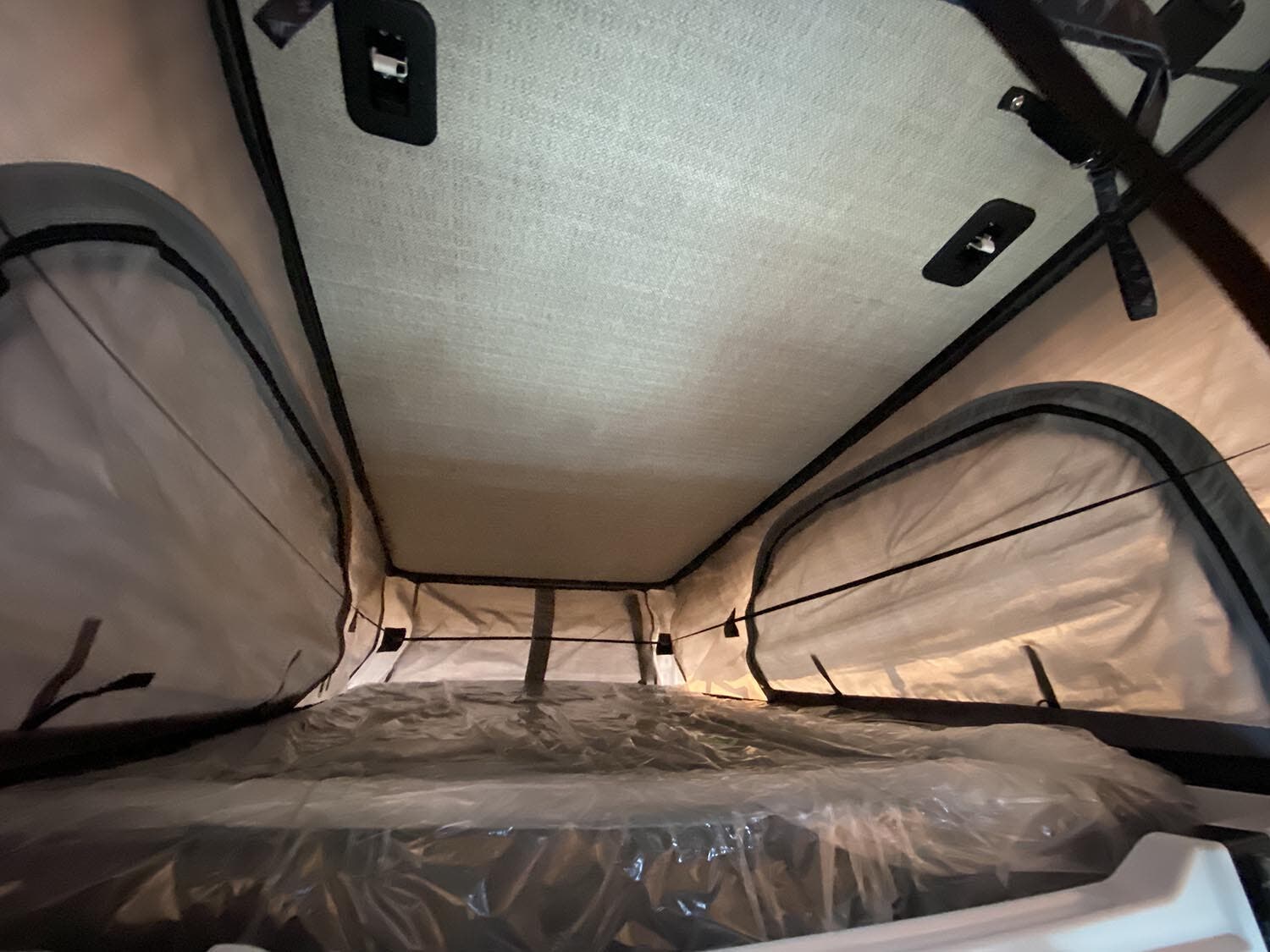

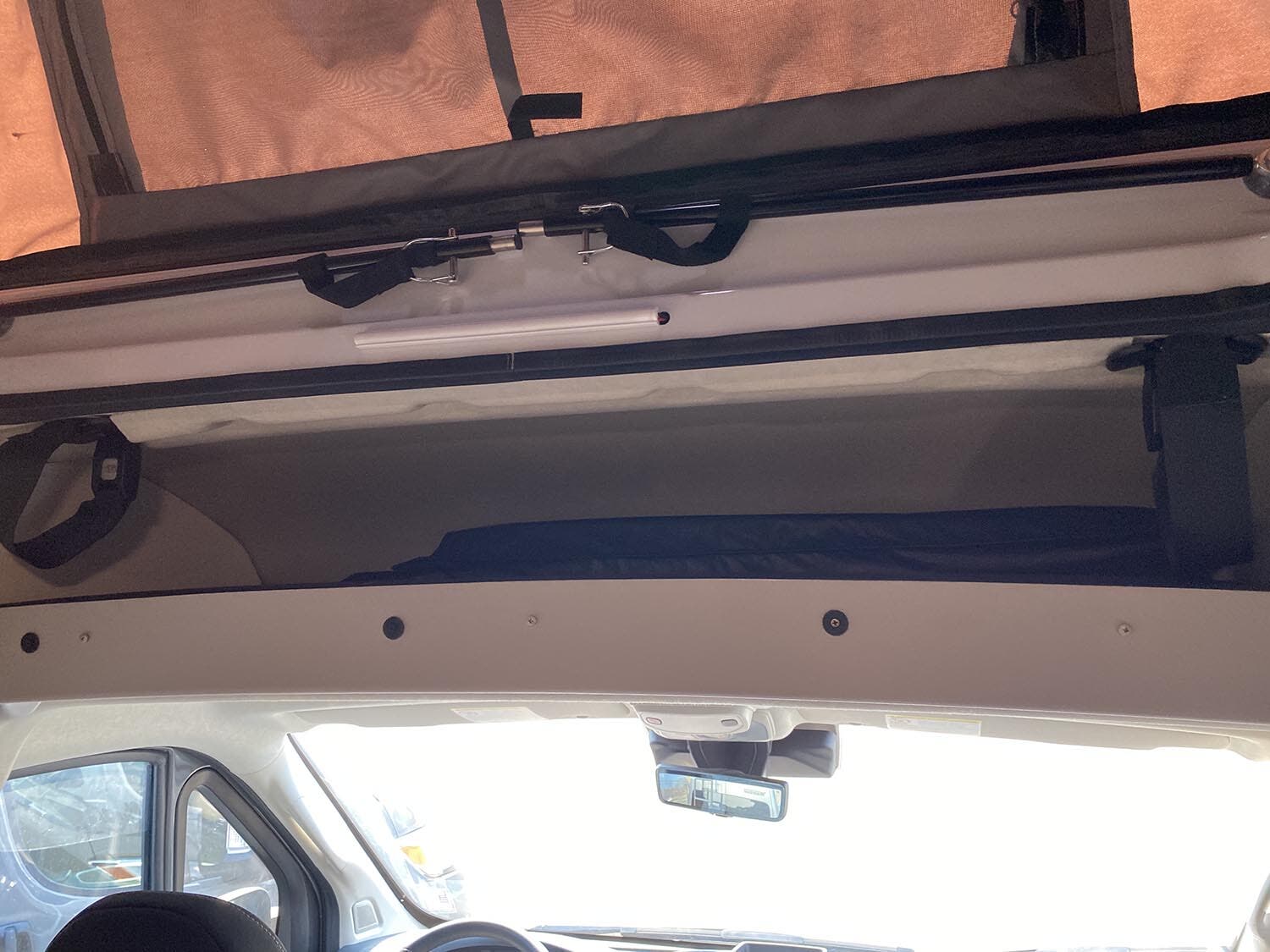

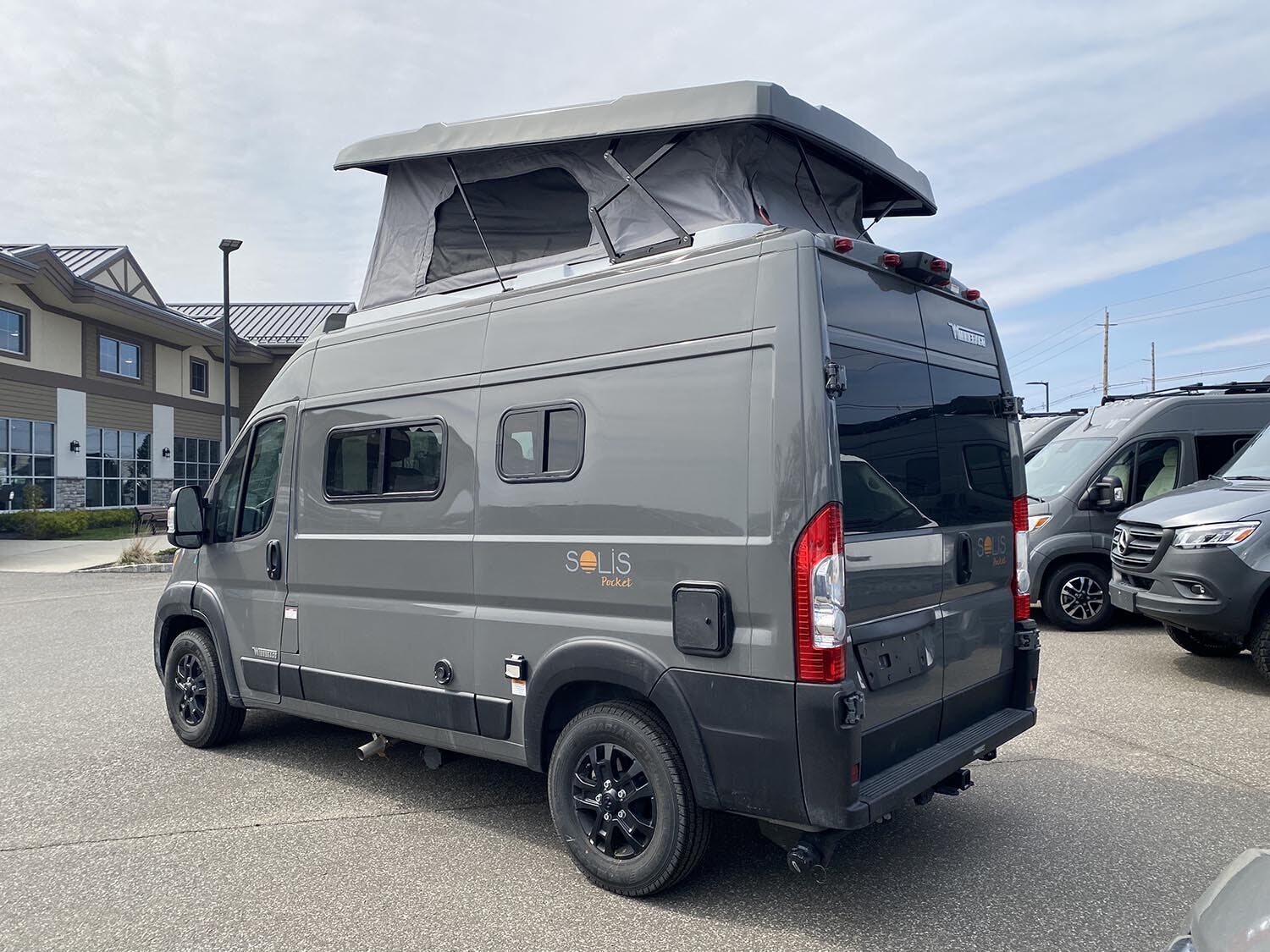

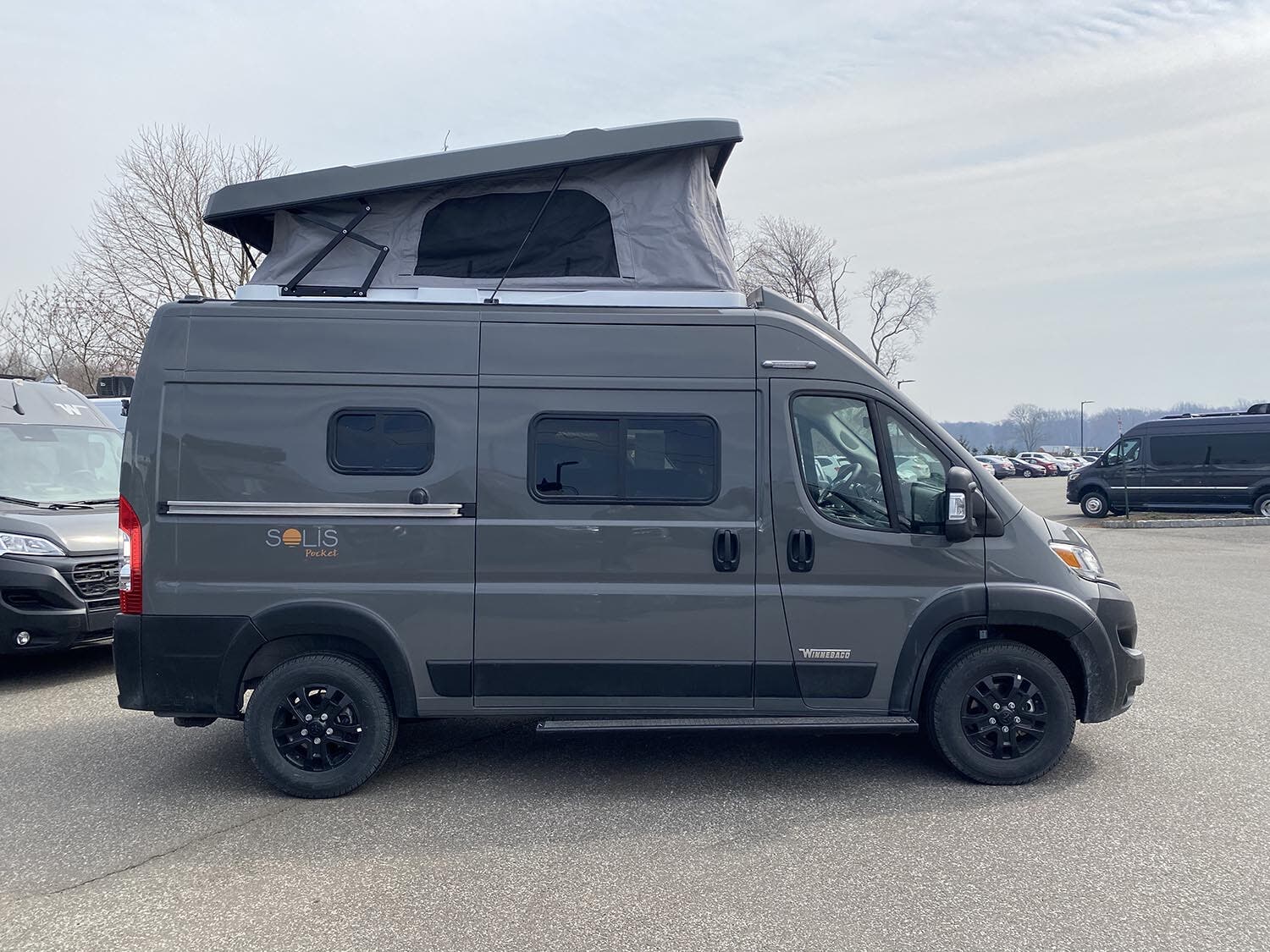

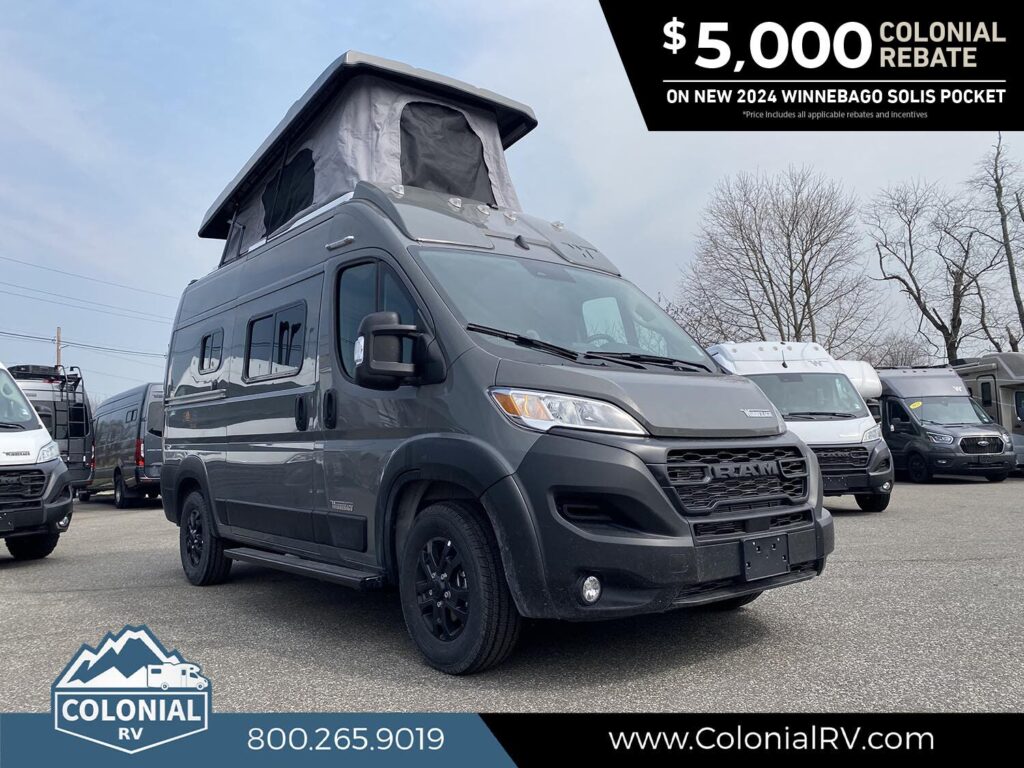

60C: Pop-Top Sleeping
796: Lithium Package

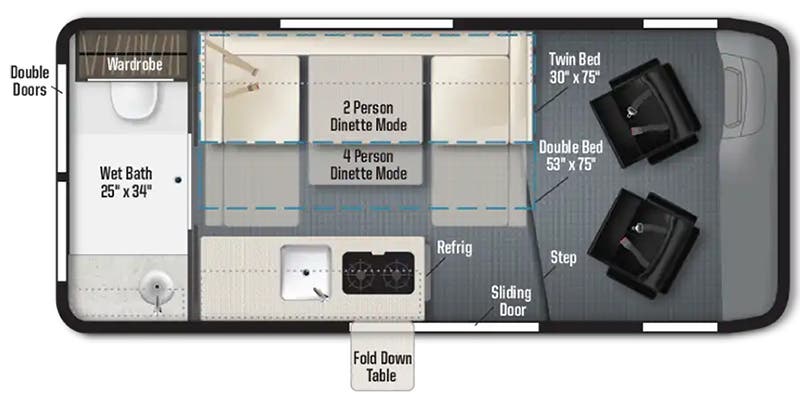

Floor Plans
Options Included:
| 36B | 36A | |
|---|---|---|
| Exterior Length | 17’10” | 17’10” |
| Exterior Height | 9’5″ | 9’5″ |
| Exterior Width | 6’9″ | 6’9″ |
| Interior Height | 6’3″ | 6’3″ |
| Interior Width | 6’2″ | 6’2″ |
| Freshwater Tank Capacity (gal.) | 20 | 20 |
| Water Heater Capacity (gal.) | 2.6 | N/A |
| Holding Tank Capacity — Gray (gal.) | 20 | 20 |
| LP Capacity (lbs.) | 20 | 20 |
| Fuel Capacity (gal.) | 24 | 24 |
| GCWR (lbs.) | 12,000 | 12,000 |
| GVWR (lbs.) | 8,550 | 8,550 |
| GAWR – Front (lbs.) | 4,629 | 4,629 |
| GAWR – Rear (lbs.) | 5,291 | 5,291 |
| Wheelbase | 136″ | 136″ |
| Cassette Toilet Capacity (gal.) | 5.5 | 3.2 |
| Sleeps | 2 | 3 |
CHASSIS
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 9-speed automatic transmission, 180-amp. alternator • 4-wheel ABS brakes • Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight

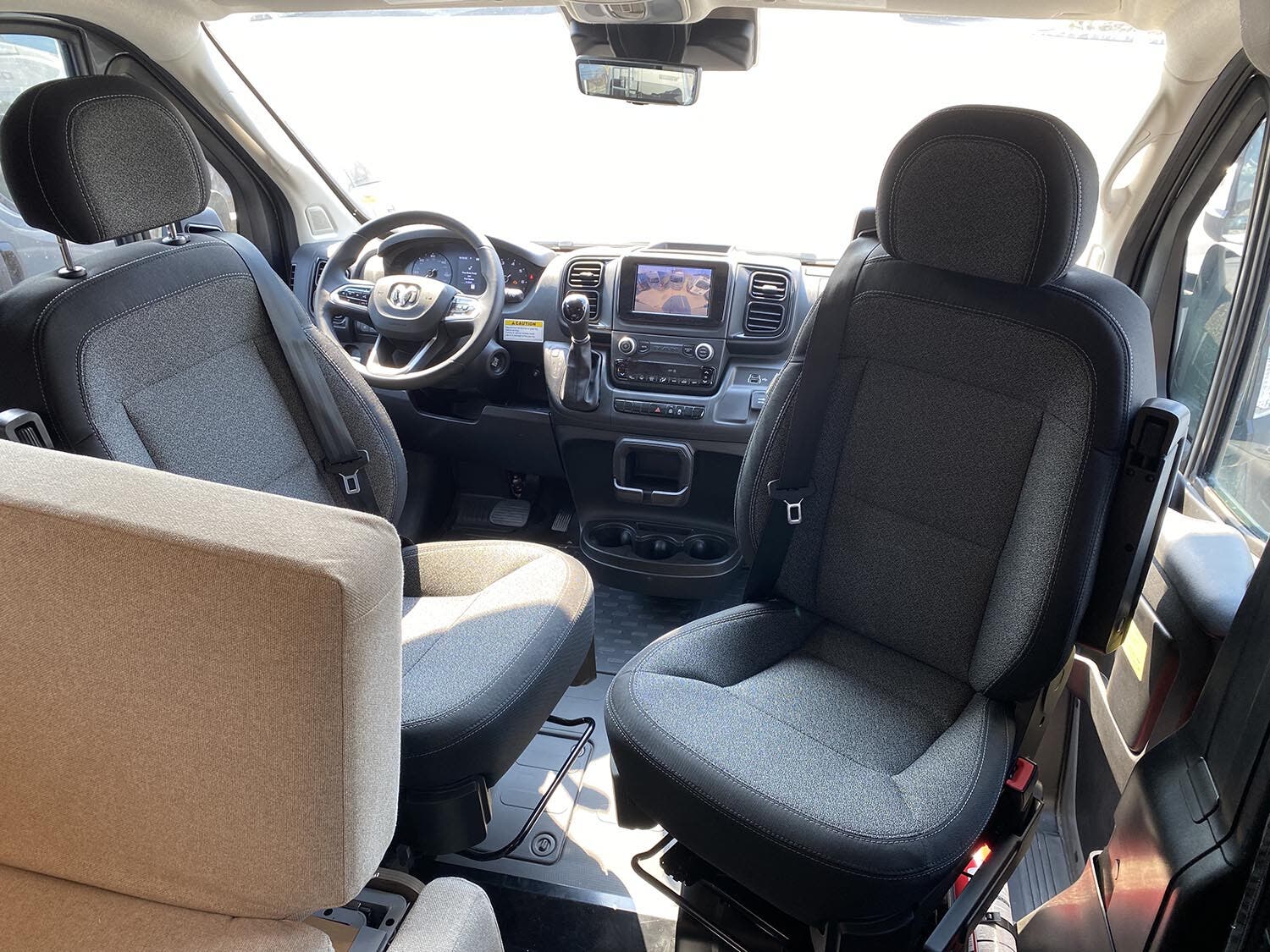

CAB CONVENIENCES

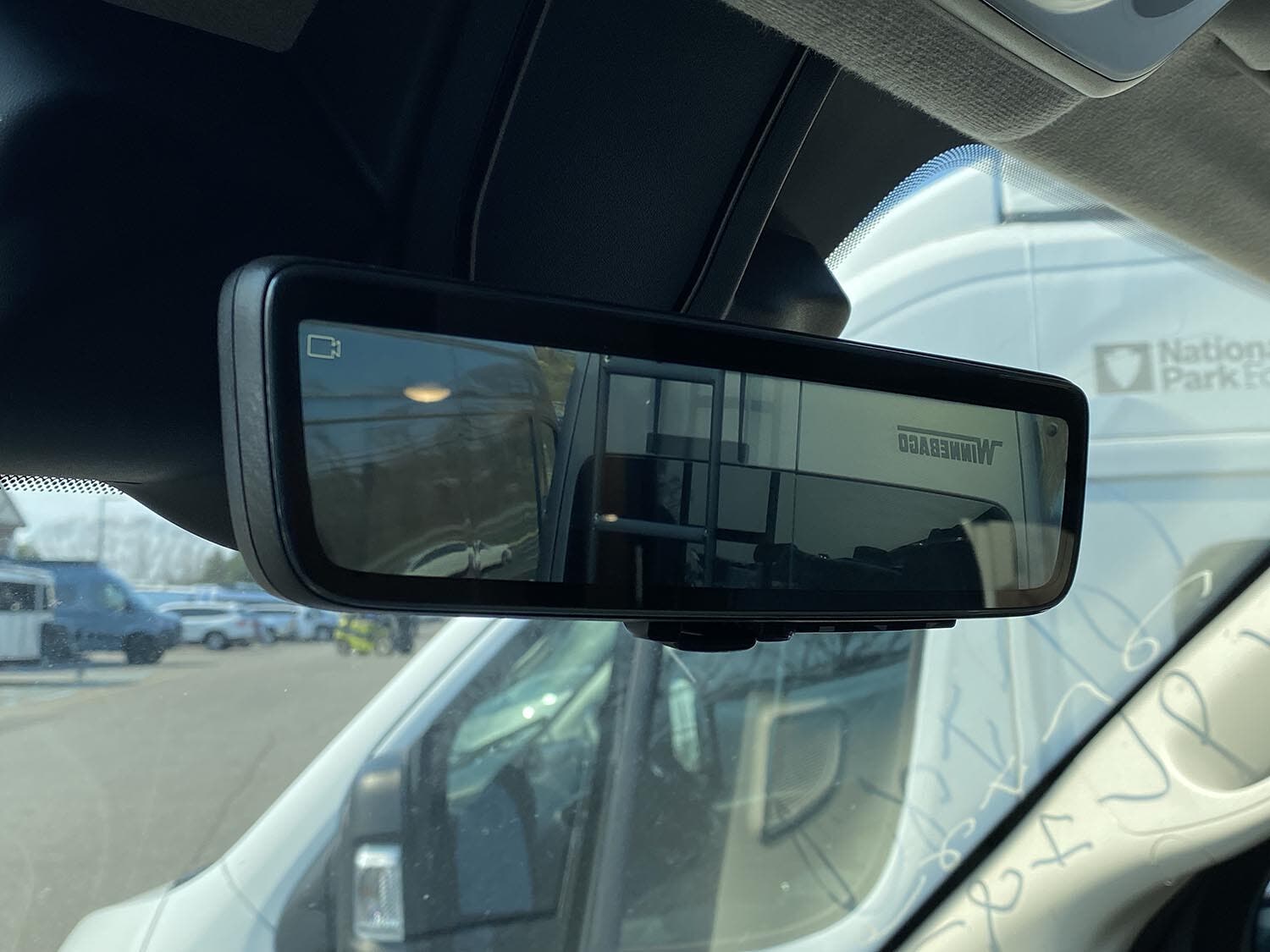

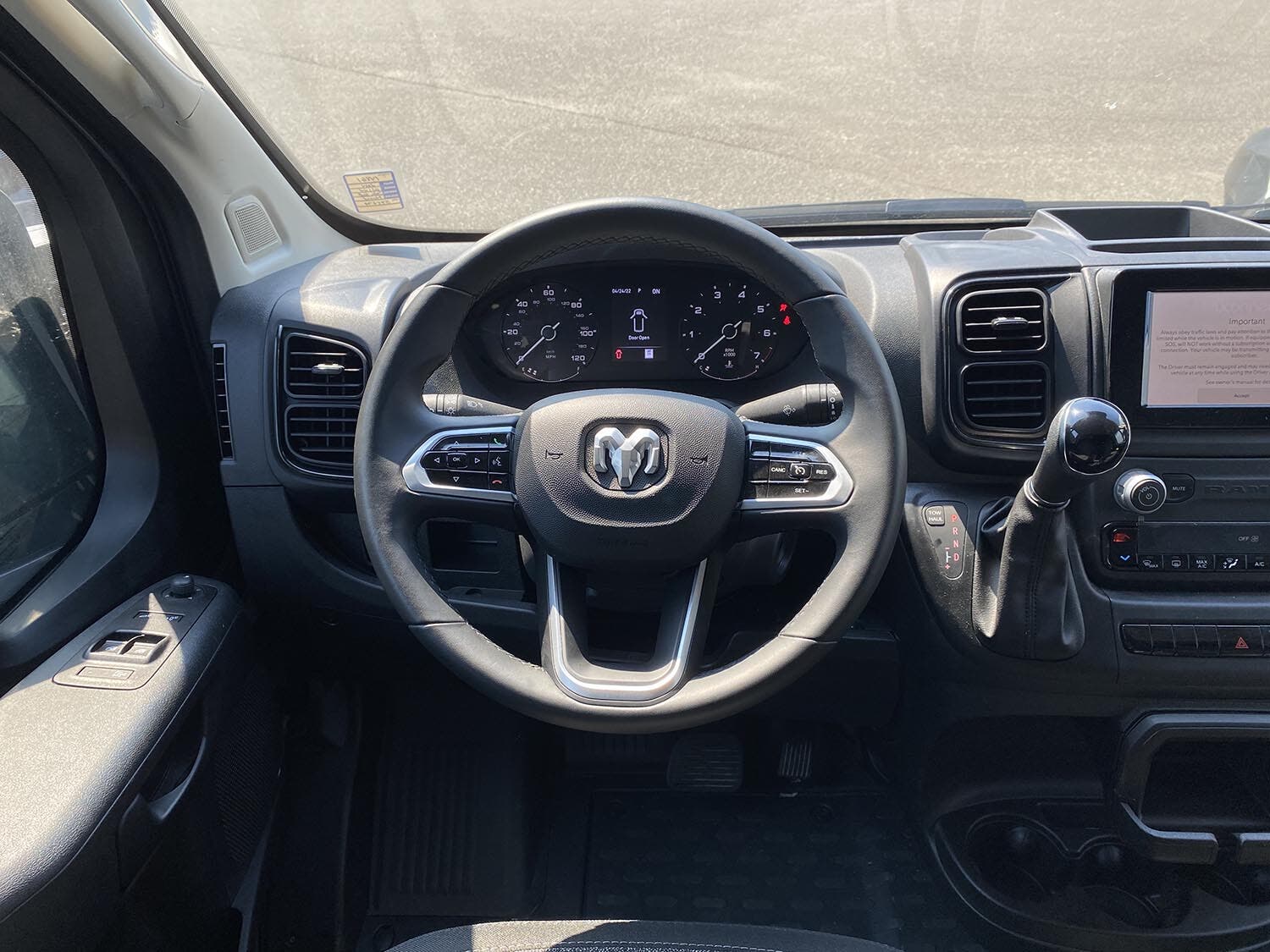

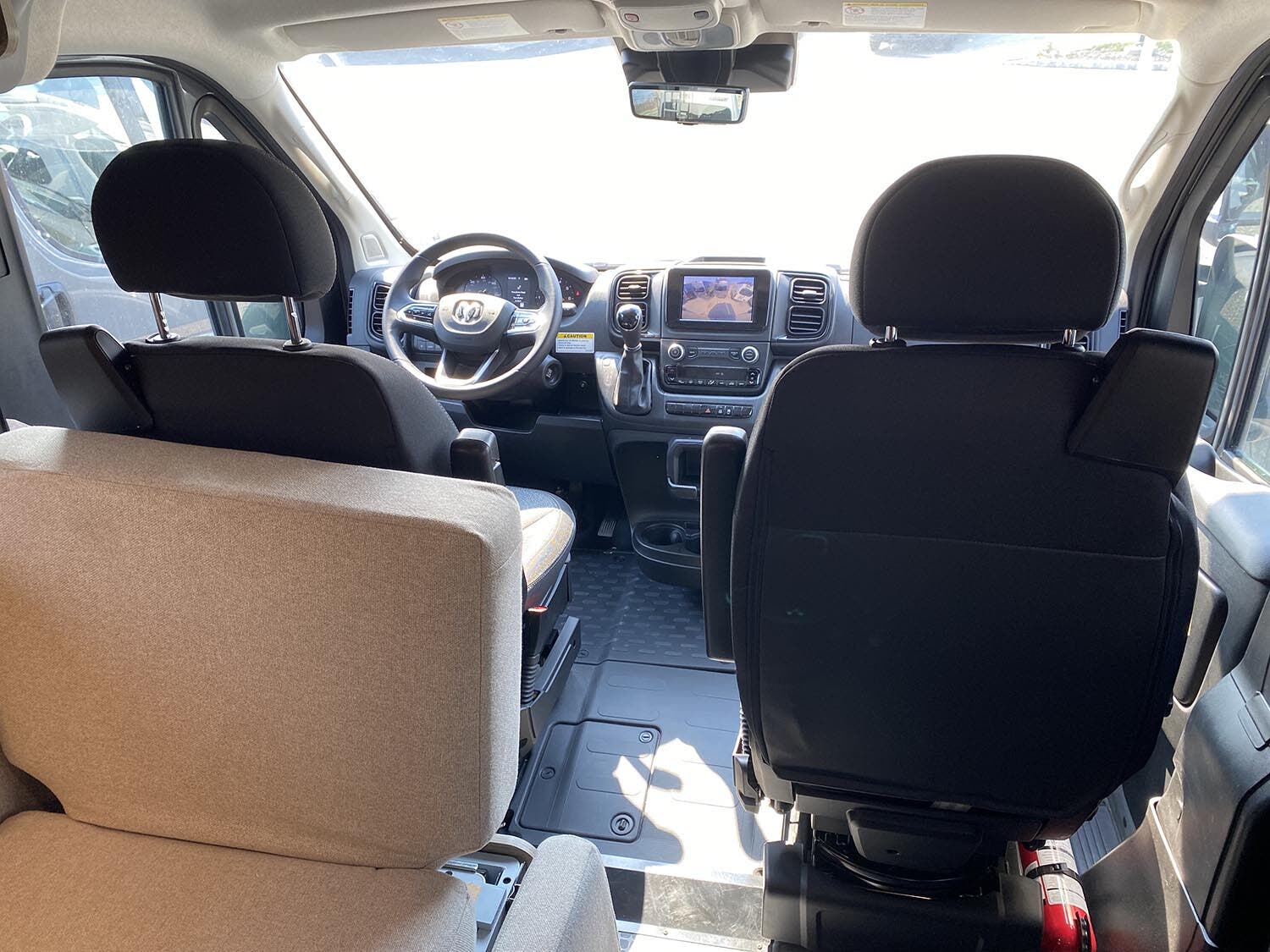

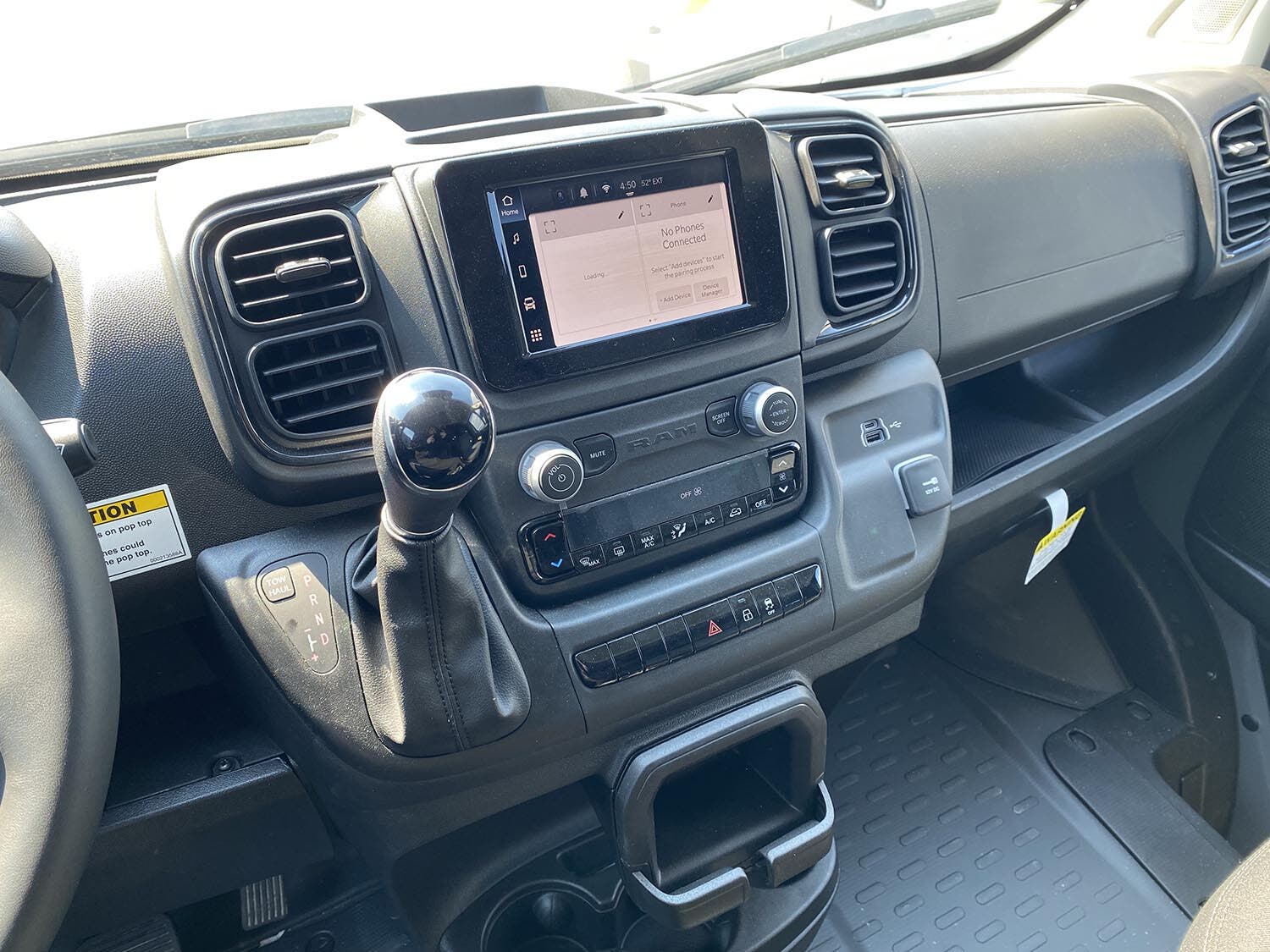

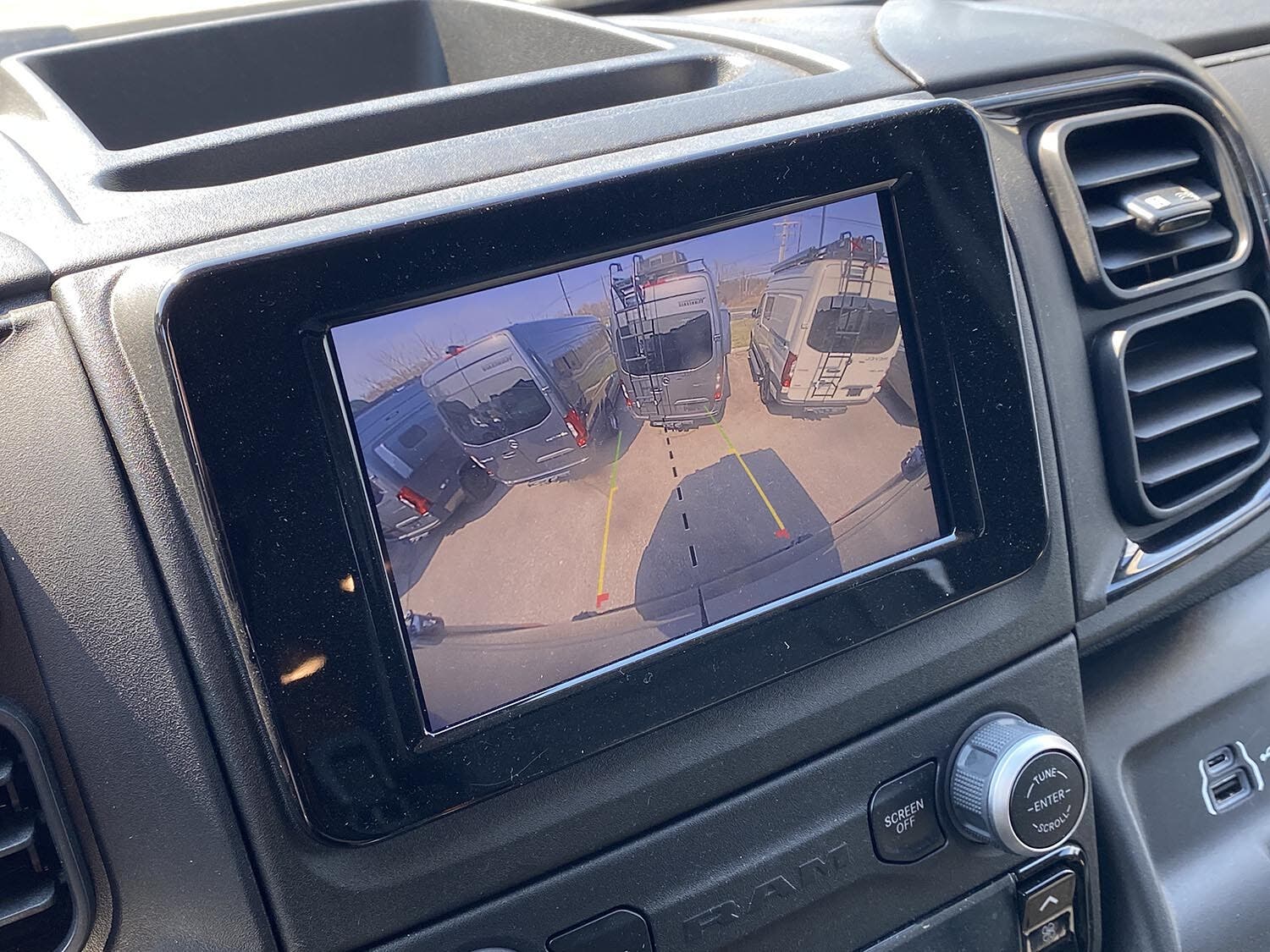

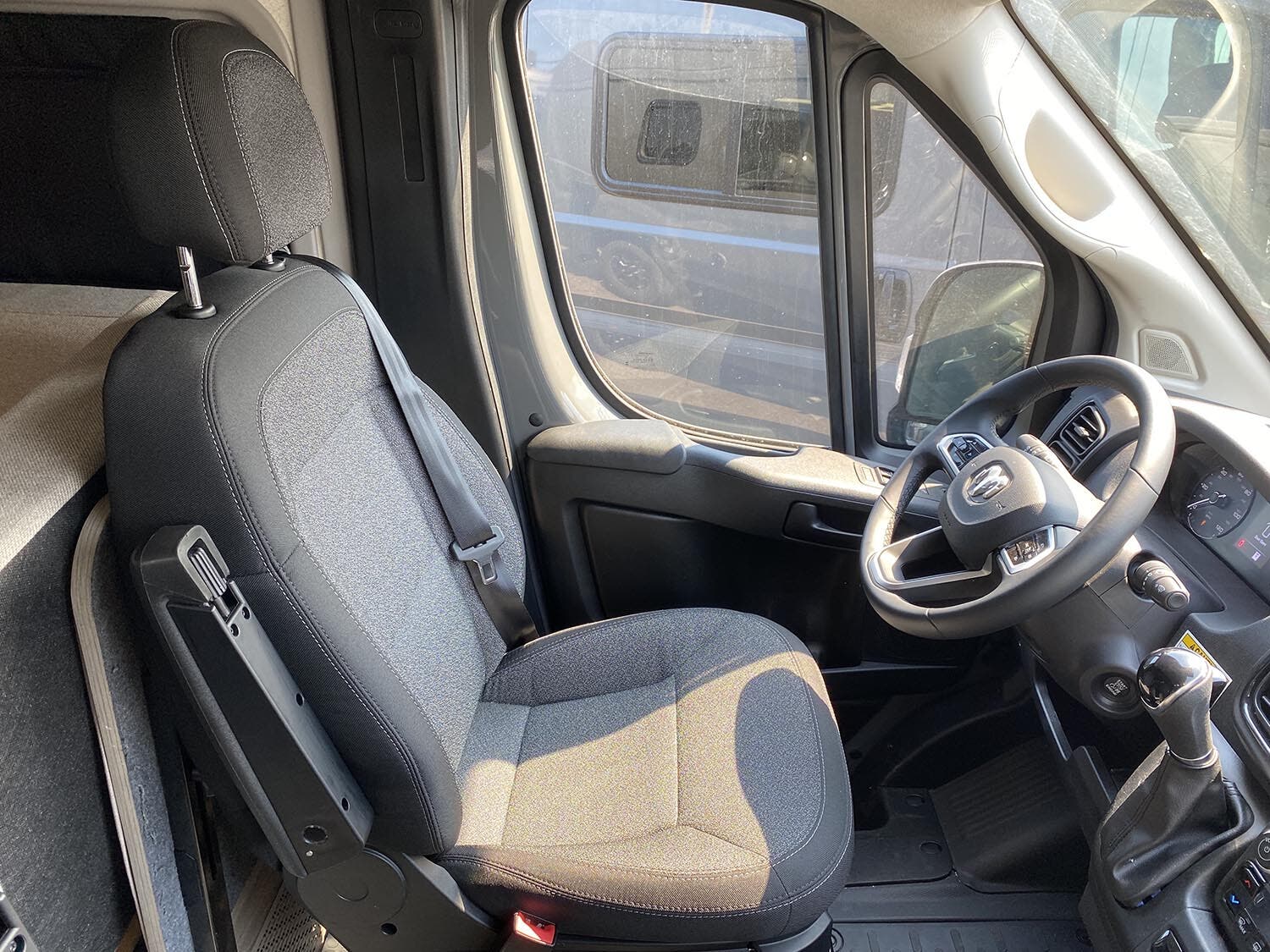

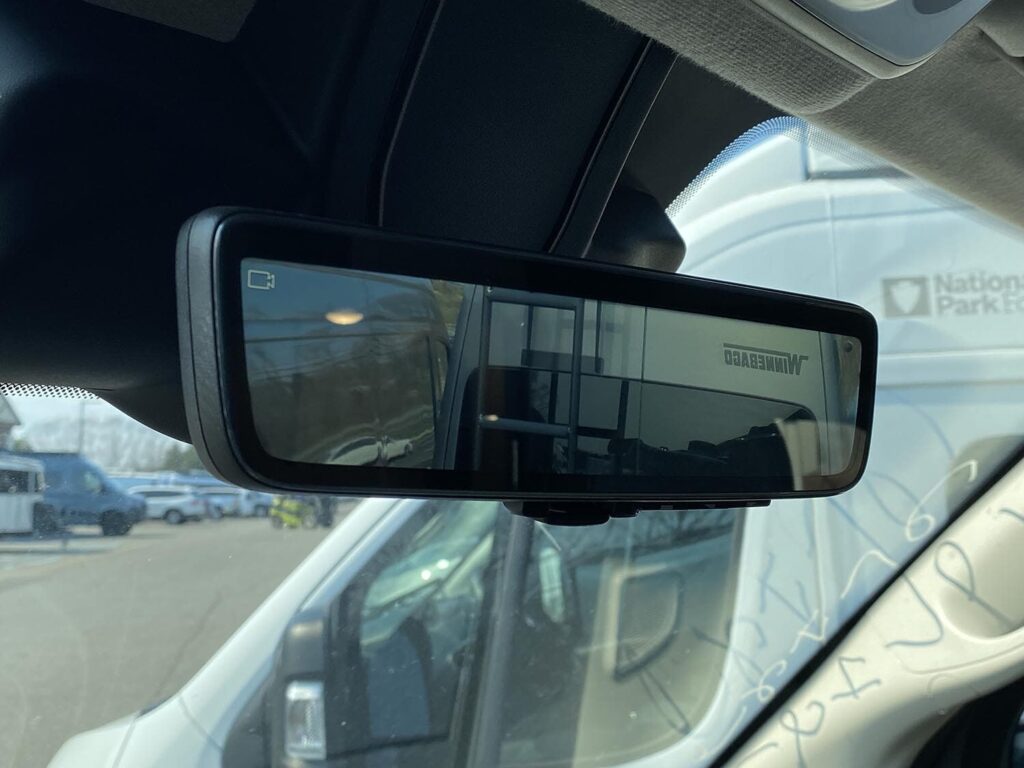

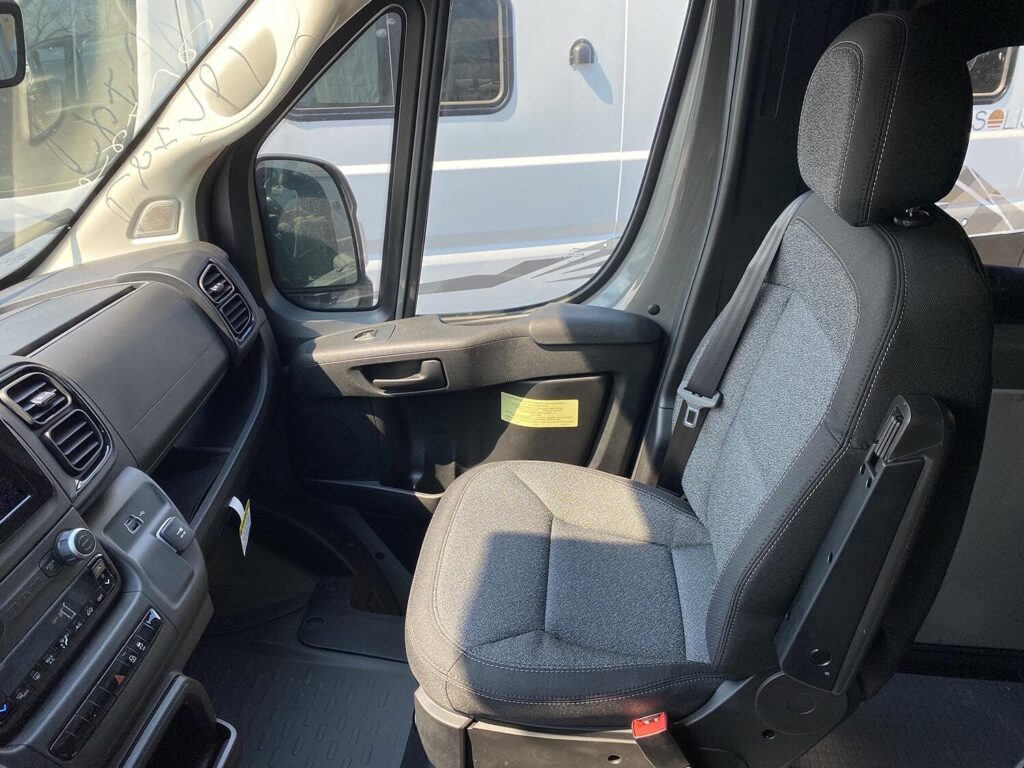

Radio/Rearview Monitor System 5″ LCD color touch screen, steering wheel controls, color rear camera and USB ports • Cab seats adjustable headrest, slide/swivel/recline • Airbags driver and passenger • Cruise control • Digital rearview mirror • Crosswind assist • 3-point seat belts • Electric power steering • Manual adjust mirrors w/turn signal • Power door locks w/remote • Power windows • 12-volt powerpoints • Sunvisors • Front and cab window privacy panels • Full-speed forward collision warning plus • Pedestrian automatic emergency braking system • Post collision braking • Push button start
INTERIOR

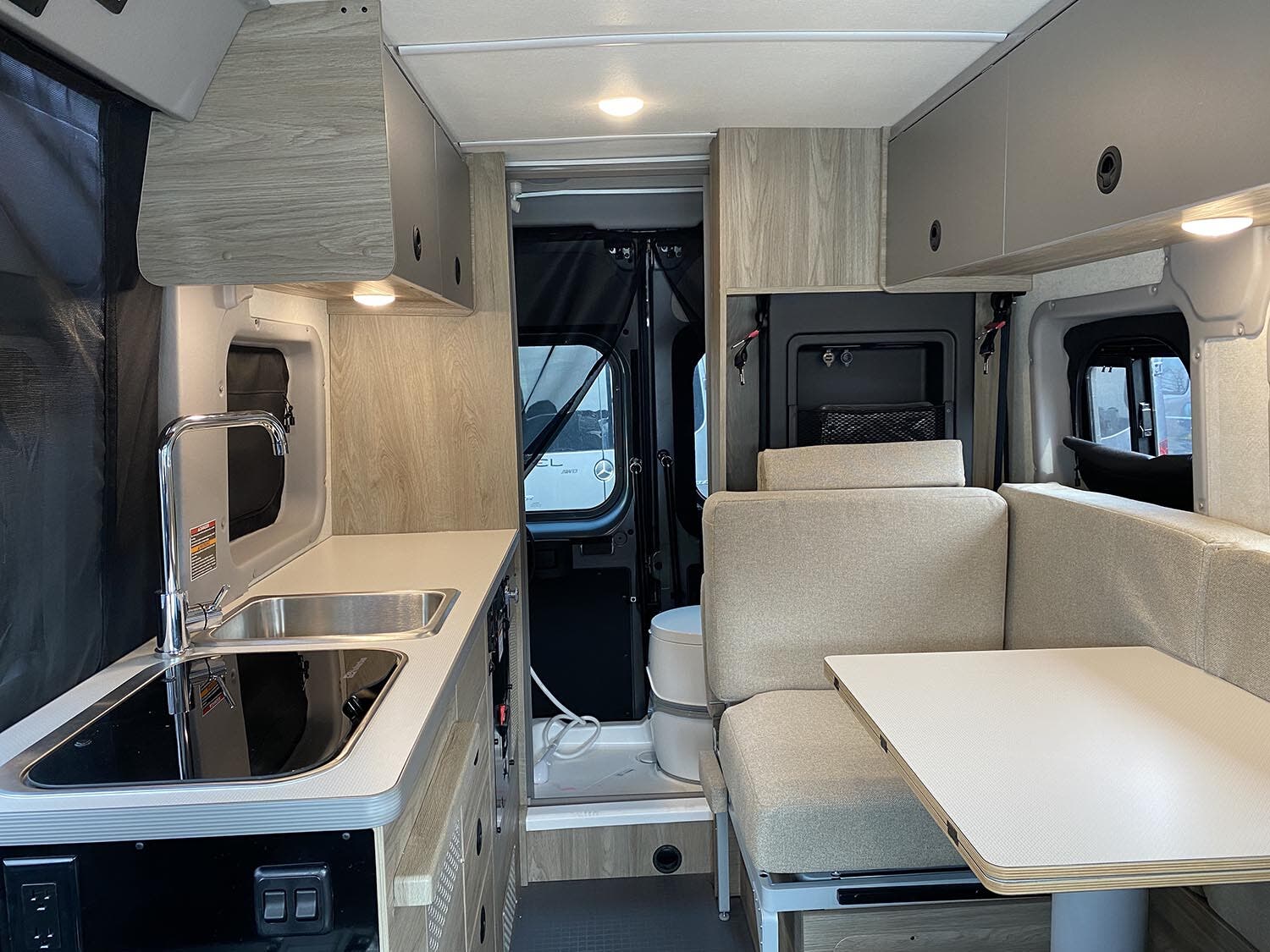

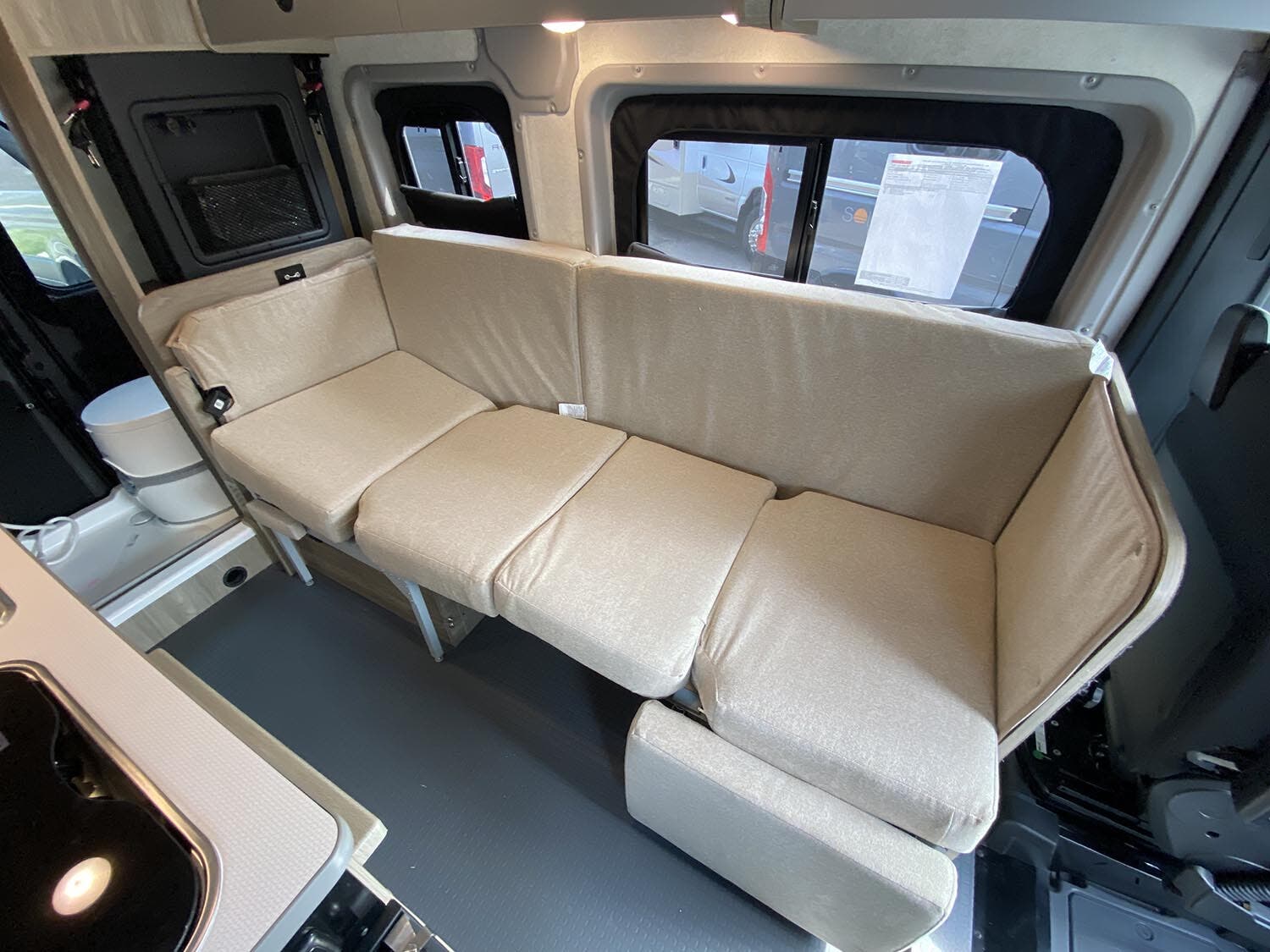

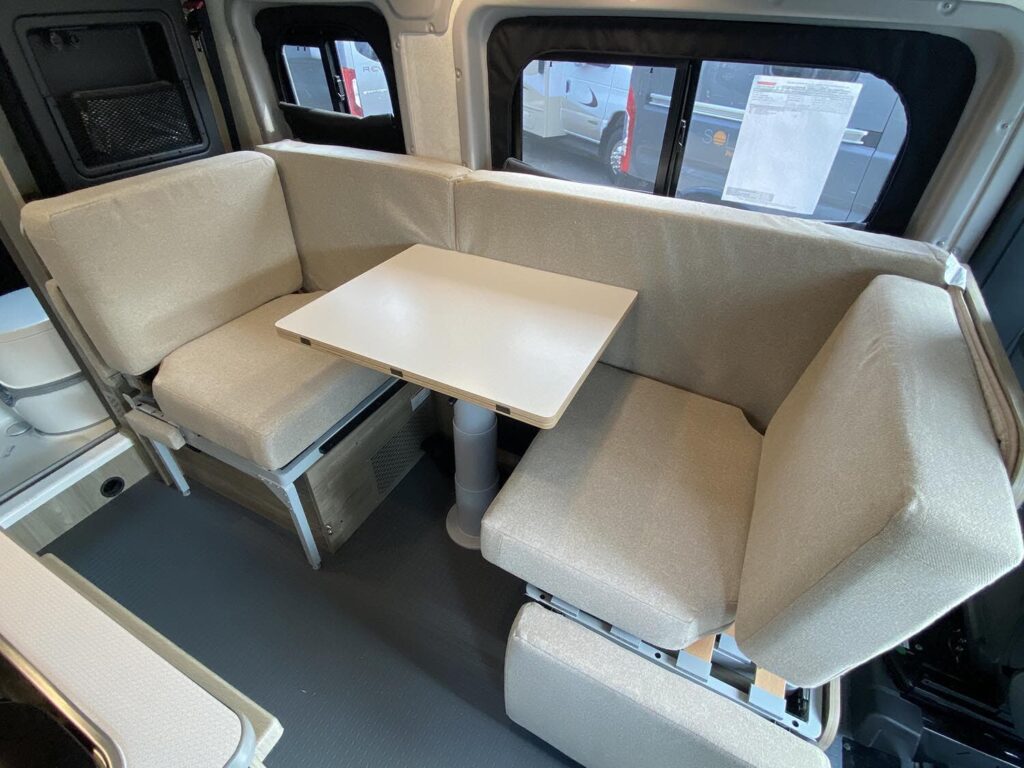

LED ceiling lights • Tinted coach windows • Systems monitor panel • Deluxe powered ventilator fan • Dinette w/two facing seats (converts to sofa/daybed and includes one 3-point seatbelt) (36A) • Dinette w/two facing seats (converts to sofa/ primary bed and includes two 3-point seatbelts) (36B) • Multi-use storage area w/cupholders and charging center (36A) • Removable/adjustable table w/two mounting positions (36A) • MOLLE panel retention gate w/galley storage pack (36A) • Reading lights Roof wiring access port • Zippered window coverings • Heavy duty vinyl flooring throughout • Gear space w/L-track cargo tie down system (36A) • USB charging ports
Optional Equipment: Front cab air mattress 30″ x 65″ w/support base, cordless pump, repair kit and storage bag
GALLEY

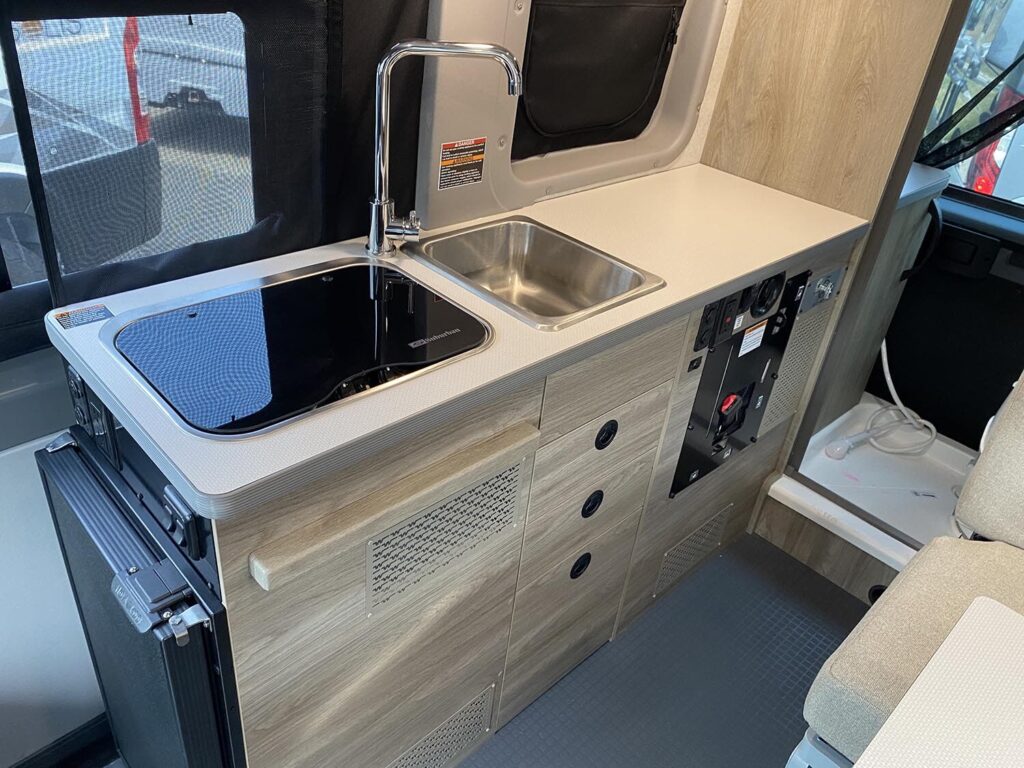

Laminate countertop • 2-burner range top w/glass cover • 3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer • Stainless steel sink

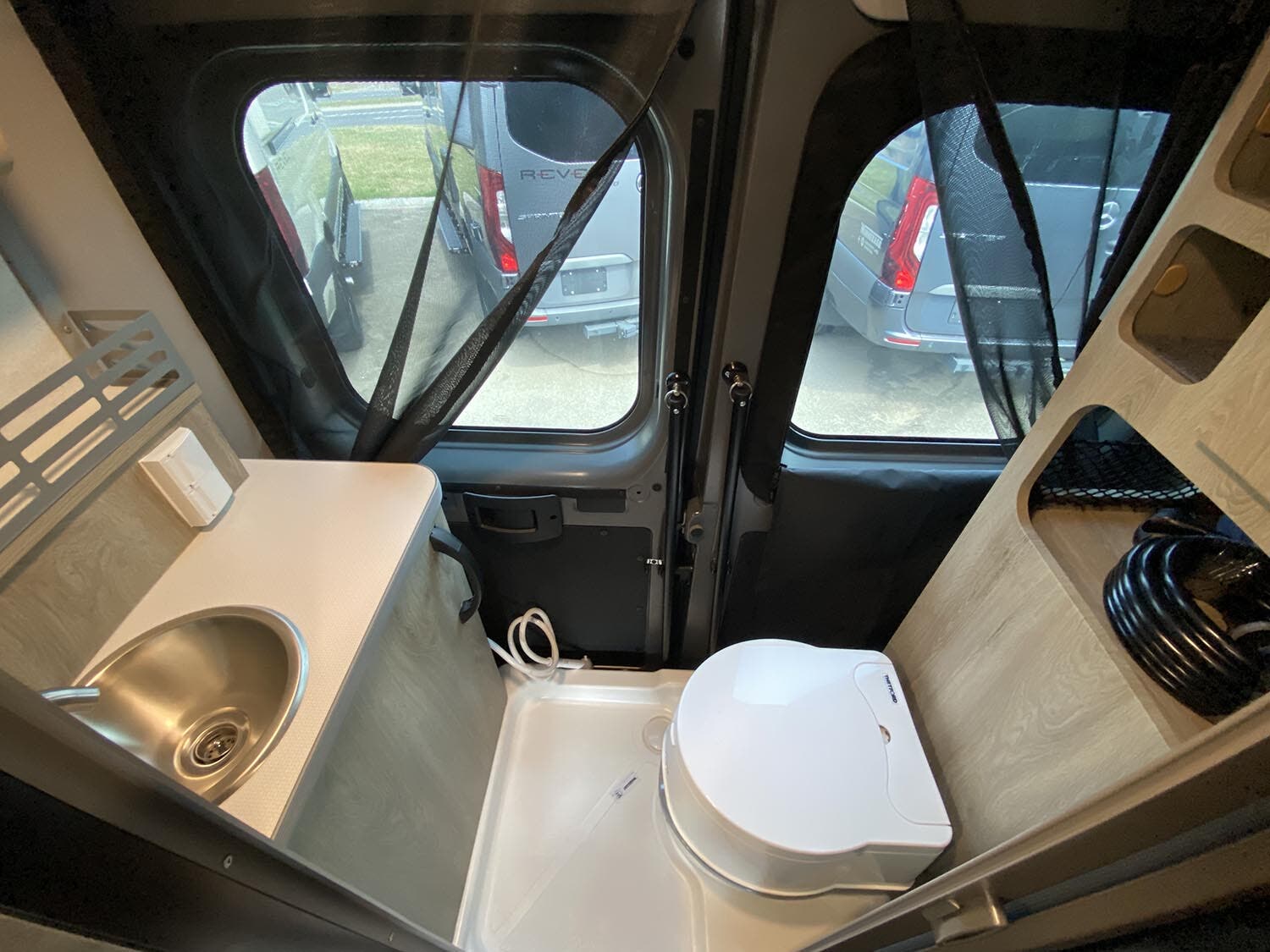

BATH

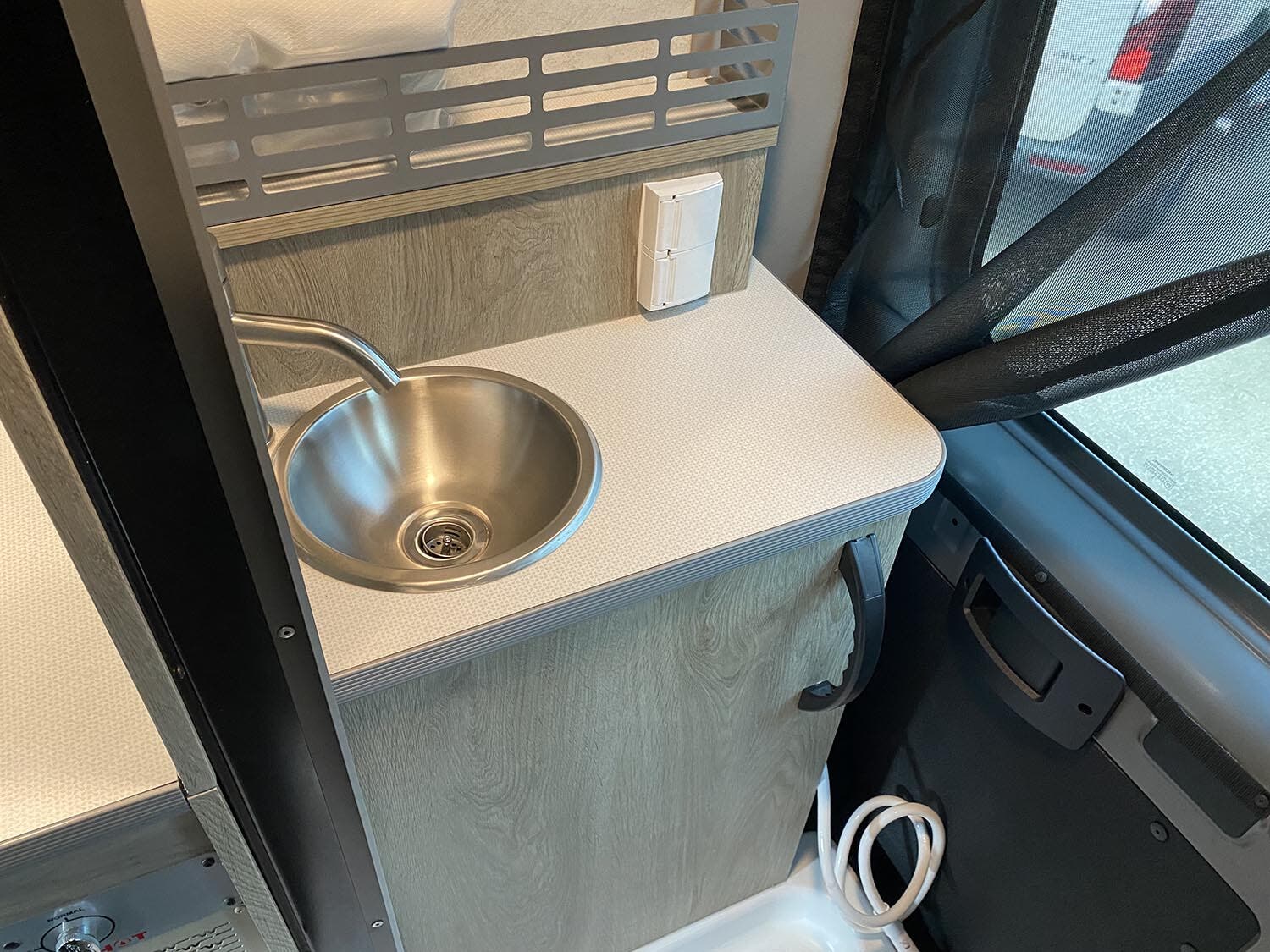

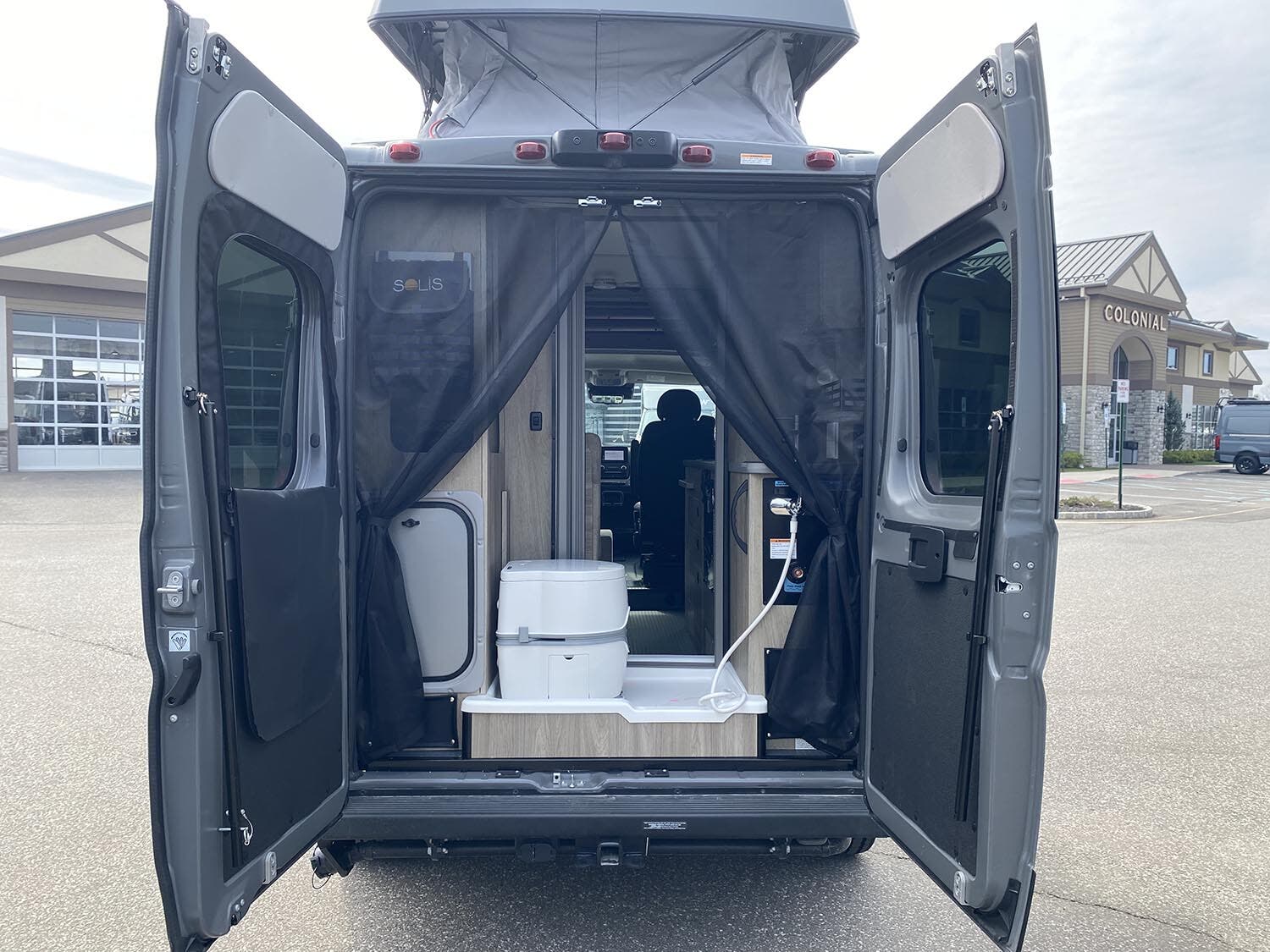

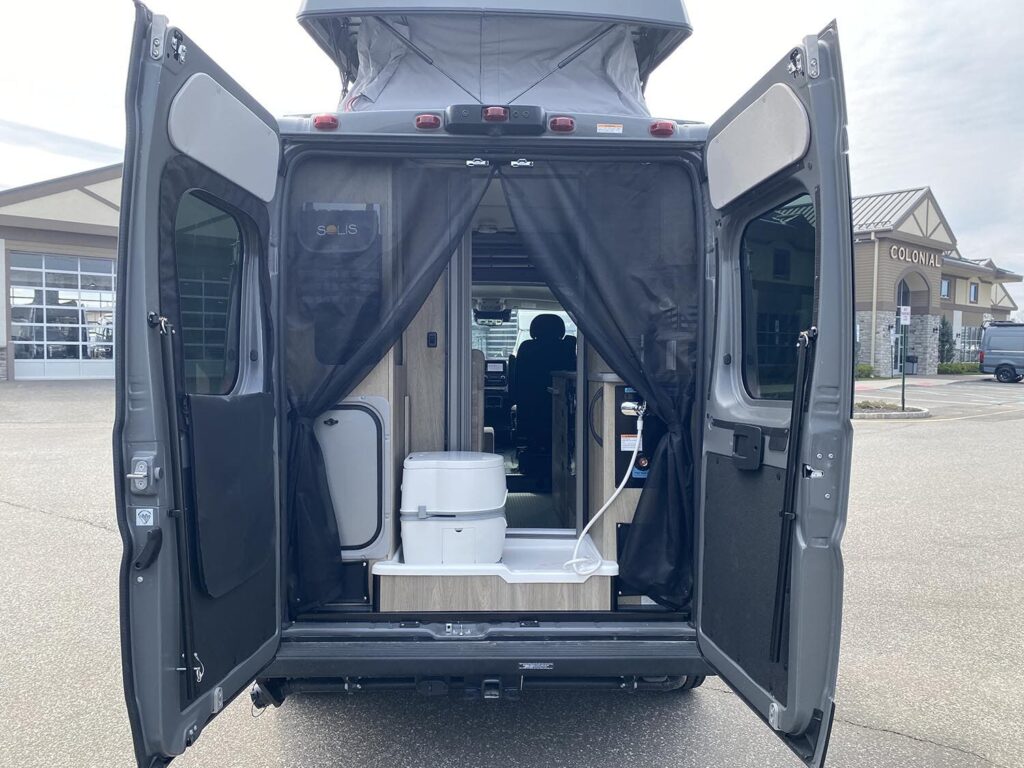

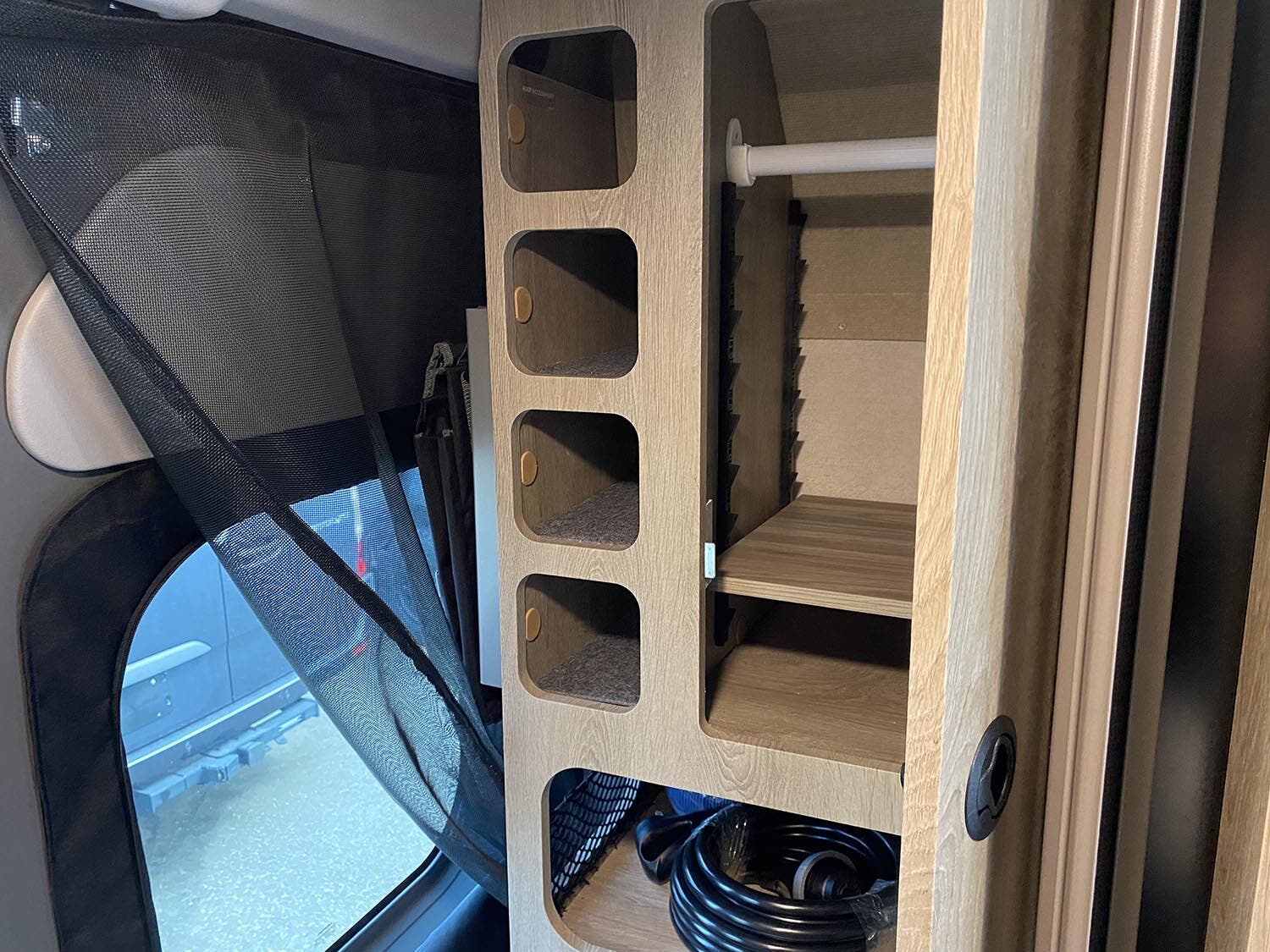

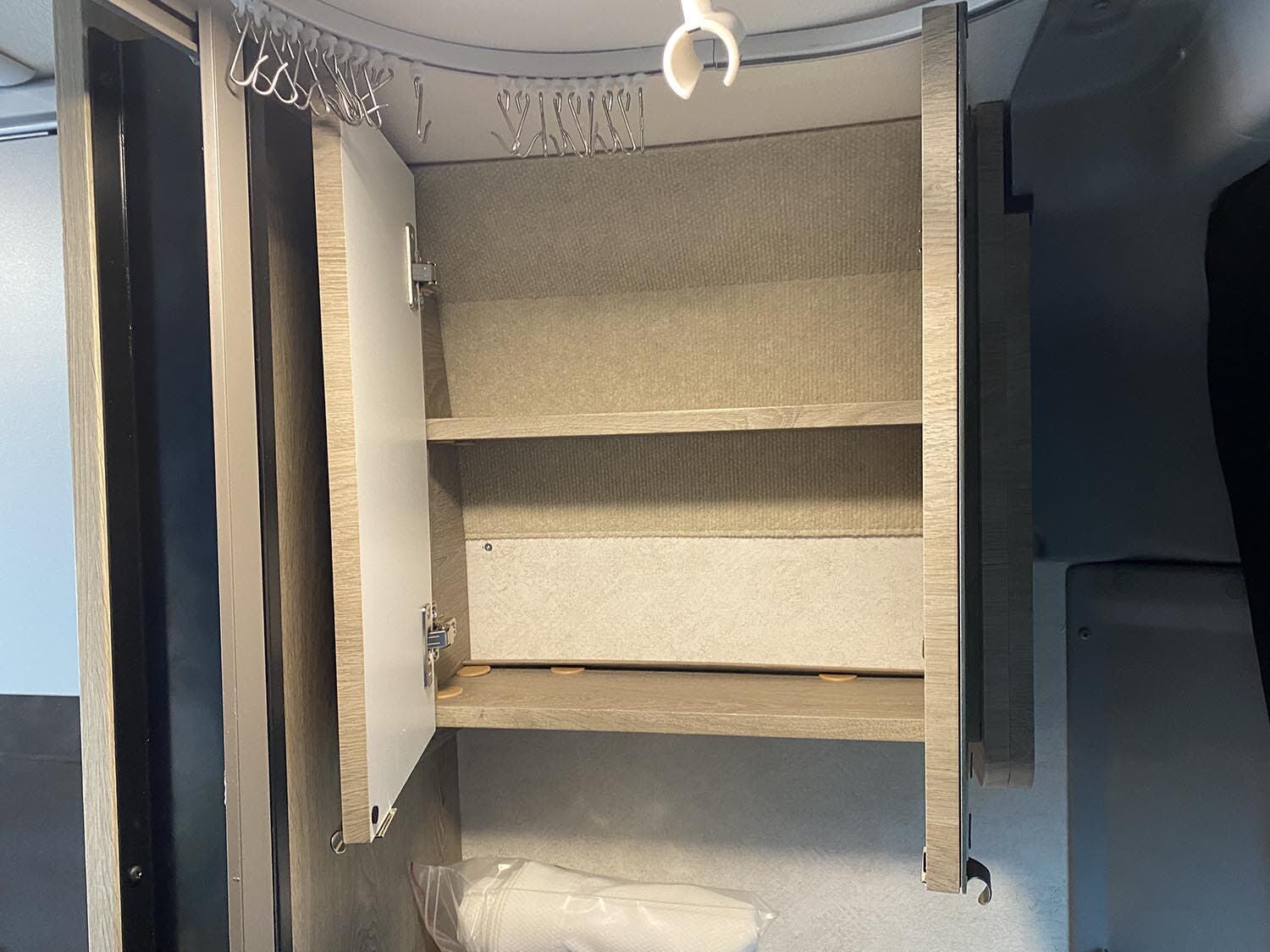

Portable toilet (stored under rear facing dinette seat) (36A) • Flexible shower head w/dual control faucet (36B) • Shower w/wall surround (36B) • Shower curtain (36B) • Removable cassette toilet (36B) • Stainless steel round sink (36B) • Medicine cabinet w/mirror (36B) • Powered roof vent (36B) • Wardrobe cabinet (MOLLE panel w/galley storage pack stored on rear face of cabinet) (36B)
BEDROOM

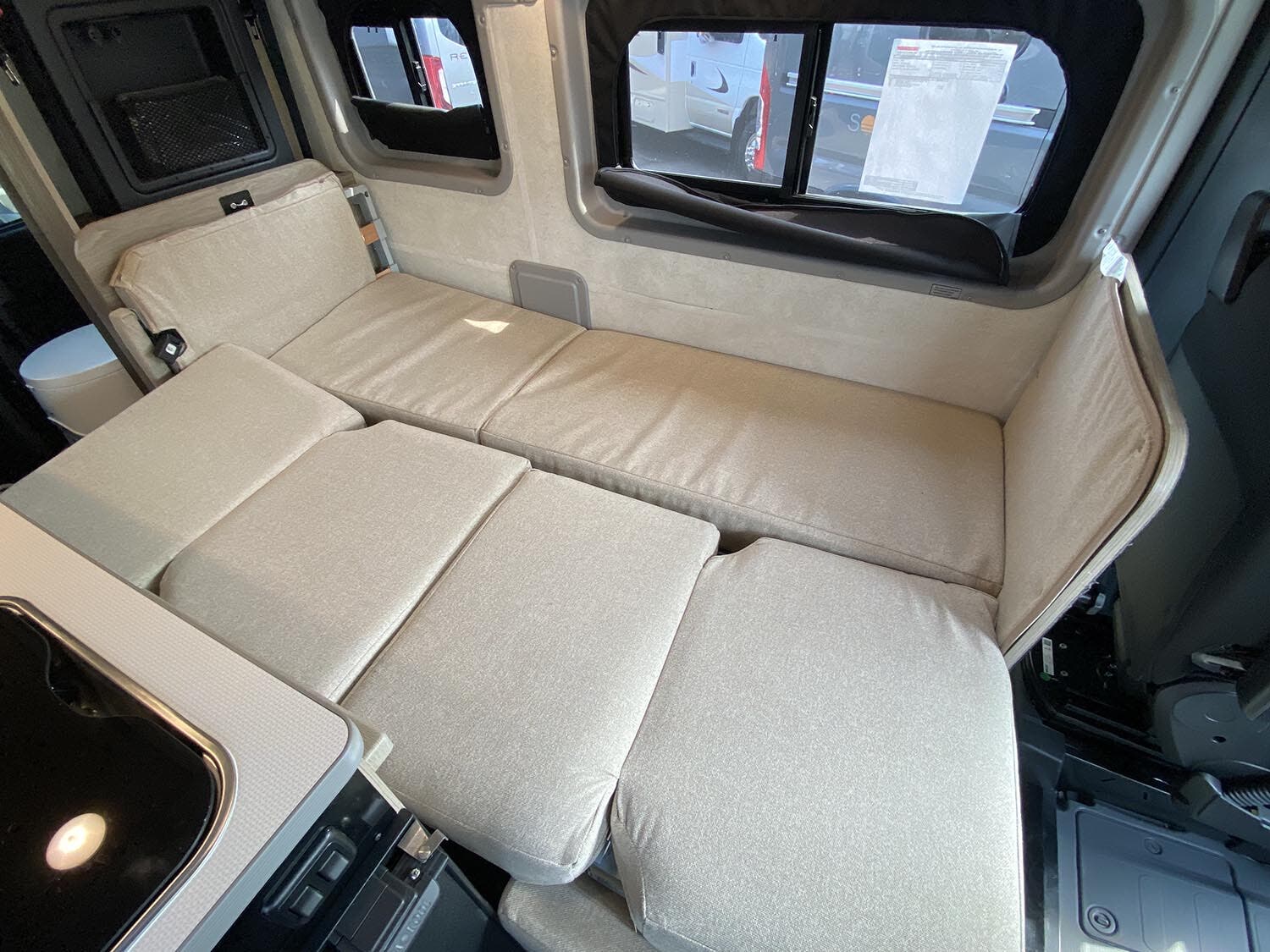

Murphy+ bed w/mattress cover, slat bed system and access to below floor storage (36A) • Convertible dinette bed (Single – 30″ x 75″, Double – 53″ x 75″) (36B)
EXTERIOR

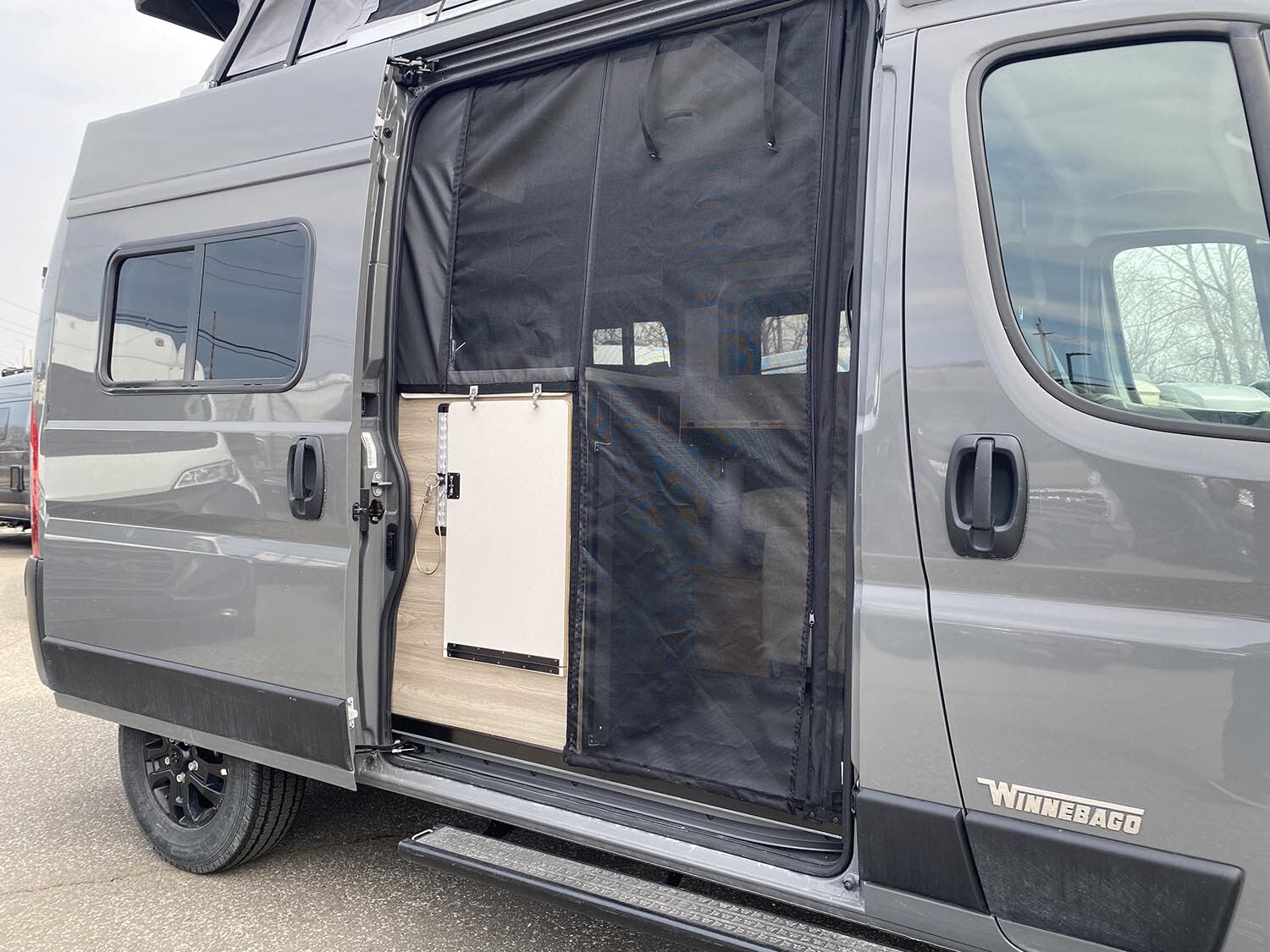

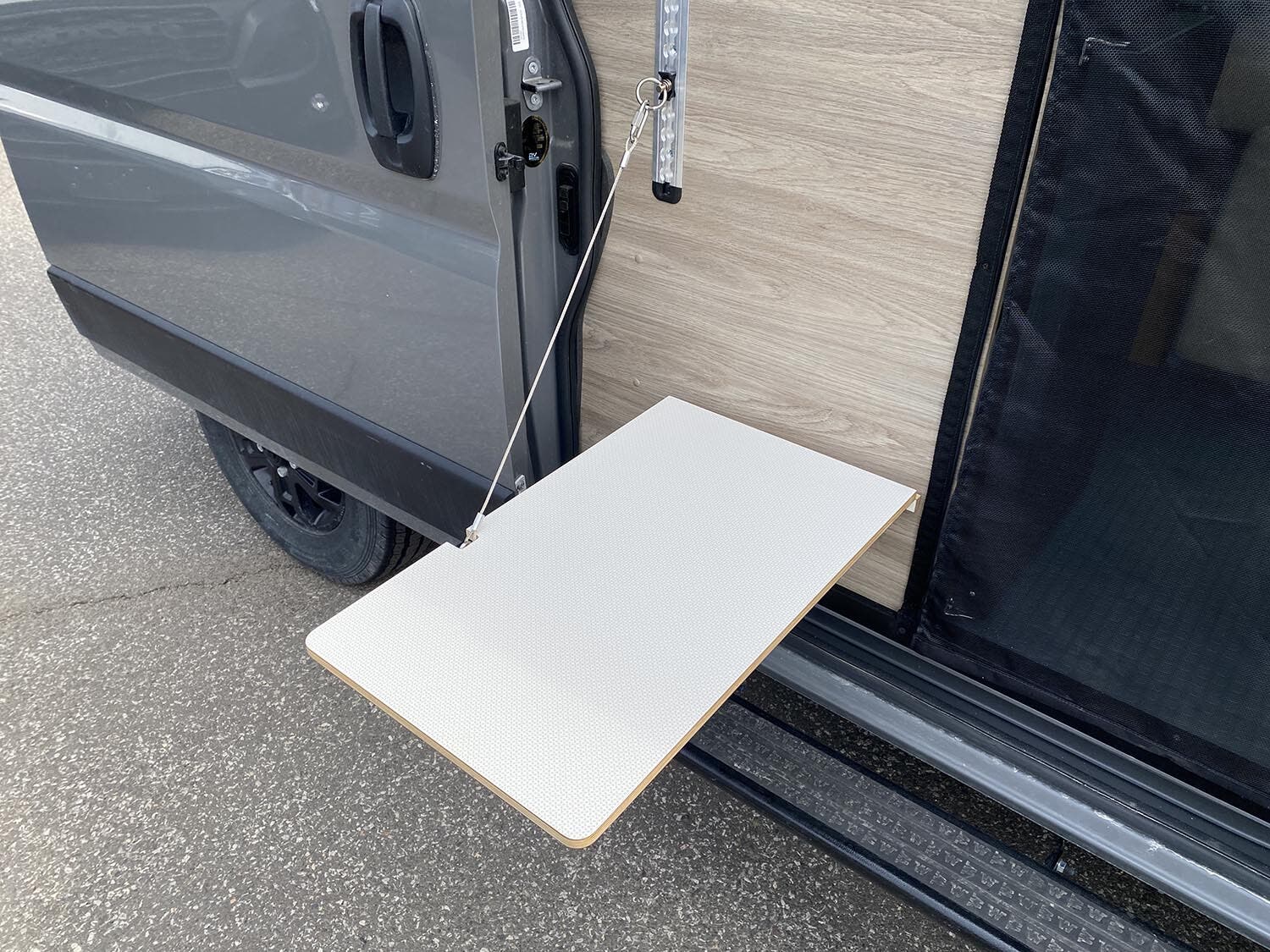

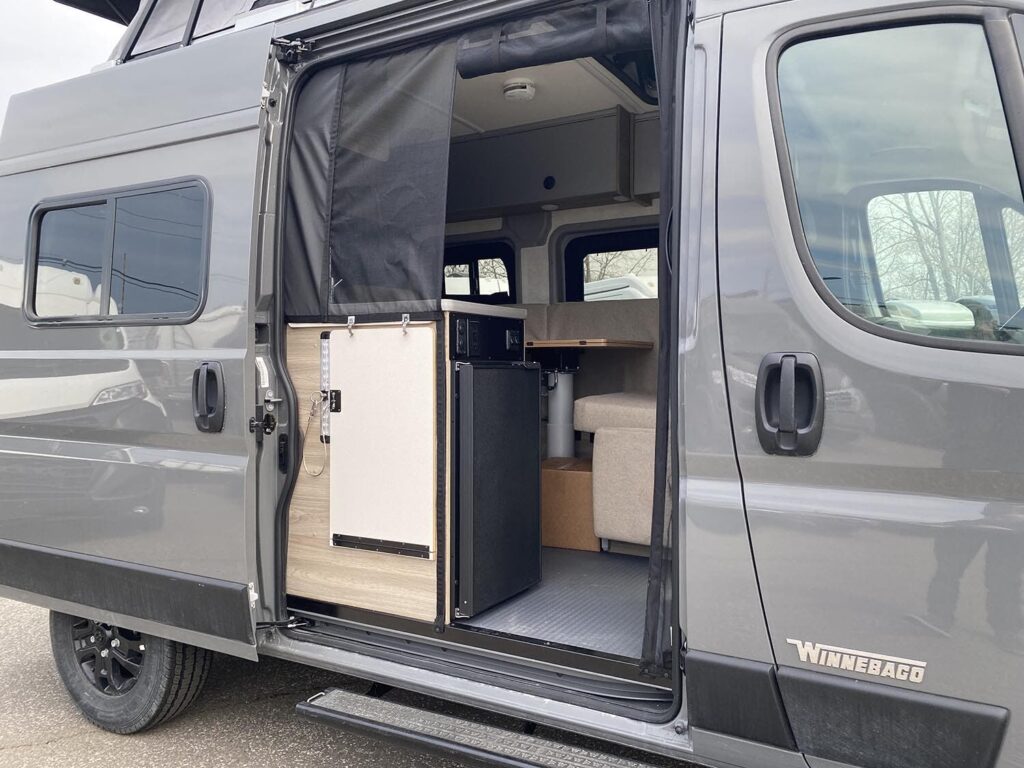

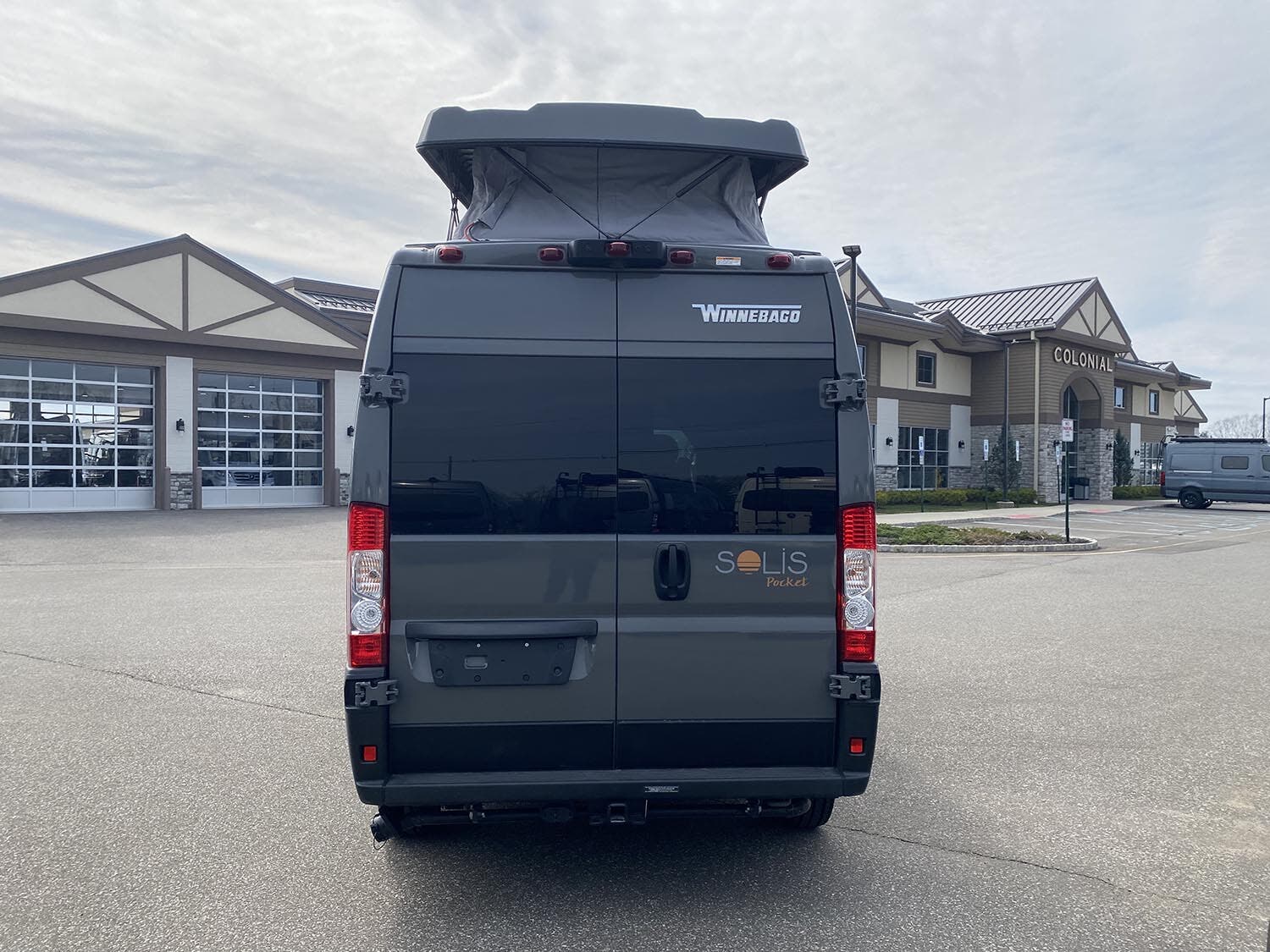

Porch light w/interior switch (passenger side) • Assist bar handle • Side screen door • Rear screen door • Aluminum running board w/logoed tread and pet loop attachment • Fold-down exterior table • Rod and privacy screen (provided for rear annex)
HEATING & COOLING SYSTEM
Truma® VarioHeat™ (36A) • 13,500 BTU air conditioner w/directional ducts and dial control • Truma Combi® Eco heating system (36B)
ELECTRICAL SYSTEM
AC/DC load center, 55-amp. converter/charger • Auxiliary start circuit • 2 deep-cycle Group 31 batteries (AGM maintenance-free) • Coach battery disconnect system • Automatic dual-battery charge control • 30-amp. power cord • 170-watt solar panel w/controller (36A) • 190-watt solar panel w/controller (36B)

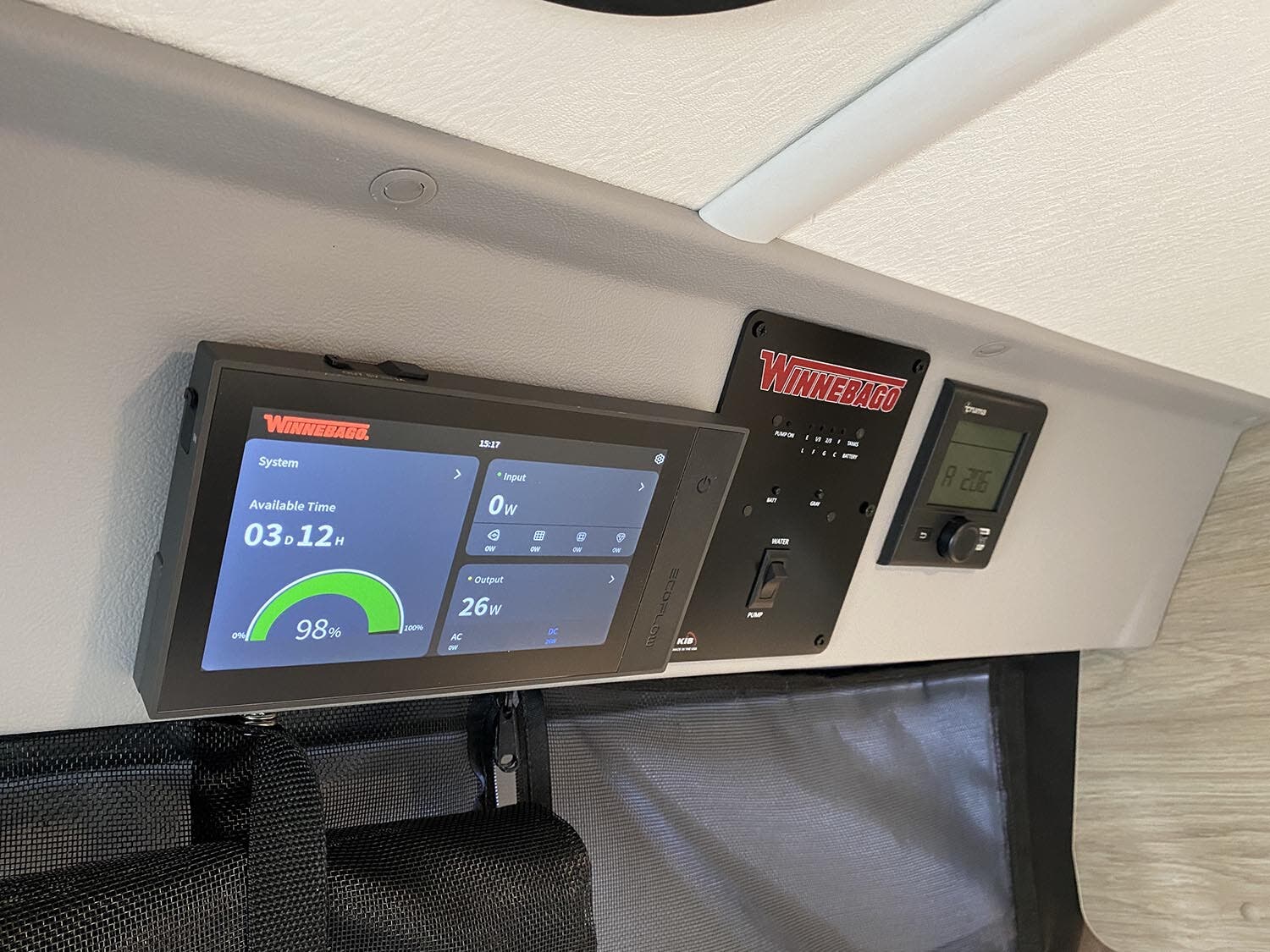

Optional Equipment: Winnebago® + EcoFlow® Power Kit Pro (5kWh lithium battery, 5-in-1 power management controller and touchscreen interface) (36B)
PLUMBING SYSTEM

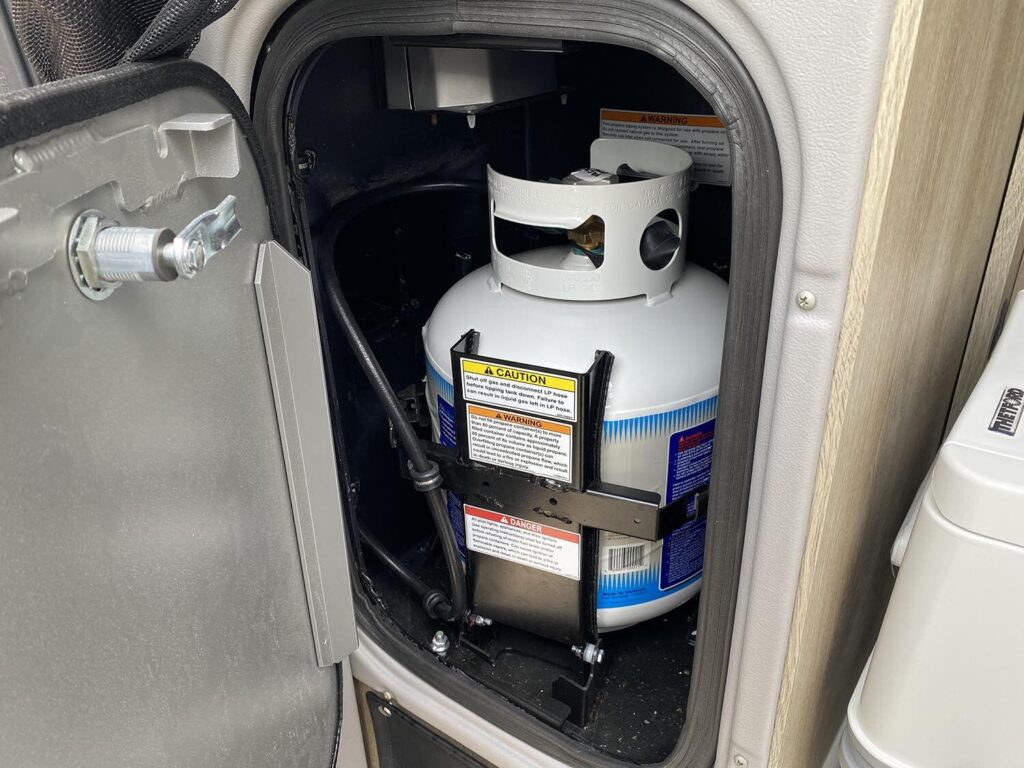

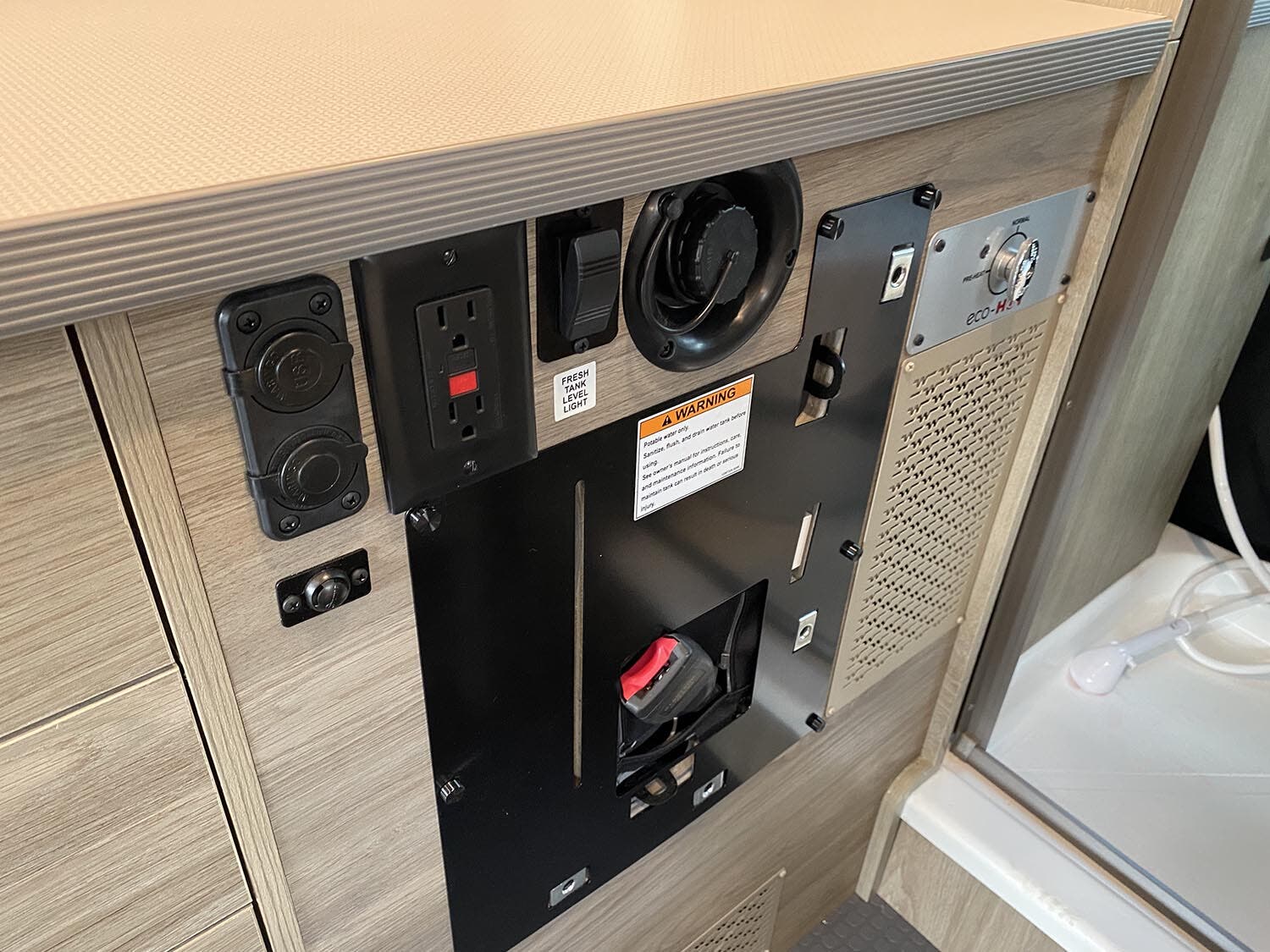

Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door) • 10′ sewer hose • On-demand water pump • Removable LP cylinder • Fresh water sight glass • Eco-Hot™ water system (36B)
SAFETY

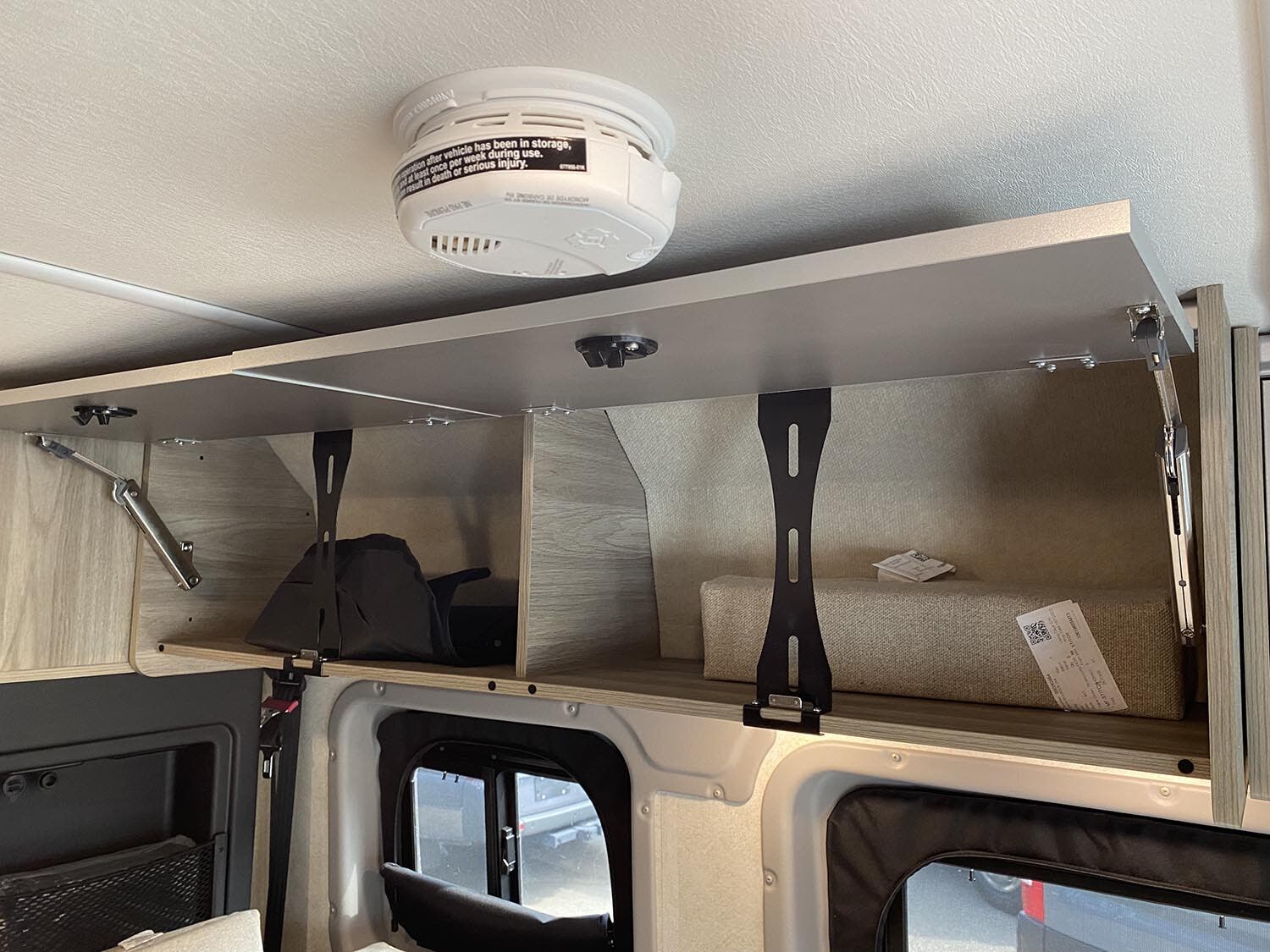

LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Child seat tether anchor
WARRANTY
12-month/24,000-mile basic warranty
*Disclaimer: Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle. In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
