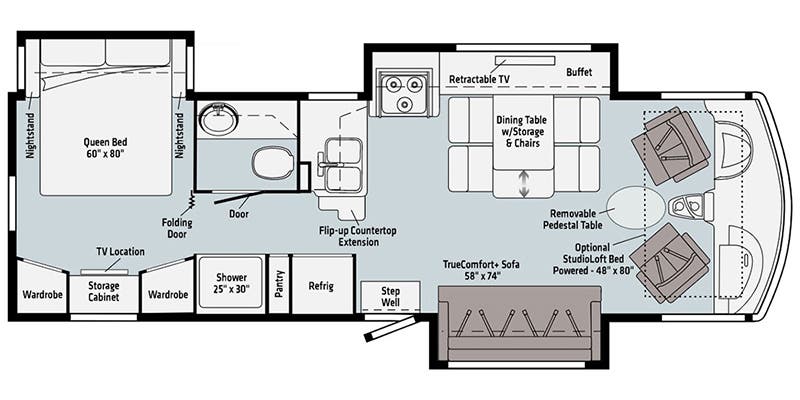

Floor Plans
|
Options Included
|
|||
|
• 30T Floor Plan
|
|
|

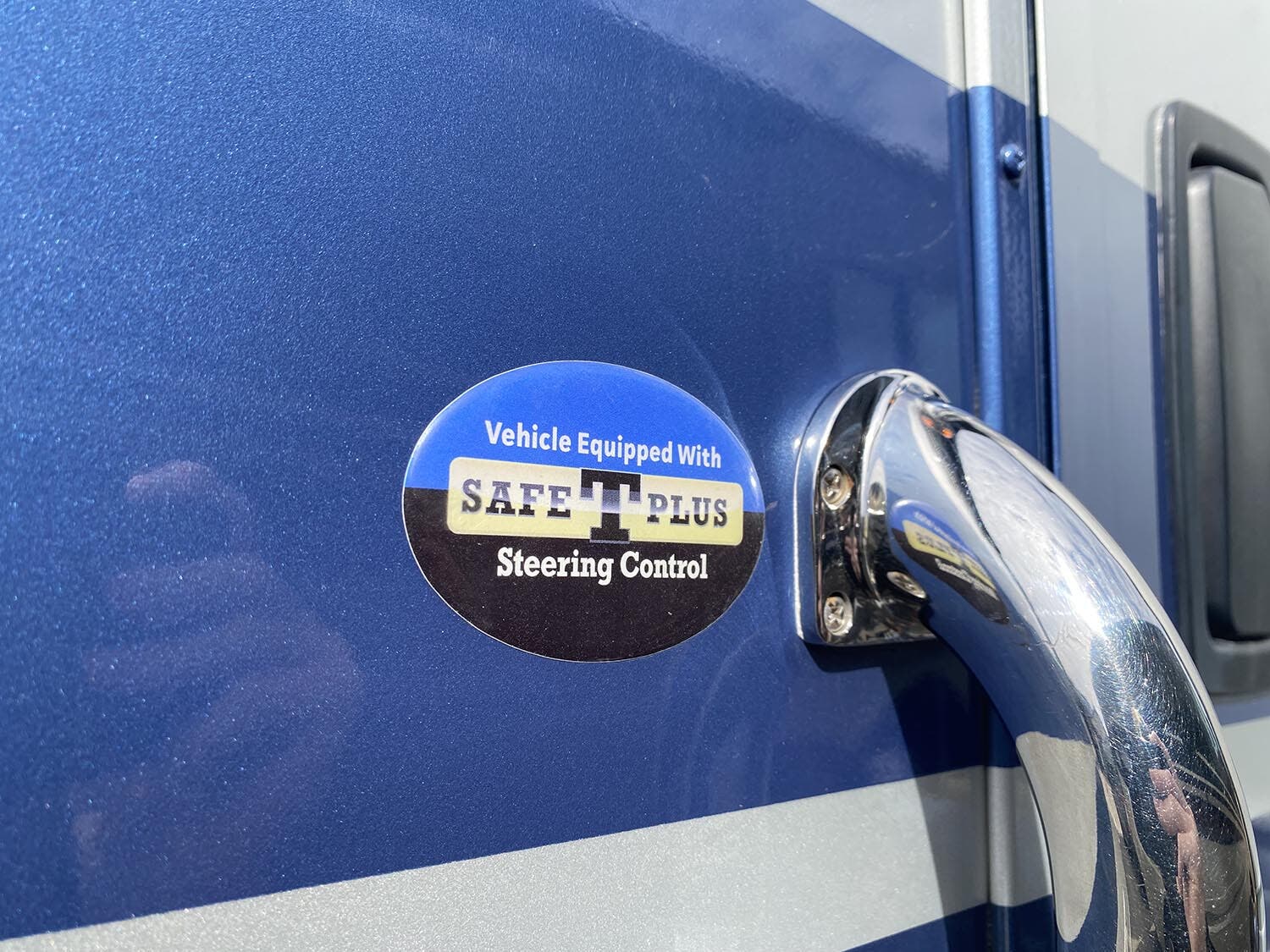

• Safe-T-Plus Steering Control |
|
|
• Koni Shocks Upgrade
|
|
|
• Rear Trac Bar
|
|
|
• Centramatic Wheel Balancers
|
|
|
• Generator Hours: 231.6
|
OPTIONS INCLUDED:
M72: Cool Contrast/Cream/Driftwood II
3AA: Solar Panel/Battery Charging System

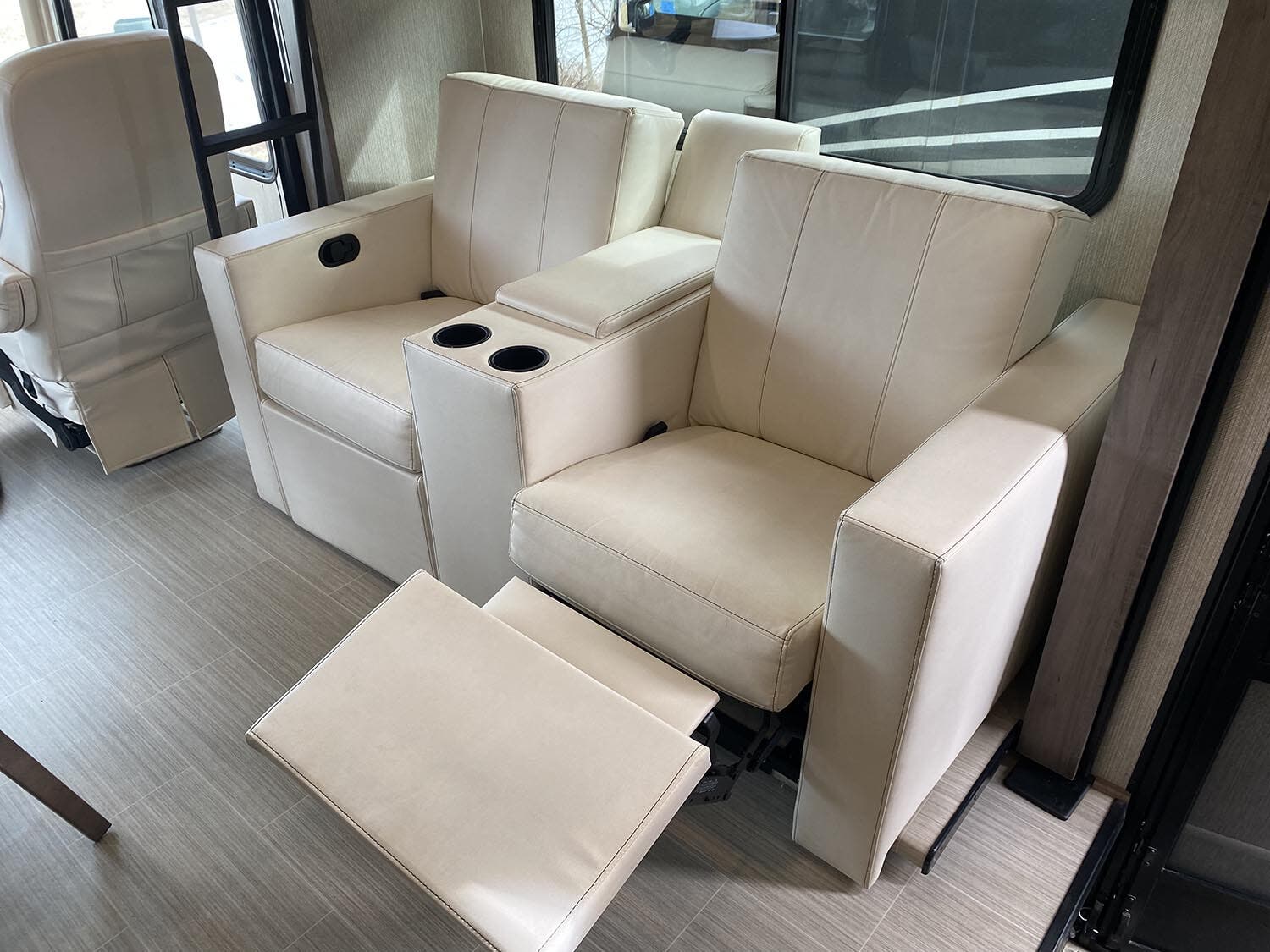

42Z: Theather Seating
60K: Sumo Springs Suspension Package
64Q: 6-way Power Driver Seat
74C: Video Camera System
16U: Electronic Stability Control
36N: Auxiliary Defroster Fans
45B: Loft Bed
64C: 6-Way Power Passenger Seat W/Footrest
70D: Satellite Radio with Sirius XM
95F: Full Body Paint – Nightshade
| 27N | 29B | 30T | 35F | 36Z | |
|---|---|---|---|---|---|
| Exterior Length | 28’5″ | 30’1″ | 31’1″ | 35’5″ | 36’11” |
| Exterior Height | 12’4″ | 12’4″ | 12’4″ | 12’6″ | 12’6″ |
| Exterior Width | 8’5.5″ | 8’5.5″ | 8’5.5″ | 8’5.5″ | 8’5.5″ |

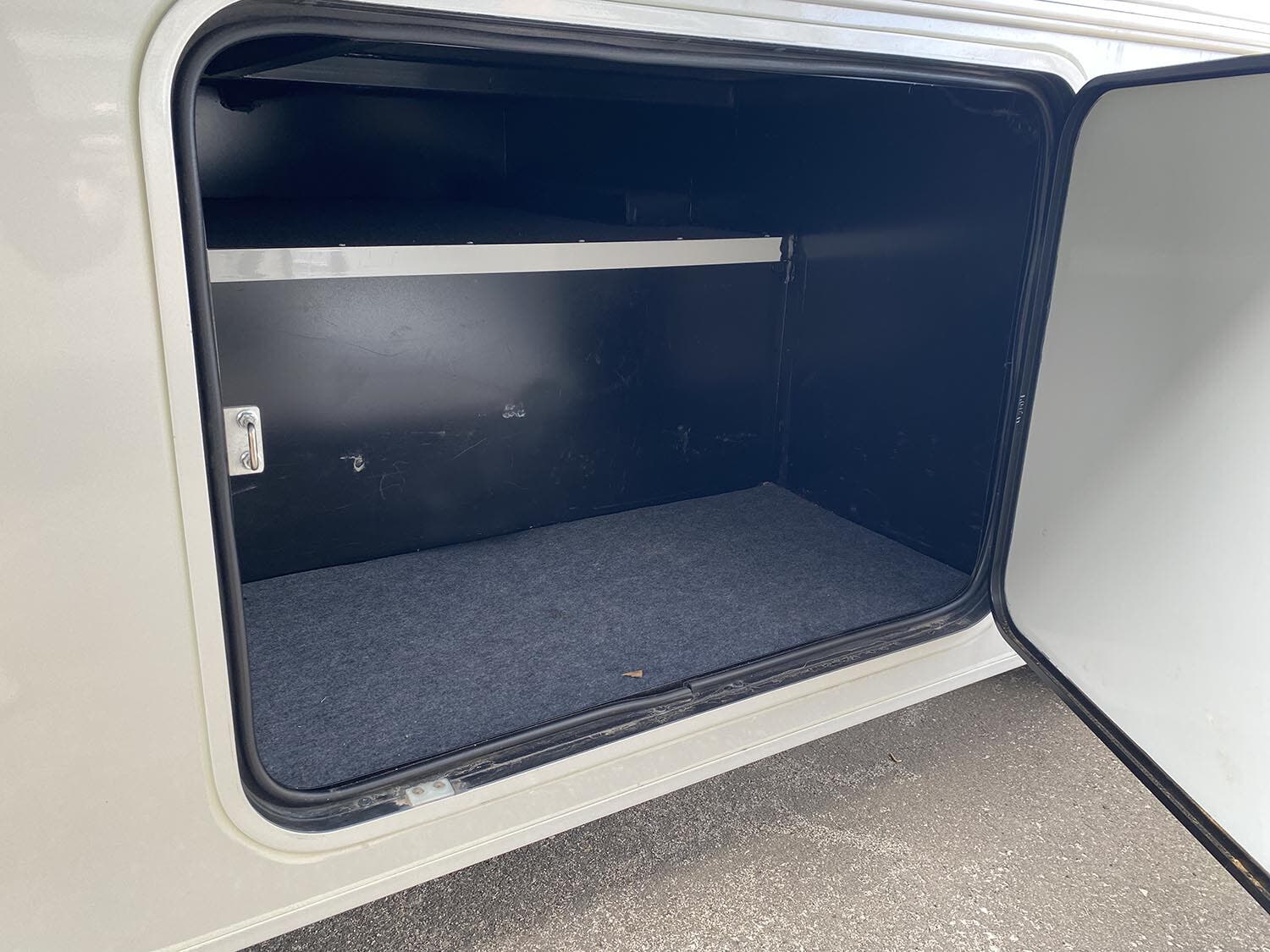

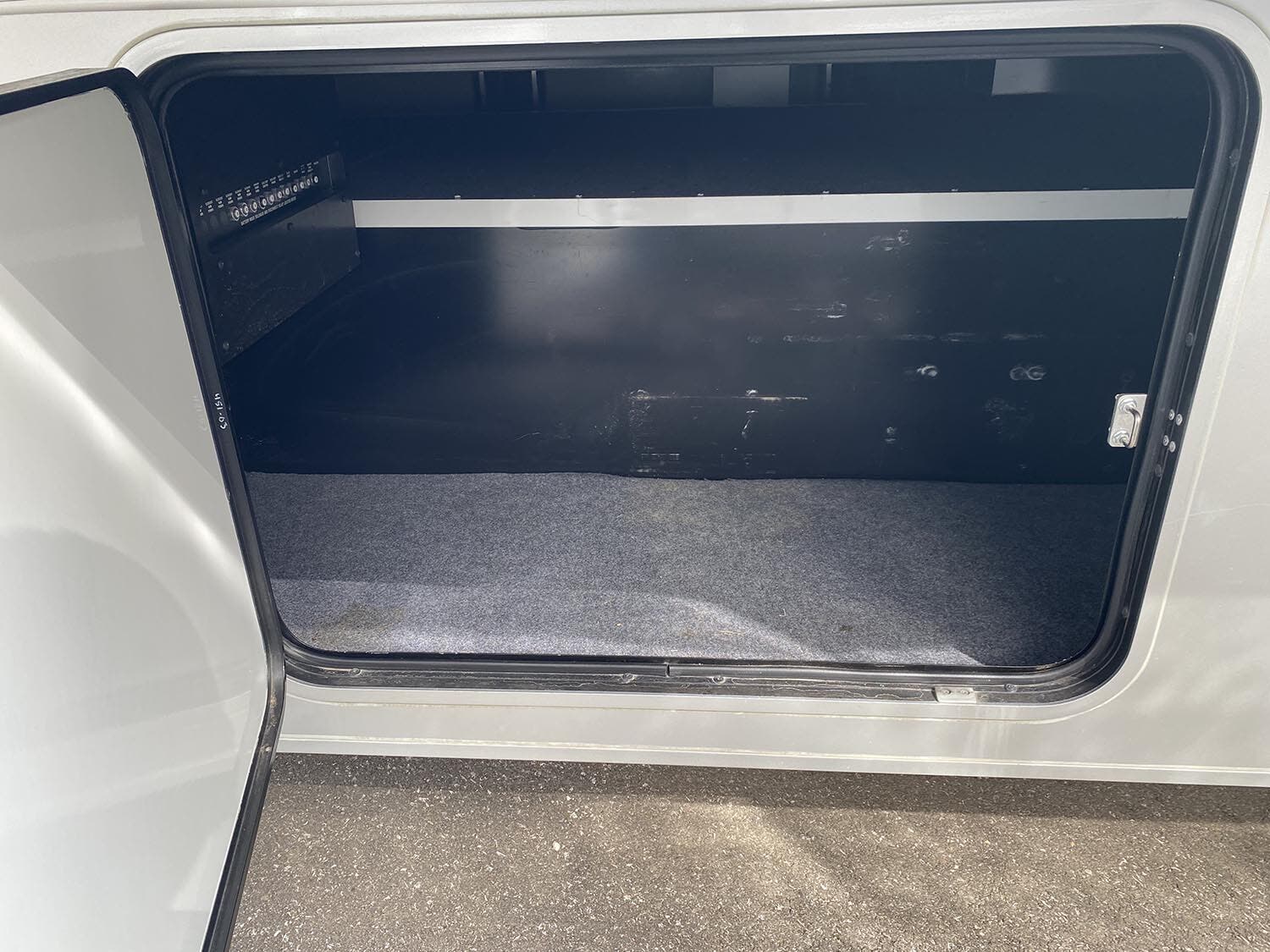

| Exterior Storage (cu. ft.) | 123 | 147 | 118 | 137 | 122.2 |
| Awning Length | 19′ | 17′ | 19′ | 16′ | 26′ |
| Interior Height | 6’8″ | 6’8″ | 6’8″ | 6’8″ | 6’8″ |
| Interior Width | 8’0.5″ | 8’0.5″ | 8’0.5″ | 8’0.5″ | 8’0.5″ |
| Freshwater Tank Capacity (gal.) | 64 | 70 | 78 | 74 | 93 |
| Water Heater Capacity (gal.) | 6 | 6 | 6 | 10 | 10 |
| Holding Tank Capacity — Black (gal.) | 43 | 40 | 41 | 41 & 21 | 33 & 47 |
| Holding Tank Capacity — Gray (gal.) | 53 | 61 | 42 | 51 | 41 & 44 |
| LP Capacity (lbs.) | 76.14 | 76.14 | 76.14 | 76.14 | 76.14 |
| Fuel Capacity (gal.) | 80 | 80 | 80 | 80 | 80 |
| GCWR (lbs.) | 23,000 | 23,000 | 23,000 | 26,000 | 26,000 |
| GVWR (lbs.) | 18,000 | 18,000 | 18,000 | 22,000 | 22,000 |
| GAWR – Front (lbs.) | 7,000 | 7,000 | 7,000 | 8,000 | 8,000 |
| GAWR – Rear (lbs.) | 12,000 | 12,000 | 12,000 | 15,000 | 15,000 |
| Wheelbase | 178″ | 190″ | 190″ | 228″ | 242″ |
| Sleeps | 4 | 5 | 5 | 5 | 6 |
CHASSIS
Ford® F53 Chassis • 7.3L V8 engine, TorqShift™ 6-speed automatic transmission w/tow/haul, Hydro-Boost System power brakes, 4-wheel ABS, 210-amp. alternator (27N, 29B, 30T) • 7.3L V8 engine, TorqShift™ 6-speed automatic transmission w/tow/haul, Hydro-Max System power brakes, 4-wheel ABS, 210-amp. alternator (35F, 36Z) • 7-pin trailer wiring connector • Electronic stability control • Trailer Hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight • Automatic hydraulic leveling jacks w/3-position controls • Stainless steel wheel liners (27N, 29B, 30T) • Stylized aluminum wheels (35F, 36Z) • Rear valve stem extensions (27N, 29B, 30T)

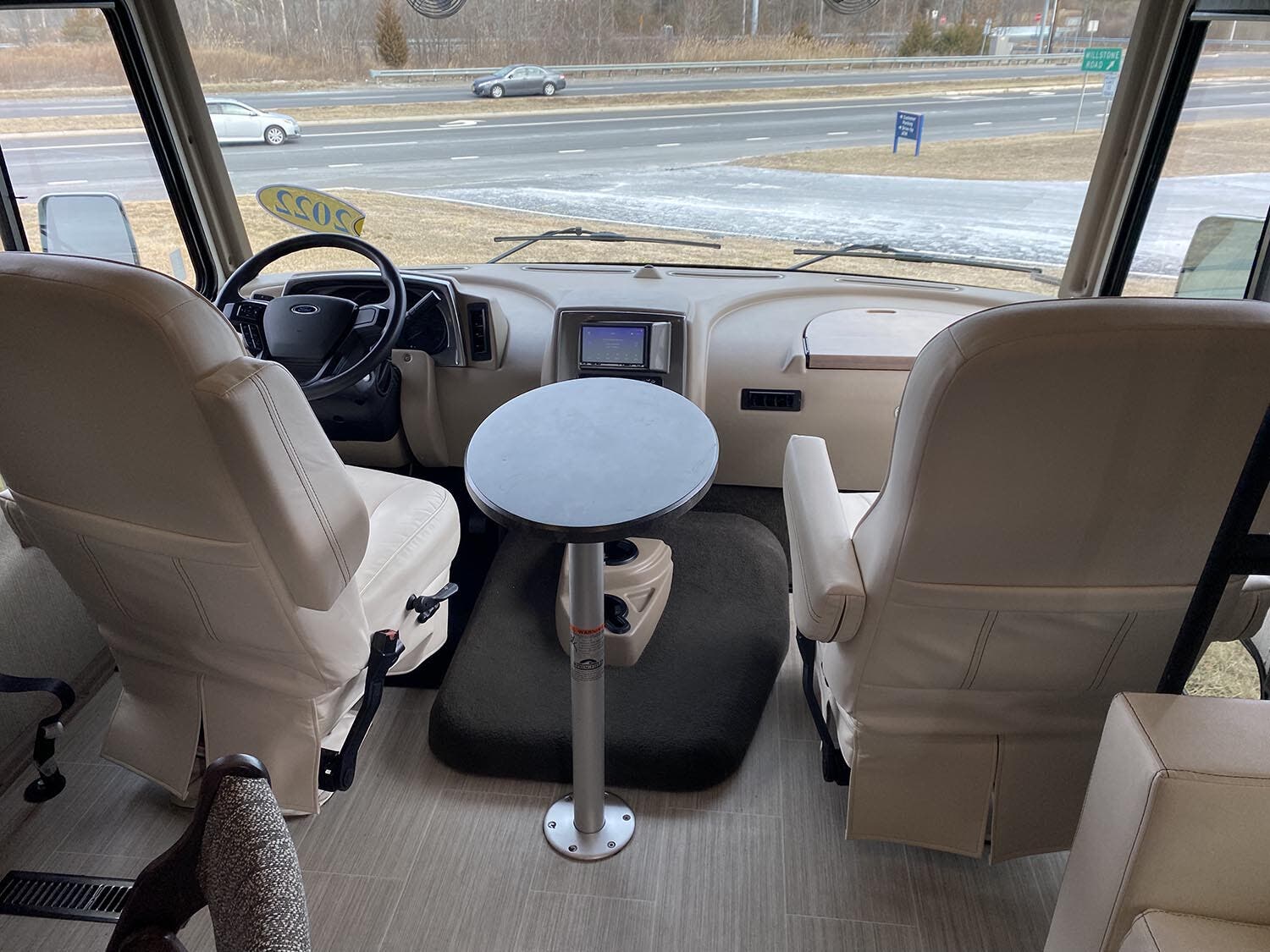

CAB CONVENIENCES

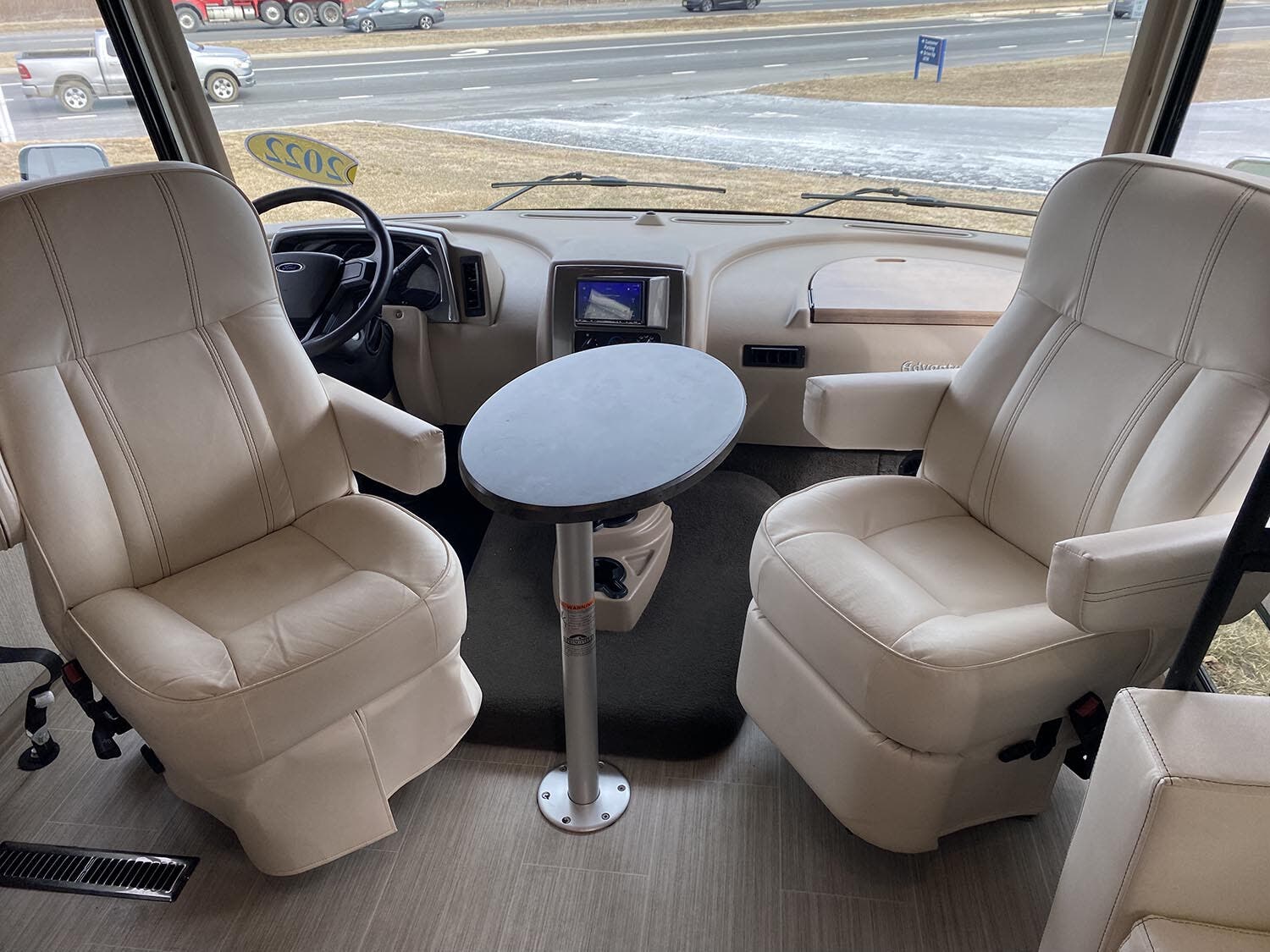

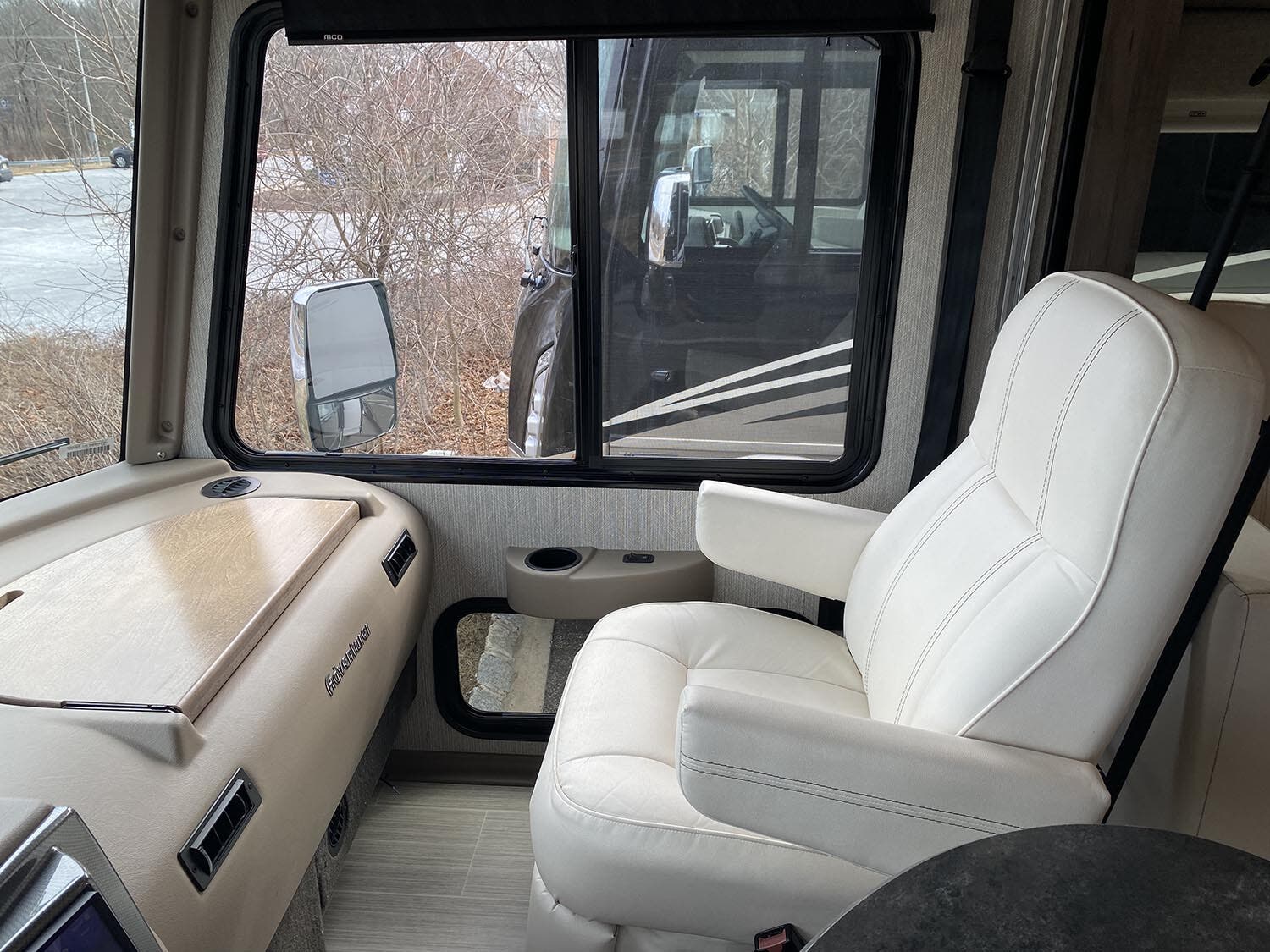

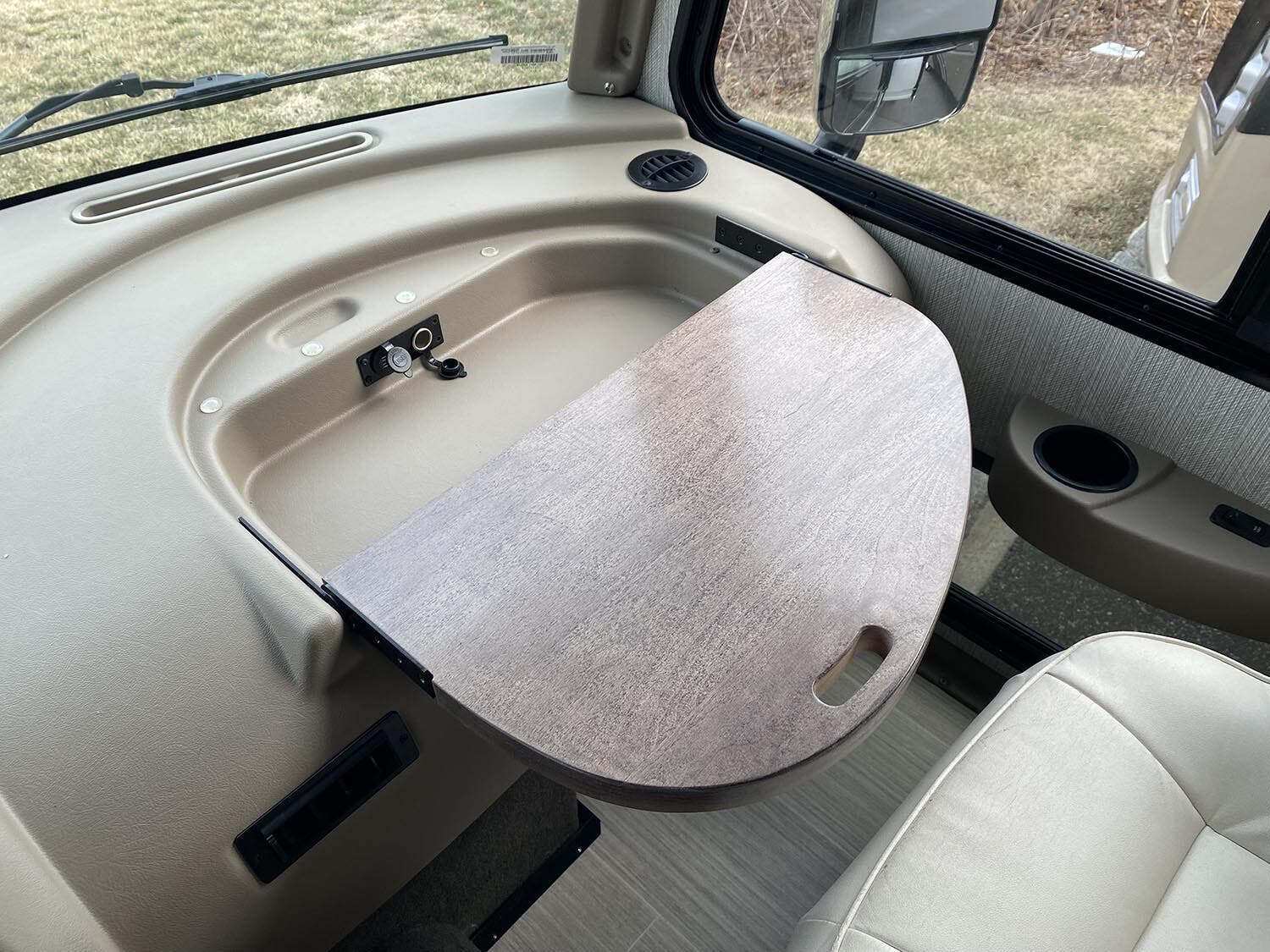

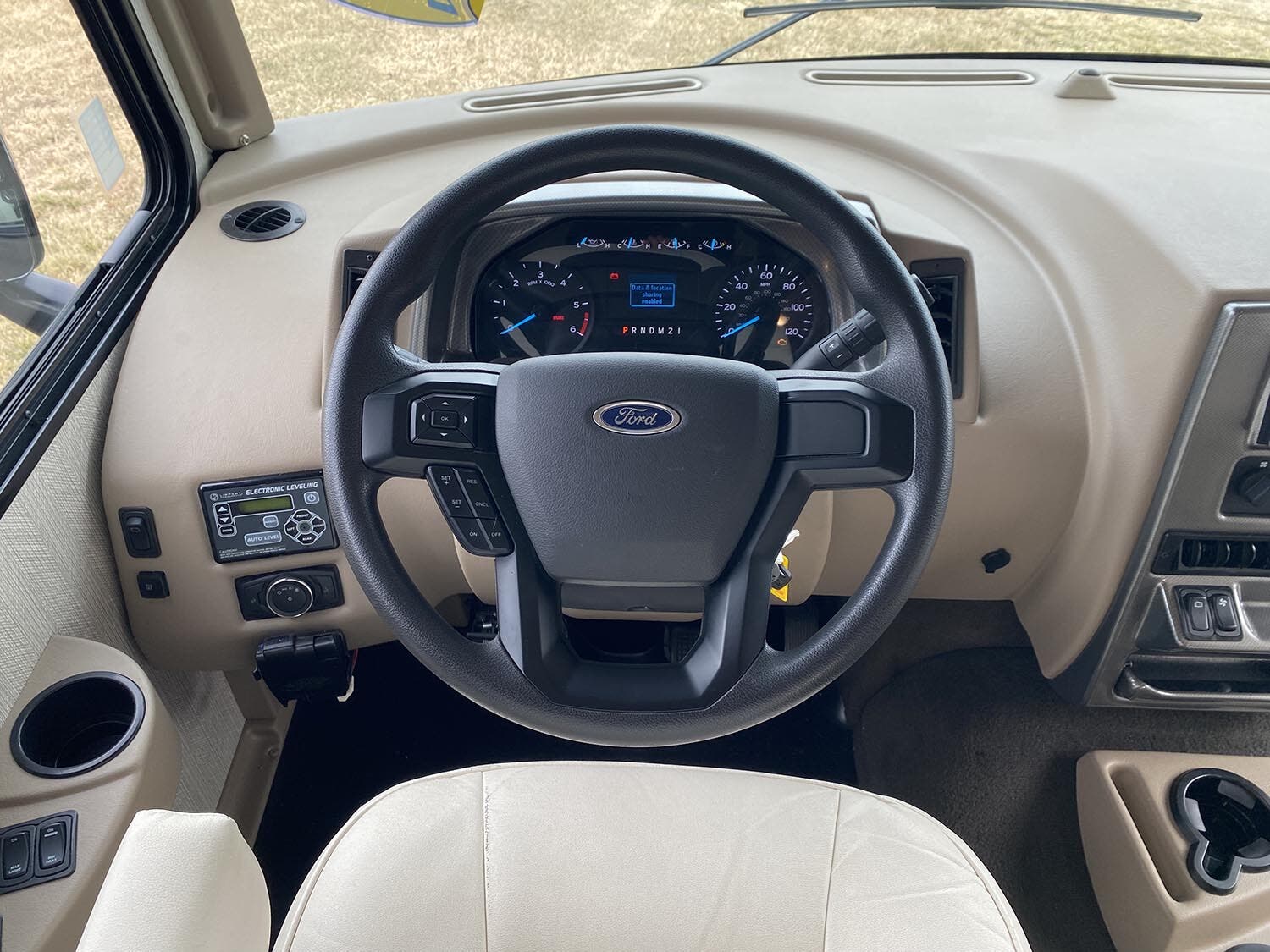

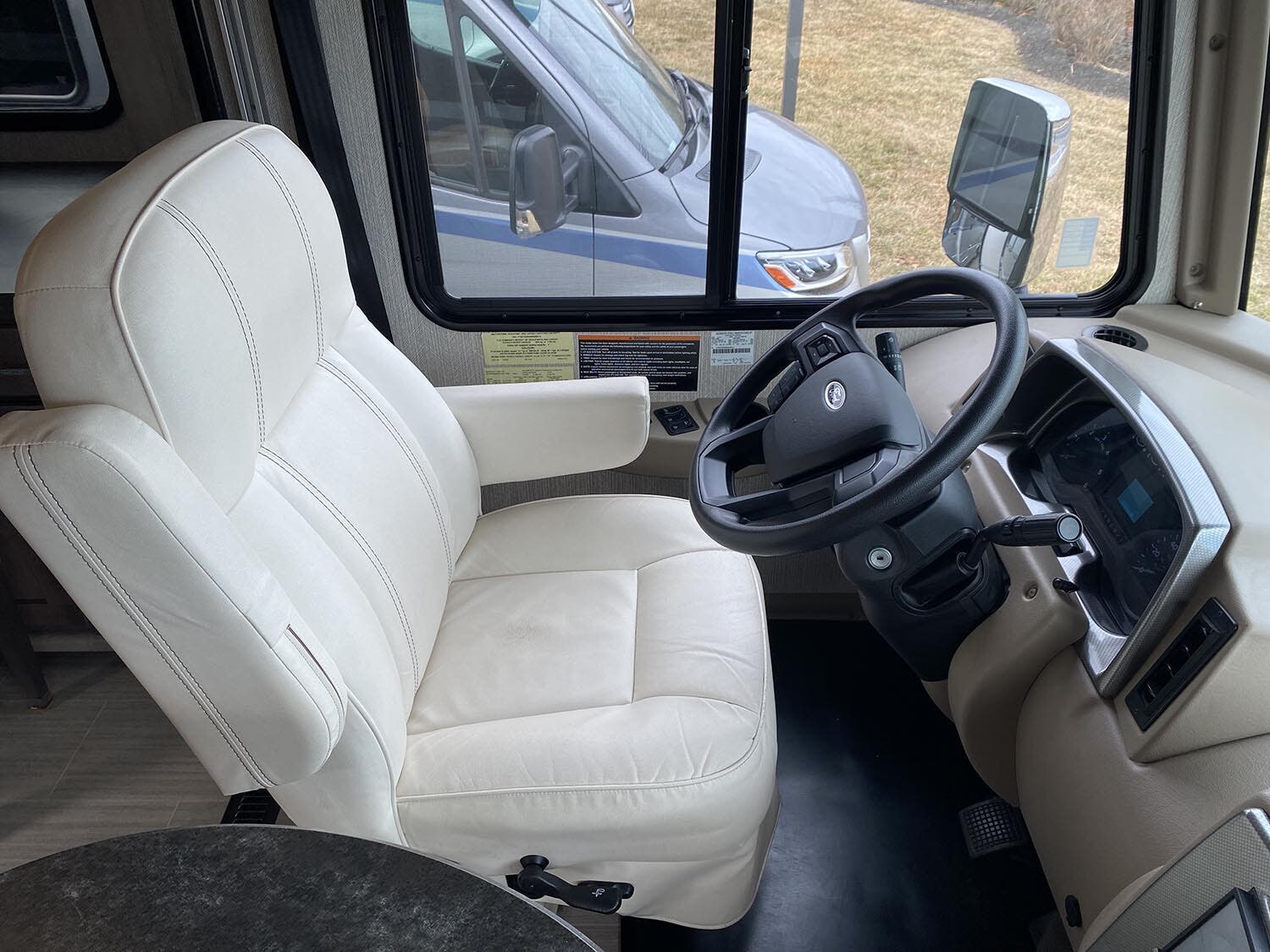

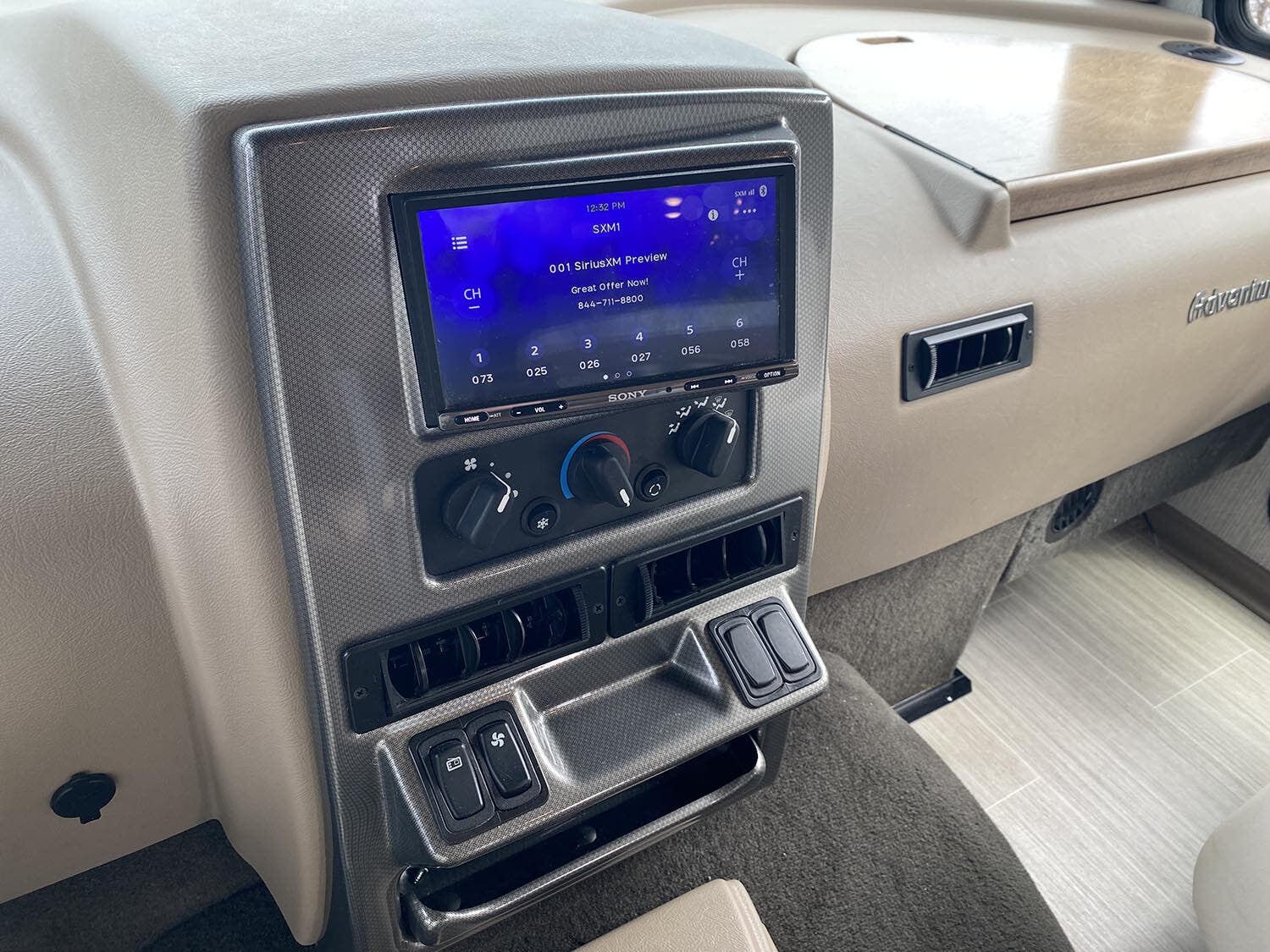

Versa driver’s seat swivels easily around steering wheel, w/two-position armrest, fixed lumbar support, and multi-adjustable slide/recline • Passenger seat swivels, w/two-position armrest, fixed lumbar support, and multi-adjustable slide/recline 3-point seat belts • 7″ Bluetooth® multimedia radio/rearview/sideview monitor system w/color touch screen, iPod®/MP3 input, SiriusXM®-ready, AUX, USB, Apple CarPlay® , Android Auto™ • Chassis/house battery radio power switch • Power steering w/tilt wheel • Cruise control • Power mirrors w/defrost • Map lights • Powered MCD blackout roller visor/shade (front windshield) • MCD blackout roller shade (driver and passenger windows) • Dash workstation w/USB and 12-volt power • Convenience tray Instrument panel • Removable pedestal table Optional Equipment: Seat Pedestal – Driver’s Six-Way Power Assist • Seat Pedestal – Passenger’s Six-Way PowerAssist w/Powered Footrest • Video camera system side-mounted color cameras • Defroster fans • Satellite TV antenna w/receiver • Radio w/Satellite SiriusXM

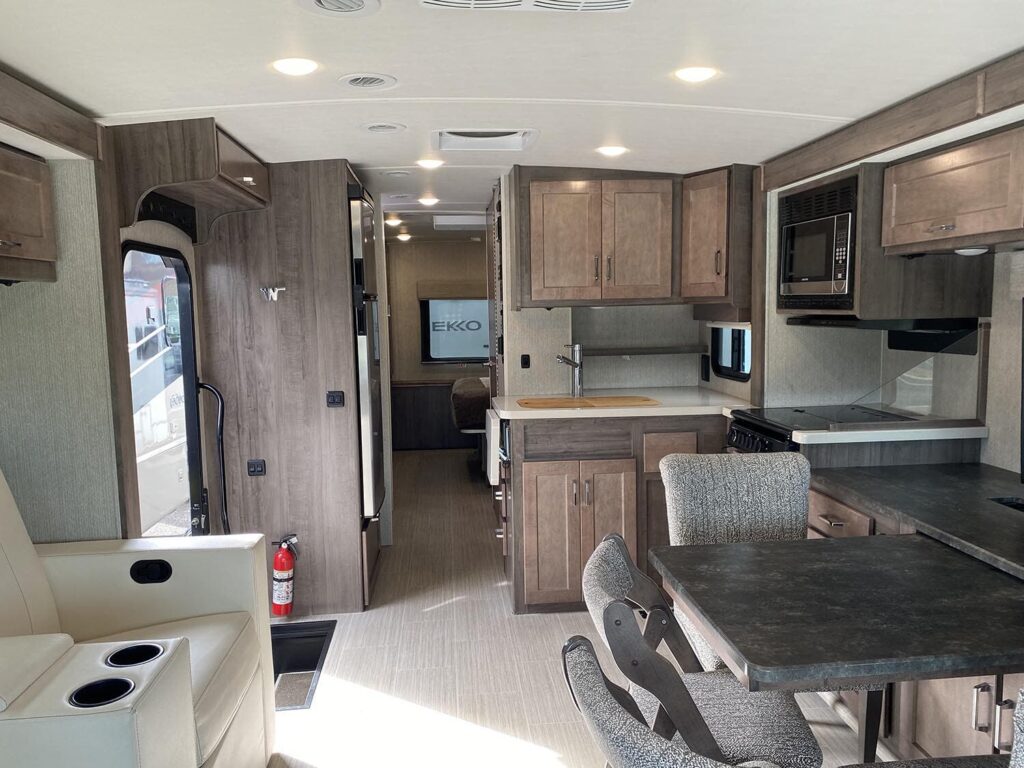

INTERIOR

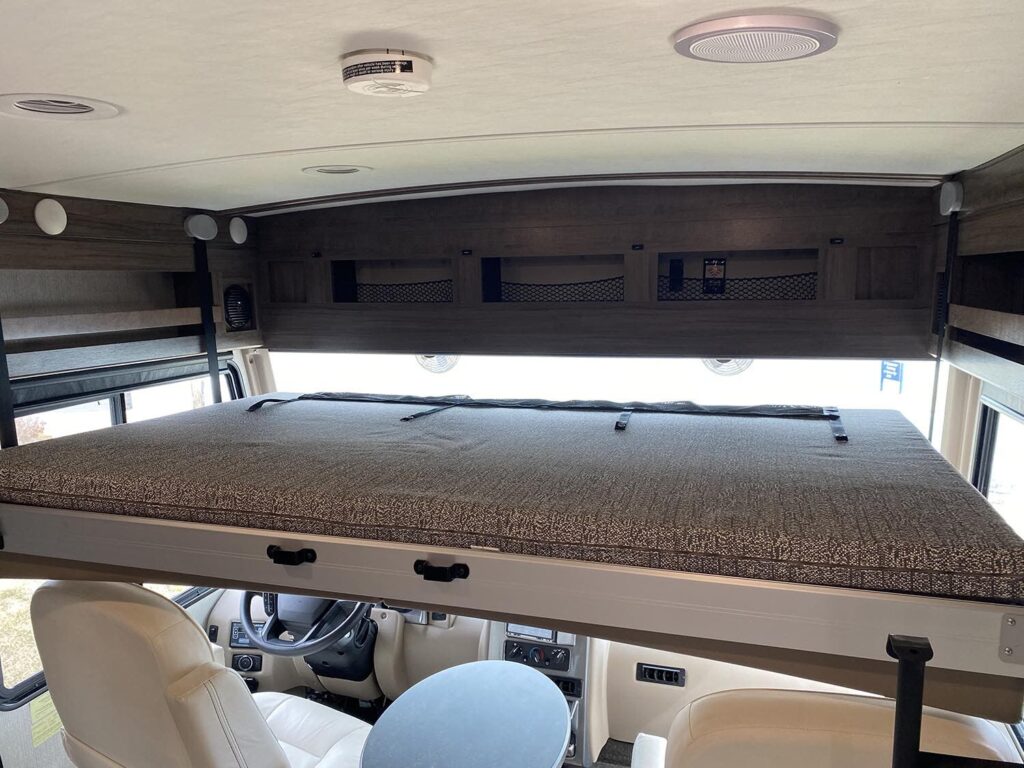

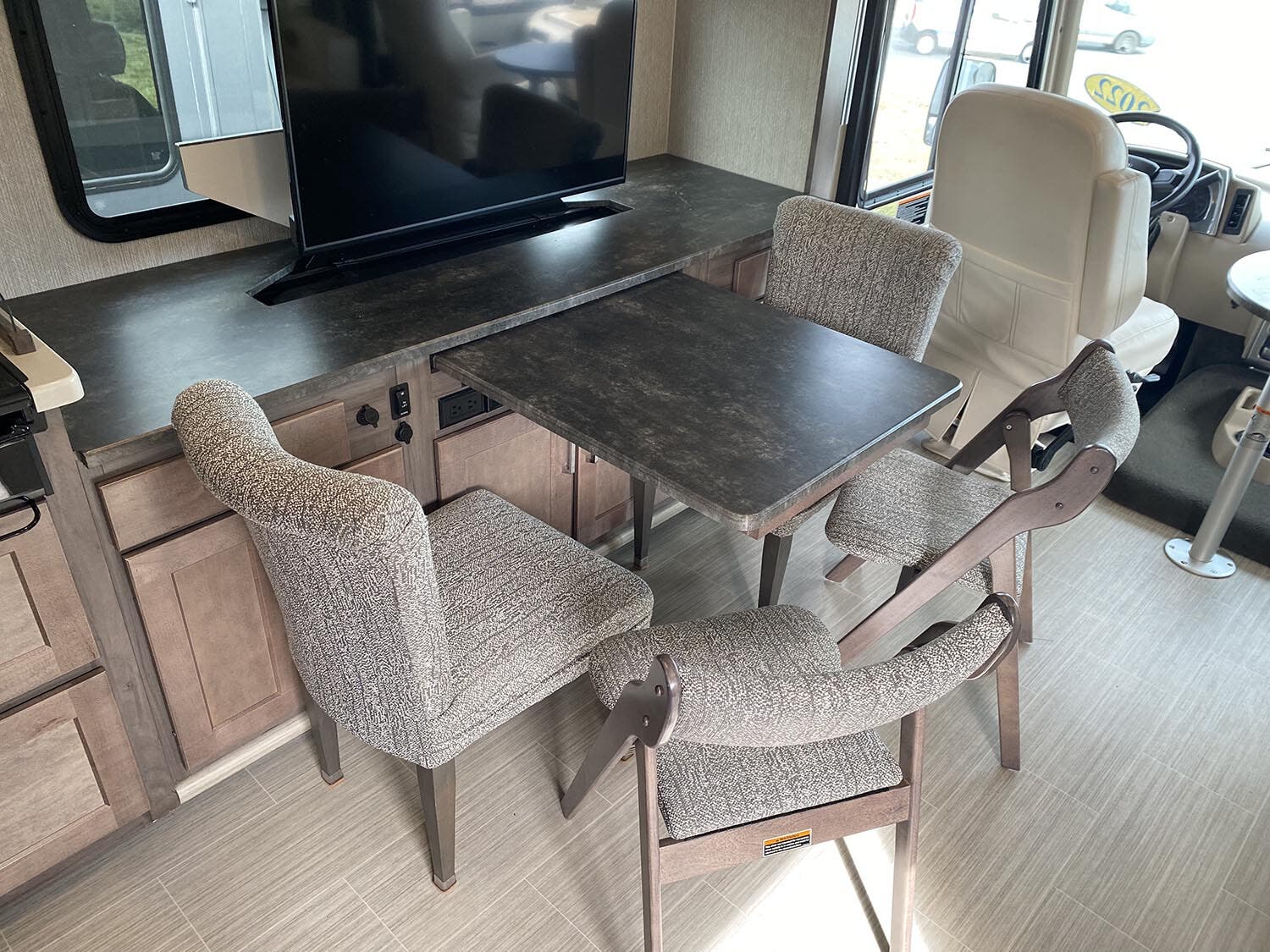

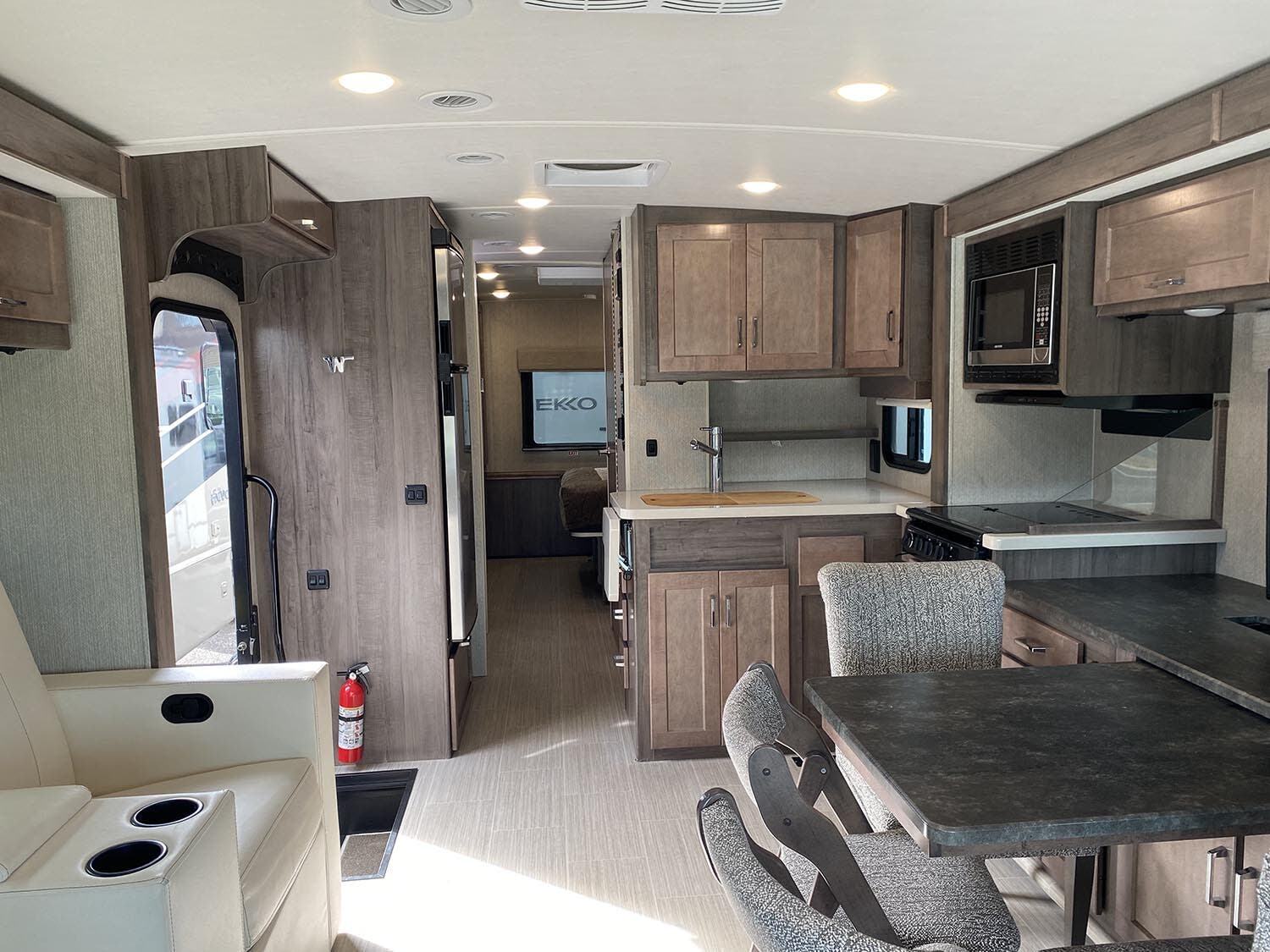

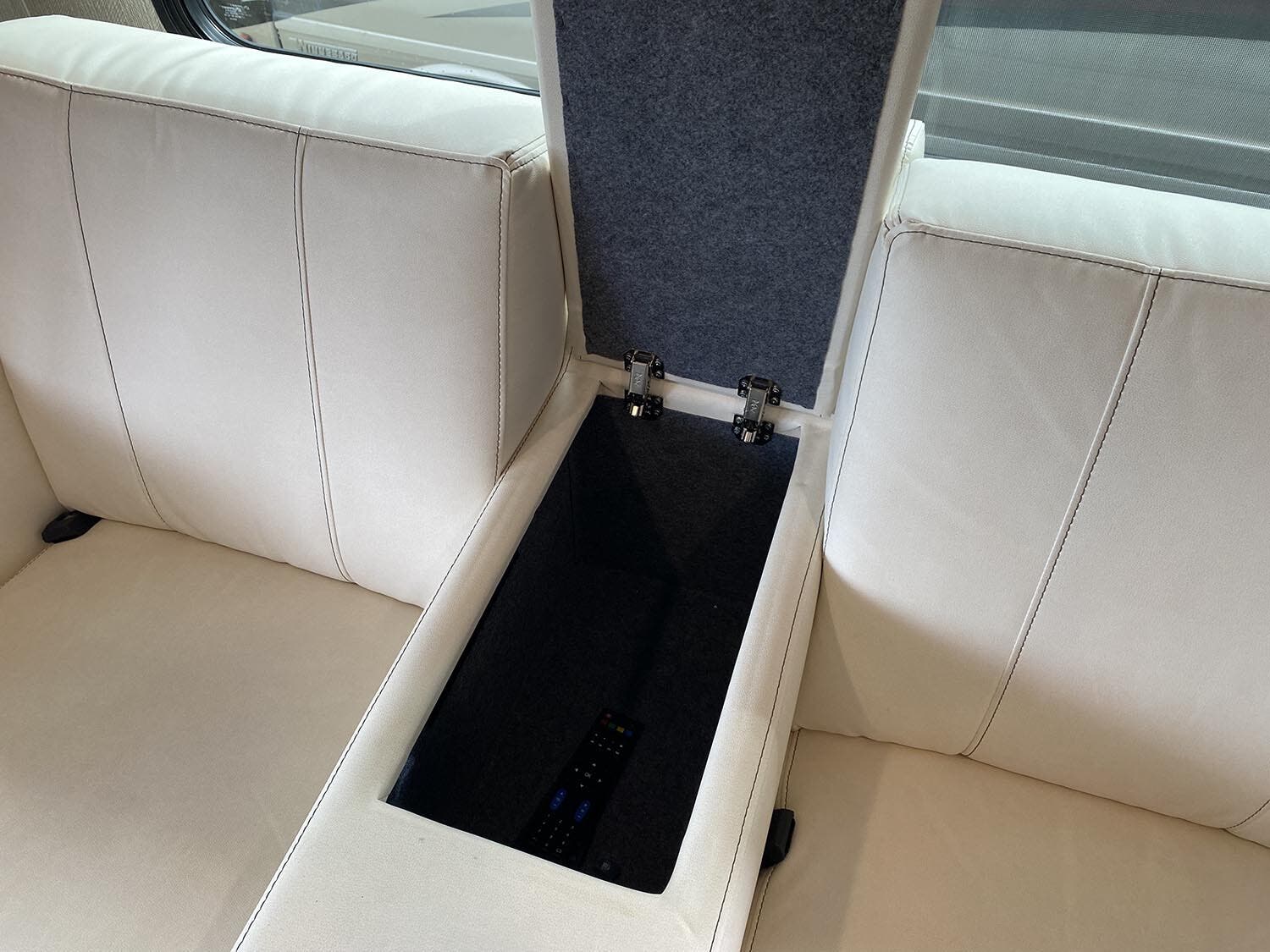

39″ HDTV (30T, 29B, 35F) • 48″ HDTV (27N, 36Z) • Omni-directional TV antenna • Electric fireplace (35F, 36Z) • LED ceiling lights • Satellite system ready • Soft vinyl ceiling • MCD solar/blackout shades • OnePlace® systems center • Tinted, dual-pane windows • Washer/dryer prep (35F, 36Z) • TrueComfort+ Sofa (30T, 36Z) • Extendable Sectional Sofa (35F) • Residential vinyl flooring throughout • USB ports in dining area • BenchMark Dinette w/Hi-Lo storage (27N, 29B, 35F, 36Z) • Dining table & chairs (30T) Optional Equipment: StudioLoft™ (powered w/ladder and LED lighting) • Theater seating (N/A 27N, 35F) • Washer/dryer combo (35F, 36Z)
GALLEY

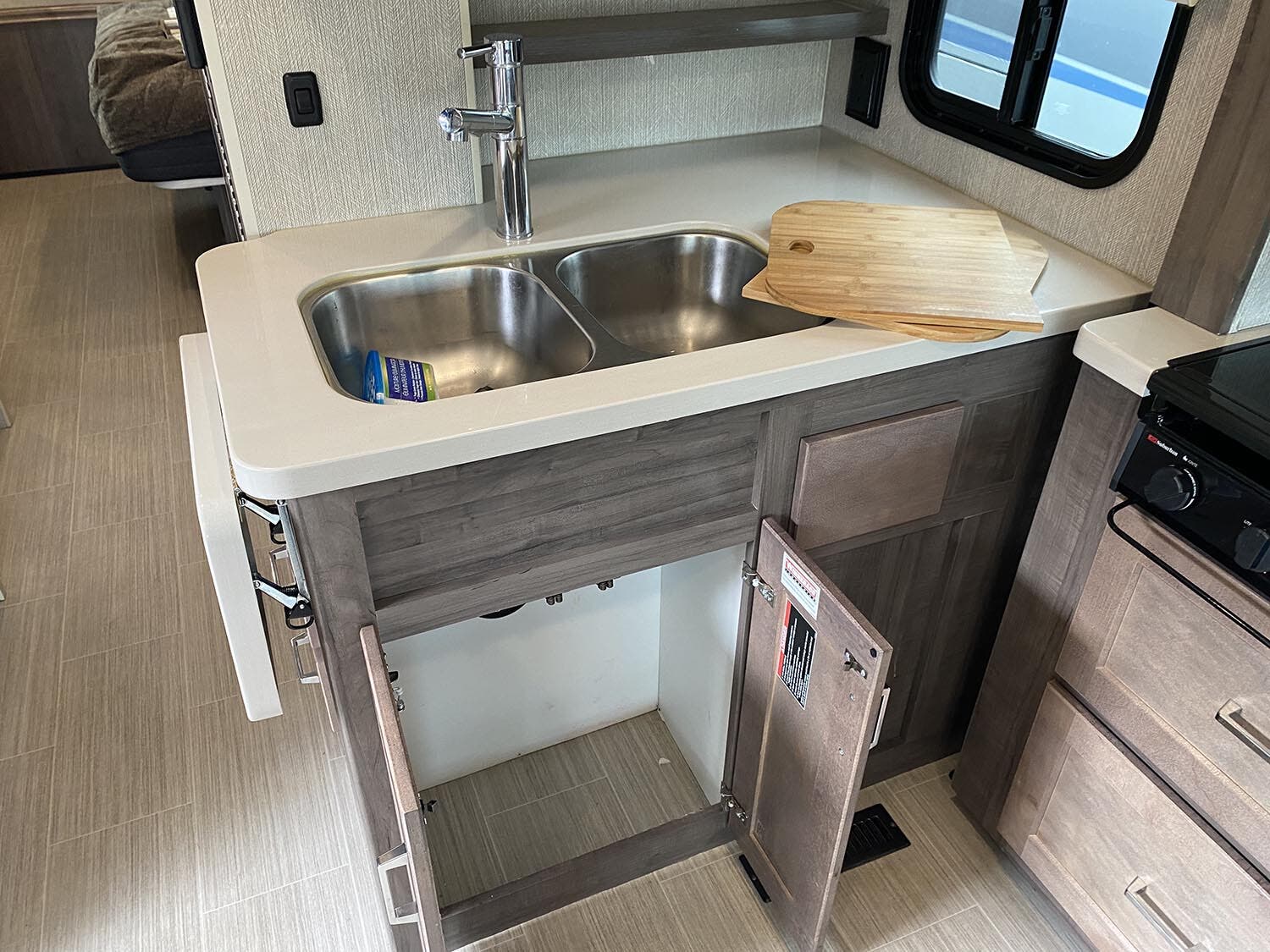

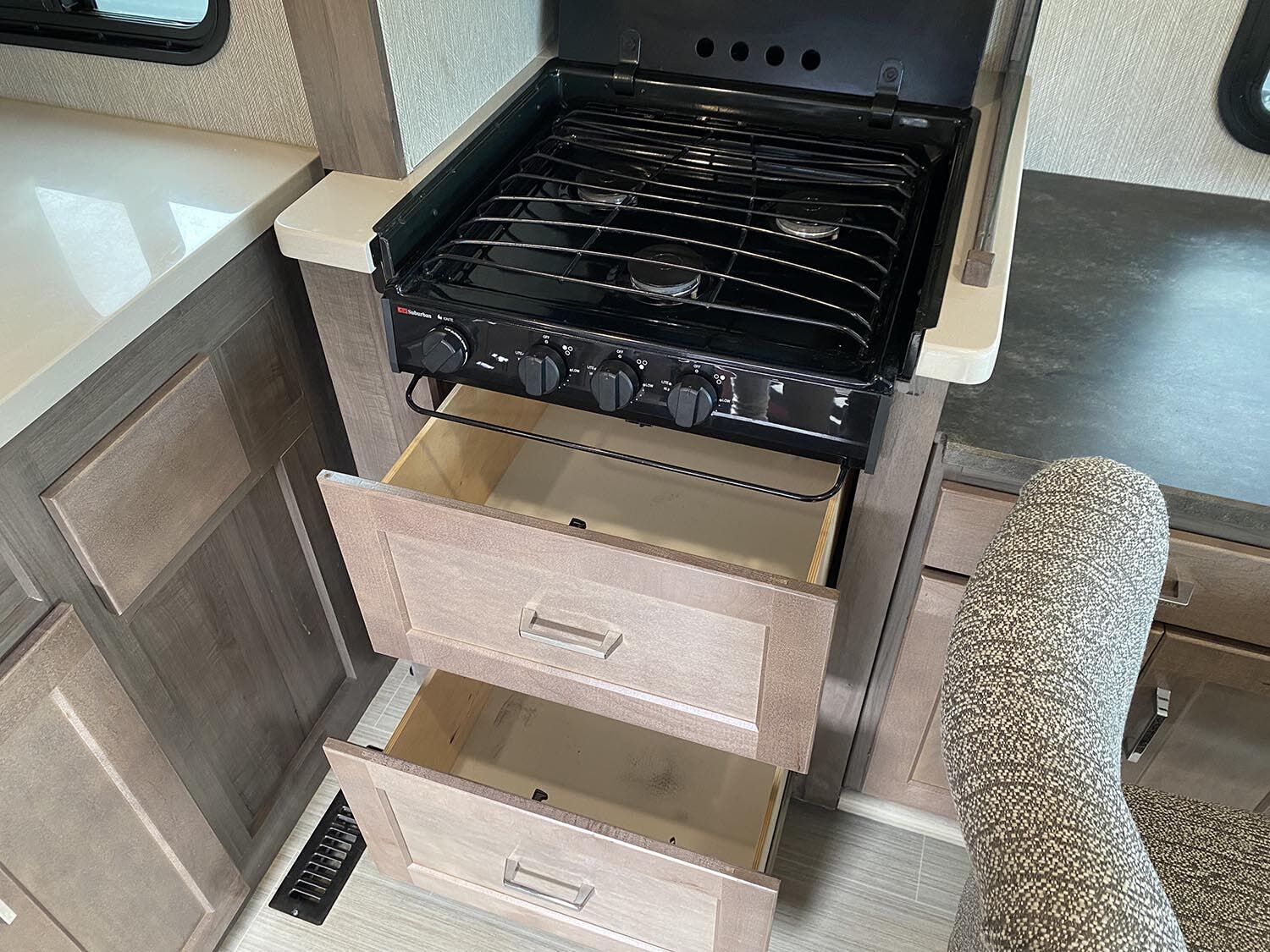

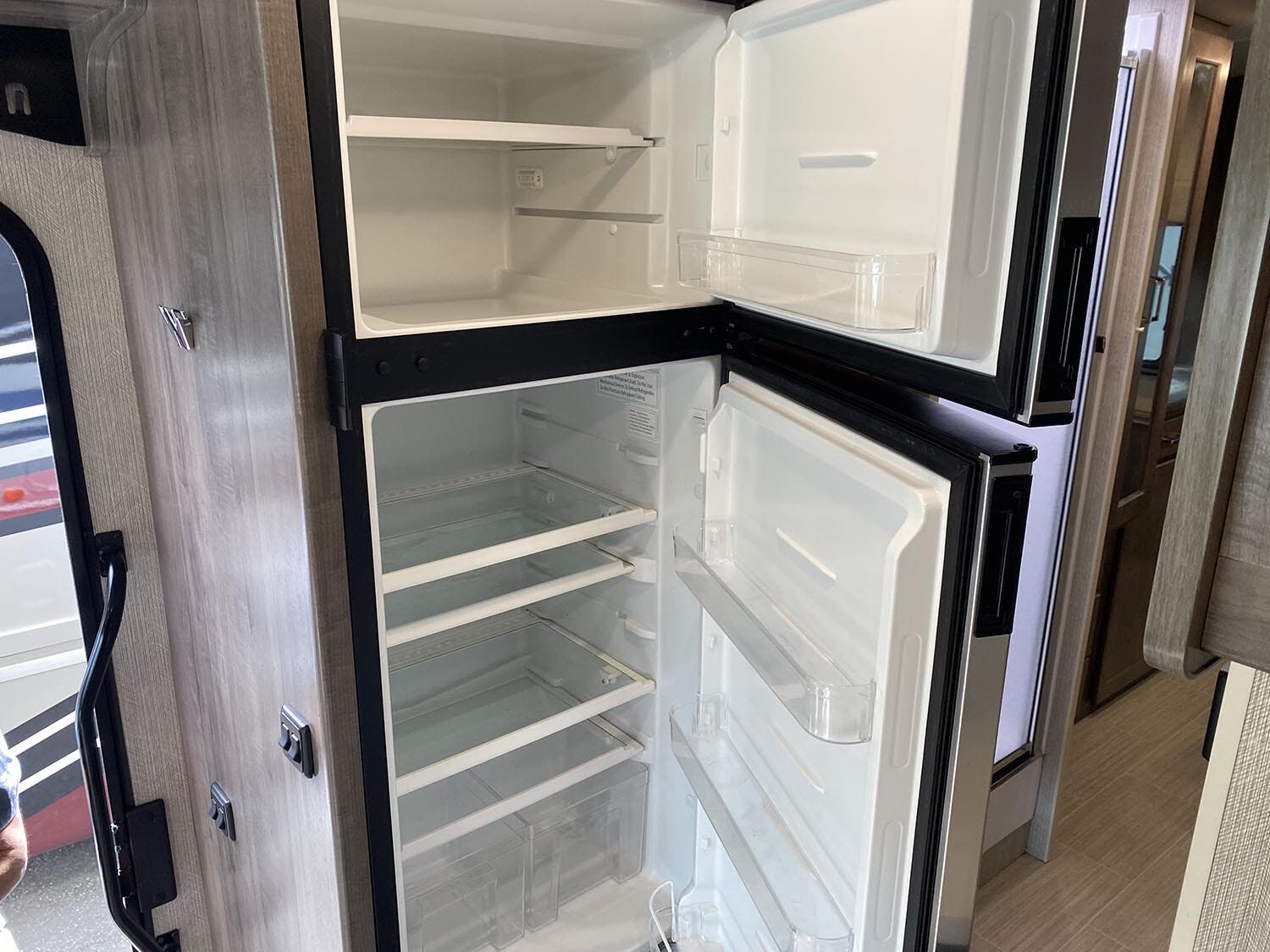

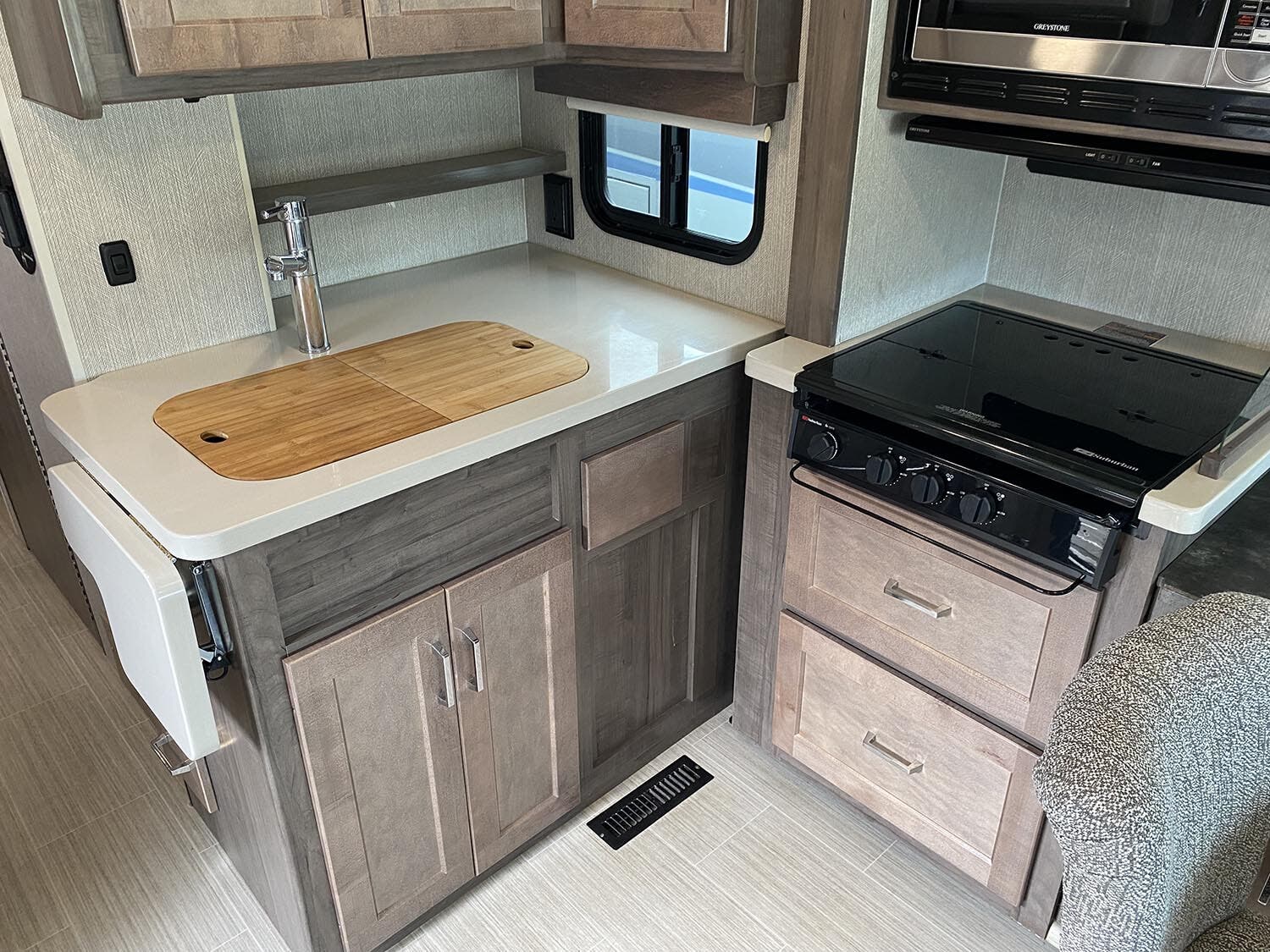

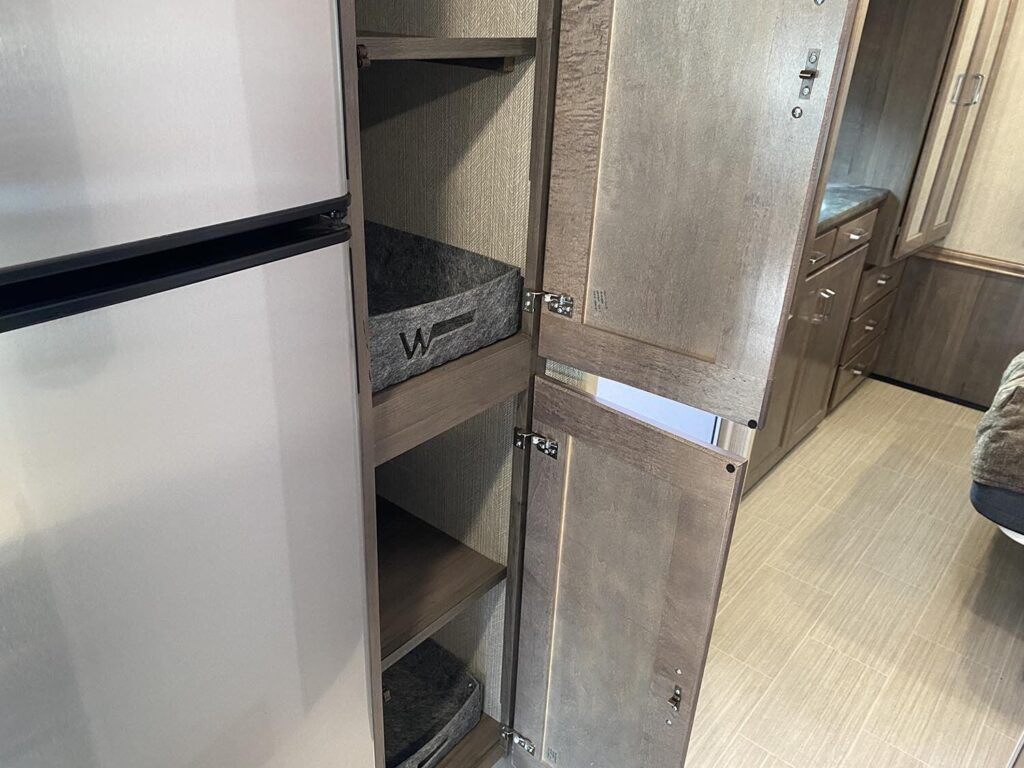

Double stainless steel sink w/ bamboo sink covers • Microwave/convection oven touch control • Recessed 3-burner range top (30T) w/storage drawer • Gas/Induction Rangetop combo (27N, 29B, 35F, 36Z) • Solid surface countertop • Flip-up countertop extension (30T, 35F) • Double door 10 cu. ft. 12VDC stainless steel refrigerator/freezer (27N, 29B, 30T) • 2-door 16 cu. ft.110VAC Residential refrigerator/freezer w/icemaker (35F, 36Z) • Pantry baskets (27N, 29B, 30T, 35F) • Cold water purification system
BATH

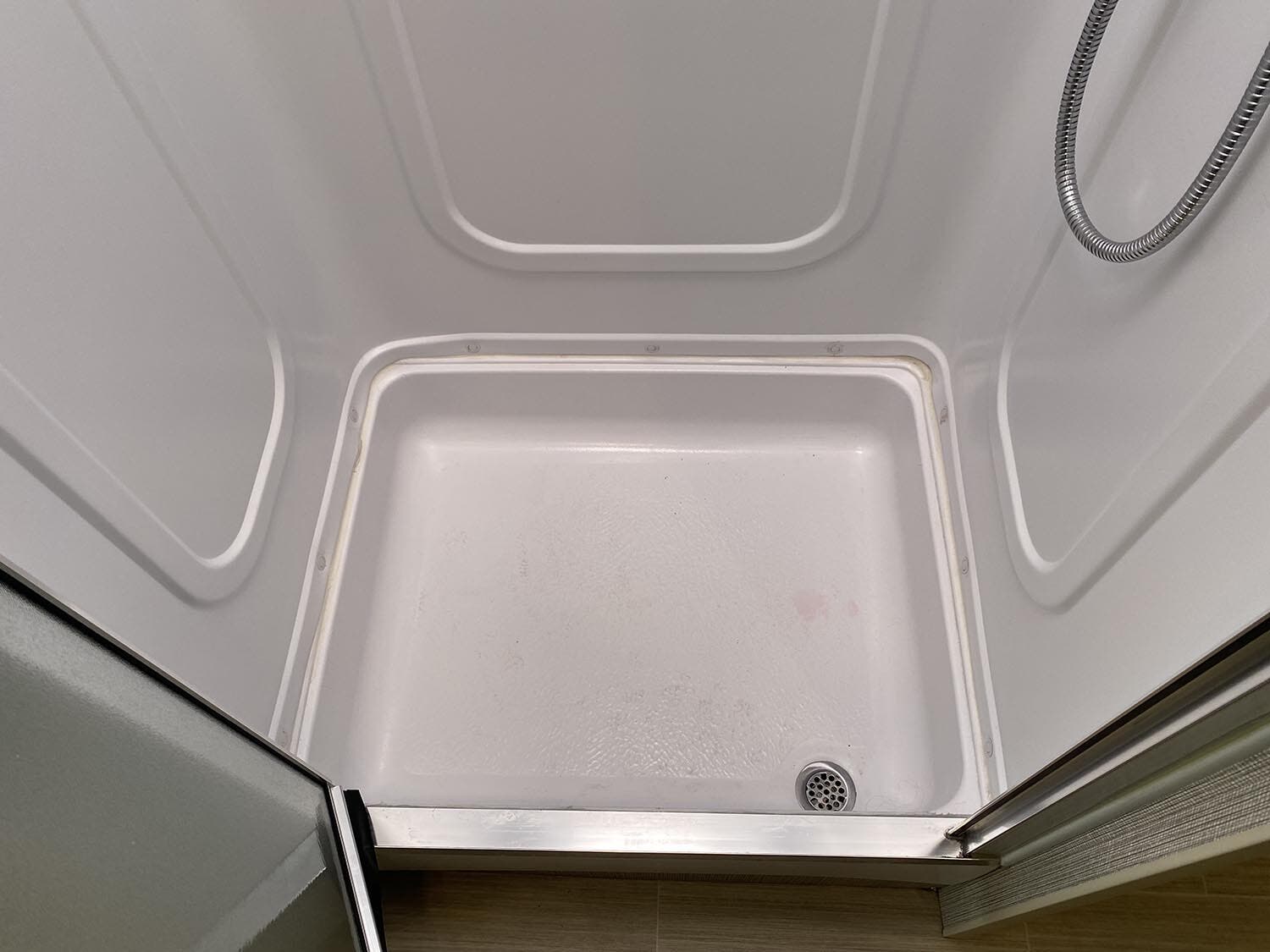

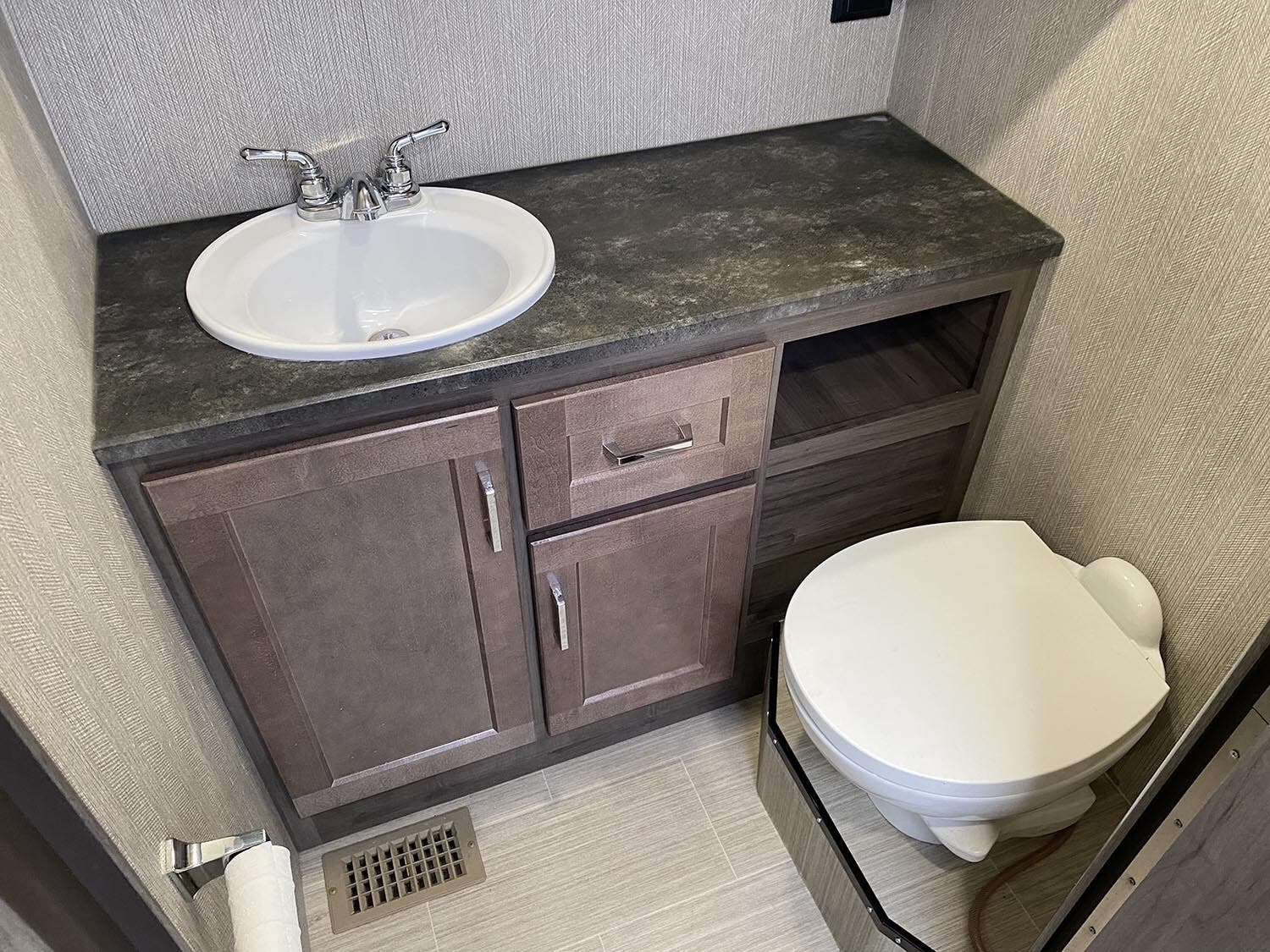

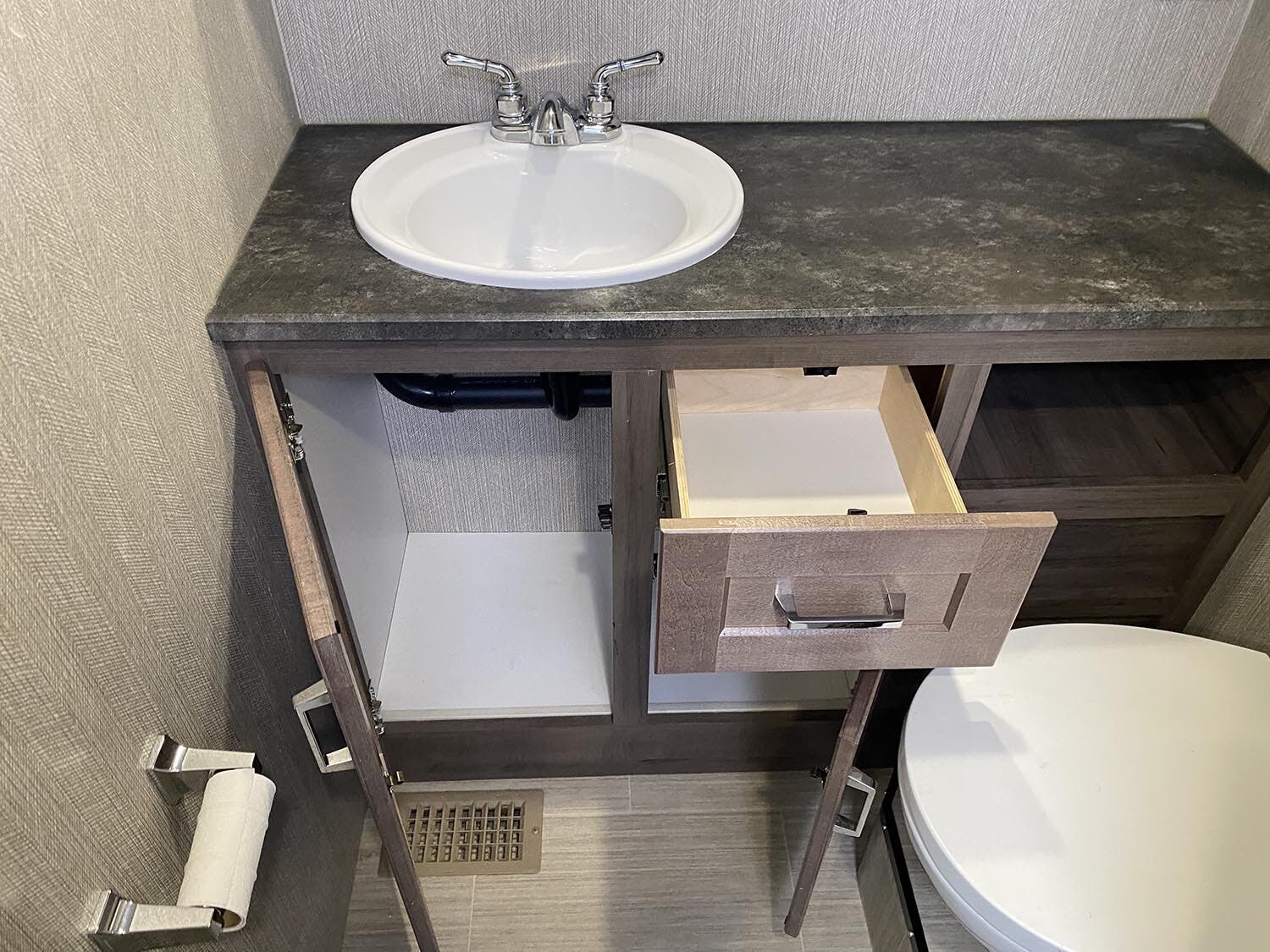

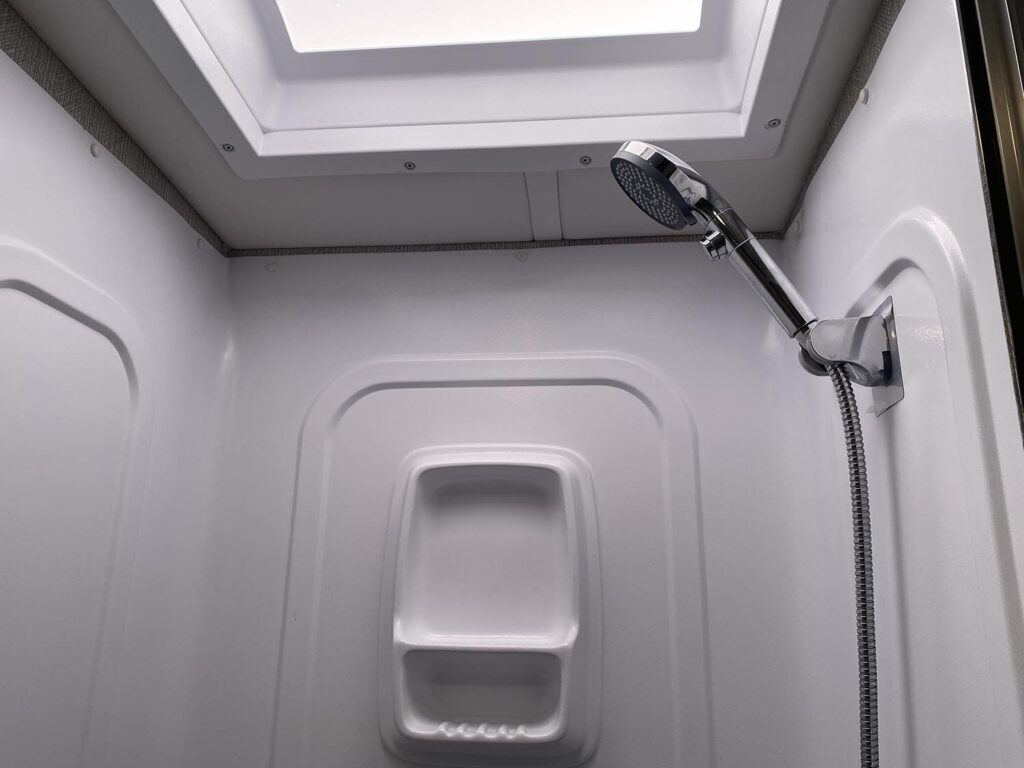

Flexible showerhead • Textured glass shower door • Skylight • Porcelain toilet w/foot pedal and sprayer • Water pump switch(es) • Medicine cabinet (29B, 30T, 36Z) • Medicine corner cabinet (35F) • Linen cabinet (27N, 36Z) • Robe hook(s) (NA 35F) • Tissue holder • Powered ventilator fan • Towel bar(s) (NA 27N) • Wall mirror (27N, 29B, 35F, 36Z)
BEDROOM

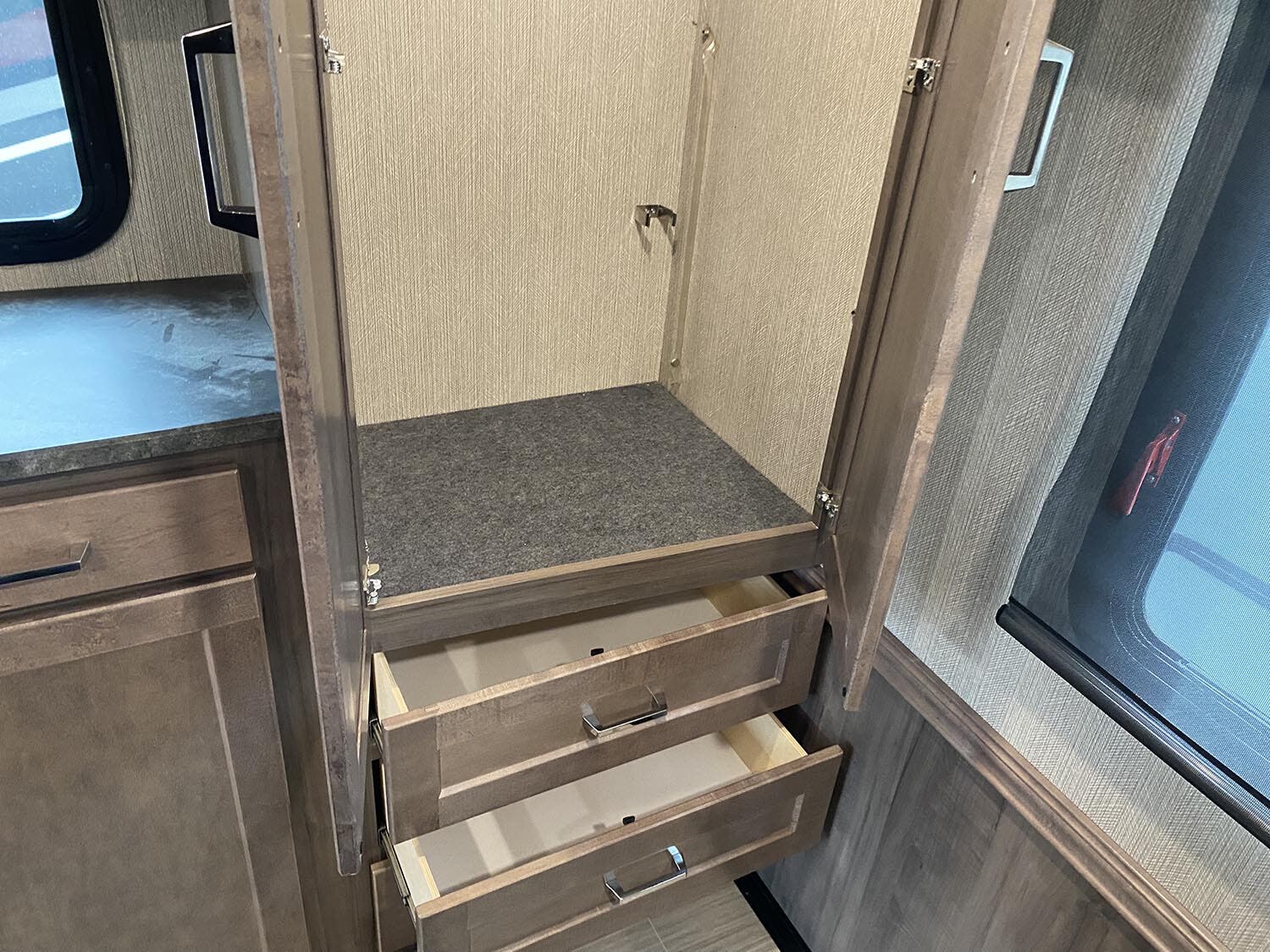

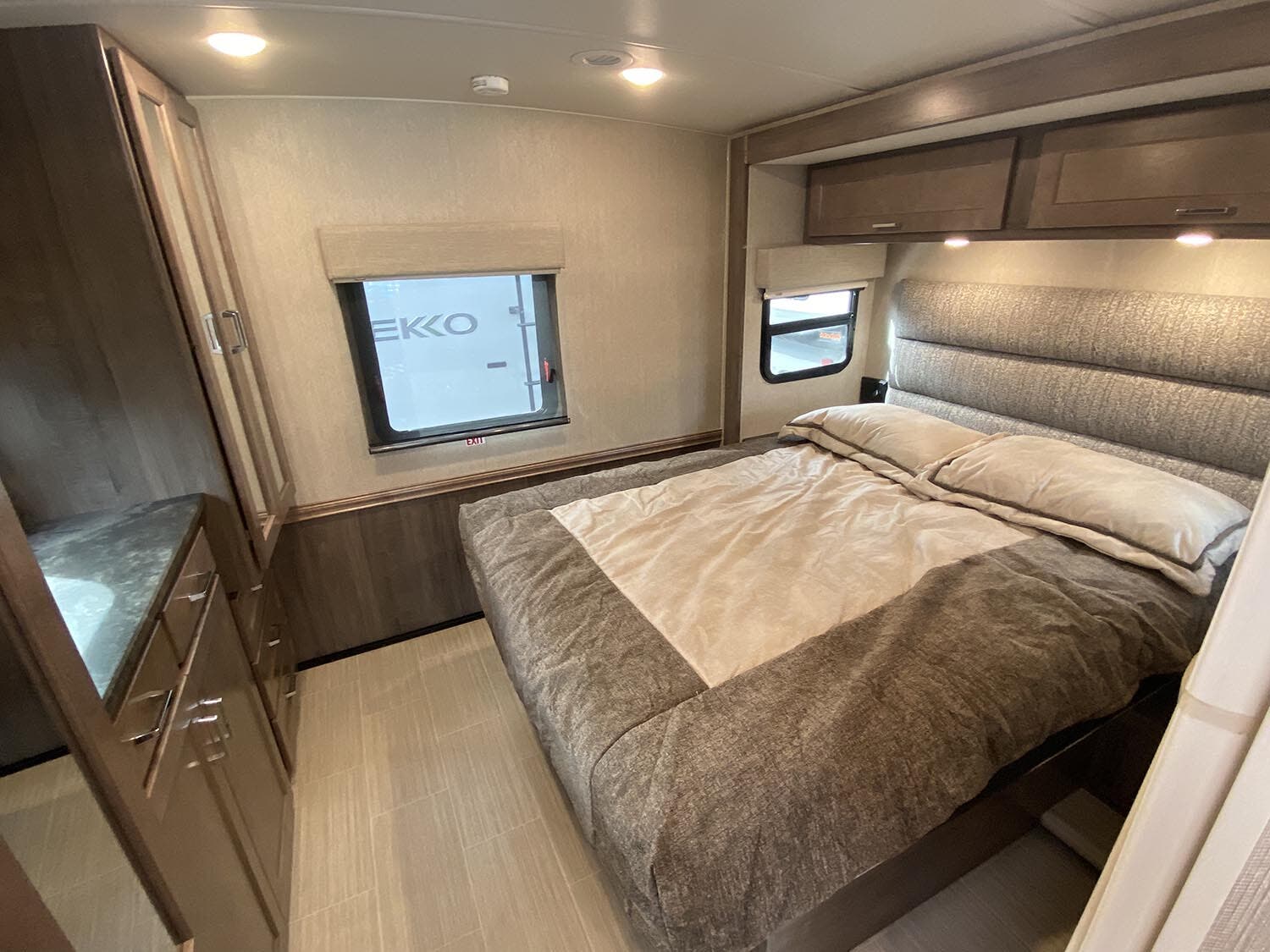

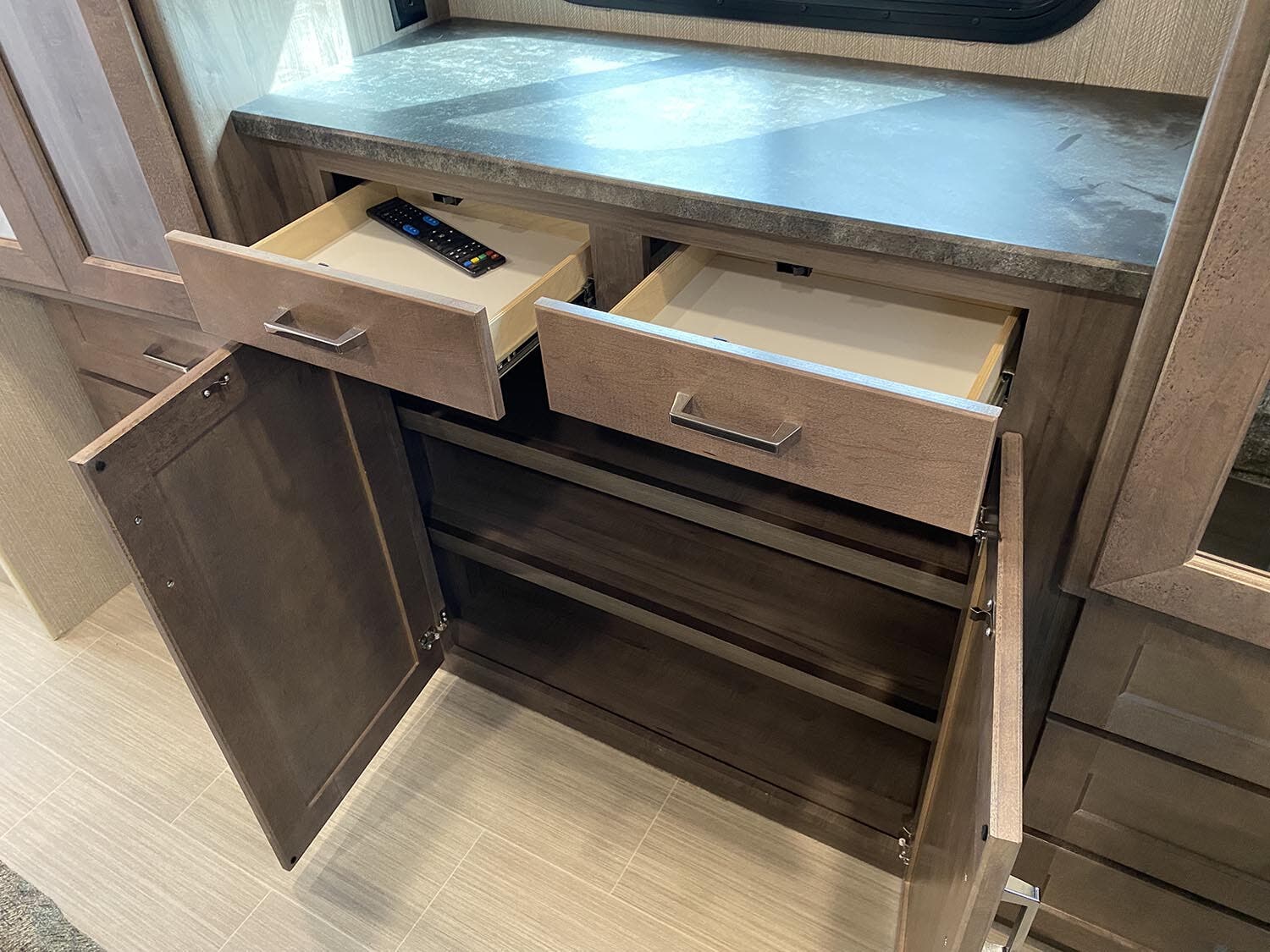

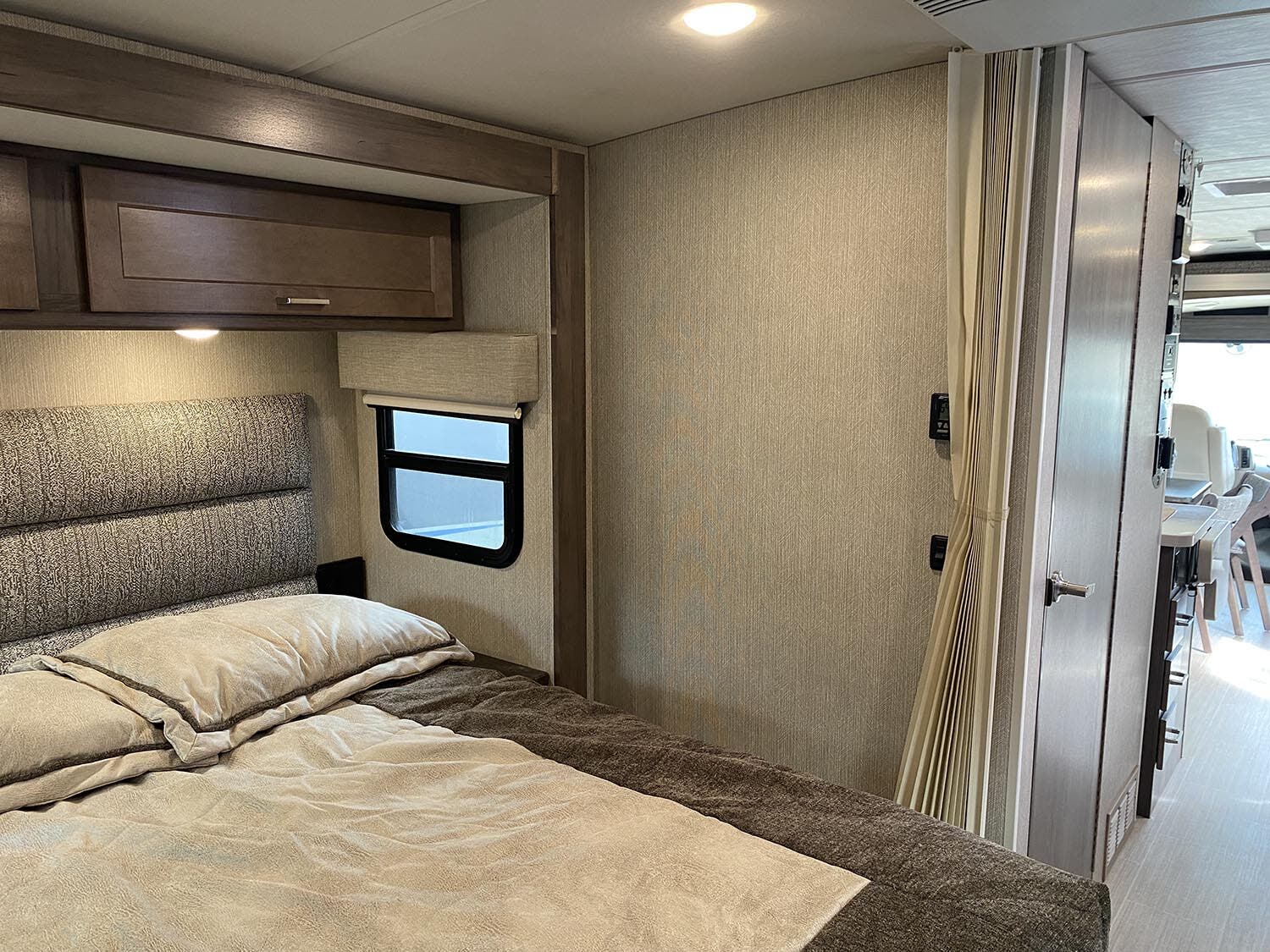

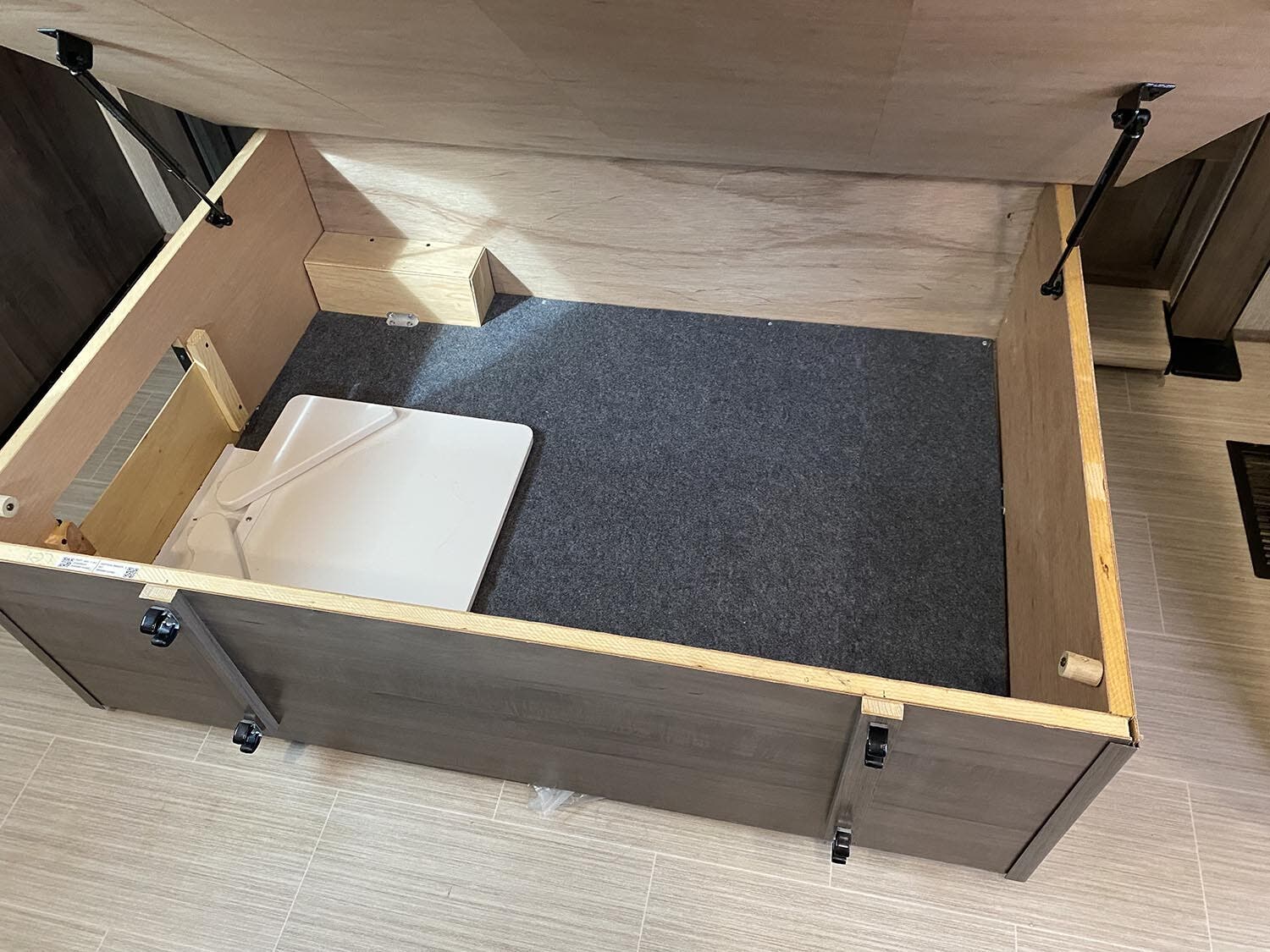

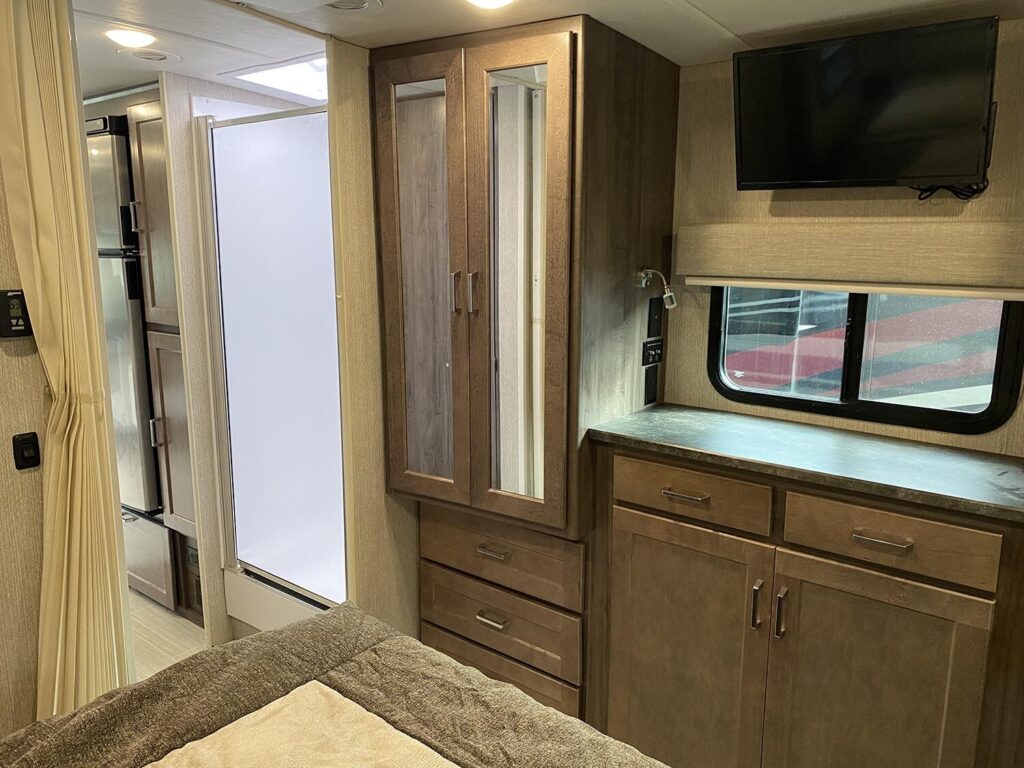

Queen bed w/foam mattress and storage below • Headboard • Wardrobe • Chest of drawers (27N) • Storage cabinet (29B, 30T, 35F, 36Z) • 24″ HDTV (27N, 29B, 30T) • 32″ HDTV (35F, 36Z) • Powered ventilator fan (27N, 36Z) • Pet Palace for pet access or storage (27N, 30T) Optional Equipment: King bed w/storage (36Z)
EXTERIOR

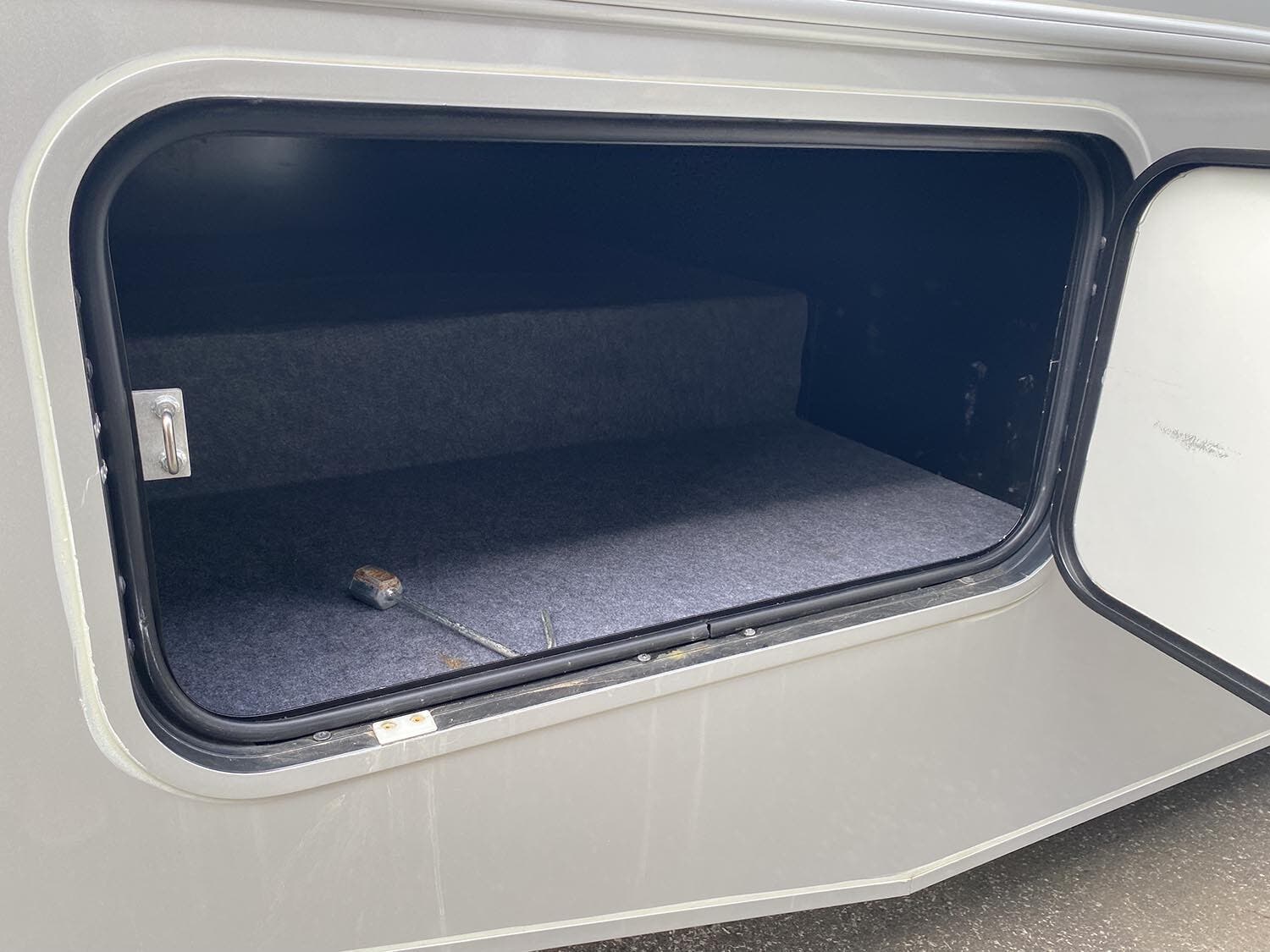

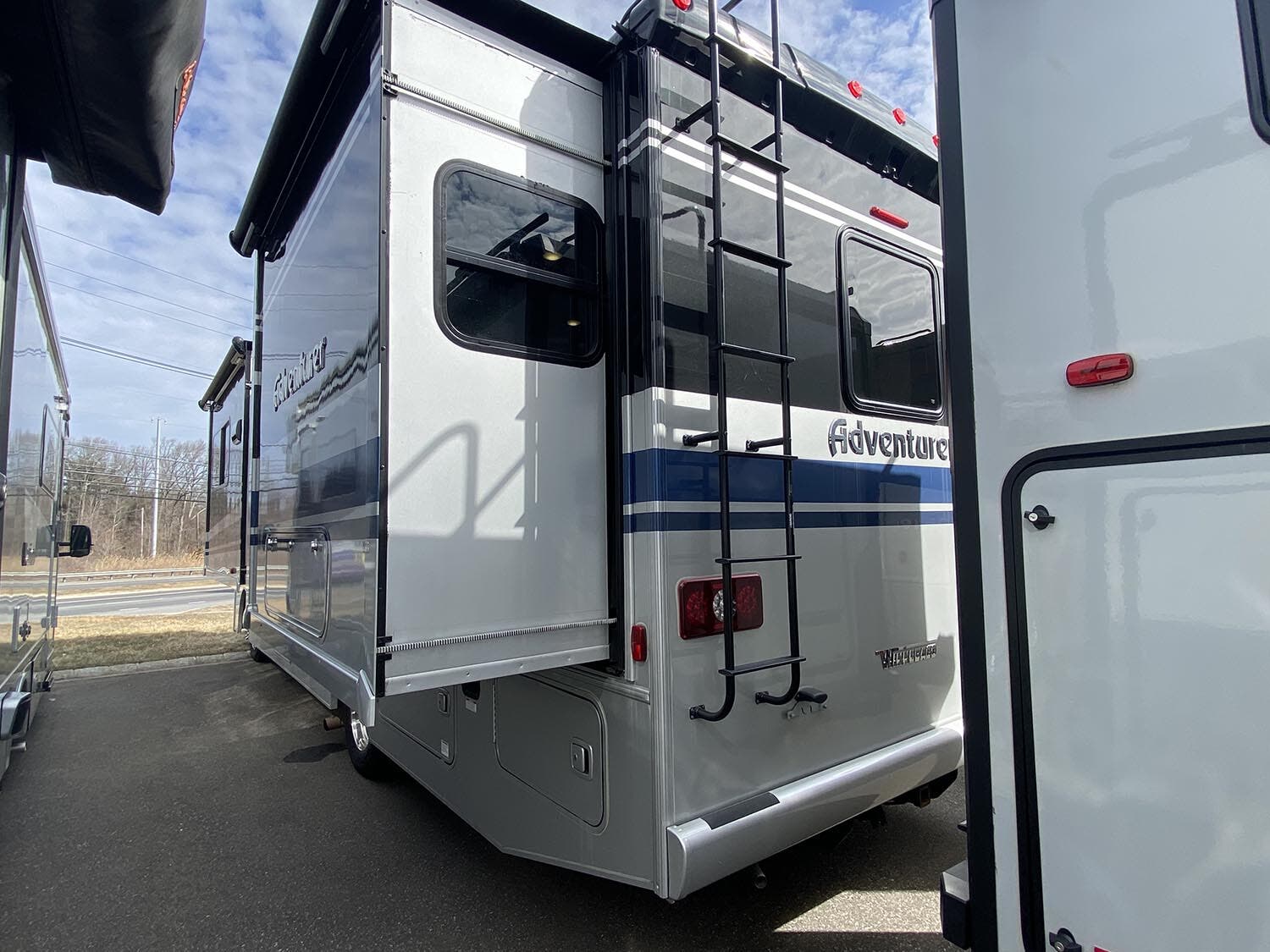

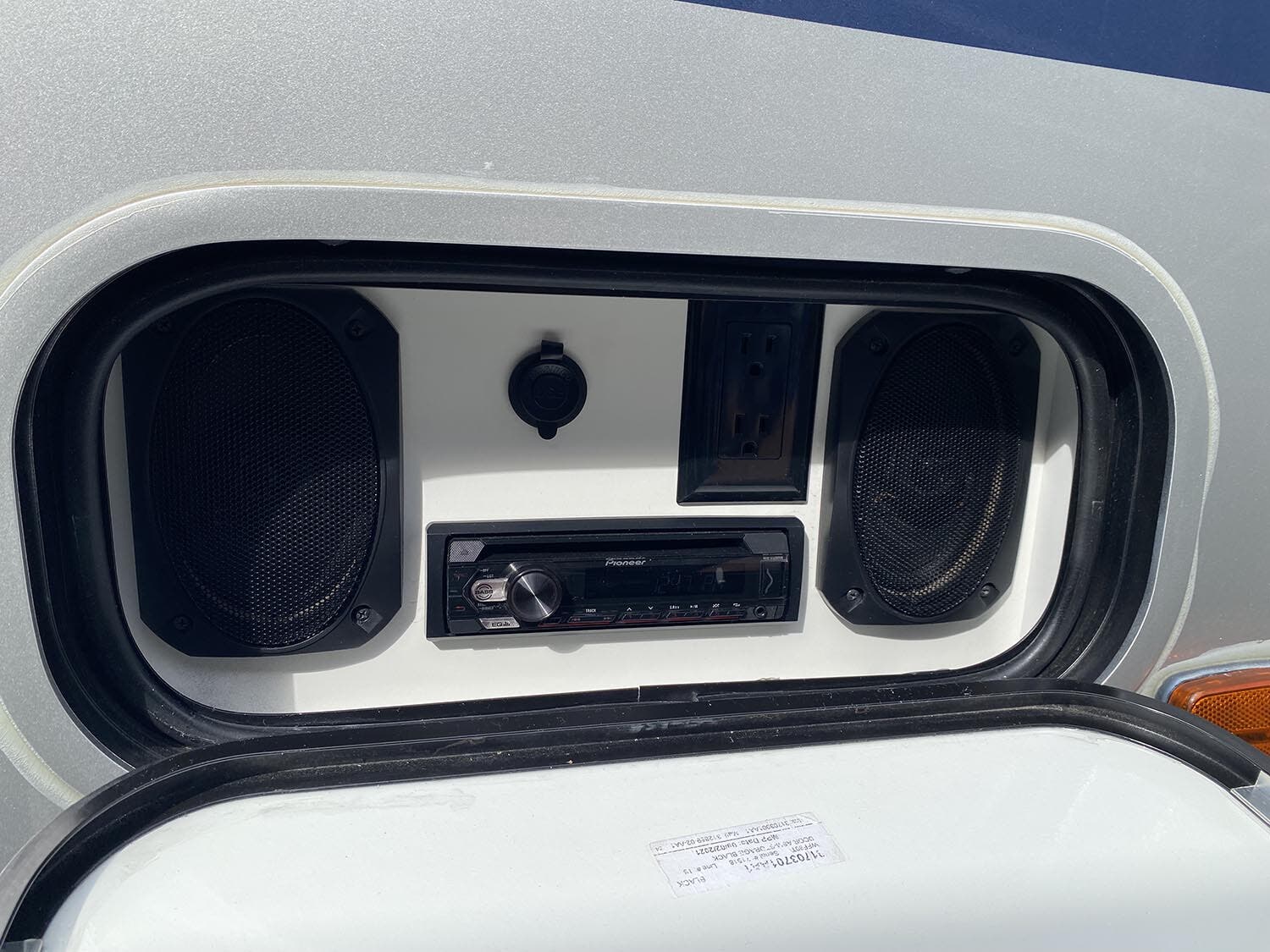

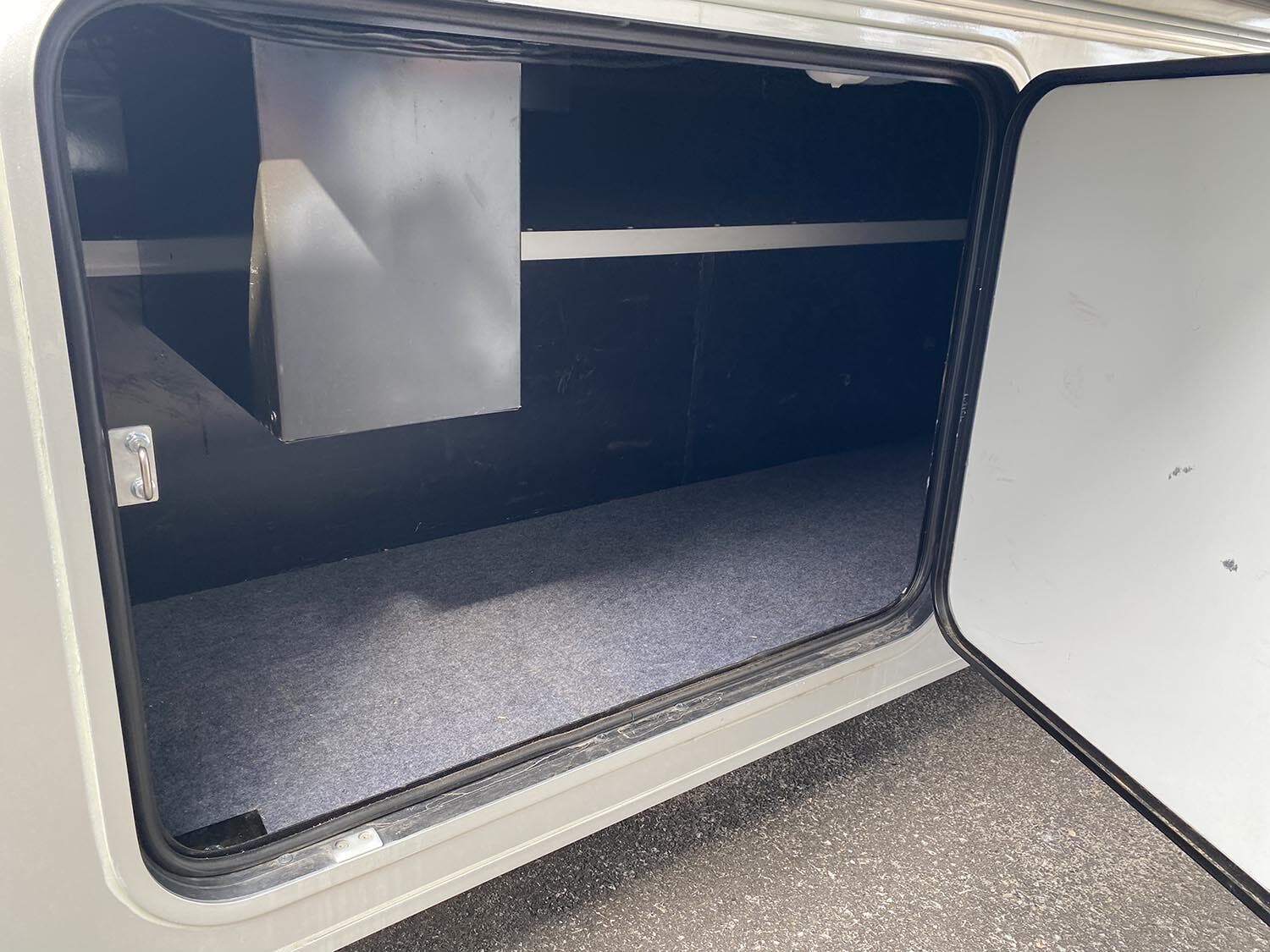

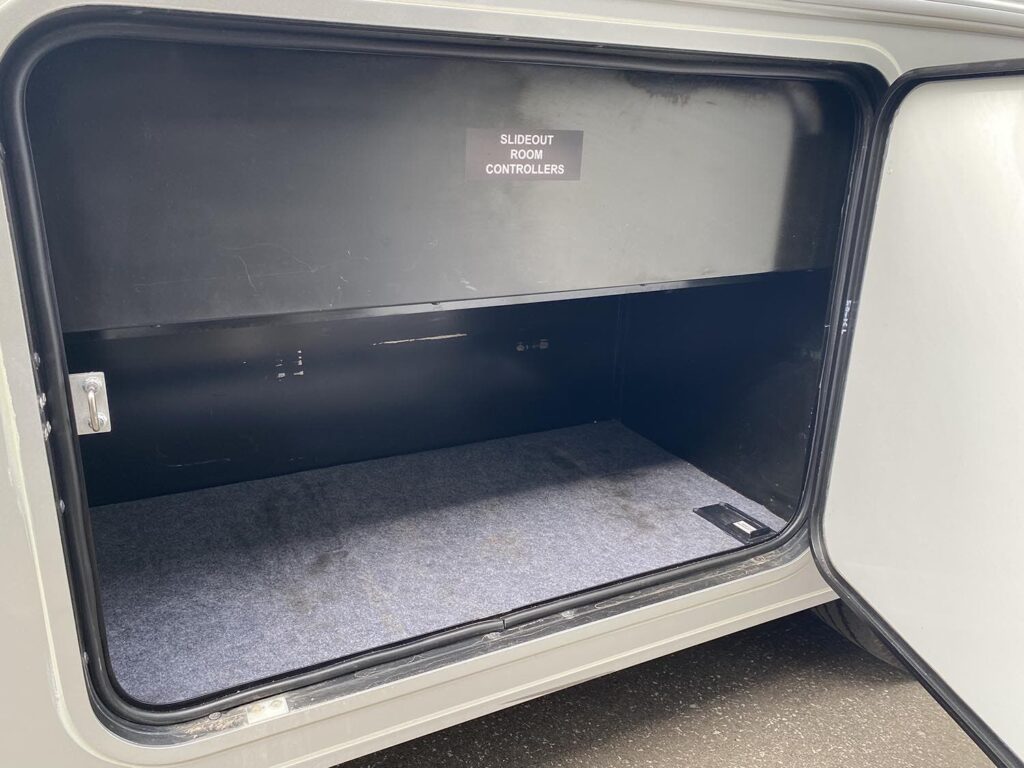

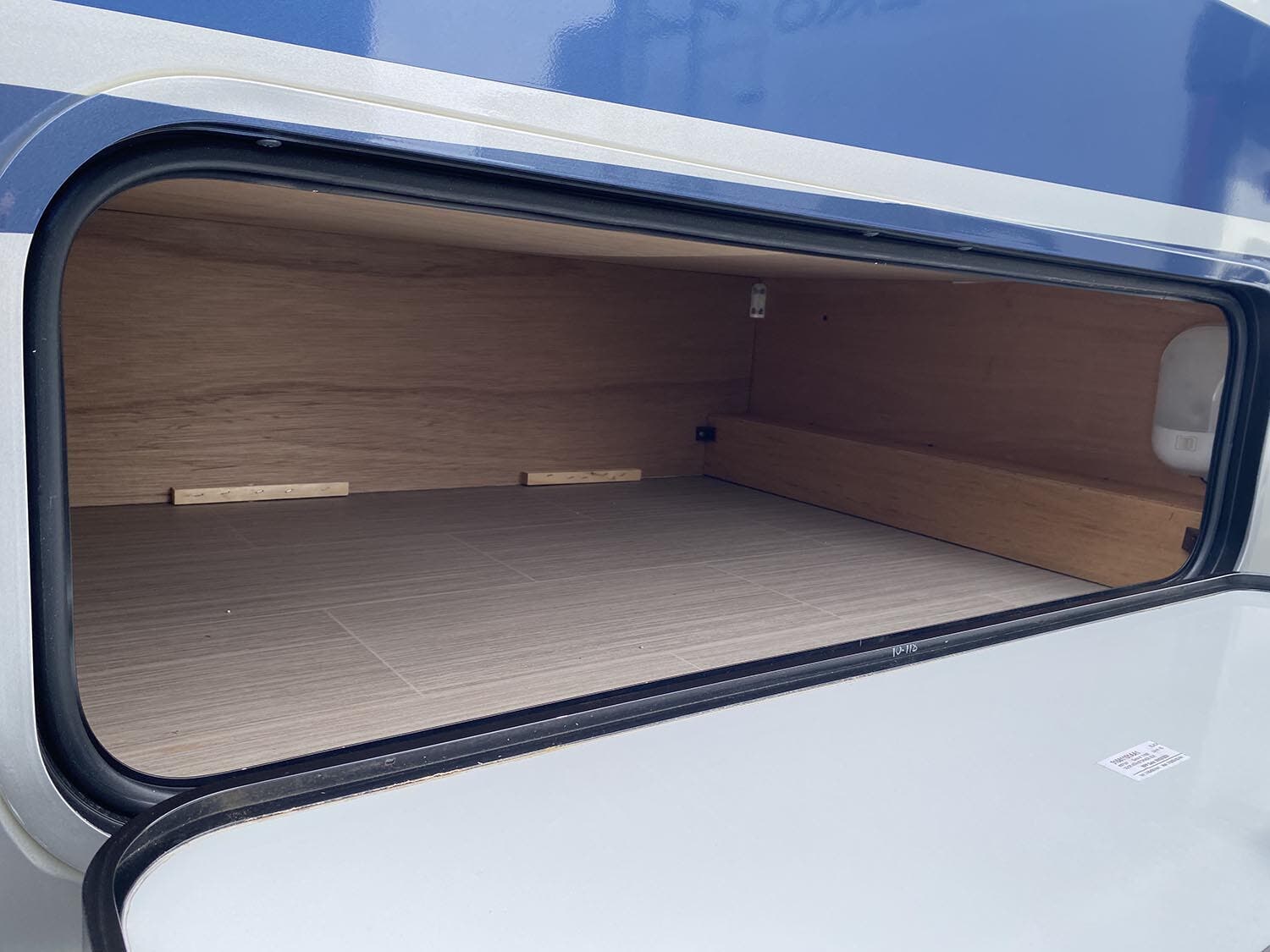

Automatic entrance door steps • Porch light • Lighted storage compartments • Premium high-gloss fiberglass skin • KeyOne™ lock system • Front mud flaps • Ladder • Powered patio awning w/LED lighting • Rearview Mirrors w/defrost & power adjust • Protective front mask • PetPal leash tie down • Assist handle • Entertainment Center 32″ HDTV, 2 speakers, DVD player, AM/FM radio (NA 30T) • Entertainment Center AC/DC receptacle, AM/FM radio, 2 speakers, removable TV table, portable satellite dish hookup (30T) • Tailgate Package refrigerator, 3-drawer cabinet, LED lights, Quick-Connect LP hose, stainless steel sink, wall-mounted bottle opener, garbage bag holder, paper towel holder (29B)
HEATING & COOLING SYSTEM
Front A/C 15,000 BTUs w/heat pump, rear A/C 13,500 BTUs • 35,000 BTU ducted furnace in-floor (27N, 29B, 30T) • 40,000 BTU ducted furnace in-floor (35F, 36Z)
ELECTRICAL SYSTEM

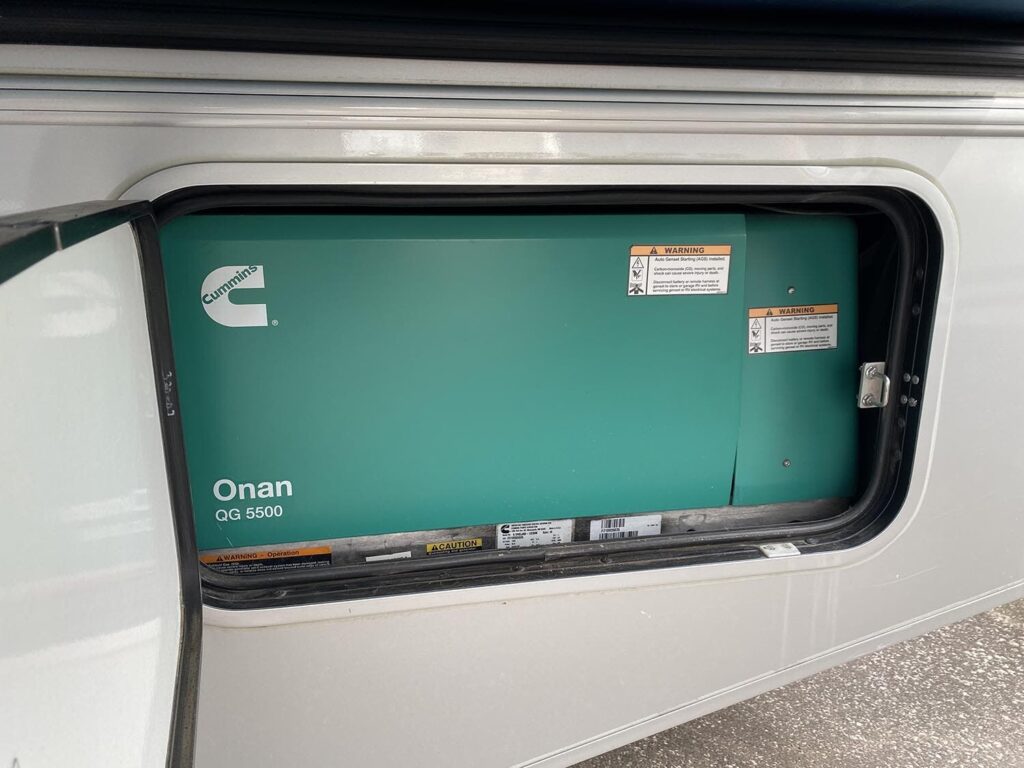

AC/DC electrical distribution system • 45-amp. converter/charger (27N, 29B, 30T) • 55-amp.converter/charger (35F, 36Z) • 50-amp. power cord • 5,500-watt Cummins Onan® Marquis Gold™ gas generator • Automatic generator start system • Generator/shoreline automatic changeover switch • 2 deep-cycle, Group 31 Marine/RV batteries (27N, 29B, 30T) • 4 deep-cycle, Group 31 Marine/RV batteries (35F, 36Z) • Battery disconnect systems (coach and chassis) • PowerLine® Energy Management System • Automatic dual-battery charge control • Auxiliary start circuit • Exterior antenna jack and AC duplex receptacle • 1,000-watt inverter (27N, 29B, 30T) • 2,000-watt inverter/charger (35F, 36Z) • Cable TV input • Portable satellite dish hookup • Wi-Fi Prep Kit • Solar panel/battery charger prep kit Optional Equipment: Solar panel battery charger
PLUMBING SYSTEM

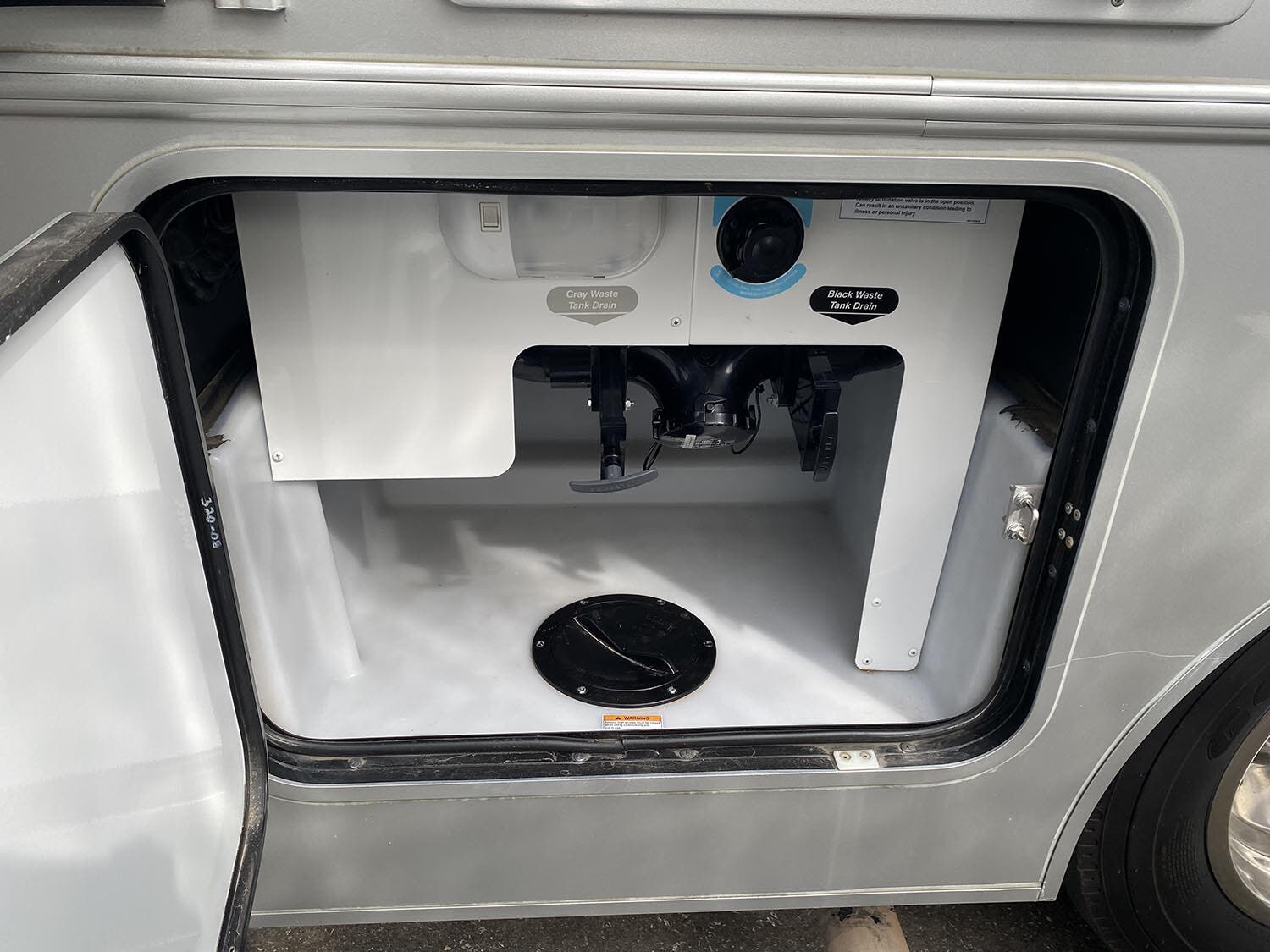

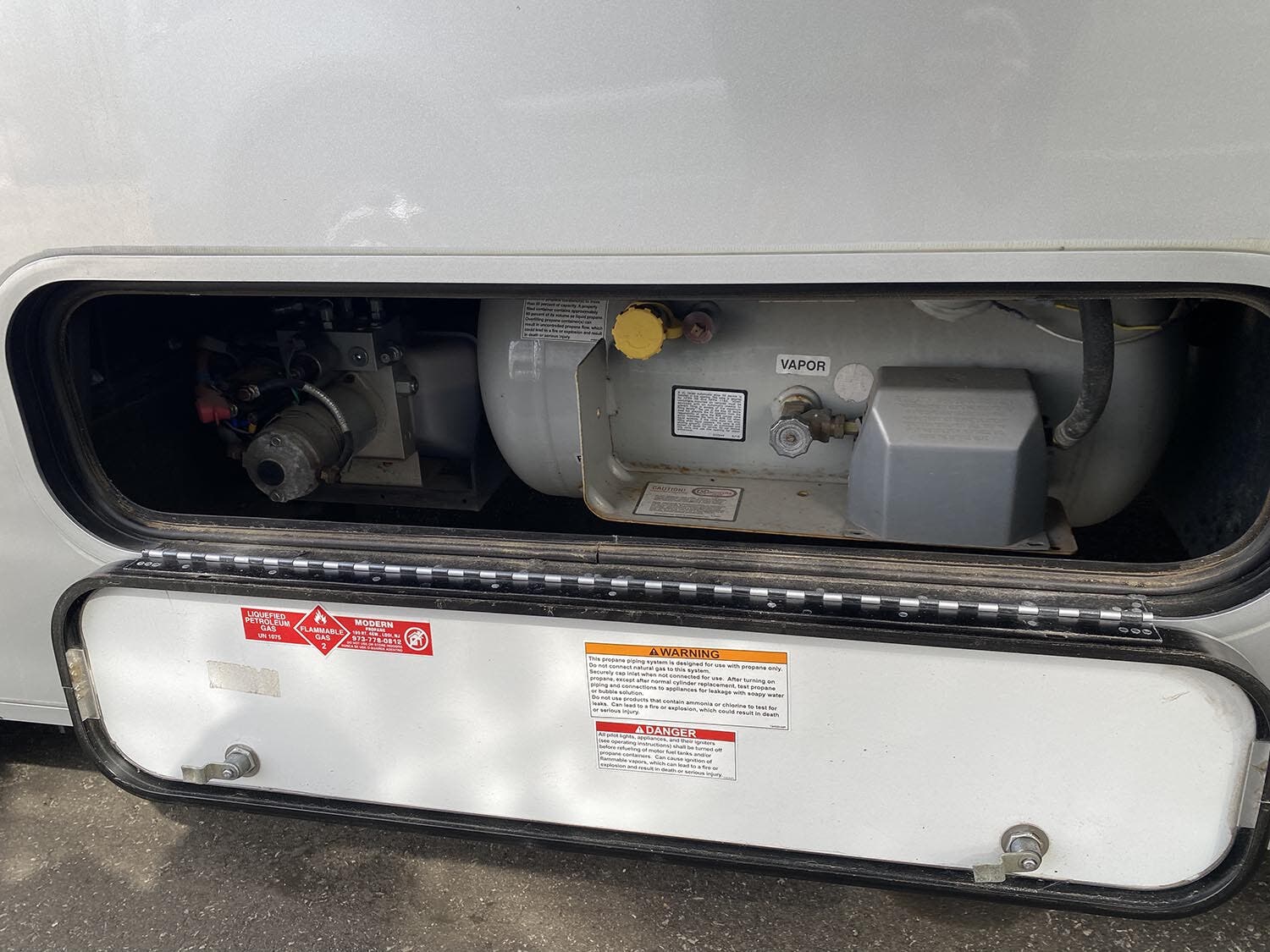

Service center color-coded labels, pressurized city water hookup w/diverter valve, drainage valves, 10′ sewer hose, QuickPort® service connection hatch, exterior wash station w/lighted pump switch, sewage pump macerator • Permanent-mount LP tank w/gauge • On-demand water pump • TrueLevel™ holding tank monitoring system • Winterization Package water heater bypass valve and siphon tube • Heated holding tank compartment • 6-gallon 110-volt/LP water heater (27N, 29B, 30T) • 10-gallon 110-volt/LP water heater (35F, 36Z) • Gravity water tank fill w/lockable door (36Z) • Holding tank flushing system • LPG accessory connection (patio area) • Water system filtration package SAFETY Child seat tether anchor in forward-facing dinette seat (27N, 29B, 35F, 36Z) • LP, smoke, and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • High-mount brake lamp
