Weights & Measures

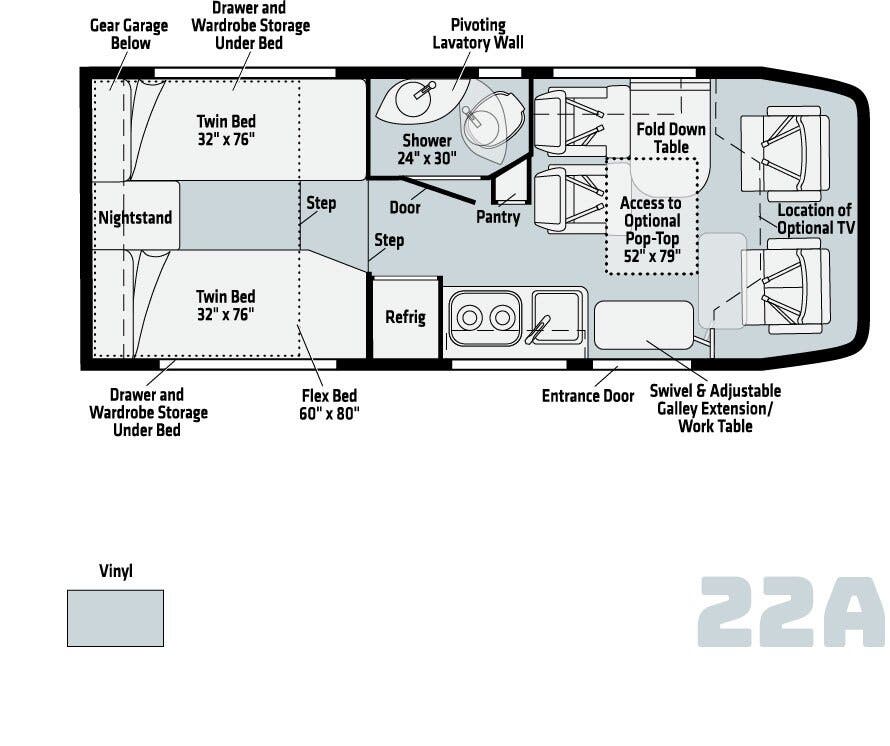

22A | |
---|---|
Exterior Length | 23’2″ |
Exterior Height | 10’6″ |
Exterior Width | 7’2.5″ |
Exterior Storage (cu. ft.) | 65.3* |
Awning Length | 13′ |
Interior Height | 6’8″ |
Interior Width | 6’9″ |
Freshwater Tank Capacity (gal.) | 50 |
Water Heater Capacity (gal.) | Continuous |
Holding Tank Capacity — Black (gal.) | NA |
Holding Tank Capacity — Gray (gal.) | 51 |
LP Capacity (lbs.) | 40 |
Fuel Capacity (gal.) | 31 |
GCWR (lbs.) | 15,000 |
GVWR (lbs.) | 11,000 |
GAWR – Front (lbs.) | 4,630 |
GAWR – Rear (lbs.) | 7,275 |
Wheelbase | 156″ |
Cassette Toilet Capacity (gal.) | 5 |
Sleeps | 4 |
CHASSIS
Ford® AWD Transit Chassis • 3.5L EcoBoost® V6 gas engine, 10-speed automatic Selectshift® transmission with overdrive • 4-wheel anti-lock disc brakes • High-intensity discharge (HID) headlamps • Trailer hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector • Stylized performance wheels • Spare tire
CAB CONVENIENCES
Radio/Rearview monitor system 8″ colored multi-function touchscreen with SYNC®3, navigation, AM/FM stereo with HD/SiriusXM® capability, Apple CarPlay®, Android Auto™, Bluetooth®, dual USB ports and integrated rear camera display • FordPass™ Connect • Cab seats armrest, fixed lumbar support, headrest, recline, slide and swivel • Airbags driver, passenger • 3-point seat belts • 2 cab seat lounge cushions • Power door lock w/remote control • Power windows • Power mirrors w/defrost and turn signals • Power assist steering w/tilt wheel • Adaptive cruise control • Lane-keeping assist • Pre-collision assist w/Automatic Emergency Braking (AEB) • Driver alert • Automatic rain-sensing wipers • Wiper activated headlamps • Auto headlamps w/high beam control • Blind spot monitoring • Tire pressure monitoring system • Sunvisors • Cab mat • Front wraparound curtain • Thermal cab divider wall panel
INTERIOR
LED ceiling lights • Tinted dual-pane euro acrylic windows w/cassette shades • Dinette seating w/3-point seat belts • Pull-up/fold down table • Color touchscreen systems monitor panel • Vinyl flooring throughout • Satellite system ready • Amplified digital HDTV antenna • Roof wiring access port • Assist bar • RAM® Tough-Track™ Mount (dinette overhead) • 110V, 12V, USB charging ports • Deluxe powered ventilator fan w/remote • Overhead accent lighting
Optional Equipment: Entertainment system smart Blu-ray disc player, Bluetooth® soundbar and 24″ HDTV
GALLEY
Laminate countertops • Microwave oven w/touch control • Pantry • 2-burner LP range cooktop w/cover • 5.3 cu. ft. single door 12V refrigerator/freezer • Stainless steel sink w/cover • Adjustable/removable table/counter extension/workstation
BATH
Medicine cabinet • Oxygenics® shower head • Dry/wet bath w/pivoting wall • Robe hook(s) • 24″x30″ Shower w/wall surround • Shower curtain • Molded round sink w/single control faucet • Tissue holder • Swiveling cassette toilet
BEDROOM
Twin beds w/WinnSleep™ System • Flex bed kit • Wardrobe/drawer storage below beds • Metal clothes rod • Room divider curtain • Reading lights • 110V, 12V, USB charging ports
EXTERIOR
Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports and LED lighting • Aluminum cab steps w/logoed tread and loop attachment • Powered patio awning w/LED lighting and Bluetooth® control • Ladder • LED porch light w/interior switch • Mud flaps
Optional Equipment: Pop-top sleeping area w/FROLI® sleep system and 110V/USB charging ports (N/A w/luggage rack or exterior kitchen) • Batwing awning • Luggage rack (N/A w/pop-top) • Exterior kitchen w/chest style 12V refrigerator/freezer, 2-burner LP cooktop, flip-up counter extension, quick-connect faucet, collapsible sink, and LP quick-connect hose (N/A w/pop-top) • Option to remove: Powered patio awning w/LED lighting and Bluetooth control • Option to remove: Exterior graphics
HEATING & COOLING SYSTEM
13,500 BTU air conditioner • Truma® VarioHeat™ comfort
ELECTRICAL SYSTEM
Auxiliary start circuit • Automatic dual-battery charge control • Coach battery disconnect system • Dedicated second alternator to charge coach batteries • Exterior AC duplex receptacle • Exterior TV jack • Cummins Onan® QG 2800i gas generator • 30-amp power cord • (1) 320-amp-hour lithium ion battery w/Bluetooth control package and battery pack heating system • (2) 170-watt and (1) 115-watt solar panel/battery charger • 2,000-watt pure sine wave inverter/80-amp charger
Optional Equipment: Option to remove: Cummins Onan QG 2,800i gas generator • Add (1) additional 320-amp-hour lithium ion battery (Generator delete mandatory with this option)
PLUMBING SYSTEM
Insulated water service center houses water center control panel, hooks, cable tv input, freshwater drain and portable satellite dish hook-up • Truma AquaGo® tankless comfort plus water heater w/recirculation pump • On-demand water pump • Cold water purification system (galley only) • Heated holding tank compartment • 10′ sewer hose • Shower drain pump • LPG accessory connection (patio area)
SAFETY
LPG leak, smoke and carbon monoxide detectors • Fire extinguisher • Ground fault interrupter • Upper and lower child seat tether anchors (dinette seating) • High-mount brake lamps • Fog lamps
WARRANTY
12-month/15,000-limited warranty • 36-month/36,000-mile limited warranty • 10-year limited parts-and-labor warranty on roof skin
*Disclaimer: Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle. In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
