Winnebago Navion Floor Plans

The Winnebago Navion has been one of the most popular and fuel-efficient Class C motorhomes for years. For 2020 the Navion is built on the all-new Mercedes Benz Sprinter VS30 chassis and is loaded with many new features. The 2020 & 2021 Navion is available in 3 unique floor plan options, we are going to take a look at each one to see what option is best for you.

Sprinter VS30 chassis

Every Winnebago Navion floor plan is built on the Mercedes Benz VS30 chassis. It features a fuel-efficient 3.0-liter V6 diesel engine with 188hp and 325 lb-ft of torque, a perfect blend of power and fuel efficiency. Standard features include an array of driver assist systems such as Blind spot assist, Active Lane Keeping Assist, Active Brake Assist, and much more.

All Navion models have an exterior length of 25’6″, exterior width of 7′ 6.25″, and a height of 11′. The interior dimensions consist of a 6′ 8″ interior height and 7′ 3″ interior width. Each model has a slide-out to provide additional living space.

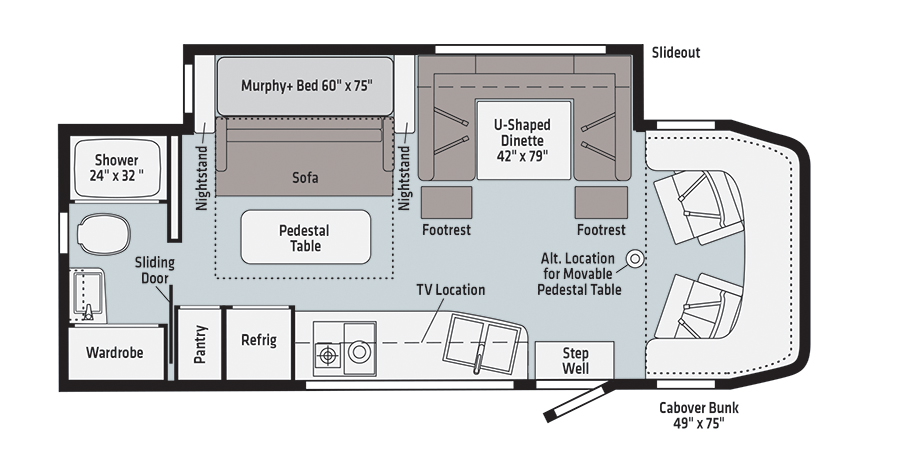

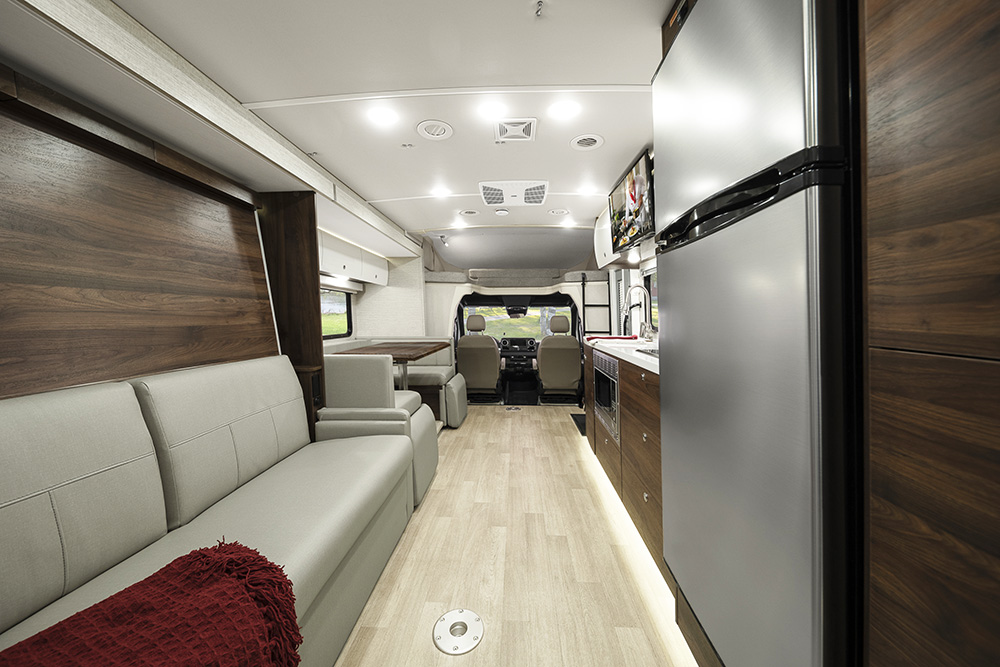

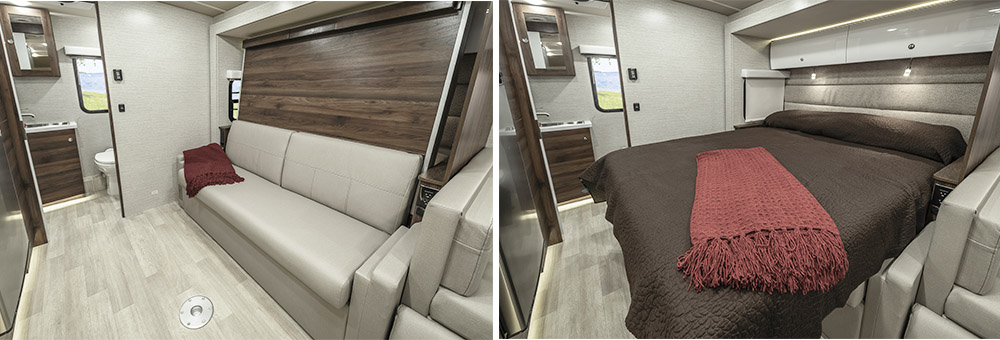

First up is the 24D floorplan, this has the most interior room of all the floor plans and is the only one equipped with a powered Murphy Bed. The 60″ x 75″ Murphy Bed lowers with the push of a button, when not in use the bed folds up and provides access to a sofa. A U-Shaped dinette provides seating for guests and can be converted to provide additional sleeping accommodations. The 24D also has the largest galley and counter space of all floor plans, perfect for those who love to cook.

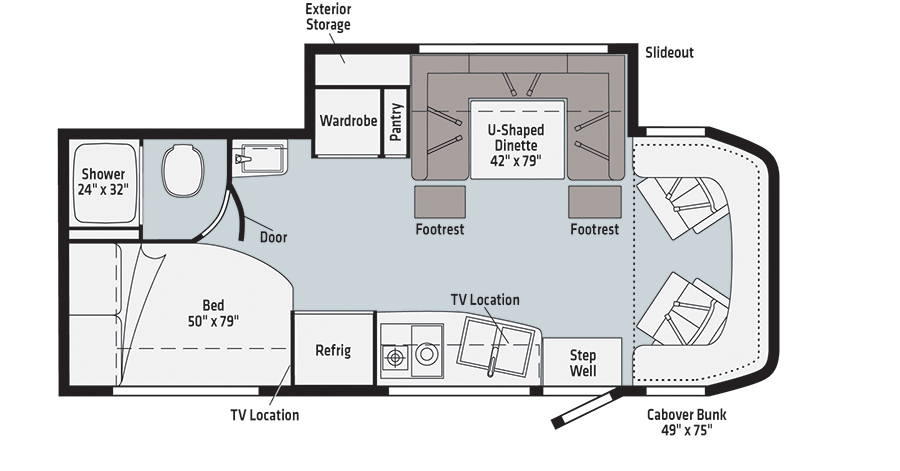

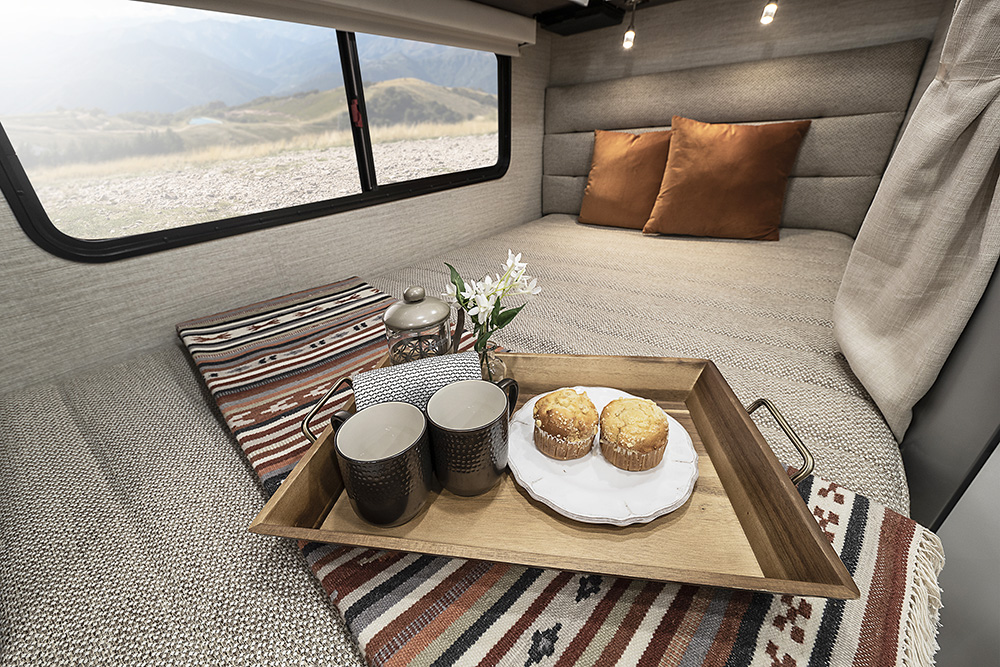

The 24J floor plan features a 50″ x 79″ corner bed in the rear of the coach, convertible U-Shaped Dinette, and Cabover Bunk that provides sleeping accommodations for up to 4 people. Like the other floorplans, the 24J has a black and grey tank capacity of 41 gallons but the freshwater tank is larger with a capacity of 37 gallons.

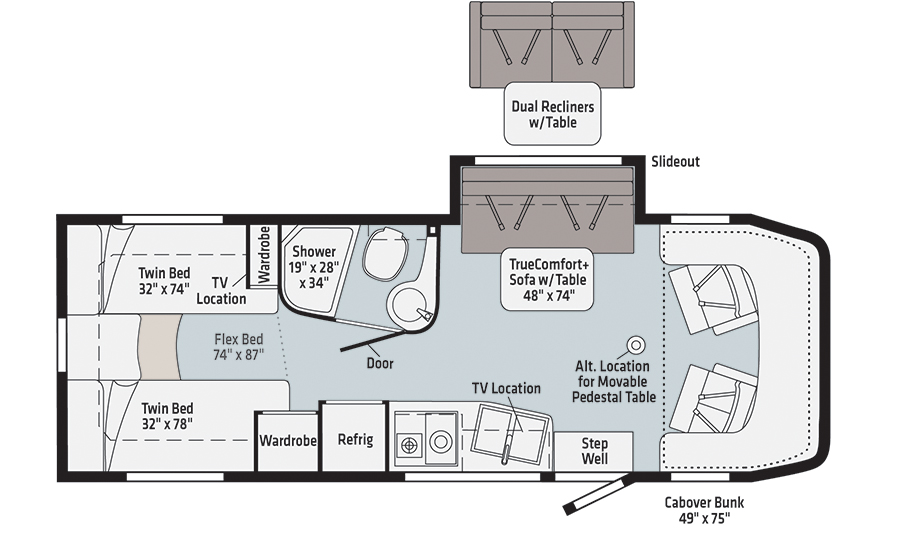

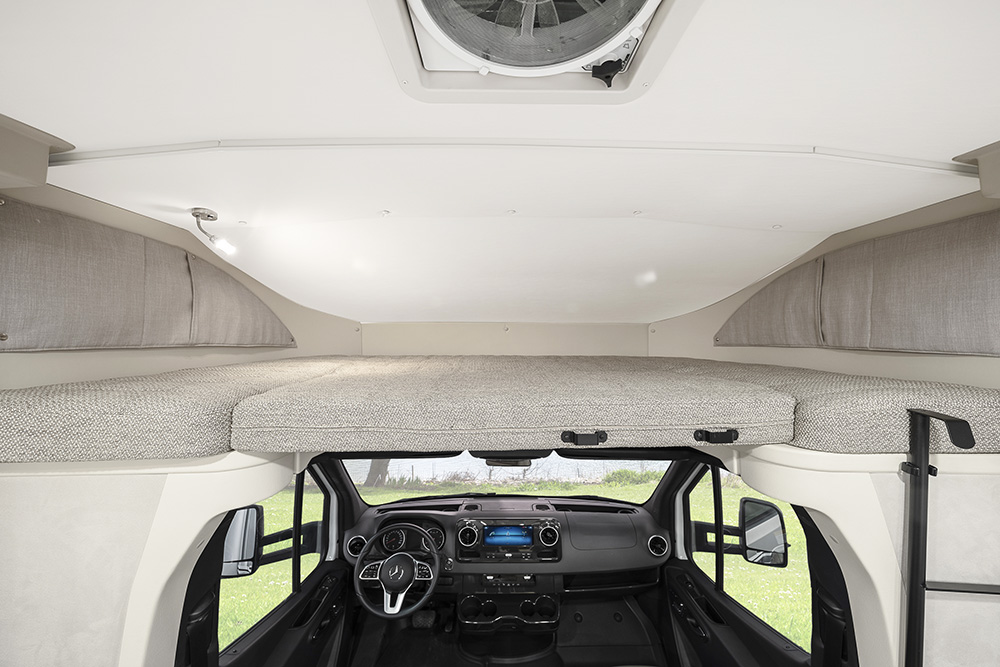

If you prefer twin beds, the 24V is the only floorplan that offers this option. Thanks to Winnebago’s Flex Bed System it can be used as two twin beds or combined to create one larger 74″ x 87″ bed. Dual recliners also convert to a 48″ x 74″ sleeping area, and like the other floor plans the 24V includes a Cabover Bunk. Unlike the 24D and 24J floorplans that have a U-Shaped dinette, the 24V features a TrueComfort sofa with a removable table in its place.

If you have any questions or would like more information about the 2020 Navion, give us a call at 1-800-265-9019. You can also view our Current Inventory to see all of our 2020 models.
