2021 Winnebago Navion

The Winnebago Navion is one of the most popular and fuel-efficient Class C motorhomes Winnebago offers. With luxurious details and features throughout, the Navion’s industry-leading amenities promise an unparalleled Class C experience.

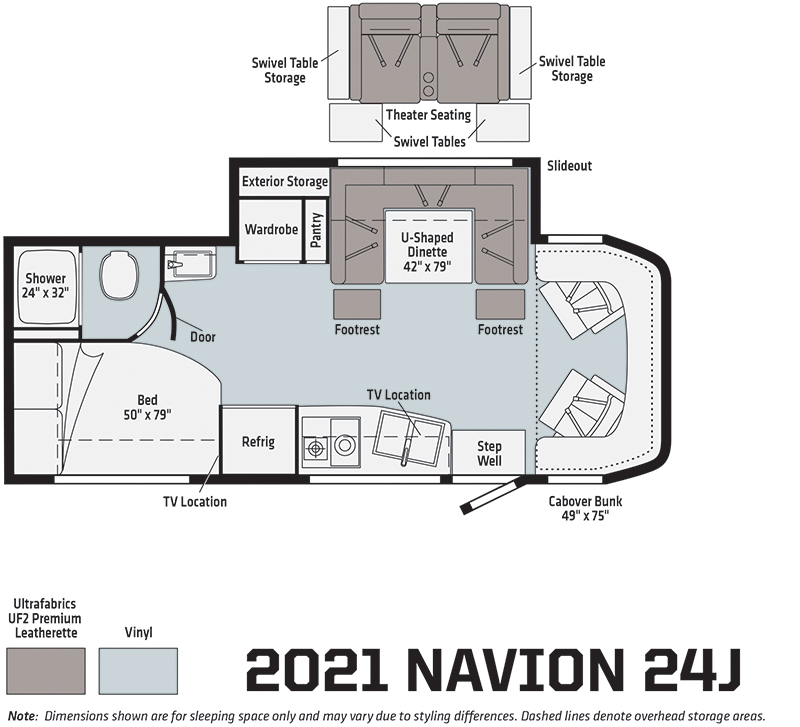

Floor plan options

The 2021 Winnebago Navion is available in 3 different floor plan options, the 24D, 24J, and 24V. Each floor plan option features a driver’s side slide-out that extends to provide a larger living area, a SuperShell™ Sleeper Deck over the cab, and sleeps up to 4 people. The biggest difference between each floor plan is the location of the bed. The 24D features a 60″x 70″ powered Murphy Bed, when you are not using the bed it folds up and you have access to the sofa. The 24J has a 50″x79″ bed in the rear corner of the coach. The 24V is the only floor plan that offers two twin beds, and with Winnebagos Flex Bed System both beds can be combined to make one larger 74″x87″ bed.

Sprinter VS30 chassis

The Winnebago Navion is built on the Mercedes Benz Sprinter VS30 chassis. It features a fuel efficient 3.0-liter V6 diesel engine with 188hp and 325 lb-ft of torque, a perfect blend of power and fuel efficiency. Standard features include an array of driver assist systems such as Blind spot assist, Active Lane Keeping Assist, and Active Brake Assist, and much more.

The Sprinter 3500 chassis has a 170″ wheelbase, 25′ 6″ exterior length, 7′ 6.25″ width, and exterior height of 11′. The interior is very spacious and will accommodate taller individuals comfortably with an interior height of 6′ 8″.

MBUX Infotainment System

The MBUX Infotainment system is unlike what you’ll find in any other brand chassis. The MBUX (Mercedes-Benz User Experience) has many innovative features such as 10.25″ touchscreen, wireless charging, USB connections, Apple CarPlay and Android Auto, GPS navigation, and more. In addition to touching the screen, you can pinch, swipe, and use other motions just like your smartphone.

This new system is similar to what you will find in a Mercedes-Benz car, the MBUX features voice control. Simply say “Hey Mercedes” and you can control a number of functions, ranging from the navigation system, radio, climate control, and more.

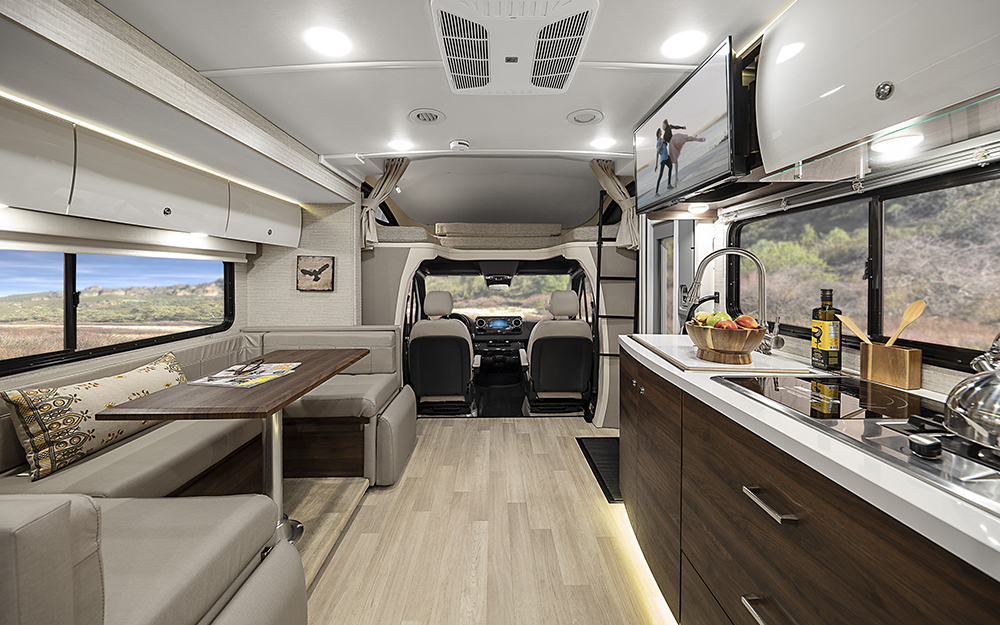

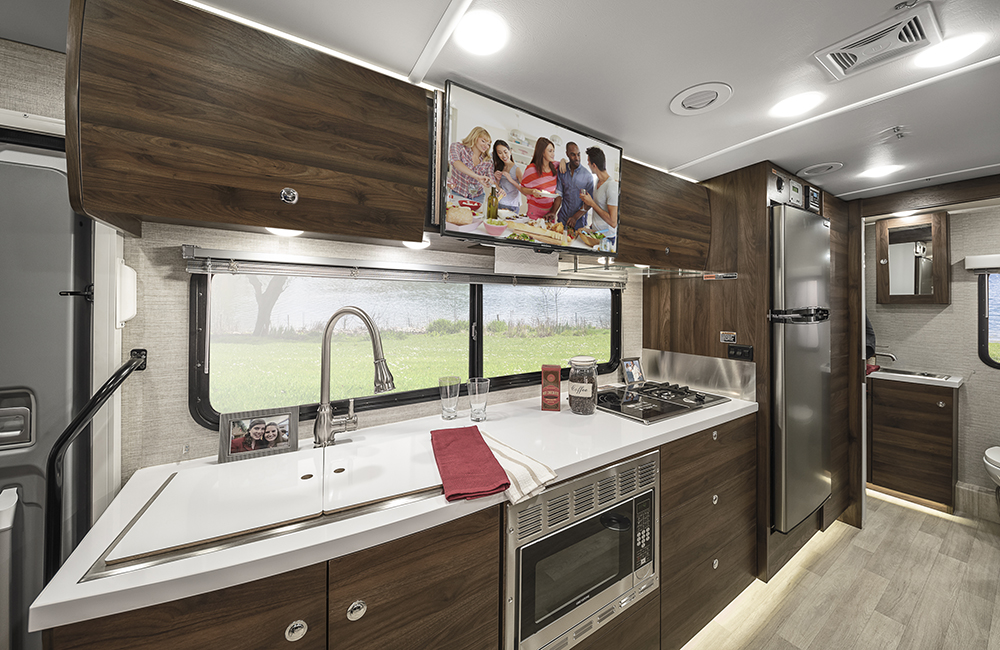

All floor plans come with a spacious galley, with the 24D having the most counter space. The galley has many of the same features you would expect to find at home, such as Double stainless steel sink, Microwave/convection oven, 2-burner induction cooktop, Double-door refrigerator/freezer, and more.

The lounge area in the 24D and 24J floor plans both feature a U-Shaped dinette. The dinette can be converted to a 42″x79″ bed to provide additional sleeping accommodations. The 24V floor plan has a TrueComfort+ sofa and removable in place of the U-Shaped dinette.

The ‘Harmonious’ interior decor collection in the 2021 Navion features grey color Ultraleather seating, Columbian Walnut cabinetry, gloss white laminate countertops, and light colored vinyl flooring throughout. This neutral color interior keeps it light and airy feeling inside and is great for adding your own personal touches.

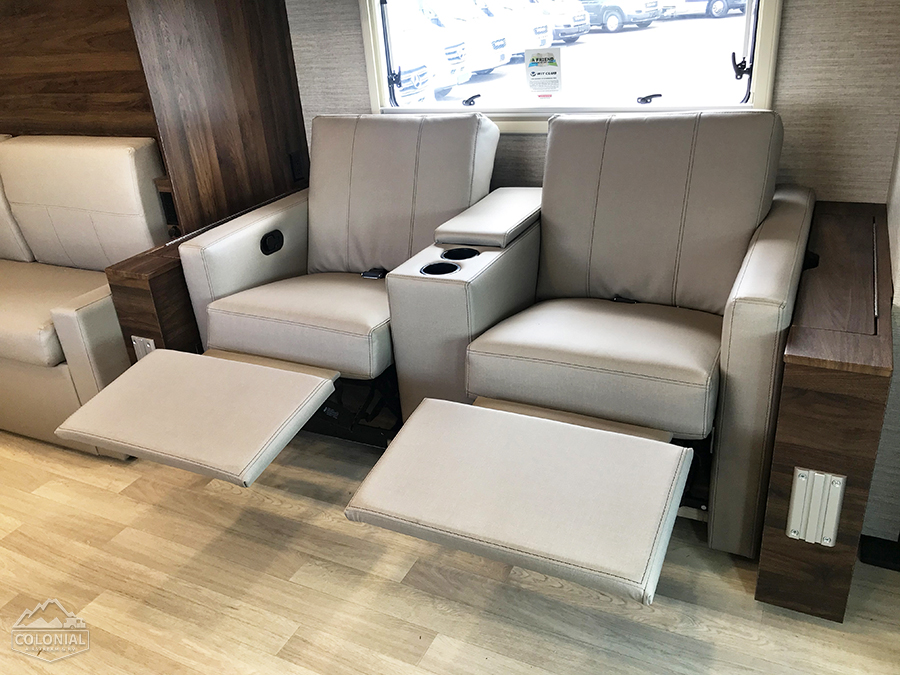

Optional Theater Seating

Looking for more comfort? A Theater Seating option is available on the 24D and 24J floorplans in place of the U-Shaped Dinette. This option features 2 plush Ultrafabrics Premium Leatherette sofas with cup holders and footrests. Each seat has its own removable Lagun table, the unique design of the tables allows them to swivel 360 degrees and adjust up and down. When you are not using the tables they store neatly in a compartment on the sides of each seat.

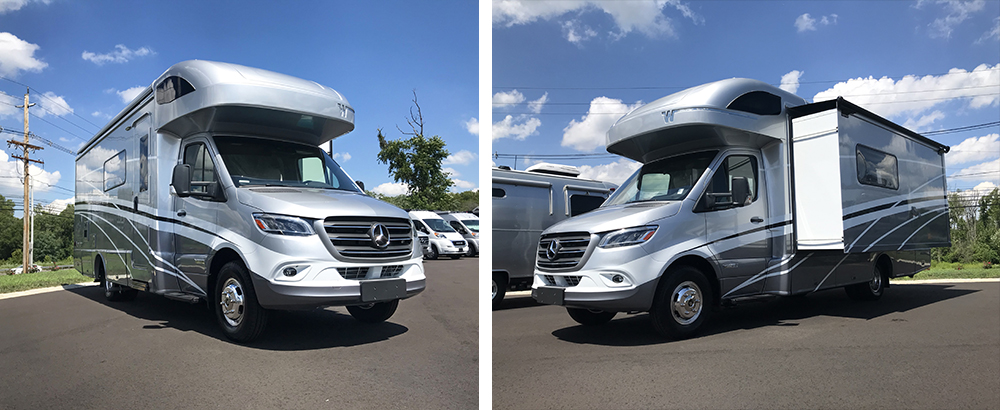

Exterior Color Options

The 2021 Navion is available in 4 different exterior options. All options feature full body paint with graphics.

  • Bay Mist- Metallic silver with dark grey lower and white graphics.
  • Mineral- Light color gold metallic paint with dark lower
  • Tuscan- Black with gold lower and red accents
  • Stellar- Dark grey and white with blue accents


When purchasing a new Winnebago you will have peace of mind knowing your RV will be protected. Every new Winnebago Navion comes with a 12-month/15,000-mile limited warranty, 36-month/36,000-mile limited warranty on structure, and 10-year limited parts-and-labor warranty on roof skin.

Weights & Measures

24D 24J 24V
Length 25’5″ 25’5″ 25’5″
Exterior Height 11′ 11′ 11′
Exterior Width 7’ 6.25″ 7’ 6.25″ 7’ 6.25″
Exterior Storage (cu.ft.) 30.0 30.0 30.0
Awning Length 16′ 16′ 16′
Interior Height 6’ 8″ 6’ 8″ 6’ 8″
Interior Width 7’ 3″ 7’ 3″ 7’ 3″
Freshwater Tank Capacity (gal) 30 30 30
Water Heater Capacity Continuous Continuous Continuous
Holding Tank Capacity – Black (gal.) 41 41 41
Holding Tank Capacity — Gray (gal) 41 41 41
LP Capacity (gal.) 12.2 12.2 12.2
Fuel Capacity (gal.) 24.5 24.5 24.5
GCWR (lbs.) 15,250 15,250 15,250
GVWR (lbs.) 11,030 11,030 11,030
GAWR – Front (lbs.) 4,410 4,410 4,410
GAWR – Rear (lbs.) 7,720 7,720 7,720
Wheelbase 170″ 170″ 170″
Seating Capacity 4 5 4
Sleeping Capacity 4 4 4

If you have any questions or would like more information about the 2021 Winnebago Navion, give us a call at 1-800-265-9019. You can also view our Current Inventory to see all of our Winnebago models.
